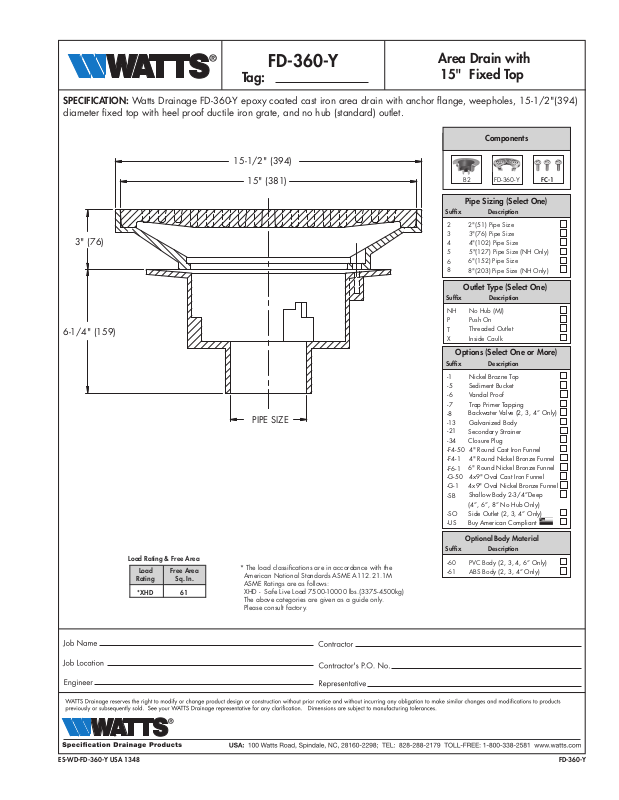

Watts FD-360-Y User Manual

FD-360-Y

Tag:

Area Drain with

15" Fixed Top

SPECIFICATION: Watts Drainage FD-360-Y epoxy coated cast iron area drain with anchor flange, weepholes, 15-1/2"(394)

diameter fixed top with heel proof ductile iron grate, and no hub (standard) outlet.

Components

15-1/2" (394)

3" (76)

6-1/4" (159)

Load Rating & Free Area

Load

Rating

*XHD

Free Area

Sq. In.

61

15" (381)

PIPE SIZE

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
XHD - Safe Live Load 7500-10000 lbs.(3375-4500kg)
The above categories are given as a guide only.
Please consult factory.

B2

FD-360-Y

Pipe Sizing (Select One)

Suffix Description

2

2"(51) Pipe Size
3"(76) Pipe Size

3

4"(102) Pipe Size

4

5"(127) Pipe Size (NH Only)5
6"(152) Pipe Size

6
8

8"(203) Pipe Size (NH Only)

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P
Threaded Outlet

T

Inside CaulkX

Options (Select One or More)

Suffix Description

-1

Nickel Brozne Top

-5

Sediment Bucket
Vandal Proof

-6
Trap Primer Tapping

-7
Backwater Valve (2, 3, 4” Only)

-8
Galvanized Body

-13

-21

Secondary Strainer

-34

Closure Plug

-F4-50

4" Round Cast Iron Funnel
4" Round Nickel Bronze Funnel

-F4-1
6" Round Nickel Bronze Funnel

-F6-1

-G-50 4x9" Oval Cast Iron Funnel
4x9" Oval Nickel Bronze Funnel

-G-1

Shallow Body 2-3/4”Deep

-SB
(4”, 6”, 8” No Hub Only)

-SO

Side Outlet (2, 3, 4” Only)

-US Buy American Compliant

Optional Body Material

Suffix Description

-60

PVC Body

(2, 3, 4, 6” Only)

ABS Body

(2, 3, 4” Only)

-61

FC-1

ES-WD-FD-360-Y USA 1348 FD-360-Y
