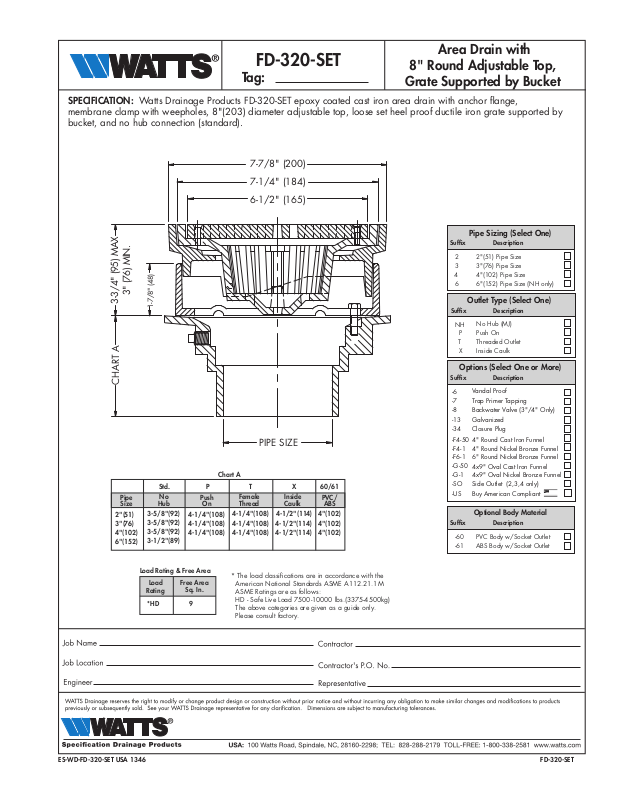

Watts FD-320-SET User Manual

Area Drain with

FD-320-SET

Tag:

SPECIFICATION: Watts Drainage Products FD-320-SET epoxy coated cast iron area drain with anchor ﬂange,

membrane clamp with weepholes, 8"(203) diameter adjustable top, loose set heel proof ductile iron grate supported by bucket, and no hub connection (standard).

7-7/8" (200)

7-1/4" (184)

6-1/2" (165)

3" (76) MIN.

3-3/4" (95) MAX

CHART A

Pipe Size

2"(51) 3"(76) 4"(102) 6"(152)

1-7/8" (48)

Chart A

Std. P T

Hub

3-5/8"(92) 3-5/8"(92) 3-5/8"(92) 3-1/2"(89)

Push

On Thread

4-1/4"(108) 4-1/4"(108) 4-1/4"(108)

PIPE SIZE

Female

4-1/4"(108) 4-1/4"(108) 4-1/4"(108)

Inside Caulk

4-1/2"(114)

4-1/2"(114) 4-1/2"(114)

60/61

PVC/

ABS 4"(102) 4"(102) 4"(102)

8" Round Adjustable Top,

Grate Supported by Bucket

Pipe Sizing (Select One)

Sufﬁx Description

2"(51) Pipe Size

3"(76) Pipe Size 3 4"(102) Pipe Size 4 6"(152) Pipe Size (NH only) 6

Outlet Type (Select One)

Sufﬁx Description

No Hub (MJ)

Push On P Threaded Outlet T Inside Caulk X

Options (Select One or More)

Sufﬁx Description

Vandal Proof

-6 Trap Primer Tapping

-7

-8 Backwater Valve (3"/4" Only) Galvanized

-13

-34

Closure Plug

-F4-50 4" Round Cast Iron Funnel

-F4-1 4" Round Nickel Bronze Funnel

-F6-1 6" Round Nickel Bronze Funnel

-G-50

4x9" Oval Cast Iron Funnel 4x9" Oval Nickel Bronze Funnel

-G-1

-SO Side Outlet

-US Buy American Compliant

Optional Body Material

Sufﬁx Description

(2,3,4 only)

PVC Body w/Socket Outlet-60 ABS Body w/Socket Outlet-61

Load Rating & Free Area

Load

Rating

*HD

ES-WD-FD-320-SET USA 1346 FD-320-SET

Free Area

Sq. In.

* The load classiﬁcations are in accordance with the American National Standards ASME A112.21.1M ASME Ratings are as follows: HD - Safe Live Load 7500-10000 lbs.(3375-4500kg) The above categories are given as a guide only. Please consult factory.
