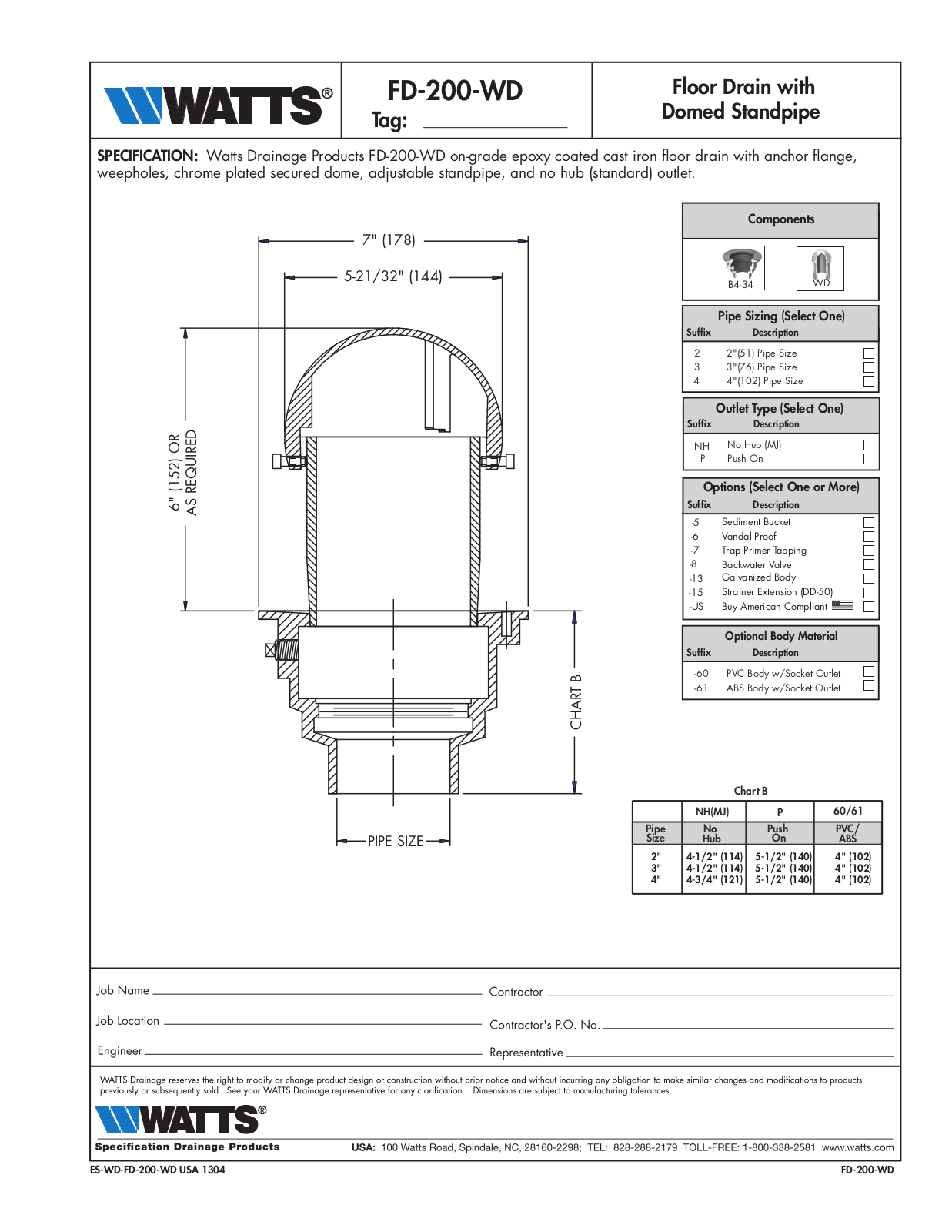

Watts FD-200-WD User Manual

FD-200-WD

Tag:

Floor Drain with

Domed Standpipe

SPECIFICATION: Watts Drainage Products FD-200-WD on-grade epoxy coated cast iron floor drain with anchor flange,

weepholes, chrome plated secured dome, adjustable standpipe, and no hub (standard) outlet.

Components

7" (178)

6" (152) OR

AS REQUIRED

5-21/32" (144)

CHART B

B4-34

WD

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

Options (Select One or More)

Suffix Description

Sediment Bucket

-5

-6

Vandal Proof

-7

Trap Primer Tapping

-8

Backwater Valve
Galvanized Body

-13
Strainer Extension (DD-50)

-15

-US Buy American Compliant

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

Chart B

NH(MJ)

Pipe

PIPE SIZE

ES-WD-FD-200-WD USA 1304 FD-200-WD

Size

2" 4-1/2" (114) 5-1/2" (140) 4" (102)
3" 4-1/2" (114) 5-1/2" (140) 4" (102)
4" 4-3/4" (121) 5-1/2" (140) 4" (102)

No
Hub

P

Push

On

60/61

PVC/

ABS
