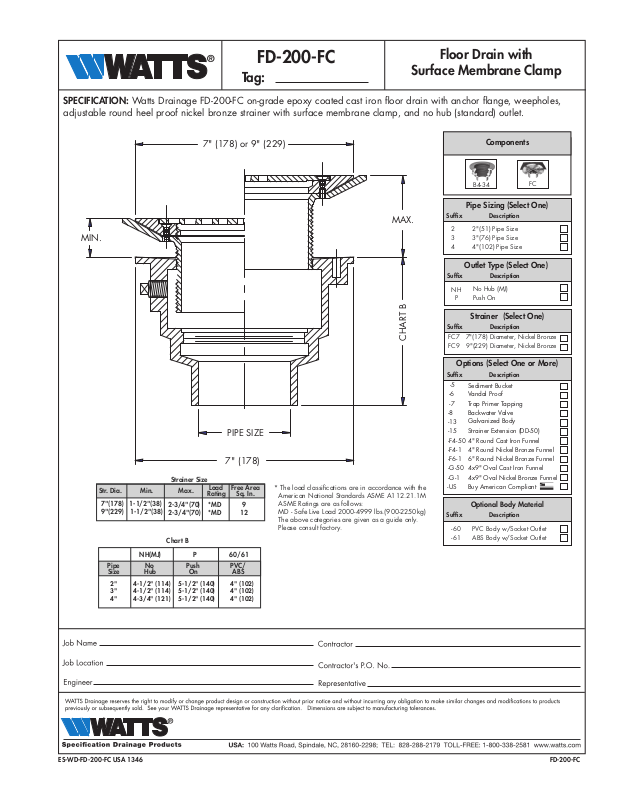

Watts FD-200-FC User Manual

FD-200-FC

Tag:

Floor Drain with

Surface Membrane Clamp

SPECIFICATION: Watts Drainage FD-200-FC on-grade epoxy coated cast iron floor drain with anchor flange, weepholes,

adjustable round heel proof nickel bronze strainer with surface membrane clamp, and no hub (standard) outlet.

MIN.

Strainer Size

Str. Dia. Min.

7"(178)

1-1/2"(38)

9"(229)

1-1/2"(38)

NH(MJ)

Pipe
Size

2" 4-1/2" (114) 5-1/2" (140) 4" (102)
3" 4-1/2" (114) 5-1/2" (140) 4" (102)
4" 4-3/4" (121) 5-1/2" (140) 4" (102)

No
Hub

Max.

2-3/4"(70)
2-3/4"(70)

Chart B

Push

7" (178) or 9" (229)

PIPE SIZE

7" (178)

Free Area

Load

Rating

Sq. In.

*MD
*MD

P

On

9

12

60/61

PVC/

ABS

MAX.

CHART B

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
MD - Safe Live Load 2000-4999 lbs.(900-2250kg)
The above categories are given as a guide only.
Please consult factory.

Components

B4-34

FC

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

Strainer (Select One)

Suffix Description

7"(178) Diameter, Nickel Bronze FC7
9"(229) Diameter, Nickel Bronze FC9

Options (Select One or More)

Suffix Description

-5

Sediment Bucket
Vandal Proof

-6

-7

Trap Primer Tapping

-8 Backwater Valve
Galvanized Body

-13
Strainer Extension (DD-50)

-15
4" Round Cast Iron Funnel

-F4-50

-F4-1 4" Round Nickel Bronze Funnel

-F6-1 6" Round Nickel Bronze Funnel

-G-50 4x9" Oval Cast Iron Funnel

-G-1 4x9" Oval Nickel Bronze Funnel

-US Buy American Compliant

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-200-FC USA 1346 FD-200-FC
