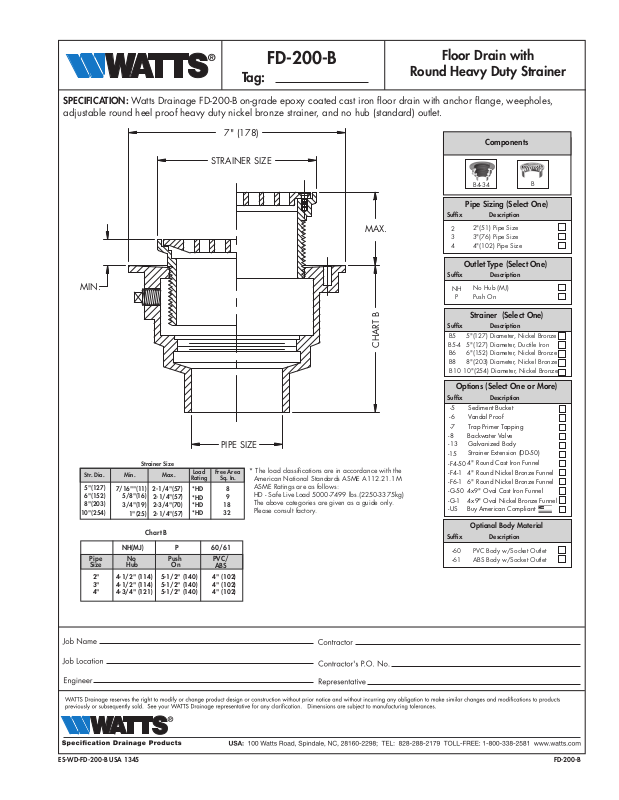

Watts FD-200-B User Manual

FD-200-B

Tag:

Round Heavy Duty Strainer

Floor Drain with

SPECIFICATION: Watts Drainage FD-200-B on-grade epoxy coated cast iron floor drain with anchor flange, weepholes,

adjustable round heel proof heavy duty nickel bronze strainer, and no hub (standard) outlet.

MIN.

Strainer Size

2-1/4"(57)
2-1/4"(57)
2-3/4"(70)

Chart B

Max.

Str. Dia. Min.

5"(127)
6"(152)
8"(203)

10"(254)

7/16""(11)

5/8"(16)
3/4"(19)

1"(25) 2-1/4"(57)

NH(MJ)

Pipe
Size

2" 4-1/2" (114) 5-1/2" (140) 4" (102)
3" 4-1/2" (114) 5-1/2" (140) 4" (102)
4" 4-3/4" (121) 5-1/2" (140) 4" (102)

No
Hub

P

Push

On

Load

Rating

*HD
*HD

*HD

7" (178)

STRAINER SIZE

PIPE SIZE

Free Area

60/61

PVC/

ABS

* The load classifications are in accordance with the

Sq. In.

American National Standards ASME A112.21.1M
ASME Ratings are as follows:

8

HD - Safe Live Load 5000-7499 lbs.(2250-3375kg)

9

The above categories are given as a guide only.

18

Please consult factory.

32 *HD

MAX.

CHART B

Components

B4-34

B

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

Strainer (Select One)

Suffix Description

5"(127) Diameter, Nickel Bronze B5

5"(127) Diameter, Ductile Iron B5-4
6"(152) Diameter, Nickel Bronze B6
8"(203) Diameter, Nickel Bronze B8

10"(254) Diameter, Nickel Bronze B10

Options (Select One or More)

Suffix Description

-5

Sediment Bucket
Vandal Proof

-6

-7

Trap Primer Tapping

-8 Backwater Valve
Galvanized Body

-13

Strainer Extension (DD-50)

-15

4" Round Cast Iron Funnel

-F4-50

-F4-1 4" Round Nickel Bronze Funnel

-F6-1 6" Round Nickel Bronze Funnel

-G-50 4x9" Oval Cast Iron Funnel

-G-1 4x9" Oval Nickel Bronze Funnel

-US Buy American Compliant

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-200-B USA 1345 FD-200-B
