Watts FD15-SQ User Manual

Tag:

ES-WDPL-FD15-SQ 0436 FD15-SQ

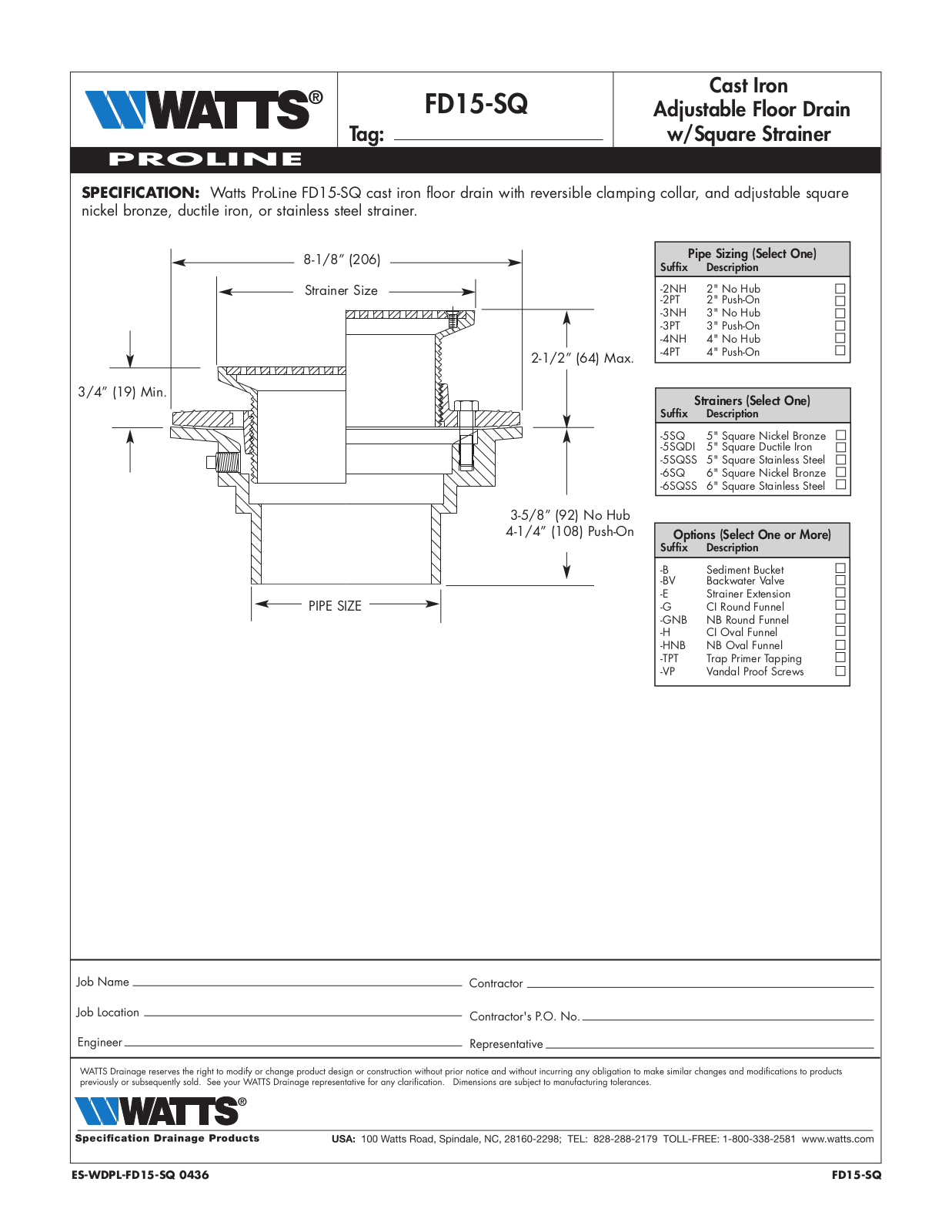

SPECIFICATION: Watts ProLine FD15-SQ cast iron floor drain with reversible clamping collar, and adjustable square

nickel bronze, ductile iron, or stainless steel strainer.

FD15-SQ

Cast Iron

Adjustable Floor Drain

w/Square Strainer

PROLINE

PIPE SIZE

8-1/8” (206)

3-5/8” (92) No Hub

4-1/4” (108) Push-On

2-1/2” (64) Max.

3/4” (19) Min.

Pipe Sizing (Select One)

Suffix Description

-2NH 2" No Hub

-2PT 2" Push-On

-3NH 3" No Hub

-3PT 3" Push-On

-4NH 4" No Hub

-4PT 4" Push-On

Strainers (Select One)

Suffix Description

-5SQ 5" Square Nickel Bronze

-5SQDI 5" Square Ductile Iron

-5SQSS 5" Square Stainless Steel

-6SQ 6" Square Nickel Bronze

-6SQSS 6" Square Stainless Steel

Options (Select One or More)

Suffix Description

-B Sediment Bucket

-BV Backwater Valve

-E Strainer Extension

-G CI Round Funnel

-GNB NB Round Funnel

-H CI Oval Funnel

-HNB NB Oval Funnel

-TPT Trap Primer Tapping

-VP Vandal Proof Screws

Strainer Size
