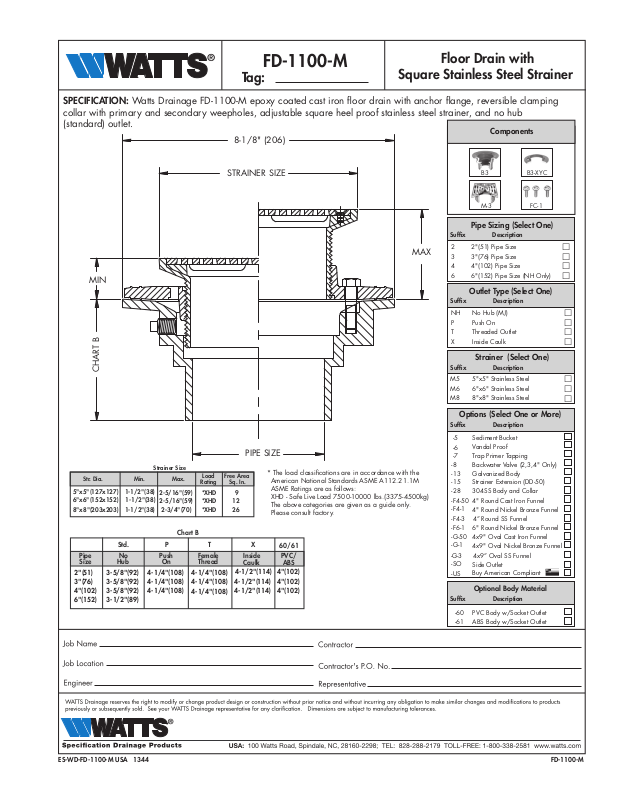

Watts FD-1100-M User Manual
FD-1100-M
Tag:
Square Stainless Steel Strainer
Floor Drain with
SPECIFICATION: Watts Drainage FD-1100-M epoxy coated cast iron floor drain with anchor flange, reversible clamping
collar with primary and secondary weepholes, adjustable square heel proof stainless steel strainer, and no hub
(standard) outlet.
8-1/8" (206)
Components
MIN
CHART B
Str. Dia. Min.
5"x5"(127x127)
6"x6"(152x152)
8"x8"(203x203)
Std. P T
Pipe
Size
2"(51)
3"(76)
4"(102)
6"(152)
Hub
3-5/8"(92)
3-5/8"(92)
3-5/8"(92)
3-1/2"(89)
1-1/2"(38)
1-1/2"(38)
1-1/2"(38)
No
Strainer Size
Max.
2-5/16"(59)
2-5/16"(59)
2-3/4"(70)
Chart B
Push
On Thread
4-1/4"(108)
4-1/4"(108)
4-1/4"(108)
Load
Rating
*XHD
*XHD
*XHD
Female
4-1/4"(108)
4-1/4"(108)
4-1/4"(108)
STRAINER SIZE
PIPE SIZE
Free Area
Sq. In.
9
12
26
4-1/2"(114)
4-1/2"(114)
4-1/2"(114)
* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
XHD - Safe Live Load 7500-10000 lbs.(3375-4500kg)
The above categories are given as a guide only.
Please consult factory.
X
Inside
Caulk
60/61
PVC/
ABS
4"(102)
4"(102)
4"(102)
MAX
B3
M-3
B3-XYC
FC-1
Pipe Sizing (Select One)
Suffix Description
2 2"(51) Pipe Size
3 3"(76) Pipe Size
4 4"(102) Pipe Size
6 6"(152) Pipe Size (NH Only)
Outlet Type (Select One)
Suffix Description
NH No Hub (MJ)
P Push On
T Threaded Outlet
X Inside Caulk
Strainer (Select One)
Suffix Description
M5 5"x5" Stainless Steel
M6 6"x6" Stainless Steel
M8 8"x8" Stainless Steel
Options (Select One or More)
Suffix Description
-5 Sediment Bucket
Vandal Proof
-6
Trap Primer Tapping
-7
-8 Backwater Valve (2,3,4" Only)
-13 Galvanized Body
-15 Strainer Extension (DD-50)
-28 304SS Body and Collar
4" Round Cast Iron Funnel
-F4-50
-F4-1
4" Round Nickel Bronze Funnel
-F4-3
4” Round SS Funnel
-F6-1
6" Round Nickel Bronze Funnel
-G-50
4x9" Oval Cast Iron Funnel
-G-1
4x9" Oval Nickel Bronze Funnel
4x9” Oval SS Funnel
-G-3
-SO
Side Outlet
Buy American Compliant
-US
Optional Body Material
Suffix Description
PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61
ES-WD-FD-1100-M USA 1344 FD-1100-M
