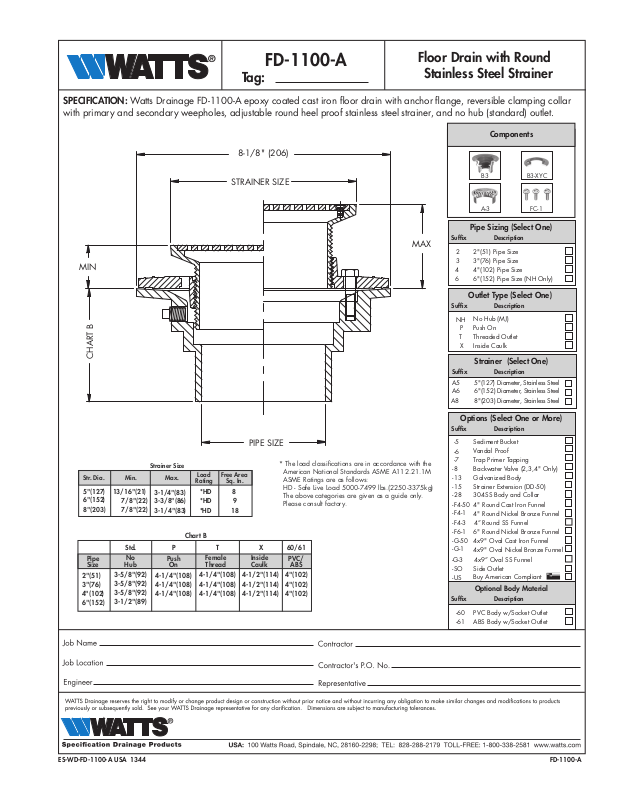

Watts FD-1100-A User Manual

FD-1100-A

Tag:

Floor Drain with Round

Stainless Steel Strainer

SPECIFICATION: Watts Drainage FD-1100-A epoxy coated cast iron floor drain with anchor flange, reversible clamping collar

with primary and secondary weepholes, adjustable round heel proof stainless steel strainer, and no hub (standard) outlet.

Components

8-1/8" (206)

MIN

CHART B

Str. Dia. Min.

5"(127)

13/16"(21)

6"(152)
8"(203)

Pipe
Size

2"(51)
3"(76)
4"(102)
6"(152)

7/8"(22)
7/8"(22)

3-5/8"(92)
3-5/8"(92)
3-5/8"(92)
3-1/2"(89)

Strainer Size

Max.

3-1/4"(83)
3-3/8"(86)
3-1/4"(83)

Std. P T

No

Hub

Push

4-1/4"(108)
4-1/4"(108)
4-1/4"(108)

Load

Rating

*HD
*HD
*HD

Chart B

On Thread

Female

4-1/4"(108)
4-1/4"(108)
4-1/4"(108)

STRAINER SIZE

PIPE SIZE

Free Area

Sq. In.

8
9

18

X

Inside
Caulk

4-1/2"(114)

4-1/2"(114)
4-1/2"(114)

MAX

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
HD - Safe Live Load 5000-7499 lbs.(2250-3375kg)
The above categories are given as a guide only.
Please consult factory.

60/61

PVC/

ABS
4"(102)
4"(102)
4"(102)

B3

A-3

B3-XYC

FC-1

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4
6"(152) Pipe Size (NH Only) 6

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P
Threaded Outlet T
Inside Caulk X

Strainer (Select One)

Suffix Description

5"(127) Diameter, Stainless Steel A5
6"(152) Diameter, Stainless Steel A6

A8 8"(203) Diameter, Stainless Steel

Options (Select One or More)

Suffix Description

-5 Sediment Bucket
Vandal Proof

-6
Trap Primer Tapping

-7

-8 Backwater Valve (2,3,4" Only)

-13 Galvanized Body

-15 Strainer Extension (DD-50)

-28 304SS Body and Collar
4" Round Cast Iron Funnel

-F4-50

-F4-1

4" Round Nickel Bronze Funnel

-F4-3

4” Round SS Funnel

-F6-1

6" Round Nickel Bronze Funnel

-G-50

4x9" Oval Cast Iron Funnel

-G-1

4x9" Oval Nickel Bronze Funnel

4x9” Oval SS Funnel

-G-3

-SO

Side Outlet
Buy American Compliant

-US

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-1100-A USA 1344 FD-1100-A
