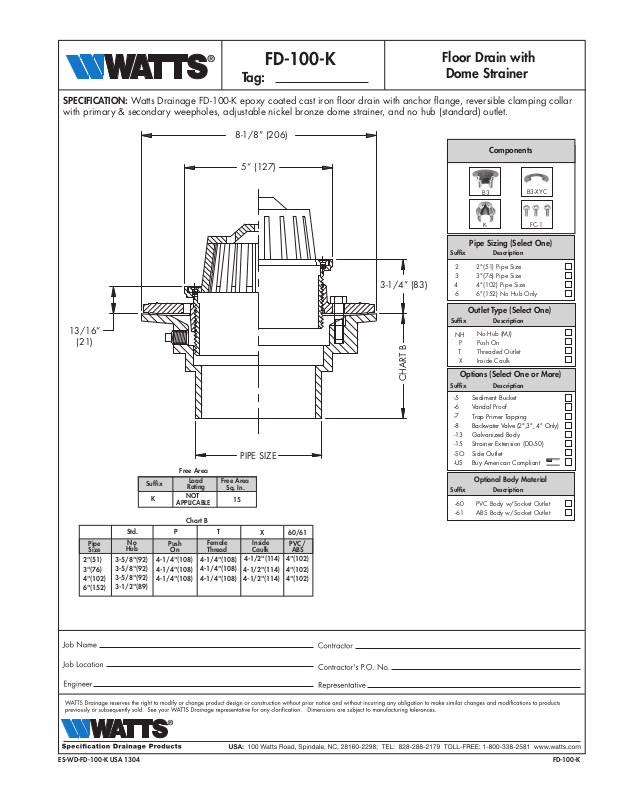

Watts FD-100-K User Manual

FD-100-K

Tag:

Floor Drain with

Dome Strainer

SPECIFICATION: Watts Drainage FD-100-K epoxy coated cast iron floor drain with anchor flange, reversible clamping collar

with primary & secondary weepholes, adjustable nickel bronze dome strainer, and no hub (standard) outlet.

8-1/8” (206)

Components

5“ (127)

13/16”

(21)

Pipe
Size

2"(51)
3"(76)
4"(102)
6"(152)

Free Area

Suffix

K

Std. P T

No

Hub

3-5/8"(92)
3-5/8"(92)
3-5/8"(92)
3-1/2"(89)

4-1/4"(108)
4-1/4"(108)
4-1/4"(108)

Load

Rating

NOT

APPLICABLE

Chart B

Push

On Thread

Free Area

Sq. In.

Female

4-1/4"(108)
4-1/4"(108)
4-1/4"(108)

PIPE SIZE

15

Inside
Caulk

4-1/2"(114)

4-1/2"(114)
4-1/2"(114)

B3

K

B3-XYC

FC-1

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3

3-1/4” (83)

4"(102) Pipe Size 4
6"(152) No Hub Only 6

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P
Threaded Outlet T
Inside Caulk X

CHART B

X

60/61

PVC/

ABS
4"(102)
4"(102)
4"(102)

Options (Select One or More)

Suffix Description

-5 Sediment Bucket

-6

Vandal Proof

-7

Trap Primer Tapping

-8

Backwater Valve (2",3", 4" Only)

-13

Galvanized Body

-15

Strainer Extension (DD-50)

-SO

Side Outlet

-US Buy American Compliant

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-100-K USA 1304 FD-100-K
