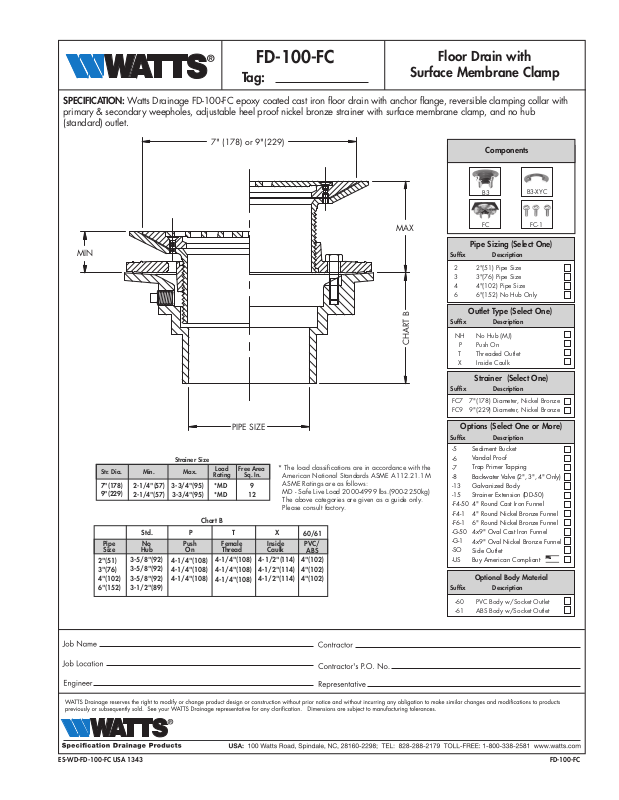

Watts FD-100-FC User Manual
FD-100-FC
Tag:
Floor Drain with
Surface Membrane Clamp
SPECIFICATION: Watts Drainage FD-100-FC epoxy coated cast iron floor drain with anchor flange, reversible clamping collar with
primary & secondary weepholes, adjustable heel proof nickel bronze strainer with surface membrane clamp, and no hub
(standard) outlet.
MIN
2"(51)
3"(76)
4"(102)
6"(152)
Str. Dia. Min.
7"(178)
9"(229)
Pipe
Size
2-1/4"(57)
2-1/4"(57)
Std. P T
No
Hub
3-5/8"(92)
3-5/8"(92)
3-5/8"(92)
3-1/2"(89)
Strainer Size
Max.
3-3/4"(95)
3-3/4"(95)
Chart B
Push
On Thread
4-1/4"(108)
4-1/4"(108)
4-1/4"(108)
7" (178) or 9"(229)
PIPE SIZE
Free Area
Load
Rating
Sq. In.
*MD
*MD
Female
4-1/4"(108)
4-1/4"(108)
4-1/4"(108)
9
12
Inside
Caulk
4-1/2"(114)
4-1/2"(114)
4-1/2"(114)
X
MAX
CHART B
* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
MD - Safe Live Load 2000-4999 lbs.(900-2250kg)
The above categories are given as a guide only.
Please consult factory.
60/61
PVC/
ABS
4"(102)
4"(102)
4"(102)
Components
B3
FC
B3-XYC
FC-1
Pipe Sizing (Select One)
Suffix Description
2"(51) Pipe Size
2
3"(76) Pipe Size 3
4"(102) Pipe Size 4
6"(152) No Hub Only 6
Outlet Type (Select One)
Suffix Description
No Hub (MJ)
NH
Push On P
Threaded Outlet T
Inside Caulk X
Strainer (Select One)
Suffix Description
7"(178) Diameter, Nickel BronzeFC7
9"(229) Diameter, Nickel BronzeFC9
Options (Select One or More)
Suffix Description
Sediment Bucket
-5
Vandal Proof
-6
Trap Primer Tapping
-7
Backwater Valve (2", 3", 4" Only)
-8
Galvanized Body
-13
Strainer Extension (DD-50)
-15
-F4-50
4" Round Cast Iron Funnel
-F4-1
4" Round Nickel Bronze Funnel
-F6-1
6" Round Nickel Bronze Funnel
-G-50
4x9" Oval Cast Iron Funnel
-G-1
4x9" Oval Nickel Bronze Funnel
-SO
Side Outlet
-US Buy American Compliant
Optional Body Material
Suffix Description
PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61
ES-WD-FD-100-FC USA 1343 FD-100-FC
