Watts FD-100-DD User Manual

FD-100-DD

Tag:

Floor Drain with

Hub Funnel

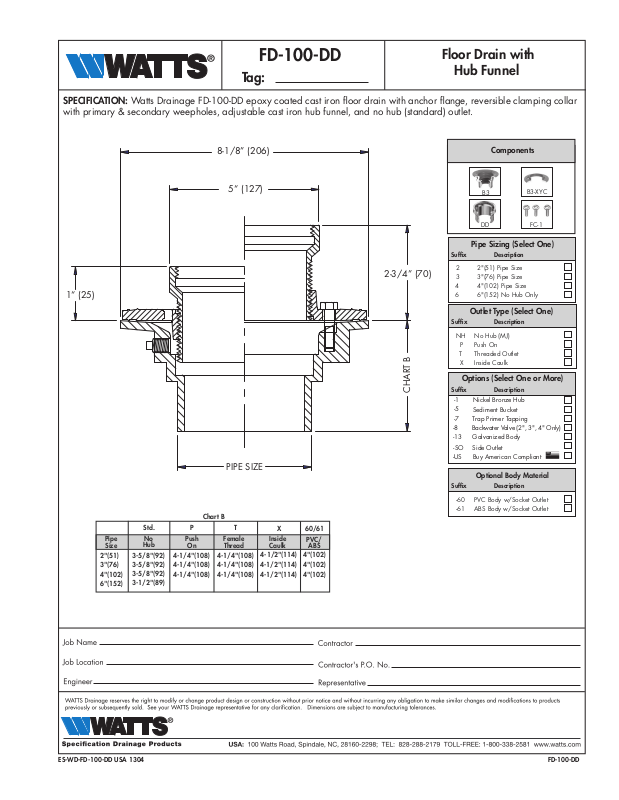

SPECIFICATION: Watts Drainage FD-100-DD epoxy coated cast iron ﬂoor drain with anchor ﬂange, reversible clamping collar

with primary & secondary weepholes, adjustable cast iron hub funnel, and no hub (standard) outlet.

1“ (25)

Pipe Size

2"(51) 3"(76) 4"(102) 6"(152)

Chart B

Std. P T

Hub

3-5/8"(92) 3-5/8"(92) 3-5/8"(92) 3-1/2"(89)

Push

On Thread

4-1/4"(108) 4-1/4"(108) 4-1/4"(108)

8-1/8” (206)

5“ (127)

PIPE SIZE

Female

4-1/4"(108) 4-1/4"(108) 4-1/4"(108)

4-1/2"(114)

4-1/2"(114) 4-1/2"(114)

Inside Caulk

60/61

PVC/

ABS 4"(102) 4"(102) 4"(102)

2-3/4” (70)

CHART B

Components

B3-XYC

FC-1

Pipe Sizing (Select One)

Sufﬁx Description

2"(51) Pipe Size

3"(76) Pipe Size 3 4"(102) Pipe Size 4 6"(152) No Hub Only 6

Outlet Type (Select One)

Sufﬁx Description

No Hub (MJ)

Push On P Threaded Outlet T Inside Caulk X

Options (Select One or More)

Sufﬁx Description

-1

Nickel Bronze Hub

-5

Sediment Bucket

-7

Trap Primer Tapping

-8 Backwater Valve (2", 3", 4" Only) Galvanized Body

-13

-SO Side Outlet

-US Buy American Compliant

Optional Body Material

Sufﬁx Description

PVC Body w/Socket Outlet-60 ABS Body w/Socket Outlet-61

ES-WD-FD-100-DD USA 1304 FD-100-DD
