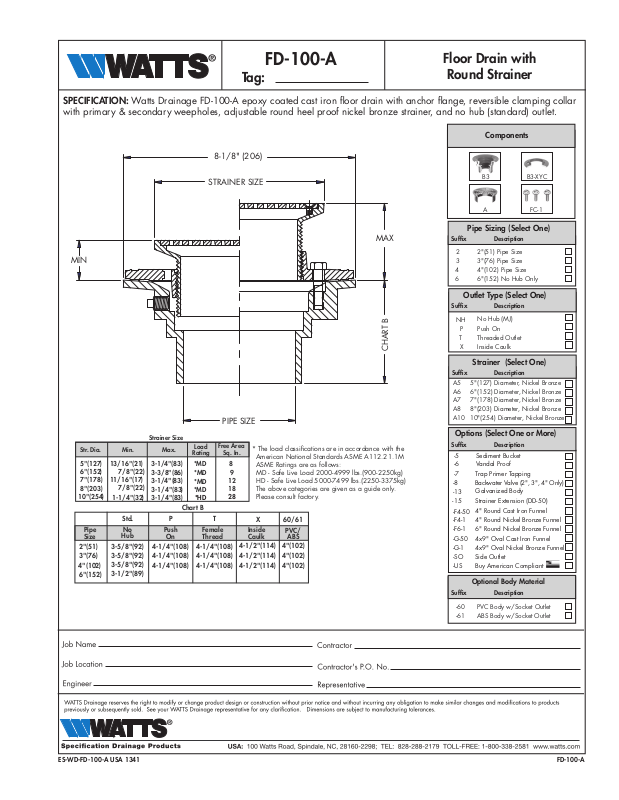

Watts FD-100-A User Manual

FD-100-A

Tag:

Floor Drain with

Round Strainer

SPECIFICATION: Watts Drainage FD-100-A epoxy coated cast iron floor drain with anchor flange, reversible clamping collar

with primary & secondary weepholes, adjustable round heel proof nickel bronze strainer, and no hub (standard) outlet.

Components

8-1/8" (206)

MIN

Str. Dia. Min.

5"(127)
6"(152)
7"(178)
8"(203)

10"(254)

Pipe
Size

2"(51)
3"(76)
4"(102)
6"(152)

Strainer Size

Max.

13/16"(21)

7/8"(22)

11/16"(17)

7/8"(22)

1-1/4"(32) 3-1/4"(83)

3-5/8"(92)
3-5/8"(92)
3-5/8"(92)
3-1/2"(89)

3-1/4"(83)
3-3/8"(86)
3-1/4"(83)
3-1/4"(83)

Chart B

Std. P T

No

Hub

Push

On Thread

4-1/4"(108)
4-1/4"(108)
4-1/4"(108)

STRAINER SIZE

PIPE SIZE

Free Area

Load

Rating

*MD
*MD
*MD

*MD

*HD

Female

4-1/4"(108)
4-1/4"(108)
4-1/4"(108)

Sq. In.

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M

8

ASME Ratings are as follows:

9

MD - Safe Live Load 2000-4999 lbs.(900-2250kg)

12

HD - Safe Live Load 5000-7499 lbs.(2250-3375kg)
The above categories are given as a guide only.

18

Please consult factory.

28

X

Inside
Caulk

4-1/2"(114)

4-1/2"(114)
4-1/2"(114)

60/61

PVC/

ABS
4"(102)
4"(102)
4"(102)

MAX

CHART B

B3

A FC-1

B3-XYC

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4
6"(152) No Hub Only 6

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P
Threaded Outlet T
Inside Caulk X

Strainer (Select One)

Suffix Description

5"(127) Diameter, Nickel Bronze A5
6"(152) Diameter, Nickel Bronze A6
7"(178) Diameter, Nickel Bronze A7
8"(203) Diameter, Nickel Bronze

A8

10"(254) Diameter, Nickel Bronze

A10

Options (Select One or More)

Suffix Description

-5

Sediment Bucket
Vandal Proof

-6

-7

Trap Primer Tapping

-8 Backwater Valve (2", 3", 4" Only)
Galvanized Body

-13

Strainer Extension (DD-50)

-15

4" Round Cast Iron Funnel

-F4-50

-F4-1 4" Round Nickel Bronze Funnel

-F6-1 6" Round Nickel Bronze Funnel

-G-50 4x9" Oval Cast Iron Funnel

-G-1 4x9" Oval Nickel Bronze Funnel

-SO Side Outlet

-US Buy American Compliant

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-100-A USA 1341 FD-100-A
