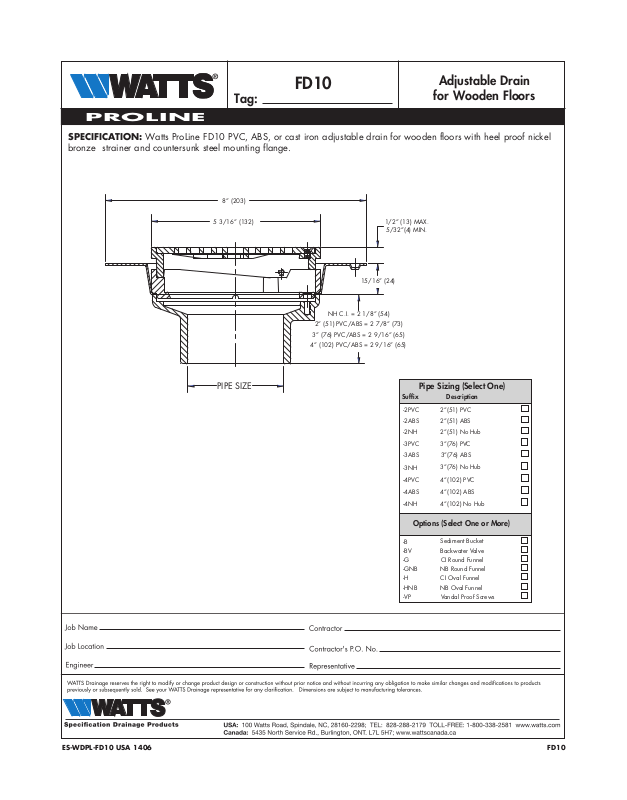

Watts FD10 User Manual

FD10

Tag:

Adjustable Drain

for Wooden Floors

PROLINE

SPECIFICATION: Watts ProLine FD10 PVC, ABS, or cast iron adjustable drain for wooden floors with heel proof nickel

bronze strainer and countersunk steel mounting flange.

8” (203)

5 3/16” (132)

PIPE SIZE

1/2” (13) MAX.

5/32”(4) MIN.

15/16” (24)

NH C.I. = 2 1/8” (54)

2” (51) PVC/ABS = 2 7/8” (73)

3” (76) PVC/ABS = 2 9/16” (65)

4” (102) PVC/ABS = 2 9/16” (65)

Pipe Sizing (Select One)

Sufﬁx Description

-2PVC

-2ABS

-2NH

-3PVC

-3ABS

-3NH

-4PVC

-4ABS

-4NH

2”(51) PVC

2”(51) ABS

2”(51) No Hub

3”(76) PVC

3”(76) ABS

3”(76) No Hub

4”(102) PVC

4”(102) ABS

4”(102) No Hub

Options (Select One or More)

-B

-BV

-G

-GNB

-H

-HNB

-VP

ES-WDPL-FD10 USA 1406 FD10

Sediment Bucket Backwater Valve

CI Round Funnel NB Round Funnel CI Oval Funnel NB Oval Funnel Vandal Proof Screws
