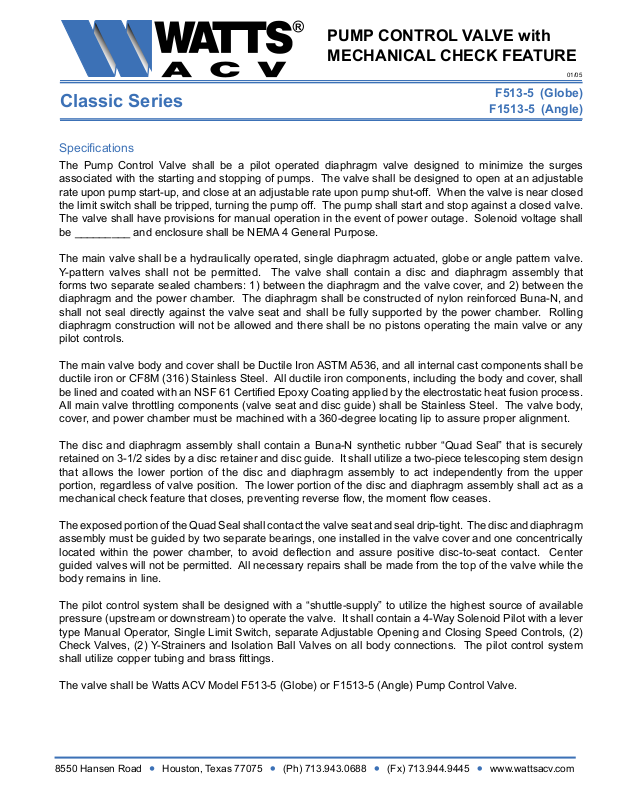

PUMP CONTROL VALVE with
MECHANICAL CHECK FEATURE

01/05

F513-5 (Globe)

Classic Series

Specifications

The Pump Control Valve shall be a pilot operated diaphragm valve designed to minimize the surges
associated with the starting and stopping of pumps. The valve shall be designed to open at an adjustable
rate upon pump start-up, and close at an adjustable rate upon pump shut-off. When the valve is near closed
the limit switch shall be tripped, turning the pump off. The pump shall start and stop against a closed valve.
The valve shall have provisions for manual operation in the event of power outage. Solenoid voltage shall
be _________ and enclosure shall be NEMA 4 General Purpose.

The main valve shall be a hydraulically operated, single diaphragm actuated, globe or angle pattern valve.
Y-pattern valves shall not be permitted. The valve shall contain a disc and diaphragm assembly that
forms two separate sealed chambers: 1) between the diaphragm and the valve cover, and 2) between the
diaphragm and the power chamber. The diaphragm shall be constructed of nylon reinforced Buna-N, and
shall not seal directly against the valve seat and shall be fully supported by the power chamber. Rolling
diaphragm construction will not be allowed and there shall be no pistons operating the main valve or any
pilot controls.

F1513-5 (Angle)

The main valve body and cover shall be Ductile Iron ASTM A536, and all internal cast components shall be
ductile iron or CF8M (316) Stainless Steel. All ductile iron components, including the body and cover, shall
be lined and coated with an NSF 61 Certified Epoxy Coating applied by the electrostatic heat fusion process.
All main valve throttling components (valve seat and disc guide) shall be Stainless Steel. The valve body,
cover, and power chamber must be machined with a 360-degree locating lip to assure proper alignment.

The disc and diaphragm assembly shall contain a Buna-N synthetic rubber “Quad Seal” that is securely
retained on 3-1/2 sides by a disc retainer and disc guide. It shall utilize a two-piece telescoping stem design
that allows the lower portion of the disc and diaphragm assembly to act independently from the upper
portion, regardless of valve position. The lower portion of the disc and diaphragm assembly shall act as a
mechanical check feature that closes, preventing reverse flow, the moment flow ceases.

The exposed portion of the Quad Seal shall contact the valve seat and seal drip-tight. The disc and diaphragm
assembly must be guided by two separate bearings, one installed in the valve cover and one concentrically
located within the power chamber, to avoid deflection and assure positive disc-to-seat contact. Center
guided valves will not be permitted. All necessary repairs shall be made from the top of the valve while the
body remains in line.

The pilot control system shall be designed with a “shuttle-supply” to utilize the highest source of available
pressure (upstream or downstream) to operate the valve. It shall contain a 4-Way Solenoid Pilot with a lever
type Manual Operator, Single Limit Switch, separate Adjustable Opening and Closing Speed Controls, (2)
Check Valves, (2) Y-Strainers and Isolation Ball Valves on all body connections. The pilot control system
shall utilize copper tubing and brass fittings.

The valve shall be Watts ACV Model F513-5 (Globe) or F1513-5 (Angle) Pump Control Valve.
