For Commercial & Residential Applications
ES-WB&T-E810
Job Name
–––––––––––––––––––––––––––––––––––––––––––
Contractor
––––––––––––––––––––––––––––––––––––––––––––
Job Location
–––––––––––––––––––––––––––––––––––––––––
Approval
–––––––––––––––––––––––––––––––––––––––––––––
Engineer
–––––––––––––––––––––––––––––––––––––––––––––
Contractor’s P.O. No.
–––––––––––––––––––––––––––––––––––
Approval
–––––––––––––––––––––––––––––––––––––––––––––
Representative
––––––––––––––––––––––––––––––––––––––––
ES-WB&T-E810 0427 © Watts Brass & Tubular, 2004 Printed in U.S.A.

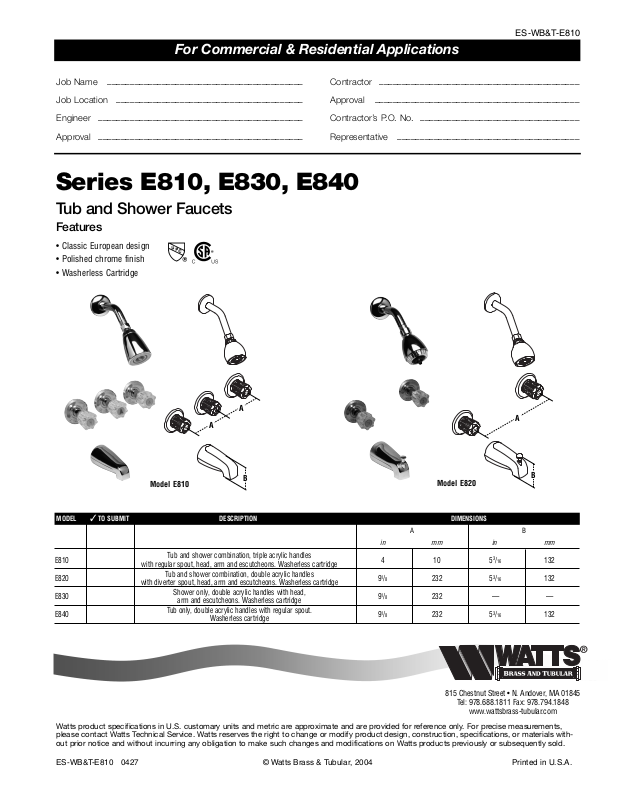

Series E810, E830, E840
Tub and Shower Faucets
Features
• Classic European design
• Polished chrome finish
•Washerless Cartridge
Model E820
Model E810
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
815 Chestnut Street • N. Andover, MA 01845
Tel: 978.688.1811 Fax: 978.794.1848
www.wattsbrass-tubular.com
MODEL ✓TO SUBMIT DESCRIPTION DIMENSIONS
AB
in mm in mm
E810
Tub and shower combination, triple acrylic handles
with regular spout, head, arm and escutcheons. Washerless cartridge
4105
3
/
16
132
E820
Tub and shower combination, double acrylic handles
with diverter spout, head, arm and escutcheons. Washerless cartridge
9
1
/
8
232 5
3
/
16
132
E830
Shower only, double acrylic handles with head,
arm and escutcheons. Washerless cartridge
9
1
/
8
232 — —
E840
Tub only, double acrylic handles with regular spout.
Washerless cartridge
9
1
/
8
232 5
3
/
16
132
A
A
A
B
B
