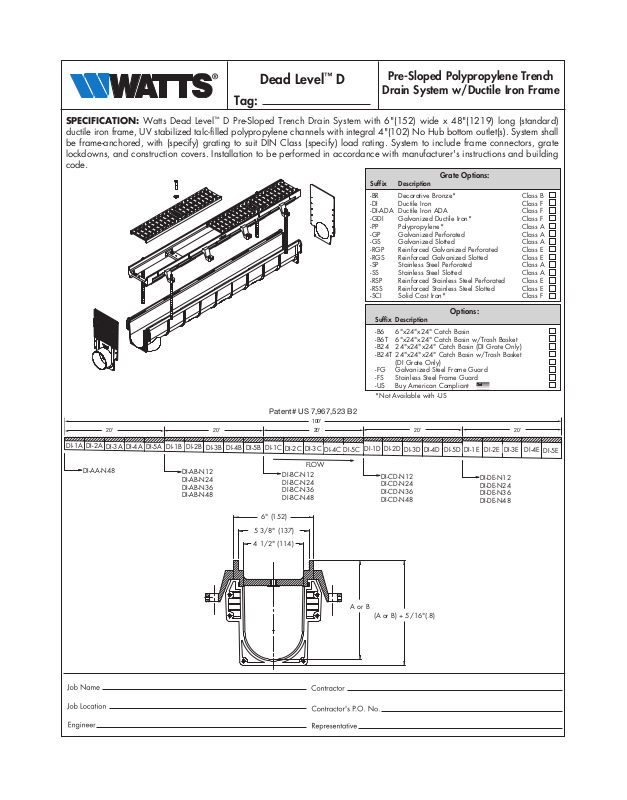

Watts Dead Level D User Manual
Dead Level™ D
Pre-Sloped Polypropylene Trench
Drain System w/Ductile Iron Frame
Tag:
SPECIFICATION: Watts Dead Level™ D Pre-Sloped Trench Drain System with 6"(152) wide x 48"(1219) long (standard)
ductile iron frame, UV stabilized talc-filled polypropylene channels with integral 4"(102) No Hub bottom outlet(s). System shall
be frame-anchored, with (specify) grating to suit DIN Class (specify) load rating. System to include frame connectors, grate
lockdowns, and construction covers. Installation to be performed in accordance with manufacturer's instructions and building
code.
Grate Options:
DI-5D
DI-4D
Options:
DI-1E DI-2E
DI-DE-N12
DI-DE-N24
DI-DE-N36
DI-DE-N48
DI-3E
DI-4E
DI-5E
DI-1A
Suffix Description
-BR Decorative Bronze* Class B
-DI Ductile Iron Class F
-DI-ADA Ductile Iron ADA Class F
-GDI Galvanized Ductile Iron* Class F
-PP Polypropylene* Class A
-GP Galvanized Perforated Class A
-GS Galvanized Slotted Class A
-RGP Reinforced Galvanized Perforated Class E
-RGS Reinforced Galvanized Slotted Class E
-SP Stainless Steel Perforated Class A
-SS Stainless Steel Slotted Class A
-RSP Reinforced Stainless Steel Perforated Class E
-RSS Reinforced Stainless Steel Slotted Class E
-SCI Solid Cast Iron* Class F
Suffix Description
-B6 6"x24"x24" Catch Basin
-B6T 6"x24"x24" Catch Basin w/Trash Basket
-B24 24"x24"x24" Catch Basin (DI Grate Only)
-B24T 24"x24"x24" Catch Basin w/Trash Basket
(DI Grate Only)
-FG Galvanized Steel Frame Guard
-FS Stainless Steel Frame Guard
-US Buy American Compliant
*Not Available with -US
Patent# US 7,967,523 B2
DI-2C
100'
DI-3C
FLOW
DI-4C
DI-5C
DI-1D
DI-2D
DI-3D
DI-CD-N12
DI-CD-N24
DI-CD-N36
DI-CD-N48
20' 20' 20' 20' 20'
DI-2A
DI-3A
DI-4A
DI-AA-N48
DI-5A
DI-1B
DI-2B
DI-AB-N12
DI-AB-N24
DI-AB-N36
DI-AB-N48
DI-3B
DI-4B
DI-1C
DI-5B
6" (152)
5 3/8" (137)
4 1/2" (114)
DI-BC-N12
DI-BC-N24
DI-BC-N36
DI-BC-N48
A or B
(A or B) + 5/16"(.8)
Dead Level™ D Dimensional Data
Part # Configuration Length Weight (lbs.) Dim. A Dim. B
DI-AA-N48 Neutral 48" (1219) 31 5-5/8" (143) 5-5/8" (143)
DI-1A Sloped 48" (1219) 31 5-5/8" (143) 5-15/16" (151)
DI-2A Sloped 48" (1219) 38 5-15/16" (151) 6-1/4" (159)
DI-3A Sloped 48" (1219) 40 6-1/4" (159) 6-9/16" (167)
DI-4A Sloped 48" (1219) 43 6-9/16" (167) 6-7/8" (175)
DI-5A Sloped 48" (1219) 45 6-7/8" (175) 7-3/16" (183)
DI-AB-N12 Neutral 12" (305) 9 7-3/16" (183) 7-3/16" (183)
DI-AB-N24 Neutral 24" (610) 18 7-3/16" (183) 7-3/16" (183)
DI-AB-N36 Neutral 36" (914) 26 7-3/16" (183) 7-3/16" (183)
DI-AB-N48 Neutral 48" (1219) 32 7-3/16" (183) 7-3/16" (183)
DI-1B Sloped 48" (1219) 32 7-3/16" (183) 7-1/2" (191)
DI-2B Sloped 48" (1219) 39 7-1/2" (191) 7-13/16" (198)
DI-3B Sloped 48" (1219) 41 7-13/16" (198) 8-1/8" (206)
DI-4B Sloped 48" (1219) 44 8-1/8" (206) 8-7/16" (214)
DI-5B Sloped 48" (1219) 46 8-7/16" (214) 8-3/4" (222)
DI-BC-N12 Neutral 12" (305) 9 8-3/4" (222) 8-3/4" (222)
DI-BC-N24 Neutral 24" (610) 18 8-3/4" (222) 8-3/4" (222)
DI-BC-N36 Neutral 36" (914) 26 8-3/4" (222) 8-3/4" (222)
DI-BC-N48 Neutral 48" (1219) 32 8-3/4" (222) 8-3/4" (222)
DI-1C Sloped 48" (1219) 33 8-3/4" (222) 9-1/16" (230)
DI-2C Sloped 48" (1219) 40 9-1/16" (230) 9-3/8" (238)
DI-3C Sloped 48" (1219) 42 9-3/8" (238) 9-11/16" (246)
DI-4C Sloped 48" (1219) 45 9-11/16" (246) 10" (254)
DI-5C Sloped 48" (1219) 47 10" (254) 10-5/16" (262)
DI-CD-N12 Neutral 12" (305) 9 10-5/16" (262) 10-5/16" (262)
DI-CD-N24 Neutral 24" (610) 18 10-5/16" (262) 10-5/16" (262)
DI-CD-N36 Neutral 36" (914) 26 10-5/16" (262) 10-5/16" (262)
DI-CD-N48 Neutral 48" (1219) 32 10-5/16" (262) 10-5/16" (262)
DI-1D Sloped 48" (1219) 34 10-5/16" (262) 10-5/8" (270)
DI-2D Sloped 48" (1219) 41 10-5/8" (270) 10-15/16" (278)
DI-3D Sloped 48" (1219) 43 10-15/16" (278) 11-1/4" (286)
DI-4D Sloped 48" (1219) 46 11-1/4" (286) 11-9/16" (294)
DI-5D Sloped 48" (1219) 48 11-9/16" (294) 11-7/8" (302)
DI-DE-N12 Neutral 12" (305) 10 11-7/8" (302) 11-7/8" (302)
DI-DE-N24 Neutral 24" (610) 19 11-7/8" (302) 11-7/8" (302)
DI-DE-N36 Neutral 36" (914) 27 11-7/8" (302) 11-7/8" (302)
DI-DE-N48 Neutral 48" (1219) 33 11-7/8" (302) 11-7/8" (302)
DI-1E Sloped 48" (1219) 35 11-7/8" (302) 12-3/16" (310)
DI-2E Sloped 48" (1219) 42 12-3/16" (310) 12-1/2" (318)
DI-3E Sloped 48" (1219) 44 12-1/2" (318) 12-13/16" (325)
DI-4E Sloped 48" (1219) 47 12-13/16" (325) 13-1/8" (333)
DI-5E Sloped 48" (1219) 49 13-1/8" (333) 13-7/16" (341)
ES-WD-DeadLevel-D 1405 WD-DeadLevel-D
