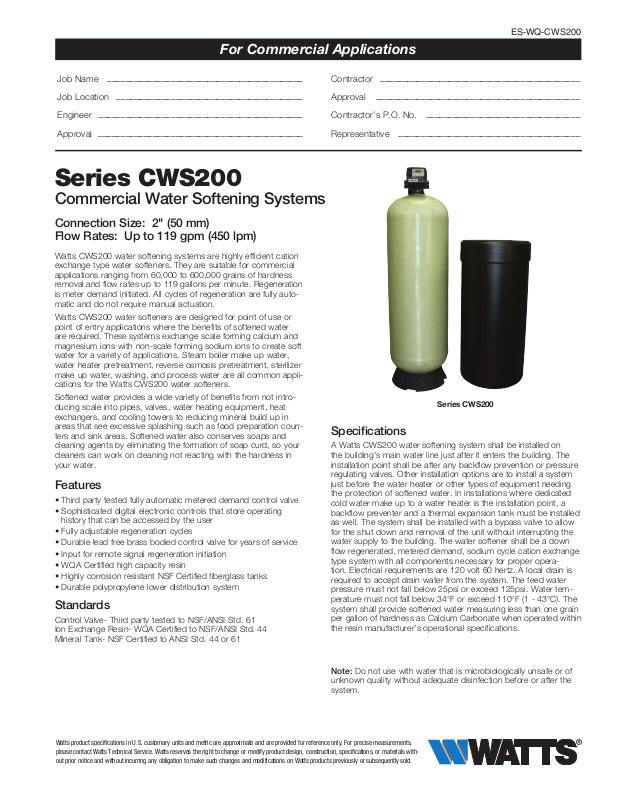

Watts CWS200 User Manual

For Commercial Applications

ES-WQ-CWS200

Job Name

Job Location

Engineer

Approval

–––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––

Contractor

Approval

Contractor’s P.O. No.

Representative

Series CWS200

Commercial Water Softening Systems

Connection Size: 2" (50 mm) Flow Rates: Up to 119 gpm (450 lpm)

Watts CWS200 water softening systems are highly efficient cation exchange type water softeners. They are suitable for commercial applications ranging from 60,000 to 600,000 grains of hardness removal and flow rates up to 119 gallons per minute. Regeneration is meter demand initiated. All cycles of regeneration are fully automatic and do not require manual actuation.

Watts CWS200 water softeners are designed for point of use or point of entry applications where the benefits of softened water are required. These systems exchange scale forming calcium and magnesium ions with non-scale forming sodium ions to create soft water for a variety of applications. Steam boiler make up water, water heater pretreatment, reverse osmosis pretreatment, sterilizer make up water, washing, and process water are all common applications for the Watts CWS200 water softeners.

Softened water provides a wide variety of benefits from not introducing scale into pipes, valves, water heating equipment, heat exchangers, and cooling towers to reducing mineral build up in areas that see excessive splashing such as food preparation counters and sink areas. Softened water also conserves soaps and cleaning agents by eliminating the formation of soap curd, so your cleaners can work on cleaning not reacting with the hardness in your water.

Features

• Third party tested fully automatic metered demand control valve

• Sophisticated digital electronic controls that store operating

history that can be accessed by the user

• Fully adjustable regeneration cycles

• Durable lead free brass bodied control valve for years of service

• Input for remote signal regeneration initiation

• WQA Certified high capacity resin

• Highly corrosion resistant NSF Certified fiberglass tanks

• Durable polypropylene lower distribution system

Standards

Control Valve- Third party tested to NSF/ANSI Std. 61 Ion Exchange Resin- WQA Certified to NSF/ANSI Std. 44 Mineral Tank- NSF Certified to ANSI Std. 44 or 61

––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––––––––––––

Series CWS200

Specifications

A Watts CWS200 water softening system shall be installed on

the building’s main water line just after it enters the building. The

installation point shall be after any backflow prevention or pressure regulating valves. Other installation options are to install a system

just before the water heater or other types of equipment needing the protection of softened water. In installations where dedicated

cold water make up to a water heater is the installation point, a backflow preventer and a thermal expansion tank must be installed as well. The system shall be installed with a bypass valve to allow for the shut down and removal of the unit without interrupting the water supply to the building. The water softener shall be a down flow regenerated, metered demand, sodium cycle cation exchange type system with all components necessary for proper operation. Electrical requirements are 120 volt 60 hertz. A local drain is required to accept drain water from the system. The feed water pressure must not fall below 25psi or exceed 125psi. Water tem-

perature must not fall below 34°F or exceed 110°F (1 - 43°C). The

system shall provide softened water measuring less than one grain per gallon of hardness as Calcium Carbonate when operated within the resin manufacturer’s operational specifications.

Note: Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system.

Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements, please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.

Feed Water Guidelines

pH ....................... 6 to 10

Hardness (maximum) ......... Depends on customers acceptable

hardness leakage level.

Water Pressure ............. 25psi to 125psi (171 kPa to 8.5 bar)

Temperature ............... 34 - 110°F (1 - 43°C)

Free Chlorine (maximum) ...... 1mg/L

Iron (maximum) ............. 1mg/L

Oil and H2S ................ None Allowed

Turbidity .................. Less than 5.0 NTU

Dimensions - Weight

For all other guideline information please contact your Watts representative.

Note: Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system.

CWS200 SERIES

OVERALL OVERALL OVERALL mOdEL TANK IN OUT HEIGHT dEPTH WIdTH BRINE TANK

M4543W 14"X65" 68.3" 68.3" 74.2" 15.2" 17.7" 18"X40" M4547W 16"X65" 68.0" 68.0" 73.6" 16.2" 18.5" 18"X40" M4548W 18"X65" 70.5" 70.5" 76.1" 20.1" 20.5" 24"X41" M4552W 21"X62" 70.4" 70.4" 76.0" 21.1" 21.1" 24"X50" M4558W 24"X72" 77.5" 77.5" 83.1" 24.1" 24.1" 30"X50" M4559W 30"X72" 77.5" 77.5" 83.1" 30.1" 30.1" 39"X48" M4560W 36"X72" 87.3" 87.3" 92.8" 36.1" 36.1" 39"X48"

Specifications

mINERAL TANK BRINE TANK SOfTENING LBS. SALT PER fLOW RATE & PRESSURE TANK RESIN GRAVEL TANK SALT CAPACITY REGENERATION SERV dROP BKW mOdEL SIZE ft

SIZE fILL mAx mIN mAx mIN GPm PSI GPm

M4543W 14x65 3 60 lbs. 18x40 400 90 K 60 K 45 18 39/50 15/25 5 M4547W 16x65 4 80 lbs. 18x40 400 120 K 80 K 60 24 47/60 15/25 7 M4548W 18x65 5 100 lbs. 24x41 600 150 K 100 K 75 30 53/69 15/25 10 M4552W 21x62 7 100 lbs. 24x50 600 210 K 140 K 105 42 66/85 15/25 13 M4558W 24x72 10 200 lbs. 30x50 1200 300 K 200 K 150 60 73/94 15/25 15 M4559W 30x72 15 400 lbs. 39x48 2200 450 K 300 K 225 90 84/109 15/25 25 M4560W 36x72 20 500 lbs. 39x48 2200 600 K 400 K 300 120 93/119 15/25 35

Note: Capacities are based on resin manufacturer’s data and are dependent upon influent water TDS, temperature, bed depth, and flow rates. Feed water must be free of oil and color. Pipe size, tank size, and space requirements are in inches. Capacities and flow rates expressed above are per tank. Flow rates listed at 25psi drops are for intermittent peak flow rates and are not to be used as continuous flows.

Note: Flow rates listed above are based on pressure drop only. Selecting a system based on pressure drop alone does not guarantee that

the system will proved adequately softened water. System selection should be based on resin quantity, capacity required, feed water analysis, and application requirements.

Ordering Information

mOdEL dESCRIPTION SPACE REQUIREd WEIGHT LBS KGS

M4543W A0090FM200WE with turbine meter 24 x 44 x 87 265 120 M4547W A0120FM200WE with turbine meter 24 x 46 x 87 350 159 M4548W A0150FM200WE with turbine meter 24 x 48 x 89 400 181 M4552W A0210FM200WE with turbine meter 24 x 52 x 89 600 272 M4558W A0300FM200WE with turbine meter 30 x 60 x 96 710 322 M4559W A0450FM200WE with turbine meter 39 x 75 x 106 1160 526 M4560W A0600FM200WE with turbine meter 39 x 81 x 107 1560 707

Note: This information is not intended to replace the product installation and safety information available or the experience of a trained product installer. Please refer to the product installation and safety instructions for further information.
