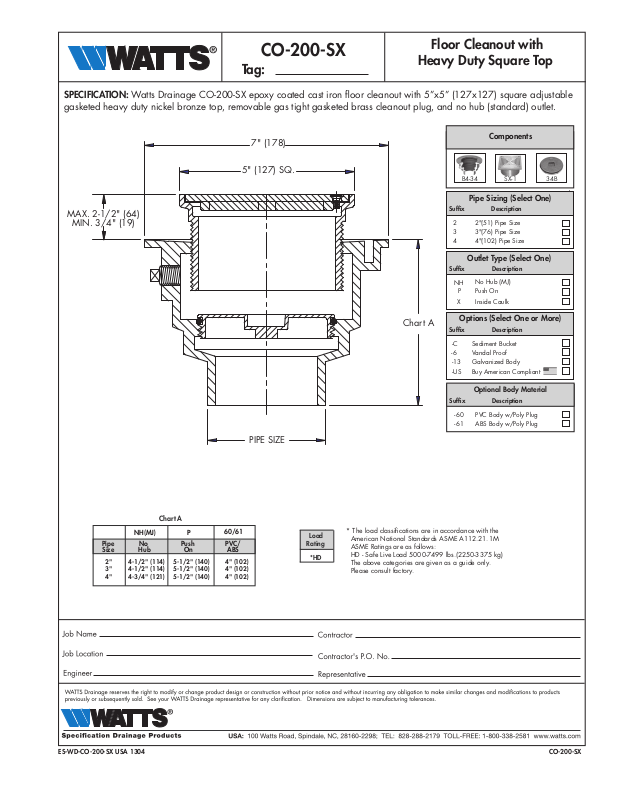

Watts CO-200-SX User Manual

CO-200-SX

Floor Cleanout with

Heavy Duty Square Top

Tag:

SPECIFICATION: Watts Drainage CO-200-SX epoxy coated cast iron floor cleanout with 5”x5” (127x127) square adjustable

gasketed heavy duty nickel bronze top, removable gas tight gasketed brass cleanout plug, and no hub (standard) outlet.

MAX. 2-1/2" (64)

MIN. 3/4" (19)

7" (178)

5" (127) SQ.

Chart A

Components

B4-34

SX-1

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

X Inside Caulk

Options (Select One or More)

Suffix Description

-C Sediment Bucket

-6 Vandal Proof
Galvanized Body

-13
Buy American Compliant

-US

Optional Body Material

Suffix Description

PVC Body w/Poly Plug-60
ABS Body w/Poly Plug-61

34B

Chart A

NH(MJ)

Pipe
Size

2" 4-1/2" (114) 5-1/2" (140) 4" (102)
3" 4-1/2" (114) 5-1/2" (140) 4" (102)
4" 4-3/4" (121) 5-1/2" (140) 4" (102)

No
Hub

P

Push

On

60/61

PVC/

ABS

PIPE SIZE

Load

Rating

*HD

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
HD - Safe Live Load 5000-7499 lbs.(2250-3375 kg)
The above categories are given as a guide only.
Please consult factory.

ES-WD-CO-200-SX USA 1304 CO-200-SX
