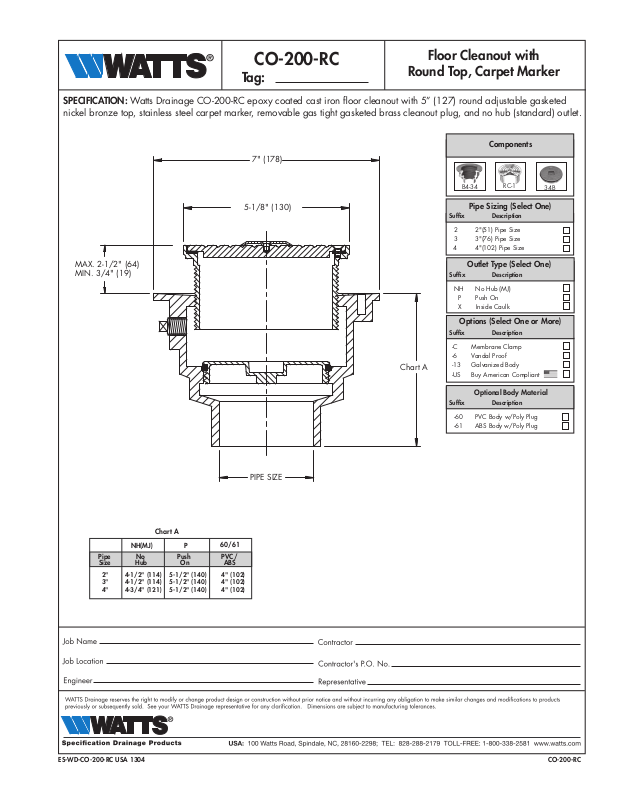

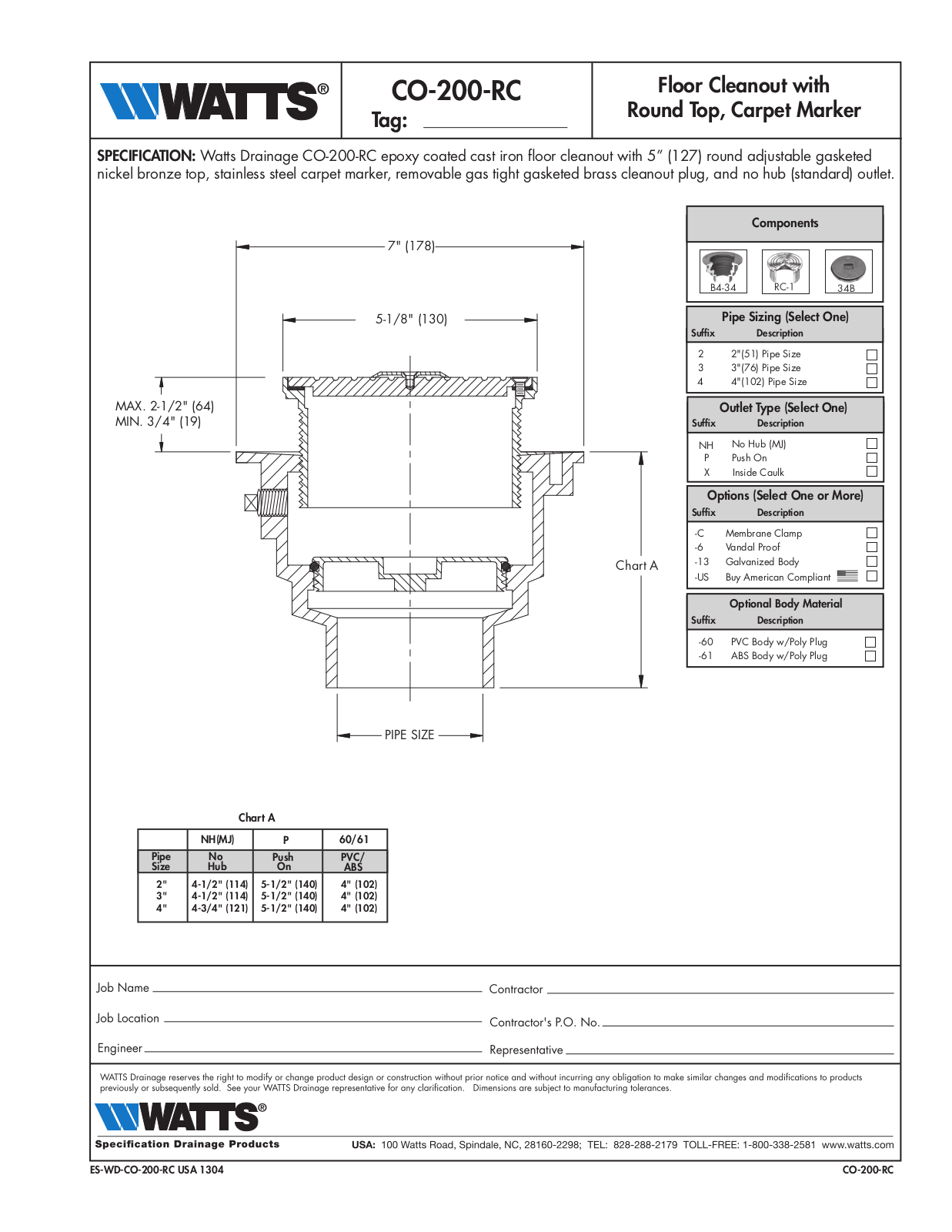

Watts CO-200-RC User Manual

CO-200-RC

Tag:

Floor Cleanout with

Round Top, Carpet Marker

SPECIFICATION: Watts Drainage CO-200-RC epoxy coated cast iron floor cleanout with 5” (127) round adjustable gasketed

nickel bronze top, stainless steel carpet marker, removable gas tight gasketed brass cleanout plug, and no hub (standard) outlet.

Components

7" (178)

MAX. 2-1/2" (64)
MIN. 3/4" (19)

5-1/8" (130)

PIPE SIZE

Chart A

B4-34

RC-1

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

X Inside Caulk

Options (Select One or More)

Suffix Description

-C Membrane Clamp

-6 Vandal Proof
Galvanized Body

-13
Buy American Compliant

-US

Optional Body Material

Suffix Description

PVC Body w/Poly Plug-60
ABS Body w/Poly Plug-61

34B

Chart A

NH(MJ)

Pipe
Size

2" 4-1/2" (114) 5-1/2" (140) 4" (102)
3" 4-1/2" (114) 5-1/2" (140) 4" (102)
4" 4-3/4" (121) 5-1/2" (140) 4" (102)

ES-WD-CO-200-RC USA 1304 CO-200-RC

No
Hub

P

Push

On

60/61

PVC/

ABS
