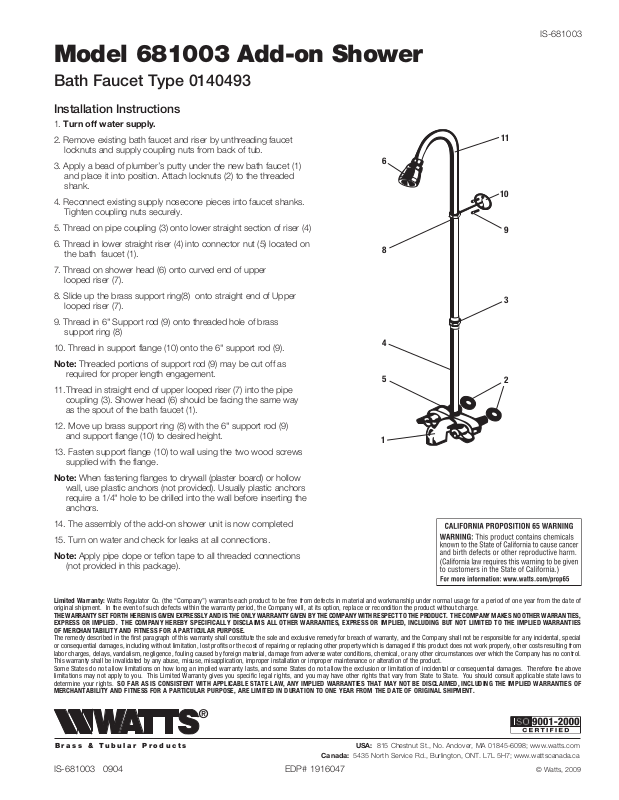

Model 681003 Add-on Shower

Bath Faucet Type 0140493

Installation Instructions

1. Turn off water supply.

2. Remove existing bath faucet and riser by unthreading faucet locknuts and supply coupling nuts from back of tub.

3. Apply a bead of plumber’s putty under the new bath faucet (1) and place it into position. Attach locknuts (2) to the threaded shank.

4. Reconnect existing supply nosecone pieces into faucet shanks. Tighten coupling nuts securely.

5. Thread on pipe coupling (3) onto lower straight section of riser (4)

6. Thread in lower straight riser (4) into connector nut (5) located on the bath faucet (1).

7. Thread on shower head (6) onto curved end of upper looped riser (7).

8. Slide up the brass support ring(8) onto straight end of Upper looped riser (7).

9. Thread in 6" Support rod (9) onto threaded hole of brass support ring (8)

10. Thread in support flange (10) onto the 6" support rod (9).

Note: Threaded portions of support rod (9) may be cut off as

required for proper length engagement.

11.Thread in straight end of upper looped riser (7) into the pipe

coupling (3). Shower head (6) should be facing the same way as the spout of the bath faucet (1).

12. Move up brass support ring (8) with the 6" support rod (9)

and support flange (10) to desired height.

13. Fasten support flange (10) to wall using the two wood screws

supplied with the flange.

Note: When fastening flanges to drywall (plaster board) or hollow

wall, use plastic anchors (not provided). Usually plastic anchors require a 1/4" hole to be drilled into the wall before inserting the anchors.

14. The assembly of the add-on shower unit is now completed

15. Turn on water and check for leaks at all connections.

Note: Apply pipe dope or teflon tape to all threaded connections

(not provided in this package).

IS-681003

Limited Warranty: Watts Regulator Co. (the “Company”) warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of

original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge.

THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
