MODEL 4650
Service Manual
IMPORTANT: Fill in pertinent information on page 2 for future reference.
MODEL 4650
Job Specification Sheet
• JOB NO. __________________________________________________________
• MODEL NO. _______________________________________________________
• WATER TEST______________________________________________________
• CAPACITY PER UNIT ____________MAX. ___________PER REGENERATION
• MINERAL TANK SIZE DIA.________HEIGHT ____________________________
• BRINE TANK SIZE & SALT SETTING PER REGENERATION:
_________________________________________________________________
CONTROL VALVE SPECIFICATIONS
Type of Timer
A) “L” B) 7 Day C) 12 Day
Day/Time of Regeneration____________________________________
Drain Line Flow Control______________________________________ gpm
Brine Refill Rate____________________________________________ gpm
Injector Size_______________________________________________
Page 2
Printed in U.S.A.
MODEL 4650
Installation and Start-up Procedure
The water softener should be installed with the inlet, outlet and drain connections made in accordance with
manufacturer’s recommendations and to meet applicable plumbing codes.
MANUAL REGENERATION
KNOB
RED TIME
SET
BUTTON
TIME OF DAY
ARROW
1. Manually index the softener control into the service
position and let water flow into the resin tank. When
the water flow stops, open a softened water tap until
all air is released from the lines, then close the tap.
Note: the various regeneration positions may be
dialed manually by turning the knob on the front of
the control until the indicator shows that the softener
is in the desired position.
2. Manually index the control to the back-wash position
and allow water to flow at the drain for 3 or 4 minutes.
3. Remove back cover plate.
4. Make sure that the salt dosage is set as
recommended by the manufacturer. Manually index
the control to the brine fill position and allow the brine
tank to fill to the top of the air check.
24 GR, GEAR
SKIPPER WHEEL
(SHOWS EVERY OTHER
DAY REGENERATION)
RED POINTER
6. Plug in the electrical cord and look in the sight hole in
the back of the motor to see that it is running. Set the
days that regeneration is to occur by sliding tabs on
skipper wheel outward to expose trip fingers. Each
tab is one day. Finger at red pointer is tonight.
Moving clockwise from red pointer, extend or retract
fingers to obtain the desired regeneration schedule.
7. Manually advance the control to the beginning of the
brine fill position; and allow the control to return to
the service position automatically.
8. Fill the brine tank with salt.
9. Replace back cover on the control.
10. Make sure that any by-pass valving is left in the
normal service position.
5. Manually index the control to the brine draw position
and allow the control to draw water from the brine
tank until it stops.
Printed in U.S.A.
Page 3
MODEL 4650
Control Valve Drive Assembly
(See opposite page for parts list)
13
1
27
20
16
15
19
22
5
31
30
25
28
29
12
18
14
1
21
7
8
10
26
17
6
9
2
3
Page 4
23
4
11
5
Printed in U.S.A.
MODEL 4650
Control Valve Drive Assembly
Parts List
Item No. Quantity Part No. Description
1. . . . . . . . . . . 1
2. . . . . . . . . . . 1. . . . . . . . . . . . 13175 . . . . . . . . . . . . . . . . Motor Mounting Plate
3. . . . . . . . . . . 1. . . . . . . . . . . . 18743 . . . . . . . . . . . . . . . . Motor - 120V., 60 Hz.
4. . . . . . . . . . . 3 . . . . . . . . . . . 11384 . . . . . . . . . . . . . . . Screw - Motor Mtg. & Ground Wire
5. . . . . . . . . . . 3 . . . . . . . . . . . 13296 . . . . . . . . . . . . . . . Screw - Component Mounting
6. . . . . . . . . . . 1 . . . . . . . . . . . 13017 . . . . . . . . . . . . . . . Idler Gear
7. . . . . . . . . . . 1 . . . . . . . . . . . 13018 . . . . . . . . . . . . . . . Idler Pinion
8. . . . . . . . . . . 1 . . . . . . . . . . . 13312 . . . . . . . . . . . . . . . Spring - Idler
9. . . . . . . . . . . 1 . . . . . . . . . . . 13164 . . . . . . . . . . . . . . . Drive Gear
10 . . . . . . . . . . 1 . . . . . . . . . . . 40214 . . . . . . . . . . . . . . . Screw - Brine Cam
11 . . . . . . . . . . 1 . . . . . . . . . . . 13170 . . . . . . . . . . . . . . . Main Gear & Shaft
12 . . . . . . . . . . 1 . . . . . . . . . . . 19205-01 . . . . . . . . . . . . . 24 Hour Gear Assembly, Silver
13 . . . . . . . . . . 1 . . . . . . . . . . . 13011 . . . . . . . . . . . . . . . Cycle Actuator Gear
14 . . . . . . . . . . 1 . . . . . . . . . . . 14177 . . . . . . . . . . . . . . . Knob - Manual Regeneration
15 . . . . . . . . . . 4 . . . . . . . . . . . 13300 . . . . . . . . . . . . . . . Ball - 1/4˝ Dia.
16 . . . . . . . . . . 2 . . . . . . . . . . . 13311 . . . . . . . . . . . . . . . Spring - Detent - Skipper Wheel
17 . . . . . . . . . . 1 . . . . . . . . . . . 14207 . . . . . . . . . . . . . . . Knob Label - Silver
18 . . . . . . . . . . 1 . . . . . . . . . . . 14176 . . . . . . . . . . . . . . . Valve Position Dial - Standard
19 . . . . . . . . . . 1 . . . . . . . . . . . 14381 . . . . . . . . . . . . . . . Skipper Wheel Assembly - 12 Day
20 . . . . . . . . . . 1 . . . . . . . . . . . 13864 . . . . . . . . . . . . . . . Skipper Wheel Ring
21 . . . . . . . . . . 2 . . . . . . . . . . . 14457 . . . . . . . . . . . . . . . Spring - Detent - Main Gear
22 . . . . . . . . . . 1 . . . . . . . . . . . 13014 . . . . . . . . . . . . . . . Regeneration Pointer
23 . . . . . . . . . . 1 . . . . . . . . . . . 11842 . . . . . . . . . . . . . . . Electrical Cord - Standard
24 . . . . . . . . . . 2 . . . . . . . . . . . 12681 . . . . . . . . . . . . . . . Wire Connector (Not Shown)
25 . . . . . . . . . . 1 . . . . . . . . . . . 13547 . . . . . . . . . . . . . . . Strain Relief
26 . . . . . . . . . . 1 . . . . . . . . . . . 15151 . . . . . . . . . . . . . . . Screw - Knob
27 . . . . . . . . . . 1 . . . . . . . . . . . 14331 . . . . . . . . . . . . . . . Front Label - Silver on Black
28 . . . . . . . . . . 1 . . . . . . . . . . . 12037 . . . . . . . . . . . . . . . Washer
29 . . . . . . . . . . 2 . . . . . . . . . . . 12473 . . . . . . . . . . . . . . . Screw-Drive Mounting
30 . . . . . . . . . . 1 . . . . . . . . . . . 60514 . . . . . . . . . . . . . . . Brine Cam Assembly, 3-18
*31. . . . . . . . . . 1 . . . . . . . . . . . 40327 . . . . . . . . . . . . . . . Support Bracket
. . . . . . . . . . . . 15494-01. . . . . . . . . . . . . . “L” Housing - w/Pin
1. . . . . . . . . . . . 19659 . . . . . . . . . . . . . . . . Motor - 24V., 60 Hz.
1 . . . . . . . . . . . 14860 . . . . . . . . . . . . . . . Skipper Wheel Assembly - 7 Day
1 . . . . . . . . . . . 60514-01. . . . . . . . . . . . . Brine Cam Assembly, 6-36
1 . . . . . . . . . . . 60514-02. . . . . . . . . . . . . Brine Cam Assembly, Minutes
* Hot Water Only
Page 5
Printed in U.S.A.
MODEL 4650
Control Drive Assembly for Clock
(See opposite page for parts list)
Page 6
Printed in U.S.A.
Item No. Quantity Part No. Description
1. . . . . . . . . . . . 2 . . . . . . . . . . . . .13255. . . . . . . . . . . . . . . . . . Adapter Clip
2. . . . . . . . . . . . 5 . . . . . . . . . . . . .13242. . . . . . . . . . . . . . . . . . Seal
3. . . . . . . . . . . . 1 . . . . . . . . . . . . .40319. . . . . . . . . . . . . . . . . . Valve Body
4. . . . . . . . . . . . 1 . . . . . . . . . . . . .13304. . . . . . . . . . . . . . . . . . O-Ring - Distributor Tube - 1˝
5. . . . . . . . . . . . 1 . . . . . . . . . . . . .10381-01 . . . . . . . . . . . . . . . O-Ring - Top of Tank - Hot Water
1 . . . . . . . . . . . . . 10381. . . . . . . . . . . . . . . . . . O-Ring - Top of Tank - Cold Water
6. . . . . . . . . . . . 1 . . . . . . . . . . . . .13361. . . . . . . . . . . . . . . . . . Stand-Off
7. . . . . . . . . . . . 4 . . . . . . . . . . . . .14241-01 . . . . . . . . . . . . . . . Spacer - Hot Water
4 . . . . . . . . . . . . . 14241. . . . . . . . . . . . . . . . . . Spacer - Cold Water
8. . . . . . . . . . . . 1 . . . . . . . . . . . . .13247. . . . . . . . . . . . . . . . . . Piston - Standard
9. . . . . . . . . . . . 1 . . . . . . . . . . . . .10696. . . . . . . . . . . . . . . . . . Piston Pin
10. . . . . . . . . . . . 1 . . . . . . . . . . . . .13001. . . . . . . . . . . . . . . . . . Piston Rod Assembly
11. . . . . . . . . . . . 1 . . . . . . . . . . . . .12953. . . . . . . . . . . . . . . . . . Piston Retainer
12. . . . . . . . . . . . 1 . . . . . . . . . . . . .61411. . . . . . . . . . . . . . . . . . End Plug Assembly, Brass - Hot Water
1 . . . . . . . . . . . . . 13446. . . . . . . . . . . . . . . . . . End Plug Assembly, Std., White - Cold Water
13. . . . . . . . . . . . 1 . . . . . . . . . . . . .13387. . . . . . . . . . . . . . . . . . Screw - Injector Mounting
14. . . . . . . . . . . . 1 . . . . . . . . . . . . .13315. . . . . . . . . . . . . . . . . . Screw - Injector Mounting
15. . . . . . . . . . . . 2 . . . . . . . . . . . . .19228. . . . . . . . . . . . . . . . . . Adapter Coupling
16. . . . . . . . . . . . 4 . . . . . . . . . . . . .13305. . . . . . . . . . . . . . . . . . O-Ring - Adapter Coupling
17. . . . . . . . . . . . 2-4. . . . . . . . . . . .13314. . . . . . . . . . . . . . . . . . Screw - Adapter Coupling
18. . . . . . . . . . . . 1 . . . . . . . . . . . . .12638-01 . . . . . . . . . . . . . . . O-Ring - Drain - Hot Water
1 . . . . . . . . . . . . . 12638. . . . . . . . . . . . . . . . . . O-Ring - Drain - Cold Water
19. . . . . . . . . . . . 2 . . . . . . . . . . . . .13301-01 . . . . . . . . . . . . . . . O-Ring - Injector - Hot Water
2 . . . . . . . . . . . . . 13301. . . . . . . . . . . . . . . . . . O-Ring - Injector - Cold Water
20. . . . . . . . . . . . 2 . . . . . . . . . . . . .13302-01 . . . . . . . . . . . . . . . O-Ring - Brine Spacer - Hot Water
2 . . . . . . . . . . . . . 13302. . . . . . . . . . . . . . . . . . O-Ring - Brine Spacer - Cold Water
21. . . . . . . . . . . . 1 . . . . . . . . . . . . .13303-01 . . . . . . . . . . . . . . . O-Ring - Injector Cover - Hot Water
. . . . . . . . . . . . 1 . . . . . . . . . . . . .13303. . . . . . . . . . . . . . . . . . O-Ring - Injector Cover - Cold Water
22. . . . . . . . . . . . 1 . . . . . . . . . . . . .13163. . . . . . . . . . . . . . . . . . Injector Body
23. . . . . . . . . . . . 1 . . . . . . . . . . . . .10225-xx . . . . . . . . . . . . . . . Injector Nozzle - Hot Water
1 . . . . . . . . . . . . . 10913-xx . . . . . . . . . . . . . . . Injector Nozzle - Cold Water
24. . . . . . . . . . . . 1 . . . . . . . . . . . . .10226-xx . . . . . . . . . . . . . . . Injector Throat - Specify Size - Hot Water
1 . . . . . . . . . . . . . 10914-xx . . . . . . . . . . . . . . . Injector Throat - Specify Size - Cold Water
25. . . . . . . . . . . . 1 . . . . . . . . . . . . .10227. . . . . . . . . . . . . . . . . . Injector Screen
26. . . . . . . . . . . . 1 . . . . . . . . . . . . .13166. . . . . . . . . . . . . . . . . . Injector Cover
27. . . . . . . . . . . . 1 . . . . . . . . . . . . .13172-03 . . . . . . . . . . . . . . . Brine Valve Stem Assembly - Hot Water
1 . . . . . . . . . . . . . 13172-02 . . . . . . . . . . . . . . . Brine Valve Stem Assembly - Cold Water
29. . . . . . . . . . . . 1 . . . . . . . . . . . . .13165. . . . . . . . . . . . . . . . . . Brine Valve Cap
30. . . . . . . . . . . . 1 . . . . . . . . . . . . .13167. . . . . . . . . . . . . . . . . . Brine Valve Spacer
31. . . . . . . . . . . . 1 . . . . . . . . . . . . .12550-01 . . . . . . . . . . . . . . . Quad Ring - Hot Water
1 . . . . . . . . . . . . . 12550. . . . . . . . . . . . . . . . . . Quad Ring - Cold Water
32. . . . . . . . . . . . 1 . . . . . . . . . . . . .11973. . . . . . . . . . . . . . . . . . Spring - Brine Valve
33. . . . . . . . . . . . 1 . . . . . . . . . . . . .16098. . . . . . . . . . . . . . . . . . Washer - Brine Valve
34. . . . . . . . . . . . 1 . . . . . . . . . . . . .11981-01 . . . . . . . . . . . . . . . Retaining Ring
35. . . . . . . . . . . . 1 . . . . . . . . . . . . .10329. . . . . . . . . . . . . . . . . . B.L.F.C. Fitting Nut
36. . . . . . . . . . . . 1 . . . . . . . . . . . . .10330. . . . . . . . . . . . . . . . . . B.L.F.C. Ferrule
37. . . . . . . . . . . . 1 . . . . . . . . . . . . .10332. . . . . . . . . . . . . . . . . . B.L.F.C. Tube Insert
38. . . . . . . . . . . . 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B.L.F.C. Button - Specify Size
39. . . . . . . . . . . . 1 . . . . . . . . . . . . .12977-01 . . . . . . . . . . . . . . . O-Ring - B.L.F.C. - Hot Water
1 . . . . . . . . . . . . . 12977. . . . . . . . . . . . . . . . . . O-Ring - B.L.F.C. - Cold Water
40. . . . . . . . . . . . 1 . . . . . . . . . . . . .13245. . . . . . . . . . . . . . . . . . B.L.F.C. Button Retainer
41. . . . . . . . . . . . 1 . . . . . . . . . . . . .13244. . . . . . . . . . . . . . . . . . B.L.F.C Fitting
42. . . . . . . . . . . . 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D.L.F.C. Button - Specify Size
43. . . . . . . . . . . . 1 . . . . . . . . . . . . .13173. . . . . . . . . . . . . . . . . . D.L.F.C. Button Retainer
44. . . . . . . . . . . . 1 . . . . . . . . . . . . .12767. . . . . . . . . . . . . . . . . . Screen - Brine Valve
45. . . . . . . . . . . . 1 . . . . . . . . . . . . .15348. . . . . . . . . . . . . . . . . . O-Ring - D.L.F.C. (not shown)
46. . . . . . . . . . . . 1 . . . . . . . . . . . . .13497. . . . . . . . . . . . . . . . . . Air Disperser
47. . . . . . . . . . . . 1 . . . . . . . . . . . . .13546. . . . . . . . . . . . . . . . . . End Plug Retainer
1 . . . . . . . . . . . . . 40324. . . . . . . . . . . . . . . . . . End Plug Retainer, Hot Water
48. . . . . . . . . . . . 3 . . . . . . . . . . . . .12112. . . . . . . . . . . . . . . . . . Screw
49. . . . . . . . . . . . 1 . . . . . . . . . . . . .13363. . . . . . . . . . . . . . . . . . Washer
50. . . . . . . . . . . . 1 . . . . . . . . . . . . .13296. . . . . . . . . . . . . . . . . . Screw
51. . . . . . . . . . . . 1 . . . . . . . . . . . . .13398. . . . . . . . . . . . . . . . . . Yoke, Brass, 1˝ NPT
1 . . . . . . . . . . . . . 13708. . . . . . . . . . . . . . . . . . Yoke, Brass, 3/4˝ NPT
Printed in U.S.A.
Page 7
MODEL 4650

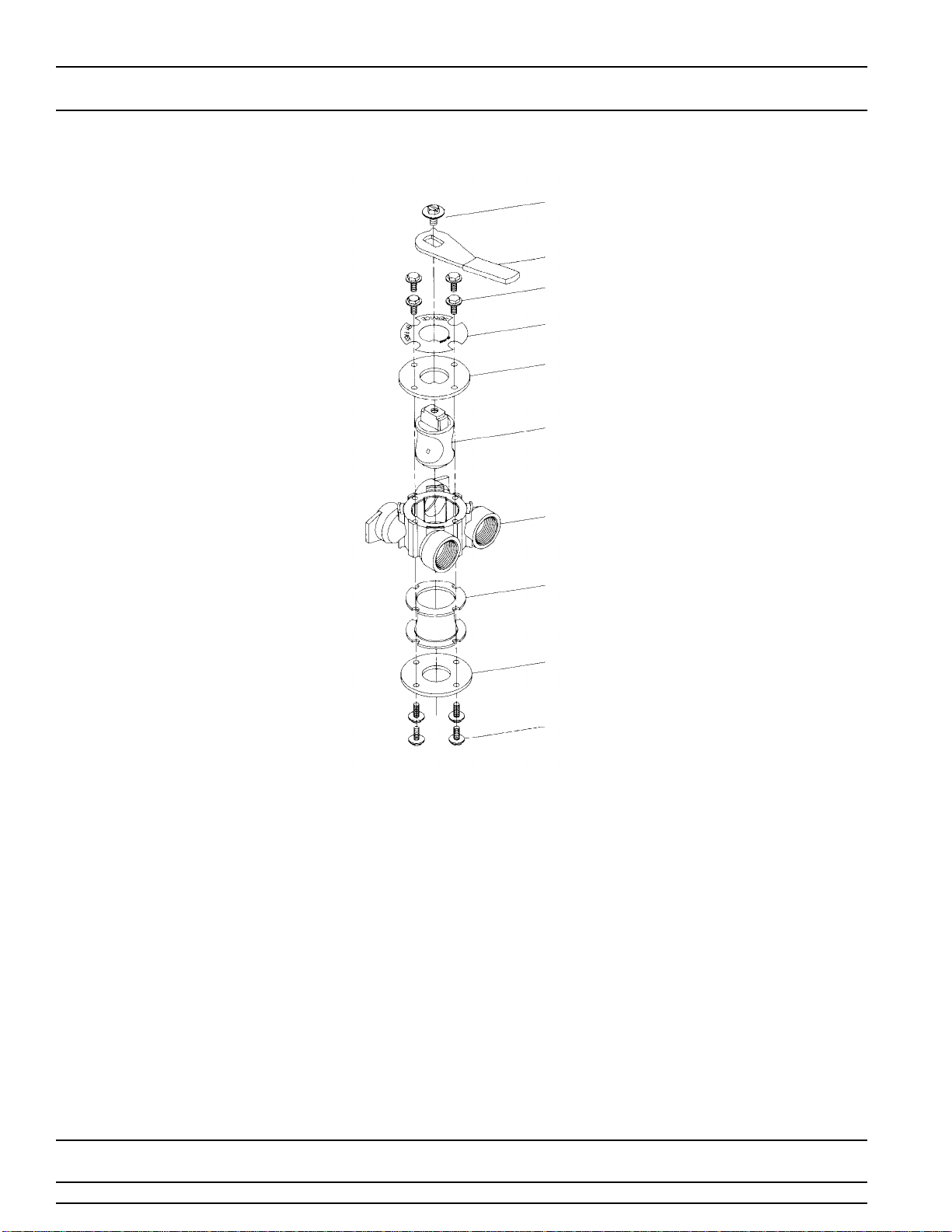

By-Pass Valve Assembly
9
8
6
5
4
3
1
2
7
6
Item No. Quantity Part No. Description
1 . . . . . . . . . . . 1. . . . . . . . . . . .17290. . . . . . . . . . . . . . . . By-Pass Valve Body, 3/4˝
1. . . . . . . . . . . . 17290NP . . . . . . . . . . . . . By-Pass Valve Body, 3/4˝ Nickel Plate
1. . . . . . . . . . . . 13399. . . . . . . . . . . . . . . . By-Pass Valve Body, 1˝
1. . . . . . . . . . . . 13399NP . . . . . . . . . . . . . By-Pass Valve Body, 1˝, Nickel Plate
2 . . . . . . . . . . . 1. . . . . . . . . . . .11726. . . . . . . . . . . . . . . . Seal, By-Pass
1. . . . . . . . . . . . 14105. . . . . . . . . . . . . . . . Seal, 3/4˝ By-Pass, Hot Water
3 . . . . . . . . . . . 1. . . . . . . . . . . .11972. . . . . . . . . . . . . . . . Plug, By-Pass
4 . . . . . . . . . . . 1. . . . . . . . . . . .11978. . . . . . . . . . . . . . . . Side Cover
5 . . . . . . . . . . . 1. . . . . . . . . . . .13604-01 . . . . . . . . . . . . .Label
6 . . . . . . . . . . . 8. . . . . . . . . . . .15727. . . . . . . . . . . . . . . . Screw
7 . . . . . . . . . . . 1. . . . . . . . . . . .11986. . . . . . . . . . . . . . . . Side Cover
8 . . . . . . . . . . . 1. . . . . . . . . . . .11979. . . . . . . . . . . . . . . . Lever, By-Pass
9 . . . . . . . . . . . 1. . . . . . . . . . . .11989. . . . . . . . . . . . . . . . Screw, Hex Head, 1/4-14
Page 8
Printed in U.S.A.
MODEL 4650
Service Assembly
60102-00 . . . . . . . Piston Assy., Cold Water - Softener
60102-20 . . . . . . . Piston Assy., Cold Water - Low Water
60102-031 . . . . . . Piston Assy. - Hot Water - Softener
60125. . . . . . . . . . Seal Kit - Cold Water
60125-05 . . . . . . . Seal Kit - Hot Water
60084-XXXX . . . . Injector - Cold Water
See Parts List,
Page 7 . . . . . . . . . Injector - Hot Water
60032. . . . . . . . . . Brine Valve - Cold Water
60032-001 . . . . . . Brine Valve - Hot Water
60514. . . . . . . . . . Brine Cam, 3-18
60514-01 . . . . . . . Brine Cam, 6-36
60514-02 . . . . . . . Brine Cam, Minutes
60510. . . . . . . . . . Coupling with Clip and Screws
60040. . . . . . . . . . Bypass, Brass 3/4″ NPT - Cold Water
60729-01 . . . . . . . Bypass, Brass 3/4″ NPT - Hot Water
60041. . . . . . . . . . Bypass, Brass 1″ NPT - Hot Water
60729-02 . . . . . . . Bypass, Brass 1″ NPT - Hot Water
14860. . . . . . . . . . Skipper Wheel - 7 Day
14381. . . . . . . . . . Skipper Wheel - 12 Day
Flow Control Washers
19153. . . . . . . .0.6 gpm
19152. . . . . . . .0.8 gpm
19151. . . . . . . .1.0 gpm
12085. . . . . . . .1.2 gpm
19150. . . . . . . .1.3 gpm
12086. . . . . . . .1.5 gpm
19149. . . . . . . .1.7 gpm
12087. . . . . . . .2.0 gpm
12088. . . . . . . .2.4 gpm
12089. . . . . . . .3.0 gpm
12090. . . . . . . .3.5 gpm
12091. . . . . . . .4.0 gpm
19147. . . . . . . .4.5 gpm
12092. . . . . . . .5.0 gpm
17814. . . . . . . .6.0 gpm
12408. . . . . . . .7.0 gpm
Printed in U.S.A.
Page 9
MODEL 4650
Water Conditioner Flow Diagrams

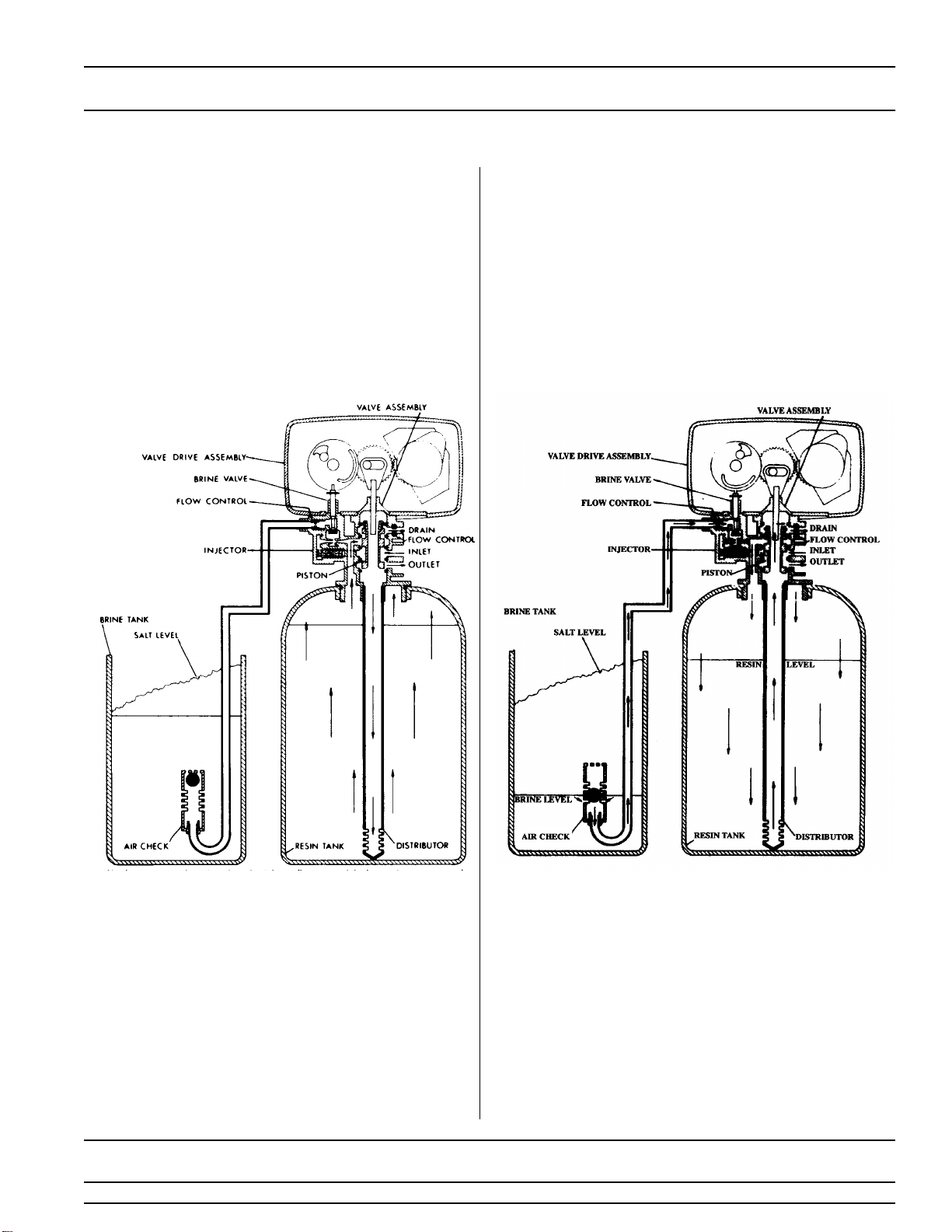

1 SERVICE POSITION 2 PRELIMINARY RINSE POSITION
5 Minutes
Hard water enters the unit at the valve inlet - flows
around the lower piston groove - thru the passage to
the top of tank - down thru the resin and enters the
distributor as conditioned water. The conditioned
water flows up thru the center tube to the valve
outlet.
Page 10
Hard water enters the unit at the valve inlet - flows
around the lower piston groove - down thru the top of
tank passage - downward thru the resin - up the
distributor tube - thru the center hole in the piston - over
the top edge of the piston and out the drain line.
Printed in U.S.A.
MODEL 4650
Water Conditioner Flow Diagrams (Cont’d.)
4 BRINE POSITION3 BACKWASH POSITION
10 Minutes First Portion of 50 Minute Fixed Cycle
Hard water enters the unit at the valve inlet - flows
around the lower piston groove and lower piston
land -down thru the center tube and out the
distributor - up thru the resin - thru the top of tank
passage - around the upper piston groove and out
the drain line.
Hard water enters the unit at the valve inlet - flows
around the lower piston groove - thru the injector
nozzle and orifice to draw brine from the brine tank.
The brine flows down thru the resin - into the distributor
- up thru the center tube - thru the center hole in the
piston and out the drain line.
Page 11
Printed in U.S.A.
MODEL 4650
Water Conditioner Flow Diagrams (Cont’d.)
5 SLOW RINSE POSITION 6 SECOND BACKWASH POSITION
Last Portion of 50 Minute Fixed Cycle 10 Minutes
After all the brine has been drawn from the brine
tank, hard water continues to enter thru the valve
inlet - flows around the lower piston groove - thru
the nozzle and orifice - down thru the resin and
into the distributor - up thru the center tube - thru
the center hole in the piston and out the drain line.
Page 12
Hard water enters the unit at the valve inlet - flows
around the lower piston groove and lower piston land down thru the center tube and out the distributor - up thru
the resin - thru the top of tank passage - around the
upper piston groove and out the drain line.
Printed in U.S.A.
MODEL 4650
Water Conditioner Flow Diagrams (Cont’d.)
7 SETTLING RINSE POSITION
5 Minutes
8 BRINE TANK FILL POSITION
4 to 24 Minutes Adjustable Cycle
Hard water enters the unit at the valve inlet - flows
around the lower piston groove - down thru the top
of tank passage - downward thru the resin - up the
distributor tube - thru the center hole in the piston
-over the top edge of the piston and out the drain
line.
Hard water enters the unit at the valve inlet - flows
around the lower piston groove - thru the injector throat
- thru the brine valve and flow control to fill the brine
tank. Hard water also flows around the lower piston
groove - thru the passage to the top of tank - down thru
the resin and enters the distributor as conditioned
water. The conditioned water flows up thru the center
tube to the valve outlet.
Page 13
Printed in U.S.A.
MODEL 4650
Service Instructions
PROBLEM CAUSE CORRECTION
1. Softener fails to regenerate. A. Electrical service to unit has been
interrupted.
B. Timer is defective.
C. Power failure.
2. Softener delivers hard water. A. By-pass valve is open.
B. No salt in brine tank.
C. Injectors or screen plugged.
D. Insufficient water flowing into
brine tank.
E. Hot water tank hardness.
F. Leak at distributor tube.
G. Internal valve leak.
3. Unit uses too much salt. A. Improper salt setting.
B. Excess water in brine tank.
A. Assure permanent electrical
service (check fuse, plug, pull
chain or switch).
B. Replace timer.
C. Reset time of day.
A. Close by-pass valve.
B. Add salt to brine tank and
maintain salt level above water
level.
C. Replace injectors and screen.
D. Check brine tank fill time and
clean brine line flow control if
plugged.
E. Repeated flushings of the hot
water tank is required.
F. Make sure distributor tube is not
cracked. Check O-ring and tube
pilot.
G. Replace seals and spacers and/or
piston.
A. Check salt usage and salt setting.
B. See problem No. 7.
4. Loss of water pressure. A. Iron buildup in line to water
conditioner.
B. Iron buildup in water conditioner.
C. Inlet of control plugged due to
foreign material broken loose from
pipes by recent work done on
plumbing system.
5. Loss of resin through drain line. A. Air in water system. A. Assure that well system has
6. Iron In Conditioned Water. A. Fouled resin bed. A. Check backwash, brine draw and
7a. Excessive water in brine tank.
A. Plugged drain line flow control. A. Clean flow control.
A. Clean line to water conditioner.
B. Clean control and add resin
cleaner to resin bed. Increase
frequency of regeneration.
C. Remove piston & clean control.
proper air eliminator control.
Check for dry well condition.
brine tank fill, increase frequency
of regeneration.
Increase backwash time.
Page 14
Printed in U.S.A.
MODEL 4650
Service Instructions (Cont’d.)
PROBLEM CAUSE CORRECTION
7b. Salt water in service line A. Plugged injector system.
B. Timer not cycling.
C. Foreign material in brine valve.
D. Foreign material in brine line flow
control.
8. Softener fails to draw brine. A. Drain line flow control is plugged.
B. Injector is plugged.
C. Injector screen plugged.
D. Line pressure is too low.
E. Internal control leak.
9. Control cycles continuous A. Faulty timer mechanism A. Replace timer.
10. Drain flows continuously. A. Foreign material in control.
B. Internal control leak.
C. Control valve jammed in brine or
backwash position.
D. Timer motor stopped or jammed
A. Clean injector and replace screen.
B. Replace timer.
C. Clean or replace brine valve.
D. Clean brine line flow control.
A. Clean drain line flow control.
B. Clean or replace injectors.
C. Replace screen.
D. Increase line pressure. (Line
pressure must be at least 20 PSI
at all time.)
E. Change seals and spacers and/or
piston assembly.
A. Remove piston assembly and
inspect bore, remove foreign
material & check control in
various regeneration positions.
B. Replace seals and/or piston
assembly.
C. Replace seals and/or piston
assembly.
D. Replace timer.
Printed in U.S.A.
Page 15
MODEL 4650
Service Instructions (Cont’d.)
A. TO REMOVE TIME BRINE VALVE, INJECTORS, AND
SCREEN
1. Unplug electrical cord from outlet.
2. Turn off water supply to conditioner:
a. If the conditioner installation has a “three valve”
by-pass system, first open the valve in the by pass
line, then close the valves at the conditioner inlet
and outlet.
b. If the conditioner has an integral by-pass valve, put
it in the by-pass position.
c. If there is only a shut-off valve near the conditioner
inlet, close it.
3. Relievewater pressure in the conditioner by putting the
control in the backwash position momentarily. Return
the control to the service position.
4. Disconnect brine tube and drain line connections at the
injector body.
5. Remove the two injector body mounting screws. The
injector and brine module can now be removed from
the control valve. Remove and discard valve body Orings
6a. To Replace Brine Valve
1. Pull brine valve from injector body, also remove &
discard O-ring at bottom of brine valve hole.
2. Apply silicone lubricant to new O-ring and reinstall
at bottom of brine valve hole.
3. Apply silicone lubricant to O- ring on new valve
assembly and press into brine valvehole, shoulder
on bushing should be flush with injector body.
6b. To replace injectors and screen.
1. Remove injector cap and screen, discard O-ring.
Unscrew injector nozzle and throat from injector
body.
2. Screw in new injector throat and nozzle, be sure
they are seated tightly. Install a new screen.
3. Apply silicone lubricant to new O-ring and install
around oval extension on injector cap.
7. Apply silicone lubricant to three new O-rings and install
over three bosses on injector body.
8. Insert screws with washers thru injector cap and
injector. Place this assembly thru hole in timer housing
and into mating holes in the valve body. Tighten
screws. (Be sure to reinstall brass spacers with injector
on model 4600 valve.)
9. Reconnect brine tube and drain line.
10. Return by-pass or inlet valving to normal service
position. Water pressure should now be applied to the
conditioner, and any by-pass line shut off.
11. Check for leaks at all seal areas. Check drain seal with
the control in the backwash position.
12. Plug electrical cord into outlet.
13. Set time of day and cycle the control valve manually to
assure proper function. Make sure the control valve is
returned to the service position.
14. Make sure there is enough brine in the brine tank.
15. Rotate program wheel counter-clockwise until it stops
at regeneration position
16. Start regeneration cycle manually if water is hard.
B. TO REPLACE TIMER
1. Unplug electrical cord from outlet.
2. Turn off water supply to conditioner:
a. If the conditioner installation has a “three valve”
by-pass system, first open the valve in the by-pass
line, then close the valves at the conditioner inlet
and outlet.
b. If the conditioner has an integral by-pass valve, put
it in the by-pass position.
c. If there is only a shut-off valve near the conditioner
inlet, close it.
3. Relievewater pressure in the conditioner by putting the
control in the backwash position momentarily. Return
the control to the service position.
4. Remove the control valve back cover.
5. Remove screw and washer at drive yoke. Remove
timer mounting screws. The entire timer assembly will
now lift off easily.
6. Put new timer on top of valve. Be sure drive pin on
main gear engages slot in drive yoke (rotate control
knob if necessary).
7. Replace timer mounting screws. Replace screw and
washer at drive yoke.
8. Return by-pass or inlet valving to normal service
position. Water pressure should now be applied to the
conditioner, and any by-pass line shut off.
9. Plug electrical cord into outlet.
10. Set time of day, program wheel, and salt usage. Cycle
the control valve manually to assure proper function.
Make sure the control valve is returned to the service
position.
11. Replace the control valve back cover.Be sure grommet
at cable hole is in place.
12. Make sure there is enough brine in the brine tank.
13. Rotate program wheel counter-clockwise until it stops
at regeneration position.
14. Start regeneration cycle manually if water is hard.
Page 16
Printed in U.S.A.
MODEL 4650
Service Instructions (Cont’d.)
C. TO REPLACE PISTON ASSEMBLY
1. Unplug electrical cord from outlet.
2. Turn off water supply to conditioner:
a. If the conditioner installation has a “three valve”
by-pass system, first open the valve in the by-pass
line, then close the valves at the conditioner inlet
and outlet.
b. If the conditioner has an integral by-pass valve, put
it in the by-pass position.
c. If there is only a shut-off valve near the conditioner
inlet, close it.
3. Relievewater pressure in the conditioner by putting the
control in the backwash position momentarily. Return
the control to the service position.
4. Remove the control valve back cover.
5. Remove screw and washer at drive yoke. Remove
timer mounting screws. The entire timer assembly will
now lift off easily. Remove end plug retainer plate.
6. Pull upward on end of piston yoke until assembly is out
of valve.
7. Inspect the inside of the valve to make sure that all
spacers and seals are in place, and that there is no
foreign matter that would interfere with the valve
operation.
8. Take new piston assembly as furnished and push
piston into valve by means of the end plug. Twist yoke
carefully in a clockwise direction to properly align it with
drive gear. Replace end plug retainer plate.
9. Place timer on top of valve. Be sure drive pin on main
gear engages slot in drive yoke (rotate control knob if
necessary).
10. Replace timer mounting screws. Replace screw and
washer at drive yoke.
11. Return by-pass or inlet valving to normal service
position. Water pressure should now be applied to the
conditioner, and any by-pass line shut off.
12. Plug electrical cord into outlet.
13. Set time of day. Cycle the control valve manually to
assure proper function. Make sure the control valve is
returned to the service position.
14. Replace the control valve back cover.Be sure grommet
at cable hole is in place.
15. Make sure there is enough brine in the brine tank.
16. Rotate program wheel counter-clockwise until it stops
at regeneration position.
17. Start regeneration cycle manually if water is hard.
D. TO REPLACE SEALS AND SPACERS
1. Unplug electrical cord from outlet.
2. Turn off water supply to conditioner:
a. If the conditioner installation has a “three valve”
by-pass system, first open the valve in the by-pass
line, then close the valves at the conditioner inlet
and outlet.
b. If the conditioner has an integral by-pass valve, put
it in the by-pass position.
c. If there as only a shut-off valve near the
conditioner inlet, close it.
3. Relievewater pressure in the conditioner by putting the
control in the backwash position momentarily. Return
the control to the service position.
4. Remove the control valve back cover.
5. Remove screw and washer at drive yoke. Remove
timer mounting screws. The entire timer assembly will
now lift off easily. Remove end plug retainer plate.
6. Pull upward on end of piston rod yoke until assembly is
out of valve. Remove and replace seats and spacers
with fingers.
Printed in U.S.A.
Page 17
Notes
Page 18
Printed in U.S.A.
Notes
Printed in U.S.A.
Page 19
P/N 40261 Rev. 0 4/00
Loading...
