For Residential and Commercial Applications
ES-3200
Job Name
Job Location
Engineer
Approval
LEAD FREE
–––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––
*

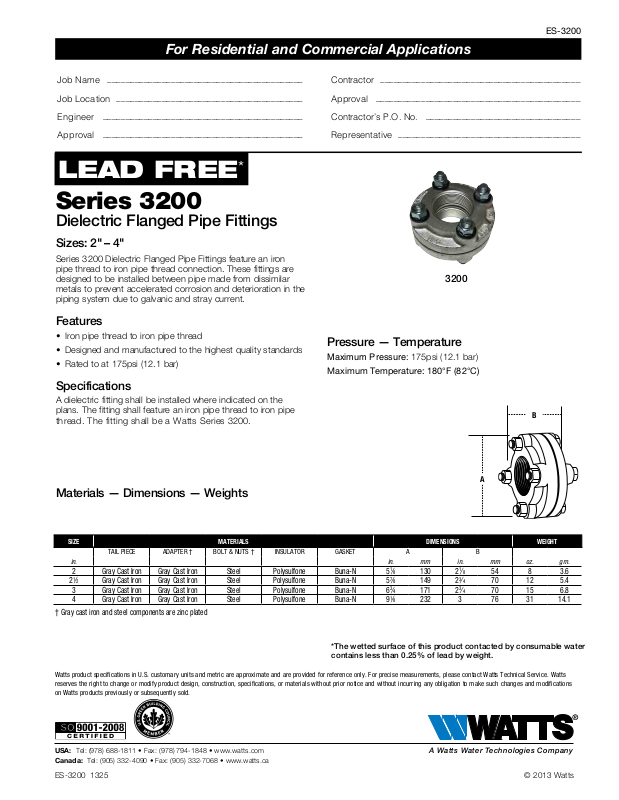

Series 3200
Dielectric Flanged Pipe Fittings
Sizes: 2" – 4"
Series 3200 Dielectric Flanged Pipe Fittings feature an iron
pipe thread to iron pipe thread connection. These fittings are
designed to be installed between pipe made from dissimilar
metals to prevent accelerated corrosion and deterioration in the
piping system due to galvanic and stray current.
Features
• Iron pipe thread to iron pipe thread
• Designed and manufactured to the highest quality standards
• Rated to at 175psi (12.1 bar)
Specifications
A dielectric fitting shall be installed where indicated on the
plans. The fitting shall feature an iron pipe thread to iron pipe
thread. The fitting shall be a Watts Series 3200.
Contractor
Approval
Contractor’s P.O. No.
Representative
––––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––
Pressure — Temperature
Maximum Pressure: 175psi (12.1 bar)
Maximum Temperature: 180°F (82°C)
3200
B
A
Materials — Dimensions — Weights
Size MATeRiALS DiMeNSiONS WeiGHT
in. in. mm in. mm oz. gm.
2 Gray Cast Iron Gray Cast Iron Steel Polysulfone Buna-N 51⁄8 130 21⁄8 54 8 3.6
1
⁄2 Gray Cast Iron Gray Cast Iron Steel Polysulfone Buna-N 57⁄8 149 23⁄4 70 12 5.4
2
3 Gray Cast Iron Gray Cast Iron Steel Polysulfone Buna-N 6
4 Gray Cast Iron Gray Cast Iron Steel Polysulfone Buna-N 9
† Gray cast iron and steel components are zinc plated
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements, please contact Watts Technical Service. Watts
reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications
on Watts products previously or subsequently sold.
USA: Tel: (978) 688-1811 • Fax: (978) 794-1848 • www.watts.com
Canada: Tel: (905) 332-4090 • Fax: (905) 332-7068 • www.watts.ca
ES-3200 1325 © 2013 Watts
TAIL PIECE ADAPTER † BOLT & NUTS † INSULATOR GASKET A B
3
⁄4 171 23⁄4 70 15 6.8
1
⁄8 232 3 76 31 14.1
*The wetted surface of this product contacted by consumable water
contains less than 0.25% of lead by weight.
