Watlow PM6C1CA-AAAABAA, PM6C1EJ-AAAABAA User manual

EZ-ZONE

User's Guide

PID Controller

®

PM Express

TOTAL

CUSTOMER

SATISFACTION

3 Year Warranty

ISO 9001

Registered Company

Winona, Minnesota USA

0600-0065-0000 Rev. E

April 2013

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Made in the U.S.A.

Safety Information

We use note, caution and warning symbols throughout this book to draw your attention to important operational
and safety information.

A “NOTE” marks a short message to alert you to an important detail.
A “CAUTION” safety alert appears with information that is important for protecting your equipment and perfor­mance. Be especially careful to read and follow all cautions that apply to your application.
A “WARNING” safety alert appears with information that is important for protecting you, others and equipment
from damage. Pay very close attention to all warnings that apply to your application.
The electrical hazard symbol, (a lightning bolt in a triangle) precedes an electric shock hazard CAUTION or
WARNING safety statement. Further explanations follow:

Symbol Explanation

CAUTION – Warning or Hazard that needs further explanation than label on unit can
provide. Consult users manual for further information.

ESD Sensitive product, use proper grounding and handling techniques when installing or
servicing product.

Unit protected by double/reinforced insulation for shock hazard prevention.

Do not throw in trash, use proper recycling techniques or consult manufacturer for proper
disposal.

Unit can be powered with either alternating current (ac) voltage or direct current (dc)
voltage.

Unit is a Listed device per Underwriters Laboratories®. It has been evaluated to United
States and Canadian requirements for Process Control Equipment. UL 61010 and CSA
C22.2 No. 61010. File E185611 QUYX, QUYX7. See: www.ul.com

Unit is a Listed device per Underwriters Laboratories®. It has been evaluated to United
States and Canadian requirements for Hazardous Locations Class 1 Division II Groups A,
B, C and D. ANSI/ISA 12.12.01-2007. File E184390 QUZW, QUZW7. See: www.ul.com

Unit is compliant with European Union directives. See Declaration of Conformity for
further details on Directives and Standards used for Compliance.

Unit has been reviewed and approved by Factory Mutual as a Temperature Limit Device per
FM Class 3545 standard. See: www.fmglobal.com

Unit has been reviewed and approved by CSA International for use as Temperature
Indicating-Regulating Equipment per CSA C22.2 No. 24. See: www.csa-international.org

Warranty

This EZ-ZONE® PM is manufactured by ISO 9001 registered processes and is backed by a three year warranty to
the first purchaser for use, providing that the units have not been misapplied. Watlow's obligations hereunder, at
Watlow's option, are limited to replacement, repair or refund of purchase price, and parts which upon examina­tion prove to be defective within the warranty period specified. This warranty does not apply to damage resulting
from transportation, alteration, misuse or abuse. The purchaser must use Watlow parts to maintain all listed
ratings.
EZ-ZONE PM Express (PID) • 2 •

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Installation and Wiring

15.9 mm
(0.63 in)

1/32 DIN (PM3) Dimensions

101.6 mm
(4.00 in)

31.2 mm
(1.23 in)

Side

30.9 mm
(1.22 in)

Top

1/32 DIN (PM3) Recommended Panel Spacing

45.2 mm
(1.78 in)

22.4 mm
(0.88 in)

panel thickness 1.53 to 9.52 mm

(0.060 to 0.075 in)

21.6 mm
(0.85 in)

EZ-ZONE PM Express (PID) • 4 • Install and Wire

53.3 mm
(2.10 in)

Front

21.6 mm
(0.85 in)

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

15.8 mm
(0.62 in)

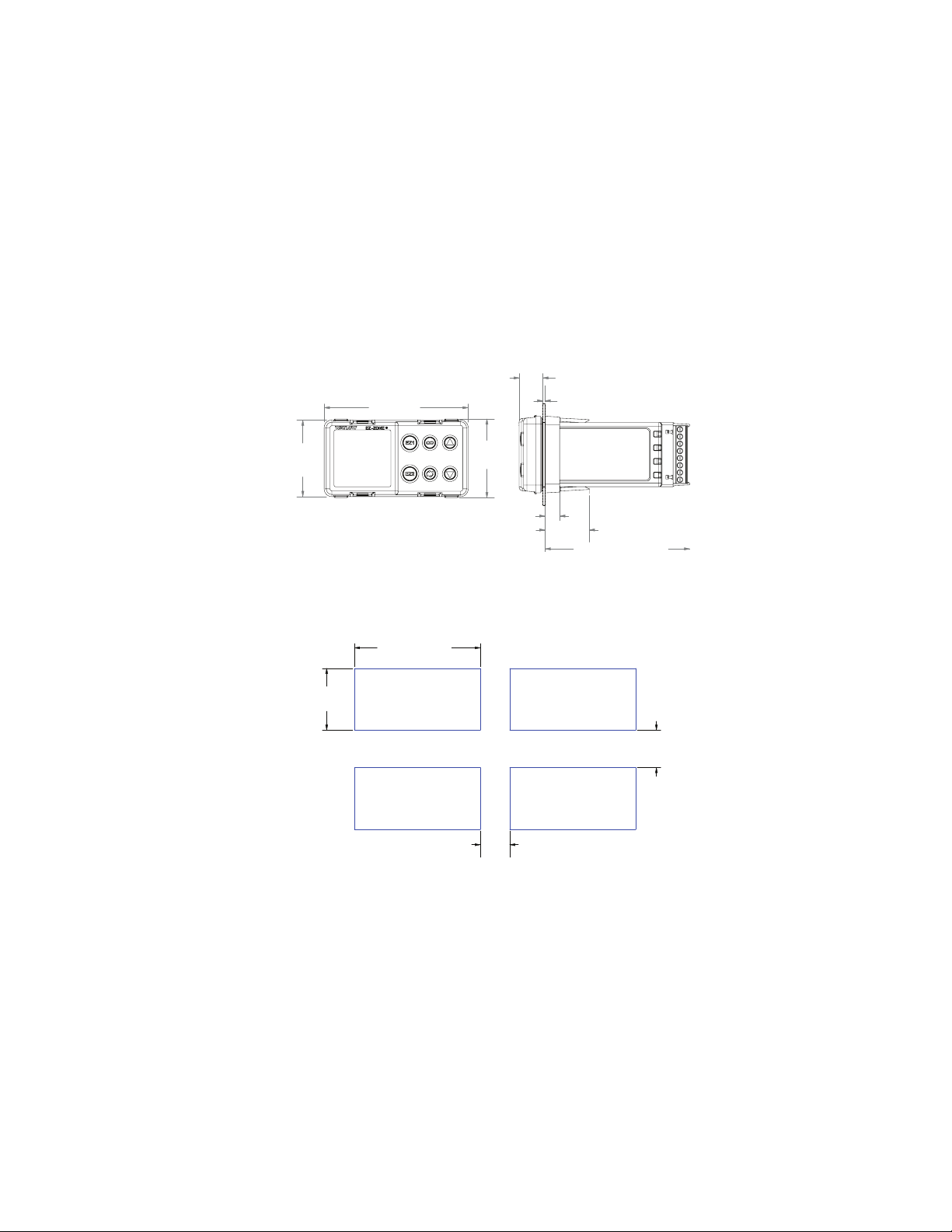

1/16 DIN (PM6) Dimensions

101.6 mm
(4.00 in)

53.3 mm
(2.10 in)

Side

51.2 mm
(2.02 in)

Top

1/16 DIN (PM6) Recommended Panel Spacing

45.2 mm
(1.78 in)

45.2 mm
(1.78 in)

panel thickness 1.53 to 9.52 mm

(0.060 to 0.075 in)

21.5 mm
(0.85 in)

EZ-ZONE PM Express (PID) • 5 • Install and Wire

53.3 mm
(2.10 in)

Front

21.6 mm
(0.85 in)

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

100.33 mm
(3.95 in)

53.34 mm
(2.10 in)

1/8 DIN (PM8) Vertical Dimensions

15.75 mm (0.62 in)

1.52 mm (0.06 in)

54.8 mm
(2.16 in)

1/8 DIN (PM8) Vertical - Recommended Panel Spacing

92.00 to 92.80 mm
(3.62 to 3.65 in)

EZ-ZONE PM Express (PID) • 6 • Install and Wire

10.16 mm
(0.40 in)

panel thickness 1.53 to 9.52 mm

(0.060 to 0.375 in)

30.73 mm (1.21 in)

101.60 mm (4.00 in)

44.96 to 45.60 mm
(1.77 to 1.79 in)

21.6 mm
(0.85 in)

Minimum

21.6 mm
(0.85 in)

Minimum

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

1/8 DIN (PM9) Horizontal Dimensions

100.33 mm
(3.95 in)

15.75 mm (0.62 in)

1.52 mm (0.06 in)

53.34 mm
(2.10 in)

44.96 to 45.6 mm
(1.77 to 1.79 in)

53.8 mm
(2.16 in)

10.16 mm
(0.40 in)

101.60 mm (4.00 in)

1/8 DIN (PM9) Horizontal Recommended Panel Spacing

92.00 to 92.80 mm
(3.62 to 3.65 in)

panel thickness 1.53 to 9.52 mm

(0.060 to 0.375 in)

21.6 mm
(0.85 in)

Minimum

30.73 mm (1.21 in)

21.6 mm
(0.85 in)

Minimum

EZ-ZONE PM Express (PID) • 7 • Install and Wire

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

100.33 mm
(3.95 in)

92.00 to 93.0 mm
(3.62 to 3.65 in)

1/4 DIN (PM4) Horizontal Dimensions

100.33 mm
(3.05 in)

12.70 mm
(0.50 in)

1/4 DIN (PM4) Horizontal Recommended Panel Spacing

92.00 to 93.0 mm
(3.62 to 3.65 in)

15.75 mm (0.62 in)

1.52 mm (0.06 in)

30.73 mm (1.21 in)

100.84 mm (3.97 in)

21.6 mm
(0.85 in)

Minimum

EZ-ZONE PM Express (PID) • 8 • Install and Wire

panel thickness 1.53 to 9.52 mm

(0.060 to 0.375 in)

21.6 mm
(0.85 in)

Minimum

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Installation

CASE

BEZEL

RETENTION COLLAR

PANEL

1. Make the panel cutout using the mounting
template dimensions in this chapter. Insert the
case assembly into the panel cutout.

2. While pressing the case assembly firmly
against the panel, slide the mounting collar
over the back of the controller.

If the installation does not require a NEMA 4X seal,
slide the mounting collar up to the back of the panel
tight enough to eliminate the spacing between the
gasket and the panel.

Slide the mounting col­lar over the back of the
controller.

3. For a NEMA 4X seal, place the blade of a
screwdriver in the notch of the mounting collar
assembly and push toward the panel while
applying pressure to the face of the controller.
Don't be afraid to apply enough pressure to
properly install the controller.
The seal system is compressed more by mat­ ing the mounting collar tighter to the front
panel (see picture). If you can move the case
assembly back and forth in the cutout, you do
not have a proper seal. The tabs on each side
of the mounting collar have teeth that latch into

EZ-ZONE PM Express (PID) • 9 • Install and Wire

GASKET

Place the blade of a
screwdriver in the
notch of the mount­ing collar assembly.

the ridges on the sides of the controller. Each
tooth is staggered at a different depth from the
front so that only one of the tabs, on each side,
is locked onto the ridges at a time.

Removing the Mounted Controller from Its Case

1. From the controller's face, pull out the tab on
each side until you hear it click.

Pull out the tab on
each side until you
hear it click.

2. Once the sides are released, grab the unit
above and below the face with two hands and
pull the unit out. If it is difficult to pull the unit
out, remove the connectors from the back of
the controller. This should make it easier to

remove.

Ó Warning:

All electrical power to the controller and con­ trolled circuits must be disconnected before
removing the controller from the front panel
or disconnecting other wiring. Failure to follow
these instructions may cause an electrical
shock and/or sparks that could cause an explo­ sion in class 1, div. 2 hazardous locations.

Returning the Controller to its Case

1. Ensure that the orientation of the controller is
correct and slide it back into the housing.

2. Using your thumbs push on either side of the
controller until both latches click.

Note:

The controller is keyed so if it feels that it will not
slide back in do not force it. Check the ori-
entation again and reinsert after correcting.

Chemical Compatibility

This product is compatible with acids, weak
alkalis, alcohols, gamma radiation and ultraviolet
radiation.
This product is not compatible with strong
alkalis, organic solvents, fuels, aromatic hydro­carbons, chlorinated hydrocarbons, esters and
keytones.

Grab the unit above
and below the face
and pull forward.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Terminal Definitions

Slot C Terminal Function Model

9899power input: ac or dc+

power input: ac or dc-

CF

Standard Bus EIA-485 common

CD

Standard Bus EIA-485 T-/R-

CE

Standard Bus EIA-485 T+/R+

Slot A

Input 1

T1

(RTD) or current +,

S1

(RTD), thermocouple -, current - or volts

-, thermistor

R1

S1 (RTD), thermocouple + or volts +,
thermistor

PM _C_ _ _ - AAAAB _ _

PM _C_ _ _ - AAAAB _ _

Universal Sensor
input 1: all configurations

Outputs Terminal Function Configuration

1 2

X1

W1

Y1

F1
G1
H1

L1
K1
J1

L1K1L2K2normally open

common (Any switched dc output can
use.)
dc- (open collector)
dc+

W2Y2dc-

dc+

voltage or current ­voltage +
current +

normally open
common
normally closed

L2K2normally open

common

L2K2normally open

common

common

Switched dc/open collector, output 1:
PM _C_ (C) _-_ AAAB _ _

Switched dc, output 2:
PM _ C _ _ (C) - _ AAAB _ _

Universal Process, output 1:
PM _ C _ (F) _ - _ AAAB _ _

Mechanical Relay 5 A, Form C, output 1:
PM _C_ (E) _-_ AAAB _ _

NO-ARC 15 A, Form A, output 2:
PM (4, 6, 8, 9) C _ _ (H) - _ AAAB _ _

Mechanical Relay 5 A, Form A, output 2:
PM _C_ _ (J) -_ AAAB _ _

Solid-State Relay 0.5 A, Form A
output 1: PM _C_ (K) _ - _ AAAB _ _
output 2: PM _C_ _ (K) - _ AAAB _ _

EZ-ZONE PM Express (PID) • 10 • Install and Wire

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Note:

In the graphics below notice that the Slot A connector does not show labeling for the outputs. Labeling for
Slot A outputs is based on the controller part number.

T1

S1

R1

98 99

Output 1

Output 2

T1

S1

R1

PM3

CF CD CE

C

A

T1 S1 R1Output 1 Output 2

PM6

98

99

CF

CD

CE

A

B

C

PM8

Output 1

Output 2

A

Output 3

Output 4

E

Digital I/O 7 - 12

98

99

CF

CD

CE

C

Output 1

Output 2

T1

S1

R1

A

Output 3

Output 4

Input 2

B

Output 1

Output 2

T1

S1

R1

A

Digital I/O 7 - 12

D

B

PM4

Communications Card

PM9

98

99

CF

CD

CE

E

D

C

E

C

98

99

CF

CD

CE

Input 2

B

D

D

EZ-ZONE PM Express (PID) • 11 • Install and Wire

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Ó

Slot C

Warning:

Use National Electric (NEC) or other country-specific
standard wiring and safety practices when wiring and
connecting this controller to a power source and to
electrical sensors or peripheral devices. Failure to do
so may result in damage to equipment and property,
and/or injury or loss of life.

Note:

Maximum wire size termination and torque rating:

• 0.0507 to 3.30 mm2 (30 to 12 AWG) single-

wire termination or two 1.31 mm2 (16 AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Power

98

99

CF

CD

CE

power

power

• 47 to 63 Hz

• 10VA maximum power consumption (PM3 and PM6)

• 14VA maximum power consumption (PM4, 8 and 9

Low Power

• 12 to 40VÎ (dc)

• 20 to 28VÅ (ac) Semi Sig F47

High Power

•85to264VÅ(ac)

•100to240VÅ(ac)SemiSigF47

Note:

Adjacent terminals may be labeled differently, de­pending on the model number.

Note:

To prevent damage to the controller, do not connect
wires to unused terminals.

Note:

Maintain electrical isolation between analog input 1
and switched dc/open collector outputs.

EZ-ZONE PM Express (PID) • 12 • Install and Wire

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Note:

Thermocouple

In the drawings below for each input notice that the Slot A connector labeling is identified.

Note:

When using a 2 wire RTD, jumper S1 and T1 together

Inputs

All inputs shown below represent input 1 (the only input) and are to be connected to slot A of the PID Control.

Process
Volts

-

+

S1

R1

2 or 3 Wire

Process
Amperes

+

T1

-

S1

Process Volts and Amperes

• 4 to 20 mA @ 100 Ω input impedance

• 0 to 10VÎ (dc) @ 20 kΩ input impedance

• Scalable

Resistance Temperature Detector (RTD)

• Platinum, 100 Ω @ 0°C

• Calibration to DIN curve (0.00385 Ω/Ω/°C)

• 20 Ω total lead resistance

• RTD excitation current of 0.09 mA typical. Each

ohm of lead resistance may affect the reading by

0.03°C.

• For 3-wire RTDs, the S1 lead must be connected

to R1.

• For best accuracy use a 3-wire RTD to compen­sate for lead-length resistance. All three lead
wires must have the same resistance.

RTD

S2

S3

S1

T1

S1

R1

-

S1

+

R1

Thermistor

S1

R1

Thermocouple

• 2 KΩ maximum source resistance

• >20 MΩ input impedance

• 3 microampere open-sensor detection

• Thermocouples are polarity sensitive. The nega-

tive lead must be connected to S1.

• To reduce errors, the extension wire for thermo­couples must be of the same alloy as the thermo­couple.

Thermistor

• >20 MΩ input impedance

• 3 microampere open-sensor detection

EZ-ZONE PM Express (PID) • 13 • Install and Wire

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

current +

Power Supply Note:

Switched dc and Process outputs use a common power supply with a maximum current output of 40mA. As an
example, supplied current (mA) from output 1 and 2 can be 20/20, 30/10, 30/0, 10/30, etc...

Outputs

Please note all outputs are connected exclusively to slot A. Output availability is based on the part number of
your PID Control.

Solid-State Relay
Form A

L1 and/or L2

K1 and/or K2

PM _ C _ (K) (K) - A A A A B _ _

Switched DC

common

dc -

W1 and/or W2

dc +

Y1 and/or Y2

PM _ C _ (C) (C) - A A A A B _ _

Universal Process

F1

negative

G1

4

volts +

H1

PM _ C _ (F) _ - A A A A B _ _

NO-ARC Relay Form A

L2

K2

PM _ C _ _ (H) - A A A A B _ _

EZ-ZONE PM Express (PID) • 14 • Install and Wire

Mechanical Relay
Form C

L1

normally open

K1

common

J1

normally closed

PM _ C _ (E) _ - A A A A B _ _

Open Collector

Power
Supply

common

X1

dc ­W1

Load

PM _ C _ (C) _ - A A A A B _ _

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Mechanical Relay Form A

L2

K2

PM _ C _ _ (J) - A A A A B _ _

Quencharc Note:

Switching pilot duty inductive loads (relay coils, solenoids, etc.) with
the mechanical relay, solid state relay or open collector output op­tions requires use of an R.C. suppressor.

Switched DC

• Supplied current up to a maximum of 30 mA. See

Power Supply note above.

• Short circuit limited to <50 mA

• 22 to 32VÎ (dc) open circuit voltage

• Use dc- and dc+ to drive external solid-state relay.

• DIN-A-MITE compatible

- single-pole: up to 4 in parallel or 4 in series

- 2-pole: up to 2 in parallel or 2 in series

- 3-pole: up to 2 in series

Open Collector

• 100 mA maximum output current sink

• 30VÎ (dc) maximum supply voltage

• Any switched dc output can use the common

terminal.

• Use an external power supply to control a dc load,

with the load positive to the positive of the power
supply, the load negative to the open collector and
common to the power supply negative.

See Quencharc note.

Mechanical Relay Form C

• 5 A at 240VÅ (ac) or 30VÎ (dc) maximum resis-
tive load

• 20 mA at 24V minimum load

• 125 VA pilot duty at 120/240VÅ (ac), 25 VA at
24VÅ (ac)

• 100,000 cycles at rated load

• Output does not supply power.

• For use with ac or dc

See Quencharc note.

Mechanical Relay Form A

• 5 A at 240VÅ (ac) or 30VÎ (dc) maximum resis-
tive load

EZ-ZONE PM Express (PID) • 15 • Install and Wire

• 20 mV at 24V minimum load

• 125 VA pilot duty @ 120/240VÅ (ac), 25 VA at

24VÅ (ac)

• 100,000 cycles at rated load

• Output does not supply power.

• For use with ac or dc

See Quencharc note.
NO-ARC Relay Form A

• 15 A at 85 to 264VÅ (ac) resistive load only

• 1/16 DIN models only

• 2,000,000 cycle rating for NO-ARC circuit

• 100 mA minimum load

• 2 mA maximum off state leakage

• Do not use on dc loads.

• Output does not supply power.

Solid-State Relay Form A

• 0.5 A at 20 to 264VÅ (ac) maximum resistive
load

• 20 VA 120/240VÅ (ac) pilot duty

• Opto-isolated, without contact suppression

• Maximum off state leakage of 105 microamperes

• Output does not supply power

• Do not use on dc loads.

• See Quencharc note.

Universal Process

• 4 to 20 mA into 800 Ω maximum load

• 0 to 10VÎ (dc) into voltage 1 kΩ minimum load

• Scalable

• Output supplies power (See Power Supply note

previous page).

• Cannot use voltage and current outputs at same

time

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Keys & Displays 16th DIN PID Controller

‰

Zone Display:

When [2onE] (found in the
Factory Page) is set to on, indi­cates the controller zone.

[1] to [9] = zones 1 to 9
[A] = zone 10 [E] = zone 14
[b] = zone 11 [F] = zone 15
[C] = zone 12 [h] = zone 16
[d] = zone 13

Lower Display:

Indicates the set point or output
power value during operation,
or the parameter whose value
appears in the upper display.

A/M Key:

This key will toggle the control
mode between the current value of
the C.M prompt (Off, MAn, AUto)
and Manual when the A/M button
is pushed and held for 3 seconds.

Infinity Key: ˆ
Clears and Silences alarms, press
to back up one level, or press and
hold for two seconds to return to
the Operations Menu.

Upper Display:

In the Operations Menu,
displays the process
value, otherwise displays
the value of the parameter
in the lower display.

PM6

A

M

Advance Key:

Advances through
parameter
prompts.

Temperature Units Indicator
Lights:

Indicates whether the tempera­ture is displayed in Fahrenheit
or Celsius.

Output Activity:

Number lights indicate activity of
outputs 1 and 2.

®

Percent Units Indicator:

Lights when the controller is
displaying values as a percentage
or when the open-loop set point
is displayed.

Communications Activity:

Flashes when another device
is communicating with this
controller.

Up and Down Keys: ¿ ¯
In the Operations Menu, adjusts the
set point in the lower display. In other
pages, changes the upper display to
a higher or lower value, or changes a
parameter selection.

32nd DIN PID Controller

With a few exceptions, all of the key functions described for the 16th DIN PID Controller apply to the 32
DIN PID Controller as well.

Left Display:

In the Operations Menu, displays
the process value, otherwise dis­plays the value of the parameter
in the left display.

Note:

As shown in the graphics on the following page the PM4, 8 and 9 controls will include two "EZ" buttons (EZ1
and EZ2). The button identified as EZ1 is equivalent to the EZ button described above where the button identi­fied as EZ2 has no functionality. Assuming the issue that caused the limit to trip has been rectified pushing
the EZ1 will reset the limit as described for the Reset button above. All other buttons found on these controls,
maintain the same functionality as described above for the 16th DIN.

PM3

Right Display:

®

2

1

%

Indicates the set point or output
power value during operation,
or the parameter whose value

appears in the right display.

nd

EZ-ZONE PM Express (PID) • 16 • Keys and Displays

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Keys & Displays for 1/8

PM8

®

th

or 1/4 DIN PID Controllers

PM9

®

PM4

®

Responding to a Displayed Message

An active message will cause the display to toggle
between the normal settings and the active mes­sage in the upper or left display and [Attn] in the
lower or right display. Your response will depend
on the message and the controller settings. Some
messages, such as Tuning, indicate that a process
is underway. If a message is generated in the
right or lower display that can be cleared (such
as [AL;h1]), simply push the infinity ˆ key to
execute the action ([CLr]).

[AL;L1] Alarm Low 1 (sensor input below low
alarm set point)

EZ-ZONE PM Express (PID) • 17 • Keys and Displays

[AL;h1] Alarm High 1 (sensor input above high
alarm set point)

[AL;E1] Alarm Error 1 (alarm state cannot be
determined due to lack of sensor input)

[Er;i1] Error Input 1 (sensor is not providing a
valid signal to the control)

[tUn1] Tuning (controller is autotuning the
control loop)

[`rP1] Ramping (controller is ramping to a
new set point)

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Upon power up of the control, using

Range (Defaults are shown bold)

[``no] No
[`yES] Yes

[`off] Off
[AUto] Auto
[MAn] Manual

0 to 9,999.000°F or units
0 to 5,555.000°C

Units, 25.0°F or 14.0°C

0 to 9,999.000°F or units
0 to 5,555.000°C

Units, 25.0°F or 14.0°C

0 to 9,999 seconds per repeat

180

0 to 9,999 seconds

0 seconds

0.1 to 60.0 seconds (solid-state relay or switched dc)

5.0 to 60.0 seconds (mechanical relay & NO-ARC power control)

1 sec. [SSR & sw dc], 20.0 sec. [mech. relay & NO-ARC]

0.1 to 60.0 seconds (solid-state relay or switched dc)

5.0 to 60.0 seconds (mechanical relay & NO-ARC power control)

1 sec. [SSR & sw dc], 20.0 sec. [mech. relay & NO-ARC]

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

Units, 32.0°F or 0.0°C

the advance key will scroll through the
various prompts found in the Operations
Menu. At any point within the Operations
menu to return to the default display
push the Infinity ˆ key.

Operations Menu

[````] PAr1

‰

EZ-ZONE PM Express (PID) • 18 • Operations Menu

[````] PAr2

[`AUt] Autotune

[`C;M] Control Mode

[`h;pb] Heat Proportional Band

[`C;pb] Cool Proportional Band

[``ti] Time Integral

[``td] Time Derivative

[o;tb1] Time Base

[o;tb2] Time Base

[`A;lo] Alarm Low Set Point

[`A;hi] Alarm High Set Point

[`i;Ca] Calibratin Offset

Operations Menu

Display Parameter Name Description

Autotune

[`AUt]

[ AUt]

[`C;M]

[ C.M]

[`h;Pb]

[ h.Pb]

[`C;Pb]

[ C.Pb]

[``ti]

[ ti]

[``td]

[ td]

[o;tb1]

[o.tb1]

[o;tb2]

[o.tb2]

[`A;Lo]

[ A.Lo]

Start an autotune. While active the upper
or left and lower or right display will flash
[tUn1] and [Attn].

Appears if: Heat or cool algorithm set to PID

Control Mode Active

View the current control mode.

Appears if: Always

Heat Proportional Band

Set the PID proportional band for the heat
outputs.

Appears if: Heat algorithm set to PID

Cool Proportional Band

Set the PID proportional band for the cool
outputs.

Appears if: Cool algorithm set to PID

Time Integral

Set the PID integral for the outputs.

Appears if: Heat or cool algorithm set to PID

Time Derivative

Set the PID derivative time for the outputs.

Appears if: Heat or cool algorithm set to PID

Time Base Output 1

Set the time base for fixed-time-base

control.
Appears if: Output 1 set to heat or cool with
control algorithm set to PID.

Time Base Output 2

Set the time base for fixed-time-base

control.
Appears if: Output 2 set to heat or cool with
control algorithm set to PID.

Alarm Low Set Point

Process - set the process value that will trig-

ger a low alarm.

Deviation - set the span of units (using nega-

tive numbers) from the closed loop set

point that will trigger a low alarm.
Appears if: If Alarm Type [`A;ty] is set to
Process or Deviation Alarm

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Range (Defaults are shown bold)

[``no] No
[`yES] Yes

[`off] Off
[AUto] Auto
[MAn] Manual

0 to 9,999.000°F or units
0 to 5,555.000°C

Units, 25.0°F or 14.0°C

0 to 9,999.000°F or units
0 to 5,555.000°C

Units, 25.0°F or 14.0°C

0 to 9,999 seconds per repeat

180

0 to 9,999 seconds

0 seconds

0.1 to 60.0 seconds (solid-state relay or switched dc)

5.0 to 60.0 seconds (mechanical relay & NO-ARC power control)

1 sec. [SSR & sw dc], 20.0 sec. [mech. relay & NO-ARC]

0.1 to 60.0 seconds (solid-state relay or switched dc)

5.0 to 60.0 seconds (mechanical relay & NO-ARC power control)

1 sec. [SSR & sw dc], 20.0 sec. [mech. relay & NO-ARC]

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

Units, 32.0°F or 0.0°C

EZ-ZONE PM Express (PID) • 19 • Operations Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Upon power up of the control, using
the advance key will scroll through the
various prompts found in the Operations
Menu. At any point within the Operations
menu to return to the default display
push the Infinity ˆ key.

Operations Menu

[````] PAr1

‰

[````] PAr2

[`AUt] Autotune

[`C;M] Control Mode

[`h;pb] Heat Proportional Band

[`C;pb] Cool Proportional Band

[``ti] Time Integral

[``td] Time Derivative

[o;tb1] Time Base

[o;tb2] Time Base

[`A;lo] Alarm Low Set Point

[`A;hi] Alarm High Set Point

[`i;Ca] Calibratin Offset

Operations Menu (cont.)

Display Parameter Name Description

Alarm High Set Point

[`A;hi]

[ A.hi]

Process - set the process value that will trig-

ger a high alarm.

Deviation - set the span of units from the

closed loop set point that will trigger a

high alarm.
Appears if: If Alarm Type (A.ty) is set to
Process or Deviation Alarm

Calibration Offset

[`i;CA]

[ i.CA]

Set an offset value for a process output.

Appears if: Always

EZ-ZONE PM Express (PID) • 20 • Operations Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Range (Defaults are shown bold)

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

Units, 300.0°F or 150.0°C

-1,999.000 to 9,999.000°F or units, -1,110.555 to 5,555.000°C, 0.0

EZ-ZONE PM Express (PID) • 21 • Operations Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

‰

To enter the Setup Menu push and hold the
up and down arrow keys for approximately
3 seconds. Once there, push the green
advance key to scroll through to the prompt
of choice and then use the up and down
arrow keys to change the range. At any
point within the Setup menu to return to the
default display push the Infinity ˆ key.

Setup Menu

[`loC] Lockout Menu

[`SEn] Sensor Type

[`Lin] Linearization

[``t;C] Thermistor Curve

[``r;r] Resistance Range

[`deC] Decimal

[`C_F] Display Units

[`r;lo] Range Low

[`r;hi] Range High

[`fn1] Function Output 1

[`o;ty] Output Type

[`fn2] Function Output 2

[`h;ag] Heat Algorithm

[`h;sC] Hysteresis (Heat & Cool)

[`C;Ag] Cool Algorithm

[`A;ty] Alarm Type

[`A;hy] Alarm Hysteresis

[`A;lg] Alarm Logic

[`A;lA] Alarm Latching

[`A;bl] Alarm Blocking

[`A;si] Alarm Silencing

[A;dsp] Alarm Display

[``rp] Ramp Action

[`r;rt] Ramp Rate

[`s;lo] Scale Low

[`s;hi] Scale High

[o;hi1] Power Scale High Output 1

[o;hi2] Power Scale High Output 2

[`Ad;s] Zone Address

EZ-ZONE PM Express (PID) • 22 • Setup Menu

Setup Menu

Display Parameter Name Description

Lockout Menu

[LoC]

[LoC]

[Sen]

[ SEn]

[Lin]

[ Lin]

[``t;C]

[t.C]

[``r;r]

[r.r]

[`dEC]

[ dEC]

[`C_F]

[ C_F]

[r;Lo]

[ r.Lo]

[r;hi]

[ r.hi]

Set th e secur ity clearance le vel. Th e user

can ac cess t he sele cted l evel an d all lower

levels.

Appears if: Always

Sensor Type

Set the analog sensor type to match the
device wired to this input.

Appears if: Always

Linearization

Set the linearization to match the thermo­couple type wired to this input.

For example, select[```H]for a type K

thermocouple.
Appears if: Sensor Type is set to Thermo-

couple.

Thermistor Curve

Select a curve to apply to the thermistor
input.

Resistance Range

Set the maximum resistance of the thermis­tor input.

Decimal

Set the precision of the displayed value.

Appears if: Always

Display Units

Select which units will be displayed.

Appears if: Always

Range Low

For process signals, this value scales the units

to minimum electrical units (0 volts or 4 mA)

Appears if: Always

Range High

For process signals, this value scales the

units to maximum electrical units (10 volts

or 20 mA)

Appears if: Always

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Range (Defaults are shown bold)

1 to 5
1 Operations Menu (read only, A/M button disabled)*
2 Operations Menu (A/M button disabled, Set point R/W)*
3 Operations Menu (A/M button enabled, Set point R/W, Control Mode R/W)*
4 Operations Menu R/W access*

5 Operations Menu and Setup Menu full R/W access

*You can change the security level at any level

[``tC]Thermocouple, [uolT]Volts dc, [`MA]
[r0;1H]RTD 100 Ω, [thEr]Thermistor

[`b] B [`J] J [`t] T
[`c] C [`H] K
[`d] D [`n] N
[`e] E [`r] R
[`f] F [`S] S

[```A] CurveA,[```b] CurveB,[```C] CurveC
[CUSt] Custom

[```5] 5K,[``10] 10K,[``20] 20K,[``40] 40K

[```0] Whole, [``0;0] Tenths, [`0;00] Hundredths

[```F] °F

[```C] °C

-1,999.000 to 9,999.000

0.0

-1,999.000 to 9,999.000

Milliamps dc

EZ-ZONE PM Express (PID) • 23 • Setup Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

‰

Range (Defaults are shown bold)

[`oFF]Off, [CooL]Cool, [hEAt] Heat,[ALM]Alarm

[uoLt]Volts

[`MA]Milliamps

[`oFF]Off, [CooL]Cool,

[hEAt]Heat,[ALM] Alarm

[`oFF] Off, [`Pid] PID

[on;of] On-Off

0 to 9,999.000°F or units

0 to 5,555.000°C

Units, 3.0°F or 2.0°C

[`oFF] Off, [`Pid] PID

[on;of] On-Off

[`oFF] Off, [PR;AL] Process Alarm

[dE;AL] Deviation Alarm

0.001 to 9,999.000°F or units

0.001 to 5,555.000°C

Units, 1.0°F or 1.0°C

[`a;lC] Close on Alarm

[`a;lo] Open on alarm

To enter the Setup Menu push and hold the
up and down arrow keys for approximately
3 seconds. Once there, push the green
advance key to scroll through to the prompt
of choice and then use the up and down
arrow keys to change the range. At any
point within the Setup menu to return to the
default display push the Infinity ˆ key.

Setup Menu

[`loC] Lockout Menu

[`SEn] Sensor Type

[`Lin] Linearization

[``t;C] Thermistor Curve

[``r;r] Resistance Range

[`deC] Decimal

[`C_F] Display Units

[`r;lo] Range Low

[`r;hi] Range High

[`fn1] Function Output 1

[`o;ty] Output Type

[`fn2] Function Output 2

[`h;ag] Heat Algorithm

[`h;sC] Hysteresis (Heat & Cool)

[`C;Ag] Cool Algorithm

[`A;ty] Alarm Type

[`A;hy] Alarm Hysteresis

[`A;lg] Alarm Logic

[`A;lA] Alarm Latching

[`A;bl] Alarm Blocking

[`A;si] Alarm Silencing

[A;dsp] Alarm Display

[``rp] Ramp Action

[`r;rt] Ramp Rate

[`s;lo] Scale Low

[`s;hi] Scale High

[o;hi1] Power Scale High Output 1

[o;hi2] Power Scale High Output 2

[`Ad;s] Zone Address

EZ-ZONE PM Express (PID) • 24 • Setup Menu

Setup Menu

Display Parameter Name Description

Function of Output 1

[`fn1]

[ fn1]

[`o;ty]

[ o.ty]

[`fn2]

[ fn2]

[`h;Ag]

[ h.Ag]

[`hSC]

[ hSC]

[`C;Ag]

[ C.Ag]

[`A;ty]

[ A.ty]

[`A;hy]

[ A.hy]

[a;lg]

[A.Lg]

Select which function will drive this output.

Appears if: If output 1 is ordered

Output Type

Select whether the process output will operate

in volts or milliamps.

Appears if: A process output (PM _ C _ F _-_
AAAB _ _)

Function of Output 2

Select which function will drive this output.

Appears if: If output 2 is ordered

Heat Algorithm

Set the heat control method.

Appears if: Output 1 or 2 set to heat

Hysteresis (Heat & Cool)

Set the control switching hysteresis for on-

off control. This determines how far into the

“on” region the process value needs to move

before the output turns on.

Appears if: Heat or Cool Algorithm is set to
On-Off.

Cool Algorithm

Set the cool control method.

Appears if: If Output 1 or 2 is set to cool

Alarm Type

Select how the alarm will or will not track the

set point.

Appears if: Always

Alarm Hysteresis

Set the hysteresis for an alarm. This deter-

mines how far into the safe region the process

value needs to move before the alarm can

be cleared.

Appears if: When alarm type is set to process
or deviation alarm

Alarm Logic

Select what the output condition will be during

the alarm state.

Appears if: Always

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Range (Defaults are shown bold)

[`oFF]Off, [CooL]Cool, [hEAt] Heat,[ALM]Alarm

[uoLt]Volts

[`MA]Milliamps

[`oFF]Off, [CooL]Cool,

[hEAt]Heat,[ALM] Alarm

[`oFF] Off, [`Pid] PID

[on;of] On-Off

0 to 9,999.000°F or units

0 to 5,555.000°C

Units, 3.0°F or 2.0°C

[`oFF] Off, [`Pid] PID

[on;of] On-Off

[`oFF] Off, [PR;AL] Process Alarm

[dE;AL] Deviation Alarm

0.001 to 9,999.000°F or units

0.001 to 5,555.000°C

Units, 1.0°F or 1.0°C

[`a;lC] Close on Alarm

[`a;lo] Open on alarm

EZ-ZONE PM Express (PID) • 25 • Setup Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

‰

To enter the Setup Menu push and hold the
up and down arrow keys for approximately
3 seconds. Once there, push the green
advance key to scroll through to the prompt
of choice and then use the up and down
arrow keys to change the range. At any
point within the Setup menu to return to the
default display push the Infinity ˆ key.

Setup Menu

[`loC] Lockout Menu

[`SEn] Sensor Type

[`Lin] Linearization

[``t;C] Thermistor Curve

[``r;r] Resistance Range

[`deC] Decimal

[`C_F] Display Units

[`r;lo] Range Low

[`r;hi] Range High

[`fn1] Function Output 1

[`o;ty] Output Type

[`fn2] Function Output 2

[`h;ag] Heat Algorithm

[`h;sC] Hysteresis (Heat & Cool)

[`C;Ag] Cool Algorithm

[`A;ty] Alarm Type

[`A;hy] Alarm Hysteresis

[`A;lg] Alarm Logic

[`A;lA] Alarm Latching

[`A;bl] Alarm Blocking

[`A;si] Alarm Silencing

[A;dsp] Alarm Display

[``rp] Ramp Action

[`r;rt] Ramp Rate

[`s;lo] Scale Low

[`s;hi] Scale High

[o;hi1] Power Scale High Output 1

[o;hi2] Power Scale High Output 2

[`Ad;s] Zone Address

EZ-ZONE PM Express (PID) • 26 • Setup Menu

Setup Menu

Display Parameter Name Description

Alarm Latching

[`A;LA]

[ A.LA]

[`A;bL]

[ A.bL]

[`A;si]

[ A.Si]

[A;dSP]

[A.dSP]

[``rP]

[ rP]

[`r;rt]

[ r.rt]

[`s;lo]

[ S.Lo]

Turn alarm latching on or off. A latched alarm
has to be turned off by the user.

Appears if: When alarm type is set to process
or deviation alarm

Alarm Blocking

Select when an alarm will be blocked. After
startup and/or after the set point changes, the
alarm will be blocked until the process value
enters the normal range.

Appears if: When alarm type is set to process
or deviation alarm

Alarm Silencing

Turn alarm silencing on to allow the user
to disable the output tied (configured) to
this alarm

Appears if: When alarm type is set to process
or deviation alarm

Alarm Display

Display an alarm message when an
alarm is active.

Appears if: When alarm type is set to process
or deviation alarm

Ramp Action

Select when the controller's set point will
ramp to the defined end set point.

Appears if: Always

Ramp Rate

Set the rate for the set point ramp. Set the
time units for the rate with the Ramp Scale

parameter.
Appears if: Ramp Action is set to Startup, Set
Point or Both.

Scale Low Output 1

Set the scale low for process output in electri-

cal units. This value; in volts or mil liamps, will

correspond to 0% PID power output.
Appears if: Output 1 is a Process set to heat

or cool

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Range (Defaults are shown bold)

[nLAt] Non-Latching

[`LAt] Latching

[`oFF] Off

[`Str] Startup

[StPt] Set Point

[both] Both

[`oFF] Off

[``on] On

[`oFF] Off

[``on] On

[`oFF] Off, [`Str] Startup

[StPt] Set Point Change, [both] Both

1.0°F degrees or units per hour

1.0°C

-100.0 to 100.0

0.0

EZ-ZONE PM Express (PID) • 27 • Setup Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

‰

To enter the Setup Menu push and hold the
up and down arrow keys for approximately
3 seconds. Once there, push the green
advance key to scroll through to the prompt
of choice and then use the up and down
arrow keys to change the range. At any
point within the Setup menu to return to the
default display push the Infinity ˆ key.

Setup Menu

[`loC] Lockout Menu

[`SEn] Sensor Type

[`Lin] Linearization

[``t;C] Thermistor Curve

[``r;r] Resistance Range

[`deC] Decimal

[`C_F] Display Units

[`r;lo] Range Low

[`r;hi] Range High

[`fn1] Function Output 1

[`o;ty] Output Type

[`fn2] Function Output 2

[`h;ag] Heat Algorithm

[`h;sC] Hysteresis (Heat & Cool)

[`C;Ag] Cool Algorithm

[`A;ty] Alarm Type

[`A;hy] Alarm Hysteresis

[`A;lg] Alarm Logic

[`A;lA] Alarm Latching

[`A;bl] Alarm Blocking

[`A;si] Alarm Silencing

[A;dsp] Alarm Display

[``rp] Ramp Action

[`r;rt] Ramp Rate

[`s;lo] Scale Low

[`s;hi] Scale High

[o;hi1] Power Scale High Output 1

[o;hi2] Power Scale High Output 2

[`Ad;s] Zone Address

EZ-ZONE PM Express (PID) • 28 • Setup Menu

Setup Menu

Display Parameter Name Description

Scale High Output 1

[`s;hi]

[ S.hi]

[o;hi1]

[o.hi1]

[o;hi2]

[o.hi2]

[PAr1]

[PAr1]

[PAr2]

[PAr2]

[`ad;s]

[ Ad.S]

Set the scale high for process output in elec-

trical units. This value; in volts or mil liamps,

will correspond to 100% PID power output.
Appears if: Output 1 is a Process set to heat

or cool

Power Scale High Output 1

Set maximum value of output 1 range.
Appears if: Output 1 is Switched and set to

heat or cool

Power Scale High Output 2

Set maximum value of output 2 range.
Appears if: Output 2 is Switched and set to

heat or cool

Upper or Left Display

Select parameter to display.
Appears if: Always

Lower or Right Display

Select parameter to display.
Appears if: Always

Zone Address - Standard Bus Com­munication

Set zone address from 1-16.
Appears if: Always

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

-100.0 to 100.0

10.0

0.0 to 100%

100.0

0.0 to 100%

100.0

[AC;Pu]

Active Process Value,

[AC;SP]

Active Set Point,

[`A;Lo]

Alarm Low Set Point,

1-16

1

Range (Defaults are shown bold)

[none] none

[`A;hi]

Alarm High Set Point

[none] None

EZ-ZONE PM Express (PID) • 29 • Setup Menu

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Specifications

Line Voltage/Power

• All voltage levels represent minimums and maximums

• 85 to 264V~(ac), 47 to 63Hz

• 20 to 28VÅ(ac), +10/-15 percent; 50/60Hz, ±5 percent

• 12 to 40VÎ(dc)

• 10VA maximum power consumption (PM3 and PM6)

• 14VA maximum power consumption (PM4, 8 and 9)

• Data retention upon power failure via nonvolatile memory

• Compliant with SEMI F47-0200, Figure R1-1 voltage sag requirements @ 24VÅ(ac) or higher

Environment

• -18 to 65°C (0 to 149°F) operating temperature

• -40 to 85°C (-40 to 185°F) storage temperature

• 0 to 90 percent RH, non-condensing

Accuracy

• Calibration accuracy and sensor conformity: ±0.1 percent
of span, ±1°C @ the calibrated ambient temperature and rated line voltage

• Type S, 0.2 percent

• Type T, below -50°C; 0.2 percent

• Calibration ambient temperature @ 25°C ±3°C (77°F ±5°F)

• Accuracy span: 540°C (1000°F) minimum

• Temperature stability: ±0.1°C/°C (±0.1°F/°F) rise in ambient maximum

Agency Approvals

• cULus® UL/EN/CSA C22.2 No. 61010-1 Listed File E185611

• cULus® ANSI/ISA 12.12.01-2007, CSA-C22.2 No.213-1987, Class 1 Division 2 Groups A, B, C

and D, Temperature Code T4A, File E184390 (optional)

• UL® 50, 4X indoor locations, NEMA 4X, IP66 front seal

• CSA C22.2 No. 24 File 158031 (1/32 and 1/16 DIN sizes)

• CE, RoHS by design, W.E.E.E.

• SEMI F47-0200

Controller

• User selectable heat/cool, on-off, P, PI, PD, PID or alarm action

• Auto-tune control algorithm

• Control sampling rates: input = 10Hz, outputs = 10Hz

• Input and output capacity per controller type ordering information

Serial Communications

• Isolated communications

• Standard Bus Conguration Protocol

Wiring Termination—Touch-Safe Terminals

• Input, power and controller output terminals are touch safe removable 12 to 22 AWG

• Use 75°C, Cu conductor only

EZ-ZONE PM Express (PID) • 30 • Specifications

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Specifications (cont.)

Universal Input

• Thermocouple, grounded or ungrounded sensors

• >20MΩinput impedance

• Maximum of 2KΩ source resistance

• RTD 2- or 3-wire, platinum, 100Ω @ 0°C calibration to DIN curve (0.00385 Ω/Ω/°C)

• Process, 4-20mA @ 100Ω, or 0-10VÎ(dc) @ 20kΩ input impedance; scalable

Thermistor Input (Not included with Universal Input)

Thermistor Input

Input Type

Thermistor, 5K range ±5 0 5000

Thermistor, 10K range ±10 0 10000

Thermistor, 20K range ±20 0 20000

Thermistor, 40K range ±40 0 40000

• 0to40KΩ,0to20KΩ,0to10KΩ,0to5KΩ

• 2.252KΩand10KΩ baseat77°F(25°C)

• Linearizationcurvesbuilt in

• ThirdpartyThermistorcompatibilityrequirements

Base R @

25C

2.252K Curve A 2.2K3A 004 A

10K Curve A 10K3A 016 B

10K Curve C 10K4A 006 C

Functional Operating Range

• Type B: -50 to 1816°C (-58 to 3301°F), Type C: 0 to 2315°C (32 to 4199°F)

• Type D: 0 to 2315°C (-328 to 4199°F), Type E: -270 to 1000°C (-454 to 1832°F)

• Type F: 0 to 1343°C (32 to 2449°F), Type J: -210 to 1200°C (-346 to 2192°F)

• Type K: -270 to 1371°C (-454 to 2500°F), Type N: -200 to 1300°C (-328 to 2372°F)

• Type R: -50 to 1767°C (-58 to 3213°F), Type S: -50 to 1767°C (-58 to 3213°F)

• Type T: -270 to 400°C (-454 to 752°F), RTD (DIN): -200 to 800°C (-328 to 1472°F)

• Process: -1999 to 9999 units

Max Error @

25 Deg C

Alpha

Techniques

Accuracy

Range Low

Beta THERM YSI

Range High

Accuracy

Units

Ohms

Ohms

Ohms

Ohms

Prompt

[``tC]

EZ-ZONE PM Express (PID) • 31 • Specifications

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Specifications (cont.)

Output Hardware

• Switched dc, 22 to 32VÎ(dc) with a maximum of 30 mA supply current available.

• Open collector, maximum sink current 100 mA, @ 30VÎ(dc)

• Solid state relay (SSR), Form A, 0.5A @ 24VÅ(ac) minimum, 264VÅ(ac) maximum, opto-

isolated, without contact suppression

• Electromechanical relay, Form C, 5A, 24 to 240VÅ(ac) or 30VÎ(dc) maximum, resistive load,
100,000 cycles at rated load

• Electromechanical relay, Form A, 5A, 24 to 240VÅ(ac) or 30VÎ(dc) maximum, resistive load,
100,000 cycles at rated load

• NO-ARC relay, Form A, 15A, 24 to 240VÅ(ac), no VÎ(dc), resistive load, 2 million cycles at
rated load

• Universal process:

- 0 to 10VÎ(dc) into a minimum 1,000Ω load

- 4 to 20mA into maximum 800Ω load

Operator Interface

• Dual 4 digit, 7 segment LED displays

• Typical display update rate 1Hz

• Advance, innity, up and down keys plus an EZ-KEY key (not available in 1⁄32 DIN)

• A/M Key on 1/16 DIN package automatically programmed as an Auto/Manual transfer mode

function.

• EZ1 Key on 1/8 and 1/4 DIN packages automatically programmed as an Auto/Manual transfer
mode function.

EZ-ZONE PM Express (PID) • 32 • Specifications

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Ordering Part Number (Part number digits 1 through 14) PMXCXXX-AAAABXX

All Models include: *Universal Sensor Input, Standard Bus Configuration Communications
*Dual line Red over Green 7 Segment displays

Package Size (Digit #3)
3 = 1/32 DIN
6 = 1/16 DIN
8 = 1/8 DIN vertical
9 = 1/8 DIN horizontal
4 = 1/4 DIN

Primary Function (Digit #4)
C = PID Controller w/ Universal Input

Power Supply (Digit #5)

1 = 100-240 VAC
3 = 12-28VAC/DC

Output 1 and 2 Hardware Options (Digits #6 and #7)
Output 1 Output 2
CA = Switched dc/open collector None
CH = Switched dc/open collector NO-ARC 15 Amp power control
CC = Switched dc/open collector Switched DC
CJ = Switched dc/open collector Mechanical relay 5A, Form A
CK = Switched dc/open collector SSR Form A, 0.5 Amp
EA = Mechanical Relay 5 Amp form C None
EH = Mechanical Relay 5 Amp form C NO-ARC 15 Amp power control
EC = Mechanical Relay 5 Amp form C Switched DC
EJ = Mechanical Relay 5 Amp form C Mechanical relay 5A, Form A
EK = Mechanical Relay 5 Amp form C SSR Form A, 0.5 Amp
FA = Universal Process None
FC = Universal Process Switched DC
FJ = Universal Process Mechanical relay 5A, Form A
FK = Universal Process SSR Form A, 0.5 Amp
AK = None SSR Form A, 0.5 Amp
KH = SSR Form A, 0.5 Amp NO-ARC 15 Amp power control
KK = SSR Form A, 0.5 Amp SSR Form A, 0.5 Amp

Future Options (Digits #8 thru #11)
AAAA = None

Menu Type (Digits #12)
B = PM Express with English manual (Limit or PID)

Additional Options (Digits #13 and #14)
AA = Standard EZ-ZONE face plate
AB = EZ-ZONE logo and no Watlow name
AC = No logo and no Watlow name
12 = Class 1, Div 2 (not available with Limit Controller or mechanical relay outputs)

Multilingual User Manuals (PID only) and associated Watlow part numbers:

- English 0600-0065-0000, - Chinese 0600-0065-0001, - Japanese 0600-0065-0002

- Korean 0600-0065-0003, - German 0600-0065-0004, - French 0600-0065-0005

- Italian 0600-0065-0006, - Spanish 0600-0065-0007

EZ-ZONE PM Express (PID) • 33 • Ordering Information

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Declaration of Conformity

Series EZ-ZONE® PM

WATLOW an ISO 9001 approved facility since 1996.

1241 Bundy Blvd.
Winona, MN 55987 USA

Declares that the following product:
Designation:
Model Numbers: PM (3, 6, 8, 9 or 4)(Any Letter or number) – (1, 2, 3 or 4)(A, C, E, F or

Classification: Temperature control, Installation Category II, Pollution degree 2, IP66
Rated Voltage and Frequency:
Rated Power Consumption: 10 VA maximum PM3, PM6 Models.

Meets the essential requirements of the following European Union Directives by using the relevant
standards show below to indicate compliance.

EN 61326-1 2006 Electrical equipment for measurement, control and laboratory

EN 61000-4-2 1996 +A1,A2 Electrostatic Discharge Immunity
EN 61000-4-3 2006 Radiated Field Immunity 10V/M 80–1000 MHz, 3 V/M 1.4–2.7 GHz
EN 61000-4-4 2004 Electrical Fast-Transient / Burst Immunity
EN 61000-4-5 2006 Surge Immunity
EN 61000-4-6 1996 +A1,A2,A3 Conducted Immunity
EN 61000-4-11 2004 Voltage Dips, Short Interruptions and Voltage Variations Immunity
EN 61000-3-2 2006 Harmonic Current Emissions
EN 61000-3-3
SEMI F47 2000 Specification for Semiconductor Sag Immunity Figure R1-1

1

For mechanical relay loads, cycle time may need to be extended up to 160 seconds to meet flicker

requirements depending on load switched and source impedance.

EN 61010-1 2001 Safety Requirements of electrical equipment for measurement,

2004/108/EC Electromagnetic Compatibility Directive

1

2005 Voltage Fluctuations and Flicker

Series EZ-ZONE

K) (A, C, H, J or K)(Any letter or number) – (Any letter or number)(A, C,
E, F or K)(A, C, H, J or K) (Any three letters or numbers)

100 to 240 V~ (ac 50/60 Hz) or 15 to 36 V�dc/ 24 V~ac 50/60 Hz

14 VA maximum PM8, PM9, PM4 Models

2006/95/EC Low-Voltage Directive

Compliant with 2002/95/EC RoHS Directive

Per 2002/96/EC W.E.E.E Directive Please Recycle Properly.

Raymond D. Feller III Winona, Minnesota, USA
Name of Authorized Representative Place of Issue

General Manager June 2009
Title of Authorized Representative Date of Issue

®

PM (Panel Mount)

use – EMC requirements (Industrial Immunity, Class B
Emissions).

control and laboratory use. Part 1: General requirements

Signature of Authorized Representative

EZ-ZONE PM Express (PID) • 34 •

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
