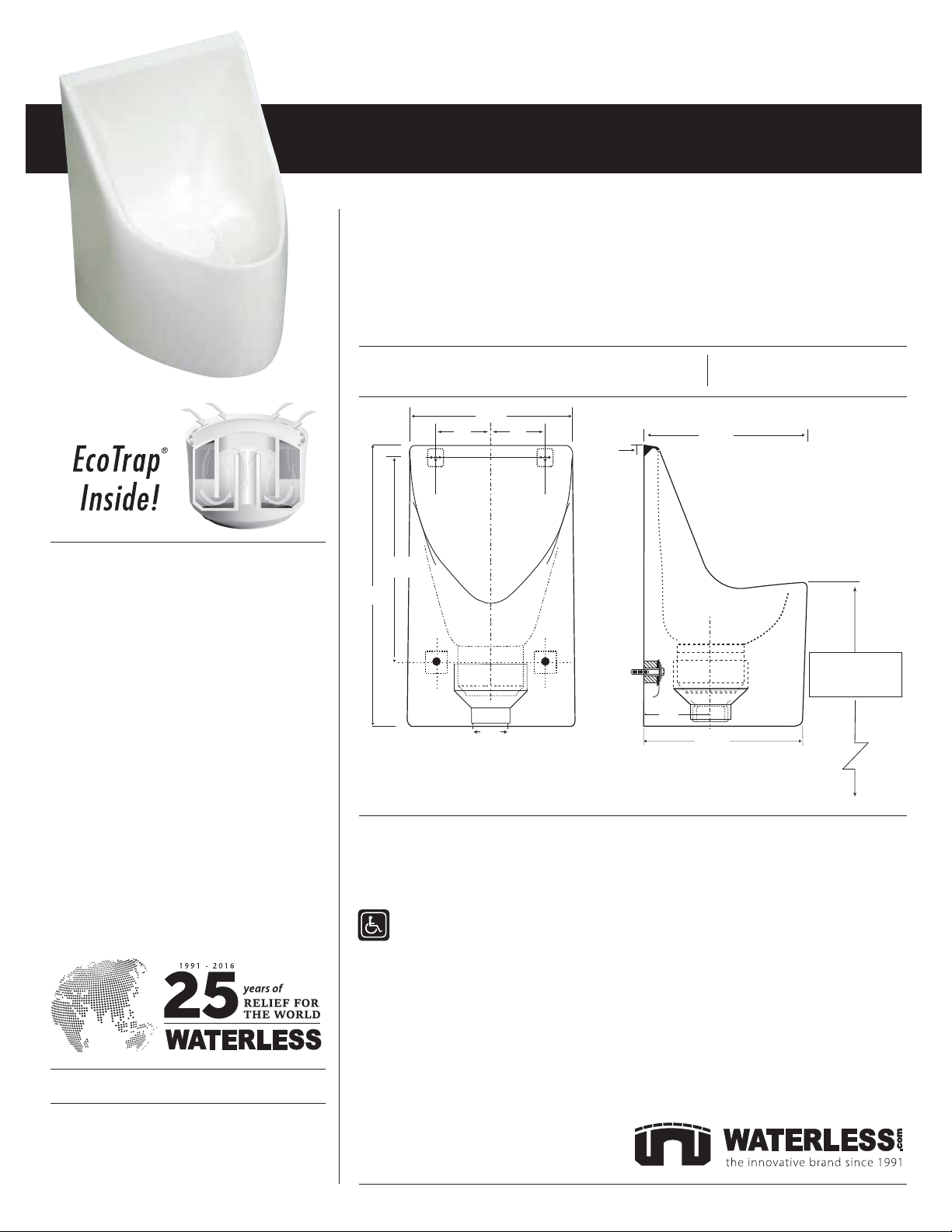

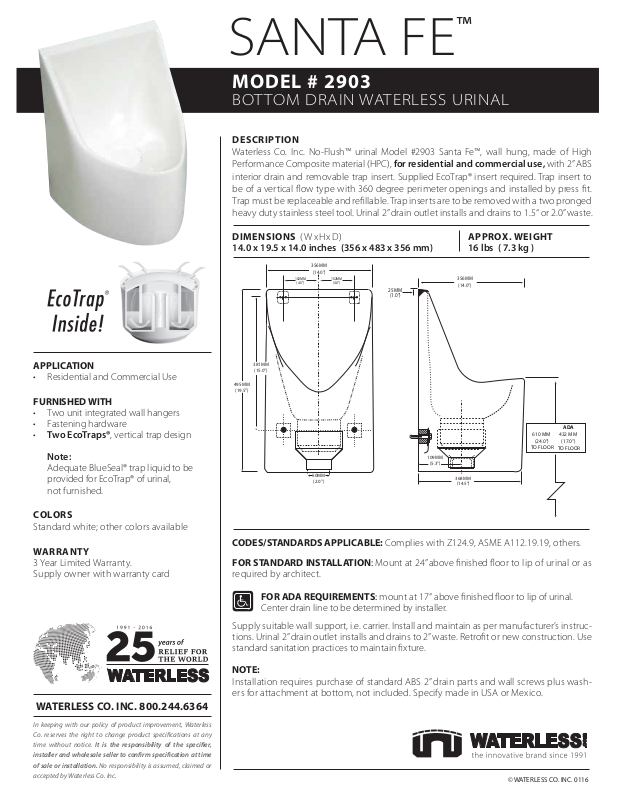

SANTA FE

MODEL # 2903

BOTTOM DRAIN WATERLESS URINAL

DESCRIPTION

Waterless Co. Inc. No-Flush™ urinal Model #2903 Santa Fe™, wall hung, made of High Performance Composite material (HPC), for residential and commercial use, with 2” ABS interior drain and removable trap insert. Supplied EcoTrap® insert required. Trap insert to be of a vertical ow type with 360 degree perimeter openings and installed by press t. Trap must be replaceable and rellable. Trap inserts are to be removed with a two pronged heavy duty stainless steel tool. Urinal 2” drain outlet installs and drains to 1.5“ or 2.0” waste.

APPLICATION

• Residential and Commercial Use

FURNISHED WITH

• Two unit integrated wall hangers

• Fastening hardware

• Two EcoTraps®, vertical trap design

Note: Adequate BlueSeal® trap liquid to be provided for EcoTrap® of urinal, not furnished.

COLORS

Standard white; other colors available

WARRANTY

3 Year Limited Warranty. Supply owner with warranty card

DIMENSIONS

14.0 x 19.5 x 14.0 inches (356 x 483 x 356 mm) 16 lbs ( 7.3 kg )

381MM

(15.0")

495MM

(19.5")

(WxHxD) APPROX. WEIGHT

SANTA FETM Model # 2903

356MM

(14.0")

102MM

(4.0")

50MM

(2.0")

102MM

(4.0")

25MM

(1.0")

109MM

(5.3")

356MM

(14.0")

368MM

(14.5")

610 MM

(24.0")

TO FLOOR

ADA

432 MM

(17.0")

TO FLOOR

CODES/STANDARDS APPLICABLE: Complies with Z124.9, ASME A112.19.19, others.

FOR STANDARD INSTALLATION: Mount at 24” above nished oor to lip of urinal or as

required by architect.

updated 10.03.2011

WATERLESS CO. INC. 800.244.6364

In keeping with our policy of product improvement, Waterless Co. reserves the right to change product specications at any time without notice. It is the responsibility of the specier,

installer and wholesale seller to conrm specication at time of sale or installation. No responsibility is assumed, claimed or

accepted by Waterless Co. Inc.

FOR ADA REQUIREMENTS: mount at 17“ above nished oor to lip of urinal. Center drain line to be determined by installer.

Supply suitable wall support, i.e. carrier. Install and maintain as per manufacturer’s instructions. Urinal 2” drain outlet installs and drains to 2” waste. Retrot or new construction. Use standard sanitation practices to maintain xture.

NOTE:

Installation requires purchase of standard ABS 2” drain parts and wall screws plus washers for attachment at bottom, not included. Specify made in USA or Mexico.
