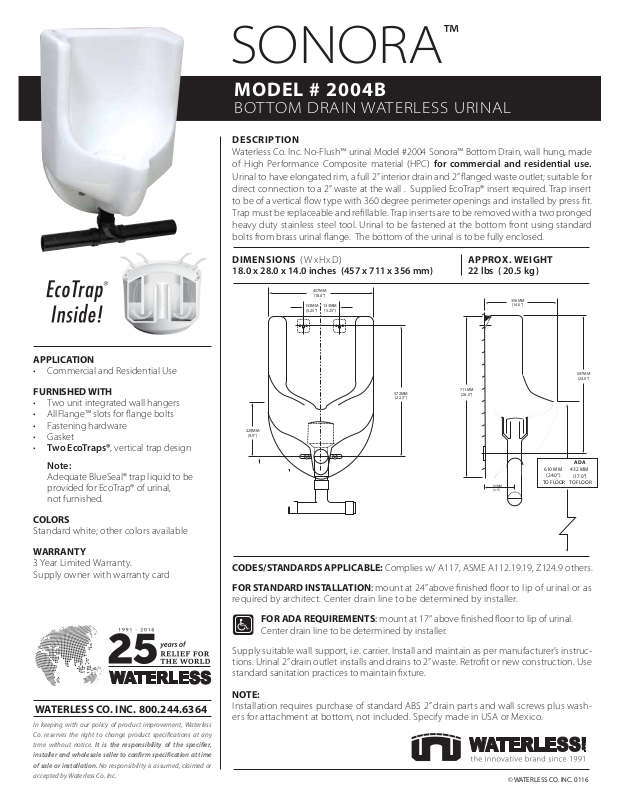

SONORA
MODEL # 2004B
BOTTOM DRAIN WATERLESS URINAL
DESCRIPTION
Waterless Co. Inc. No-Flush™ urinal Model #2004 Sonora™ Bottom Drain, wall hung, made
of High Performance Composite material (HPC) for commercial and residential use.
Urinal to have elongated rim, a full 2” interior drain and 2” anged waste outlet; suitable for
direct connection to a 2” waste at the wall . Supplied EcoTrap® insert required. Trap insert
to be of a vertical ow type with 360 degree perimeter openings and installed by press t.
Trap must be replaceable and rellable. Trap inserts are to be removed with a two pronged
heavy duty stainless steel tool. Urinal to be fastened at the bottom front using standard
bolts from brass urinal ange. The bottom of the urinal is to be fully enclosed.
APPLICATION
• Commercial and Residential Use
FURNISHED WITH
• Two unit integrated wall hangers
• AllFlange™ slots for ange bolts
• Fastening hardware
• Gasket
• Two EcoTraps®, vertical trap design
Note:
Adequate BlueSeal® trap liquid to be
provided for EcoTrap® of urinal,
not furnished.
COLORS
Standard white; other colors available
WARRANTY
3 Year Limited Warranty.
Supply owner with warranty card

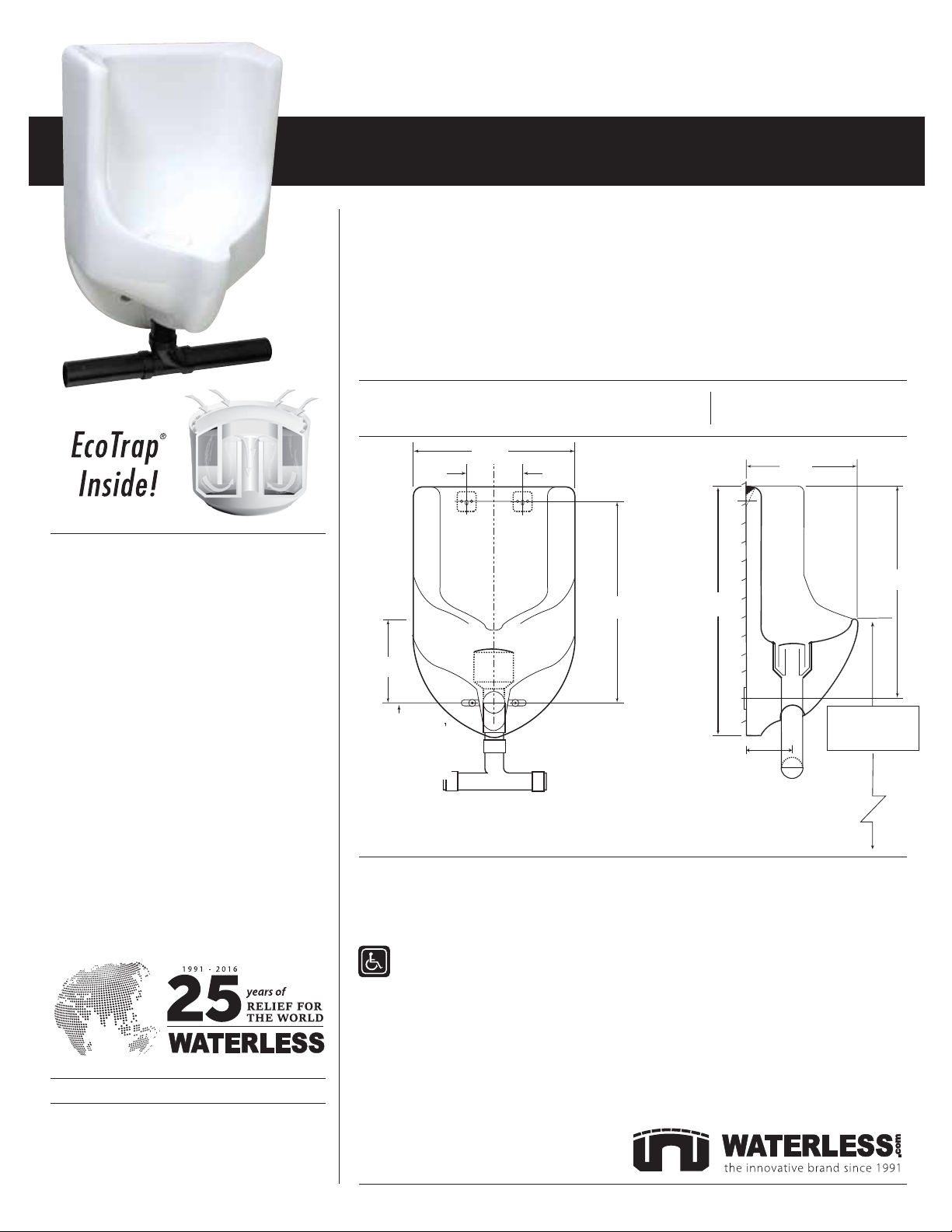

DIMENSIONS
(WxHxD) APPROX. WEIGHT
18.0 x 28.0 x 14.0 inches (457 x 711 x 356 mm) 22 lbs ( 20.5 kg )
SONORATM Model # 2004B Bottom Drain
457MM
229MM
(9.0")
381 MM
(15.0")
TO FLOOR
ADA
203 MM
(8.0")
TO FLOOR
133MM
(5.25")
(18.0")
133MM
(5.25")
572MM
(22.5")
711MM
(28.0")
89MM
(3.5")
356MM
(14.0")
610 MM
(24.0")
TO FLOOR
597MM
(24.0")
ADA
432 MM
(17.0")
TO FLOOR
CODES/STANDARDS APPLICABLE: Complies w/ A117, ASME A112.19.19, Z124.9 others.
FOR STANDARD INSTALLATION: mount at 24” above nished oor to lip of urinal or as
required by architect. Center drain line to be determined by installer.
06.21.10
WATERLESS CO. INC. 800.244.6364
In keeping with our policy of product improvement, Waterless
Co. reserves the right to change product specications at any
time without notice. It is the responsibility of the specier,
installer and wholesale seller to conrm specication at time
of sale or installation. No responsibility is assumed, claimed or
accepted by Waterless Co. Inc.
FOR ADA REQUIREMENTS: mount at 17“ above nished oor to lip of urinal.
Center drain line to be determined by installer.
Supply suitable wall support, i.e. carrier. Install and maintain as per manufacturer’s instructions. Urinal 2” drain outlet installs and drains to 2” waste. Retrot or new construction. Use
standard sanitation practices to maintain xture.
NOTE:
Installation requires purchase of standard ABS 2” drain parts and wall screws plus washers for attachment at bottom, not included. Specify made in USA or Mexico.
