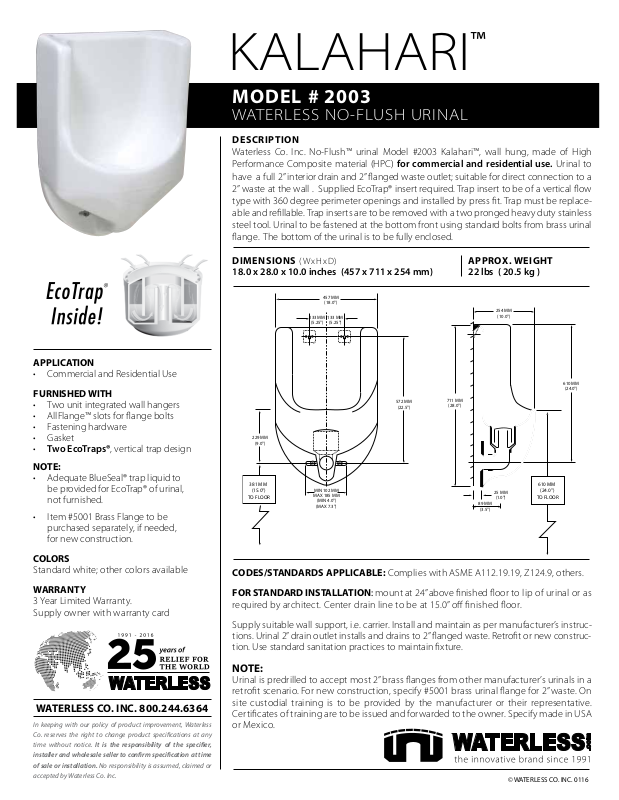

KALAHARI
MODEL # 2003
WATERLESS NO-FLUSH URINAL
DESCRIPTION
Waterless Co. Inc. No-Flush™ urinal Model #2003 Kalahari™, wall hung, made of High
Performance Composite material (HPC) for commercial and residential use. Urinal to
have a full 2” interior drain and 2” anged waste outlet; suitable for direct connection to a
2” waste at the wall . Supplied EcoTrap® insert required. Trap insert to be of a vertical ow
type with 360 degree perimeter openings and installed by press t. Trap must be replaceable and rellable. Trap inserts are to be removed with a two pronged heavy duty stainless
steel tool. Urinal to be fastened at the bottom front using standard bolts from brass urinal
ange. The bottom of the urinal is to be fully enclosed.
DIMENSIONS
(WxHxD) APPROX. WEIGHT
18.0 x 28.0 x 10.0 inches (457 x 711 x 254 mm) 22 lbs ( 20.5 kg )
457 MM
(18.0")
133 MM
(5.25")
KALAHARITM Model # 2003
133 MM
(5.25")
254 MM
(10.0")
APPLICATION
• Commercial and Residential Use
FURNISHED WITH
• Two unit integrated wall hangers
• AllFlange™ slots for ange bolts
• Fastening hardware
• Gasket
• Two EcoTraps®, vertical trap design
NOTE:
• Adequate BlueSeal® trap liquid to
be provided for EcoTrap® of urinal,
not furnished.
• Item #5001 Brass Flange to be
purchased separately, if needed,
for new construction.
COLORS
Standard white; other colors available
WARRANTY
3 Year Limited Warranty.
Supply owner with warranty card
610 MM
(24.0")
711 MM
(28.0")
89 MM
(3.5")
25 MM
(1.0")
610 MM
(24.0")
TO FLOOR
229 MM
(9.0")
381 MM
(15.0")
TO FLOOR
MIN 102 MM
MAX 185 MM
(MIN 4.0")
(MAX 7.3")
572 MM
(22.5")
CODES/STANDARDS APPLICABLE: Complies with ASME A112.19.19, Z124.9, others.
FOR STANDARD INSTALLATION: mount at 24” above nished oor to lip of urinal or as
required by architect. Center drain line to be at 15.0” o nished oor.
Supply suitable wall support, i.e. carrier. Install and maintain as per manufacturer’s instructions. Urinal 2” drain outlet installs and drains to 2” anged waste. Retrot or new construction. Use standard sanitation practices to maintain xture.
051311
WATERLESS CO. INC. 800.244.6364
In keeping with our policy of product improvement, Waterless
Co. reserves the right to change product specications at any
time without notice. It is the responsibility of the specier,
installer and wholesale seller to conrm specication at time
of sale or installation. No responsibility is assumed, claimed or
accepted by Waterless Co. Inc.
NOTE:
Urinal is predrilled to accept most 2” brass anges from other manufacturer’s urinals in a
retrot scenario. For new construction, specify #5001 brass urinal ange for 2” waste. On
site custodial training is to be provided by the manufacturer or their representative.
Certicates of training are to be issued and forwarded to the owner. Specify made in USA
or Mexico.
