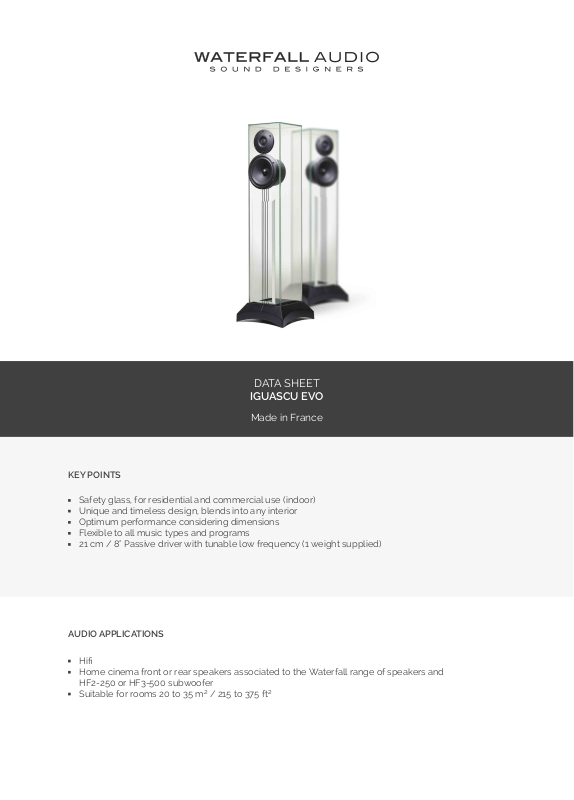

DATA SHEET
IGUASCU EVO
Made in France
KEY POINTS
Safety glass, for residential and commercial use (indoor)
Unique and timeless design, blends into any interior
Optimum performance considering dimensions
Flexible to all music types and programs
21 cm / 8" Passive driver with tunable low frequency (1 weight supplied)
AUDIO APPLICATIONS
Hifi
Home cinema front or rear speakers associated to the Waterfall range of speakers and
HF2-250 or HF3-500 subwoofer
Suitable for rooms 20 to 35 m² / 215 to 375 ft²
Page 2
870
172 172
250
Removable grill
(supplied)
TECHNICAL DETAILS
TYPE
RECOMMENDED AMPLIFIER (WITHOUT CLIPPING)*
PEAK POWER
IMPEDANCE (AVERAGE/MINI)
EFFICIENCY (2.83V/1M)
FREQUENCY RESPONSE (+/- 3 dB)
ULTRA LOW FREQUENCY DRIVER
BASS / MIDRANGE DRIVER
TWEETER
DIMENSIONS (width x depth x height in mm) (approx. inches)
WEIGHT Kg (approx. lbs.)
250
Passive driver
Atohm UFR210
Weight for low frequency
response adjustment
2 way - 3 drivers
40 - 150 Watts
300 Watts
8 / 4 Ohms
88 dB
50 Hz - 28 kHz
1 x 210 mm / 8" Atohm UFR210
1 x 150 mm / 6" Atohm LD150
1 x 20 mm / 0,75“ Atohm SD20
250 x 250 x 870 / 9.84" x 9.84" x 34.25"
14 kg / 30.8 lbs
* Power without clipping: the use of an amplifier beyond its limits provokes clipping of the signal which might lead to
destruction of the speaker (burnt voice coils). These damages are not covered by warranty.
WATERFALL AUDIO
ZA les praderies - 83 570 Carcès - France
Phone: +33 (0)4 98 05 11 30 31
We operate a policy of continuous improvement and reserve the right to amend designs and specifications without prior notice.
Made in France. 5 years warranty on speakers, 2 years warranty on amplifiers (parts & service).
All drivers are developed and manufactured by Atohm (France).
