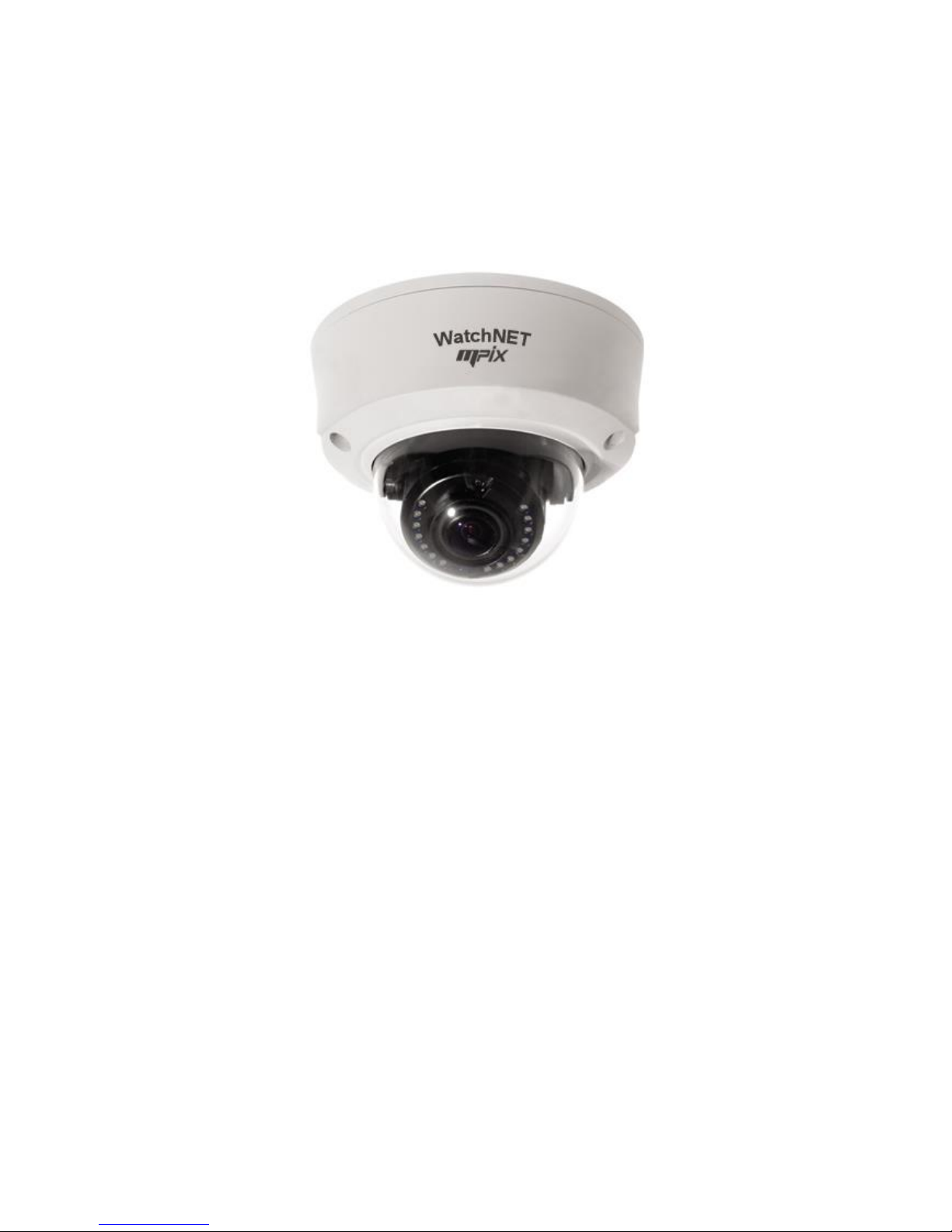

MPIX Series Vandal Proof Network Dome Camera

User’s Manual

ii

Welcome

Thank you for purchasing our network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the
Limited power source is rated 12V DC or 24V AC in the IEC60950-1. Please note: Do not

connect these two power supplying sources to the device at the same time; it may result in
device damage or NVR!

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.

3．Installation

Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.

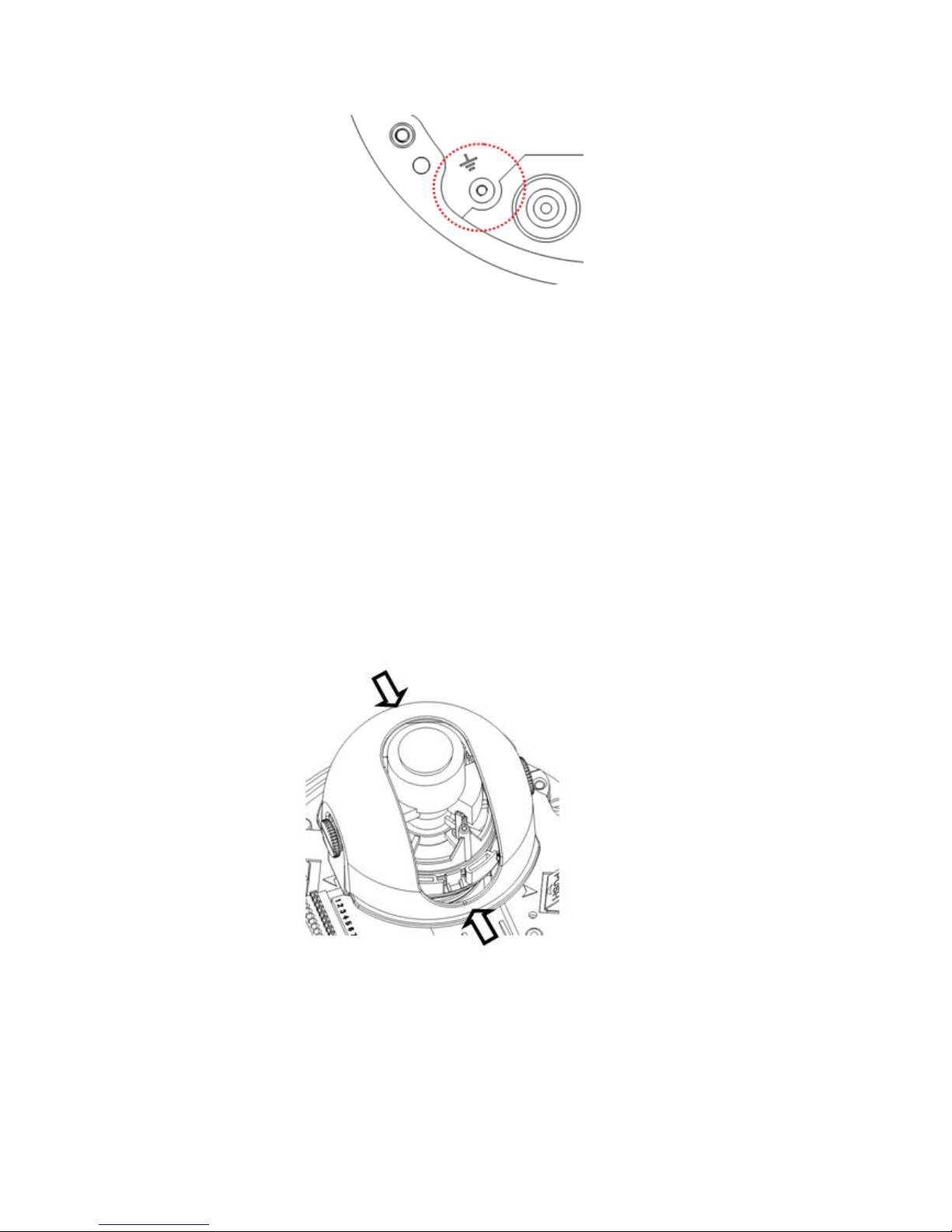

The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance
work.

iv

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera

1

Quick Start Guide

1

Installation Accessories Bag

1

CD

1

v

Table of Contents

1 General Introduction .................................................................................................................. 1

1.1 Overview ........................................................................................................................ 1

1.2 Features ......................................................................................................................... 1

1.3 Specifications ................................................................................................................ 2

1.3.1 Performance ........................................................................................................... 2

1.3.2 Factory Default Setup ........................................................................................... 4

2 Structure .................................................................................................................................... 11

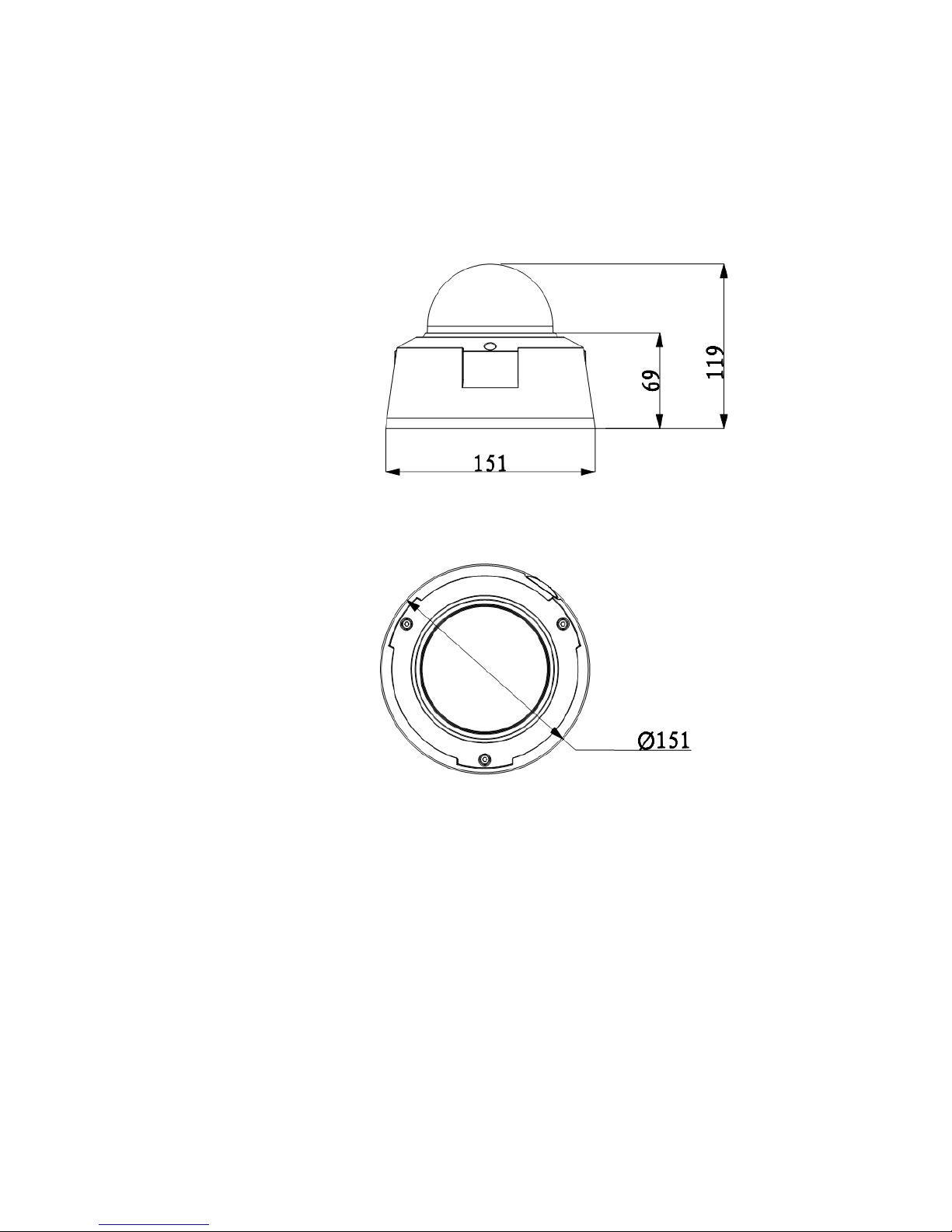

2.1 Dimensions .................................................................................................................. 11

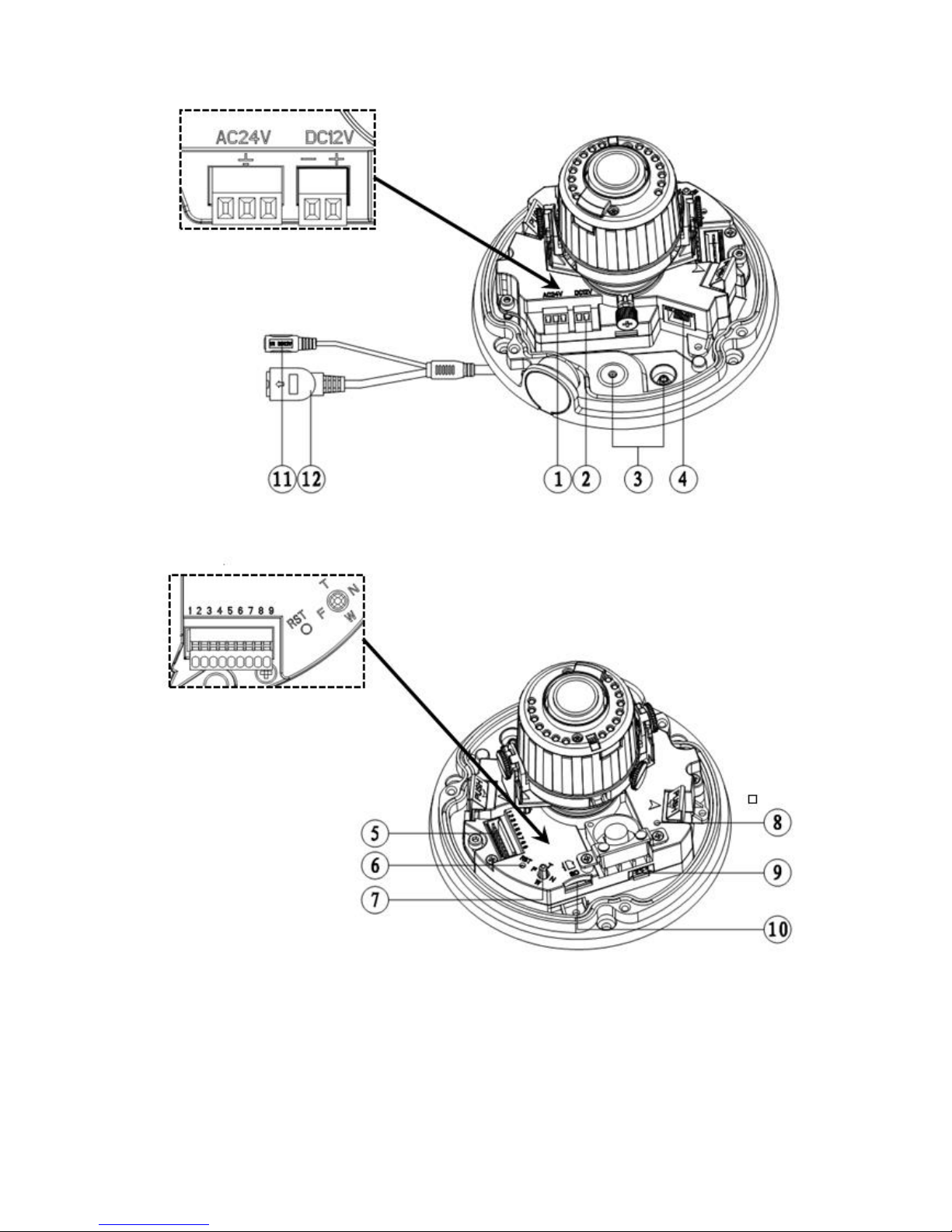

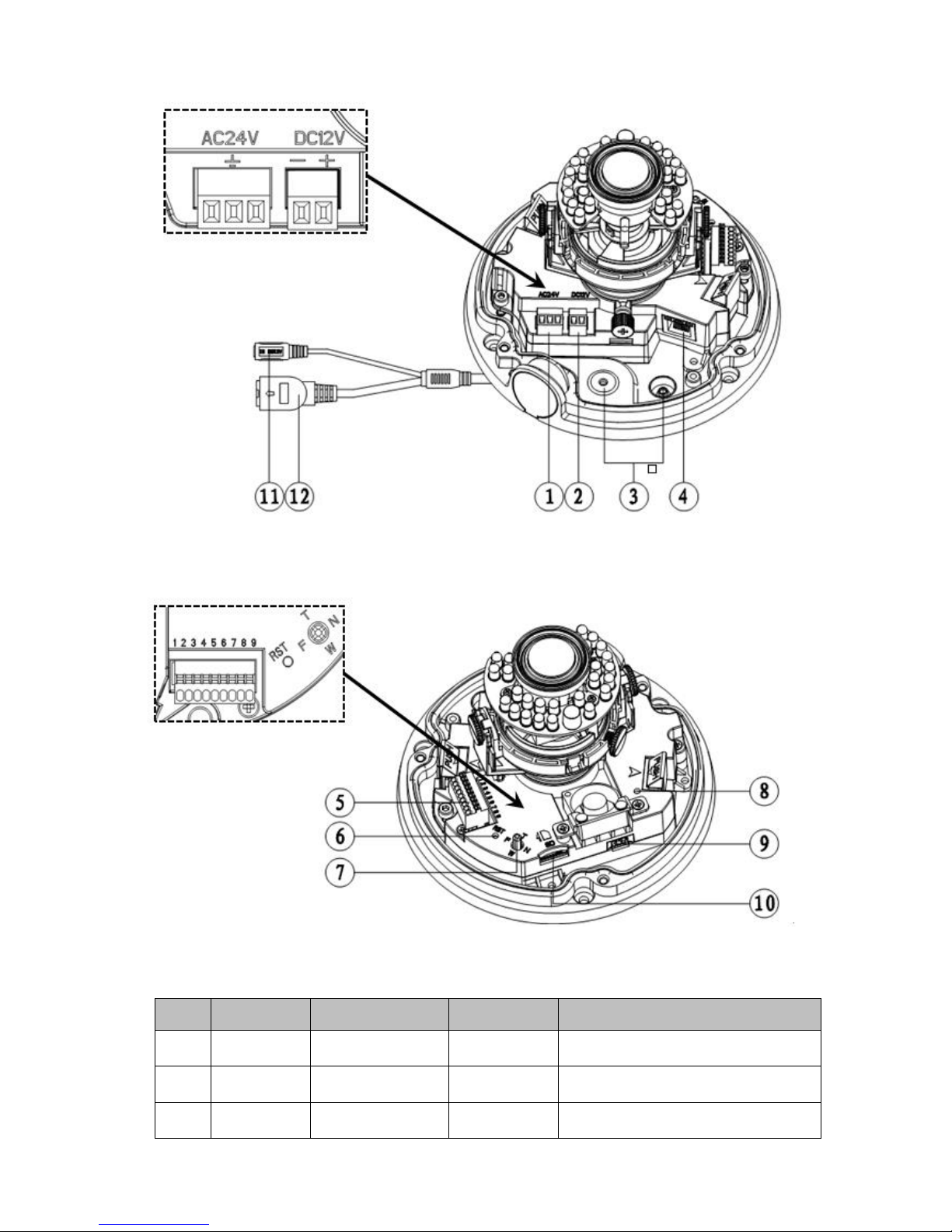

2.2 Port Description .......................................................................................................... 11

2.3 Bidirectional talk.......................................................................................................... 14

2.3.1 Device-end to PC-end ........................................................................................ 14

2.3.2 PC-end to the Device-end .................................................................................. 15

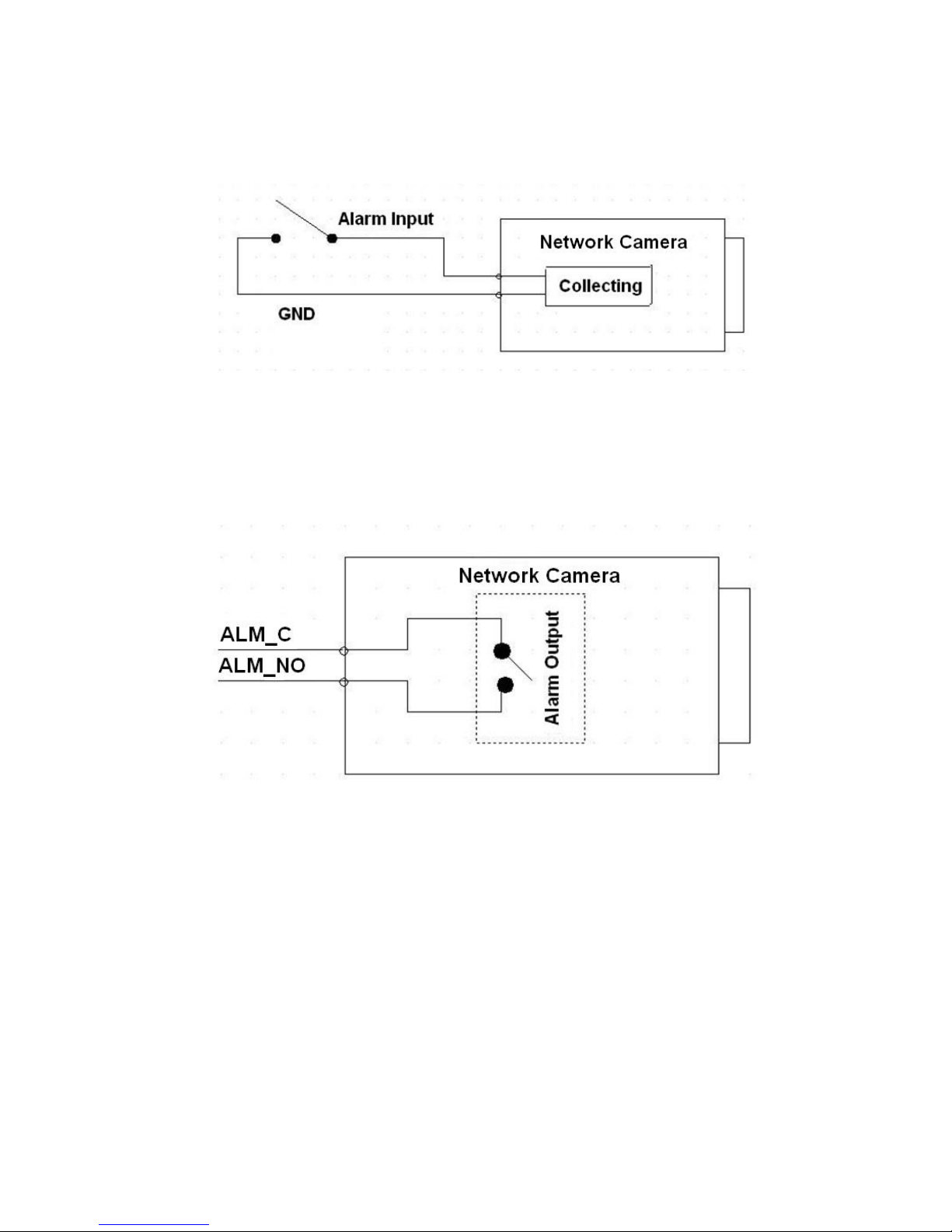

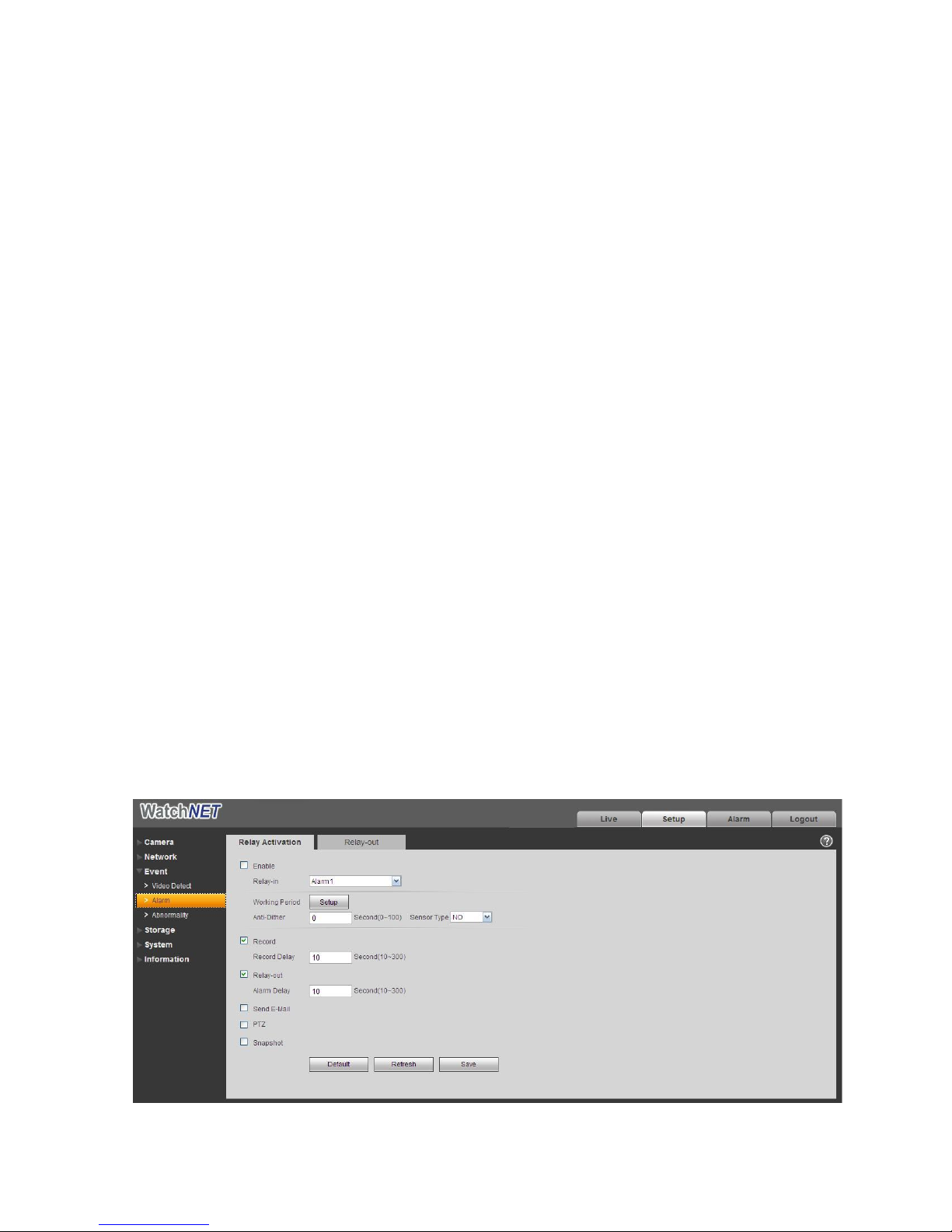

2.4 Alarm Setup ................................................................................................................. 15

3 Installation.................................................................................................................................. 17

3.1 Device Installation Introduction ................................................................................ 17

3.2 Device Installation Steps ........................................................................................... 17

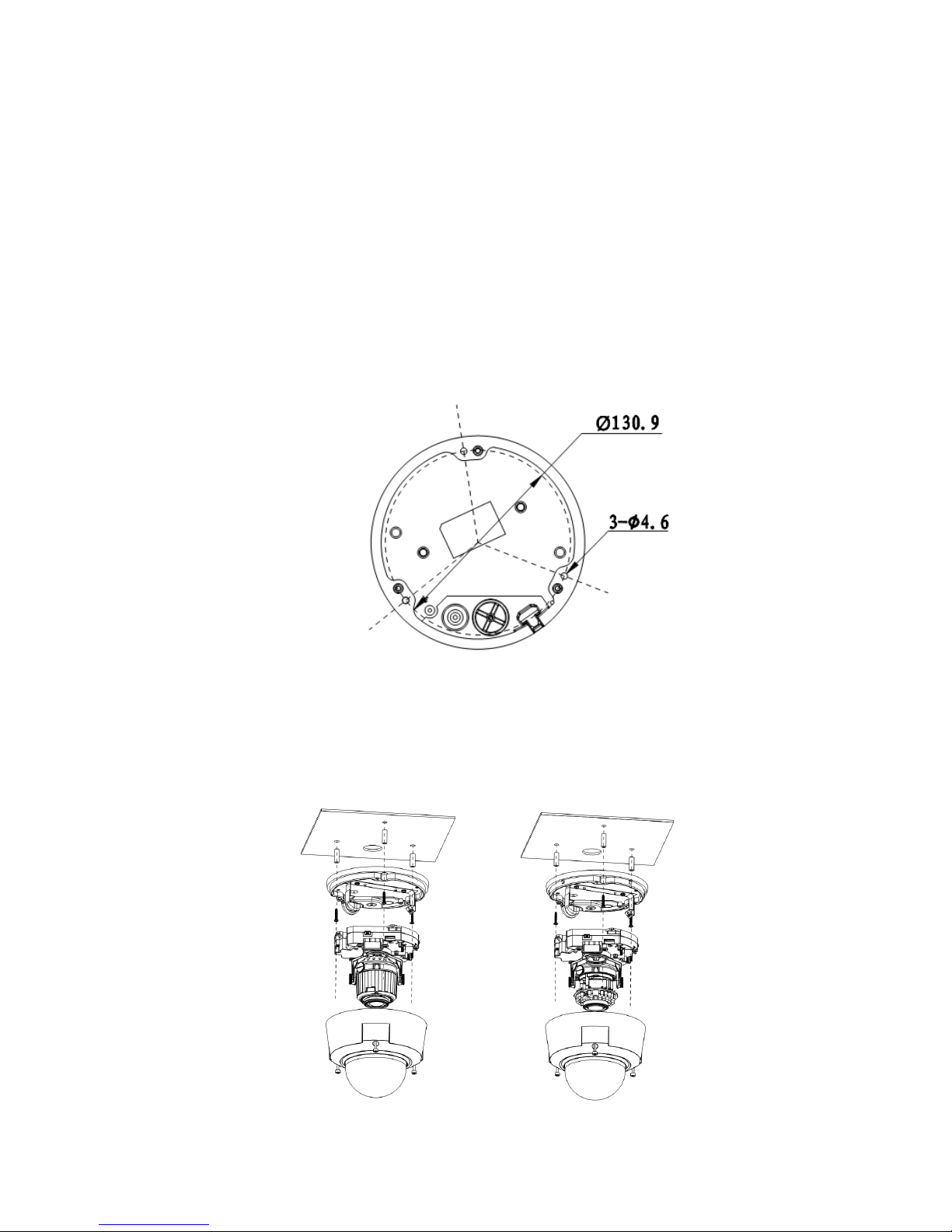

3.2.1 General Installation ............................................................................................. 17

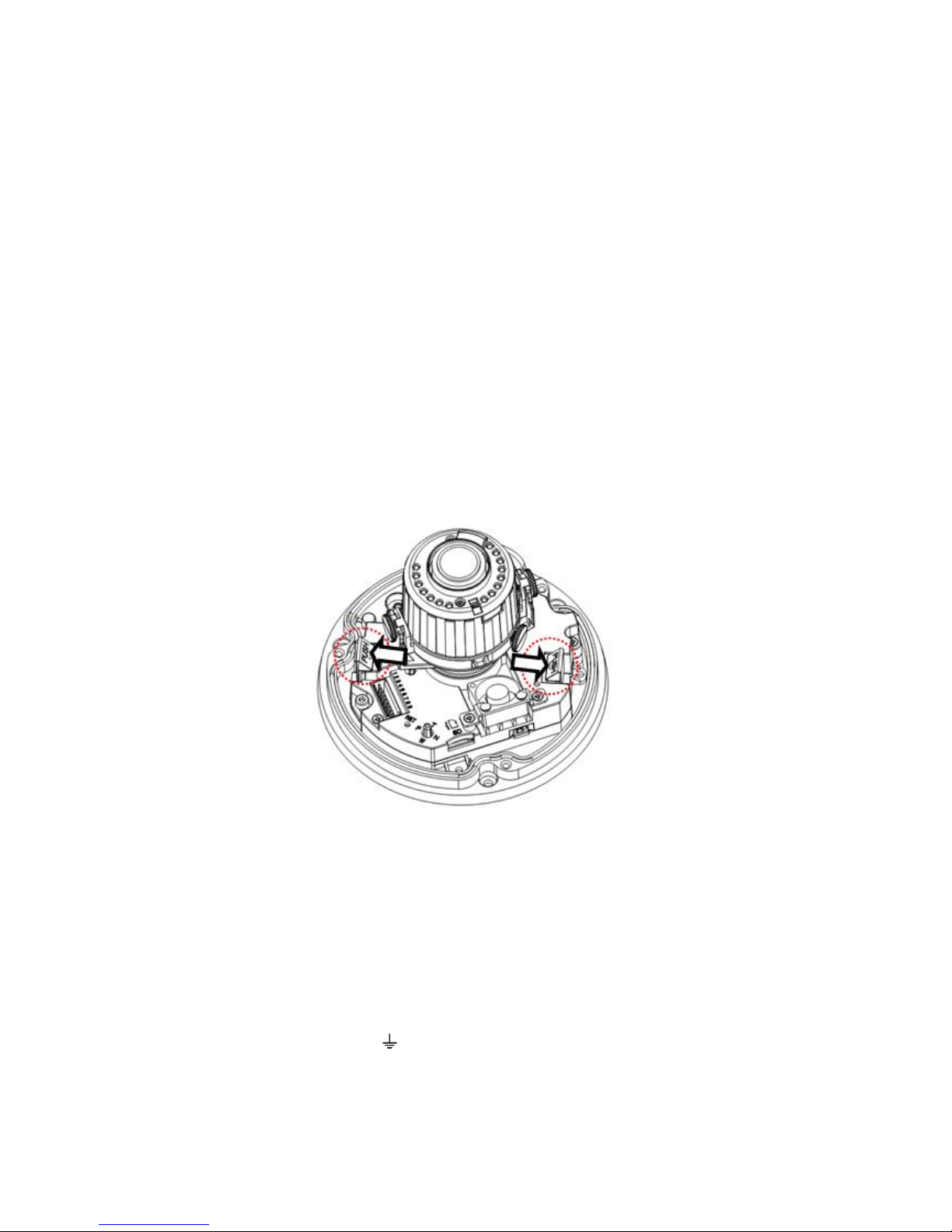

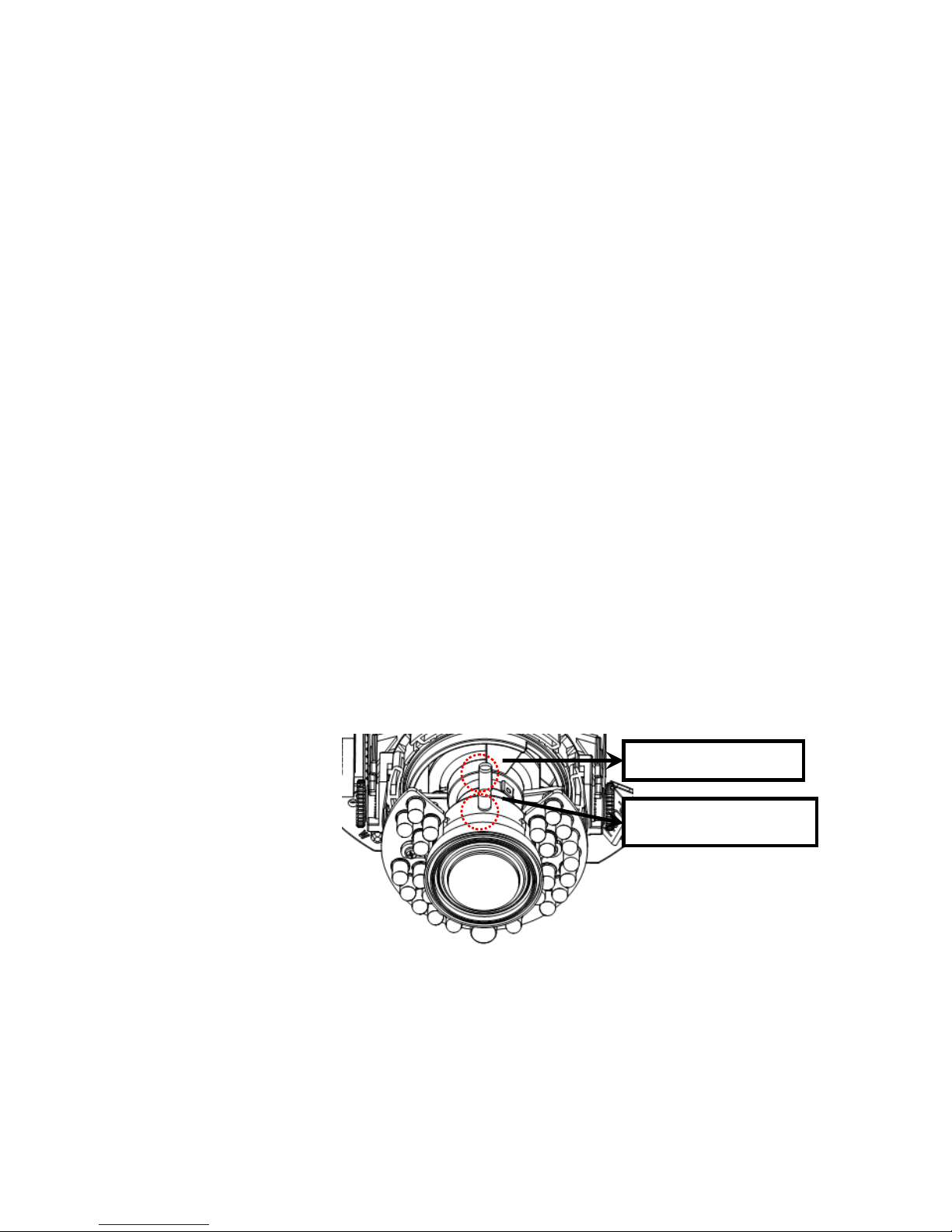

3.2.2 Manual Zoom Lens Focus Operation ............................................................... 21

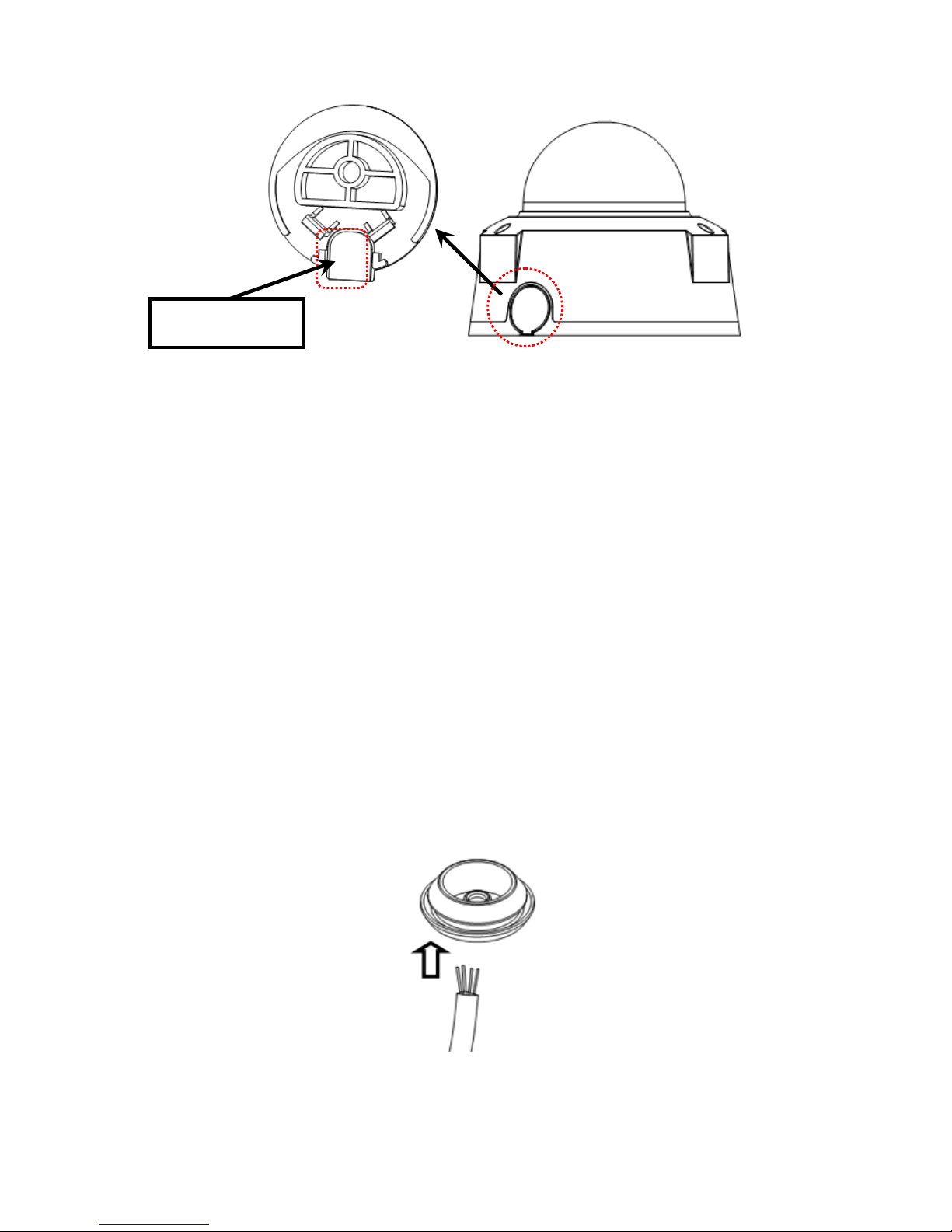

3.2.3 Side Cable Exit .................................................................................................... 21

3.2.4 Cable Connection ................................................................................................ 22

3.3 Micro SD Card Installation ........................................................................................ 23

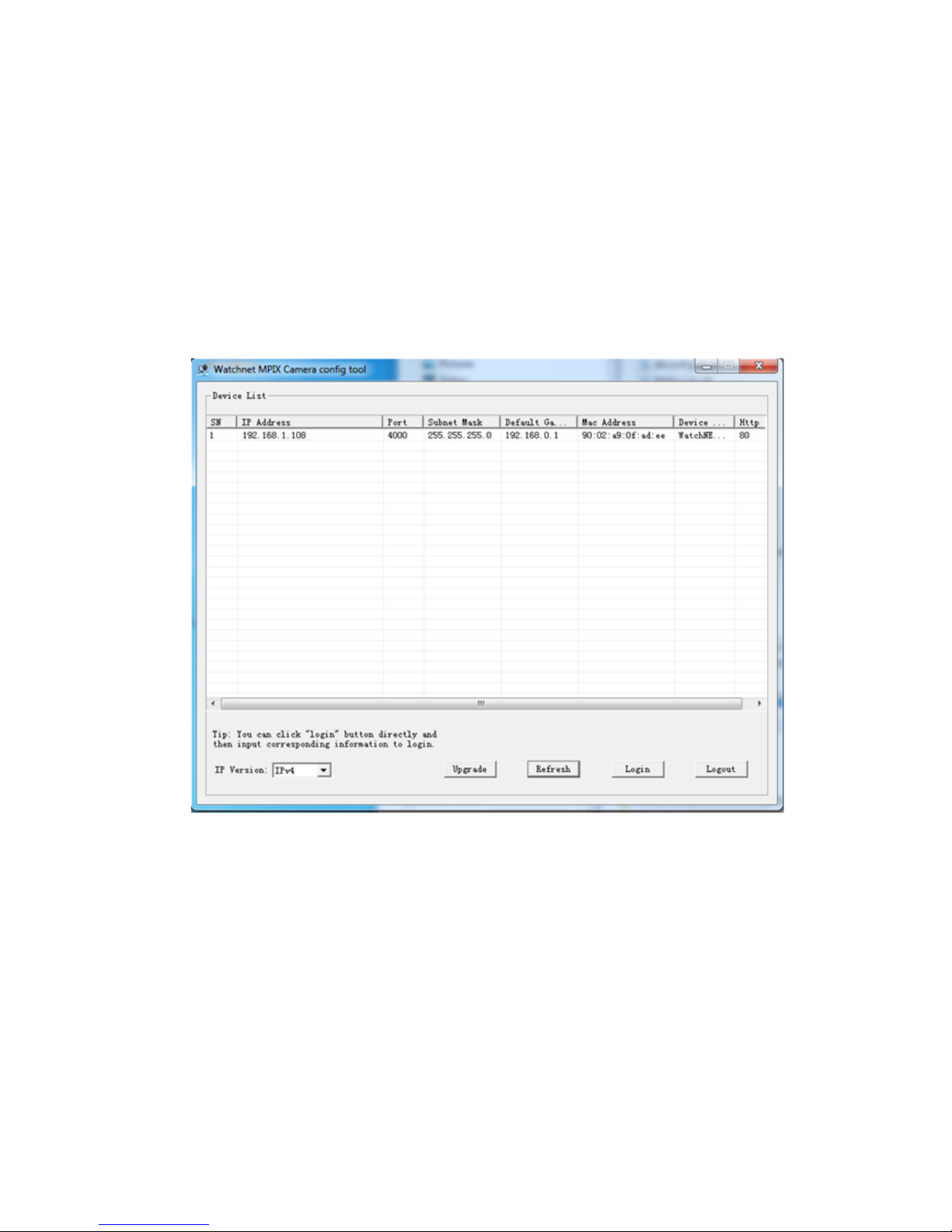

4 Quick Configuration Tool ......................................................................................................... 24

4.1 Overview ...................................................................................................................... 24

4.2 Operation ..................................................................................................................... 24

5 Web Operation .......................................................................................................................... 27

vi

5.1 Network Connection ................................................................................................... 27

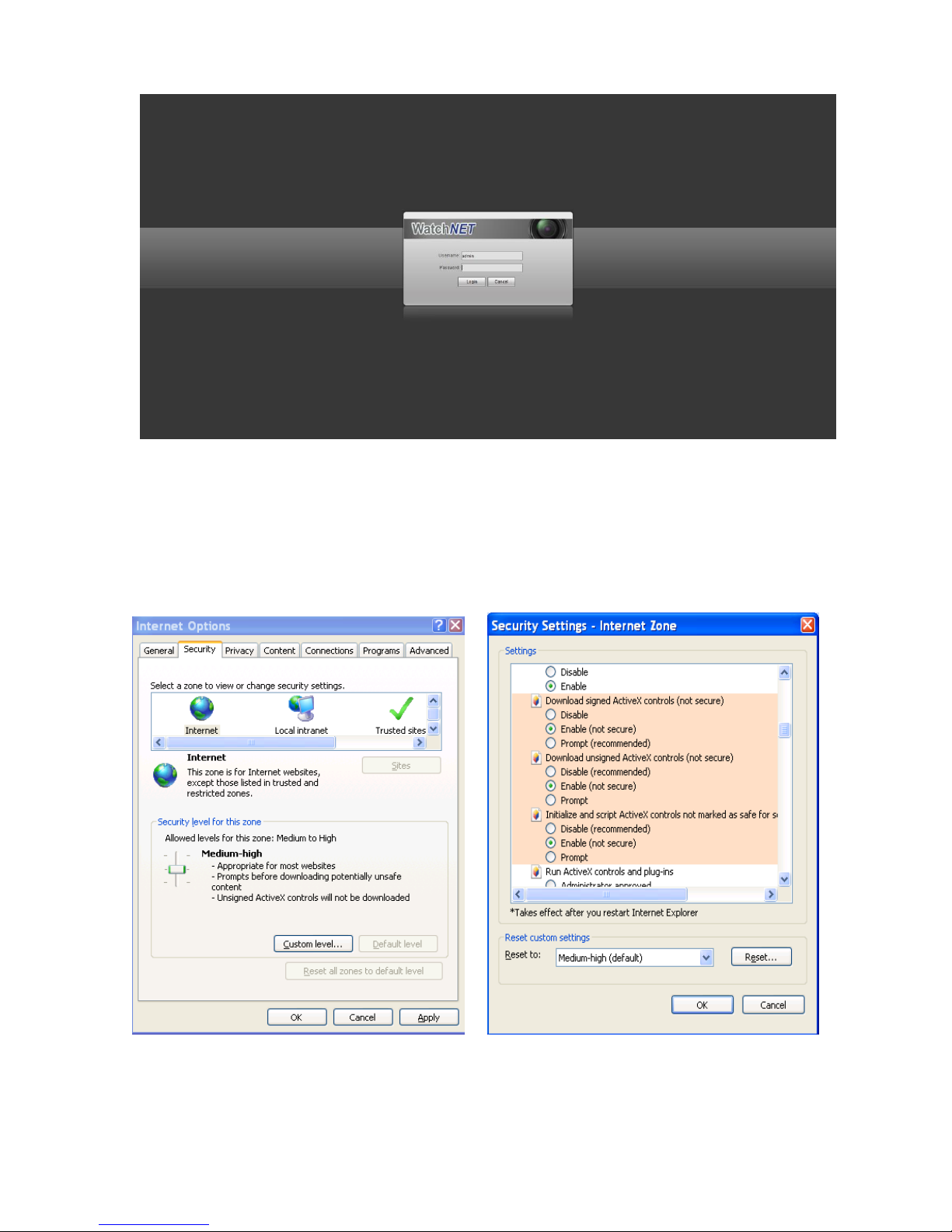

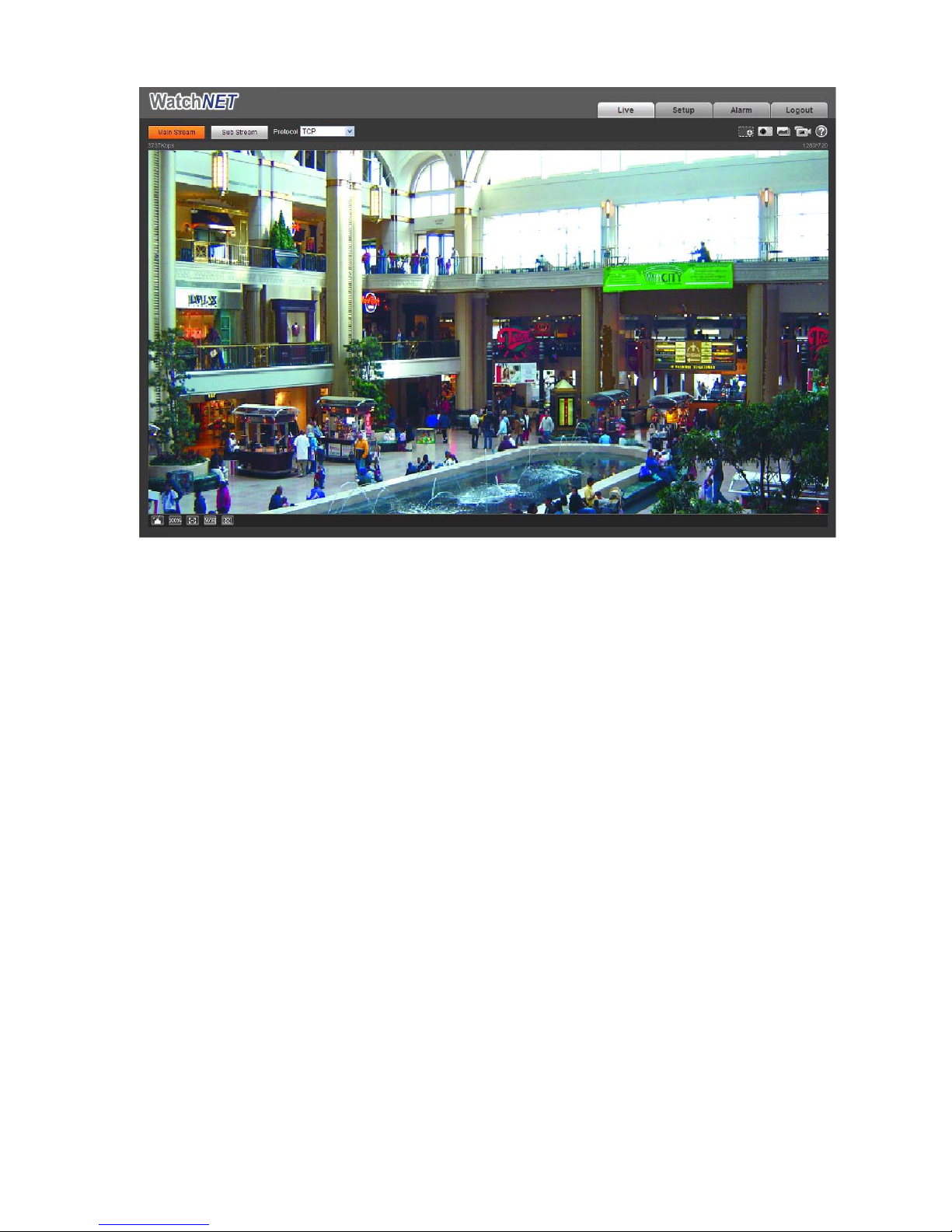

5.2 Login and Main Interface ........................................................................................... 27

6 FAQ ............................................................................................................................................ 30

Appendix Toxic or Hazardous Materials or Elements ............................................................... 31

1

1 General Introduction

1.1 Overview

This series network camera integrates the traditional camera and network video technology. It adopts
audio and video data collection, transmission together. It can connect to the network directly without any
auxiliary device.

This series network camera uses standard H.264 video compression technology and G.711a audio
compression technology, which maximally guarantee the audio and video quality.

This series network camera enclosure has the strong resistance capacity, which can guarantee the
proper work performance under heavy strike. It supports real-time monitor and listening at the same time.
It supports analog video output and dual-way bidirectional talk.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the network
and then use a network client-end. Due to its multiple functions and various uses, this series network
camera is widely used in many environments such office, bank, road monitor and etc.

1.2 Features

User

Management

 Different user rights for each group, one user belongs to one group.
 The user right shall not exceed the group right.

Storage

Function

 Support central server backup function in accordance with your configuration and

setup in alarm or schedule setting

 Support record via Web and the recorded file are storage in the client-end PC.
 Support built-in Micro SD card.
 Support local Micro SD card hot swap, support short-time storage when

encounter disconnection.

Alarm

Function

 Real-time respond to external local alarm input and video detect as user pre-

defined activation setup and exert corresponding message in screen and audio
prompt(allow user to pre-record audio file)

 Real-time video detect: motion detect, camera masking.
 Can generate an alarm when network abnormal, Micro SD card abnormal event

occurred.

Network

Monitor

 Network camera supports one-channel audio/video data transmit to network

terminal and then decode. Delay is within 270ms (network bandwidth support
needed)

 Max supports 20 connections.
 Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,

MULTICAST, RTP/RTCP, RTSP and etc.

Network

Management

 Realize network camera configuration and management via Ethernet.
 Support device management via web or client-end.
 Support various network protocols.

Peripheral

Equipment

 Support the on-off alarm device to alarm via the sound or the light.

Power

 External power adapter DC12V/AC 24V
 Support PoE.

Warning！
Do not connect different type of power source to the device at the same time; it
may result in device damage or NVR!

Assistant

 Log function

2

Function

 Support PAL/NTSC
 Support system resource information and running status real-time display.
 Day/Night mode auto switch (electromagnetic ICR switch).
 Built-in IR light. Support IR night vision
 Backlight compensation: screen auto split to realize backlight compensation to

adjust the bright.

 Support electronic shutter and gain setup.
 Support video watermark function to avoid vicious video modification.

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for network camera performance specification.

Model
Parameter

MPIX-20VDV-IRM

MPIX -13VDW-IR

System

Main
Processor

TI Davinci high performance DSP

OS

Embedded LINUX

System
Resources

Support real-time network, local record, and remote operation at the same
time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

Micro SD card status, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/3-inch CMOS

Pixel

1920（H）*1080（V）

1280(H)*960(V)

Day/Night
Mode

Support day/night mode switch and electromagnetic IR-CUT at the same
time.

Auto Iris

DC drive

Gain Control

Fixed/Auto

White Balance

Manual/Auto

BLC

Manual/Auto

Electronic
Shutter

Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.

Motorized
Focus

Support remote motorized focus function.

Video
Compression
Standard

H264/JPEG/MJPEG

Video Frame
Rate

PAL:
Main stream（1920*1080@25fps）
extra stream（704*576@25fps）
NTSC:
Main stream（1920*1080@30fps）
extra stream（704×480@30fps）

PAL:
Main stream（1280*960@25fps）
Extra stream（704*576@25fps）
Main stream（1280*720@25fps）
extra stream（704*576@25fps）
NTSC:
Main stream（1280*960@30fps）
extra stream（704×480@30fps）
Main stream（1280*720@30fps）
extra stream（704×480@30fps）

Video Bit Rate

H.264: 56Kbps-8192Kbps. It is adjustable
ＭJPEG: 128Kbps-0480Kbps. It is adjustable and bit rate is adjustable.
Support customized setup.

3

Video Flip

Support mirror.
Support flip function.

Snapshot

Max 1f/s snapshot. File extension name is JPEG.

Privacy Mask

Supports max 4 privacy mask zones

Video Setup

Support parameter setup such as bright, contrast.

Video
Information

Channel title, time title, motion detect, privacy mask.

Lens

3~9mm@F1.2 motorized zoom
focus lens

2.8~12mm@F1.4

Lens Interface

¢14. Lens is the default accessories.

Audio

Audio Input

1-channel

Audio Output

1-channel

Bidirectional
Talk Input

Reuse the first audio input channel

Audio Bit Rate

16kbps 16bit

Audio
Compression
Standard

G.711a/G.711u/PCM

Video

Motion Detect

396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The 6th
level has the highest sensitivity)
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.

Video Loss

Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.

Alarm Input

1-channel input，1-channel output

Record

and

Backup

Record
Priority

Manual>External alarm >Video detect>Schedule

Local Storage

Support Micro SD card storage

Network

Wire Network

1-channel wire Ethernet port, 10/100 Base-T Ethernet

Network
Protocol

HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PP
POE,IPv4/v6,SNMP,QoS,UPnP,NTP.

Remote
Operation

Monitor, system setup, log information, maintenance , upgrade and etc

AUX

Interface

Video Output

1-channel analog video output，BNC port, 9-pin port connection

Reset

Built-in RESET button

IR light

IR distance 10 to 20 meters (For HDBW series product only)

General Parameter

Power

Support AC24V/DC12V power. PoE (Don’t use multiple power source to
power the camera. Damage to the camera or DVR will not be covered by
warranty)

Power
Consumption

General series: below 5W.
IR series: below 7W.

General series: below 3W.
IR series: below 5W.

Working
Temperature

-10℃~+60℃

Working
Humidify

10%~90%

Dimensions(m
m)

¢151x119

Weight

1.25Kg

Installation

Support various installation modes

4

1.3.2 Factory Default Setup

Please refer to the following sheet for factory default setup information.

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

Camera Setup

Conditions

Brightness

50

Contrast

50

Hue

50

Saturation

50

Gain mode

Auto

Gain limit

80

Exposure mode

Auto

Auto iris

Enable

Scene mode

Auto

Day/night mode

Auto

BLC

Off

Flip

Disable

Video

Video bit
stream

Main
stream

Bit stream
type

General

Encode
mode

H.264B

Resolution

1080P

（1920*1080）

720P
(1280*720)

Frame rate

（FPS）

PAL: 25
NTSC:30

Bit stream
type

CBR

Reference bit
rate

3584-8192 Kb/S

Bit rate

8192

I frame
interval

50

Watermark
settings

Enable

Watermark
character

DigitalCCTV

Extra
stream

Enable

Enable

Bit stream
type

General

Encode
mode

H.264B

Resolution

CIF(352×288/35
2×240)

CIF(352×288/3
52×240)

Frame rate

（FPS）

PAL: 25
NTSC:30
Bit rate type

CBR

5

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

Reference bit
rate

192-1024Kb/S

Bit rate

640

I frame
interval

50

Snapshot

Snap type

General snap

Image size

1080P

（1920*1080）

720P
(1280*720)

Quality

Better

Interval

7s

Overlay
Privacy mask

Enable

Channel title

Enable

Time title

Enable

Path

Snapshot
path

C:\PictureDownload

Record path

C:\RecordDownload

Audio

Main stream
Enable

Enable

Encode
mode

G.711A

Sub(Extra) stream
Enable

Disable

Encode
mode

G.711A

Network setup
TCP/IP

Host name

IPC

Ethernet card

Wire(Default)

Mode

Static

MAC
address

Depends on the device

IP version

IPV4

IP address

192.168.1.108

Subnet mask

255.255.255.0

Default
gateway

192.168.1.1

Preferred
DNS

8.8.8.8

Alternate
DNS

8.8.8.8

Enable
ARP/Pingto
to set IP
address
service

Enable
Connection

Max
connection

10

TCP port

4000

6

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

UDP port

4001

HTTP port

80

RTSP port

554

PPPoE
Enable

Disable

User name

N/A

Password

N/A

DDNS

Server type

Disable ，CN99 DDNS

Server IP

none

Port

80

Domain
name

none

User name

none

Password

N/A

Update
period

5m

IP filter

Trusted sites

Disable

SMTP（email）

SMTP server

none

Port

25

Anonymity

Disable

User name

anonymity

Password

N/A

Sender

none

Authenticatio
n (Encrypt
mode)

N/A

Title
(Subject)

IPC Message

Main
Receiver

N/A

Interval

0s

Health email

Disable ，interval=60m

UPnP

Enable UPnP

Disable

SNMP

SNMP v1

Disable

SNMP v2

Disable

SNMP port

161

Read
community

public

Write
community

private

Trap address

N/A

Trap port

162

Bonjour

Enable

Enable

7

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

Server name

“Device name+SN”.
Depends on the device.

Multicast

Multicast
address

239.255.42.42

Port

36666

Auto register

Enable

Disable

SN 1 Server IP

0.0.0.0

Port

7000

Sub-device
ID

none

WIFI

On(Enable)

Enable

QoS

Real-time
monitor

0

Command

0

Event
management

Video detect

Motion detect

Enable

Disable

Anti-dither

5 seconds

Sensitivity

3

Record
Channel

Enable

Record
Delay

10 seconds

Relay
(Alarm)
output

Enable
Alarm delay

10s

Send email

Disable

Activation

N/A

Address

0

Snapshot

Disable

Video (

Camera

) masking

Enable

Disable

Record
Channel

Enable

Record
Delay

10 seconds

Relay out

Enable

Record
Delay

10 seconds

Send email

Disable

Activation

Disable

Address

0

8

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

Snapshot

Disable

Alarm setup

Relay (

Alarm

) activation

Enable

Disable

Relay input

Alarm1

Anti-dither

5s

Sensor type

NO

Record
channel

Enable

Record delay

10s

Relay
(Alarm)
output

Enable

Relay
(Alarm) delay

10s

Send email

Disable

Activation

N/A

Address

0

Snapshot

Disable

Relay (Alarm)
output

1

Abnormity

No SD card

Enable

Disable

Relay
(Alarm)
output

Enable

Relay output
delay

10s

Send email

Disable

Capacity

warning

Enable

Disable

Capacity limit
(Space
threshold)

10%

Relay
(Alarm)
output

Enable

Relay output
delay

10s

Send email

Disable

SD card error

Enable

Disable

Relay
(Alarm)
output

Enable

Relay output
delay

10s

Send email

Disable

9

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

Disconnection

Enable

Disable

Record

Enable

Record delay

10s

Relay
(Alarm)
output

Enable

Relay output
delay

10s

IP conflict

Enable

Disable

Record

Enable

Record delay

10s

Relay
(Alarm)
output

Enable

Relay output
delay

10s

Storage
management

Destination(Storag
e )

FT
P

FTP enable

Disable

Server IP

N/A

Port

21

User name

anonymity

Password

N/A

Remote
storage path

share

Emergency
storage to
local path

Disable

Network storage

NAS enable

Disable

Mode

NFS

Server IP

N/A

Port

21

User name

N/A

Password

N/A

Remote
storage path

N/A

Conditions (Record
control)

Pack
duration

8m

Pre-record

5s

Disk full

Overwrite

Record mode

Auto

System
management

General setup

Local

setup

Device name

Device factory SN

Language

English

Video
standard

NTSC

NTSC

D

a

t

e

a

n

d

Date format

Y-M-D

10

Function
Setup Type

Item
Default setup

MPIX-20VDV­IRM

MPIX -13VDW­IR

Time format

24H

Time zone

GMT+08:00

Current time

Sync PC

DST

Disable

DTS type

Week

Start time

00:00:00 of the first Sunday of the
month

End time

00:00:00 of the second Monday of
the month

Synchronize
with NTP

Disable

NTP server

clock.isc.org

Port

37

Update
period

10m

Auto maintenance
Auto reboot

Enable

Auto delete
old files

Disable

11

2 Structure

2.1 Dimensions

You can refer to the following figures for dimension information. The Unit is mm. See Figure 2-1 and

Figure 2-2.

Figure 2-1

Figure 2-2

2.2 Port Description

For the MPIX-20VDV-IRM product, the interface is shown as in Figure 2-3 and Figure 2-4.

Note: Don’t connect multiple power sources to the camera. Damage to the camera will not be
covered by warranty.

12

Figure 2-3

Figure 2-4

For the MPIX-13VDW-IR product, the interface is shown as in Figure 2-5 and Figure 2-8.

Note: Don’t connect multiple power sources to the camera. Damage to the camera will not be

covered by warranty.

13

Figure 2-5

Figure 2-6

Please refer to the following sheet for external connection port definition information.

SN

Port

Port Name

Connector

Function Description

1

POWER

AC 24V power
port

/

Connect to AC 24V power.

2

POWER

DC 12V power
port

/

Connect to DC 24V power.

3

Cable exit
of the

/ / Cable exit.

14

external
connected
cable

4

LAN

RJ45 network
port

Ethernet port

Network cable port.

5

I/O

I/O port

/

It includes alarm input/output, audio
and analog output.

6

RESET

Reset button

/

Reset button. It is to restore factory
default setup.

7

AUTO
FOCUS

5-direction button

/

Adjust lens angle of view and
definition.
Note: Only some models have this
function.

8

Status
indicator
light

/ / Display device running status.

9

Fan port

/

/

Connect to fan to reduce device
internal problem.
Please note this component is
optional.

10

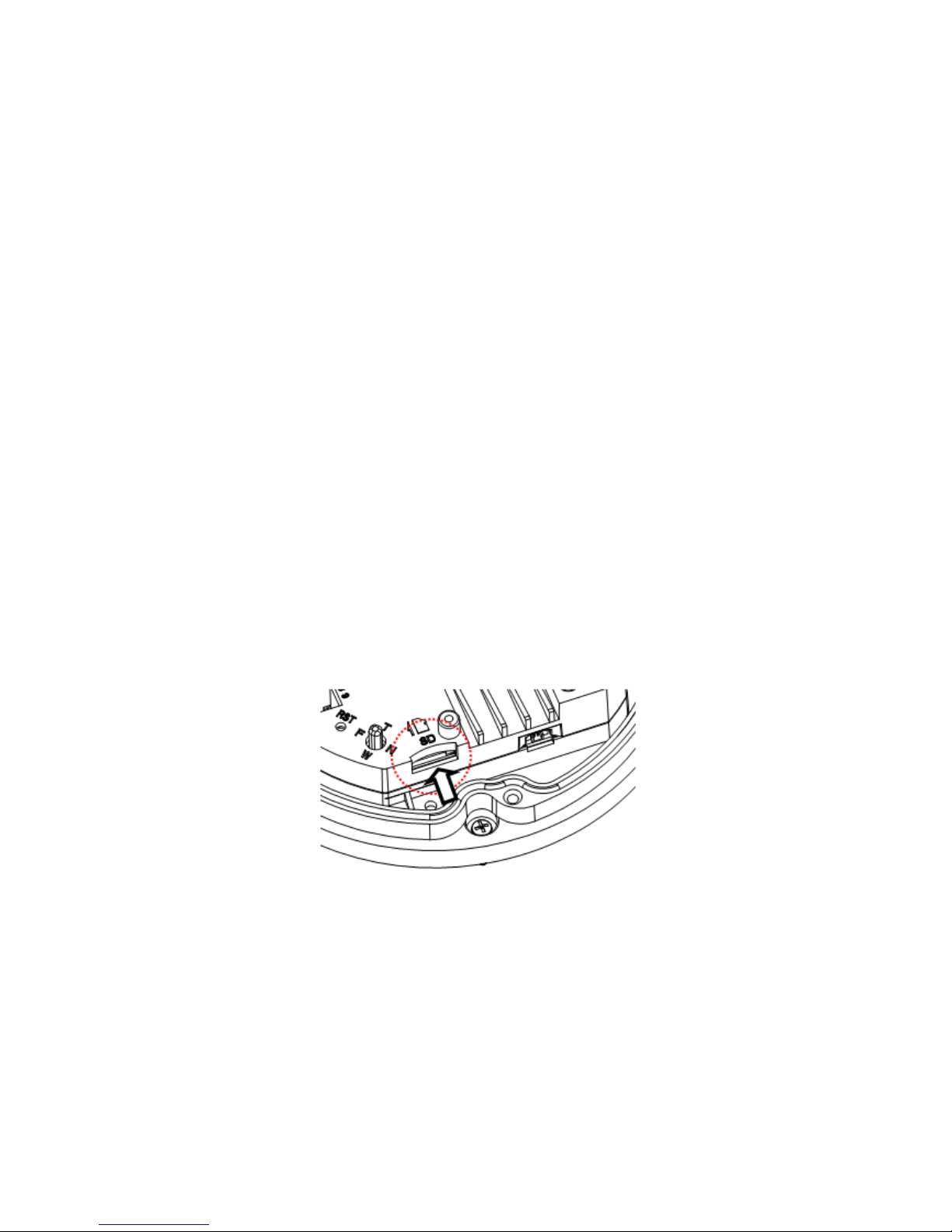

Micro SD

Micro SD card
slot entry

Micro SD
card

Connect to Micro SD card to realize
local storage.

11

POWER

12V power port

/

The power port of the external
connected cable.
Default input is DC 12V.

12

LAN

Network port

Ethernet port

The network port of the external
connected cable.
Connect to standard Ethernet port.
Support PoE.

Please refer to the following sheet for I/O port cable function information.

Port
Name

Cable SN

Cable Port Name

Function Description

I/O Port

1

ALARM_NO

Alarm output port. Output alarm signal to
alarm device.
NO: Normal open alarm output end.

2

ALARM_COM

Alarm output public end.

3

GND

Ground end.

4

ALARM_IN

Alarm input port. It is to receive the on-off
signal from the external alarm source.

5

GND

Ground end.

6

AUDIO_IN

Input audio signal. It is to receive the analog
audio signal from the devices such as
pickup.

7

AUDIO_OUT

Output audio signal to devices such as
sound box.

8

GND

Ground end.

9

VIDEO_OUT

Output analog video signal. It can connect
to TV monitor to view video.

2.3 Bidirectional talk

2.3.1 Device-end to PC-end
Device Connection

15

Please connect the speaker or the MIC to the audio input port of the device. Then connect the earphone
to the audio output port of the PC.
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the bidirectional talk function.
Click Talk button again to stop the bidirectional talk function.

Listening Operation

At the device end, speak via the speaker or the pickup, and then you can get the audio from the
earphone or sound box at the pc-end.

2.3.2 PC-end to the Device-end
Device Connection

Connect the speaker or the MIC to the audio input port of the PC and then connect the earphone to the
audio output port of the device.
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Talk button again to stop the bidirectional talk function.

Please note the on-site listening operation is null during the bidirectional talk process.

Listening Operation

At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone
or sound box at the device-end.

2.4 Alarm Setup

The alarm interface is shown as in Figure 2-7. Please follow the steps listed below for local alarm input
and output connection.

1) Connect the alarm input device to the alarm input port (No.1 pin) of the I/O cable.

2) Connect the alarm output device to the alarm output port (No.4 pin) and alarm output public port (No.3
pin). The alarm output port supports NO (normal open) alarm device only.

3) Open the Web, go to the Figure 2-7. Please set the alarm input 01 port for the first channel of the I/O
cable (No.4 pin). Then you can select the corresponding type (NO/NC.)

4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the
No.1 pin of the I/O cable.

Figure 2-7

16

Please refer to the following figure for alarm input information. See Figure 2-8.
Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of the
alarm input port. When the input signal is connected to the 5V or is idle, the device collects the logic “1”.
When the input signal is grounded, the device collects the logic “0”.

Figure 2-8

Please refer to the following figure for alarm output information. See Figure 2-9.
Port ALARM_COM and Port ALARM_NO composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes on when there is an alarm output.
If the type is NC, this button is normal off. The button becomes off when there is an alarm output.

Figure 2-9

17

3 Installation

Important
 Before you complete the installation and setup, do not remove the electrostatic attraction

film on the transparent enclosure. Otherwise it may result in injury.

 After remove electrostatic attraction film, do not touch dome enclosure in case it may leave

stain.

 Before the installation, please make sure the installation surface can sustain at least 3X

weight of the bracket and the camera.

3.1 Device Installation Introduction

Please refer to Figure 3-1 for device installation space information. You can use screws (diameter is less
than 4.5mm) to secure the device. You can see there are installation position map and installation
screws in the accessories bag for you to install the device conveniently.

Figure 3-1

3.2 Device Installation Steps

3.2.1 General Installation

The general interface is shown as in Figure 3-2.

IR Motorized Zoom Lens Series IR Manual Zoom Series

18

Figure 3-2

Step 1

Take the installation position map from the accessories bag and then paste it on the installation ceiling
or the wall according to the monitor area. Please dig three bottom holes of the plastic expansion bolts
according to the map. Take three expansion bolts from the accessories bag and then insert them to the
holes you just dug and then fix firmly. If you need to dig a hole to pull through the cable, you need to dig
a cable exit hole (The diameter is more than 28mm) on the installation surface according to the
installation positioning map.

Step 2
Use the inner hex wrench from the accessories bag to unfasten the 3 hex screws on the dome camera
enclosure to open it.

Step 3

Please remove the device cable (Provided) network port and the power terminal. Use the inner hex
wrench (Provided) to remove the 2 inner hex screws from the dome driver module. Then please follow
the prompt on the device to push the metal hook to two sides. Remove the dome driver module from the
chassis. See Figure 3-3.

Figure 3-3

Step 4

Adjust the chassis of the device to the proper position and pull the cable to the cable exit of the
installation surface. Line up the holes of the chassis to the three expansion bolt holes you dug in Step 1.
Take three ST3.0 self-tapping screws and secure them in the three plastic expansion bolts. Now the
chassis is secure on the installation surface.

Important
Please earth the device GND hole (GND) to enhance the reliability of the device. The GND port

is near the cable exit of the rear panel. The GND screw thread specification is M3-6mm.

19

Figure 3-4

Step 5

Please refer to the Step 3 to put the driver module back to the metal hooks of the chassis. Then use the
inner hex wrench to secure the two inner hex screws to the chassis. Then connect the network cable
and the power terminal.

Step 6

Adjust the lens to the proper angle according to your monitor requirements.

a) For the IR series product, you can skip current step and go the step b) directly. For the non-IR series
product, push the port slightly to remove the decoration enclosure from the black plastic enclosure. See
Figure 3-5.

Figure 3-5

b) Lens pan rotation angle setup. Please refer to Figure 3-6 to unfasten the lock screw A and adjust the
pan monitor angle to the proper position. Then fix the lock screw A. The pan angle ranges from
0°~+350°.

20

Figure 3-6

c). Lens tilt rotation angle. Please refer to Figure 3-7 to unfasten the lock screw B and lock screw C and
adjust the tilt monitor angle to the proper position. Then fix the lock screw B and lock screw C. The tilt
angle ranges from -23°~+73°.

d). Image pan rotation angle setup. Please refer to Figure 3-7 to turn lock screw D to adjust the video

pan angle. Then fix the lock screw B and C. The video pan angle ranges from 0°~+350°.

Figure 3-7

e) For the motorized zoom series product, please skip current step. Please refer to chapter 3.2.2 for the
lens zoom and focus operation of the manual focus series product.

f) For the IR series product, please skip current step and complete the angle setup directly. For the non­IR series product, please put back the black plastic decoration enclosure to complete the angle setup.

Important

Lock Screw A
Adjust lend pan rotation
angle.

Lock screw B/C
Adjust lens tilt rotation
angle.

Lock screw D
Adjust lend pan rotation
angle.

21

Please note Figure 3-6 and Figure 3-7 is based on the IR motorized zoom camera. For the IR
manual zoom camera and non-IR series product, the lock screw position and the lens angle
adjustment are the same.

Step 7

Line up the dome camera protection enclosure to the cable exit on the side panel. Put the enclosure
back and then use the inner hex wrench to secure the 3 inner hex screws firmly. Now the installation is
complete.

Note

Usually we recommend, after the installation, please take the three white static protection gaskets from
the accessories bag and insert them to the screw holes of the protection enclosure. It is to enhance
device reliability.

3.2.2 Manual Zoom Lens Focus Operation

The manual zoom lens focus interface is shown as in Figure 3-8.

Step 1

Slightly loosen the adjusting screw E and push the adjust screw E to make it swing. Adjust the lens
focus to the proper position according to the displayed video.

Step 2

Slightly loosen the adjusting screw F and push the adjust screw F to make it swing. Adjust the lens to
get the clear video and then fix the adjusting screw firmly.

Step 3

When you are securing the adjusting screw F, you can see the video may become blur. Please push the
adjusting screw E to adjust the video slightly. Please secure the adjust screw E if you get a clear video.

Figure 3-8

3.2.3 Side Cable Exit

If you adopt side cable exit when you are installing the device, you need to remove the plastic decoration
plug from the side of the chassis. Use the proper tool to dig through the part specified in Figure 3-9 to
form a cable exit. Put the plastic decoration plug back to the chassis and then pull the cable through the
side panel of the chassis.

Adjusting Screw E

Adjusting Screw F

22

Figure 3-9

For some special user, he may need the metal protection tube to protect when he pulls through the
cable from the side cable. There is PG11screw thread port when you pull through the cable from the
side panel. Please remove the plastic decoration plug from the side panel of the chassis and pull
through the cable to the tunnel of the PG11 screw thread. Now secure the tunnel in the PG11 screw
threaded hole of the device.

3.2.4 Cable Connection

The device reserves two cable exits. The pin diameter shall be less than 15mm. One of the cable exits
has M22 screw thread and can work with the default combination cable to remove the risk of the
dragging and pulling of the cable.

The device has two waterproof airproof plugs (One default position is the cable exit of the chassis of the
device and the other is in the accessories bag.). The waterproof airproof plug has two functions. One is
to fill in the cable exit and pull through the cable. It supports the cable whose diameter ranges from

4.0~6.0. It is very convenient for you to do the waterproof work when you pull the cable through your
own exit. Please refer to the steps listed.

Step 1

Take the waterproof airproof plug out, pull the cable (diameter ranges from 4.0 to 6.0) through the
waterproof airproof plug. See Figure 3-10.

Figure 3-10

Dig through here

23

Step 2

Before you go to the Step 4 in the chapter 3.2.1 installation steps, please pull through cable with the
waterproof airproof plug to the device chassis via the installation hole at the bottom of the chassis and
then connect the cable pins.

Step 3

Refer to Step 4 and Step 5 in the chapter 3.2.1 installation steps to install and connect the cable pin to
the device and then follow the proper steps to go on the installation.

Important
This series product has the power connection pin and I/O connection pin for you to pull through
the signal cable.

3.3 Micro SD Card Installation

Warning!
Please unplug the device power cable and then shutdown the device before you install the Micro
SD card.

Step 1

Please refer to Step2 in chapter 3.2.1 installation steps to open the device protection enclosure.

Step 2

Please find the “SD” mark inside the device and adjust the Micro SD card direction according to prompt
direction. Insert the card to the slot and then install the Micro SD card. See Figure 3-11.

Figure 3-11

Step 3

Please refer to Step 7 in chapter 3.2.1 to put the device protection enclosure back.

24

4 Quick Configuration Tool

4.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.

4.2 Operation

Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default gateway,
MAC address and etc.

Figure 4-1

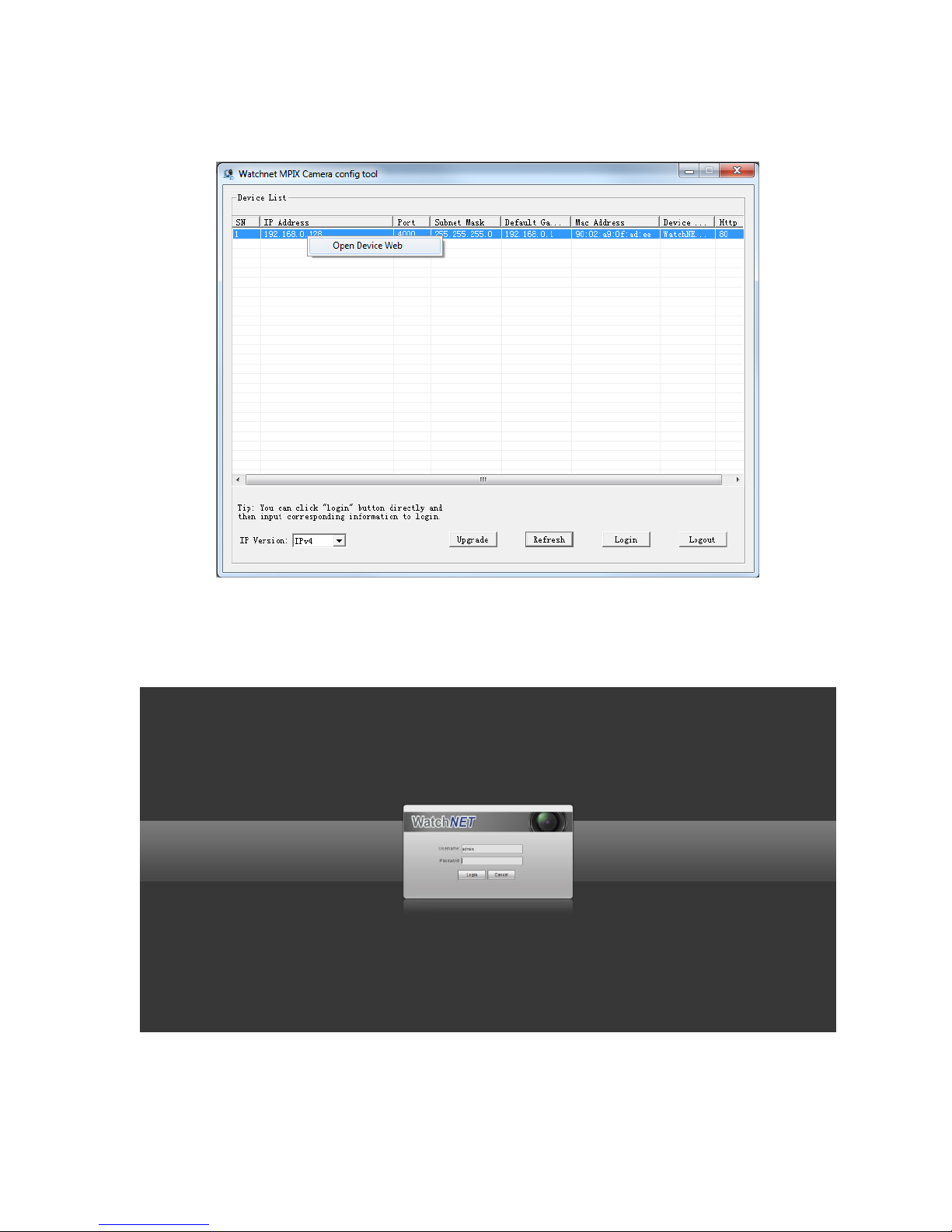

Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.

Note:

You can set the IP address, subnet mask and gateway for the network camera and PC. Please note
network camera IP address and PC IP address shall be in the same network segment if there is no
router. Network camera default IP address is 192.168.1.108. If there is a router, please set the
corresponding gateway and subnet mask.
The factory default user name is admin and password is 1234.

25

For detailed WEB operation, please refer to the Network Camera Web Operation Manual in the
resource CD.

Figure 4-2

Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure
4-3.

Figure 4-3

If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.

26

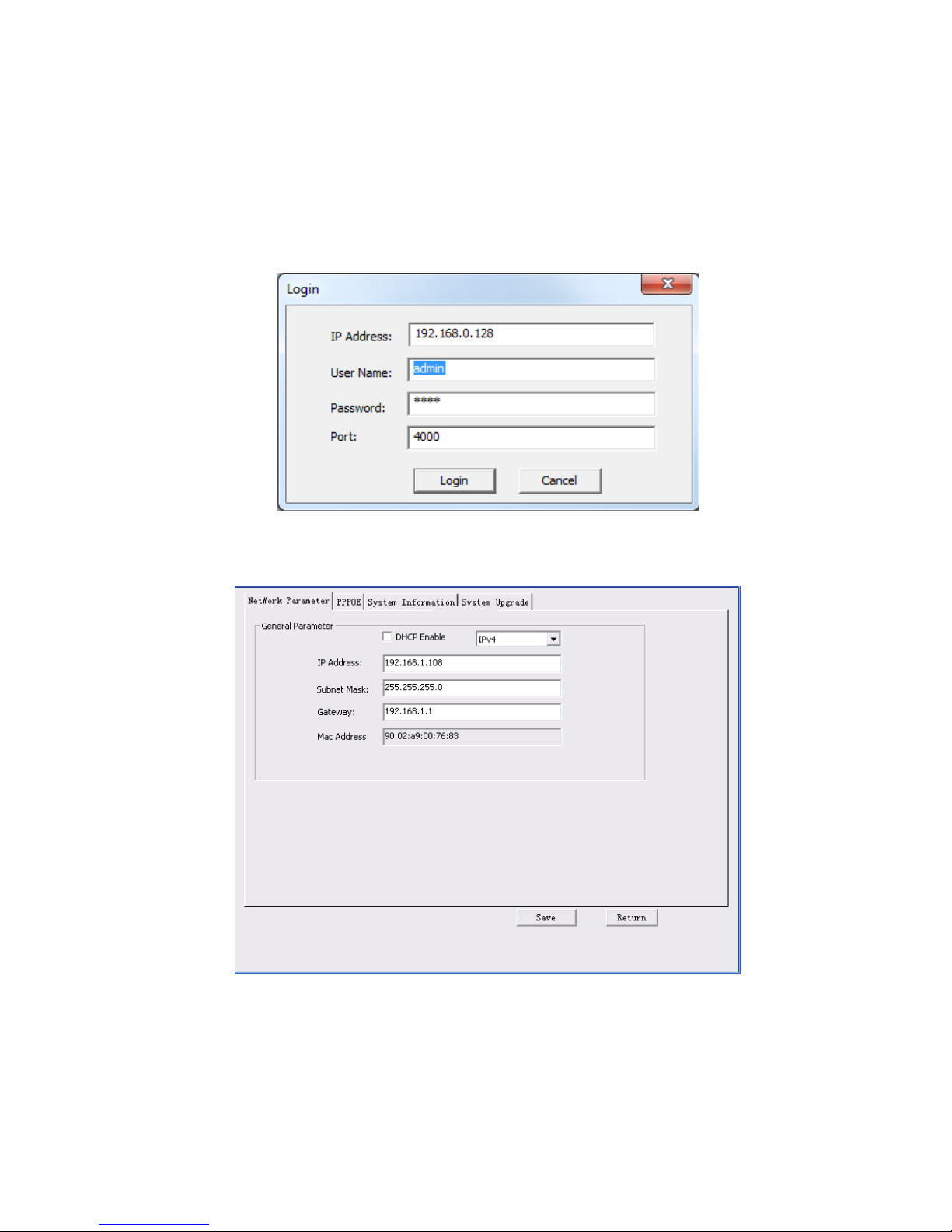

In the configuration tool search interface (Figure 4-1), please select a device IP address and then double
click it to open the login interface. Or you can select an IP address and then click the Login button to go
to the login interface. See Figure 4-4.
In Figure 4-4, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you can not login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.

Figure 4-4

After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.

Figure 4-5

For detailed information and operation instruction of the quick configuration tool, please refer to
the Quick Configuration Tool User’s Manual included in the resources CD.

27

5 Web Operation

These series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.

5.1 Network Connection

Please follow the steps listed below for network connection.

 Make sure the network camera has connected to the network properly.
 Please set the IP address, subnet mask and gateway of the PC and the network camera

respectively. Network camera default IP address is 192.168.1.108. Subnet mask is 255.255.255.0.
Gateway is 192.168.1.1

 Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.

5.2 Login and Main Interface

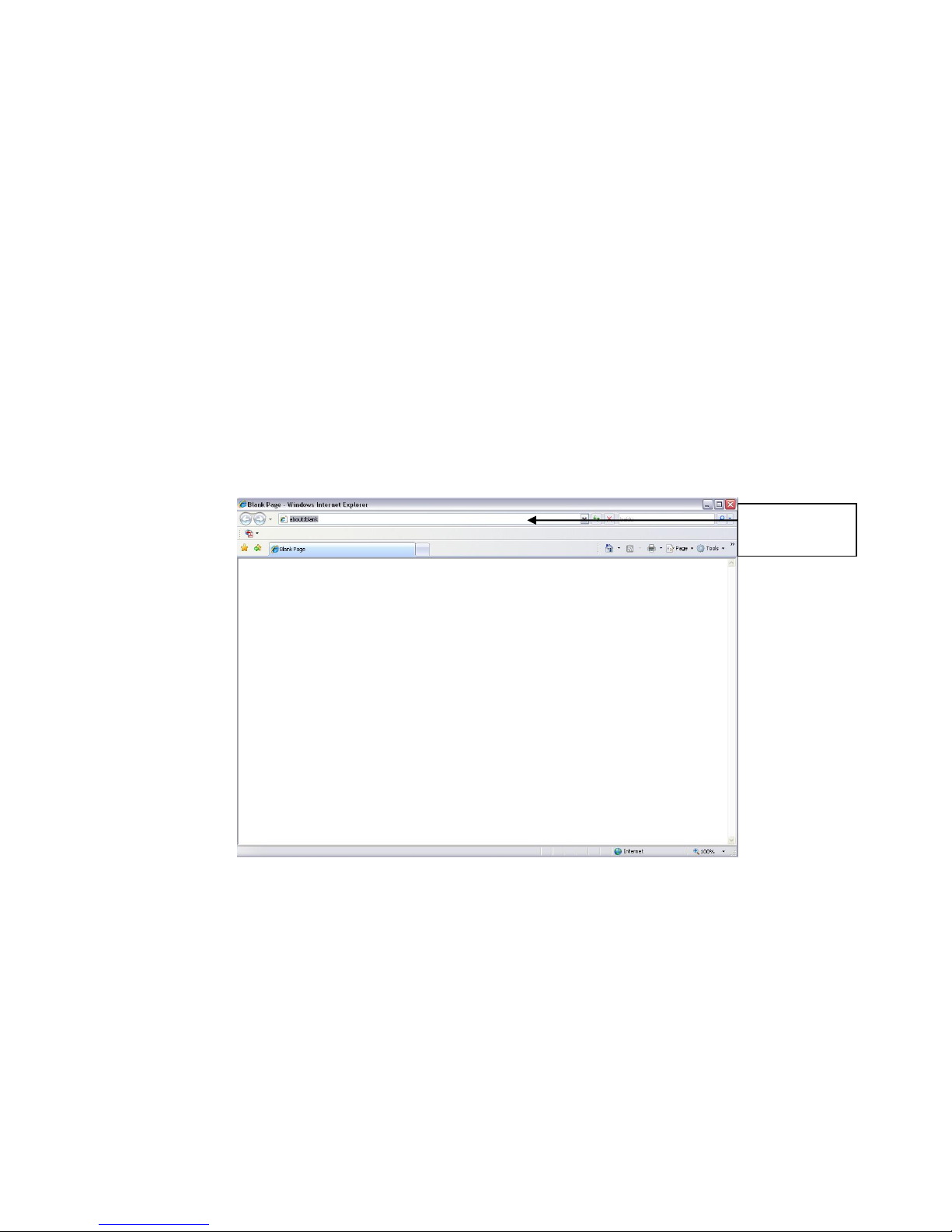

Open IE and input network camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address
bar. See Figure 5-1.

Figure 5-1

The login interface is shown as below. See Figure 5-2.
Please input your user name and password.
Default factory name is admin and password is 1234.

Input your IP
address here

28

Figure 5-2

If it is your first time to login in, system pops up warning information to ask you whether install control
webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically
install the control. When system is upgrading, it can overwrite the previous Web too.
If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the
control download. Or you can lower the IE security level. See Figure 5-3.

Figure 5-3

After you logged in, you can see the main window. See Figure 5-4.

29

Figure 5-4

Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.

30

6 FAQ

Bug

I can not boot up
the device.

Please click RESET button for at least five seconds to restore
factory default setup.

Micro SD card
write times

Do not set the Micro SD card as the storage media to storage the
schedule record file. It may damage the Micro SD card duration.

I can not use the
disk as the storage
media.

When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).

I can not upgrade
the device via
network.

When network upgrade operation failed, you can use port 3800 to
continue upgrade.

Recommended
Micro SD card
brand

Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend 16GB，
SanDisk 1G, SanDisk 4G.

Usually we recommend the 4GB (or higher) or industry-level high
speed card in case the slow speed results in data loss.

Audio function

Please use active device for the audio monitor input, otherwise there
is no audio in the client-end.

The lightproof ring
of the IR device

The lightproof ring of the IR device lens is the necessary component
when it works. You can not view the clear video when the IR light is
on if you remove the lightproof ring.

31

Appendix Toxic or Hazardous Materials or Elements

Component

Name

Toxic or Hazardous Materials or Elements

Pb

Hg

Cd

Cr VI

PBB

PBDE

Circuit Board

Component

○ ○ ○ ○ ○

○

Device Case

○ ○ ○ ○ ○ ○

Wire and Cable

○ ○ ○ ○ ○ ○

Packing

Components

○ ○ ○ ○ ○

○

Accessories

○ ○ ○ ○ ○

○

O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the
parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements
contained in products will not leak or mutate so that the use of these (substances or elements) will not
result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer
is not authorized to process such kind of substances or elements, please return to the corresponding
local authorities to process according to your local government statutes.

Note

 This user’s manual is for reference only. Slight difference may be found in user interface.
 All the designs and software here are subject to change without prior written notice.
 All trademarks and registered trademarks mentioned are the properties of their respective

owners.

 If there is any uncertainty or controversy, please refer to the final explanation of us.
 Please visit our website for more information.
