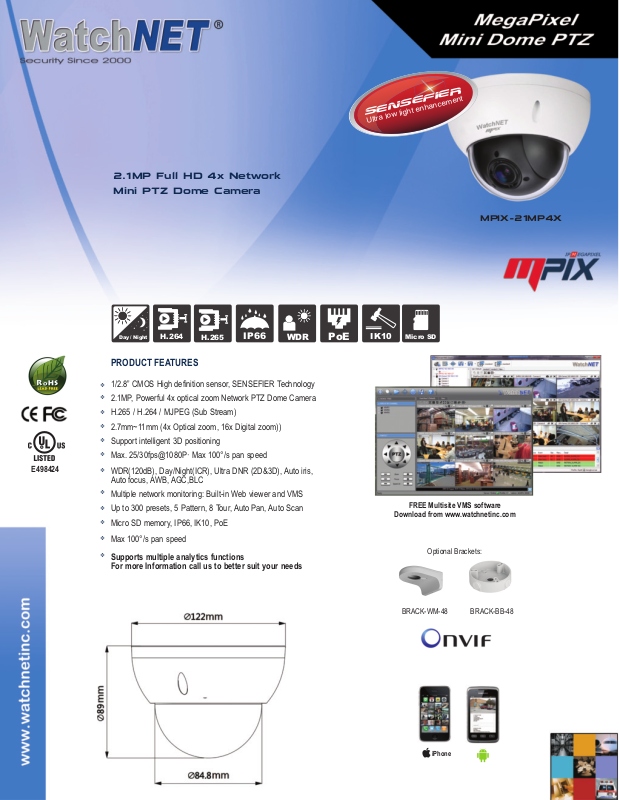

Watchnet MPIX-21MP4X Specifications
2.1MP Full HD 4x Network
Mini PTZ Dome Camera
v
v
v
v
v
v
v
v
v
v
MPIX-21MP4X
PRODUCT FEATURES
1/2.8” CMOS High definition sensor, SENSEFIER Technology
2.1MP, Powerful 4x optical zoom Network PTZ Dome Camera
H.265 / H.264 / MJPEG (Sub Stream)
2.7mm~11mm (4x Optical zoom, 16x Digital zoom))
Support intelligent 3D positioning
Max. 25/30fps@1080P· Max 100°/s pan speed
WDR(120dB), Day/Night(ICR), Ultra DNR (2D&3D), Auto iris,
Auto focus, AWB, AGC,BLC
Multiple network monitoring: Built-in Web viewer and VMS
Up to 300 presets, 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Micro SD memory, IP66, IK10, PoE
Max 100°/s pan speed
Supports multiple analytics functions
For more Information call us to better suit your needs
v
iPhone
BRACK-WM-48 BRACK-BB-48
Optional Brackets:
FREE Multisite VMS software
Download from www.watchnetinc.com
Day / Night
H.264
IP66
WDR
PoE
IK10
E498424
Micro SD
H.265
SENSEFIER
Ultra low light enhancement
v
Model Number MPIX-21MP4X
Camera
Image Sensor 1/2.8” CMOS High definition sensor
Scanning System Progressive scan
Effective Pixels 1920(H) x 1080(V), 2.1 Megapixels
Min Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
Electronic Shutter Speed 1/3s ~1/30,000s
RAM/ROM 256M/128M
Lens
Max Aperture F1.6
Focal Length 2.7mm~11mm (4x Optical zoom)
Angle of View
H: 112.5° ~ 30°
Focus Control Auto / Manual
Close Focus Distance 100mm~ 1000mm
PTZ
Manual Control Speed Pan: 0.1° ~ 100° /s; Tilt: 0.1° ~ 60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 90°
Preset 300
Speed Setup
Human-oriented focal Length / Speed adaptation
PTZ Mode 8 Tour (up to 32 preset per tour)
Idle Action Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Video
Compression H.265 / H.264 / MJPEG (Sub Stream)
Resolution
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Bit Rate H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Frame Rate Main Stream: 1080P/720P/D1 (1 ~ 25/30fps) / Sub Stream1: D1/CIF(1 ~ 25/30fps) / Sub Stream2: 720P/D1/CIF (1 ~ 25/30fps)
Day/Night Auto(ICR) / Color / B/W
White Balance Auto,ATW,Indoor,Outdoor,Manual
Backlight Compensation BLC / HLC / WDR (120dB)
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Privacy Masking Up to 24 areas
Gain Control Auto / Manual
Motion Detection Support
Region of Interest Support
Defog Support
Flip 180°
Network
Ethernet RJ-45 (10XBase-T/100Base-TX)
Streaming Method Unicast / Multicast
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 128GB
Max. User Access 20 users
Web Viewer
IE, Chrome, Firefox, Safari
Smart Phone IOS, Android
General
Power Consumption 5.5W
Power Supply DC 12V/1.5A, PoE(802.3af)
Protection Level
IP66, IK10, PoE
Operating temperature -30º to 60 ºC (-22ºF to 140ºF) / Less than 95% RH
Dimensions Φ122 (mm) x 89 (mm) / Φ4.8” x 3.5”
Net/Gross Weight 0.52kg(1.23lb) / 0.73kg(1.61lb)
All product specifications on this brochure are subject to change without notice.
