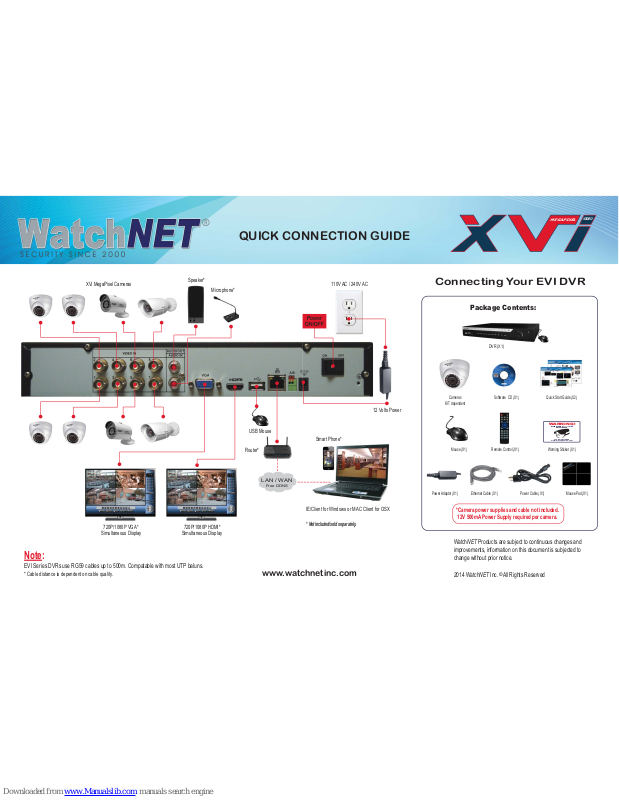

QUICK CONNECTION GUIDE
WARNING!
Protected by WatchNET
Surveillance
24HR MONITORED
www.watchnetinc.com
Package Contents:
Cameras Software CD (X1) Quick Start Guide (X2)
KIT dependent
Note:
EVI Series DVRs use RG59 cables up to 500m. Compatable with most UTP baluns.
* Cable distance is dependent on cable quality.
©
WatchNET Products are subject to continuous changes and
improvements, information on this document is subjected to
change without prior notice.
2014 WatchNET Inc.
All Rights Reserved
DVR (X1)
*Camera power supplies and cable not included.
12V 500mA Power Supply required per camera.
Connecting Your EVI DVR
110V AC / 240V AC
XVi MegaPixel Cameras
12 Volts Power
Microphone*
Speaker*
Smart Phone*
Power
ON/OFF
720P/1080P VGA *
Simultaneous Display
* Not included/sold separately.
Router*
IE/Client for Windows or MAC Client for OSX
LAN / WAN
Free DDNS
Mouse (X1) Remote Control (X1) Warning Sticker (X1)
Power Adaptor (X1) Ethernet Cable (X1) Power Cable (X1) Mouse Pad (X1)
USB Mouse
720P/1080P HDMI*
Simultaneous Display
www.watchnetinc.com
MEGAPIXEL
VIDEO
Page 2
EASY START-UP WIZARD
Recording
Color Codes
When first booting up the DVR, Start-up Wizard will
initiate. Clicking "next step" will start the Wizard.
Cancel to exit
Use the mouse to navigate thru the setup
Login
Systems Default
Username: admin
Password: 1234
Step
1
System Settings
Adjust the time and date. Click "Save" before moving to the next step.
Step
2
Save Date & Time
adjustments
Network
Change the default network to match the local network. Ask the network
administrator for the proper IP address, Gateway and Mask.
Click Next Step when done
Step
3
Click Next Step and Close the Wizard.
Camera Number
Hours of the day
Days of the week
Step
4
Set Recording Schedule
user can choose what the DVR records. Normal, Alarm,
Motion or all events
By default all DVRs are set to record motion detection 24/7
Now the system is setup
and ready for recording.
QUICK TIPS
1. To switch between monitor resolution 720p/1080p press and hold Shift Key
on front panel for 5 seconds.
2. To access camera menu, set up the camera in the DVR as PTZ with
WT-XVI Protocol and click on PTZ control on main GUI for menu.
3. XVI PTZ Cameras work on coax cable or UTP for zoom/focus and pan/tilt control
75 Ohms
MEGAPIXEL
VIDEO
