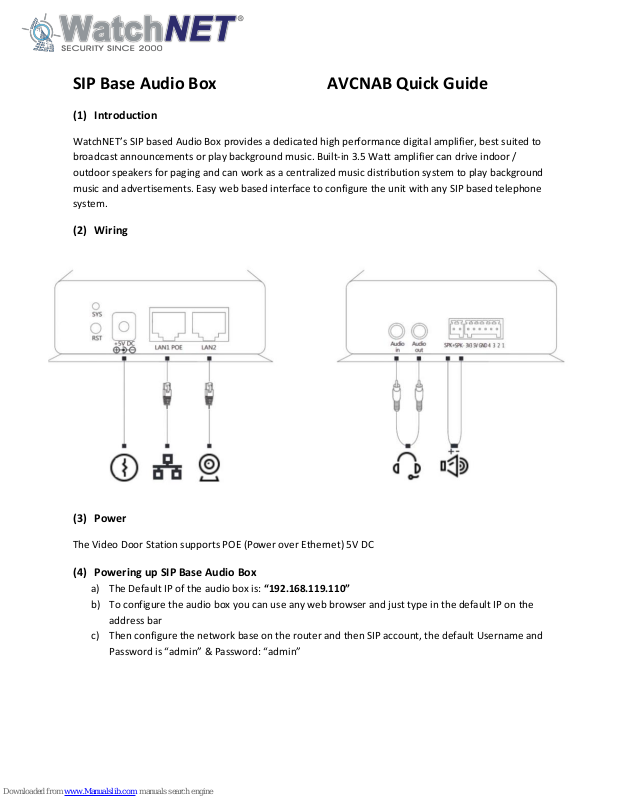

WatchNet AVCNAB Quick Manual

SIP Base Audio Box AVCNAB Quick Guide

(1) Introduction

WatchNET’s SIP based Audio Box provides a dedicated high performance digital amplifier, best suited to
broadcast announcements or play background music. Built-in 3.5 Watt amplifier can drive indoor /
outdoor speakers for paging and can work as a centralized music distribution system to play background
music and advertisements. Easy web based interface to configure the unit with any SIP based telephone
system.

(2) Wiring

(3) Power

The Video Door Station supports POE (Power over Ethernet) 5V DC

(4) Powering up SIP Base Audio Box

a) The Default IP of the audio box is: “192.168.119.110”
b) To configure the audio box you can use any web browser and just type in the default IP on the

address bar

c) Then configure the network base on the router and then SIP account, the default Username and

Password is “admin” & Password: “admin”

(5) Troubleshooting

Possible causes

Solutions

Audio Box does not turn on

Please make sure to check the DC power or the
network cable if using POE

The speaker does not work

Make sure to use a proper speaker for the Audio
box

I cannot login via web

Please assign a same IP range on the computer
first before logging in via web

If the SIP Base Audio Box does not turn on or does not work properly please refer on below solutions

Note: if any solutions above did not work please contact WatchNET Technical Support phone number +1-866-

843-6865 or visit our website @ www.watchnetinc.com
