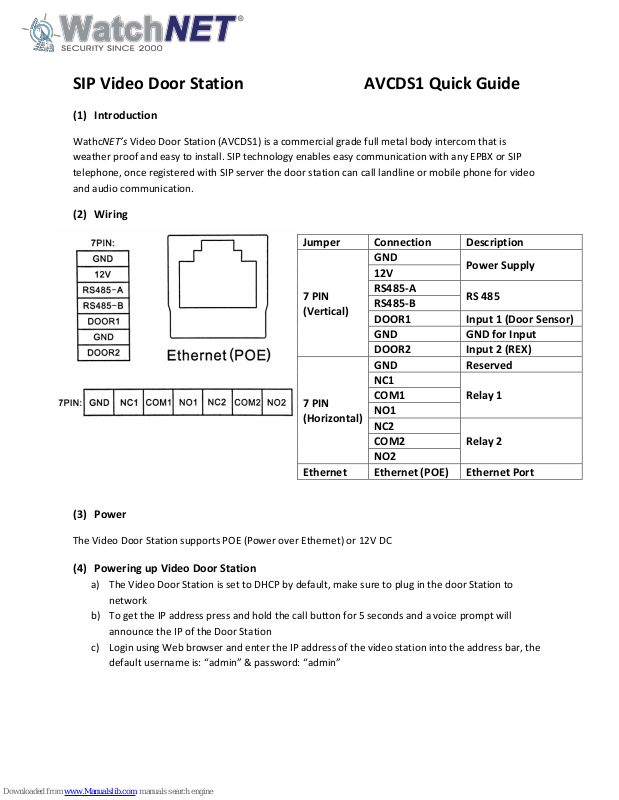

SIP Video Door Station AVCDS1 Quick Guide
Jumper
Connection
Description
7 PIN
(Vertical)
GND
Power Supply
12V
RS485-A
RS 485
RS485-B
DOOR1
Input 1 (Door Sensor)
GND
GND for Input
DOOR2
Input 2 (REX)
7 PIN
(Horizontal)
GND
Reserved
NC1
Relay 1
COM1
NO1
NC2
Relay 2
COM2
NO2
Ethernet
Ethernet (POE)
Ethernet Port
(1) Introduction
WathcNET’s Video Door Station (AVCDS1) is a commercial grade full metal body intercom that is
weather proof and easy to install. SIP technology enables easy communication with any EPBX or SIP
telephone, once registered with SIP server the door station can call landline or mobile phone for video
and audio communication.

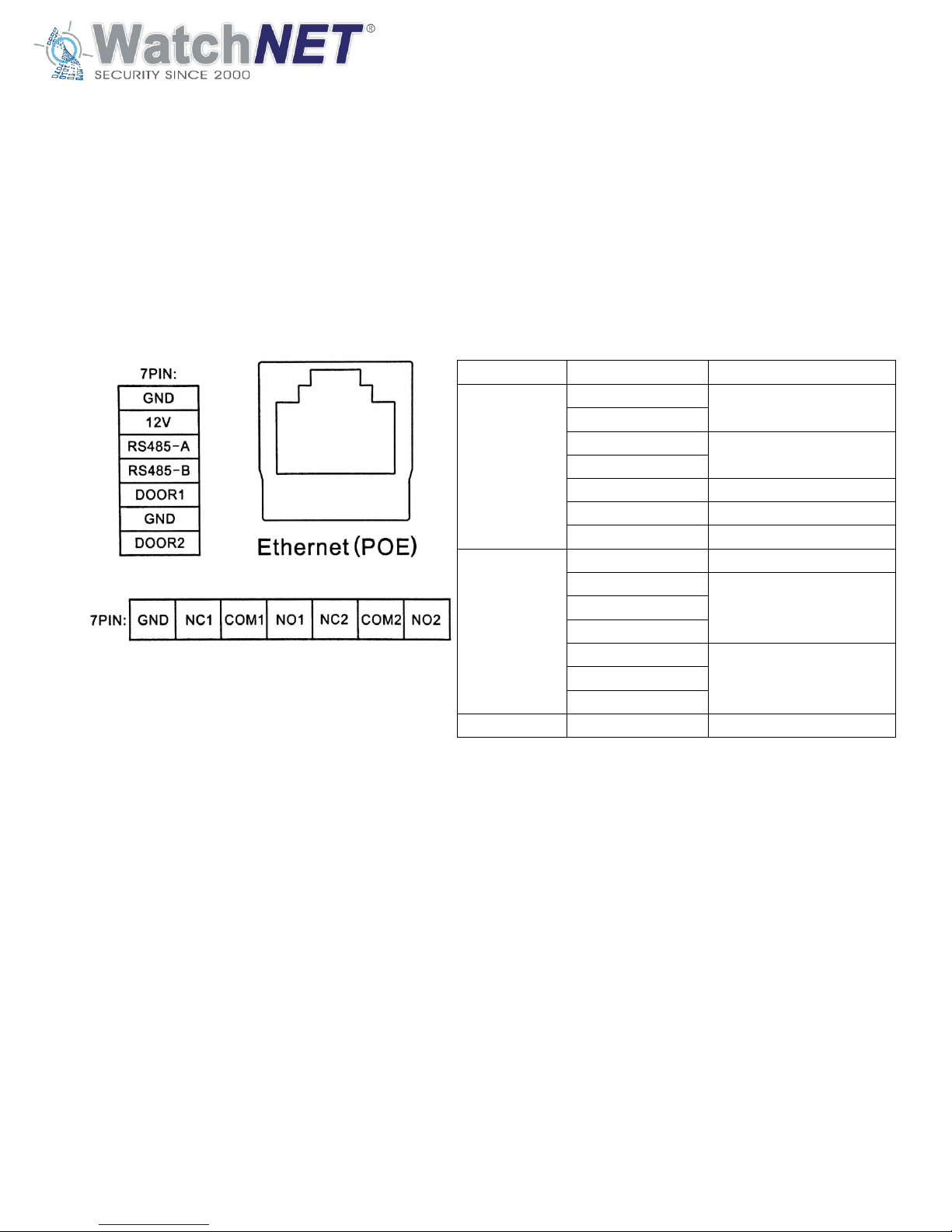

(2) Wiring
(3) Power
The Video Door Station supports POE (Power over Ethernet) or 12V DC
(4) Powering up Video Door Station
a) The Video Door Station is set to DHCP by default, make sure to plug in the door Station to
network
b) To get the IP address press and hold the call button for 5 seconds and a voice prompt will
announce the IP of the Door Station
c) Login using Web browser and enter the IP address of the video station into the address bar, the
default username is: “admin” & password: “admin”
Page 2
(5) Troubleshooting
Possible causes
Solutions
Video Door Station does not announce IP
Make sure to properly connect the Ethernet cable
to the network so that the video station can get
an IP from the network
No Lights on the Status LED
Make sure to power the video station correctly
either using POE or 12V DC
Does not dial when call button is pressed
Make sure to configure the SIP account or
configure the correct IP if using IP to IP calling
If the Video Door station does not turn on or does not work properly please refer on below solutions
Note: if any solutions above did not work please contact WatchNET Technical Support phone number +1-866-
843-6865 or visit our website @ www.watchnetinc.com
CANADA: USA: INDIA:
351 Ferrier Street Unit 5 171 Cooper Ave. Suite 110 RZ-2, Ground Floor
Markham, Ontario L3R 5Z2 Tonawanda, NY 14150 USA Kpashera,
Toll Free: 1-866-843-6865 Toll free: 1-855-404-3193 Opp Kapashera Police station
Tel: 1-416-410-6865 Fax: 1-866-331-3341 New Delhi-110037
Fax: 1-866-331-3341 Tell: +91 11 26816005
Fax: +91 9654297002
UAE: Hong Kong
P O Box No. 126312 Unit 04, 7/F
Dubai, UAE Bright Way Tower
Tel: +971 43584458 #33 Mong Kok Road
Fax: +971 43584458 Kowlon, HK
Mobile: +971 505869290 Tel: 00852-27935511
[email protected] Fax: 00852-35902333
www.watchnetinc.com [email protected]
