SIP Desk Phone AVCDP7 Quick Guide

(1) Introduction

AVCDP7 is an Android-based multimedia telephone with a 7 inch touch screen and 1.3M CMOS sensor

camera. It supports H.264/H.263 codecs with adaptive bandwidth adjustment. The 7” touch screen

offers excellent user experiences such as high quality videophone, smooth internet surfing, various
Android Apps and daily information. This telephone can be used with any EPBX office systems or as a
residential phone with SIP telephone line.

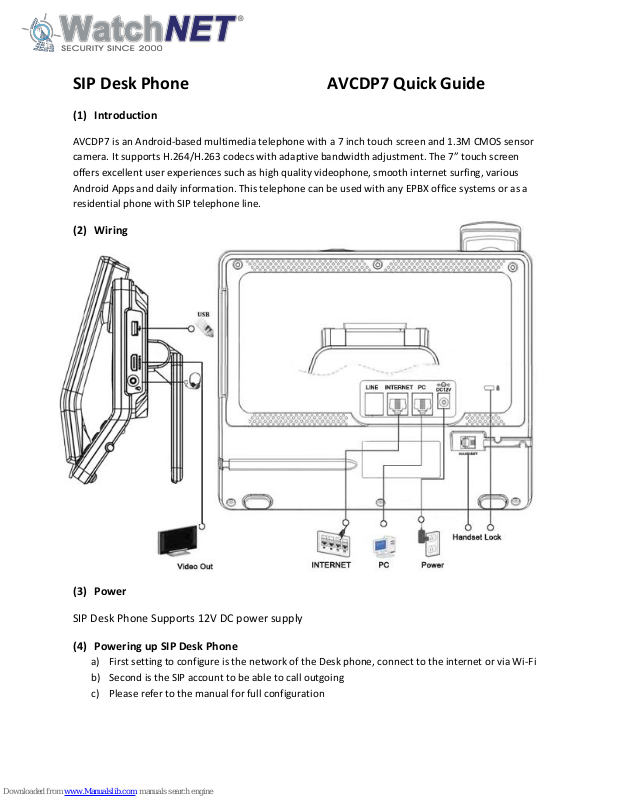

(2) Wiring

(3) Power

SIP Desk Phone Supports 12V DC power supply

(4) Powering up SIP Desk Phone

a) First setting to configure is the network of the Desk phone, connect to the internet or via Wi-Fi
b) Second is the SIP account to be able to call outgoing
c) Please refer to the manual for full configuration

(5) Troubleshooting

Possible causes

Solutions

Desk phone does not turn on

Make sure to connect a 12VDC 1A PSU

Desk phone does not receive any incoming call

Please make sure to check the SIP accounts or IP
address if using IP to IP calling

My Camera does not shows up on video call

Make sure that the camera is not reversed or
make sure to open up the camera lid.

If the SIP Desk Phone does not turn on or does not work properly please refer on below solutions

Note: if any solutions above did not work please contact WatchNET Technical Support phone number +1-866-

843-6865 or visit our website @ www.watchnetinc.com
