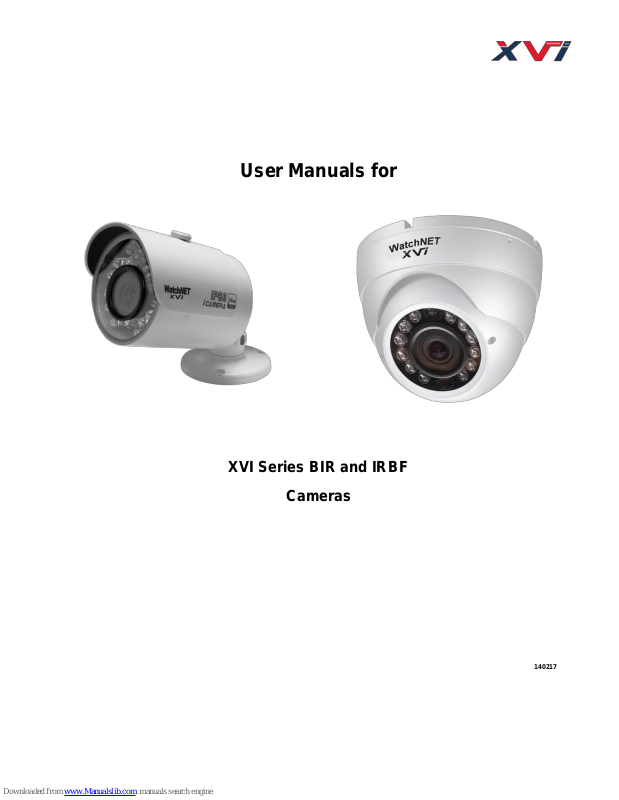

Page 1
User Manuals for
XVI Series BIR and IRBF
Cameras
140217
Page 2
i
Table of Contents
1 General Introduction .................................................................................................................. 1
1.1 Overview ........................................................................................................................ 1
1.2 Features ......................................................................................................................... 1
1.3 Functions ....................................................................................................................... 1
1.4 Specifications ................................................................................................................ 2
2 Framework and Dimensions ..................................................................................................... 4
2.1 IRBF Series ................................................................................................................... 4
2.2 IRBF Series ................................................................................................................... 5
3 Installation.................................................................................................................................... 6
3.1 IRBF Series ................................................................................................................... 6
3.2 BIR Series...................................................................................................................... 7
4 Menu ............................................................................................................................................. 9
4.1 XVI Series DVR Settings ............................................................................................. 9
4.2 Menu List ..................................................................................................................... 10
4.3 Note .............................................................................................................................. 12
Appendix Toxic or Hazardous Materials or Elements ............................................................... 13
Page 3
ii
Welcome
Thank you for purchasing our XVI camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
Page 4
iii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
If this product is installed in the ceiling, please make sure the installation position can sustain the min
50N.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series XVI camera should be installed in a cool, dry place away from direct sunlight or strong light,
inflammable, explosive substances and etc.
This series camera shall work on the specified working temperature. Please keep it away from the
electromagnetic radiation object and environment.
Please make sure the CMOS component is out of the radiation of the laser beam device. Otherwise it
may result in CMOS optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
6. Accessories
Be sure to use all the accessories recommended by manufacturer.
Page 5
iv
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
7. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work. Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute
the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.
Please put the dustproof cap to protect the CMOS component when you do not use the camera.
Page 6
1
1 General Introduction
1.1 Overview
This series megapixel HD camera conforms to the XVI standard. It supports video signal high-speed long
distance transmission without any delay. It can be controlled by the DVR conforming to the XVI.
1.2 Features
High-performance CMOS image sensor, megapixel definition.
HD video, coaxial cable to transmit the control signal.
Support 75-3 coaxial cable transmission without any loss. Transmission distance is over 300m.
Support HD and standard definition switch.
Support 1080P@25, 1080P@30, 720P@25, 720P@30, 720P@50, 720P@60.
High speed, long distance real-time transmission.
Support OSD (on-screen display), suitable for user self-defined setup.
Support privacy mask, image digital zoom.
Support DC12V power supplying.
Support 3D noise reduction (denoise), excellent performance in low illumination environment.
IP66 compliance.
Support ICR switch to realize surveillance both in the daytime and at night.
Support intelligent IR function.
1.3 Functions
XVI Specification
XVI（High Definition Composite Video Interface） is an over-coaxial –cable HD video transmission
standard. The technology renders two HD video formats by progressive scanning.
OSD
User-friendly on-screen display for you to select the different functions.
ICR
The IR cut removal is to filter the IR light in the daytime and then auto switch to the general fitter at night.
This function allows the camera to output the high sensitivity and clear video.
Smart IR technology
The sensor controls the IR light on/off via the combination work of the hardware and software, which
realizes the automatically IR light compensation according to the environment illumination.
Page 7
2
1.4 Specifications
Model
Parameter
1.3 and 2.1 Megapixel XVI IR Waterproof Camera Series
1.3 XVI series
2.1 XVI series
Video Processor
1/3" 2 Megapixel CMOS
Video Format
PAL/NTSC
Effective Pixel
1280 (H) *720 (V)
1920 (H) *1080 (V)
Min Illumination
0.05Lux@（F1.2，AGC ON），0 Lux with IR
Electronic Shutter
1/3s～1/100,000s@（slow shutter*512）
Video Standard
XVI/CVBS compliance
Video Frame Rate
1280×720@25 fps 1280×720@30 fps
1920×1080@25fps 1920×1080@30fps
1280×720@50 fps 1280×720@60 fps
1280×720@25 fps 1280×720@30 fps
Lens Port
M12
Lens Type
3.6mm (2.8/6/8mm optional)
Day/Night Switch
ICR mechanical auto switch
Video Output
1-channel XVI high definition video output/ CVBS standard definition video
output (Can switch.)
Denoise (Noise
Reduction)
Support 2D/3D denoise.
OSD Menu Control
Support coaxial cable control
OSD
EXPOSURE
Exposure Mode/Exposure Level/Exposure Speed/Anti Flicker/BLC/Return
WHITE
BALANCE
Auto/Manual/Day/Night/Return&Exit
DAY/NIGHT
Auto/B&W/Color/ Return&Exit
FUNCTION
2DNR/3DNR/D-zoom/Lens/ Return&Exit
ADVANCED
Cam Title/Mirror&Flip/Motion Detect/Privacy Mask/Language/COM
Setup/System Info/ Return&Exit
Sharpness/Brightness/Contrastness/Saturation/Sharp Suppress/ Chroma
Suppress/Gamma/Video Format/ Return&Exit
RESET
/
EXIT
/
Max IR Distance
20m
IR Light Control Plan
Advanced non-photosensor control plan
Transmission
Distance
Over 300m via 75-3 coaxial cable.
Protection Level
IP66
Working
Temperature
/Humidity
-30℃~+60℃. Humidity is less than 95%(no condensation)
Power
DC 12V±10%
Page 8
3
Power Consumption
4.5W MAX (Input: 12V @ 0.38A)
Dimension(mm)
IRBF
BIR
94.0 × 98.0
65.0 × 154.7
Weight
IRBF
BIR
350g
380g
Installation Mode
Wall mount / Ceiling mount
Page 9
4
2 Framework and Dimensions
2.1 IRBF Series
Please refer to the following figures for dimension information. The unit is mm. See Figure 2-1 and Figure
2-2.
Figure 2-1
Figure 2-2
Please refer to the following sheet for detailed information.
Page 10
5
2.2 IRBF Series
Please refer to the following figures for dimension information. The unit is mm.
SN
Name
Function
1
Power input
port
Connect to the DC 12V power to input the power.
2
Video output
port
BNC port is to output XVI/CVBS video signal.
You can connect to the devices such as the DVR or the NVS conforming to
the XVI specifications.
3
Standard
definition/high
definition
switch control
cable
When the standard definition/high definition switch control cable is short
circuit, system outputs standard definition video. Otherwise, when the
circuit is open, system outputs the high definition video.
4
Installation
base
Device installation base
5
Pan base
Adjust the pan base to adjust the monitor angle.
6
Rotate base
Adjust the rotate base to adjust the monitor angle.
7
Dome Body
Adjust the dome body to adjust monitor angle.
8
IR light
It is to send out the IR compensation light to enhance the night vision.
9
Lens
It is to receive the optical signal from the environments.
Page 11
6
3 Installation
3.1 IRBF Series
Important
Please make sure the installation surface can min support the 3X weight of the camera and the
bracket.
The dome camera usually uses the ceiling installation. It can be installed on the ceiling or the wall.
Step1 Device Installation
Take the wrench from the accessories bag and use it to loosen the three set screws on the side of the
camera body. See Figure 3-1.
Figure 3-1
Step 2 Pedestal Installation
Turn the pedestal of the device and then pull the cable through it. Use four screws to secure the pedestal
to the proper position. See Figure 3-2.
Figure 3-2
Page 12
7
Step 3 Adjust Monitor Angle
Turn the pan base to the pedestal and secure firmly. Adjust rotate base and the dome body to get the lens
to the proper monitor angle. See Figure 3-3.
Figure 3-3
Step 4 Fix Monitor Angle
To prevent the dome from moving, use wrench to secure the three set screws to secure the monitor angle
position.
3.2 BIR Series
In Figure 3-4, ①Installation surface；②Bracket；③Screws；④Camera.
Step 1
Dig three holes in the installation surface of the wall or the ceiling. Insert three expansion bolts to the three
holes and then lock firmly.
Figure 3-4
Page 13
8
Step 2
First prepare the cable according to the cable. Line up the three screw holes at the bottom of the bracket
to the three installation holes in the wall or the ceiling, and then insert three screws to the three holes of
the chassis of the bracket and fix them firmly. Now secure the bracket on the installation surface of the
wall or the ceiling.
Step 3
Adjust the camera to the proper monitor area via the three directions indicated in Figure 3-5 after you fixed
the camera.
Figure 3-5
Step 4
Connect the device video output port to the terminal devices such as the DVR, NVS and etc. Then connect
the power cable to the device.
Now you have completed the device installation and cable connection.
You can use the terminal encode devices to view the monitor video.
Page 14
9
4 Menu
4.1 XVI Series DVR Settings
Note
The following operation and interfaces for reference only. Please refer to the XVI series DVR user’s
manual for detailed information.
After connected the camera to the XVI series DVR, from Main Menu->Setting->System->PTZ, you need to
set control mode as HDCVI and the protocol as WT-XVi. Click Save button to save current setup. See
Figure 4-1.
Figure 4-1
On the preview interface, right click mouse and then select PTZ; you can see an interface shown as below.
See Figure 4-2.
Figure 4-2
Click Iris “+” to open menu or confirm current operation.
Click up/down button to view all the items on the left pane of the following list. Click left/right button to set
the corresponding values on the right pane of the following list. If there is “ ”, click confirm button to go to
the 2nd menu. Repeat the previous steps to set detailed value. Click Return button to go back to the
previous menu interface.
Page 15
10
4.2 Menu List
The 1st
The 2nd
The 3rd
Exposure
Exposure
Mode
Auto
Low
Noise
Gain Max
0～100
Gain Min
0～100
Return&Exit
For the 2nd and the 3rd
menu, when you click Exit
button to exit, system
saves current setup by
default.
Low Motion
Blur
Shutter Max
PAL: 0ms～40ms
NTSC: 0ms～33ms
Shutter Min
PAL: 0ms～40ms
NTSC: 0ms～33ms
Return&Exit
Manual
Shutter
1/100000, 1/10000,
1/4000,1/2000,1/1000,1/500,
1/250,1/120,1/100,1/60,1/50,
1/30,1/25,1/15,1/12,1/10,1/8,
1/6,1/5,1/4,1/3
Customized
Gain Max
0～100
Gain Min
0～100
Return&Exit
Exp Level
0～14
Exp Speed
0～7
Anti-flicker
Outoodr/50H
Z/60HZ
50HZ: 1/50, 1/100, 1/25,
1/10, 1/5, 1/4.
60HZ: 1/60, 1/120, 1/30,
1/4, 1/12, 1/6.
The 50HZ and 60HZ mode
have different manual
exposure mode and there
is no low motion blur and
low noise exposure mode.
BLC
BLC
OFF/ON
WDR
0～100
HLC
0～100
The HLC is valid when auto
exposure and outdoor antiflicker mode are both valid.
Return&Exit
White
Balance
Auto
Manual
Blue
1～100
Red
1～100
Return&Ex
it
Day
Night
Day/Night
Auto
B/W
Color
Function
2DNR
0～100
3DNR
0～100
D-Zoom
1～10
Lens
Manual/DC
Return&Ex
it
Advanced
CAM
Title
Mirror/Flip
Mirror
OFF/ON
Page 16
11
The 1st
The 2nd
The 3rd
Flip
OFF/ON
Return&Exit
Motion
Detect
OFF
ON
Area Sel
0～3
There are four motion detect
zones ranging from 0 to 3.
You need to set parameters
for each zone.
Area State
OFF/ON
Sensitivity
0～100
Threshold
0～100
Area Setup
Position
Size
Use direction buttons to
set position and zone size.
Default
Return&Exit
Privacy
Mask
OFF
ON
Area Sel
0～7
There are eight privacy mask
zones ranging from 0 to 7.
You need to set parameters
for each zone.
Area state
OFF/ON
Area setup
Position
Size
Use direction buttons to set
position and zone size.
Default
Return&Exit
Language
EN
COM
Setup
Address
1～254
Apply
Return&Exit
System
Info
Version
XXXXXXXXX
Return&Exit
Sharpness
0～100
Brightness
0～100
Contrastne
ss
0～100
Saturation
0～100
Sharp
Suppress
0～100
Chroma
suppress
0～100
Gamma
0～5
Video
Format
1080P@25
/1080P@
30 /720P
@25 /720
P@30 /72
0P@50 /7
20P@60
OK/CANCEL
Return&Exi
t
Reset
Exit
Page 17
12
4.3 Note
Parameter
Function
Brightness
It is to adjust monitor window bright. The value ranges from 0 to
100. The default value is 50.
The larger the number is, the bright the video is. When you
input the value here, the bright section and the dark section of
the video will be adjusted accordingly. You can use this
function when the whole video is too dark or too bright. Please
note the video may become hazy if the value is too high. The
recommended value ranges from 40 to 60.
Contrast
It is to adjust monitor window contrast. The value ranges from 0
to 100. The default value is 50.
The larger the number is, the higher the contrast is. You can
use this function when the whole video bright is OK but the
contrast is not proper. Please note the video may become hazy
if the value is too low. If this value is too high, the dark section
may lack brightness while the bright section may over
exposure .The recommended value ranges from 40 to 60.
Saturation
It is to adjust monitor window saturation. The value ranges from
0 to 100. The default value is 50.
The larger the number, the strong the color is. This value has
no effect on the general brightness of the whole video. The
video color may become too strong if the value is too high. For
the grey part of the video, the distortion may occur if the white
balance is not accurate. Please note the video may not be
attractive if the value is too low. The recommended value
ranges from 40 to 60.
Sharpness
The value here is to adjust the edge of the video. The value
ranges from 0 to 100. The larger the value is, the clear the edge
is and vice versa. Please note there is noise if the value here is
too high. The default value is 50 and the recommended value
ranges from 40 to 60.
3DNR
It is to reduce video noise. The larger the number is, the lower
the noise is. The details of the video may disappear if the value
here is too large.
Anti-flicker
Outdoor: In this mode, you can switch exposure mode to
get the effect under the corresponding exposure mode.
50Hz: When the current is 50Hz, system can auto adjust
the exposure according to the environment brightness in
case there is any strip.
60Hz: When the current is 60Hz, system can auto adjust
the exposure according to the environment brightness in
case there is any strip.
Page 18
13
Appendix Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○ ○ ○ ○ ○
○
Device
Construction
Material
○ ○ ○ ○ ○ ○
Wire and Cable
○ ○ ○ ○ ○ ○
Packing
Components
○ ○ ○ ○ ○
○
Accessories
○ ○ ○ ○ ○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts
is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements contained
in products will not leak or mutate so that the use of these (substances or elements) will not result in any
severe environmental pollution, any bodily injury or damage to any assets. The consumer is not authorized
to process such kind of substances or elements, please return to the corresponding local authorities to
process according to your local government statutes.
Note
This manual is for reference only. Slight difference may be found in the user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more information.
Manuel
Loading...
