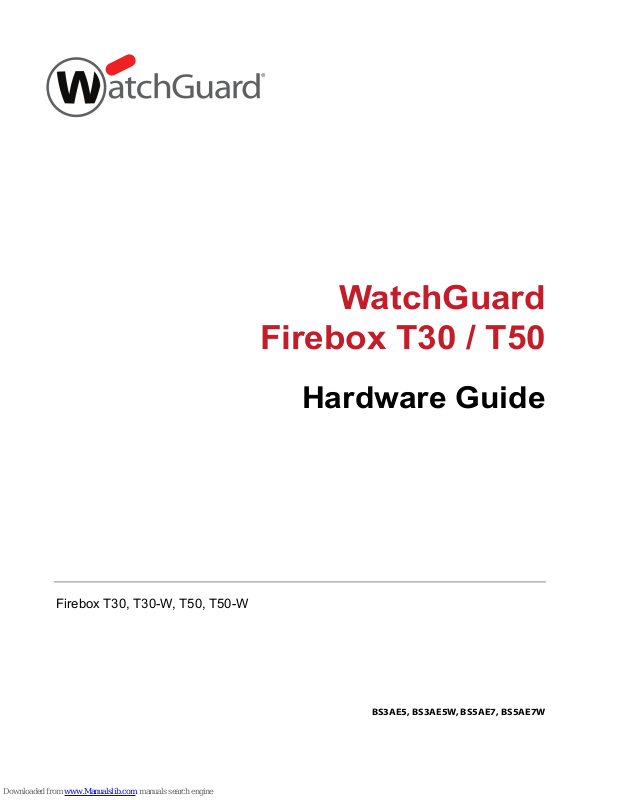

Watchguard Firebox T30, Firebox T50, Firebox T50-W, Firebox T30-W Hardware Manual
WatchGuard
Firebox T30 / T50
Hardware Guide
Firebox T30, T30-W, T50, T50-W
BS3AE5, BS3AE5W, BS5AE7, BS5AE7W
Copyright and Patent Information
Copyright© 1998–2015 WatchGuard Technologies, Inc. All rights reserved.
WatchGuard, the WatchGuard logo, Firebox, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use”
portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard
Technologies, Inc. and/or it’s subsidiaries in the United States and/or other countries. All other trademarks are the property
of their respective owners.
The Power Architecture and Power.org wordmarks and the Power and Power.org logos and related marks are trademarks
and service marks licensed by Power.org.
Printed in the United States of America.
Part Number: Rev C
Revised: August 9, 2016
U.S. Patent Nos. 6,493,752; 6,597,661; D473,879. Other Patents Pending.
Complete copyright, trademark, patent, and licensing information can be
found in the Copyright and Licensing Guide. You can find this document
online at: http://www.watchguard.com/help/documentation/
Notice to Users
Information in this guide is subject to change without notice. Updates to this guide are posted at:
http://www.watchguard.com/help/documentation/hardware.asp
Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this guide may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express
written permission of WatchGuard Technologies, Inc.
ABOUT WATCHGUARD
WatchGuard offers affordable, all-in-one network and content security solutions that
provide defense-in-depth and help meet regulatory compliance requirements. The
WatchGuard Firebox line combines firewall, VPN, GAV, IPS, spam blocking and URL
filtering to protect your network from spam, viruses, malware, and intrusions. The new
XCS line offers email and web content security combined with data loss prevention.
WatchGuard extensible solutions scale to offer right-sized security ranging from small
businesses to enterprises with 10,000+ employees. WatchGuard builds simple, reliable,
and robust security appliances featuring fast implementation and comprehensive
management and reporting tools. Enterprises throughout the world rely on our
signature red boxes to maximize security without sacrificing efficiency and
productivity.
For more information, please call 206.613.6600 or visit www.watchguard.com
ii WatchGuard Firebox T30 / T50
ADDRESS
505 Fifth Avenue South
Suite 500
Seattle, WA 98104
SUPPORT
www.watchguard.com/support
U.S. and Canada +877.232.3531
All Other Countries +1.206.521.3575
SALES
U.S. and Canada +1.800.734.9905
.
All Other Countries +1.206.613.0895
Hardware Specifications
WatchGuard® Firebox security appliances deliver unparalleled unified threat management, superior
performance, ease of use, and value for your small organization or branch office. Our security subscriptions
give you fully integrated protection from spyware, spam, viruses, worms, trojans, web-based exploits, and
blended threats. From firewall and VPN protection to secure remote access, WatchGuard Firebox appliances
support a broad range of network environments.
This guide introduces the Firebox T30 and T50, RoHS-compliant (lead-free) hardware products offered by
WatchGuard.
The Firebox T30 and T50 network security appliancesare designed for small organizations and branch offices.
Fireware OS
The Firebox T30 and T50 appliances support WatchGuard’s next generation UTM OS—Fireware® OS. Each
Firebox appliance includes Fireware OS and delivers exceptional protection against today's sophisticated
threats to make sure that your business stays connected. For more information on the features of Fireware OS,
see the current Fireware Help.
Hardware Guide 1
Hardware Specifications
Package Contents
Firebox T30 or T50 appliance
Quick Start Guide
1 straight-through Ethernet cable
Power supply
1 power cord (US) or 4 power cords (US, AU, EU, UK)
Hardware Description
Hardware Specifications
Firebox T30 / T30-W Firebox T50 / T50-W
Processor Freescale P1011 Freescale P1020
Memory: DDR3 1 GB 2 GB
Storage: SD 8 GB 8 GB
Power supply Input Ratings: 90-264VAC, MAX
1.4A@100VAC, 60-50Hz
Output Ratings : 48V, Max 60W
Dimensions D = 176.1mm (6.93”)
W =235.9mm (9.29”)
H = 29.5mm (1.16”)
Weight T30 0.5 kg (1.1 U.S. pounds)
T30-W 0.54 kg (1.19 U.S. pounds)
Interface Specifications
Network interfaces
Radio Type and
Frequency Band
(T30-W and T50-W)
I/O interfaces
• 5x 1000Base-TX, RJ45
•Interface 4 supports PoE
(Power over Ethernet), compliant
with the IEEE 802.3at standard
• 2.4 GHz 802.11 b/g/n
• 5 GHz 802.11 a/n/ac
•2 USB 2.0
• 1 RJ45 Serial Port
Input Ratings: 90-264VAC, MAX
1.4A@100VAC, 60-50Hz
Output Ratings: 48V, Max 60W
D = 176.1mm (6.93”)
W =235.9mm (9.29”)
H = 29.5mm (1.16”)
T50 0.5 kg (1.1 U.S. pounds)
T50-W 0.55 kg (1.2 U.S. pounds)
• 7x 1000Base-TX, RJ45
•Interface 6 supports PoE
(Power over Ethernet), compliant
with the IEEE 802.3at standard
• 2.4 GHz 802.11 b/g/n
• 5 GHz 802.11 a/n/ac
•2 USB 2.0
• 1 RJ45 Serial Port
