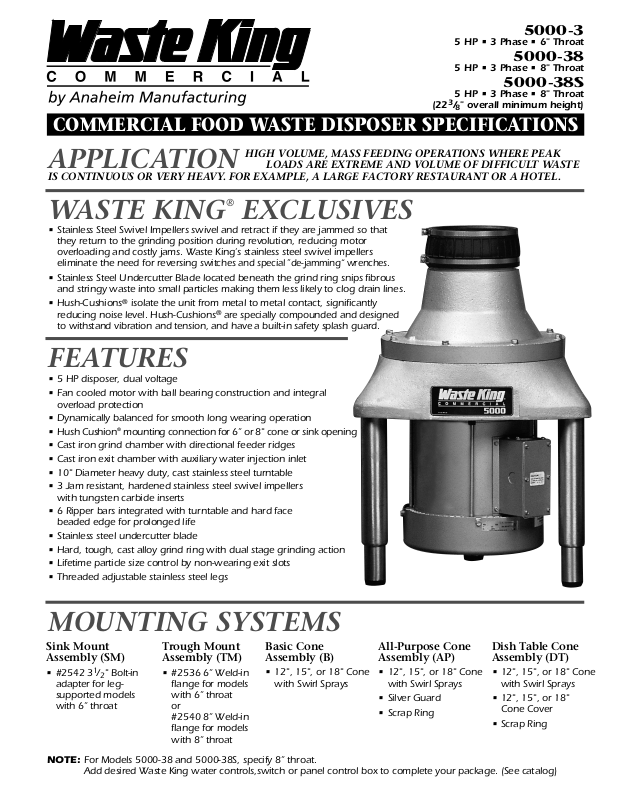

Waste King 5000-3 User Manual
FEATURES
• 5 HP disposer, dual voltage
• Fan cooled motor with ball bearing construction and integral
overload protection
• Dynamically balanced for smooth long wearing operation
• Hush Cushion®mounting connection for 6” or 8" cone or sink opening
• Cast iron grind chamber with directional feeder ridges
• Cast iron exit chamber with auxiliary water injection inlet
• 10" Diameter heavy duty, cast stainless steel turntable
• 3 Jam resistant, hardened stainless steel swivel impellers
with tungsten carbide inserts
• 6 Ripper bars integrated with turntable and hard face
beaded edge for prolonged life
• Stainless steel undercutter blade
• Hard, tough, cast alloy grind ring with dual stage grinding action
• Lifetime particle size control by non-wearing exit slots
• Threaded adjustable stainless steel legs
WASTE KING®EXCLUSIVES
• Stainless Steel Swivel Impellers swivel and retract if they are jammed so that
they return to the grinding position during revolution, reducing motor
overloading and costly jams. Waste King’s stainless steel swivel impellers
eliminate the need for reversing
switches and special ”de-jamming“ wrenches.
• Stainless Steel Undercutter Blade located beneath the grind ring snips fibrous
and stringy waste into small particles making them less likely to clog drain lines.
• Hush-Cushions®isolate the unit from metal to metal contact, significantly
reducing noise level. Hush-Cushions®are specially compounded and designed
to withstand vibration and tension, and have a built-in safety splash guard.
COMMERCIAL FOOD WASTE DISPOSER SPECIFICATIONS
5000-3
5 HP • 3 Phase • 6" Throat
5000-38
5 HP • 3 Phase • 8" Throat
5000-38S
5 HP • 3 Phase • 8" Throat
(223/8" overall minimum height)
APPLICATION
HIGH VOLUME, MASS FEEDING OPERATIONS WHERE PEAK
LOADS ARE EXTREME AND VOLUME OF DIFFICULT WASTE
IS CONTINUOUS OR VERY HEAVY. FOR EXAMPLE, A LARGE FACTORY RESTAURANT OR A HOTEL.
MOUNTING SYSTEMS
Basic Cone
Assembly (B)
• 12", 15", or 18" Cone
with Swirl Sprays
All-Purpose Cone
Assembly (AP)
• 12", 15", or 18" Cone
with Swirl Sprays
• Silver Guard
• Scrap Ring
Dish Table Cone
Assembly (DT)
• 12", 15", or 18" Cone
with Swirl Sprays
• 12", 15", or 18"
Cone Cover
• Scrap Ring
NOTE: For Models 5000-38 and 5000-38S, specify 8” throat.
Add desired Waste King water controls,switch or panel control box to complete your package. (See catalog)
Trough Mount
Assembly (TM)
• #2536 6” Weld-in
flange for models
with 6” throat
or
#2540 8” Weld-in
flange for models
with 8” throat
Sink Mount
Assembly (SM)
• #2542 31/2" Bolt-in
adapter for legsupported models
with 6” throat
2680 Orbiter Street Brea, California 92821
(800) 854-3229
