Wasp WWS750 Quick Reference Manual

Wasp WWS750

2D Duraline Wireless Scanner

Quick Reference Guide

Wasp Barcode Technologies

1400 10th Street
Plano, Texas USA 75074
Telephone: [phone]

©2014-2018 Wasp Barcode Technologies

An Unpublished Work - All rights reserved. No part of the con­tents of this documentation or the procedures described therein
may be reproduced or transmitted in any form or by any means
without prior written permission of Wasp Barcode Technologies
or its subsidiaries or affiliates ("Wasp Technologies" Technologies
Wasp Technologies). Owners of WaspTechnologies products are
hereby granted a non-exclusive, revocable license to reproduce
and transmit this documentation for the purchaser's own inter­nal business purposes. Purchaser shall not remove or alter any
proprietary notices, including copyright notices, contained in this
documentation and shall ensure that all notices appear on any
reproductions of the documentation.
Should future revisions of this manual be published, you can
acquire printed versions by contacting your Wasp Technologies
representative. Electronic versions may either be downloadable
from the Wasp Technologies website (www.waspbarcode.com

) or
provided on appropriate media. If you visit our website and would
like to make comments or suggestions about this or other Wasp
Technologies publications, please let us know via the "Contact
Wasp

Technologies" page.

Disclaimer

Wasp Technologies has taken reasonable measures to provide
informantion in this manual that is complete and accurate, how­ever, Wasp Technologies reserves the right to change any specifi­cation at any time without prior notice. Wasp Technologies and
the Wasp Technologies logo are registered trademarks of Wasp
Technologies Barcode Technologies in many countries, including
the U.S.A. and the E.U. Duraline is a trademark of Wasp Barcode
Technologies registered in many countries, including the U.S.A.
and the E.U. All other brand and product names may be trade­marks of their respective owners.

Patents

This product is covered by one or more of the following patents:
Design patents: AU344427, AU344428, AU344429, EP001970237,
EP002109371, TWD159476, TWD159477, TWD160254, TWD160255,
USD682277, USD702238, USD716818, ZL201230284676.X,
ZL201330082835.2
Utility patents: EP0996284B1, EP0999514B1, EP1114390B1,
EP1128315B1, EP1172756B1, EP1396811B1, EP1413971B1,
EP1816585B1, EP1828957B1, EP1873886B1, EP2275966B1,
EP2517148B1, EP2521068, EP2649555B1, JP4435343B2, US6478224,
US6512218, US6513714, US6561427, US6808114, US6877664,
US6997385, US7053954, US7234641, US7387246, US7721966,
US7948214, US8113428, US8245926, US8561906, US8743263,
US8888003, US8915443, US9430689, US9482793,
ZL200780030808.2, ZL200880132595.9, ZL200980163411.X

Quick Reference Guide i

Table of Contents

END USER SOFTWARE LICENSE AGREEMENT (EULA) ........... iii

Software Product Policy ............................................................ vii

Customers Under Software Support ............................... vii

Description .................................................................................... 1

General Features ................................................................. 1

Using the Wasp WWS750 ........................................................... 2

Installing the Battery Pack ......................................................... 3

Charging the Batteries ....................................................... 6

Changing the Batteries ............................................. 6

Programming ................................................................................ 8

Using Programming Bar Codes .........................................8

Configure Other Settings .................................................... 8

Resetting Product Defaults ...............................................8

Set Date and Time ....................................................................... 9

Linking the Reader .....................................................................10

Link Wasp RF Devices to Base ............................... 10

Linking to a Bluetooth Adapter in Serial Port Profile

(Slave) Mode ............................................................. 10

Linking to a Bluetooth Adapter in HID mode........ 11

Variable PIN Code .................................................... 12

HID Country Mode ...................................................................... 13

HID Caps Lock State ................................................................... 17

HID Alt Mode ...............................................................................18

Power Off .................................................................................... 18

Reading Parameters .................................................................. 19

Good Read Green Spot Duration ..................................... 19

Digital Watermark Reading .............................................. 20

Operating Mode .......................................................................... 21

Scan Mode .........................................................................21

Motion Aiming Control ..................................................... 22

Pick Mode ....................................................................................23

Multiple Label Reading .....................................................24

Technical Specifications ............................................................ 24

LED and Beeper Indications ...................................................... 28

Error Codes .................................................................................30

Cleaning ....................................................................................... 31

Wasp Technologies Limited Factory Warranty ....................... 32

Ergonomic Recommendations ................................................. 34

Services and Support ................................................................. 34

Hex-Numeric Keypad ................................................................. 36

For HID Variable Pin Code only............................... 38

ii WWS650

Quick Reference Guide iii

END USER SOFTWARE LICENSE AGREEMENT (EULA)

FOR THE WASP WWS750

NOTICE TO END USER: BY DOWNLOADING OR INSTALLING THE SOFT­WARE, OR BY USING THE WASP BARCODE TECHNOLOGIES PRODUCT
THAT INCLUDES THIS SOFTWARE, THE END USER CONSENTS TO BE
BOUND BY THIS AGREEMENT. IF THE END USER DOES NOT AGREE
WITH ALL OF THE TERMS OF THIS AGREEMENT, THEN WASP IS NOT
WILLING TO LICENSE THE SOFTWARE AND THE END USER IS NOT
ALLOWED TO DOWNLOAD, INSTALL OR USE THE SOFTWARE OR THE
WASP PRODUCT ---

This End User License Agreement ("EULA") is between Wasp Barcode
Technologies having its registered office at 1400 10th Street, Plano, TX
75074, USA ("Wasp"), and you, either an individual or a single entity,
("End User or "You"") who has purchased one or more WWS750 ("Wasp
Product") subject to the terms and conditions provided in any relevant
purchase or sale contract. This EULA applies to the software contained
in the Wasp Product ("Embedded Software") and to any other software,
to the extent applicable, offered as optional application software
("Application Software" that together with "Embedded Software" is
herein referred to as "Software"). Any Open Source used in a conjunc­tion with the Software is subject to the Open Source licenses available
at the following website:

http://www.datalogic.com/oss

1. Grant of License

1.1 Wasp grants to End User, a personal, non-exclusive, non-transfer­able, non-sublicensable, revocable, limited license to use the Soft­ware, solely on the Wasp Product in which it is embedded or for
which it is intended for use, in machine-readable form only, solely
for End User's internal business purposes.

1.2 End Users shall not distribute, sublicense, rent, loan, lease, assign,
export, re-export, resell, ship or divert or cause to be exported, re­exported, resold, shipped or diverted, directly or indirectly, the Soft­ware under this Agreement. End User shall not, and shall not per­mit others to: (i) modify, translate, decompile, reverse engineer,
disassemble, or extract the inner workings of the Software, (ii) copy
the functionality of the Wasp Products; (iii) remove any proprietary
notices, marks, labels, or logos from the Wasp Products; (iv) rent or
transfer all or some of the Software to any other party without
Wasp's prior written consent.

1.3. Title to the licensed Software shall be and remain with Wasp or
the third party from whom Wasp has obtained a license right. This
Agreement does not grant to End User any intellectual property
rights. As used in this Agreement the term "purchase" or its equiv­alent when applied to the Software shall mean "acquire under
license". End User is not entitled to receipt or use of the source
code of any licensed Software.

1.4 Portions of the Wasp Product are protected by the relevant and
applicable patent and copyright laws, international treaty provi­sions, and other applicable laws. Therefore, End User must treat
the Wasp Product like any other copyrighted material (e.g., a book
or musical recording) except that End User may make one copy of
the Software solely for back-up purposes. Unauthorized duplica­tion of the Software constitutes copyright infringement.

1.5 Any use of the Software outside of the conditions set forth herein
is strictly prohibited and will be deemed a breach of this Agree­ment resulting in immediate termination of this Agreement. In the
event of a breach of this Agreement, Wasp will be entitled to all
available remedies at law or in equity (including but not limiting to
immediate termination of the license without notice, immediate
injunctive relief and repossession of all Wasp Products).

1.6 Without prejudice of the foregoing, End User grants to Wasp and its
independent accountants or consultants the right to examine End
User's books, records and accounts during End User's normal busi-

iv WASP WWS750

ness hours to verify compliance with this Agreement. In the event
such audit discloses non-compliance with this Agreement, Wasp
shall be entitled to immediately terminate the Agreement, request
End User to promptly pay all (additional) license fees due and any
further damages, if any.

2. License Fee
License fees shall be due by End User to Wasp according to the

terms provided for in the relevant contract for the purchase of the
Wasp Product.

3. Termination
Without prejudice to any other rights or remedies Wasp may have,

Wasp may terminate this Agreement if End User fails to comply
with the terms and conditions of this Agreement. Wasp may ter­minate this Agreement by offering you a superseding Agreement
for the Software or any replacement or modified version of or
upgrade to the Software and conditioning your continued use of
the Software or such replacement, modified or upgraded version on
your acceptance of such superseding Agreement. In addition, either
party may terminate this Agreement at any time. Subject to the
foregoing, termination shall be effective upon notice to the other
party. In the event that this Agreement terminates for any reason,
End User's license to use the Software will immediately terminate,
and End User must immediately stop using the Software, destroy
all copies of the Software and all of its component parts, and, upon
request, provide an affidavit certifying your compliance with the
foregoing. The provisions of Sub-sections 1.2, 1.3, 1.4, 1.5, 4, 5, 6, 8,
and 12 shall survive termination of this Agreement.

4. Limited Warranty
Wasp warrants that, under normal use and operation, the Software

will conform substantially to the applicable Wasp Product docu­mentation for the period specified in the same, provided that the
Software is used with the Wasp Product. Wasp's entire liability and
End User's sole and exclusive remedy for any breach of the forego­ing limited warranty will be, at Wasp's option, the provision of a
downloadable patch or replacement software.

Wasp does not warrant (i) that Software will meet End User's
requirements; (ii) that Software will be uninterrupted or defect
error free; (iii) any non-conformity derived from unauthorized use,
and/or improper installation or repair not in compliance with Wasp
Product documentation. End User agrees that the existence of
such non-conformities or errors and Wasp's inability to remedy
such errors shall not constitute a breach of this Agreement.

EXCEPT AS PROVIDED IN THIS AGREEMENT, THE WASP PRODUCT
IS PROVIDED "AS IS" AND WASP MAKES NO WARRANTIES OF ANY
KIND, EXPRESS OR IMPLIED, WRITTEN OR ORAL, WITH RESPECT TO
THE WASP PRODUCT OR SOFTWARE, AND SPECIFICALLY DIS­CLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.

5. Limitation of Liability
EXCEPT AS PROVIDED IN THIS AGREEMENT, NEITHER WASP NOR

ITS LICENSORS SHALL BE LIABLE FOR ANY CLAIMS AGAINST END
USER BY ANY OTHER PARTY. IN NO EVENT SHALL WASP'S LIABIL­ITY FOR DAMAGES, IF ANY, WHETHER BASED UPON CONTRACT,
TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, STRICT LIA­BILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE PRICE OR
FEE PAID BY END USER FOR THE WASP PRODUCT. UNDER NO CIR­CUMSTANCES SHALL WASP OR ITS LICENSORS BE LIABLE TO END
USER OR ANY THIRD PARTY FOR LOST PROFITS, LOST DATA,
INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER
SPECIAL, CONSEQUENTIAL, CONTINGENT, INDIRECT, INCIDENTAL,
PUNITIVE, EXEMPLARY, OR OTHER SIMILAR DAMAGES, EVEN IF
WASP OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBIL­ITY OF SUCH DAMAGES. END USER MUST BRING ANY ACTION
UNDER THIS AGREEMENT WITHIN 12 (TWELVE) MONTHS AFTER

Quick Reference Guide v

THE CAUSE OF ACTION ARISES.

6. Indemnification
To the maximum extent permitted by law, End User agrees to

defend, indemnify and hold harmless Wasp, its affiliates and their
respective directors, officers, employees and agents from and
against any and all claims, actions, suits or proceedings, as well as
any and all losses, liabilities, damages, costs and expenses (includ­ing reasonable attorney's fees) arising out of or accruing from or
related to Licensee's failure to comply with the terms of this Agree­ment, including but not limited to (1) non-compliance with any
applicable laws or regulations with Wasp product documentation,
(2) unauthorized use or disclosure of Software, and (3) use of Soft­ware in combination with software, hardware, systems, or other
items not provided by Wasp.

7. Support
End User may request support for Software from Wasp at Wasp's

standard support fees and under Wasp's standard support terms
and conditions in effect at the time the support is requested.

8. Government Restricted Rights; International Use

8.1 Use, duplication, or disclosure of the Software by the U.S. Govern­ment is subject to the restrictions for computer software devel­oped at private expense as set forth in the U.S. Federal Acquisition
Regulations at FAR 52.227-14(g), or 52.227-19 or in the Rights in
Technical Data and Computer Software clause at DFARS 252.227­7013(c)(1)(ii), whichever is applicable.

8.2 If End User is using the Wasp Product outside of the United States,
End User must comply with the applicable local laws of the country
in which the Wasp Product is used and with U.S. export control
laws,. Without prejudice of the foregoing, the End User agrees to
not export or re-export the Software, any part thereof, or any pro­cess or service that is the direct product of the Software to any
country, person or entity subject to U.S. export restrictions. End
User specifically agrees not to export or re-export any of the Soft­ware: (i) to any country to which the U.S. has embargoed or
restricted the export of goods or services or to any national of any
such country, wherever located, who intends to transmit or trans­port the Software back to such country; (ii) to any person or entity
who you know or have reason to know will utilize the Software in
the design, development or production of nuclear, chemical or bio­logical weapons; or (iii) to any person or entity who has been pro­hibited from participating in U.S. export transactions by any federal
agency of the U.S. government. End User warrants and represents
that neither the U.S. Commerce Department, Bureau of Export
Administration nor any other U.S. federal agency has suspended,
revoked or denied its export privileges.

9. Third Party Software
The Wasp Product may contain one or more items of third party

software which use is governed by separate third-party license,
unless otherwise stated.

10. Open Source Software
Portions of the Software include or operate with Open Source soft-

ware ("Open Source Software").
Open Source Software is software covered by a publicly available

license governed solely under Copyright law, whereas the complete
terms and obligations of such license attach to a licensee solely
through the act of copying, using and/or distributing the licensed
software, such obligations often include one or more of attribution
obligations, distribution obligations, copy left obligations, and intel­lectual property encumbrances. The use of any Open Source Soft­ware is subject to the terms and conditions of this Agreement as
well as the terms and conditions of the corresponding license of
each Open Source Software package. If there is a conflict between
the terms and conditions of this Agreement and the terms and

vi WASP WWS750

conditions of the Open Source Software license, the applicable
Open Source Software license will take precedence. Wasp is
required to reproduce the software licenses, acknowledgments and
copyright notices as provided by the authors and owners, thus, all
such information is provided in its native language form, without
modification or translation. Please reference and review the
above-mentioned information to identify which Open Source Soft­ware packages have source code provided or available.

11. Notices
All notices required or authorized under this Agreement shall be

given in writing, and shall be effective when received, with evidence
of receipt. Notices to Wasp shall be sent to the attention of Wasp
Barcode Technologies, 1400 10th Street, Plano TX 75074 USA, or
such other address as may be specified by Wasp in writing.

12. General Provisions.

12.1. Entire Agreement; Amendment. This document contains the
entire agreement between the parties relating to use of the Wasp
Products and the licensing of the Software and supersedes all prior
or contemporaneous agreements, written or oral, between the par­ties concerning the use of the Wasp Products and licensing of the
Software. This Agreement may not be changed, amended, or modi­fied except by written document signed by Wasp.

12.2. Waiver. A party's failure to enforce any of the terms and condi­tions of this Agreement shall not prevent the party's later enforce­ment of such terms and conditions.

12.3. Governing Law; Venue: End User agrees to the application of the
laws of the country in which End User obtained the license to gov­ern, interpret, and enforce all of End User's and Wasp's respective
rights, duties, and obligations arising from, or relating in any man­ner to, the subject matter of this Agreement, without regard to
conflict of law principles. The United Nations Convention on Con­tracts for the International Sale of Goods does not apply.

All rights, duties, and obligations are subject to the courts of the coun-

try in which End User obtained the license. For licenses granted by
Licensee who operates in the countries specified below, the follow­ing terms applies.

For Americas:
This Agreement is governed by the laws of the State of Oregon.

This Agreement and the rights of the parties hereunder shall be
governed by and construed in accordance with the laws of the
State of Oregon U.S.A, without regard to the rules governing con­flicts of law. The state or federal courts of the State of Oregon
located in either Multnomah or Lane counties shall have exclusive
jurisdiction over all matters regarding this Agreement, except that
Wasp shall have the right, at its absolute discretion, to initiate pro­ceedings in the courts of any other state, country, or territory in
which End User resides, or in which any of End User's assets are
located. In the event an action is brought to enforce the terms and
conditions of this Agreement, the prevailing party shall be entitled
to reasonable attorneys' fees, both at trial and on appeal.

For Europe, Middle East and Africa:
This Agreement is governed by the laws of Italy. This Agreement

and the rights of the parties hereunder shall be governed by and
construed in accordance with the laws of Italy, without regard to
the rules governing conflicts of law. Italian Court of Bologna shall
have exclusive jurisdiction over all matters regarding this Agree­ment, except that Wasp shall have the right, at its absolute discre­tion, to initiate proceedings in the courts of any other state,
country, or territory in which End User resides, or in which any of
End User's assets are located. In the event an action is brought to
enforce the terms and conditions of this Agreement, the prevailing
party shall be entitled to reasonable attorneys' fees, both at trial
and on appeal.

Software Product Policy

Quick Reference Guide vii

For Asia- Pacific Countries:
The validity, interpretation and construction of the Agreement shall

be governed by and construed in accordance with Laws of the
Republic of Singapore. Parties expressly disclaim the application of
the United Nations Convention for International Sale of Goods.

Any dispute arising out of or in connection with this contract,
including any question regarding its existence, validity or termina­tion, shall be referred to and finally resolved by arbitration admin­istered by the Singapore International Arbitration Centre ("SIAC") in
accordance with the Arbitration Rules of the Singapore Interna­tional Arbitration Centre ("SIAC Rules") for the time being in force,
which rules are deemed to be incorporated by reference in this
clause. The seat of the arbitration shall be Singapore.

The number of arbitrators will be three, with each side to the dis­pute being entitled to appoint one arbitrator. The two arbitrators
appointed by the parties will appoint a third arbitrator who will act
as chairman of the proceedings. Vacancies in the post of chairman
will be filled by the president of the SIAC. Other vacancies will be
filled by the respective nominating party. Proceedings will continue
from the stage they were at when the vacancy occurred. If one of
the parties refuses or otherwise fails to appoint an arbitrator
within 30 days of the date the other party appoints its, the first
appointed arbitrator will be the sole arbitrator, provided that the
arbitrator was validly and properly appointed. All proceedings will
be conducted, including all documents presented in such proceed­ings, in the English language. The English language version of
these terms and conditions prevails over any other language ver­sion.

12.4. Attorneys' Fees. In the event an action is brought to enforce the
terms and conditions of this Agreement, the prevailing party shall
be entitled to reasonable attorneys' fees, both at trial and on
appeal.

- END -

Software Product Policy

Wasp reserves the right to ship its products with the latest
version of software/firmware available. This provides our
customers with the very latest in Wasp software technology.

The only exception to this policy is when the buyer has a
signed contract with Wasp that clearly defines the terms and
conditions for making software/firmware changes in prod­ucts shipped to the buyer.

Customers Under Software Support

To arrange for a Software Maintenance and Support Agree­ment please contact your Wasp sales person.

Software Product Policy

viii WASP WWS750

Quick Reference Guide 1

Wasp WS750

Description

The WWS750 series is the first handheld scanners family
on the market capable of reading digital watermarks,
including Digimarc® Barcode. The Wasp WWS750 is a fea­ture-rich and rugged area imager reader. It is offered in
several different models to better fit the different needs
of each customer.

The table below shows the unique features of each model:

General Features

Model P/N Optical feature

WWS750

Standard optic, standard and low density codes

Omni-directional
Operating

To read a symbol or capture an image, you sim­ply aim the reader and pull the trigger. Since
the Wasp

WWS750

is a powerful omni-direc­tional reader, the orientation of the symbol is
not important.

Decoding

Thanks to powerful algorithms, Wasp

WWS750

reader reliably decodes all major 1D
(linear) barcodes, 2D stacked codes (such as
PDF417), 2D matrix symbols (such as DataMa­trix), postal codes (such as POSTNET, PLANET).
The data stream — acquired from decoding a
symbol — is rapidly sent to the host. The reader
is immediately available to read another symbol.

Formatting and
Concatenating

The string of a decoded code may be processed
according to either a simple or advanced data
formatting and be concatenated.

Imaging

Wasp

WWS750

reader can also function as a
camera by capturing entire images (valid only
for RS-232 and USB-COM on the Base Station).

Autoscanning

An autoscan command causes the reader to
scan continuously and to monitor the central
zone of its reading area.

Using the Wasp WWS750

2WASP WWS750

Using the Wasp WWS750

Wasp

WWS750 reader normally functions by capturing and
decoding bar codes. The reader is equipped with an inter­nal Motionix™ motion-sensing function which activates
the aiming system on device motion. The intelligent aim­ing system indicates the field of view which should be
positioned over the bar code:

Table 1. Aiming System

The field of view indicated by the aiming system will be
smaller when the reader is closer to the bar code and
larger when it is farther from the code. Symbologies with
smaller bars or elements (mil size) should be read closer
to the unit. Symbologies with larger bars or elements (mil
size) should be read farther from the unit.

If the entire bar code is within the aiming field, you will get
a good read. Successful reading is signaled by an audible
tone plus a good-read green spot LED indicator.

Refer to the

Wasp

WWS750 Product Reference Guide (PRG)
for more information about this feature and other pro­grammable settings.

Flash Memory

Flash technology allows you to upgrade the
Wasp

WWS750

reader as new symbologies
are supported or as new features become
available.

USA Driver License
Parsing

The reader can be set up to select and output a
subset of data elements from USA Driver
License PDF417 barcodes. This feature can be
enabled using the barcodes in the USA Driver
License Parsing Quick Reference Guide (QRG),
available on the Wasp website.

Aimer pattern

Installing the Battery Pack

Quick Reference Guide 3

Installing the Battery Pack

To install, charge and/or do any other action on the bat­tery, follow the instructions in this manual.

NOTE

To charge the Battery Pack, See “Charging
the Batteries” on page 6.

Wasp recommends annual replacement of
rechargeable battery packs to ensure maxi­mum performance.

WARNING

Do not discharge the battery using any
device except for the scanner. When the bat­tery is used in devices other than the desig­nated product, it may damage the battery or
reduce its life expectancy. If the device
causes an abnormal current to flow, it may
cause the battery to become hot, explode or
ignite and cause serious injury.
Lithium-ion battery packs may get hot,
explode or ignite and cause serious injury if
exposed to abusive conditions. Be sure to
follow the safety warnings that follow:

• Do not place the battery pack in fire or heat.

• Do not connect the positive terminal and
negative terminal of the battery pack to each
other with any metal object (such as wire).

• Do not carry or store the battery pack
together with metal objects.

WARNING

• Do not pierce the battery pack with nails,
strike it with a hammer, step on it or other­wise subject it to strong impacts or shocks.

• Do not solder directly onto the battery pack.

• Do not expose the battery pack to liquids, or
allow the battery to get wet.

• Do not apply voltages to the battery pack
contacts.

In the event the battery pack leaks and the
fluid gets into your eye, do not rub the eye.
Rinse well with water and immediately seek
medical care. If left untreated, the battery
fluid could cause damage to the eye.

Installing the Battery Pack

4WASP WWS750

As with other types of batteries, Lithium-Ion (LI) batteries
will lose capacity over time. Capacity deterioration is
noticeable after one year of service whether the battery is
in use or not. It is difficult to precisely predict the finite life
of a LI battery, but cell manufacturers rate them at 500
charge cycles. In other words, the batteries should be
expected to take 500 full discharge / charge cycles before
needing replacement. This number is higher if partial dis-

CAUTION

Always charge the battery at 32° – 113°F (0°

- 45°C) temperature range.
Use only the authorized power supplies, bat-

tery pack, chargers, and docks supplied by
your Wasp reseller. The use of any other
power supplies can damage the device and
void your warranty.

Do not disassemble or modify the battery.
The battery contains safety and protection
devices, which, if damaged, may cause the
battery to generate heat, explode or ignite.

Do not place the battery in or near fire, on
stoves or other high temperature locations.

Do not place the battery in direct sunlight, or
use or store the battery inside cars in hot
weather. Doing so may cause the battery to
generate heat, explode or ignite. Using the
battery in this manner may also result in a
loss of performance and a shortened life
expectancy.

Do not place the battery in microwave ovens,
high-pressure containers or on induction
cookware.

Immediately discontinue use of the battery
if, while using, charging or storing the bat­tery, the battery emits an unusual smell,
feels hot, changes color or shape, or appears
abnormal in any other way.

CAUTION

Do not replace the battery pack when the
device is turned on.

Do not remove or damage the battery pack’s
label.

Do not use the battery pack if it is damaged
in any part. Battery pack usage by children
should be supervised.

Installing the Battery Pack

Quick Reference Guide 5

charging / recharging is adhered to rather than full / deep
discharging.

The typical manufacturer advertised useful life of LI bat­teries is one to three years, depending on usage and num­ber of charges, etc., after which they should be removed
from service, especially in mission critical applications. Do
not continue to use a battery that is showing excessive
loss of capacity, it should be properly recycled / disposed
of and replaced. For most applications, batteries should
be replaced after one year of service to maintain customer
satisfaction and minimize safety concerns.

Collect and recycle waste batteries separately from the
device in comply with European Directive 2006/66/EC,
2011/65/EU, 2002/96/EC and 2012/19/EU an

d subse-

quent modifications, US and China regulatory and others
laws and regulations about the environment.

Installing the Battery Pack

6WASP WWS750

Charging the Batteries

Once the WWS750-BS Base Station is powered, you can
charge the reader's batteries. Place the

Wasp

WWS750 into
the cradle. The Reader LED on the cradle/battery charger
turns red.

The battery is completely charged when the Reader LED
on the cradle/battery charger turns green.

Changing the Batteries

Fixed Pack Models

1. Unscrew the bottom of the handle as shown to
release the battery.

2. Pull down to remove the battery.

Removable Pack models

1. Push the button at the bottom of the handle as
shown to release the battery.

2. Pull down to remove the battery.

1

2

1

2

Installing the Battery Pack

Quick Reference Guide 7

Do not incinerate, disassemble, short ter­minals or expose to high temperature. Risk
of fire, explosion. Use specified charger
only. Risk of explosion if the battery is
replaced by an incorrect type. Dispose of
the batteries as required by the relevant
laws in force.

WARNING

Programming

8WASP WWS750

Programming

The reader is factory-configured with a set of standard
default features. Customize your reader through use of
the programming bar codes available in the

Wasp

WWS750. Check the corresponding features section for
your interface, and also the Data Editing and Symbologies
chapters of the PRG.

Using Programming Bar Codes

This manual contains bar codes which allow you to recon­figure your reader. Some programming bar code labels,
like the "Reset Default Settings" on page 9, require only
the scan of that single label to enact the change.

Other bar codes require the reader to be placed in Pro­gramming Mode prior to scanning them. Scan an ENTER/
EXIT bar code once to enter Programming Mode; scan the
desired parameter settings; scan the ENTER/EXIT bar
code again to accept your changes, which exits Program­ming Mode and returns the reader to normal operation.

Configure Other Settings

Additional programming bar codes are available in the
PRG to allow for customizing programming features. If
your installation requires different programming than the
standard factory default settings, refer to the PRG.

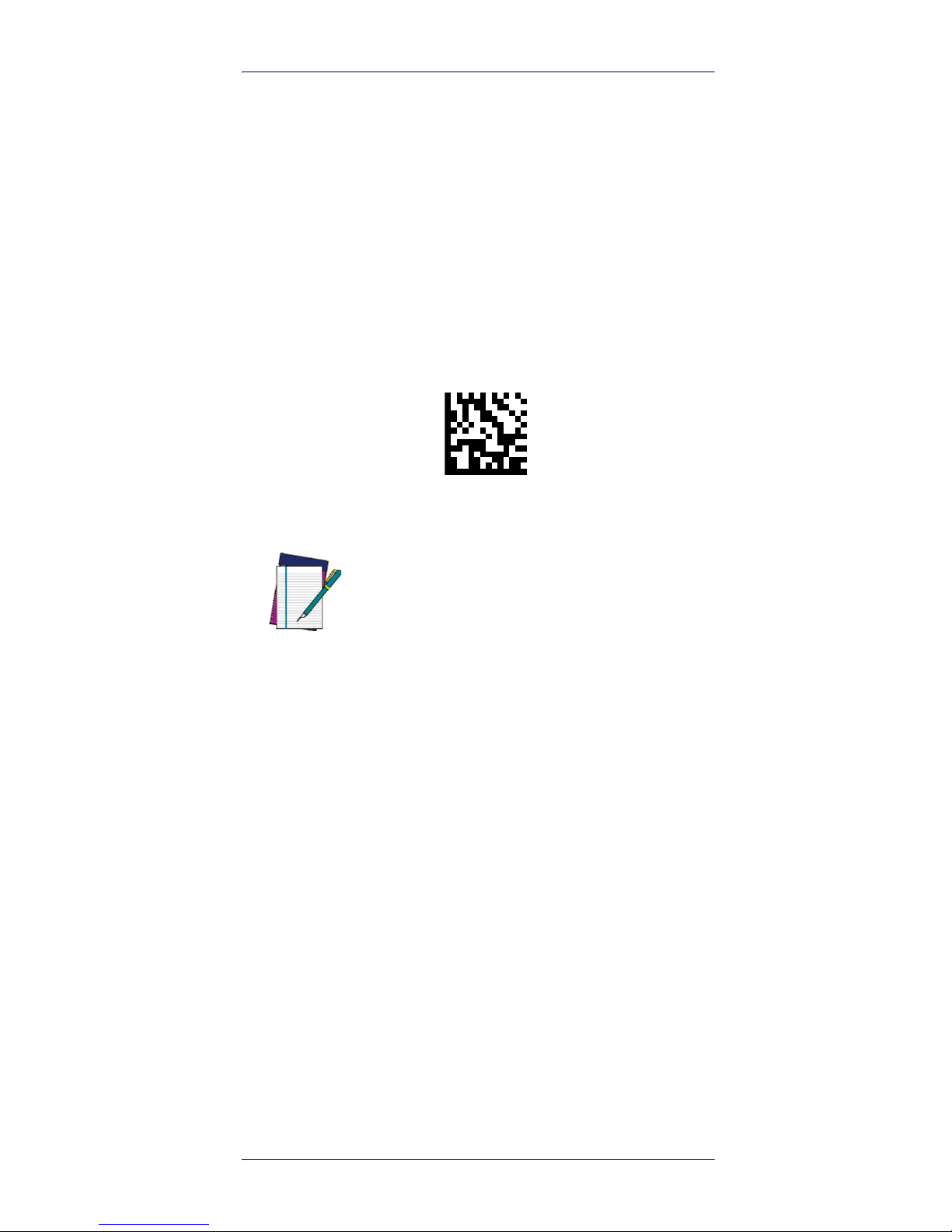

Resetting Product Defaults

If you aren’t sure what programming options are in your
reader, or you’ve changed some options and want your
custom factory settings restored, scan the bar code below
to reset the reader to initial configuration. See the PRG for
other options, and a listing of standard factory settings.

NOTE

Factory defaults are based on the interface
type. Be sure your reader is configured for the
correct interface before scanning this label.

Set Date and Time

Quick Reference Guide 9

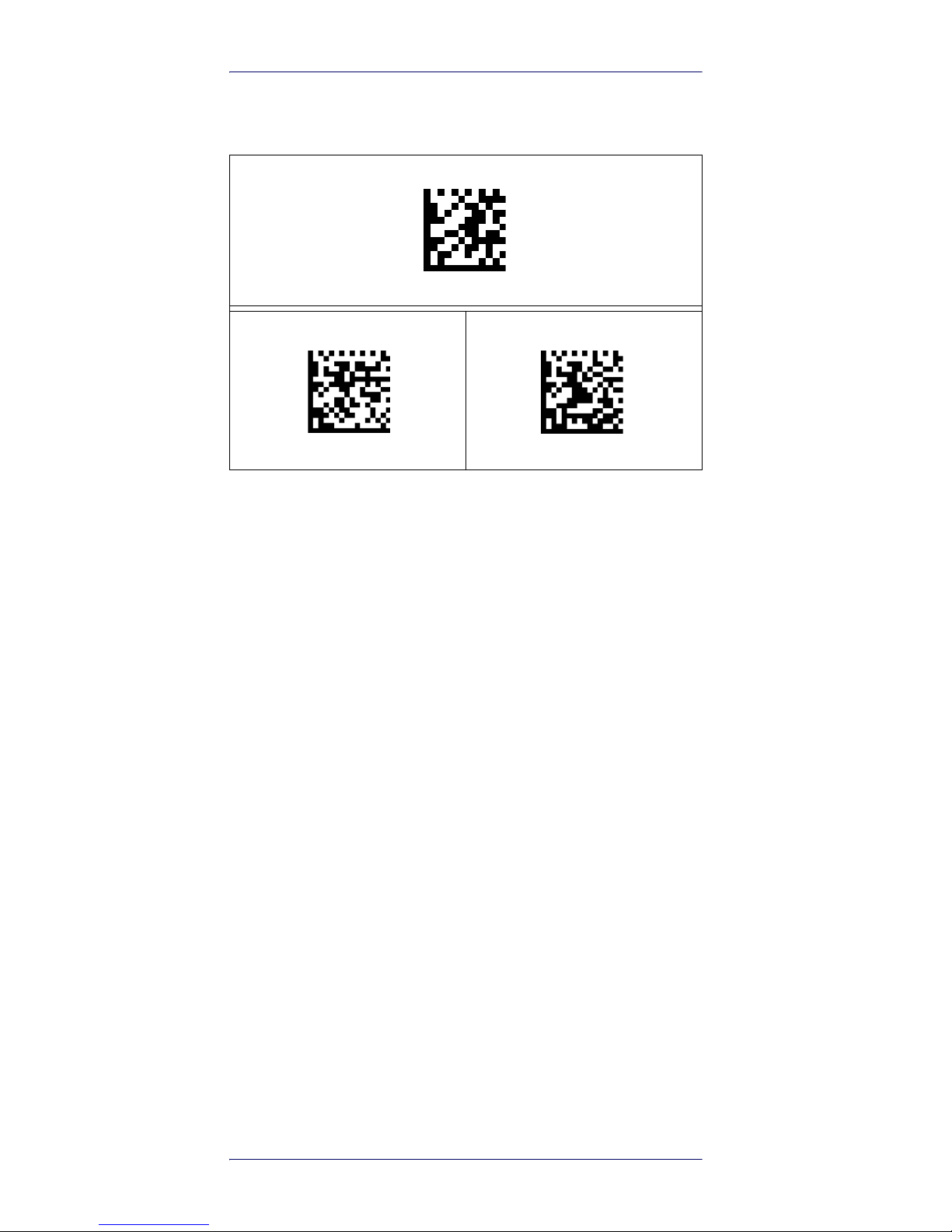

Set Date and Time

1. Scan the Enter/Exit Programming barcode
below to set date and time.

ENTER/EXIT PROGRAMMING MODE

2. Scan the Set Date barcode + six digits for Year,
Month and Day (YYMMDD) from the Hex-

Numeric Keypad on page 36.

Set Date

3. Scan Set Time + six digits for Hours, Minutes and
Seconds (HHMMSS) from the Hex-Numeric Key-

pad on page 36.

Set Time

4. Scan the Enter/Exit Programming barcode to
complete.

Reset Default Settings

Linking the Reader

10 WASP WWS750

Linking the Reader

Link Wasp RF Devices to Base

For RF devices, before configuring the interface it is nec­essary to link the handheld with the base.

To link the handheld and the base, press the trigger to
wake up the handheld and mount it into the base. If the
reader was previously linked to another base, you must
first press and hold the button on the base (>5 seconds),
then scan the

Unlink

bar code before re-linking to the new

base.

Linking to a Bluetooth Adapter in Serial Port
Profile (Slave) Mode

1. Install any drivers provided with the Bluetooth
adapter.

2. Scan the

Enable RF Link to Server

label below to

make the scanner visible to the host computer.

3. Use the host computer’s Bluetooth manager to
“Discover new devices” and select "Wasp Scan­ner." If you receive an error message, it may be
necessary to disable security on the device.

4. Use an RS-232 terminal program to see incom­ing data on the port designated by the com­puter's Bluetooth manager.

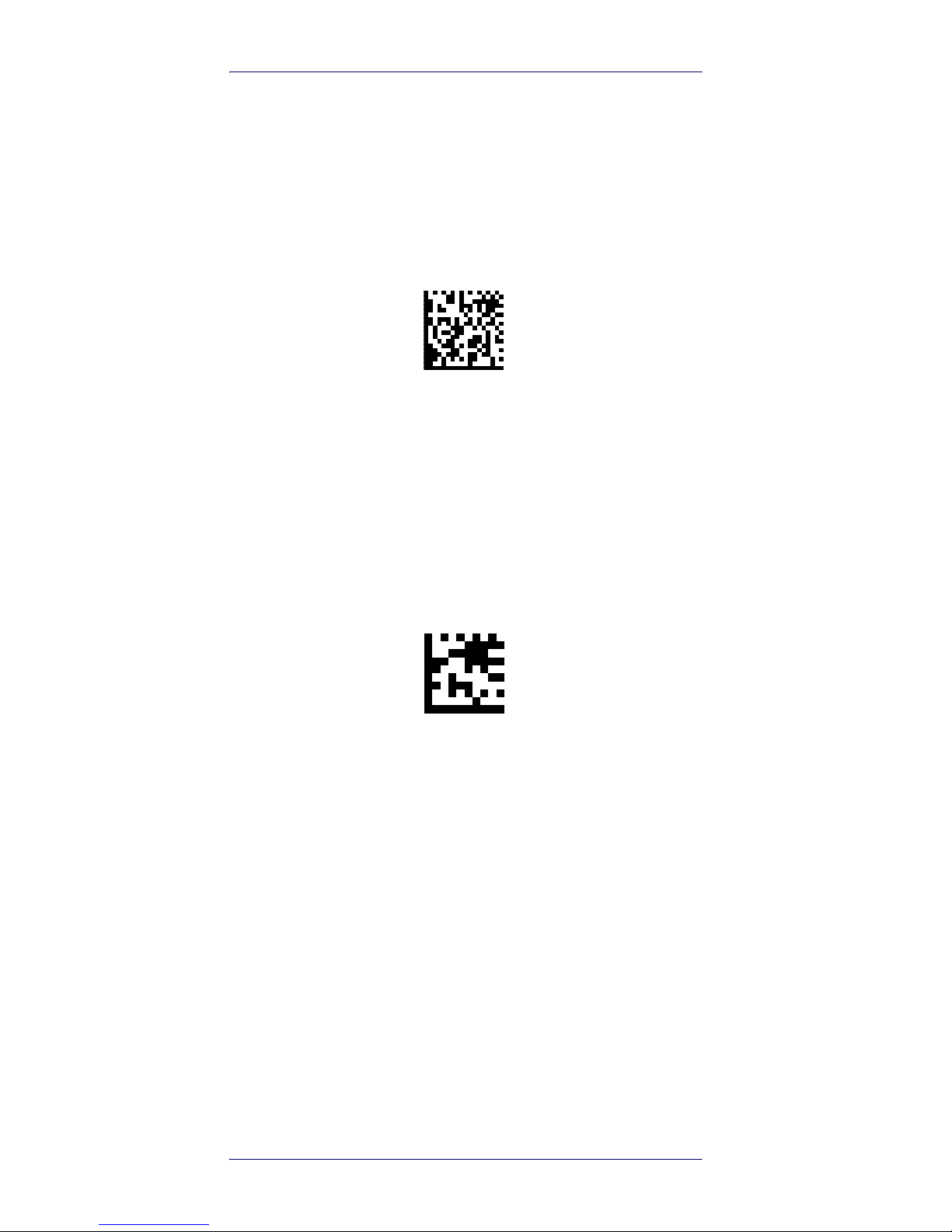

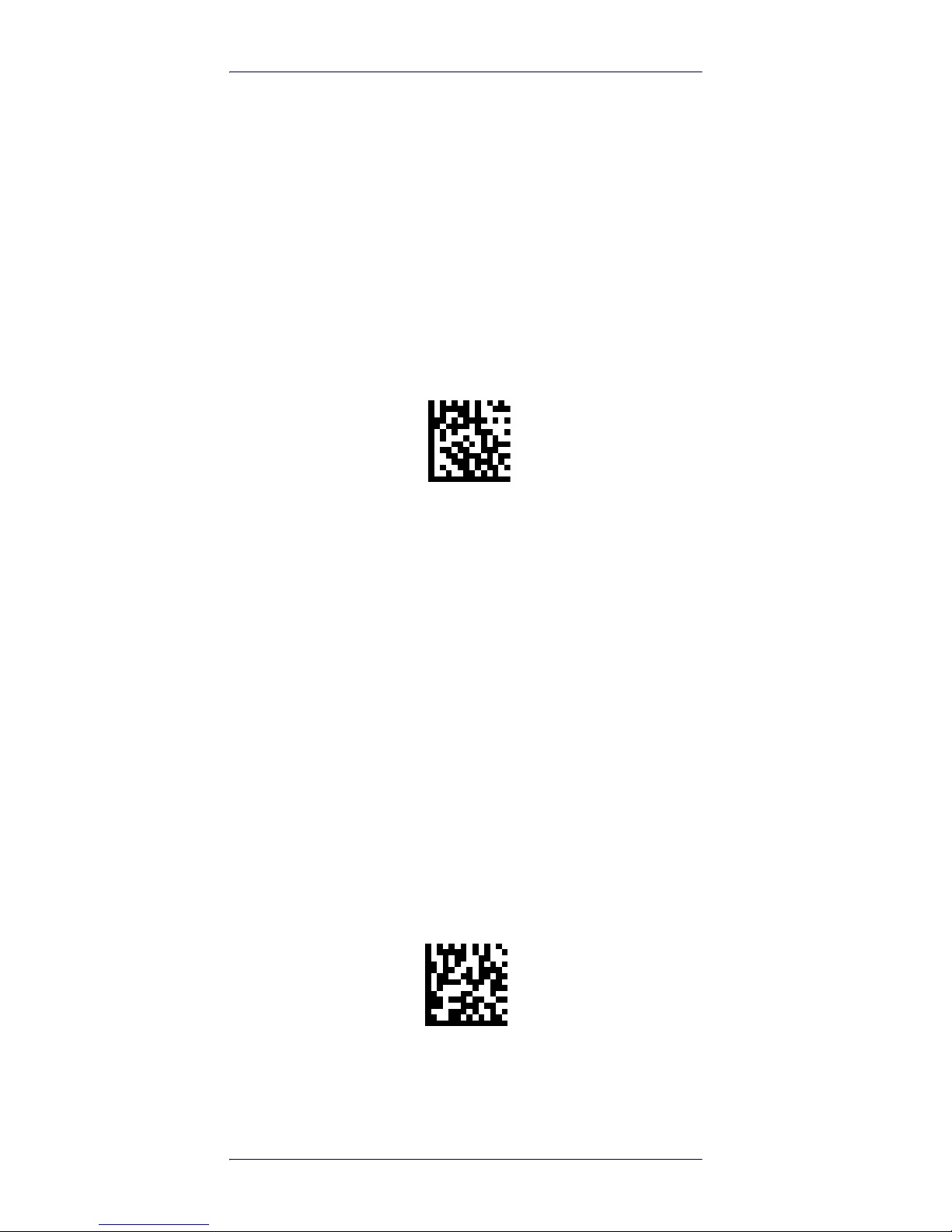

Unlink

Enable RF Link to Server

Linking the Reader

Quick Reference Guide 11

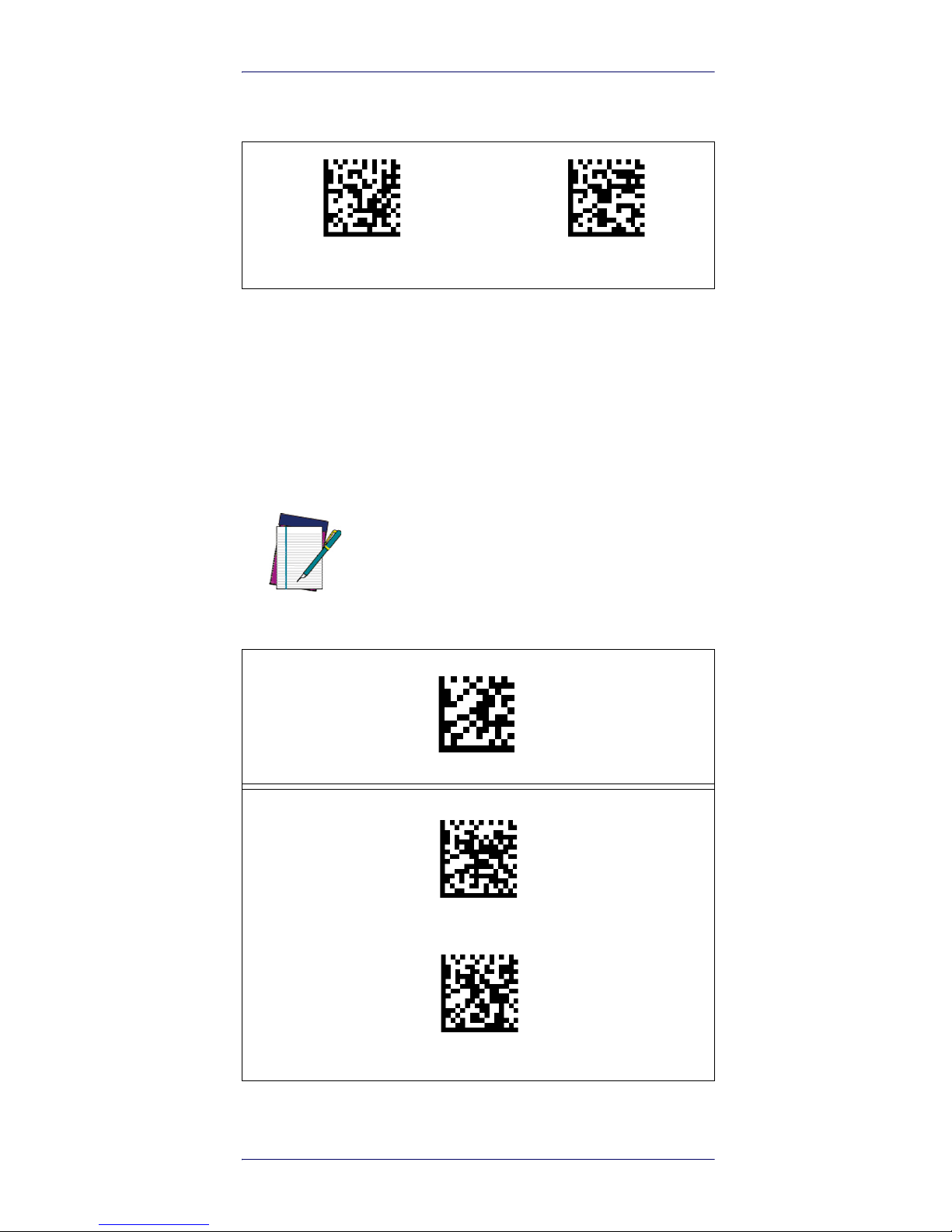

Linking to a Bluetooth Adapter in HID mode

1. Install any drivers provided with the Bluetooth
adapter.

2. Scan the

Link to PC in HID

label below..

3. Use the host computer’s Bluetooth manager to
“Discover new devices” and select "Wasp Scan­ner." If you receive an error message, it may be
necessary to disable security on the device.

4. Use a text editor to see incoming data on the
port designated by the computer's Bluetooth
manager.

NOTE

The WWS750-BS can be set up to require a PIN
code when connecting. If you want to set up a
PIN, or when adding new equipment to a sys­tem that uses a custom security PIN, please see
the PRG for information.

Link to PC in HID

Linking the Reader

12 WASP WWS750

Variable PIN Code

Some Bluetooth drivers on the Host (such as WIDCOMM
and BlueSoleil 8) require a Variable PIN Code. When
attempting connection, the application presents a window
that includes a PIN Code which is to be input using the
WWS750. Please read the bar code "Variable PIN Code"
and restart the sequence from step 2 above.

When you hear the beep and see the Green LED blinking
indicating the reader is waiting for an alphanumeric entry,
enter the required variable PIN Code by scanning the cor­responding bar codes in the “Hex-Numeric Keypad” sec­tion at the back of this manual for alphanumeric entry.
Finish by scanning the

Exit HID Variable PIN Code

label.

Exit HID Variable PIN Code

$P,CBTHP01,P\r

Variable PIN Code

HID Country Mode

Quick Reference Guide 13

HID Country Mode

When the Reader is connected with a Bluetooth Adapter
in HID mode, you may want to set the country for which
your PC is localized. In order to do that, read one of the
configuration command labels below.

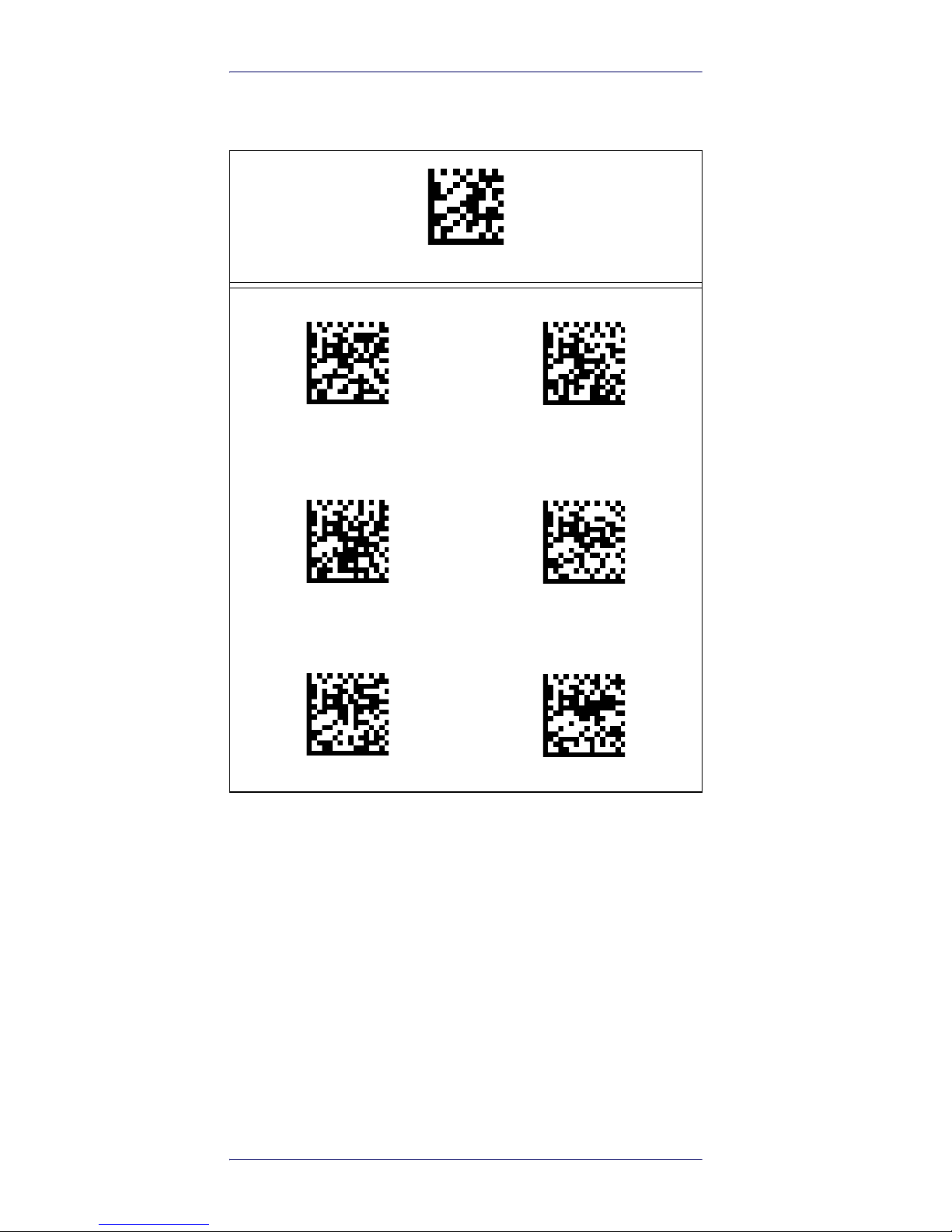

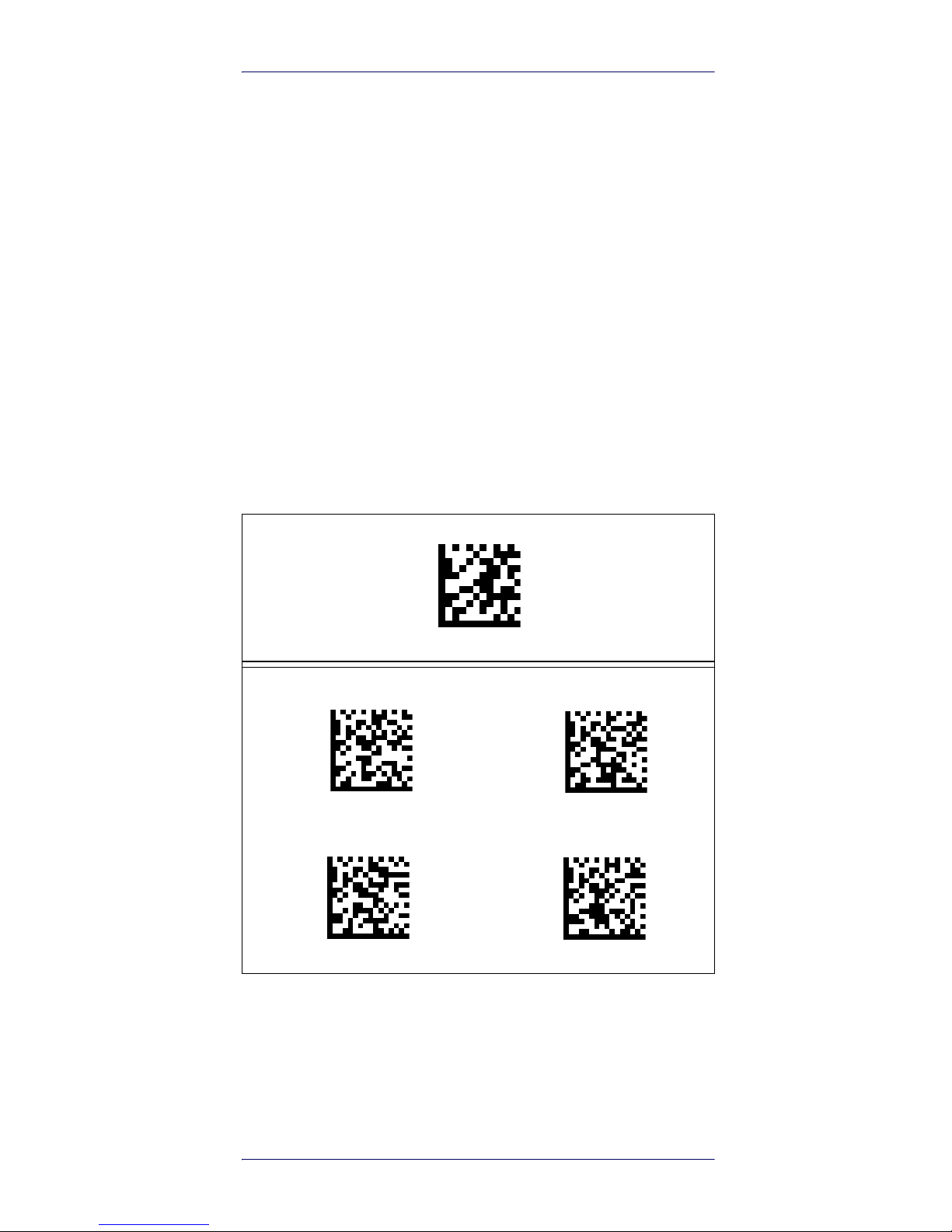

HID COUNTRY MODE

ENTER/EXIT PROGRAMMING MODE

Country Mode = U.S.

Country Mode = Belgium

Country Mode = Britain

Country Mode = Croatia

HID Country Mode

14 WASP WWS750

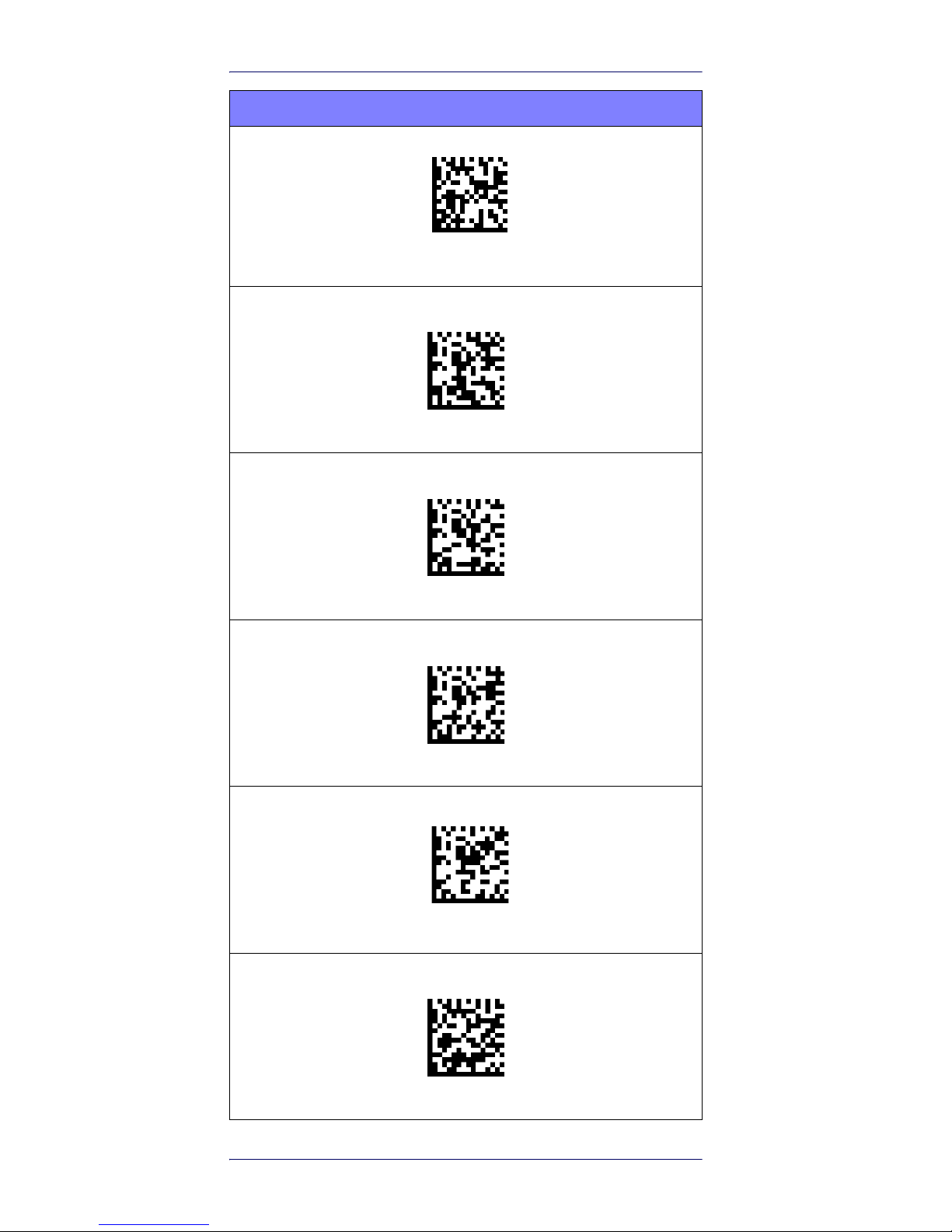

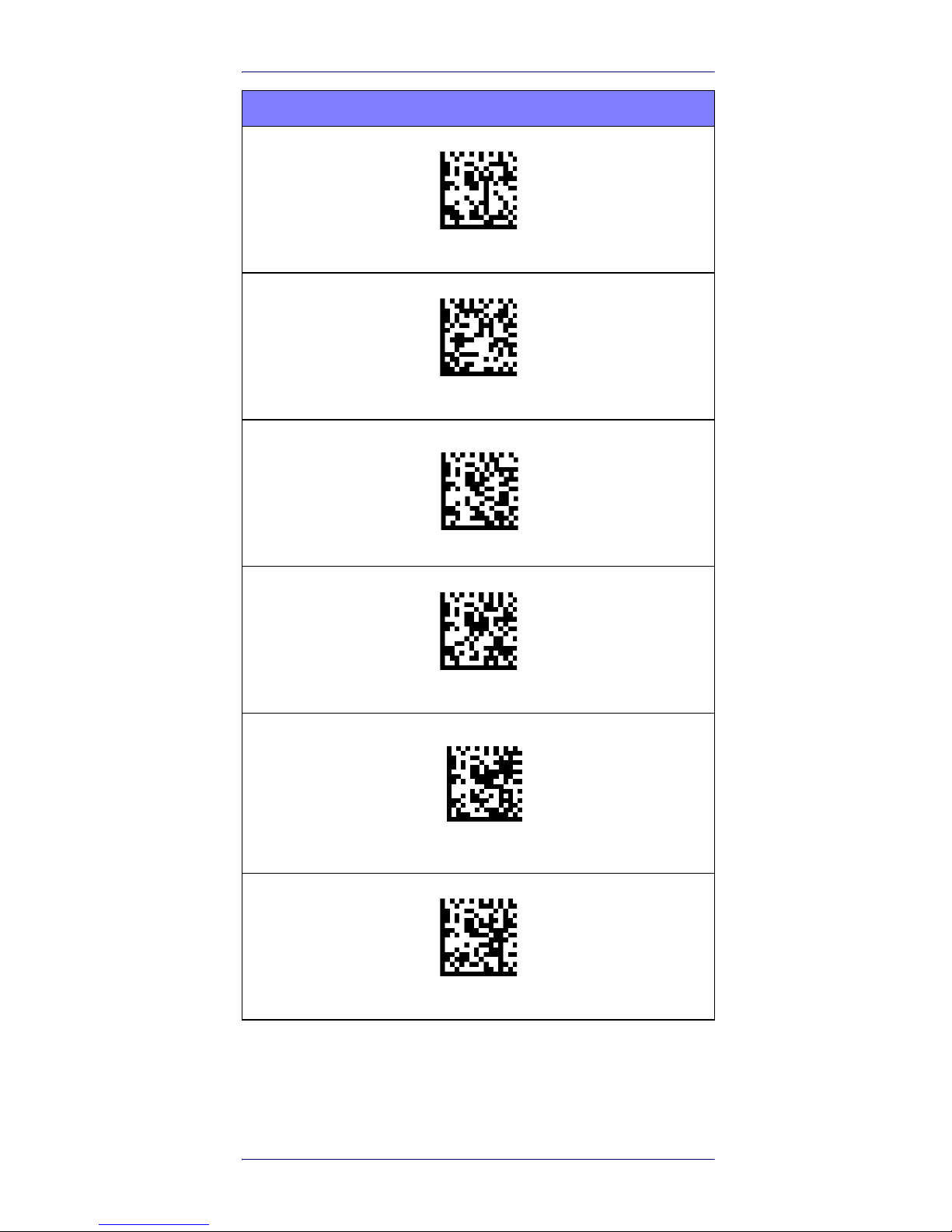

HID COUNTRY MODE (continued)

Country Mode = Czech Republic

Country Mode = Denmark

Country Mode = France

Country Mode = French Canadian

Country Mode = Germany

Country Mode = Hungary

HID Country Mode

Quick Reference Guide 15

HID COUNTRY MODE (continued)

Country Mode = Italy

Country Mode = Japanese 106-key

Country Mode = Lithuanian

Country Mode = Norway

Country Mode = Poland

Country Mode = Portugal

HID Country Mode

16 WASP WWS750

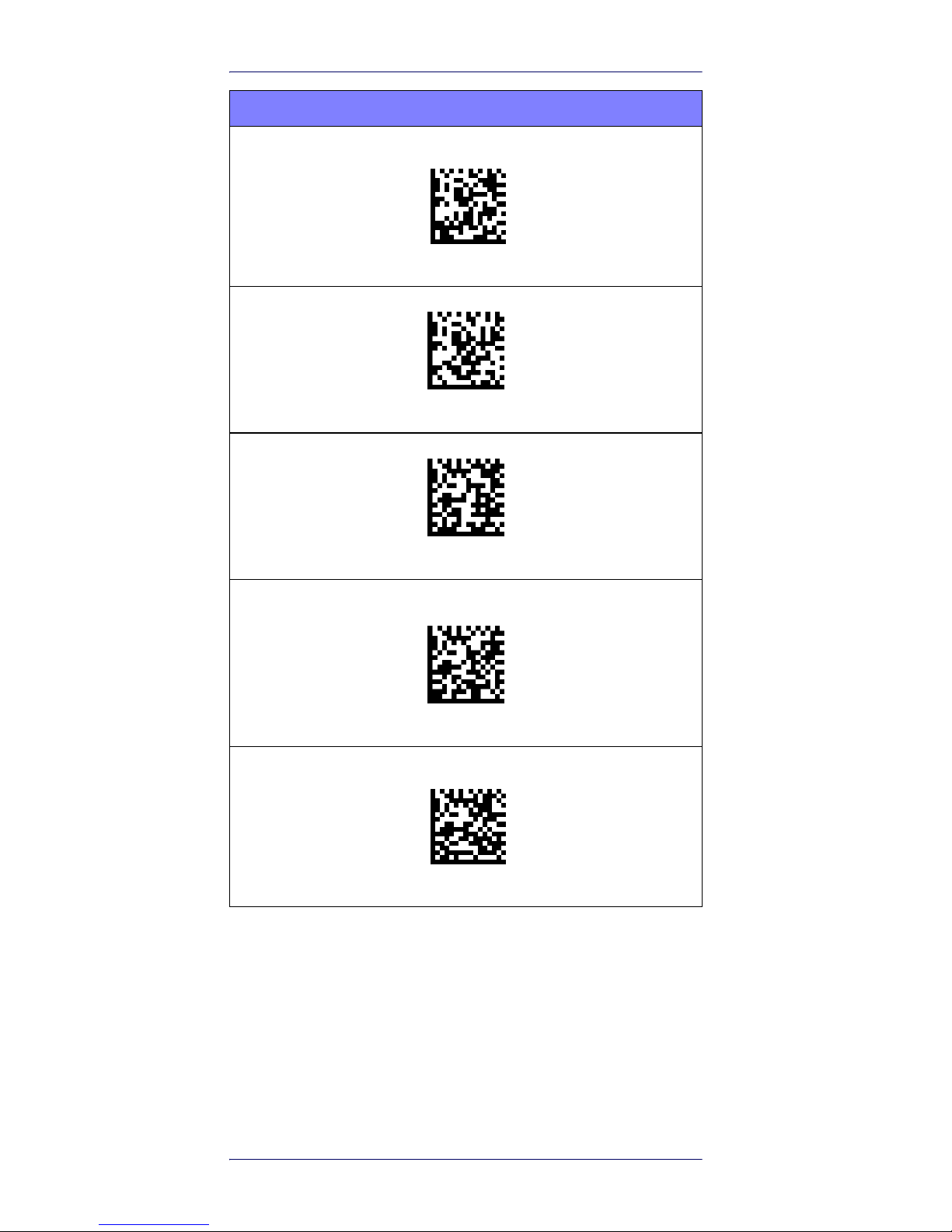

HID COUNTRY MODE (continued)

Country Mode = Romania

Country Mode = Spain

Country Mode = Sweden

Country Mode = Slovakia

Country Mode = Switzerland

HID Caps Lock State

Quick Reference Guide 17

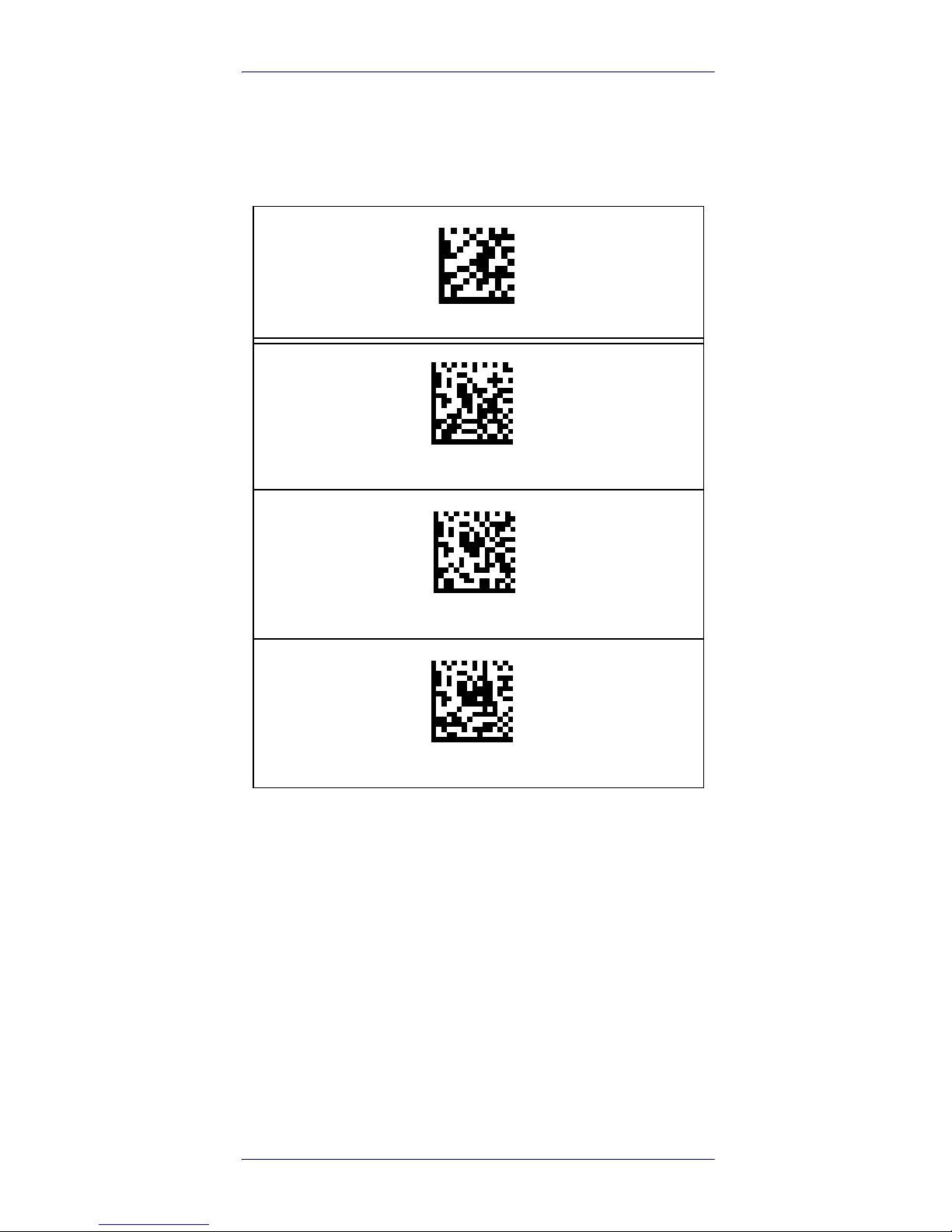

HID Caps Lock State

This option specifies the format in which the reader sends
character data.

ENTER/EXIT PROGRAMMING MODE



Caps Lock State = Caps Lock OFF

Caps Lock State = Caps Lock ON

Caps Lock State = AUTO Caps Lock Enable

HID Alt Mode

18 WASP WWS750

HID Alt Mode

Read the configuration command label below for the HID
Alt Mode feature.

Power Off

Scan the bar code below to shut off power to the BT hand­held until the next trigger pull.

PowerOff

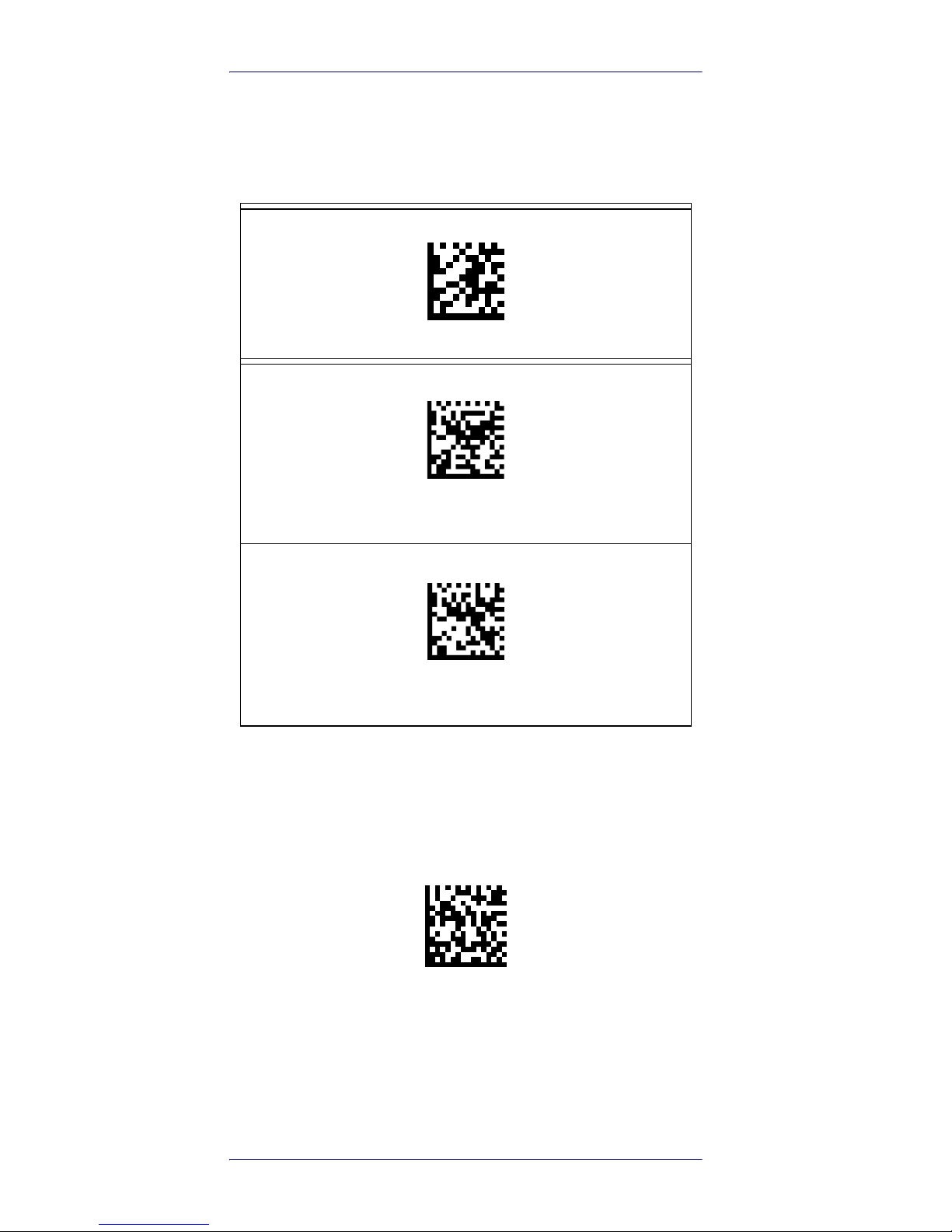

ENTER/EXIT PROGRAMMING MODE



HID Alt Mode = OFF

HID Alt Mode = ON

Reading Parameters

Quick Reference Guide 19

Reading Parameters

Move the reader toward the target and center the aiming
pattern and illumination system to capture and decode
the image. See Using the Wasp WWS750 on page 2 for
more information.

The aiming system will briefly switch off after the acquisi­tion time, and if no code is decoded will switch on again
before the next acquisition. The illuminator will remain on
until the symbol is decoded.

As you read code symbols, adjust the distance at which
you are holding the reader.

Good Read Green Spot Duration

Successful reading can be signaled by a good read green
spot. Use the bar codes that follow to specify the duration
of the good read pointer beam after a good read.

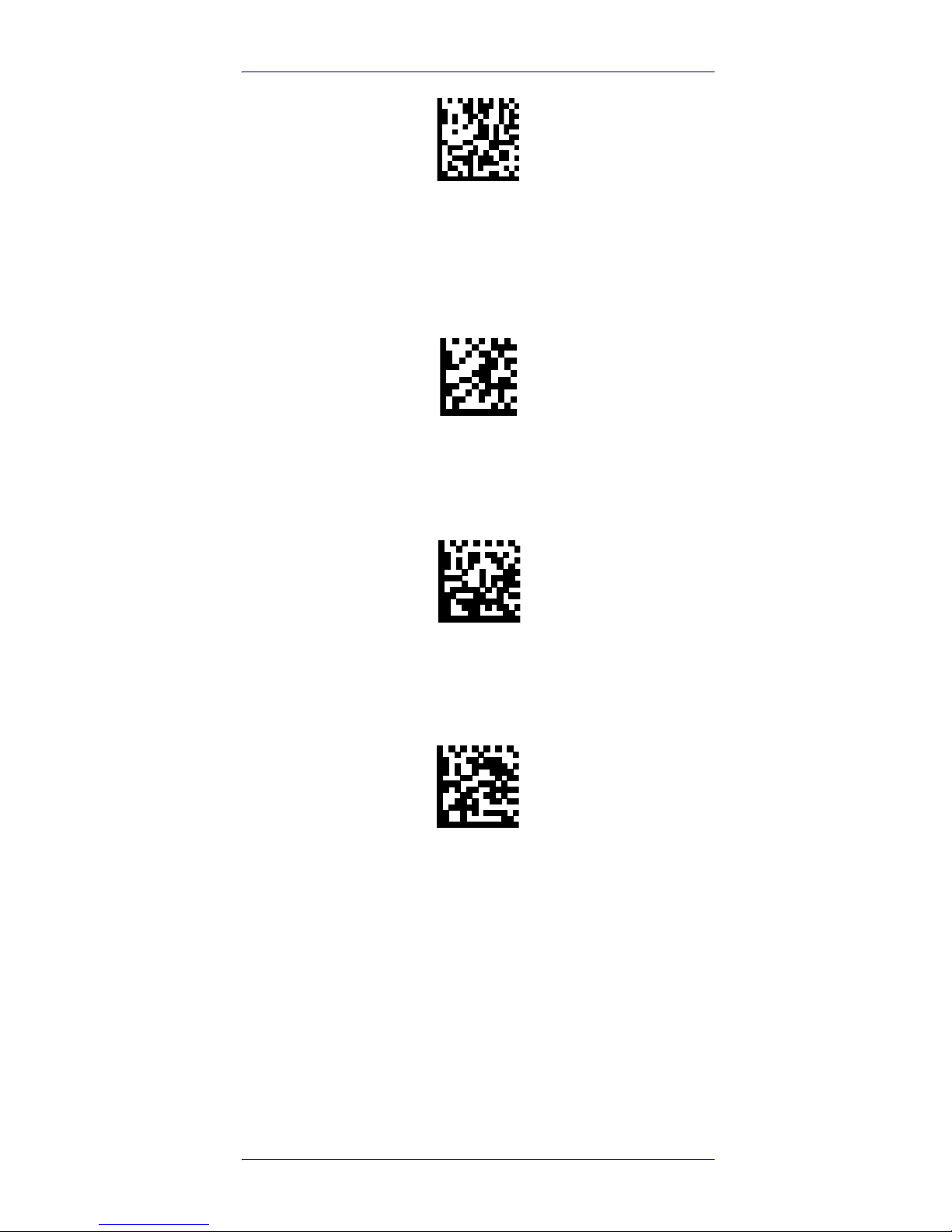

ENTER/EXIT PROGRAMMING MODE

Disabled



Short (300 ms)

Medium (500 ms)

Long (800 ms)

Reading Parameters

20 WASP WWS750

Digital Watermark Reading

ENTER/EXIT PROGRAMMING MODE



Disable

Enable

Operating Mode

Quick Reference Guide 21

Operating Mode

Scan Mode

The imager can be set to operate in one of several scan­ning modes. See the PRG for more information and set­tings for any of the options:

Trigger Single (Default) —

When the trigger is pulled, scan-

ning is activated until one of the following occurs:

• a programmable duration

1

has elapsed

• a label has been read

• the trigger is released

Trigger Hold Multiple —

When the trigger is pulled, scan­ning starts and the product scans until the trigger is
released or “maximum scan on time”

1

has elapsed. Read­ing a label does not disable scanning. Double Read Time­out

1

prevents undesired multiple reads in this mode.

Trigger Pulse Multiple —

When the trigger is pulled and
released, scanning is activated until programmable dura­tion

1

has elapsed or the trigger has been pulled again to

transition to another state. Double Read Timeout

1

pre-

vents undesired multiple reads while in this mode.

Flashing —

The reader flashes1 on and off regardless of the

trigger status.

Always On —

No trigger pull is required to read a bar code.
Scanning is continually on. If the trigger is pulled, the
reader acts as if it is in Trigger Single (Default) Mode. Dou­ble Read Timeout

1

prevents undesired multiple reads

while in this mode.

Stand Mode —

No trigger pull is required to read a bar code.

Scanning is turned on automatically when an item is
placed in reader’s field of view. If the trigger is pulled, the
reader acts as if it is in Single Read mode. Double Read
Timeout

1

prevents undesired multiple reads while in this

mode.

1. See the Product Reference Guide (PRG) for more informa­tion

Operating Mode

22 WASP WWS750

Operating Mode (continued)

Motion Aiming Control

This feature configures the ability of the scanner to
Enable/Disable the Aiming system when motion is
detected (Motionix™ motion-sensing technology). Scan

ENTER/EXIT PROGRAMMING MODE



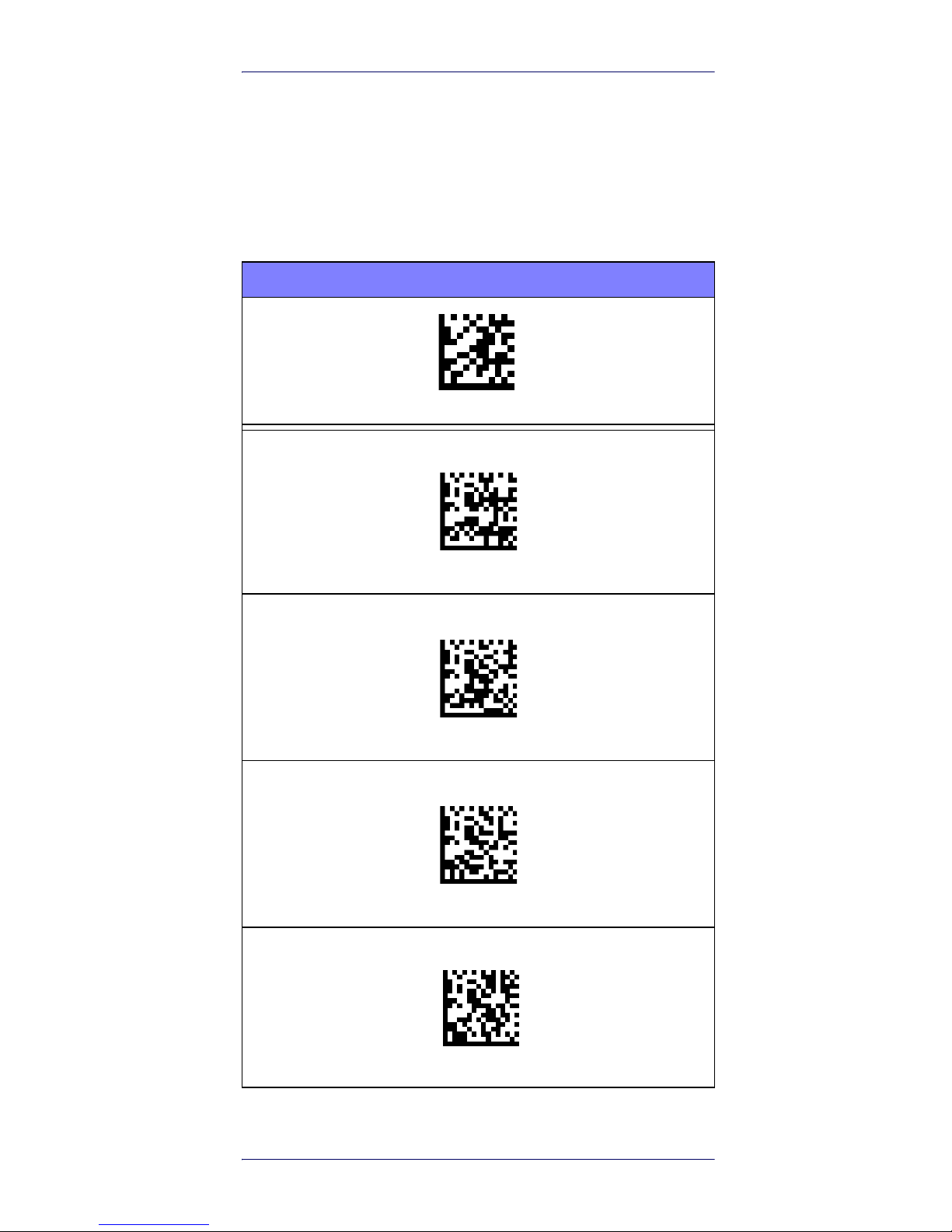

Scan Mode =

Trigger Single

Scan Mode = Trigger

Pulse Multiple

Scan Mode =

Trigger Hold Multiple

Scan Mode = Flashing

Scan Mode = Always On

Scan Mode = Stand Mode

Pick Mode

Quick Reference Guide 23

the Enter/Exit Programming bar code above, then either
of the barcodes below.

Pick Mode

Pick Mode is a Decoding and Transmission process where
bar codes that are not within the configurable distance
from the center of the aiming pattern are not acknowl­edged or transmitted to the host. It is active only in Trigger
Single mode. If the scanner switches to a different Read
Mode, Pick Mode is automatically disabled.



Motion Aiming Control =

Enable

Motion Aiming Control =

Disable

NOTE

This feature is not compatible with Multiple
Labels Reading in a Volume. See the PRG for
more information.

ENTER/EXIT PROGRAMMING MODE



PIck Mode = Disable

Pick Mode = Enable

Technical Specifications

24 WASP WWS750

Multiple Label Reading

The reader offers a number of options for multiple label
reading. See the PRG or software configuration tool for
descriptions of these features and programming labels.

Technical Specifications

The following tables contain Physical and Performance
Characteristics, User Environment and Regulatory infor­mation.

Item Description

PHYSICAL CHARACTERISTICS

Dimensions

Height: 212 mm
Length: 110 mm
Width: 74 mm

Weight 395 g

ELECTRICAL CHARACTERISTICS

Battery Type Li-Ion battery pack

Charge time for
full charge from
full discharge

4 hours with external power supply adapter

a

a. Charge Times are much lower when battery is within daily typical operating

condition.

Typical 10 hours with Host power (in this
case no supply adapter is needed)

a

Operating
autonomy (con­tinuous reading)

30,000 reads (typical)

Cradle consump­tion and DC input
supply range

Volt 10-30 VDC; Power <8W

b

;
Max 500mA when in host/bus powered
mode

b

.

b. Typical input current measured under factory default configuration.

Technical Specifications

Quick Reference Guide 25

PERFORMANCE CHARACTERISTICS

Light Source LED

Roll (Tilt) Tolerance ± 180°

Pitch Tolerance ± 40°

Skew (Yaw) Toler­ance

± 40°

Print Contrast
Minimum

15% minimum
reflectance

Resolution

Max resolution 1D: 4 mils
Max resolution 2D: 7.5 mils

DEPTH OF FIELD (TYPICAL)

A

a. 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade

A,300 lux ambient light, 20°C, label inclination 10°

Symbology Working Ranges

Code 39

4 mils: 6-17 cm
20 mils: 4-55 cm
40 mils: 4-85 cm

EAN 13 13 mils: 4-48 cm

PDF-417 10 mils: 2-25 cm

DataMatrix

7.5 mils: 7-14 cm
10 mils: 4-18 cm

Technical Specifications

26 WASP WWS750

DECODE CAPABILITY

1D BAR CODES

GS1 Databar linear codes, UPC/EAN (A,E,13,8), UPC/EAN with P2/
P5 Addons, UPC/EAN Coupons, ISBN, Code128, EAN128, ISBT128,
Code39, Code39 Full ASCII, Code39 CIP, Code 32, Codabar, Inter­leaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI,
Plessey, Code 93, Follet 2/5

2D / STACKED CODES

DataMatrix, MaxiCode and QR Codes (QR, Micro QR and Multiple
QR codes), Aztec

- Postal codes including:
Australian Post, China Post, Japanese Post, KIX Post, Planet Code,
Postnet, Royal Mail Code(RM45CC), IMB

- stacked codes including EAN/JAN Composites; GS1 Databar
Composites, GS1 Databar Expanded Stacked; GS1 DataBar
Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; Micro
PDF417; PDF417; UPC A/E Composites, French CIP13, Grid
Matrix(Chinese) code

Interfaces Supported RS-232, Keyboard Wedge, and USB.

USER ENVIRONMENT

Operating Tempera­ture

-4° to 122° F (-20° - +50° C )

Storage Temperature -40° to 158° F (-40° to 70° C)

Humidity 0 to 95% non-condensing

Drop Specifications

Scanner withstands >50 times 6.5' (2 m)
drops to concrete

Ambient Light
Immunity

100,000 Lux

Contaminants:
Spray/rain,
Dust/particulates

IP65

ESD Level 20 KV

Technical Specifications

Quick Reference Guide 27

Beeper/Speaker >= 80 dB @ 10 cm

REGULATORY

Electrical Safety

UL 60950, CSA C22.2 No. 60950, IEC
60950

EMI/RFI See Regulatory addendum

Laser Class Safety

IEC Class 2
Radiation 1 mW Avg., Emitted wave­length 650 nm, 12ms
pulse, Beam Divergence 8.4 deg x 8.1 deg

RADIO FEATURES

Frequency working
center

2400 to 2483.5 MHz

Range (in open air) up to 100m

Max number of
devices per base sta­tion

7

LED and Beeper Indications

28 WASP WWS750

LED and Beeper Indications

The reader’s beeper sounds and its LED illuminates to
indicate various functions or errors on the reader. An
optional “Green Spot” also performs useful functions. The
following tables list these indications. One exception to
the behaviors listed in the tables is that the reader’s func­tions are programmable, and so may or may not be turned
on. For example, certain indications such as the power-up
beep can be disabled using programming bar code labels.

Table 2. Normal Operating Indicators

INDICATION DESCRIPTION LED BEEPER

Power-up
Beep

The reader is in
the process of
powering-up.

N/A

Reader beeps
four times at
highest fre­quency and vol­ume upon power­up.

Good Read
Beep

A label has been
successfully
scanned by the
reader.

LED behavior is
configurable via
the feature
“Good Read:
When to Indi­cate” (see the
PRG for infor­mation.)

The reader will
beep once at cur­rent frequency,
volume, tonal
setting and dura­tion upon a suc­cessful label
scan.

Green Spot

a

flashes
momentarily

Upon success­ful read of a
label, the soft­ware turns the
green spot on
for the time
specified

N/A N/A

Capture

When ready to
capture image

Blue light
flashes 2 times
when updating

N/A

a

Except when in sleep mode or when a Good Read LED Duration other than 00 is

selected

LED and Beeper Indications

Quick Reference Guide 29

Table 3. Error Indicators

Programming Mode

-

The following indications ONLY

occur when the reader is in Programming Mode

.

INDICATION DESCRIPTION LED BEEPER

Link Attempt

The reader is try­ing to link to the
base

Slow
Flashes

N/A

Configuration
Alignment

Reader and Base
are aligning the
parameters' con­figuration

Fast Flashes N/A

Link

The reader has
successfully
linked to the base

N/A

3 beeps of
ascending fre­quency

Unlink

The reader has
unlinked from
the base

N/A

3 beeps of
descending fre­quency

ROM Failure

There is an error
in the reader's
software/pro­gramming

Flashes

Reader sounds
one error beep at
highest volume.

Limited
Scanning
Label Read

Indicates that a
host connection
is not estab­lished.

N/A

Reader 'chirps' six
times at the high­est frequency and
current volume.

Reader
Disabled

The reader has
been disabled by
the host.

The LED
blinks con­tinuously

N/A

INDICATION DESCRIPTION LED BEEPER

Label Pro­gramming
Mode Entry

A valid program­ming label has
been scanned.

LED blinks
continu­ously

Reader sounds
four low fre­quency beeps.

Label Pro­gramming
Mode Rejec­tion of Label

A label has been
rejected.

N/A

Reader sounds
three times at
lowest frequency
and current vol­ume.

Error Codes

30 WASP WWS750

Error Codes

Upon startup, if the reader sounds a long tone, this means
the reader has not passed its automatic Selftest and has
entered FRU (Field Replaceable Unit) isolation mode. If the
reader is reset, the sequence will be repeated. Press and
release the trigger to hear the FRU indication code.

The following table describes the LED flashes/beep codes
associated with an error found.

INDICATION DESCRIPTION LED BEEPER

Label Pro­gramming
Mode Accep­tance of Par­tial Label

In cases where
multiple labels
must be scanned
to program one
feature, this indica­tion acknowledges
each portion as it is
successfully
scanned.

N/A

Reader sounds

one short beep at

highest fre-

quency and cur-

rent volume.

Label Pro­gramming
Mode Accep­tance of Pro­gramming

Configuration
option(s) have been
successfully pro­grammed via labels
and the reader has
exited Program­ming Mode.

N/A

Reader sounds

one high fre-

quency beep and

4 low frequency

beeps followed by

reset beeps.

Label Pro­gramming
Mode Cancel
Item Entry

Cancel label has
been scanned.

N/A

Reader sounds

two times at low

frequency and

current volume.

Number of LED
Flashes/Beeps

Error

Corrective
Action

1 Configuration

Contact

Helpdesk for

assistance

2Interface PCB

6Digital PCB

11 Imager

Cleaning

Quick Reference Guide 31

Cleaning

Exterior surfaces and scan windows exposed to spills,
smudges or debris require periodic cleaning to ensure
best performance during scanning.

Use a soft, dry cloth to clean the product. If the product is
very soiled, clean it with a soft cloth moistened with a
diluted non-aggressive cleaning solution or diluted ethyl
alcohol.

CAUTION

Do not use abrasive or aggressive cleansing
agents or abrasive pads to clean scan win­dows or plastics.

Do not spray or pour liquids directly onto the
unit.

Wasp Technologies Limited Factory Warranty

32 WASP WWS750

Wasp Technologies Limited Factory Warranty

Warranty Coverage

Wasp warrants to Customer that Wasp's products will be free
from defects in materials and workmanship for a period of three
years from product shipment. Wasp hardware products are war­ranted against defects in material and workmanship under nor­mal and proper use. The liability of Wasp under this warranty is
limited to furnishing the labor and parts necessary to remedy any
defect covered by this warranty and restore the product to its
normal operating condition. Repair or replacement of product
during the warranty does not extend the original warranty term.
Products are sold on the basis of specifications applicable at the
time of manufacture and Wasp has no obligation to modify or up­date products once sold.

If Wasp determines that a product has defects in material or
workmanship, Wasp shall, at its sole option repair or replace the
product without additional charge for parts and labor, or credit or
refund the defective products duly returned to Wasp. To perform
repairs, Wasp may use new or reconditioned parts, components,
subassemblies or products that have been tested as meeting ap­plicable specifications for equivalent new material and products.
Customer will allow Wasp to scrap all parts removed from the re­paired product. The warranty period shall extend from the date of
shipment from Wasp for the duration published by Wasp for the
product at the time of purchase (Warranty period). Wasp war­rants repaired hardware devices against defects in workmanship
and materials on the repaired assembly for a 90 day period start­ing from the date of shipment of the repaired product from Wasp
or until the expiration of the original warranty period, whichever
is longer. Wasp does not guarantee, and it is not responsible for,
the maintenance of, damage to, or loss of configurations, data,
and applications on the repaired units and at its sole discretion
can return the units in the “factory default” configuration or with
any software or firmware update available at the time of the re­pair (other than the firmware or software installed during the
manufacture of the product). Customer accepts responsibility to
maintain a back up copy of its software and data.

Refer to:

http://www.waspbarcode.com/support/warranty-claims

Warranty Claims:

http://www.waspbarcode.com/support/warranty-claims

Warranty Claims Process

In order to obtain service under the Factory Warranty, Customer
must notify Wasp of the claimed defect before the expiration of
the applicable Warranty period and obtain from Wasp a return
authorization number (RMA) for return of the product to a desig­nated Wasp service center. If Wasp determines Customer’s claim
is valid, Wasp will repair or replace product without additional
charge for parts and labor. Customer shall be responsible for
packaging and shipping the product to the designated Wasp ser-

Wasp Technologies Limited Factory Warranty

Quick Reference Guide 33

vice center, with shipping charges prepaid. Wasp shall pay for the
return of the product to Customer if the shipment is to a location
within the country in which the Wasp service center is located.
Customer shall be responsible for paying all shipping charges, du­ties, taxes, and any other charges for products returned to any
other locations. Failure to follow the applicable RMA policy, may
result in a processing fee. Customer shall be responsible for re­turn shipment expenses for products which Wasp, at its sole dis­cretion, determines are not defective or eligible for warranty
repair.

Warranty Exclusions

The Wasp Factory Warranty shall not apply to:

(i) any product which has been damaged, modified, altered,

repaired or upgraded by other than Wasp service person­nel or its authorized representatives;

(ii) any claimed defect, failure or damage which Wasp deter-

mines was caused by faulty operations, improper use,
abuse, misuse, wear and tear, negligence, improper stor­age or use of parts or accessories not approved or sup­plied by Wasp;

(iii) any claimed defect or damage caused by the use of prod-

uct with any other instrument, equipment or apparatus;

(iv) any claimed defect or damage caused by the failure to

provide proper maintenance, including but not limited to
cleaning the upper window in accordance with product
manual;

(v) any defect or damage caused by natural or man-made

disaster such as but not limited to fire, water damage,
floods, other natural disasters, vandalism or abusive
events that would cause internal and external compo­nent damage or destruction of the whole unit, consum­able items;

(vi) any damage or malfunctioning caused by non-restoring

action as for example firmware or software upgrades,
software or hardware reconfigurations etc.;

(vii) the replacement of upper window/cartridge due to

scratching, stains or other degradation and/or

(viii) any consumable or equivalent (e.g., cables, power supply,

batteries, keypads, touch screen, triggers etc.).

No Assignment

Customer may not assign or otherwise transfer its rights or obli­gations under this warranty except to a purchaser or transferee
of product. No attempted assignment or transfer in violation of
this provision shall be valid or binding upon Wasp.

WASP’S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRAN­TIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR
OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR NONINFRINGEMENT. WASP SHALL NOT BE LIABLE
FOR ANY DAMAGES SUSTAINED BY CUSTOMER ARISING FROM
DELAYS IN THE REPLACEMENT OR REPAIR OF PRODUCTS UNDER
THE ABOVE. THE REMEDY SET FORTH IN THIS WARRANTY STATE-

Ergonomic Recommendations

34 WASP WWS750

MENT IS THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDY FOR
WARRANTY CLAIMS. UNDER NO CIRCUMSTANCES WILL WASP BE
LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY LOST PROF­ITS, OR ANY INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR
CONTINGENT DAMAGES REGARDLESS OF WHETHER WASP HAD
ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Risk of Loss

Customer shall bear risk of loss or damage for product in transit
to Wasp. Wasp shall assume risk of loss or damage for product in
Wasp’s possession. In the absence of specific written instruc­tions for the return of product to Customer, Wasp will select the
carrier, but Wasp shall not thereby assume any liability in con­nection with the return shipment.

Ergonomic Recommendations

• Reduce or eliminate repetitive motion

• Maintain a natural position

• Reduce or eliminate excessive force

• Keep objects that are used frequently within
easy reach

• Perform tasks at correct heights

• Reduce or eliminate vibration

• Reduce or eliminate direct pressure

• Provide adjustable workstations

• Provide adequate clearance

• Provide a suitable working environment

• Improve work procedures.

Services and Support

Wasp provides several services as well as technical sup­port through its website. Log on to

www.waspbarode.com

and click on the links indicated for further information.

CAUTION

In order to avoid or minimize the potential risk
of ergonomic injury follow the recommenda­tions below. Consult with your local Health &
Safety Manager to ensure that you are adher­ing to your company’s safety programs to pre­vent employee injury.

Services and Support

Quick Reference Guide 35

Hex-Numeric Keypad

36 WASP WWS750

Hex-Numeric Keypad

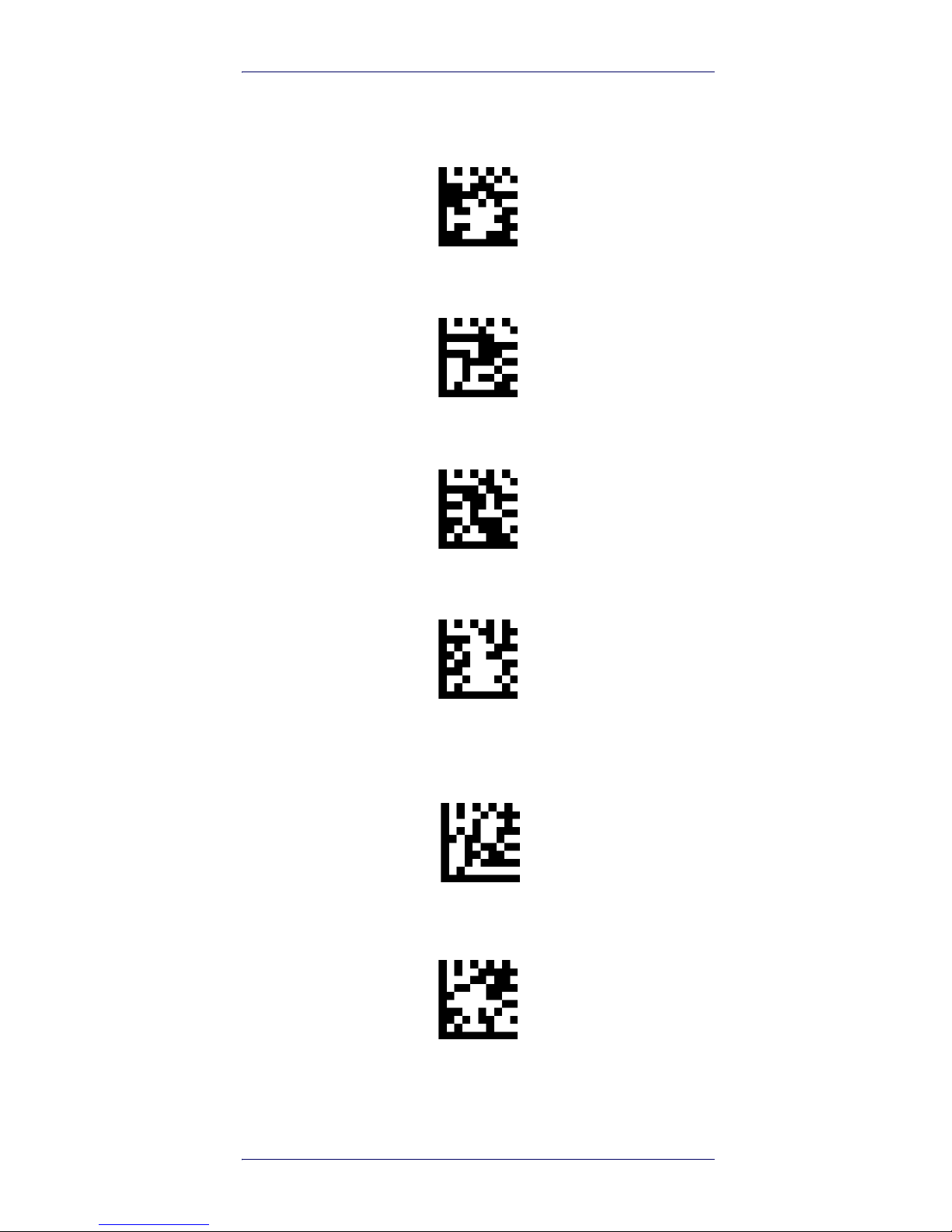

Use the barcodes that follow to enter numbers as you
would select digits/characters from a keypad.

0

1

2

3

4

5

Hex-Numeric Keypad

Quick Reference Guide 37

Hex-Numeric Keypad (continued)

6

7

8

9

A

B

Hex-Numeric Keypad

38 WASP WWS750

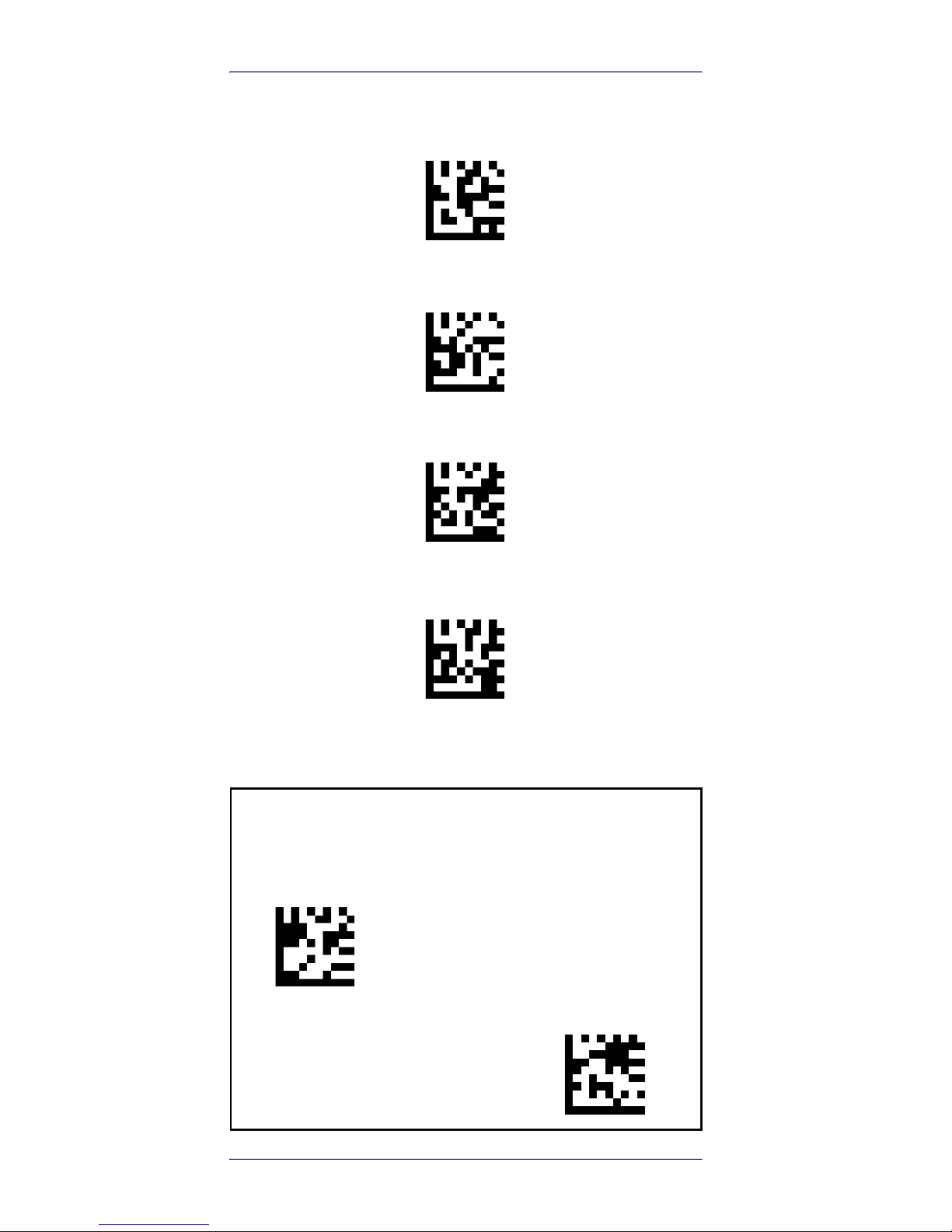

Hex-Numeric Keypad (continued)

C

D

E

F

For HID Variable Pin Code only

If you make a mistake, scan the CANCEL barcode below
to abort and not save the entry string. You can then
restart.

Finish by scanning the Exit HID Variable PIN Code label.

Cancel an incomplete HID Variable PIN Code

Exit HID Variable PIN Code

Hex-Numeric Keypad

Quick Reference Guide 39

NOTES

Hex-Numeric Keypad

40 WASP WWS750

NOTES
