Page 1
Wasp WWS650
2D Wireless Scanner
Quick Reference Guide
Page 2
Wasp Barcode Technologies
1400 10th Street
Plano, Texas USA 75074
Telephone: (214) 547-4100
©2014-2018 Wasp Barcode Technologies
An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein
may be reproduced or transmitted in any form or by any means
without prior written permission of Wasp Barcode Technologies
or its subsidiaries or affiliates ("Wasp Technologies" Technologies
Wasp Technologies). Owners of WaspTechnologies products are
hereby granted a non-exclusive, revocable license to reproduce
and transmit this documentation for the purchaser's own internal
business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this
documentation and shall ensure that all notices appear on any
reproductions of the documentation.
Should future revisions of this manual be published, you can
acquire printed versions by contacting your Wasp Technologies
representative. Electronic versions may either be downloadable
from the Wasp Technologies website (www.waspbarcode.com
) or
provided on appropriate media. If you visit our website and would
like to make comments or suggestions about this or other Wasp
Technologies publications, please let us know via the "Contact
WaspTechnologies" page.
Disclaimer
Wasp Technologies has taken reasonable measures to provide
informantion in this manual that is complete and accurate, however, Wasp Technologies reserves the right to change any specification at any time without prior notice. Wasp Technologies and
the Wasp Technologies logo are registered trademarks of Wasp
Technologies Barcode Technologies in many countries, including
the U.S.A. and the E.U. Duraline is a trademark of Wasp Barcode
Technologies registered in many countries, including the U.S.A.
and the E.U. All other brand and product names may be trademarks of their respective owners.
Patents
This product is covered by one or more of the following patents:
Design patents: EP002158717, USD723563, ZL201330271434.1
Utility patents: EP0996284B1, EP0997760B1, EP0999514B1,
EP1114390B1, EP1128315B1, EP1396811B1, EP1413971B1,
EP1828957B1, EP2275966B1, EP2517148B1, EP2521068, EP2649555B1,
JP4435343B2, US6478224, US6512218, US6513714, US6561427,
US6808114, US6997385, US7053954, US8245926 US7075663,
US7234641, US7387246, US7721966, US8113428,, US8561906,
US8888003, US8915443, US9430689, ZL200980163411.X
Page 3
Quick Reference Guide i
Table of contents
Software Product Policy ............................................................. vi
Description .................................................................................... 1
Setting Up the Reader ................................................................. 2
Locking the Reader to the Base ........................................ 2
To Lock the Reader in the Base................................ 2
Connecting the Base Station ...................................................... 4
Base Station Connection and Routing .............................. 4
System and Network Layout ............................................. 6
Typical Setup with Cradle and Host ......................... 6
Using the BC2030™ Radio Base .........................................7
Radio Base LEDs ........................................................ 7
Charging the Batteries ....................................................... 8
Replacing the Battery Pack ................................................ 9
Using the Wasp WWS650 .........................................................10
Linking the Reader ..................................................................... 11
Link Wasp RF Devices to Base ............................... 11
Linking to a Bluetooth Adapter in Serial Port Profile
Mode.......................................................................... 11
Linking to a Bluetooth Adapter in HID mode........ 12
Variable PIN Code .................................................... 13
Programming .............................................................................. 14
Using Programming Bar Codes .......................................14
Configure Other Settings .................................................. 14
Resetting Standard Product Defaults ............................ 14
HID Alt Mode ...................................................................... 15
Power Off ........................................................................... 15
Country Mode ............................................................................. 16
Caps Lock State ..........................................................................20
Selecting the Base Interface Type ............................................21
Interface Selection ............................................................ 21
Configuring the Interface ........................................ 21
Keyboard Interface .................................................. 23
Scancode Tables....................................................... 25
Numlock.................................................................... 26
Reading Parameters .................................................................. 26

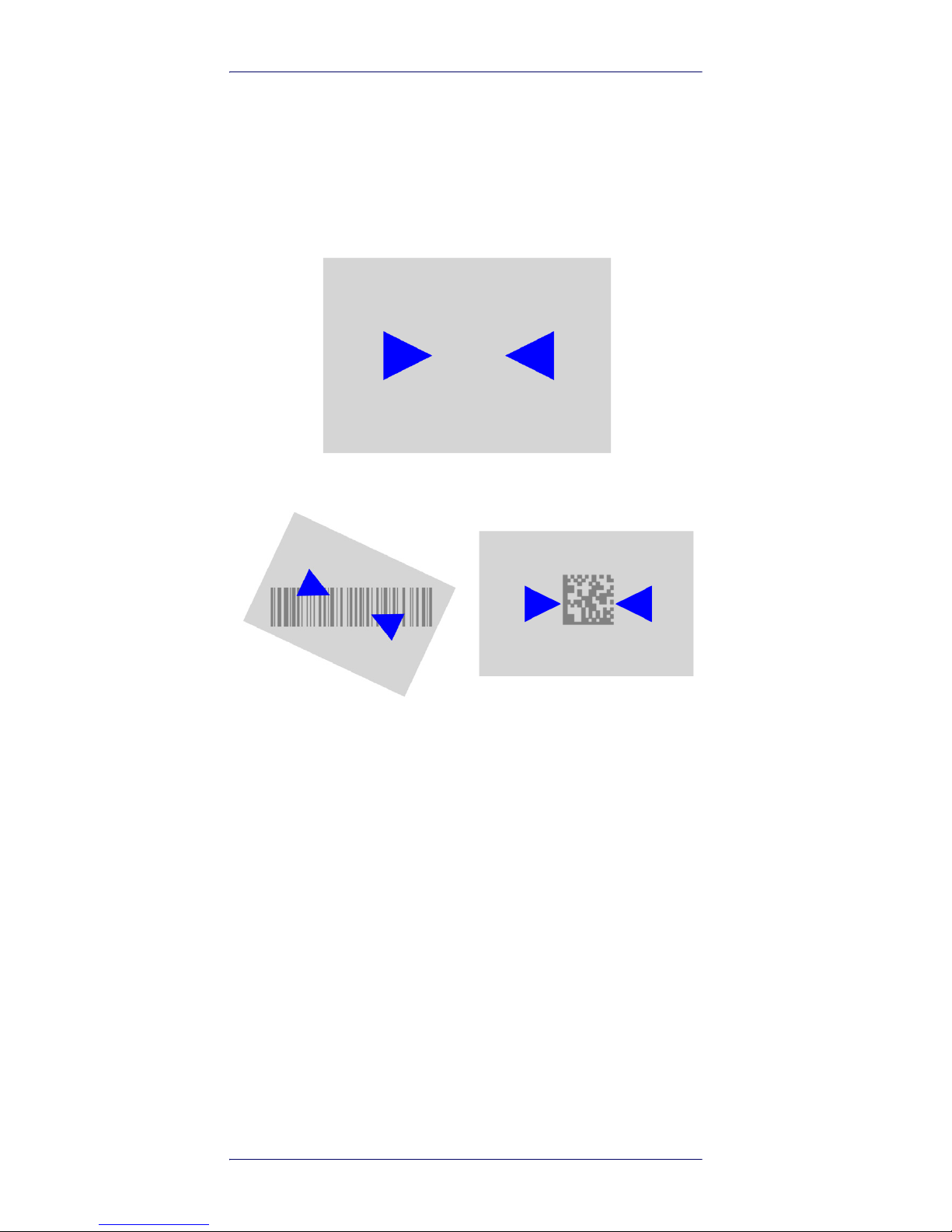

Aiming System .................................................................. 26
Good Read Green Spot Duration ..................................... 27
Scan Modes ................................................................................ 28
Pick Mode ........................................................................... 30
Multiple Labels in a Volume ............................................30
Technical Specifications ............................................................ 31
LED and Beeper Indications ...................................................... 35
Error Codes .................................................................................37
Base Station Indications ...........................................................37
Page 4
ii WWS650
Wasp Technologies Limited Factory Warranty ..............38
Warranty Coverage .................................................. 38
Warranty Exclusions................................................ 39
No Assignment ........................................................ 39
Risk of Loss .............................................................. 40
Ergonomic Recommendations .................................................41

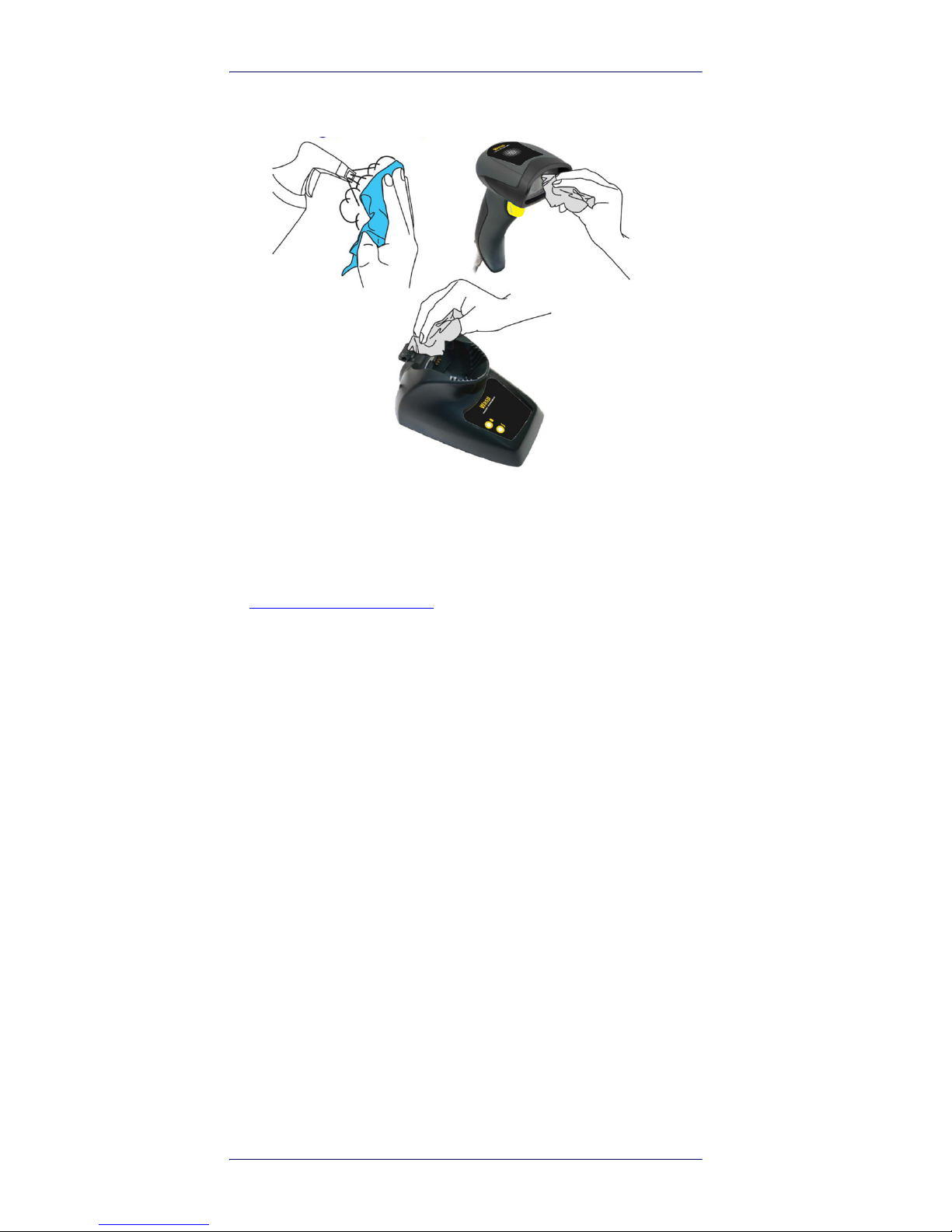

Cleaning ....................................................................................... 41
Support through the Website ..........................................42
Hex-Numeric Keypad ................................................................. 43
For HID Variable Pin Code only............................... 45
Page 5
Quick Reference Guide iii
END USER SOFTWARE LICENSE AGREEMENT (EULA) FOR THE
WASP WWS650
NOTICE TO END USER: BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR
BY USING THE WASP BARCODE TECHNOLOGIES PRODUCT THAT INCLUDES
THIS SOFTWARE, THE END USER CONSENTS TO BE BOUND BY THIS AGREEMENT. IF THE END USER DOES NOT AGREE WITH ALL OF THE TERMS OF THIS
AGREEMENT, THEN WASP IS NOT WILLING TO LICENSE THE SOFTWARE AND
THE END USER IS NOT ALLOWED TO DOWNLOAD, INSTALL OR USE THE SOFTWARE OR THE WASP PRODUCT
This End User License Agreement ("EULA") is between Wasp Barcode Technologies having its registered office at 1400 10th Street, Plano, TX 75074, USA
("Wasp"), and you, either an individual or a single entity, ("End User or "You"")
who has purchased one or more WWS650 ("Wasp Product") subject to the
terms and conditions provided in any relevant purchase or sale contract. This
EULA applies to the software contained in the Wasp Product ("Embedded
Software") and to any other software, to the extent applicable, offered as
optional application software ("Application Software" that together with
"Embedded Software" is herein referred to as "Software"). Any Open Source
used in a conjunction with the Software is subject to the Open Source licenses
available at the following website: http://www.datalogic.com/oss.
1. Grant of License
1.1 Wasp grants to End User, a personal, non-exclusive, non-transferable, nonsublicensable, revocable, limited license to use the Software, solely on the
Wasp Product in which it is embedded or for which it is intended for use, in
machine-readable form only, solely for End User's internal business purposes.
1.2 End Users shall not distribute, sublicense, rent, loan, lease, assign, export, reexport, resell, ship or divert or cause to be exported, re-exported, resold,
shipped or diverted, directly or indirectly, the Software under this Agreement.
End User shall not, and shall not permit others to: (i) modify, translate, decompile, reverse engineer, disassemble, or extract the inner workings of the Software, (ii) copy the functionality of the Wasp Products; (iii) remove any
proprietary notices, marks, labels, or logos from the Wasp Products; (iv) rent or
transfer all or some of the Software to any other party without Wasp's prior
written consent.
1.3. Title to the licensed Software shall be and remain with Wasp or the third party
from whom Wasp has obtained a license right. This Agreement does not grant
to End User any intellectual property rights. As used in this Agreement the
term "purchase" or its equivalent when applied to the Software shall mean
"acquire under license". End User is not entitled to receipt or use of the source
code of any licensed Software.
1.4 Portions of the Wasp Product are protected by the relevant and applicable patent and copyright laws, international treaty provisions, and other applicable
laws. Therefore, End User must treat the Wasp Product like any other copyrighted material (e.g., a book or musical recording) except that End User may
make one copy of the Software solely for back-up purposes. Unauthorized
duplication of the Software constitutes copyright infringement.
1.5 Any use of the Software outside of the conditions set forth herein is strictly
prohibited and will be deemed a breach of this Agreement resulting in immediate termination of this Agreement. In the event of a breach of this Agreement, Wasp will be entitled to all available remedies at law or in equity
(including but not limiting to immediate termination of the license without
notice, immediate injunctive relief and repossession of all Wasp Products).
1.6 Without prejudice of the foregoing, End User grants to Wasp and its independent accountants or consultants the right to examine End User's books,
records and accounts during End User's normal business hours to verify compliance with this Agreement. In the event such audit discloses non-compliance with this Agreement, Wasp shall be entitled to immediately terminate
the Agreement, request End User to promptly pay all (additional) license fees
due and any further damages, if any.
2. License Fee
License fees shall be due by End User to Wasp according to the terms pro-
vided for in the relevant contract for the purchase of the Wasp Product.
3. Termination
Without prejudice to any other rights or remedies Wasp may have, Wasp may
terminate this Agreement if End User fails to comply with the terms and conditions of this Agreement. Wasp may terminate this Agreement by offering
you a superseding Agreement for the Software or any replacement or modified version of or upgrade to the Software and conditioning your continued
use of the Software or such replacement, modified or upgraded version on
your acceptance of such superseding Agreement. In addition, either party may
terminate this Agreement at any time. Subject to the foregoing, termination
shall be effective upon notice to the other party. In the event that this Agree-
Page 6
iv WWS650
ment terminates for any reason, End User's license to use the Software will
immediately terminate, and End User must immediately stop using the Software, destroy all copies of the Software and all of its component parts, and,
upon request, provide an affidavit certifying your compliance with the foregoing. The provisions of Sub-sections 1.2, 1.3, 1.4, 1.5, 4, 5, 6, 8, and 12 shall survive termination of this Agreement.
4. Limited Warranty
Wasp warrants that, under normal use and operation, the Software will conform substantially to the applicable Wasp Product documentation for the
period specified in the same, provided that the Software is used with the
Wasp Product. Wasp's entire liability and End User's sole and exclusive remedy for any breach of the foregoing limited warranty will be, at Wasp's option,
the provision of a downloadable patch or replacement software.
Wasp does not warrant (i) that Software will meet End User's requirements; (ii)
that Software will be uninterrupted or defect error free; (iii) any non-conformity derived from unauthorized use, and/or improper installation or repair not
in compliance with Wasp Product documentation. End User agrees that the
existence of such non-conformities or errors and Wasp's inability to remedy
such errors shall not constitute a breach of this Agreement.
EXCEPT AS PROVIDED IN THIS AGREEMENT, THE WASP PRODUCT IS PROVIDED "AS IS" AND WASP MAKES NO WARRANTIES OF ANY KIND, EXPRESS OR
IMPLIED, WRITTEN OR ORAL, WITH RESPECT TO THE WASP PRODUCT OR
SOFTWARE, AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
5. Limitation of Liability
EXCEPT AS PROVIDED IN THIS AGREEMENT, NEITHER WASP NOR ITS LICEN-
SORS SHALL BE LIABLE FOR ANY CLAIMS AGAINST END USER BY ANY OTHER
PARTY. IN NO EVENT SHALL WASP'S LIABILITY FOR DAMAGES, IF ANY,
WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED
THE PRICE OR FEE PAID BY END USER FOR THE WASP PRODUCT. UNDER NO
CIRCUMSTANCES SHALL WASP OR ITS LICENSORS BE LIABLE TO END USER
OR ANY THIRD PARTY FOR LOST PROFITS, LOST DATA, INTERRUPTION OF
BUSINESS OR SERVICE, OR FOR ANY OTHER SPECIAL, CONSEQUENTIAL, CONTINGENT, INDIRECT, INCIDENTAL, PUNITIVE, EXEMPLARY, OR OTHER SIMILAR
DAMAGES, EVEN IF WASP OR ITS LICENSORS HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. END USER MUST BRING ANY ACTION
UNDER THIS AGREEMENT WITHIN 12 (TWELVE) MONTHS AFTER THE CAUSE
OF ACTION ARISES.
6. Indemnification
To the maximum extent permitted by law, End User agrees to defend, indem-
nify and hold harmless Wasp, its affiliates and their respective directors, officers, employees and agents from and against any and all claims, actions, suits
or proceedings, as well as any and all losses, liabilities, damages, costs and
expenses (including reasonable attorney's fees) arising out of or accruing from
or related to Licensee's failure to comply with the terms of this Agreement,
including but not limited to (1) non-compliance with any applicable laws or
regulations with Wasp product documentation, (2) unauthorized use or disclosure of Software, and (3) use of Software in combination with software, hardware, systems, or other items not provided by Wasp.
7. Support
End User may request support for Software from Wasp at Wasp's standard
support fees and under Wasp's standard support terms and conditions in
effect at the time the support is requested.
8. Government Restricted Rights; International Use
8.1 Use, duplication, or disclosure of the Software by the U.S. Government is subject to the restrictions for computer software developed at private expense as
set forth in the U.S. Federal Acquisition Regulations at FAR 52.227-14(g), or
52.227-19 or in the Rights in Technical Data and Computer Software clause at
DFARS 252.227-7013(c)(1)(ii), whichever is applicable.
8.2 If End User is using the Wasp Product outside of the United States, End User
must comply with the applicable local laws of the country in which the Wasp
Product is used and with U.S. export control laws,. Without prejudice of the
foregoing, the End User agrees to not export or re-export the Software, any
part thereof, or any process or service that is the direct product of the Software to any country, person or entity subject to U.S. export restrictions. End
User specifically agrees not to export or re-export any of the Software: (i) to
any country to which the U.S. has embargoed or restricted the export of goods
or services or to any national of any such country, wherever located, who
intends to transmit or transport the Software back to such country; (ii) to any
person or entity who you know or have reason to know will utilize the Software in the design, development or production of nuclear, chemical or biological weapons; or (iii) to any person or entity who has been prohibited from
participating in U.S. export transactions by any federal agency of the U.S. gov-
Page 7
Quick Reference Guide v
ernment. End User warrants and represents that neither the U.S. Commerce
Department, Bureau of Export Administration nor any other U.S. federal
agency has suspended, revoked or denied its export privileges.
9. Third Party Software
The Wasp Product may contain one or more items of third party software
which use is governed by separate third-party license, unless otherwise
stated.
10. Open Source Software
Portions of the Software include or operate with Open Source software ("Open
Source Software").
Open Source Software is software covered by a publicly available license governed
solely under Copyright law, whereas the complete terms and obligations of
such license attach to a licensee solely through the act of copying, using and/
or distributing the licensed software, such obligations often include one or
more of attribution obligations, distribution obligations, copy left obligations,
and intellectual property encumbrances. The use of any Open Source Software
is subject to the terms and conditions of this Agreement as well as the terms
and conditions of the corresponding license of each Open Source Software
package. If there is a conflict between the terms and conditions of this Agreement and the terms and conditions of the Open Source Software license, the
applicable Open Source Software license will take precedence. Wasp is
required to reproduce the software licenses, acknowledgments and copyright
notices as provided by the authors and owners, thus, all such information is
provided in its native language form, without modification or translation.
Please reference and review the above-mentioned information to identify
which Open Source Software packages have source code provided or available.
11. Notices
All notices required or authorized under this Agreement shall be given in writ-
ing, and shall be effective when received, with evidence of receipt. Notices to
Wasp shall be sent to the attention of Wasp Barcode Technologies, 1400 10th
Street, Plano TX 75074 USA, or such other address as may be specified by
Wasp in writing.
12. General Provisions.
12.1. Entire Agreement; Amendment. This document contains the entire agreement between the parties relating to use of the Wasp Products and the
licensing of the Software and supersedes all prior or contemporaneous agreements, written or oral, between the parties concerning the use of the Wasp
Products and licensing of the Software. This Agreement may not be changed,
amended, or modified except by written document signed by Wasp.
12.2. Waiver. A party's failure to enforce any of the terms and conditions of this
Agreement shall not prevent the party's later enforcement of such terms and
conditions.
12.3. Governing Law; Venue: End User agrees to the application of the laws of the
country in which End User obtained the license to govern, interpret, and
enforce all of End User's and Wasp's respective rights, duties, and obligations
arising from, or relating in any manner to, the subject matter of this Agreement, without regard to conflict of law principles. The United Nations Convention on Contracts for the International Sale of Goods does not apply.
All rights, duties, and obligations are subject to the courts of the country in
which End User obtained the license. For licenses granted by Licensee who
operates in the countries specified below, the following terms applies.
For Americas:
This Agreement is governed by the laws of the State of Oregon. This Agree-
ment and the rights of the parties hereunder shall be governed by and construed in accordance with the laws of the State of Oregon U.S.A, without
regard to the rules governing conflicts of law. The state or federal courts of the
State of Oregon located in either Multnomah or Lane counties shall have
exclusive jurisdiction over all matters regarding this Agreement, except that
Wasp shall have the right, at its absolute discretion, to initiate proceedings in
the courts of any other state, country, or territory in which End User resides, or
in which any of End User's assets are located. In the event an action is brought
to enforce the terms and conditions of this Agreement, the prevailing party
shall be entitled to reasonable attorneys' fees, both at trial and on appeal.
For Europe, Middle East and Africa:
This Agreement is governed by the laws of Italy. This Agreement and the
rights of the parties hereunder shall be governed by and construed in accordance with the laws of Italy, without regard to the rules governing conflicts of
law. Italian Court of Bologna shall have exclusive jurisdiction over all matters
regarding this Agreement, except that Wasp shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country,
or territory in which End User resides, or in which any of End User's assets are
located. In the event an action is brought to enforce the terms and conditions
of this Agreement, the prevailing party shall be entitled to reasonable attor-
Page 8
Software Product Policy
vi WWS650
neys' fees, both at trial and on appeal.
For Asia- Pacific Countries:
The validity, interpretation and construction of the Agreement shall be gov-
erned by and construed in accordance with Laws of the Republic of Singapore.
Parties expressly disclaim the application of the United Nations Convention
for International Sale of Goods.
Any dispute arising out of or in connection with this contract, including any
question regarding its existence, validity or termination, shall be referred to
and finally resolved by arbitration administered by the Singapore International
Arbitration Centre ("SIAC") in accordance with the Arbitration Rules of the Singapore International Arbitration Centre ("SIAC Rules") for the time being in
force, which rules are deemed to be incorporated by reference in this clause.
The seat of the arbitration shall be Singapore.
The number of arbitrators will be three, with each side to the dispute being
entitled to appoint one arbitrator. The two arbitrators appointed by the parties
will appoint a third arbitrator who will act as chairman of the proceedings.
Vacancies in the post of chairman will be filled by the president of the SIAC.
Other vacancies will be filled by the respective nominating party. Proceedings
will continue from the stage they were at when the vacancy occurred. If one of
the parties refuses or otherwise fails to appoint an arbitrator within 30 days
of the date the other party appoints its, the first appointed arbitrator will be
the sole arbitrator, provided that the arbitrator was validly and properly
appointed. All proceedings will be conducted, including all documents presented in such proceedings, in the English language. The English language
version of these terms and conditions prevails over any other language version.
12.4. Attorneys' Fees. In the event an action is brought to enforce the terms and
conditions of this Agreement, the prevailing party shall be entitled to reasonable attorneys' fees, both at trial and on appeal.
- END -
Software Product Policy
Wasp reserves the right to ship its products with the latest version of software/firmware available. This provides
our customers with the very latest in Wasp software
technology.
The only exception to this policy is when the buyer has a
signed contract with Wasp that clearly defines the terms
and conditions for making software/firmware changes in
products shipped to the buyer.
To arrange for a Software Maintenance and Support
Agreement please contact your Wasp sales person.
Page 9
Quick Reference Guide 1
Wasp WWS650
Description
With rich feature sets and extensive options, the WWS650
product series from Wasp represents the premium level of
data collection equipment for general purpose applications.
The Wasp WWS650 readers have enhanced optics with
improved motion tolerance allowing codes placed on fast
moving objects to be easily and quickly captured, creating the
ideal reader for tasks requiring high throughput like those
found in retail and light industrial environments.
Omni-
Directional
Operation
To read a symbol simply aim the reader and pull
the trigger. The WWS650 is a powerful omnidirectional reader, so the orientation of the symbol
is not important.
Wasp’s exclusive patented ‘Green Spot’ for goodread feedback helps to improve productivity in
noisy environments or in situations where silence
is required. When using the product with the cradle at a 45° position, the Green Spot can work as
an aiming system to aid in positioning the bar
code for quick and intuitive reading.
Decoding
Reliably decodes all standard 1D (linear) and 2D
bar codes, including GS1 DataBar™ linear codes,
Postal Codes (China Post), Stacked Codes (such as
GS1 DataBar Expanded Stacked, GS1 DataBar
Stacked, GS1 DataBar, Stacked Omnidirectional).
The data stream — acquired from decoding a
symbol — is rapidly sent to the host. The reader is
immediately available to read another symbol.
Page 10
Setting Up the Reader
2WWS650
Setting Up the Reader
Follow the steps below to connect and get your reader up, and
communicating with its host.
1. Configure the Base Station starting on this page.
2. Charge the Batteries (see page 8).
3. Link to the Base Station (see page 11).
4. Select the Interface Type (see page 21).
5. Configure the Reader starting on page 14 (optional,
depends on settings needed).
Locking the Reader to the Base
The Base Station provides a locking mechanism to ensure
electrical contact between Reader and Base, in case of inadvertent movements.
To Lock the Reader in the Base
1. Insert the Reader into the Base. The lock lever rests
in its natural disengaged position toward the bottom of the Base.
Lock
Lever
Page 11
Setting Up the Reader
Quick Reference Guide 3
Figure 1. Lock lever disengaged
2. Engage the locking mechanism by pushing up the lever
as far as it will go.
Figure 2. Lever in locked position
NOTE
It is good practice to put the scanner in the locked
condition at the end of the working shift, or when
not in use for an extended period of time. This will
ensure that the scanner is fully seated for complete battery recharge.
Page 12
Connecting the Base Station
4WWS650
Connecting the Base Station
Figure 3 on page 5 shows how to connect the Base Station to
a terminal, PC or other host device. Turn off the host before
connection and consult the manual for that equipment (if
necessary) before proceeding. Connect the interface cable
before applying power to the Base Station.
Base Station Connection and Routing
1. Remove the rubber Cable Stopper from the bottom of
the Base Station.
2. Securely plug the Power Cable and Interface (I/F) Cable
connectors into their respective ports in the underside
of the Base Station.
3. After the cables are plugged in, reinsert the Cable Stopper.
NOTE
The Wasp WWS650 reader can also be Powered
by the Terminal. When powered by the Terminal,
the battery charger is automatically set as Slow
charge.
For some specific interfaces or hosts or lengths of
cable, the use of an external power supply may be
recommended for full recharging capability (see
"Technical Specifications" on page 31
for more
details).
Cable Stopper
Power Cable
I/F Cable
Page 13
Connecting the Base Station
Quick Reference Guide 5
4. Connect to an AC Adapter, and plug the AC power cord
into the (wall) outlet.
Figure 3. Connecting the Base Station
Host Connection —
Verify before connection that the reader’s
cable type is compatible with your host equipment.
Most connections plug directly into the host device as shown
in Figure 4. Keyboard Wedge interface cables have a ‘Y’ con-
NOTE
The Wasp WWS650 reader can be set up to
require a PIN code when connecting to the host.
If you are adding new equipment to a system
that uses a custom security PIN, please see the
PRG for information before proceeding.
Cable Stopper
reinserted
Page 14
Connecting the Base Station
6WWS650
nection where its female end mates with the male end of the
cable from the keyboard and the remaining e.nd at the keyboard port on the terminal/PC.
Figure 4. Connecting to the Host
Power Connection —
Plug the AC Adapter into an approved AC
wall socket with the cable facing downwards (as shown in
Figure 3) to prevent undue strain on the socket.
System and Network Layout
Typical Setup with Cradle and Host
Figure 5. Reader Layout
Reader
Base Station
Host
Page 15
Connecting the Base Station
Quick Reference Guide 7
Using the BC2030™ Radio Base
Radio Base LEDs
LEDs on the Wasp Base provide information about the Base
as well as battery charging status, as shown in Figure 6.
Figure 6. Base LEDs
Table 1. Radio Base LEDs
LED STATUS
Power on /
Data
Yellow On = Base is powered
Yellow Blinking = Base receives data
and commands from the Host or the
Reader.
Charging Red On = the Battery is charging.
Charge completed
Green On = the Battery is completely
charged.
Charging +
Charge completed
Red and Green Blinking together =
the Reader is not correctly placed
onto the Base.
Page 16
Connecting the Base Station
8WWS650
Charging the Batteries
The battery can be charged by connecting the reader directly
to a host through the micro-USB connector available in the
bottom of the handle, as shown.
Alternatively, simply insert the WWS650 into the base. When
the scanner is fully seated in the cradle, it will sound a “chirp”
to indicate that the cradle has detected the scanner connection.
The LEDs on the base (shown in Table 1 on page 7) will indicate the status of the battery.
NOTE
Before using the Battery, read “Battery Safety”
in the “Regulatory and Safety” insert. Wasp
recommends annual replacement of rechargeable battery packs to ensure maximum performance.
Micro-USB
Connector
Page 17
Connecting the Base Station
Quick Reference Guide 9
Replacing the Battery Pack
1. Using a coin or screwdriver, unscrew the bottom of the
battery pack until it is disengaged.
The battery pack will rise slightly in the rear, pushed by
the contact springs.
2. Extract the battery pack by slightly rotating the pack
and pulling away from the reader.
To mount the new battery pack reverse the process:
1. Insert the top of the new pack inside the reader’s handle.
2. Rotate the battery pack downward while pressing the
bottom side of the battery pack (to seat securely into
the contacts springs) so that the edges of the pack and
the handle board are aligned, while replacing the screw
in the bottom of the handle.
NOTE
Before proceeding, read “Battery Safety” in the
Regulatory and Safety insert. Wasp recommends
annual replacement of rechargeable battery packs
to ensure maximum performance.
Page 18
Using the Wasp WWS650
10 WWS650
Using the Wasp WWS650
The Wasp WWS650 normally functions by capturing and
decoding codes. The aiming system is activated on trigger pull
and indicates the center of the field of view which should be
positioned over the bar code:
Aiming System
Relative Size and Location of Aiming System Pattern
A beam illuminates the label. The projected pattern of the
aiming system will be smaller when the reader is closer to the
bar code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read
closer to the unit. Symbologies with larger bars or elements
(mil size) should be read farther from the unit.
If the aiming system is centered you will get a good read. Successful reading is signaled by an audible tone plus a goodread green spot LED indicator.
2D Matrix symbol
Linear bar code
Page 19
Linking the Reader
Quick Reference Guide 11

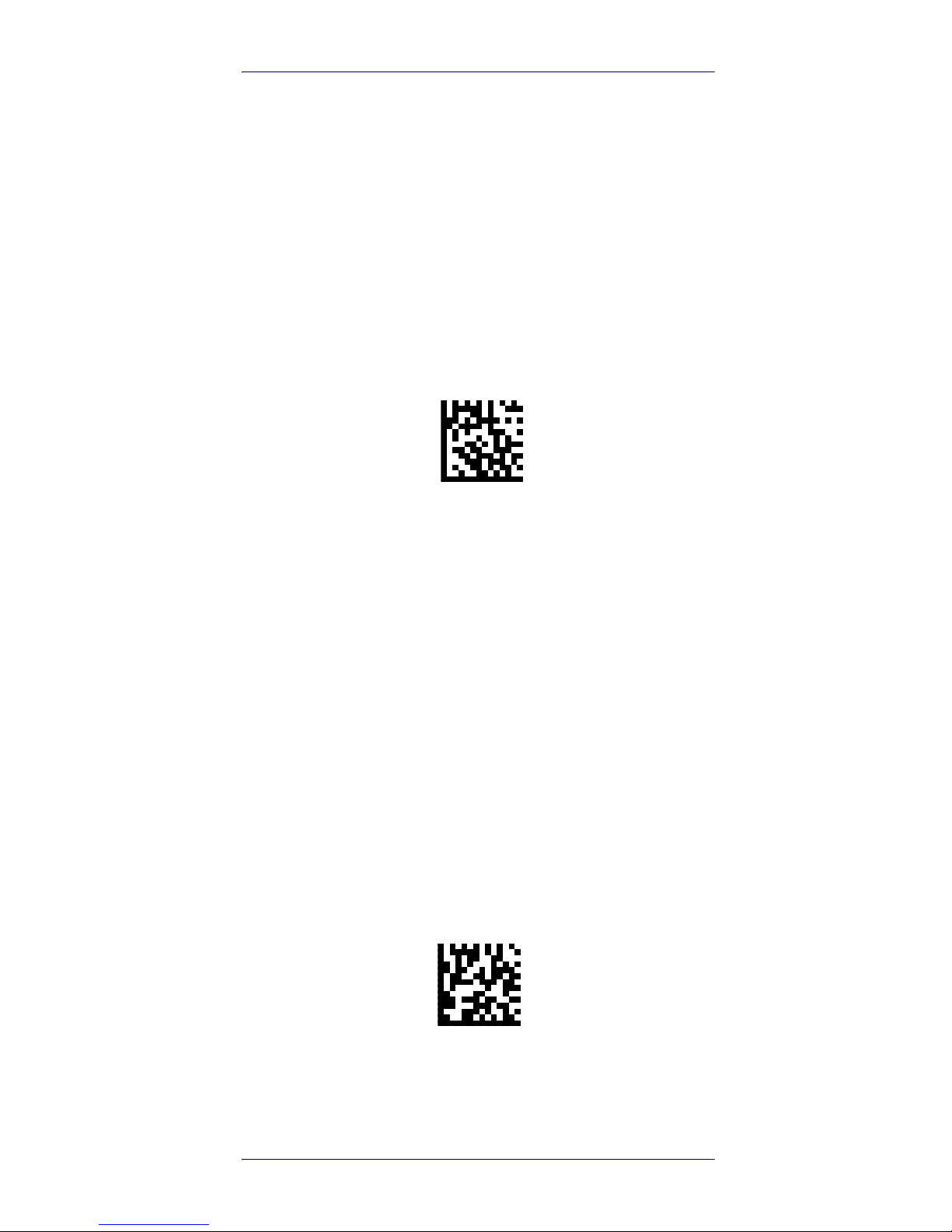

Linking the Reader
Link Wasp RF Devices to Base

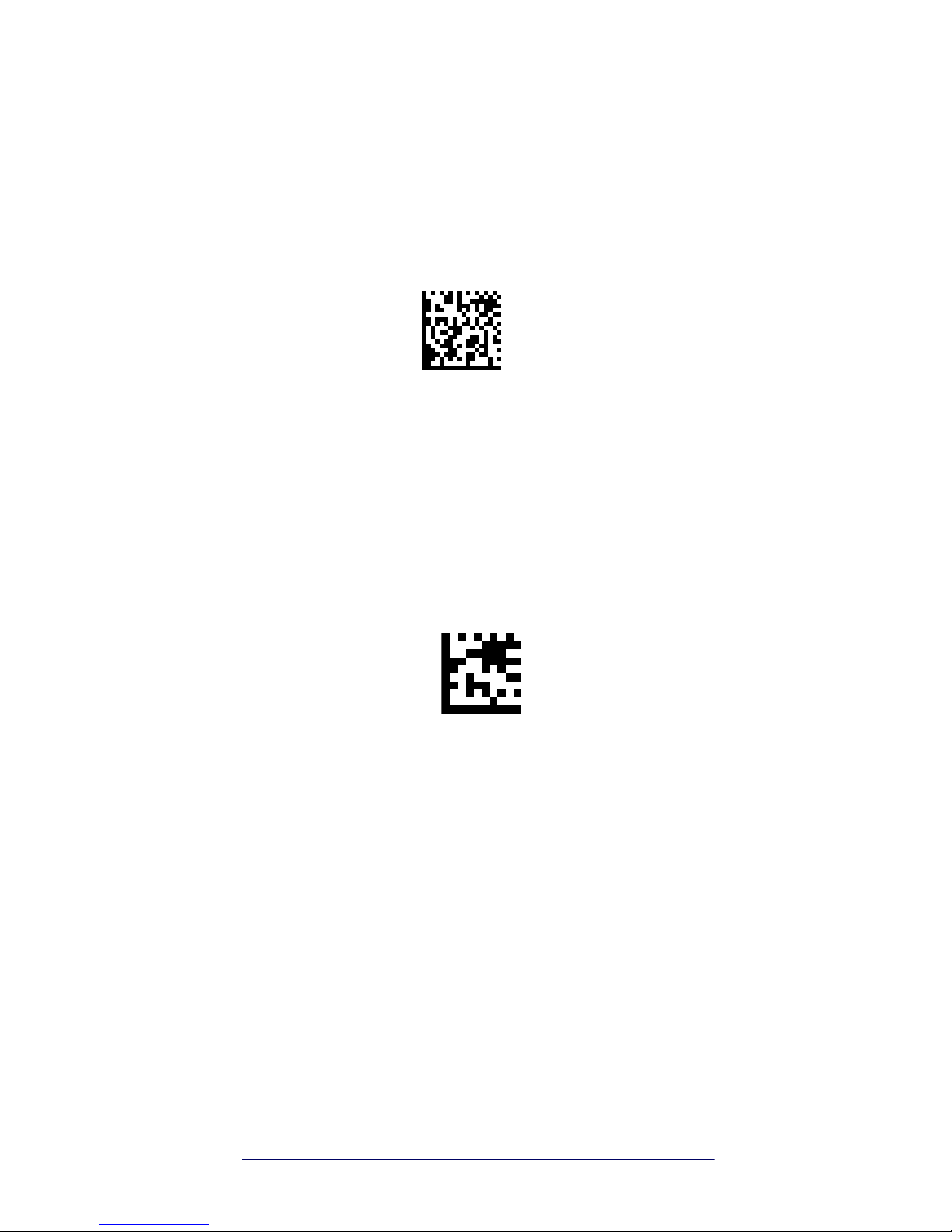

For RF devices, before configuring the interface it is necessary to link the handheld with the base.
To link the handheld and the base, press the trigger to
wake up the handheld and mount it into the base. If the
reader was previously linked to another base, you must
first press and hold the button on the base (>5 seconds),
then scan the
Unlink
bar code before re-linking to the new
base.
Linking to a Bluetooth Adapter in Serial Port
Profile Mode
1. Install any drivers provided with the Bluetooth
adapter.
2. Scan the
Enable RF Link to Server
label below to
make the scanner visible to the host computer.
3. Use the host computer’s Bluetooth manager to
“Discover new devices” and select "Wasp Scanner." If you receive an error message, it may be
necessary to disable security on the device.
4. Use an RS-232 terminal program to see incoming data on the port designated by the computer's Bluetooth manager.
Unlink
Enable RF Link to Server
Page 20
Linking the Reader
12 WWS650
Linking to a Bluetooth Adapter in HID mode
1. Install any drivers provided with the Bluetooth
adapter.
2. Scan the
Link to PC in HID
label below..
3. Use the host computer’s Bluetooth manager to
“Discover new devices” and select "Wasp Scanner." If you receive an error message, it may be
necessary to disable security on the device.
4. Use a text editor to see incoming data on the
port designated by the computer's Bluetooth
manager.
NOTE
The WWS650 reader can be set up to require a
PIN code when connecting. If you want to set
up a PIN, or when adding new equipment to a
system that uses a custom security PIN, please
see the PRG for information.
Link to PC in HID
Page 21
Linking the Reader
Quick Reference Guide 13
Variable PIN Code
Some Bluetooth drivers on the Host (such as WIDCOMM
and BlueSoleil 8) require a Variable PIN Code. When
attempting connection, the application presents a window
that includes a PIN Code which is to be input using the
WWS650. Please read the bar code "Variable PIN Code"
and restart the sequence from step 2 above.
When you hear the beep and see the Green LED blinking
indicating the reader is waiting for an alphanumeric entry,
enter the required variable PIN Code by scanning the corresponding bar codes in the “Hex-Numeric Keypad” sec-
tion at the back of this manual for alphanumeric entry.

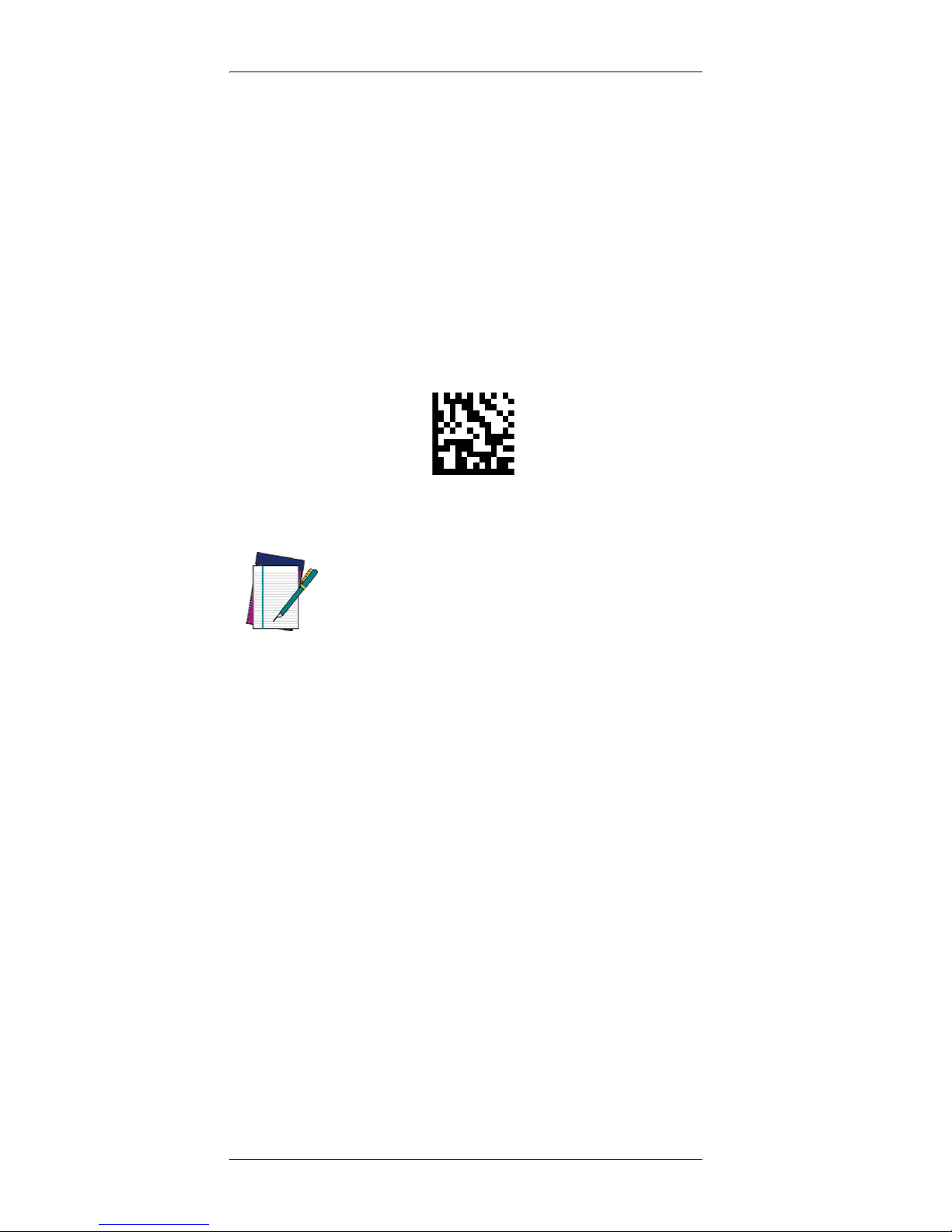

Finish by scanning the
Exit HID Variable PIN Code
label.
Exit HID Variable PIN Code
HID Country Mode
When the Reader is connected with a Bluetooth Adapter
in HID mode, you may want to set the country for which
your PC is localized. Go to "Country Mode" on page 16” and
read one of the configuration command labels.
HID Caps Lock State
This option specifies the format in which the reader sendcharacter data. See "Caps Lock State" on page 20 for programming labels.
Variable PIN Code
Page 22
Programming
14 WWS650
Programming
The reader is factory-configured with a set of standard
default features. After scanning the interface bar code from
the Interfaces section, select other options and customize
your reader through use of the programming bar codes available in the Product Reference Guide (PRG).
Using Programming Bar Codes
This manual contains bar codes which allow you to reconfigure your reader. Some programming bar code labels require
only the scan of that single label to enact the change.
Other bar codes require the reader to be placed in Programming Mode prior to scanning them. Scan an ENTER/EXIT bar
code once to enter Programming Mode; scan the desired
parameter settings; scan the ENTER/EXIT bar code again to
accept your changes, which exits Programming Mode and
returns the reader to normal operation.
Configure Other Settings
Additional programming bar codes are available to allow for
customizing programming features, if your installation
requires different programming than the standard factory
default settings. Reference the PRG.
Resetting Standard Product Defaults
Reference the PRG for a listing of standard factory settings. If
you aren’t sure what programming options are in your reader,
or you’ve changed some options and want the factory settings restored, scan the bar code below to copy the factory
configuration for the currently active interface to the current
configuration.

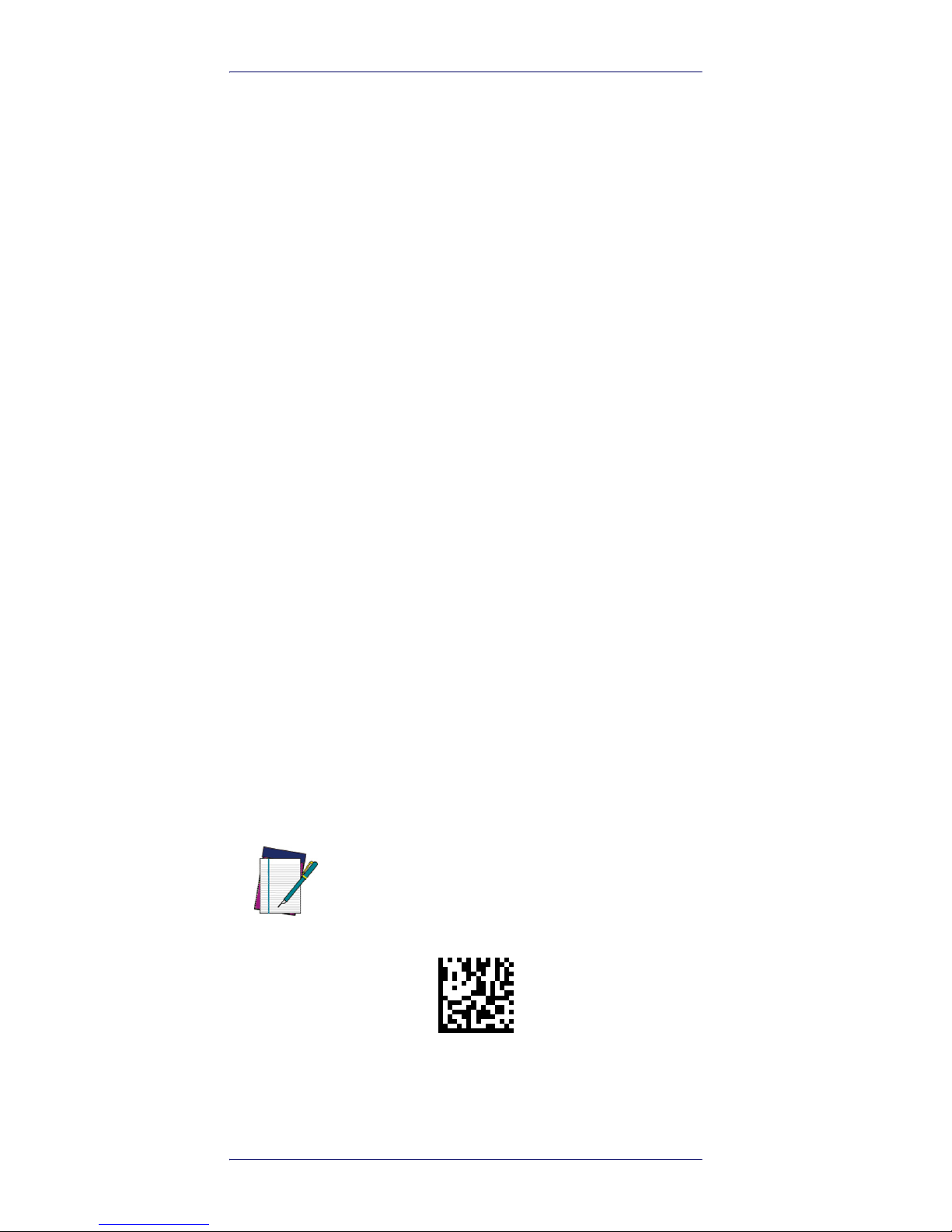

NOTE
Factory defaults are based on the interface
type. Configure the reader for the correct interface before scanning this label.
Standard Product Default Settings
Page 23
Programming
Quick Reference Guide 15

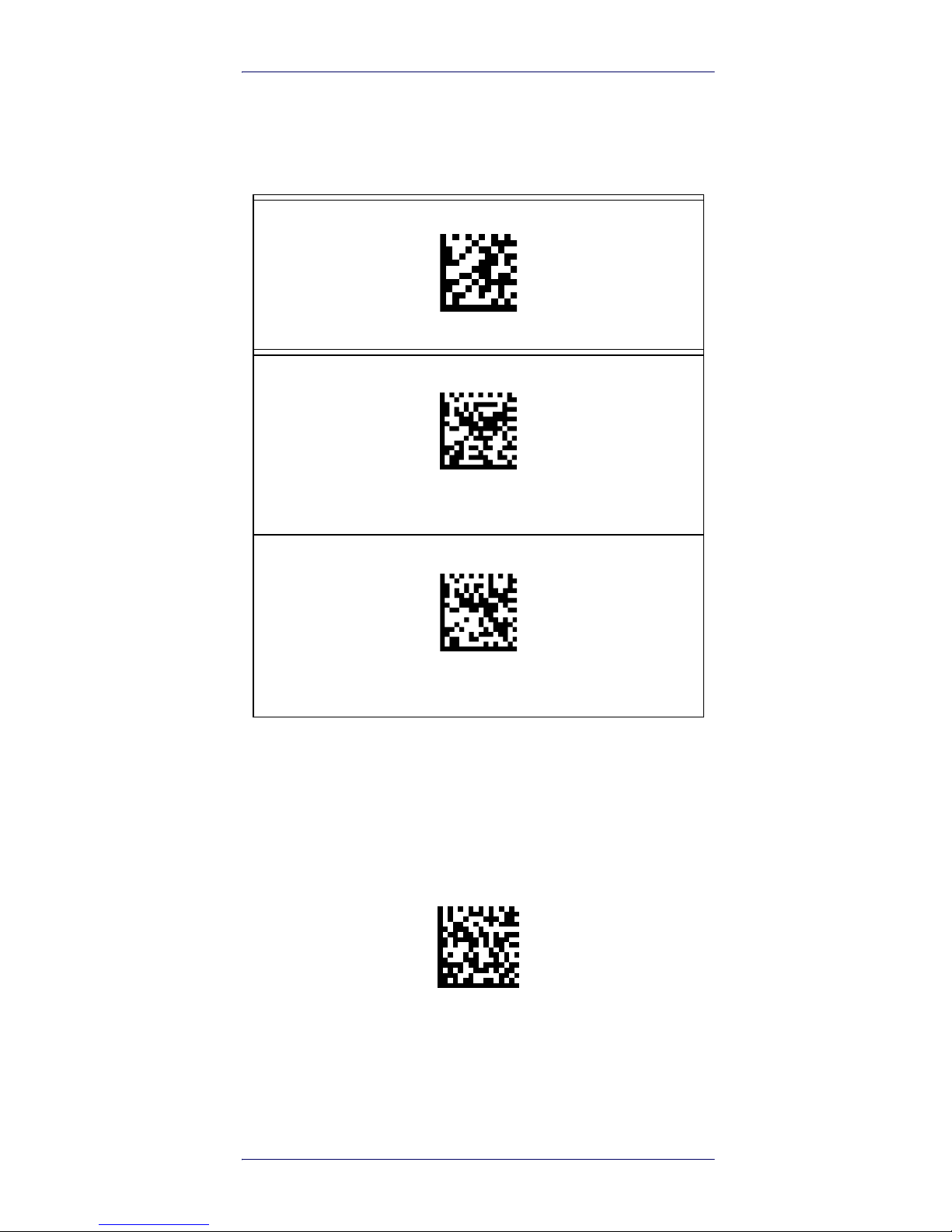

HID Alt Mode
Read the configuration command label below for the HID
Alt Mode feature.
Power Off
Scan the bar code below to shut off power to the handheld
until the next trigger pull.
PowerOff

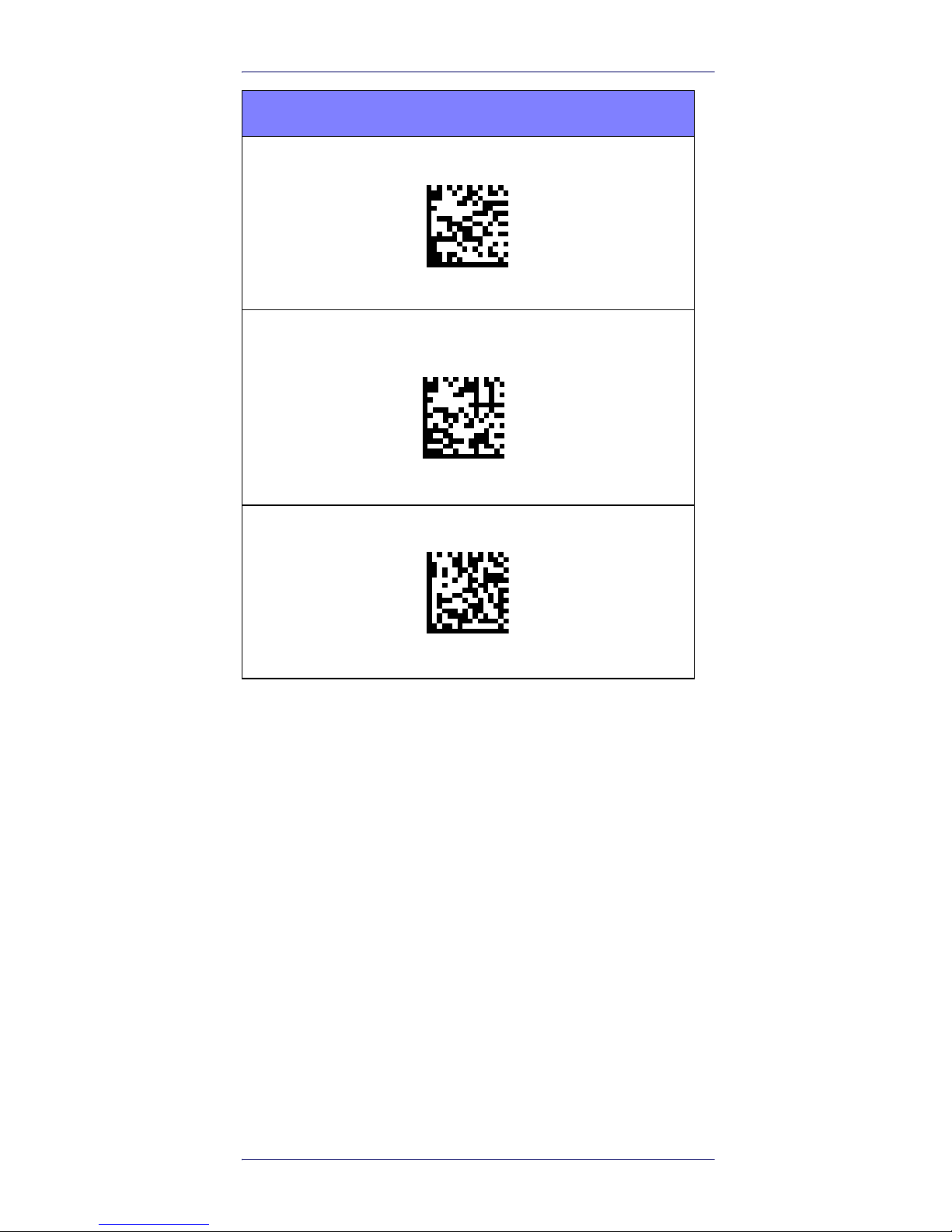

ENTER/EXIT PROGRAMMING MODE
HID Alt Mode = OFF
HID Alt Mode = ON
Page 24
Country Mode
16 WWS650
Country Mode
HID configuration: Scan any one of the bar codes in the table
below to set
the country for which your PC is localized.
Base configuration:
Only the following interfaces support
ALL Country Modes:
• USB Keyboard (without alternate key encoding)
• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/
Std Key Encoding
• Keyboard Wedge for IBM AT PS2 with standard key
encoding but without external keyboard
• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
without Alternate Key
• Keyboard Wedge for IBM AT PS2 without alternate key
encoding but without external keyboard
All other interfaces support ONLY the following : U.S., Belgium,
Britain, France, Germany, Italy, Spain, Sweden.

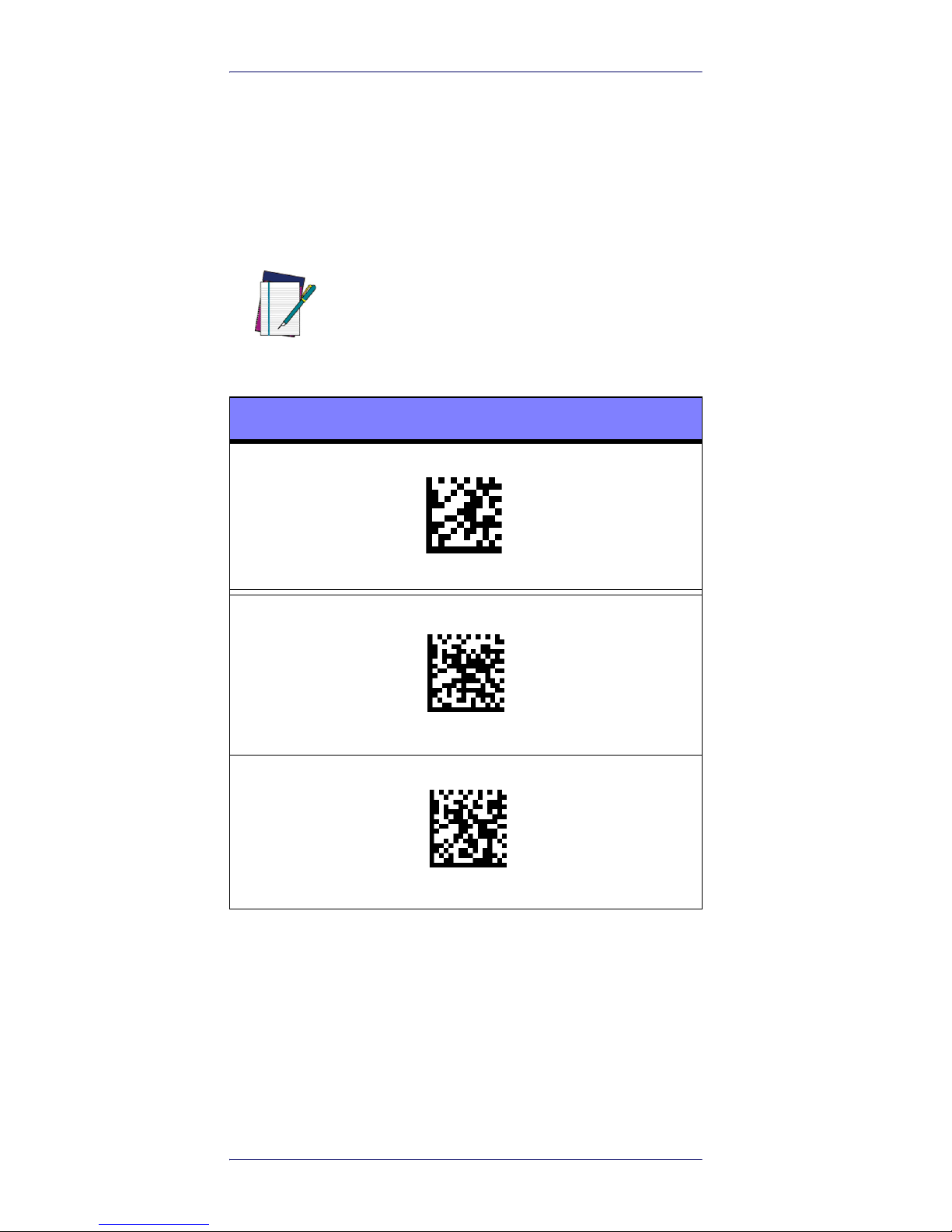

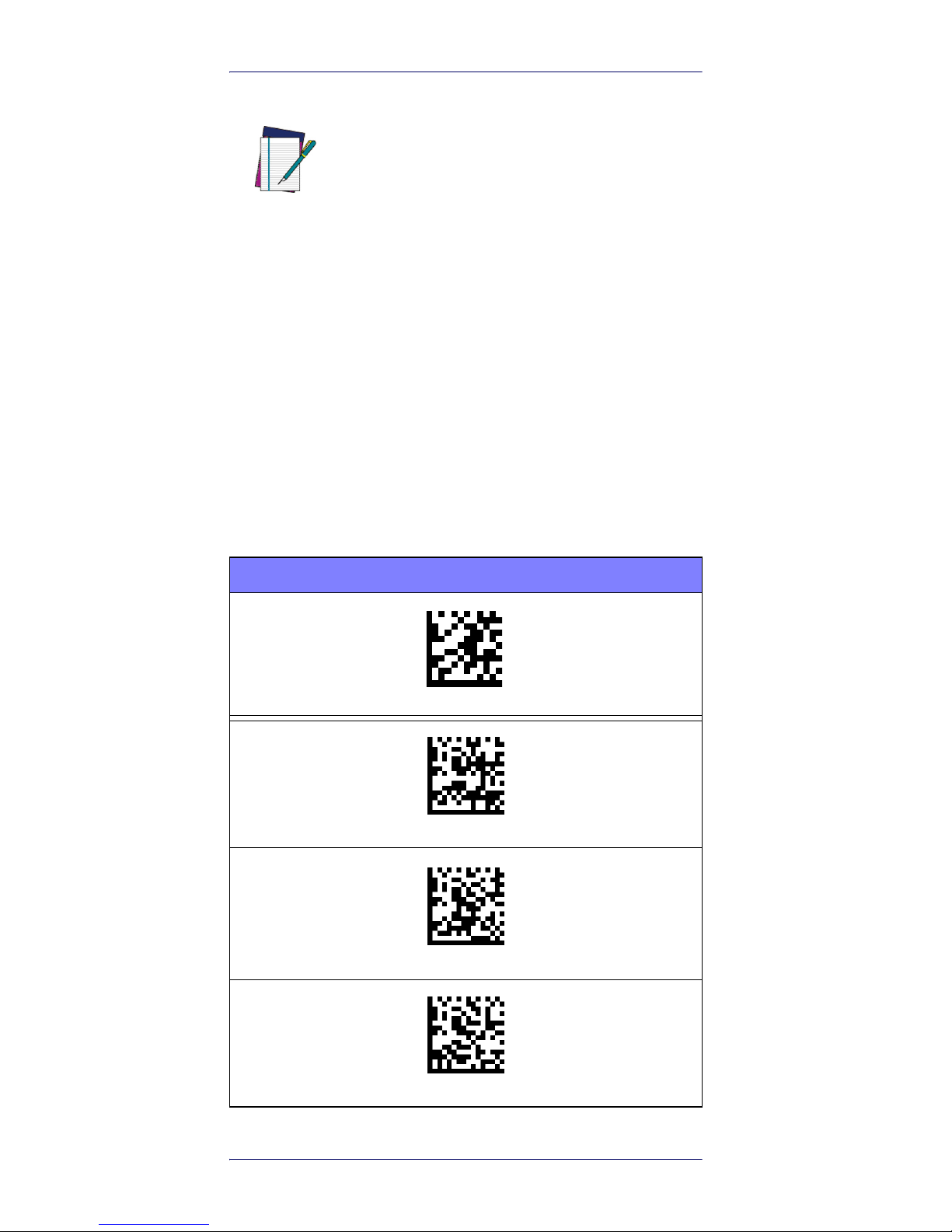

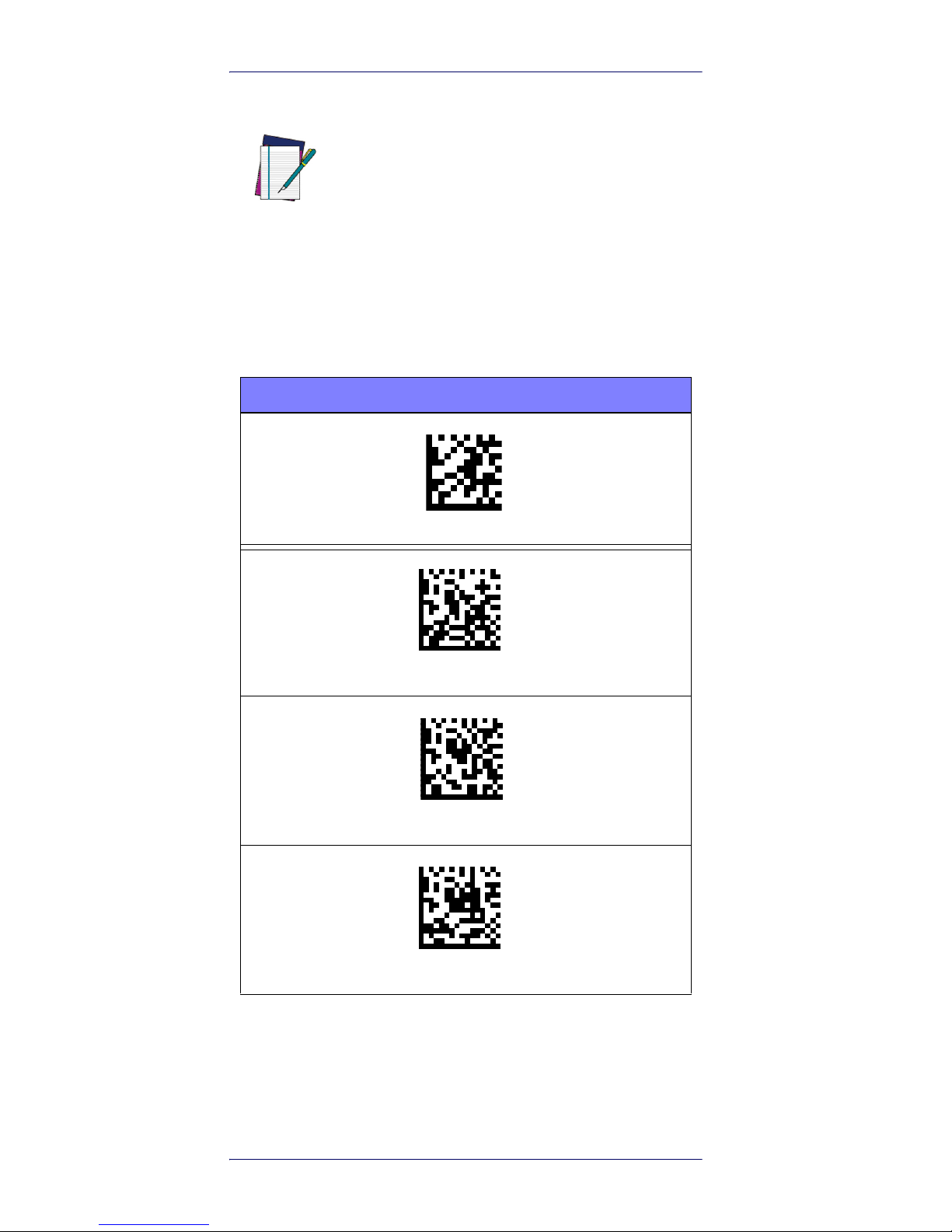

NOTE
The following bar codes can be used either
while in HID mode (when reader is connected
using Bluetooth) or for configuring the base.

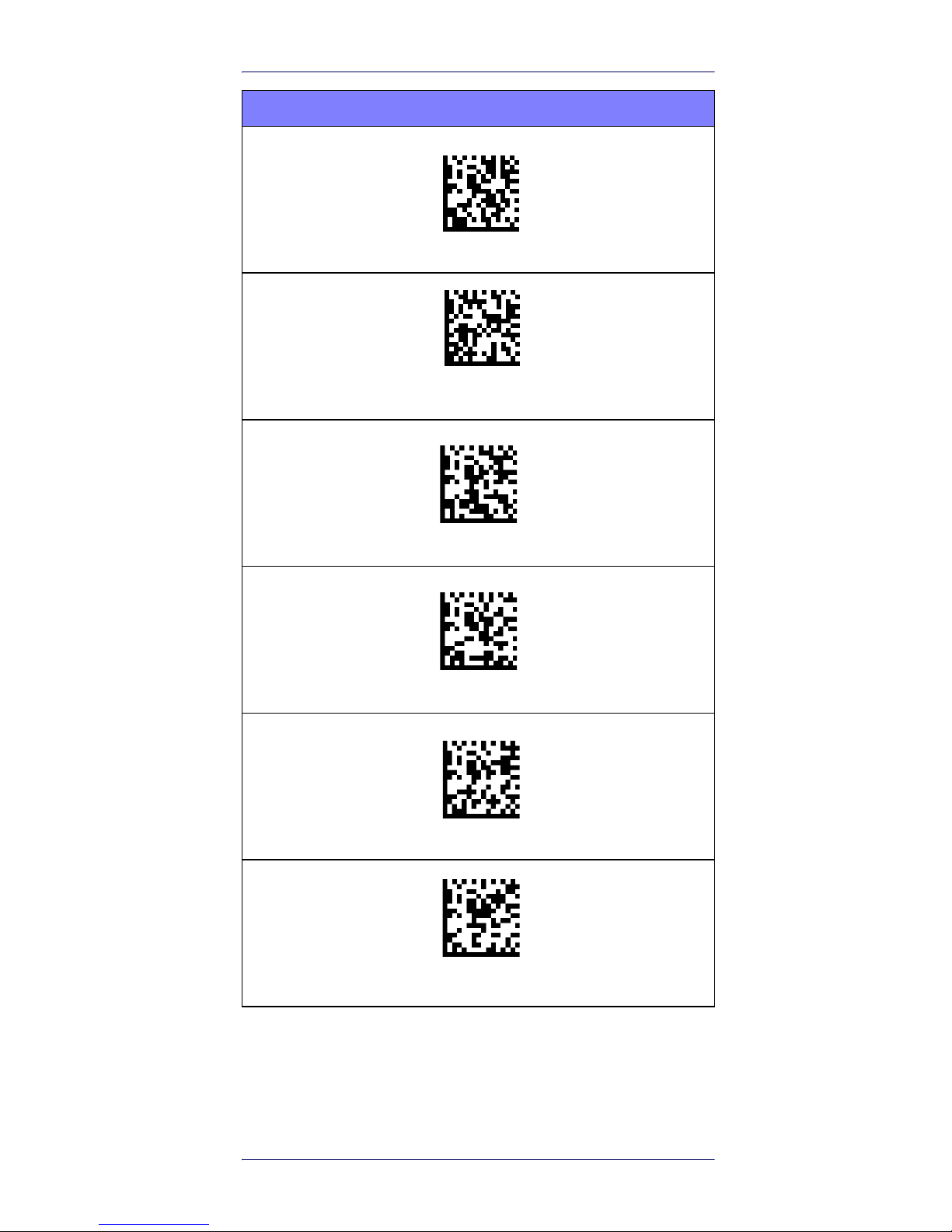

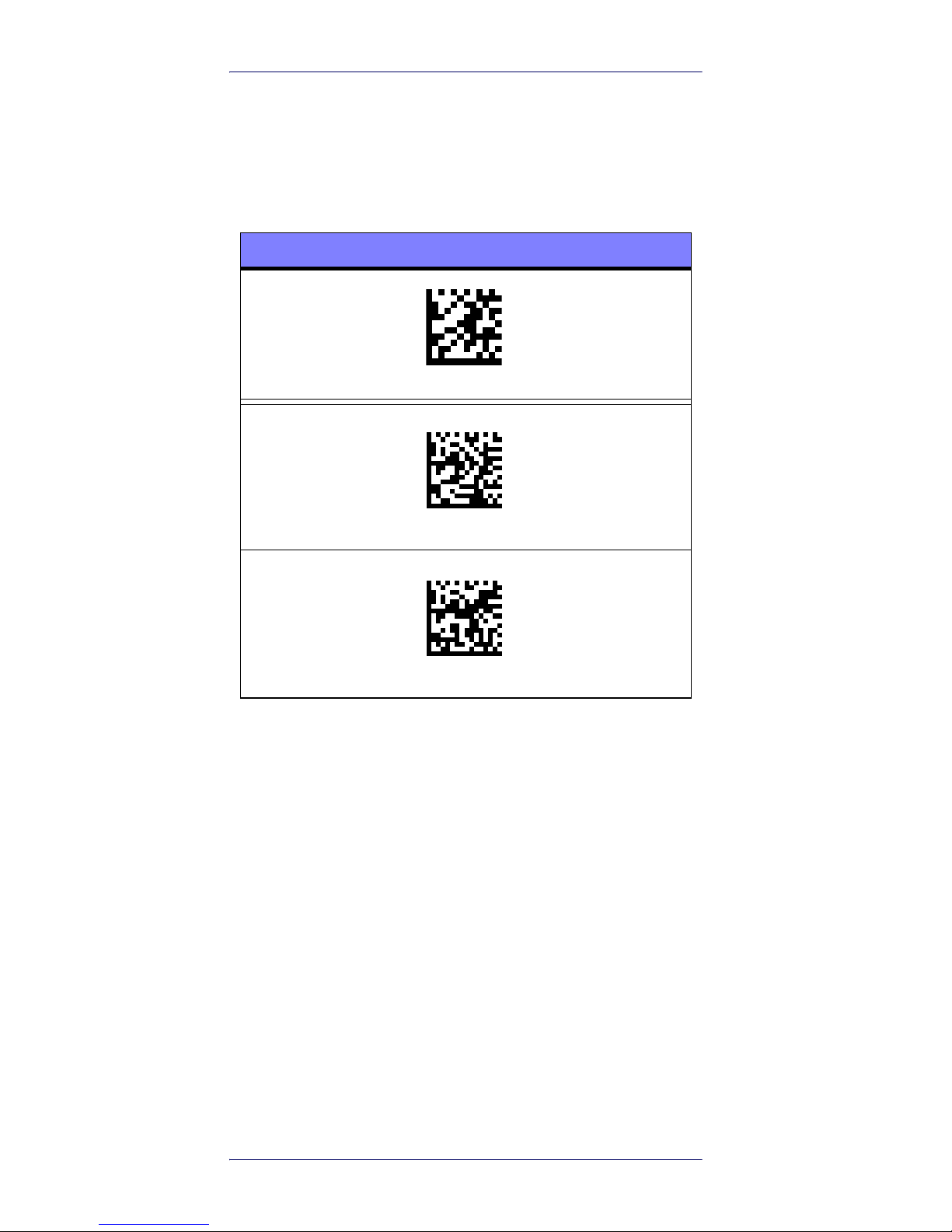

COUNTRY MODE
ENTER/EXIT PROGRAMMING MODE
Country Mode = U.S.
Country Mode = Belgium
Country Mode = Britain
Page 25
Country Mode
Quick Reference Guide 17

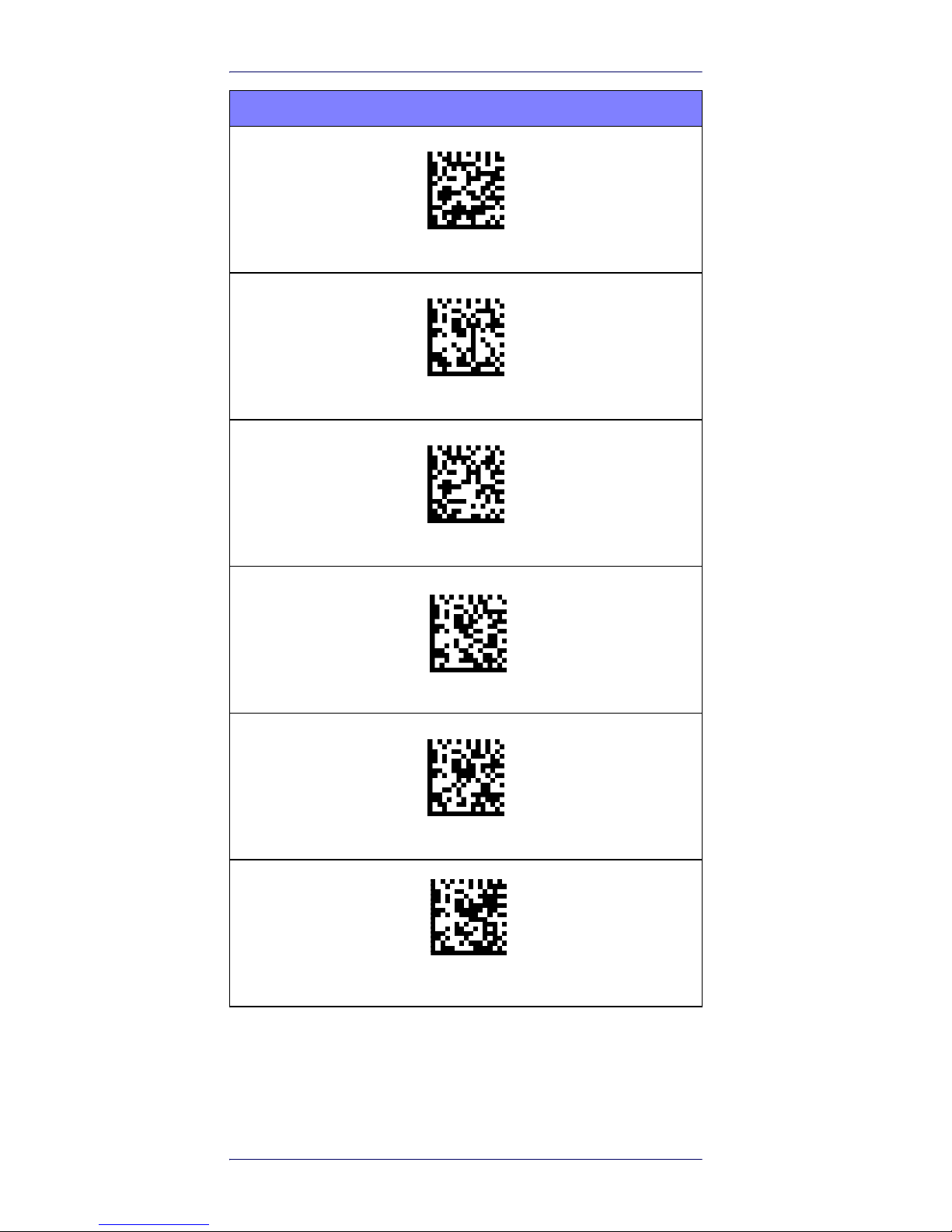

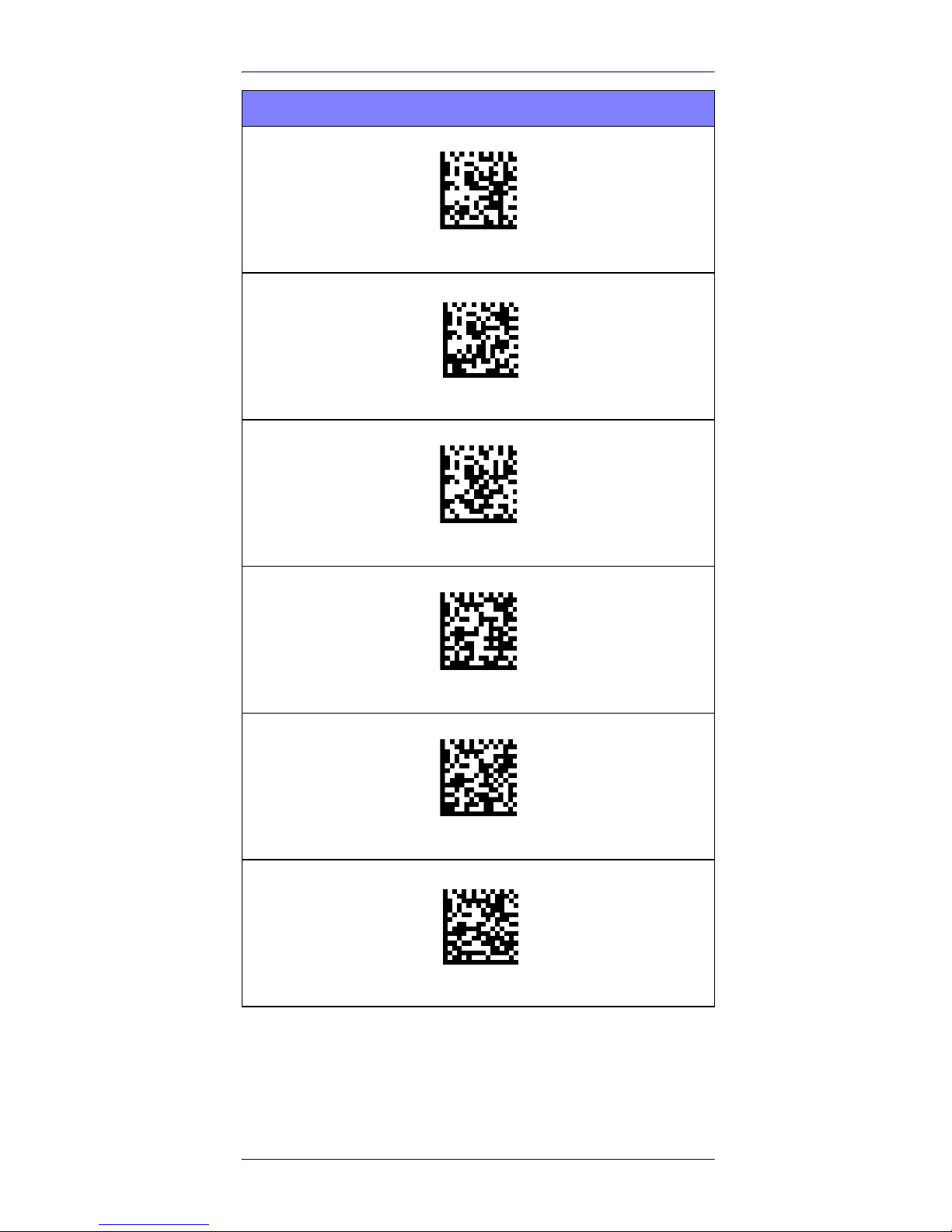

COUNTRY MODE (continued)
Country Mode = Croatia*
Country Mode = Czech Republic*
Country Mode = Denmark*
Country Mode = France
Country Mode = French Canadian*
Country Mode = Germany
*
Supports only the interfaces listed in the Country Mode feature
description (Base configuration only)
Page 26
Country Mode
18 WWS650

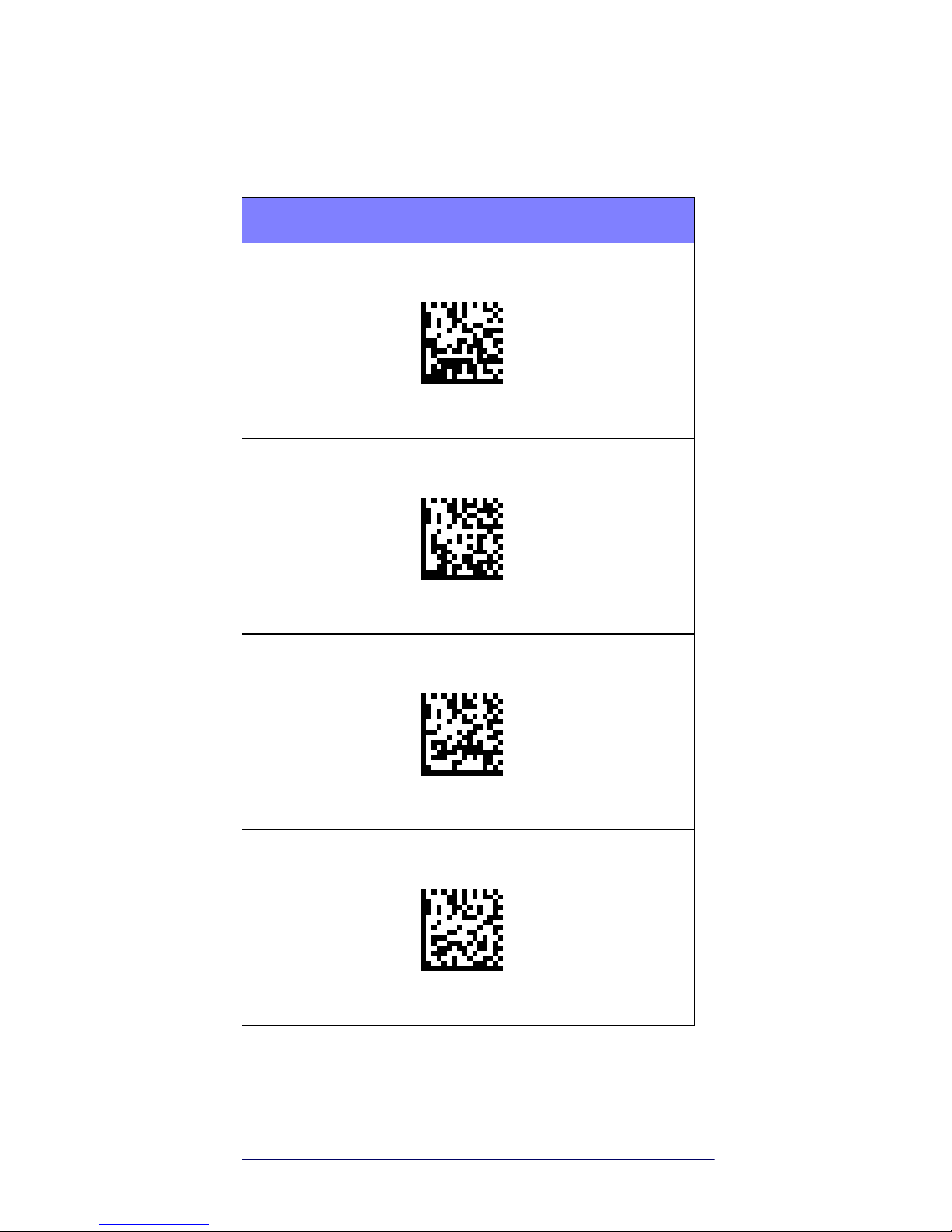

COUNTRY MODE (continued)
Country Mode = Hungary*
Country Mode = Italy
Country Mode = Japanese 106-key*
Country Mode = Lithuanian*
Country Mode = Norway*
Country Mode = Poland*
*
Supports only the interfaces listed in the Country Mode feature
description (Base configuration only)
Page 27
Country Mode
Quick Reference Guide 19
COUNTRY MODE (continued)
Country Mode = Portugal*
Country Mode = Romania*
Country Mode = Spain
Country Mode = Sweden
Country Mode = Slovakia*
Country Mode = Switzerland*
*
Supports only the interfaces listed in the Country Mode feature
description (Base configuration only)
Page 28
Caps Lock State
20 WWS650
Caps Lock State
This option specifies the format in which the reader sends
character data.
When using the Base Interface, this applies only to keyboard
wedge interfaces. It does not apply when an alternate key
encoding keyboard is selected.
NOTE
The following bar codes can be used either
while in HID mode (when reader is connected
using Bluetooth) or for configuring the base.

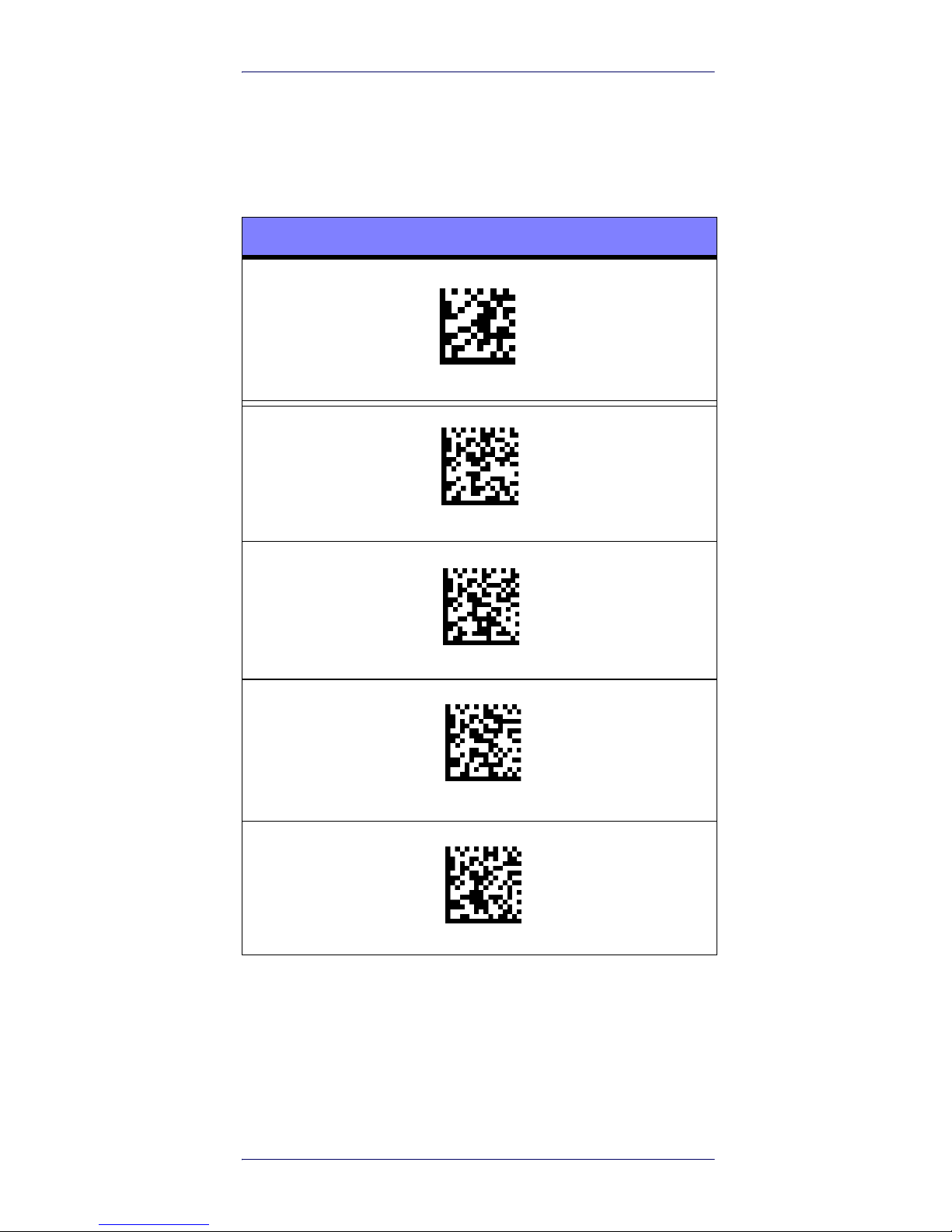

CAPS LOCK STATE
ENTER/EXIT PROGRAMMING MODE
Caps Lock State = Caps Lock OFF
Caps Lock State = Caps Lock ON
Caps Lock State = AUTO Caps Lock Enable
Page 29
Selecting the Base Interface Type
Quick Reference Guide 21
Selecting the Base Interface Type
Upon completing the physical connection between the base
and its host, proceed directly to Interface Selection below for
information and programming for the interface type the base
is connected to (for example: RS-232, Keyboard Wedge, USB,
etc.) and scan the appropriate bar code to select your system’s correct interface type.
Interface Selection
The base will support the following host interfaces:
•RS-232
• RS-232 OPOS
•USB
• Keyboard Wedge
Configuring the Interface
Scan the programming bar code which selects the appropriate
interface type for the system the reader will be connected to.
NOTE
Unlike some other programming features and
options, interface selections require that you
scan only one programming bar code label. DO
NOT scan an ENTER/EXIT bar code prior to scanning an interface selection bar code.
Some interfaces require the scanner to start in a
disabled state when powered up. If additional
configuration is desired in this state, pull the
trigger and hold for 5 seconds to change to a
state that allows programming with bar codes.
Page 30
Selecting the Base Interface Type
22 WWS650

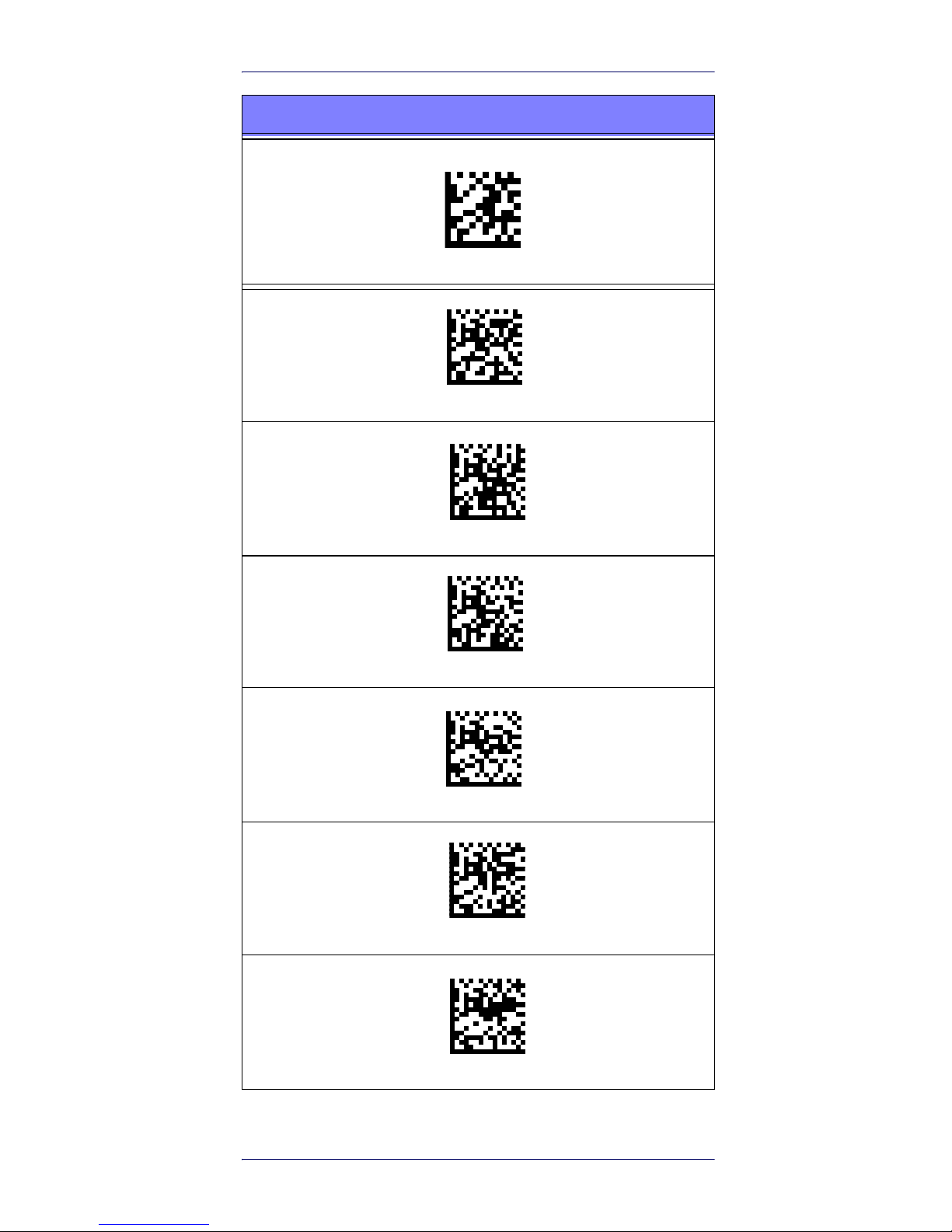

RS-232
RS-232 standard interface
Select RS232-STD
RS-232 Wincor-Nixdorf
Select RS232-WN
RS-232 for use with OPOS/UPOS/JavaPOS
Select RS-232 OPOS
USB COM to simulate RS-232 standard interface
Select USB-COM-STD
a
a. Download the correct USB COM driver from www.waspbarcode.com
USB-OEM
USB-OEM
(can be used for OPOS/UPOS/JavaPOS)
Select USB-OEM
Page 31
Selecting the Base Interface Type
Quick Reference Guide 23
Keyboard Interface
Use the programming bar codes to select options for
USB Keyboard and Wedge Interfaces.
KEYBOARD
AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/
Standard Key Encoding
Select KBD-AT
Keyboard Wedge for IBM AT PS2 with standard key encoding
but without external keyboard
Select KBD-AT-NK
AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
w/Alternate Key
Select KBD-AT-ALT
Keyboard Wedge for IBM AT PS2 with alternate key encoding
but without external keyboard
Select KBD-AT-ALT-NK
Page 32
Selecting the Base Interface Type
24 WWS650
KEYBOARD (continued)
PC/XT w/Standard Key Encoding
Select KBD-XT
Keyboard Wedge for IBM Terminal 3153
Select KBD-IBM-3153
Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx
make only keyboard
Select KBD-IBM-M
Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx
make break keyboard
Select KBD-IBM-MB
USB Keyboard with alternate key encoding
Select USB Alternate Keyboard
Page 33
Selecting the Base Interface Type
Quick Reference Guide 25
Scancode Tables
Reference the WWS650 PRG for information about control
character emulation which applies to keyboard interfaces.
Country Mode
This feature specifies the country/language supported by the
keyboard when configured through the base. See "Country
Mode" on page 16 for programming bar codes and information.
Caps Lock State
This option specifies the format in which the reader sends
character data. See "Caps Lock State" on page 20 for programming bar codes and information.
KEYBOARD (continued)
USB Keyboard for Apple computers
Select USB-KBD-APPLE
Keyboard Wedge for DIGITAL Terminals
VT2xx, VT3xx, VT4xx
Select KBD-DIG-VT
USB Keyboard with standard key encoding
Select USB Keyboard
Page 34
Reading Parameters
26 WWS650
Numlock
This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies
to alternate key encoding interfaces. It does not apply to USB
keyboard.
Reading Parameters
Point the reader at the target and pull the trigger to enable
the aiming system and the illuminator (red beam) to decode
the barcode label. The aiming system will briefly switch off
during the acquisition time and if no code is decoded will
switch on again before the next acquisition. The illuminator
will remain on until the symbol is decoded.
As you read code symbols, adjust the distance at which you
are holding the reader.
Aiming System
A number of options for customizing control of the Aiming
System are available. See the PRG for more information and
programming bar codes.
NUMLOCK
ENTER/EXIT PROGRAMMING MODE
Numlock = Numlock key unchanged
Numlock = Numlock key toggled
Page 35
Reading Parameters
Quick Reference Guide 27
Good Read Green Spot Duration
Successful reading can be signaled by a good read green spot.
Use the bar codes below to specify the duration of the good
read pointer beam after a good read.
GOOD READ GREEN SPOT DURATION
ENTER/EXIT PROGRAMMING MODE
Green Spot Duration = Disable (Green Spot is Off)
Green Spot Duration = Short (300 msec)
Green Spot Duration = Medium (500 msec)
Green Spot Duration = Long (800 msec)
Page 36
Scan Modes
28 WWS650
Scan Modes
The imager can operate in one of several scanning modes.
Trigger Single —
When the trigger is pulled, scanning is acti-
vated until one of the following occurs:
• a programmable duration
1
has elapsed
• a label has been read
• the trigger is released
This mode is associated with typical handheld reader operation.
Trigger Hold Multiple —
When the trigger is pulled, scanning
starts and the product scans until the trigger is released or a
programmable duration
1
has elapsed. Reading a label does
not disable scanning. Double Read Timeout
1
prevents unde-
sired multiple reads while in this mode.
Trigger Pulse Multiple —
When the trigger is pulled and
released, scanning is activated until programmable duration1
has elapsed or the trigger has been pulled again to transition
to another state. Double Read Timeout
1
prevents undesired
multiple reads while in this mode.
Flashing —
The reader flashes1 on and off regardless of the
trigger status.
Always On —
No trigger pull is required to read a bar code.
Scanning is continually on. If the trigger is pulled, the reader
acts as if it is in Trigger Single Mode. Double Read Timeout
1
prevents undesired multiple reads while in this mode.
1. See the Product Reference Guide (PRG) for more information
Page 37
Scan Modes
Quick Reference Guide 29

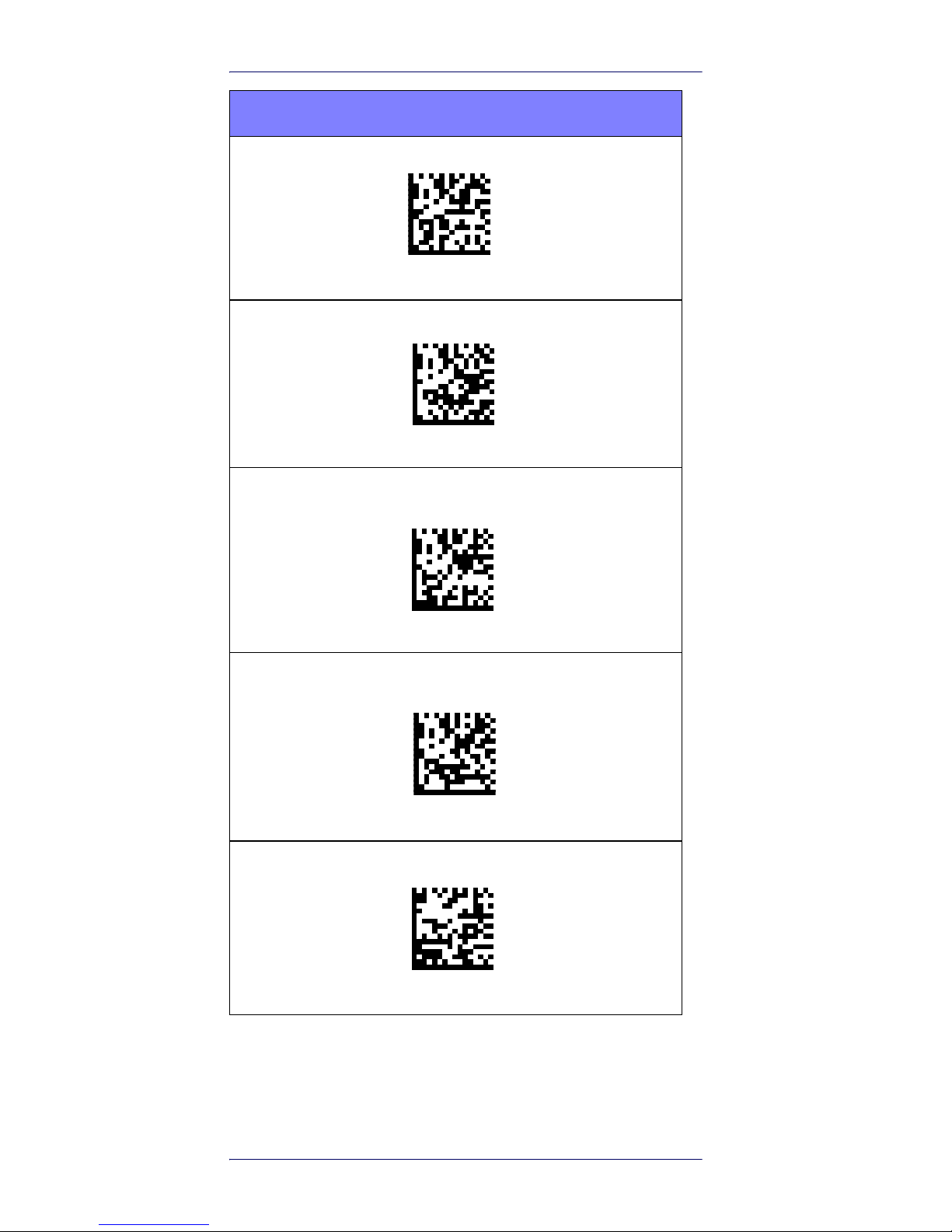

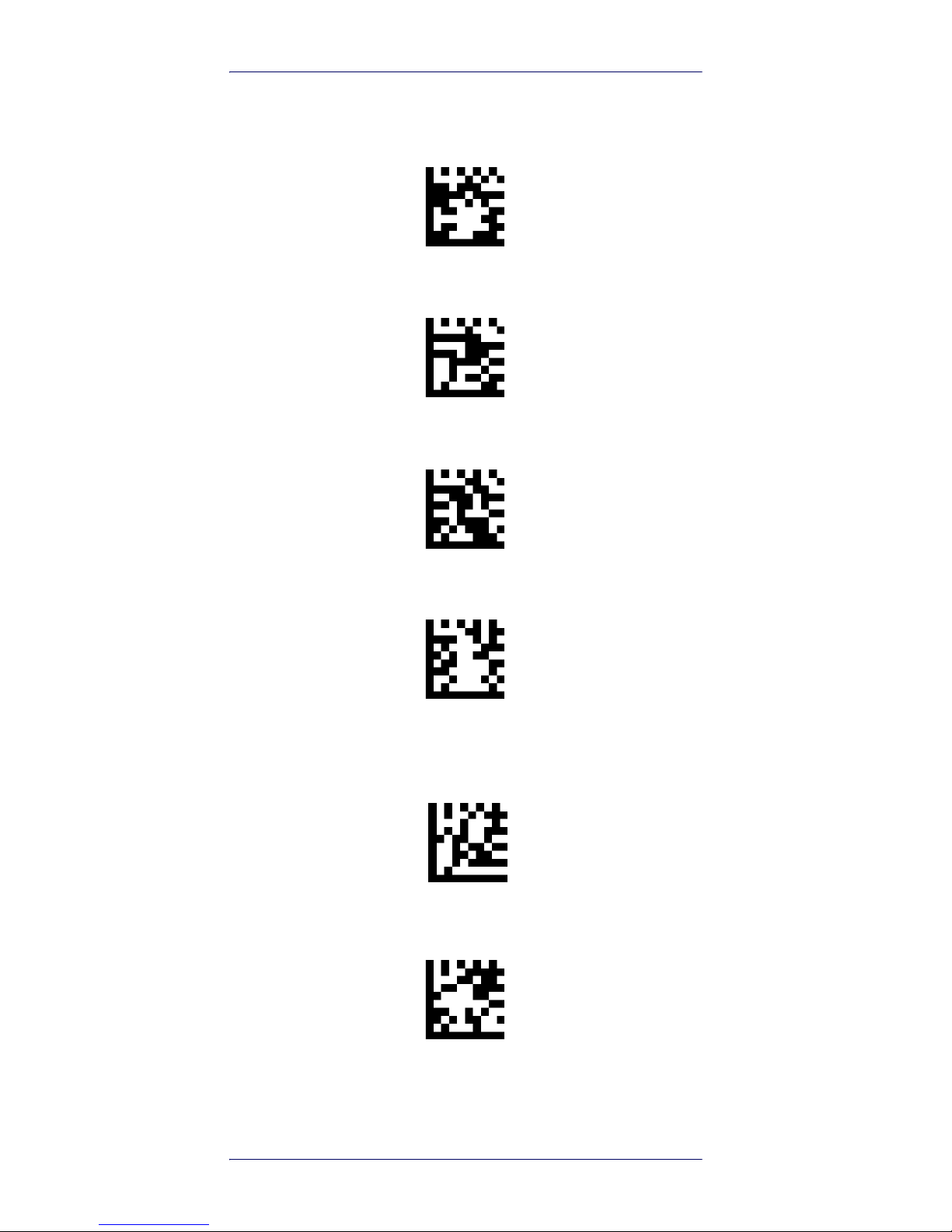

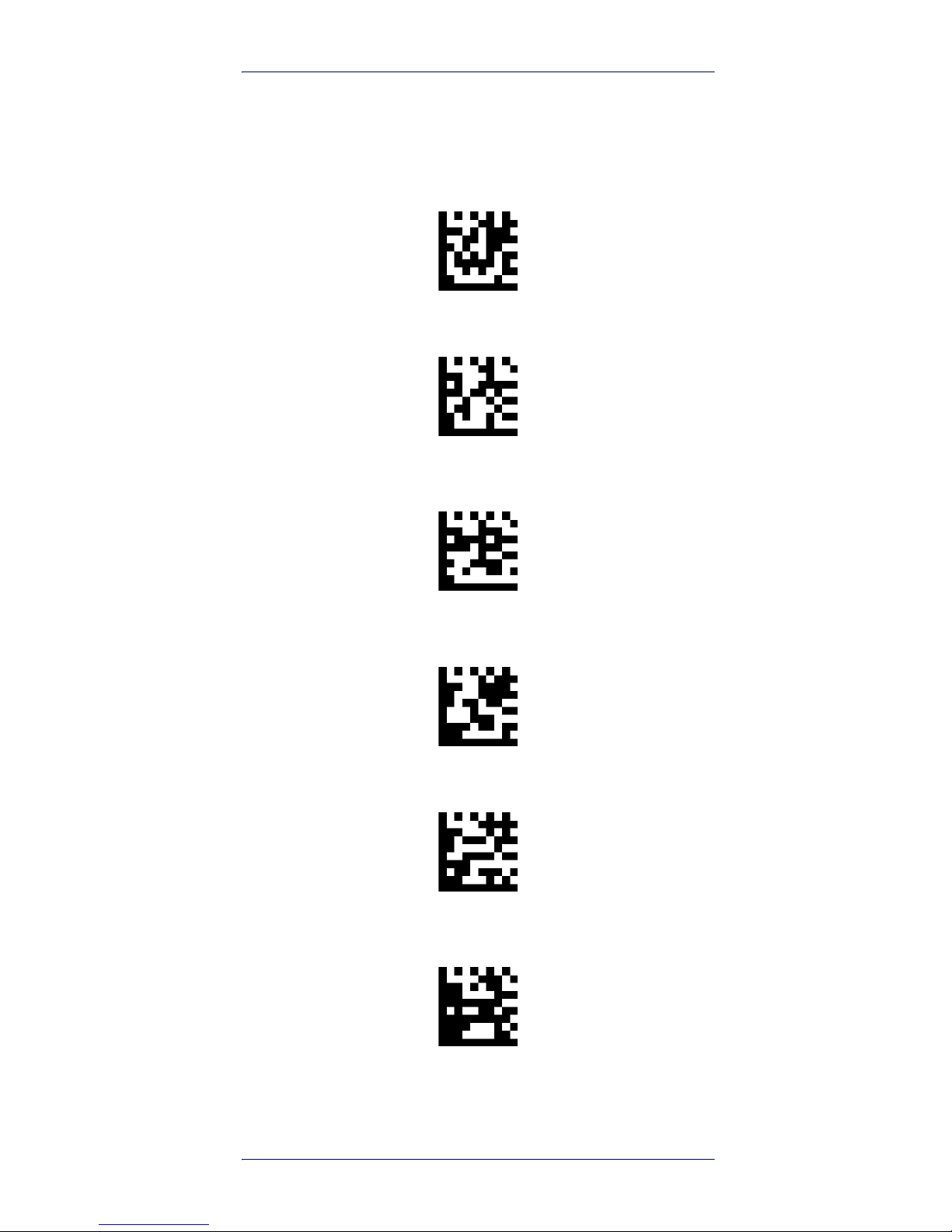

SCAN MODES
ENTER/EXIT PROGRAMMING MODE
Scan Mode = Trigger Single
Scan Mode = Trigger Hold Multiple
Scan Mode = Trigger Pulse Multiple
Scan Mode = Flashing
Scan Mode = Always On
Scan Mode = Stand Mode
Page 38
Scan Modes
30 WWS650
Pick Mode
Pick Mode is a Decoding and Transmission process where bar
codes that are not within the configurable distance from the
center of the aiming pattern are not acknowledged or transmitted to the host. It is active only while the scanner is in
Trigger Single mode. If the scanner switches to a different
Read Mode, Pick Mode is automatically disabled.
Multiple Labels in a Volume
Enables/disables the ability of scanner to decode multiple
labels in the same image. Several programming options are
available for this feature, see the PRG for more information.
NOTE
This feature is not compatible with Multiple
Labels Reading in a Volume. See the PRG for
more information.

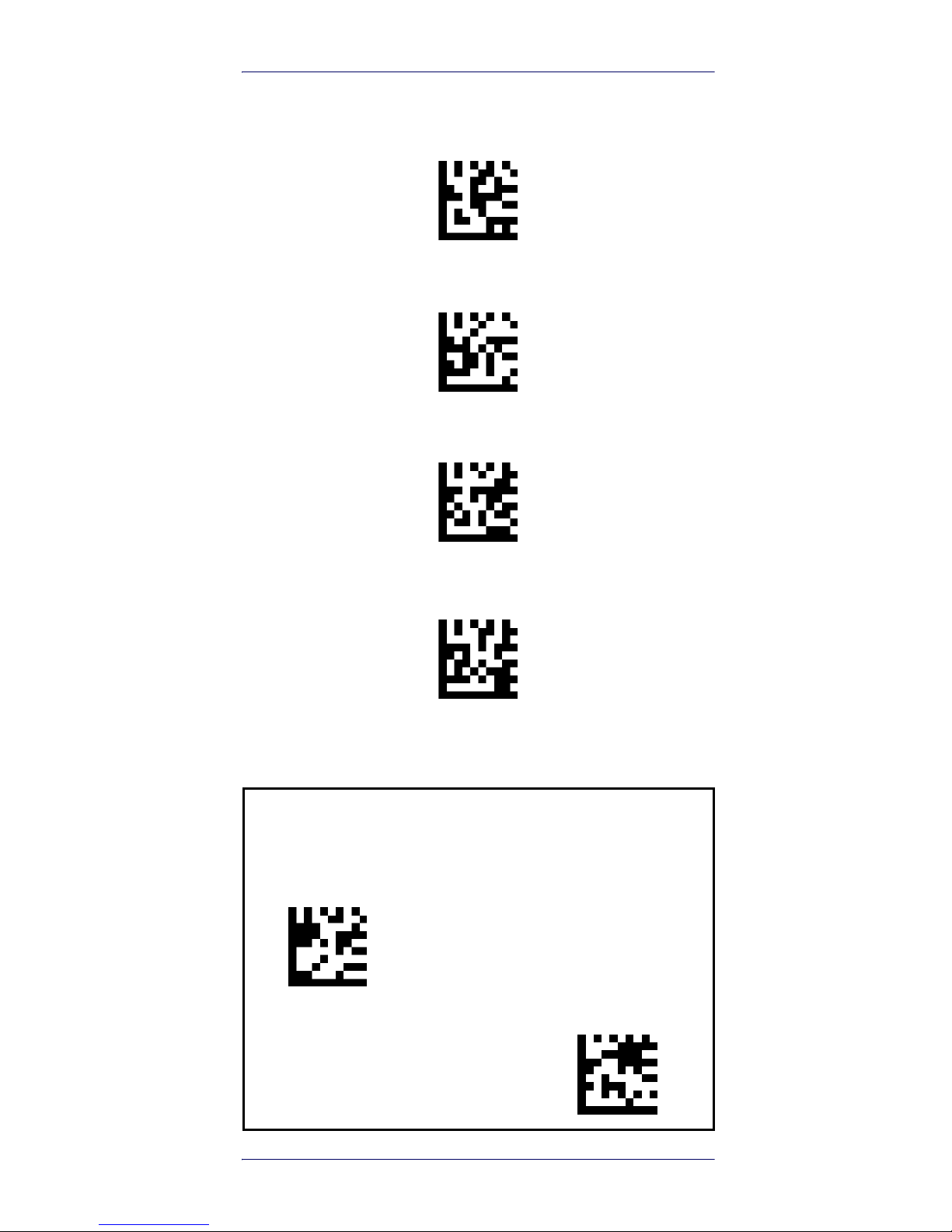

PICK MODE
ENTER/EXIT PROGRAMMING MODE
Pick Mode = Disable
Pick Mode = Enable
Page 39
Technical Specifications
Quick Reference Guide 31
Technical Specifications
The following table contains Physical and Performance Characteristics, User Environment and Regulatory information.
Physical Characteristics
Color White or Black
Dimensions
Height 6.4”/163 mm
Length 3.6”/91 mm
Width 1.6”/41 mm
Weight (without
cable)
Approximately
200 g (reader)
230 g (base charger)
Electrical Characteristics
Battery Type Li-Ion battery pack
Typical charge time
for full charge from
full discharge
6 hours with Host Power through the
micro USB cable connection
4 hours with Base and 12V external power
supply adapter
a
Max 22 hours with Base and Host power
(in this case no supply adapter is needed)
a
Operating autonomy (continuous
reading)
30,000 reads
(typical)
Cradle consumption and DC input
supply range
Volt 4.75-14 VDC; Power <8W
b
;
Max 500mA when in host/bus powered
mode
b
.
Page 40
Technical Specifications
32 WWS650
Performance Characteristics
Light Source LEDs
Roll (Tilt) Angle
c
Up to ± 180°
Pitch Angle
c.
± 40°
Skew (Yaw) Angle
c.
± 40°
Field of View 40° H x 26° V
a. Charge Times are much lower when battery is within daily typical operat-
ing condition.
b. Typical input current measured under factory default configuration.
c. Based on ISO 15423 specifications
Depth of Field (Typical)
a
a. 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade
A, typical environmental light, 20°C, label inclination 10°
Symbology
Code 39
5mil: 0.2" - 5.9" (0.5 - 15cm)
10mil: 0" - 8.7" (0 - 22cm)
20mil: up to 16" (40cm)
EAN
7.5mil: 0" - 5.9" (0 - 15cm)
13mil: 0.2" - 13.8" (0.5 - 35cm)
PDF-417
6.6mil: 0.39" - 5.1" (1.0 - 130cm)
10mil: 0" - 8.3" (0 - 21cm)
15mil: 0.2" - 9.5" (0.5 - 24cm)
DataMatrix
10mil: 0.39" - 5.1" (1.0 - 13 cm)
15mil: 0" - 7.1" (0 - 18cm)
QR Code
10mil: 0.2" - 5.1" (0.5 - 13cm)
15mil: 0" - 7.1" (0 - 18cm)
Minimum
Element Width
Standard Range:
1D Min Resolution = 4 mil
PDF-417 Min Resolution = 5 mil
Datamatrix Min Resolution = 7.5 mil
Print Contrast
Minimum
25% minimum reflectance
Page 41
Technical Specifications
Quick Reference Guide 33
Decode Capability
1D Bar Codes
UPC/EAN/JAN (A, E, 13, 8); UPC/EAN/JAN (including P2 /P5);
UPC/EAN/JAN (including; ISBN / Bookland & ISSN); UPC/EAN
Coupons; Code 39 (including full ASCII); Code 39 Trioptic; Code39
CIP (French Pharmaceutical); LOGMARS (Code 39 w/ standard
check digit enabled); Danish PPT; Code 32 (Italian Pharmacode 39);
Code 128; Code 128 ISBT; Interleaved 2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2
of 5 (China Post Code/Chinese 2 of 5); IATA 2of5 Air cargo code;
Code 11; Codabar; Codabar (NW7); ABC Codabar; Code 93; MSI;
PZN; Plessey; Anker Plessey; Follet 2 of 5; GS1 DataBar Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1
DataBar Truncated; DATABAR Expanded Coupon.
2D / Stacked Codes
The Wasp WWS650 scanner is capable of decoding the following
symbologies using multiple frames (i.e. Multi-Frame Decoding):
PDF-417; QR Code; Aztec; Datamatrix; Inverse Datamatrix; Datamatrix is configurable for the following parameters:; Normal or
Inverted; Square or Rectangular Style; Data length (1 - 3600 characters); Maxicode; QR Codes (QR, Micro QR and Multiple QR
Codes); Aztec; Postal Codes; Australian Post; Japanese Post; KIX
Post; Planet Code; Postnet; Royal Mail Code (RM45CC); Intelligent
Mail Bar Code (IMB); Sweden Post; Portugal Post; LaPoste A/R 39;
4-State Canada; PDF-417; MacroPDF; Micro PDF417; GS1 Composites (1 - 12); Codablock F; French CIP13
a
; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; GS1 DataBar Expanded
Stacked; GSI Databar Composites; Chinese Sensible Code; Inverted
2D codes.
Note: The reader can apply the Normal/Reverse Decoding Control
to the following symbologies: Datamatrix, QR, Micro QR, Aztec and
Chinese Sensible Code.
Interfaces Supportedb
RS-232 Std, RS-232 Wincor-Nixdorf, RS-232 OPOS, USB Com Std.,
USB Keyboard, USB Alternate Keyboard, USB OEM, Keyboard
Wedge (AT with or w/o Alternate Key, IBM AT PS2 with or w/o
Alternate Key, PC-XT, IBM 3153, IBM Terminals 31xx, 32xx,34xx,
37xx make only and make break keyboard, Digital Terminals VT2x,
VT3xx, VT4xx, and Apple).
Page 42
Technical Specifications
34 WWS650
User Environment
Operating
Temperature
32° to 122° F (0° to 50° C)
Charging
Temperature
32° to 104° F (0° to 40° C)
Storage
Temperature
-4° to 158° F (-20° to 70° C)
Humidity
Operating: 5% to 90% relative humidity,
non-condensing
Drop Specifications
Scanner withstands 18 drops from 1.5 m
(4.9 feet) to concrete
Ambient Light
Immunity
Up to 100,000 Lux
Contaminants
Spray/rain Dust/
particulates
IEC 529-IP42 (scanner only)
ESD Level 16 KV
Regulatory
Electrical Safety UL 60950, CSA C22.2 No. 60950, IEC 60950
EMI/RFI See Regulatory addendum
Radio Features
Frequency Range 2400 to 2483.5 MHz
Range (in open air) 25 m
a. It is acceptable to handle this with ULE
b. See "Interface Selection" on page 21 for a listing of available interface sets
by version type.
Page 43
LED and Beeper Indications
Quick Reference Guide 35
LED and Beeper Indications
The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional
“Green Spot” also performs useful functions. The following
tables list these indications. One exception to the behaviors
listed in the tables is that the reader’s functions are programmable, and so may or may not be turned on. For example, certain indications such as the power-up beep can be disabled
using programming bar code labels.
Indication Description LED Beeper
Power-up
Beep
The reader is in the
process of powering-up.
N/A
Reader beeps
four times at
highest frequency and volume upon
power-up.
Good Read
Beep
A label has been
successfully
scanned by the
reader.
LED behavior for
this indication is
configurable via
the feature “Good
Read: When to
Indicate” (see the
PRG for information.)
The reader will
beep once at current frequency,
volume, mono/
bi-tonal setting
and duration
upon a successful label scan.
ROM Failure
There is an error in
the reader's software/programming
Flashes
Reader sounds
one error beep at
highest volume.
Limited
Scanning
Label Read
Indicates that a
host connection is
not established
when the IBM or
USB interface is
enabled.
N/A
Reader 'chirps' six
times at the
highest frequency and current volume.
Reader
Active Mode
The reader is
active and ready to
scan.
The LED is lit
steadily
a
N/A
Reader
Disabled
The reader has
been disabled by
the host.
The LED blinks
continuously
N/A
Page 44
LED and Beeper Indications
36 WWS650
a Except when in sleep mode or when a Good Read LED Duration other than
00 is selected
Programming Mode
- The following indications ONLY occur when
the reader is in Programming Mode.
Green Spot
a
flashes
momentarily
Upon successful
read of a label, the
software shall turn
the green spot on
for the time specified by the configured value.
N/A N/A
Indication Description LED Beeper
Label Programming Mode Entry
A valid programming label has been
scanned.
LED blinks
continuously
Reader sounds
four low frequency beeps.
Label Programming Mode Rejection of Label
A label has been
rejected.
N/A
Reader sounds
three times at
lowest frequency and current volume.
Label Programming Mode Acceptance of Partial
Label
In cases where
multiple labels
must be scanned to
program one feature, this indication
acknowledges each
portion as it is successfully scanned.
N/A
Reader sounds
one short beep
at highest frequency and current volume.
Label Programming Mode Acceptance of
Programming
Configuration
option(s) have been
successfully programmed via labels
and the reader has
exited Programming Mode.
N/A
Reader sounds
one high frequency beep
and 4 low frequency beeps
followed by
reset beeps.
Label Programming Mode Cancel
Item Entry
Cancel label has
been scanned.
N/A
Reader sounds
two times at low
frequency and
current volume.
Indication Description LED Beeper
Page 45
Error Codes
Quick Reference Guide 37
Error Codes
Upon startup, if the reader sounds a long tone, this means the
reader has not passed its automatic Selftest and has entered
FRU (Field Replaceable Unit) isolation mode. If the reader is
reset, the sequence will be repeated. The following table
describes the LED flashes/beep codes associated with an
error found.
Base Station Indications
Number of LED
Flashes/
Beeps
Error
Corrective
Action
1 Configuration
Contact
Helpdesk
for assis-
tance
2Interface PCB
6 Digital PCB
12 Imager
Indication LEDs
Power-up Complete Yellow LED on
Reader Disabled by the HOST or
the communication with HOST is
not established
Yellow LED blinking ~1Hz
Data/labels are transmitted to
the HOST
Yellow LEDs turned off for
100mSec
Programming Mode Yellow LED blinks quickly
Configuration alignment with the
HH is in progress
Red LED blinks quickly
Battery charger in progress Red LED on
Battery charger complete Green LED on
Battery charger error
Green LED and Red LEDs
blink alternatively ~1Hz
No HH is placed on the cradle Red and Green LEDs off
Page 46
Base Station Indications
38 WWS650
Wasp Technologies Limited Factory Warranty
Warranty Coverage
Wasp warrants to Customer that Wasp's products will be free
from defects in materials and workmanship for a period of
three years from product shipment. Wasp Barcode Technologies ("Wasp") hardware products are warranted against
defects in material and workmanship under normal and
proper use. The liability of Wasp under this warranty is limited
to furnishing the labor and parts necessary to remedy any
defect covered by this warranty and restore the product to its
normal operating condition. Repair or replacement of product
during the warranty does not extend the original warranty
term. Products are sold on the basis of specifications applicable at the time of manufacture and Wasp has no obligation to
modify or update products once sold. If Wasp determines that
a product has defects in material or workmanship, Wasp shall,
at its sole option repair or replace the product without additional charge for parts and labor, or credit or refund the defective products duly returned to Wasp. To perform repairs,
Wasp may use new or reconditioned parts, components, subassemblies or products that have been tested as meeting
applicable specifications for equivalent new material and
products. Customer will allow Wasp to scrap all parts
removed from the repaired product. The warranty period shall
extend from the date of shipment from Wasp for the duration
published by Wasp for the product at the time of purchase
(Warranty period). Wasp warrants repaired hardware devices
against defects in workmanship and materials on the
repaired assembly for a 90 day period starting from the date
of shipment of the repaired product from Wasp or until the
expiration of the original warranty period, whichever is longer.
Wasp does not guarantee, and it is not responsible for, the
maintenance of, damage to, or loss of configurations, data,
and applications on the repaired units and at its sole discretion can return the units in the "factory default" configuration
or with any software or firmware update available at the time
of the repair (other than the firmware or software installed
during the manufacture of the product). Customer accepts
responsibility to maintain a back up copy of its software and
data.
Refer to:
http://www.waspbarcode.com/support/warranty-claims
Warranty Claims:
http://www.waspbarcode.com/support/warranty-claims
Page 47
Base Station Indications
Quick Reference Guide 39
Warranty Exclusions
The Wasp Factory Warranty shall not apply to:
(i) any product which has been damaged, modified, altered,
repaired or upgraded by other than Wasp service personnel or its authorized representatives;
(ii) any claimed defect, failure or damage which Wasp
determines was caused by faulty operations, improper
use, abuse, misuse, wear and tear, negligence, improper
storage or use of parts or accessories not approved or
supplied by Wasp;
(iii) any claimed defect or damage caused by the use of prod-
uct with any other instrument, equipment or apparatus;
(iv) any claimed defect or damage caused by the failure to
provide proper maintenance, including but not limited to
cleaning the upper window in accordance with product
manual;
(v) any defect or damage caused by natural or man-made
disaster such as but not limited to fire, water damage,
floods, other natural disasters, vandalism or abusive
events that would cause internal and external component damage or destruction of the whole unit, consumable items;
(vi) any damage or malfunctioning caused by non-restoring
action as for example firmware or software upgrades,
software or hardware reconfigurations etc.;
(vii) the replacement of upper window/cartridge due to
scratching, stains or other degradation and/or
(viii) any consumable or equivalent (e.g., cables, power supply,
batteries, keypads, touch screen, triggers etc.).
No Assignment
Customer may not assign or otherwise transfer its rights or
obligations under this warranty except to a purchaser or
transferee of product. No attempted assignment or transfer
in violation of this provision shall be valid or binding upon
Wasp Technologies.
Page 48
Base Station Indications
40 WWS650
Wasp Technologies LIMITED WARRANTY IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE, INCLUDING, WITHOUT LIMITA- TION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY,
FIT- NESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. WASP SHALL NOT BE LIABLE FOR ANY DAMAGES SUSTAINED BY CUSTOMER ARISING FROM DELAYS IN THE
REPLACEMENT OR REPAIR OF PRODUCTS UNDER THE
ABOVE. THE REMEDY SET FORTH IN THIS WARRANTY STATEMENT IS THE CUSTOMER'S SOLE AND EXCLUSIVE REMEDY
FOR WARRANTY CLAIMS. UNDER NO CIRCUMSTANCES WILL
WASP BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR
ANY LOST PROFITS, OR ANY INCIDENTAL, CONSEQUEN- TIAL
IN-DIRECT, SPECIAL OR CONTINGENT DAMAGES REGARDLESS
OF WHETHER WASP HAD ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
Risk of Loss
Customer shall bear risk of loss or damage for product in
transit to Wasp Technologies. Wasp Technologies shall
assume risk of loss or damage for product in Wasp Technologies possession. In the absence of specific written instructions for the return of product to Customer, Wasp
Technologies will select the carrier, but Wasp shall not
thereby assume any liability in connection with the return
shipment.
Page 49
Ergonomic Recommendations
Quick Reference Guide 41
Ergonomic Recommendations
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy
reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Cleaning
Exterior surfaces and scan windows exposed to spills,
smudges or debris require periodic cleaning to ensure best
performance during scanning operations. Contacts on the
scanner and the base should also be cleaned as needed to
ensure a good connection.
Be sure to unplug the reader and base before cleaning.
Use a soft, dry cloth to clean the product. If the product is very
soiled, clean it with a soft cloth moistened with a diluted nonaggressive cleaning solution or diluted ethyl alcohol.
CAUTION
In order to avoid or minimize the potential risk
of ergonomic injury follow the recommendations below. Consult with your local Health &
Safety Manager to ensure that you are adhering
to your company’s safety programs to prevent
employee injury.
CAUTION
Do not use abrasive or aggressive cleansing
agents or abrasive pads to clean scan windows,
contacts or plastics.
Do not spray or pour liquids directly onto the
unit.
Page 50
Cleaning
42 WWS650
Cleaning (continued)
Support through the Website
Wasp provides several services as well as technical support
through its website. Log on
to www.waspbarcode.com
and click on the SUPPORT link
which gives you access to:
Downloads by selecting your product model from the drop-
down list in the Search by
Product field for specific Data Sheets, Manuals, Software &
Utilities, and Drawings;
Repair Program for On-Line Return Material Authorizations
(RMAs) plus Repair
Center contact information;
Customer Service containing details about Maintenance
Agreements;
Technical Support through email or phone.
Page 51
Hex-Numeric Keypad
Quick Reference Guide 43
Hex-Numeric Keypad
Use the bar codes that follow to enter numbers as you
would select digits/characters from a keypad.
0
1
2
3
4
5
Page 52
Hex-Numeric Keypad
44 WWS650
Hex-Numeric Keypad (continued)
6
7
8
9
A
B
Page 53
Hex-Numeric Keypad
Quick Reference Guide 45
Hex-Numeric Keypad (continued)
C
D
E
F
For HID Variable Pin Code only
If you make a mistake, scan the CANCEL barcode below
to abort and not save the entry string. You can then
restart.
Finish by scanning the Exit HID Variable PIN Code label.
Cancel an incomplete HID Variable PIN Code
Exit HID Variable PIN Code
Page 54
Hex-Numeric Keypad
46 WWS650
NOTES
Page 55
Page 56
©2014 - 2018 Wasp and its Group companies - All right reserved.
Wasp Technologies and the Wasp Technologies logo are
registered trademarks of Wasp Barcode Technologies in many
countries, including the U.S.A. and the E.U.
Wasp Barcode Technologies
1400 10th Street Plano, Texas | USA 75074
Telephone: (214) 547-4100
www.waspbarcode.com
820100614 Rev. A April 2018
