Wasp WLP 4170 Programming Manual

Page 1

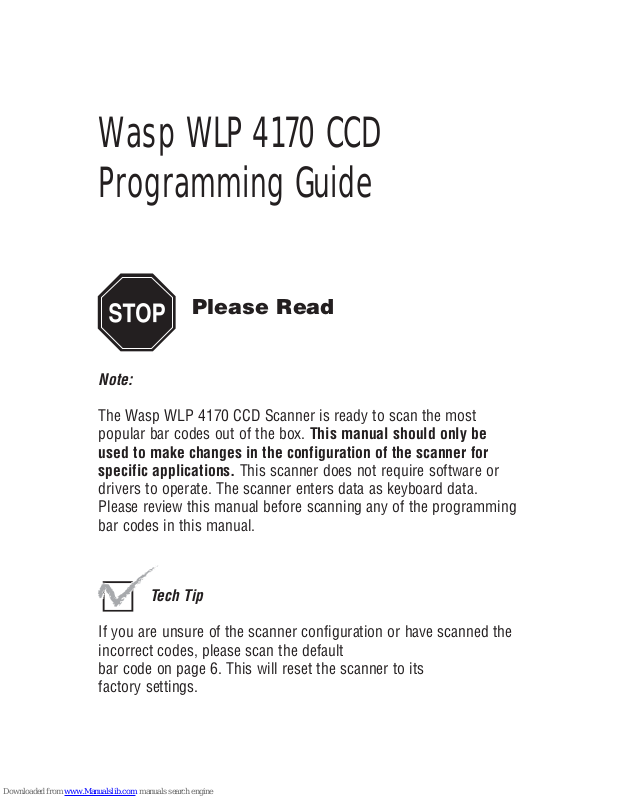

Wasp WLP 4170 CCD Programming Guide

Please Read

Note:

The Wasp WLP 4170 CCD Scanner is ready to scan the most popular bar codes out of the box. This manual should only be

used to make changes in the configuration of the scanner for specific applications. This scanner does not require software or

drivers to operate. The scanner enters data as keyboard data. Please review this manual before scanning any of the programming bar codes in this manual.

Tech Tip

If you are unsure of the scanner configuration or have scanned the incorrect codes, please scan the default bar code on page 6. This will reset the scanner to its factory settings.

Page 2

No part of this publication may be reproduced or transmitted in any form or by any means without the written permission of Wasp Technologies. The information contained in this document is subject to change without notice.

Wasp is a trademark of Wasp Technologies. All other trademarks or registered trademarks are the

property of their respective owners.

Page 3

Table of Contents

Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Chapter 2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Chapter 3. Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Chapter 4. Bar Code Symbologies . . . . . . . . . . . . . . . . . . . . . . . .4

Chapter 5. Setup & Configuration . . . . . . . . . . . . . . . . . . . . . .5-34

1. Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2. Beep and Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3. Intercharacter Delay . . . . . . . . . . . . . . . . . . . . . . . .8

4. Keyboard Wedge . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5. Scanning Modes, Country Codes . . . . . . . . . . . . .10

6. Set Terminator/Preamble/Postamble Configuration . .11

5. Bar Code Symbology . . . . . . . . . . . . . . . . . . . .12-29

Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13

Code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15

UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

UPC-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

EAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-21

EAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-23

Code 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Interleaved 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . .25

Codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-27

MSI/Plessey . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

PDF417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Appendix A Bar Code Test Symbols . . . . . . . . . . . . . . . . . . . .30-33

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Product Support, Warranty . . . . . . . . . . . . . . . . . . . .35

ASCII Code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Page 4

Chapter 1

Introduction

Bar coding is the most common Automated Data Collection (ADC) technology providing timely, error-free information that can be used to increase productivity, accuracy, and efficiency in the workplace. Virtually every type of industry is using bar codes to replace keyboard data entry. Studies have shown that a proficient data entry operator will make one error for every 300 characters that are manually entered. The error rate using bar codes is almost negligible and can be error-free using bar code symbologies with the check digit enabled.

The Wasp Charged Coupled Device (CCD) technology is a technique whereby a bar code is photographed, digitized, and electronically sampled by built-in photodetectors. The detectors process the measurement of every bar and space using the number of adjacent photodetectors which contrast a black mark and a white space. Wasp WLP 4170 CCD is extremely rugged since it has no moving parts. Wasp WLP 4170 CCD reader supports PC AT/XT and PS/2 keyboard interfaces and easily wedges between the computer and keyboard. Bar code data is passed directly into the keyboard buffer as if it had been typed in by hand by a data entry operator.

Of all the hand held bar code scanning devices on the market, the CCD reader is the easiest to use and most cost effective for the typical business user. To activate the scanner, the user simply points the scanning aperture towards the bar code, pulls the trigger, and aims the red LED beam across the bar code.

Page 5

1. Turn off your computer.

2. Unplug your PC keyboard cable and plug the male end (Din 5) of the Wasp WLP 4170 CCD Scanner directly into your PC keyboard port. Plug your keyboard cable into the other end (female Din 5) of the the Wasp WLP 4170 CCD Scanner. If your keyboard and PC support a Din 6 connection, use the enclosed Din 5 to Din 6 converter cable to connect to the keyboard power tap cable.

3. Turn your computer on.

Chapter 2

Installation

Keyboard

Y-Cable

Din-5F

Din-6M

Scanning Aperture

Page 6

Your Wasp WLP 4170 CCD Scanner is ready to go. The default settings of the Wasp WLP 4170 CCD Scanner have been pre-programmed for the most common bar code configurations. Use the "Setup & Configuration" sections only to customize the Wasp settings.

Tip: Use the pre-printed "Bar Code Test Symbols" in Appendix A on page 30 as a test chart to begin practicing scanning.

Chapter 3

Quick Start

KEYBOARD

Y-CABLE

WLP 4170 CCD SCANNER

BACK OF PC

KEYBOARD MOUSE

DO NOT PLUG

IN MOUSE PORT!

KEYBOARD

Page 7

Bar codes are symbols consisting of a series of bars and spaces which can be applied to packages, cartons, bottles, and other commercial products. The bars and spaces in each symbol are grouped in such a way to represent a specific ASCII character or function. The interpretation of these groups is based on a particular set of rules called symbologies. Various symbologies have been developed for particular applications. Some examples are shipping and receiving, manufacturing, retail, healthcare, transportation, document processing and tracking, and libraries.

The resolution of a bar code is dependent on the narrowest element of a bar code (X dimension), and can vary from high density (nominally less than 0.009 in./0.23 mm), medium density (between 0.009 in./0.23 mm and 0.020 in./0.50 mm), and low density (greater than 0.020 in./0.50 mm). Medium and low densities are the most common since these are the easiest to read (scan) with nearly all scanning devices. Wasp WLP 4170 CCD Scanner can read bar codes with X-dimensions as low as 4 mils (0.10mm).

Wasp WLP 4170 CCD Scanner can read the most popular linear bar code symbologies including Code 39, Code 93, Code 128, Interleaved 2 of 5, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Codabar, and MSI Plessey, and also the 2D bar code symbology PDF417.

Please see test chart on pages 30-33.

Chapter 4

Bar Code Symbologies

Page 8

In order to configure Wasp WLP 4170 CCD Scanner, you must familiarize yourself with the setup procedures on the following pages. The default settings of Wasp WLP 4170 CCD Scanner are identified on each page and clearly marked using an asterisk (*). The default settings have been preprogrammed for the most

common bar code configurations. Use the Setup & Configuration only to customize the Wasp settings. If you need to configure Wasp WLP 4170 CCD

Scanner, the default settings will be overwritten. All the programmed settings are stored permanently in non-volatile memory. Therefore, your configuration will be maintained even if keyboard power to Wasp WLP 4170 CCD Scanner is removed by turning off your PC.

In order to configure Wasp WLP 4170 CCD Scanner, seven basic steps need to be followed for each programmed setting:

(1) Determine what, if any, options on EACH PAGE that you wish to change. (2) Scan the "Begin" bar code. WLP 4170 CCD Scanner will sound an ascending

tone to indicate that setup is in progress. (3) Scan the bar code representing the option to be changed. (4) Scan the bar codes representing the option values (e.g. 01, 02, 3A etc.).

These option values can be found on the inside back cover flap of this manual.

You must scan two digits for each option setting. (5) Repeat the above two steps, if necessary, to change the options in the

same group. (6) Scan the “Finish” bar code on the back cover flap to confirm your selections. (7) Scan the "Exit" bar code to exit the group currently selected.

Wasp WLP 4170 CCD Scanner will sound a descending tone.

NOTE: Pages 6 and 7 are designed as walk through example pages. Use these pages as examples on how to change an option for the rest of the manual.

Chapter 5

Setup & Configuration

Page 9

Chapter 5

Factory Default

NOTE: Scanning these bar codes returns the scanner to the

factory default settings

1. Scan “Begin ”

2. Scan “Default” to restore

scanner to default settings

Tip: Use this configuration to restore the factory default settings if you are unsure how your scanner has been configured. The 'Factory Default' configuration is very useful when you need to reprogram your Wasp WLP 4170 CCD Scanner after the defaults have been changed. By setting the default configuration, the user knows precisely the configuration for each programmed setting.

Begin

Default

Page 10

Chapter 5

Beep Volume Settings

00 None 01 Lowest 02 Low 03 Medium (Default) 04 Medium-High 05 High 06 High-Medium 07 Highest

The 'Beep Volume' configuration changes the volume of the audible indicator of the WLP 4170 CCD Scanner.

NOTE: For help in configuring these settings, consult the programming steps on page 5.

1. Scan “Begin ”

2. Scan “Set Beep Volume”

4. Scan the “Finish” barcode on

the back cover flap

5. Scan the “Exit” barcode

3. Pick a setting from the table at right, then turn to the back cover flap and scan the corresponding two digits. For example: if you desire no beep, scan 0 and 0 on the back cover flap

Begin

Set Beep Volume

Exit

Beep and Delay

Page 11

Intercharacter Delay Settings

00 Slowest 01 Slow 02 Default 50 Medium 75 Fast 99 Fastest

The 'Intercharacter Delay' configuration sets the speed at which the WLP 4170 CCD Scanner sends data. The intercharacter delay should be changed only if the transfer rate cannot be maintained between WLP 4170 CCD Scanner and the keyboard buffer of the computer.

Note: The default for the intercharacter delay is set to '2ms' and is the most common configuration; however, your PC may be different. When you scan a bar code, if some characters are missing, decrease the intercharacter delay speed to speed up the transfer rate. If some stray or scrambled characters appear on your screen, increase the intercharacter delay to slow down the transfer rate.

Note: For help in configuring these settings, consult the programming steps on page 5.

Begin

Set Intercharacter Delay

Exit

Chapter 5

Intercharacter Delay

Page 12

Chapter 5

00 Keyboard Present* 01 Laptop/No keyboard

The 'Keyboard Wedge' configuration supports options related to managing keyboard operations. The 'Function Code' option enables/disables support for your keyboard function keys. The 'Caps Lock' option toggles the case sensitivity of your keyboard. The ‘Laptop/No Keyboard’ setting should be enabled if you are connecting this scanner to a laptop or to a PC with no keyboard.

Note: For help in configuring these settings, consult the programming steps on page 5.

Laptop/No Keyboard Settings

00 Off* 01 On

Function Code Settings

00 Caps Lock On 01 Caps Lock Off*

Caps Lock Settings

*Default

Begin

Set Caps Lock

Set Laptop/No Keyboard

Set Function Code

Exit

Keyboard Wedge

Page 13

Chapter 5

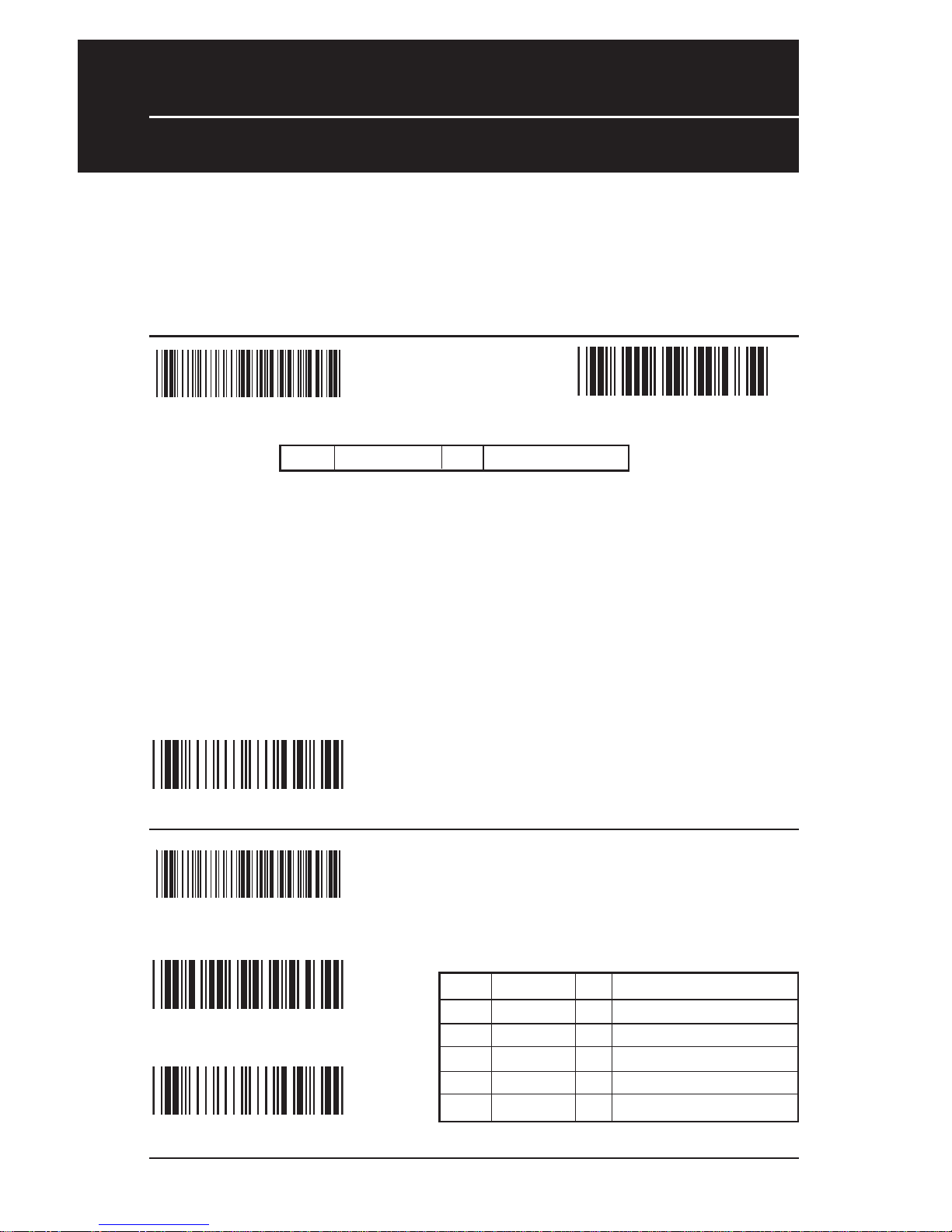

Scanning Modes, Country Codes

*Default

00 Default* 04 Continuous

00 USA* 06 Portuguese 01 Belgium 07 Spanish 02 Danish 08 Swedish 03 France 09 Switzerland 04 German 10 UK 05 Italian 11 Latin America

Begin

Set Scanning Mode

Exit

Begin

Keyboard Layout

Exit

The 'Scanning Mode' option controls the trigger and LED settings for the WLP 4170 CCD Scanner.

Note: For help in configuring these settings, consult the programming steps on page 5.

Continuous Mode

* Trigger with 10 Sec. Delay

When this option is selected, the LEDs are visible at all times. Under this option, you cannot read the same bar code back-to-back.

This is the default option for the Wasp WLP 4170 CCD Scanner. When this option is selected, the scanner will stop scanning when there is a successful read or no code is scanned after 10 seconds.

Scan “Begin” at left, then scan the “Keyboard Layout” at left. Pick a country setting from the table below, then turn to the back cover flap and scan the corresponding two digits. Scan “Finish” on the back flap, then scan “Exit” below.

Page 14

Chapter 5

Terminator, Preamble and Postamble

*Default

The 'Preamble' and 'Postamble' options are used to add prefix and suffix characters to the bar code value. Up to 22 characters may be added for each option separately. To set a ‘Preamble’ or ‘Postamble’, you must first disable the ‘Terminator’, which is set to a default of Carriage Return. First, scan the ‘Begin’ bar code below, then the ‘Set Terminator’ bar code. Scan ‘0’ then ‘0’ on the back cover flap, then scan ‘Finish’. Scan the ‘Exit’ bar code at the bottom of this page. Now add a ‘Preamble’ or ‘Postamble’ by following the directions below.

Begin

Set Preamble

Set Postamble

Transmit Preamble

Transmit Postamble

Exit

Preamble

Postamble

Scan 'Begin'. Scan ‘Set Preamble’ to program preamble. Scan characters from the back cover flap using the ASCII Table on page 36. Scan ‘Finish’ on the back cover flap to end. Then, scan the “Transmit Preamble” bar code at left, and turn to the back cover flap and scan ‘0’, then scan ‘1’, which will enable the preamble. Scan ‘Finish’ on the back cover flap. Scan 'Exit' on this page.

Note: See Directions Above

Scan 'Begin'. Scan ‘Set Postamble’ to program postamble. Scan characters from the back cover flap using the ASCII Table on page 36. Scan ‘Finish’ on the back cover flap to end. Then, scan the “Transmit Postamble” bar code at left, and turn to the back cover flap and scan ‘0’, then scan ‘1’, which will enable the postamble. Scan ‘Finish’ on the back cover flap. Scan 'Exit' on this page.

Set Terminator

Page 15

Chapter 5

Code 39

Code 39 is variable length and is the most frequently used symbology in industrial bar code systems today and is extensively used within the Department of Defense (DOD). The principal feature is to encode messages using the full alphanumeric character set.

*Default

Begin

On/Off

Verify Check Digit

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable 01*

Disable 00*

Enable 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Page 16

Chapter 5

Code 39

Standard Code 39 contains only 43 characters (0-9, A-Z, $, /, %, +, -, ., SPACE) and can be extended to a 128 character symbology (full ASCII) by combining one of the special characters ($, /, %, +) with a letter (A-Z) to form the characters that are not present in the standard Code 39 symbology.

*Default

Set Maximum Length

Set Minimum Length

Begin

Format

Start/Stop Transmission

Exit

Option Alpha/Numeric Entry

(Back Flap)

00 - 64 00 - 64

00*

00 - 64 00 - 64

00*

Standard 00*

Full ASCII 01

Disable 00*

Enable 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Page 17

Chapter 5

Code 128

*Default

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable 01*

Disable 00*

Enable 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Code 128 is variable length and encodes the full 128 ASCII character set. Each character is represented by 11 modules that can be one of four bar widths. Code 128 is the most easily read code with the highest message integrity due to several separate message check routines. Code 128 is usually the best choice when implementing a new symbology.

Page 18

Chapter 5

Code 128

Set Maximum Length

Set Minimum Length

Begin

Format

Exit

Option Alpha/Numeric Entry

(Back Flap)

64 - Minimum 00 - 64

00*

64 - Maximum 00 - 64

00*

Standard 00*

UCC/EAN-128 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Code 128 is the most flexible of all the common linear symbologies. It supports alpha and numeric characters easily, has the highest number of characters per inch, and is variable length.

*Default

Page 19

Chapter 5

UPC-A

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable

(two digits) 01*

Disable 00

Enable 01*

Note: For help in configuring these settings, consult the programming steps on page 5.

UPC-A (Universal Product Code-A) is fixed length and is the most common UPC bar code for retail product labeling. It is seen in most grocery stores across the United States. The symbology encodes a 12-digit number.

*Default

Page 20

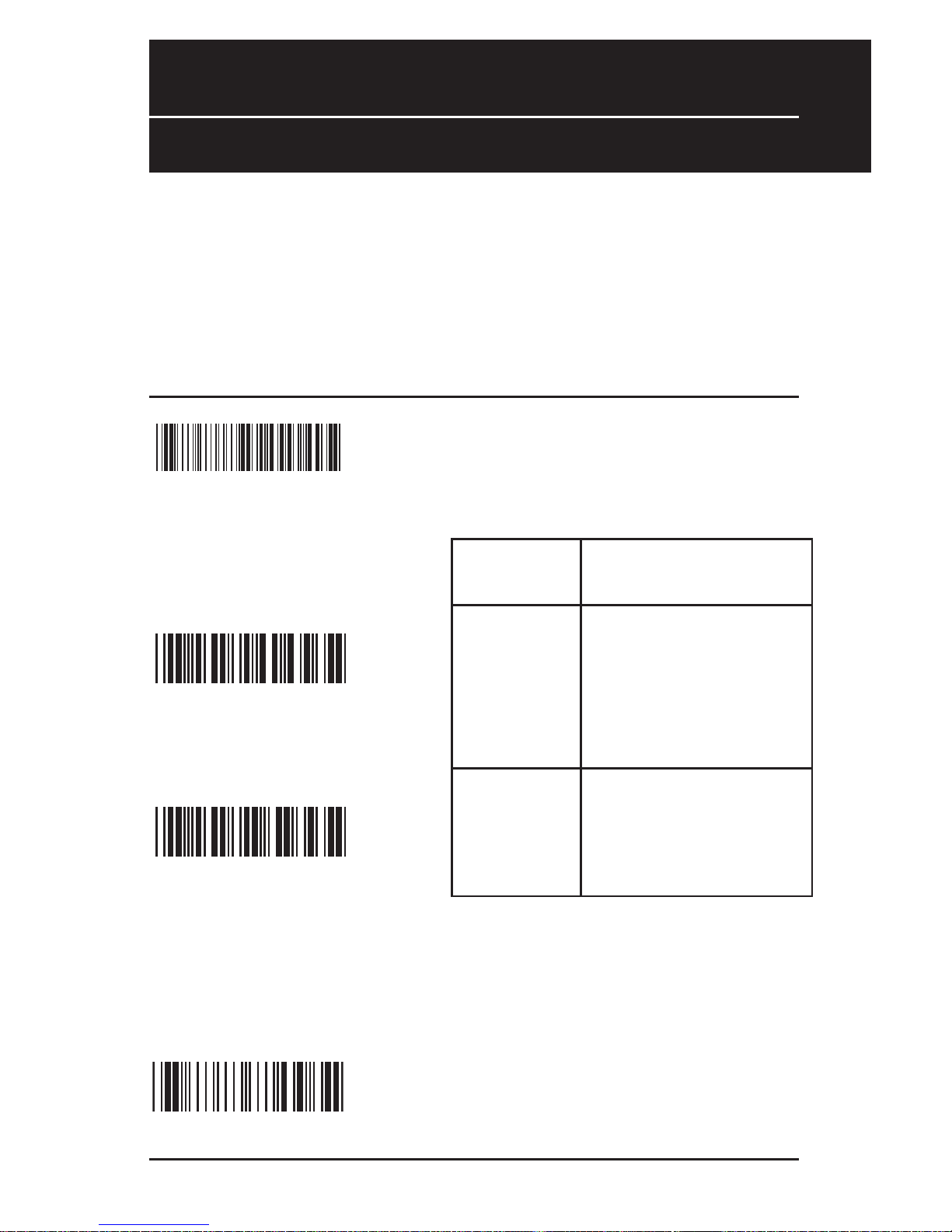

Begin

Supplement Digits

Truncate Leading Zero

Exit

Note: For help in configuring these settings, consult the programming steps on

page 5.

The first six digits of the UPC-A bar code are assigned from the Uniform Code Council (UCC). The next five digits are assigned by the manufacturer, and the final digit is a modulo 10 check digit. The nominal height for the UPC-A bar code is one inch. The reduced size is 80% of the nominal size.

*Default

Option Alpha/Numeric Entry

(Back Flap)

None 00* 2 digits 01 5 digits 02

2 / 5 digits 03

or None

Disable 00*

Enable 01

Chapter 5

UPC-A

Page 21

*Default

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable 01*

Disable 00

Enable 01*

Note: For help in configuring these settings, consult the programming steps on page 5.

Chapter 5

UPC-E

UPC-E (Universal Product Code-E) is fixed length and is a compressed six digit code used for marking small packages, including magazines and paperback books. UPC-E symbols are UPC-A symbols that have been zero suppressed (i.e. consecutive zeros are not included in the symbol).

Page 22

Chapter 5

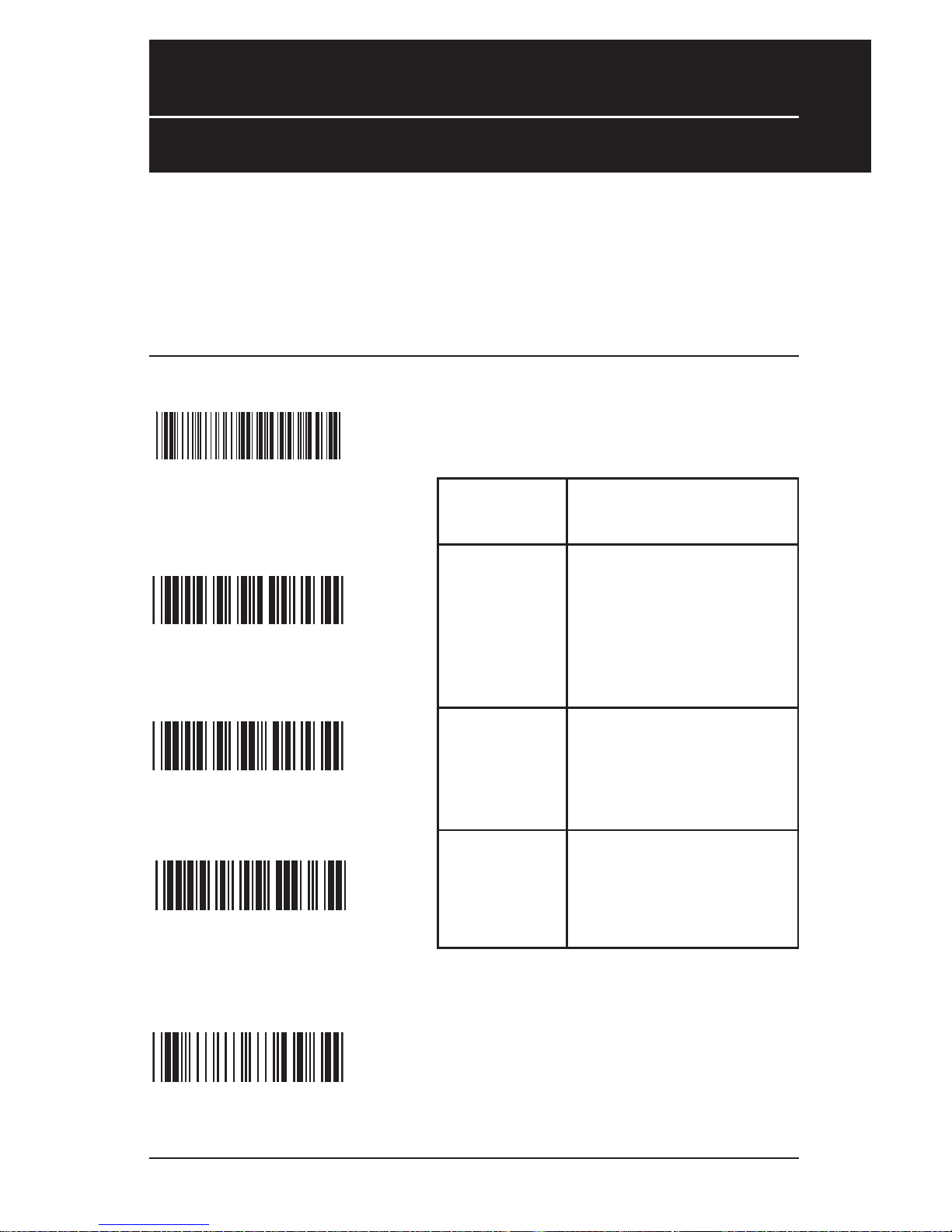

UPC-E

*Default

Supplement Digits

Truncate Leading Zero

Begin

Expansion

Exit

Note: For help in configuring these settings, consult the programming steps on

page 5.

The printed value of the UPC-E code is a twelve digit code. The nominal height for the UPC-E bar code is one inch. The reduced size is 80% of the nominal size.

Option Alpha/Numeric Entry

(Back Flap)

None 00* 2 digits 01 5 digits 02

2 / 5 digits 03

or None

Disable 00*

Enable 01

Disable 00*

Enable 01

Page 23

Chapter 5

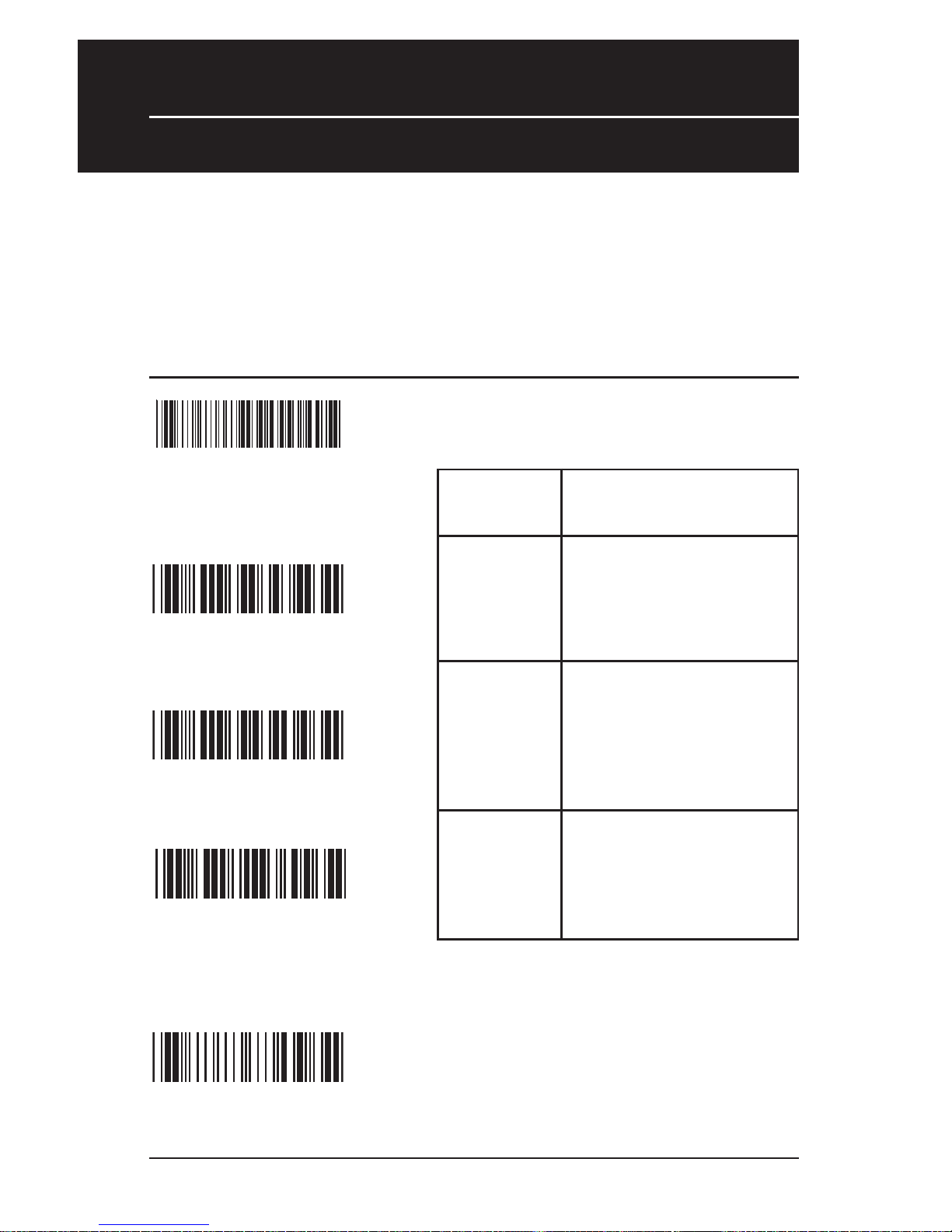

EAN-13

*Default

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable 01*

Disable 00

Enable 01*

Note: For help in configuring these settings, consult the programming steps on page 5.

The EAN/JAN-13 (European Article Number/Japanese Article Number) is fixed length and is similar to the UPC-A symbology, but encodes a 13th digit. The nominal height for the EAN/JAN-8 bar code is one inch. The reduced size is 80% of the nominal size.

Page 24

Chapter 5

EAN-13

Note: For help in configuring these settings, consult the programming steps on page 5.

*Default

Supplement Digits

Truncate Leading Zero

Begin

Convert to ISBN/ISSN

Exit

Option Alpha/Numeric Entry

(Back Flap)

None 00* 2 digits 01 5 digits 02

2 / 5 digits 03

or None

Disable 00*

Enable 01

Disable 00*

Enable 01

Page 25

Chapter 5

EAN-8

*Default

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable 01*

Disable 00

Enable 01*

Note: For help in configuring these settings, consult the programming steps on page 5.

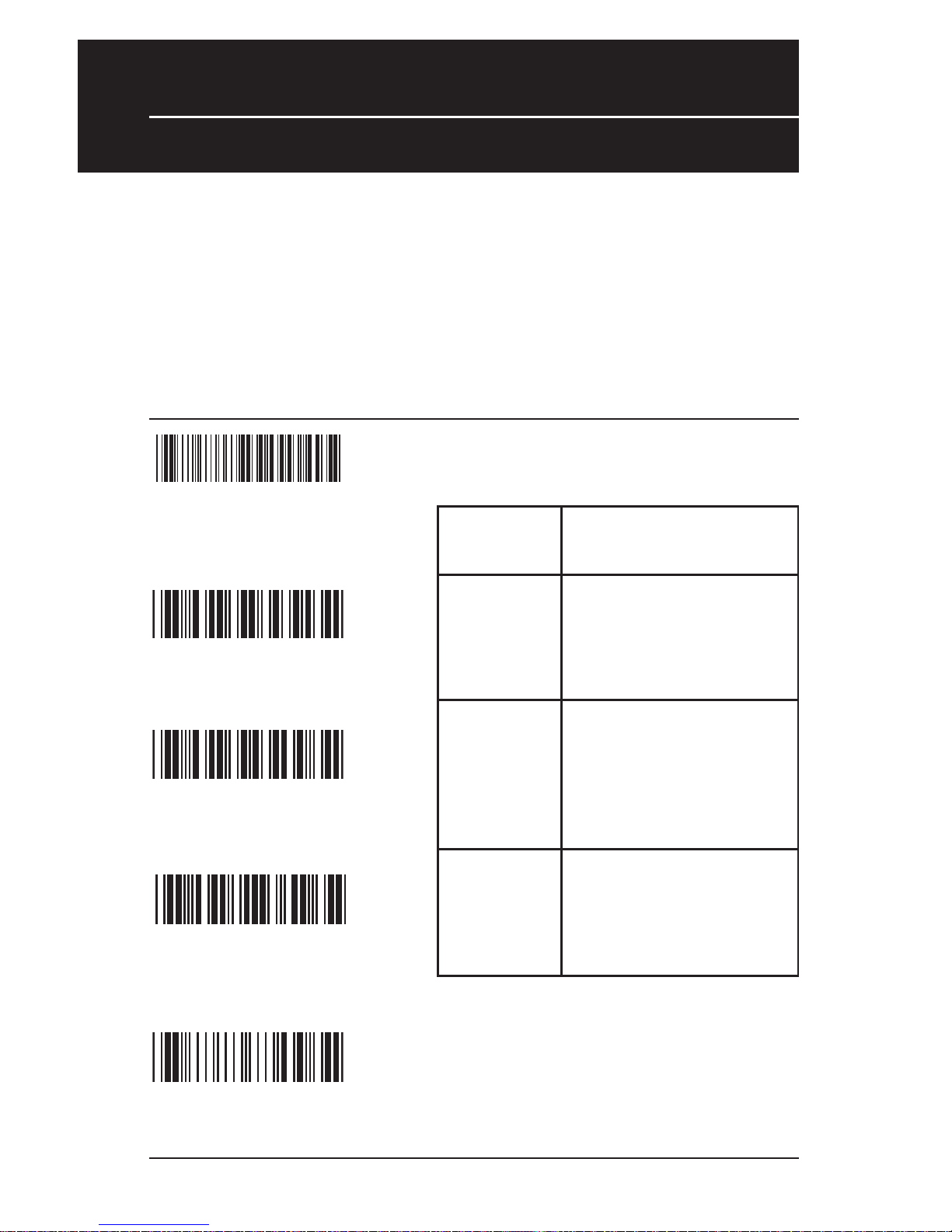

The EAN/JAN-8 is fixed length and is similar to the UPC-E code, but includes two more digits for the country code. The nominal height for the EAN/JAN-8 bar code is one inch. The reduced size is 80% of the nominal size.

Page 26

Chapter 5

EAN-8

*Default

Supplement Digits

Truncate Leading Zero

Begin

Expansion

Exit

Option Alpha/Numeric Entry

(Back Flap)

None 00* 2 digits 01 5 digits 02

2 / 5 digits 03

or None

Disable 00*

Enable 01

Disable 00*

Enable 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Page 27

Chapter 5

Code 93

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Set Maximum Length

Set Minimum Length

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00*

Enable 01

Disable 00

Enable

(two digits) 01*

Disable 00*

Enable 01

64 - Minimum 64 - 00

00*

00 - Maximum 00 - 64

00*

Note: For help in configuring these settings, consult the programming steps on page 5.

Code 93 encodes the full 128 ASCII character set using 9 modules arranged into 3 bars with adjacent spaces. Two of the characters are check characters. Code 93 is similar to Code 39 but encodes more characters per inch. Code 93 encodes the full 128 ASCII character set and is encoded similarly to the extended Code 39.

*Default

Page 28

Chapter 5

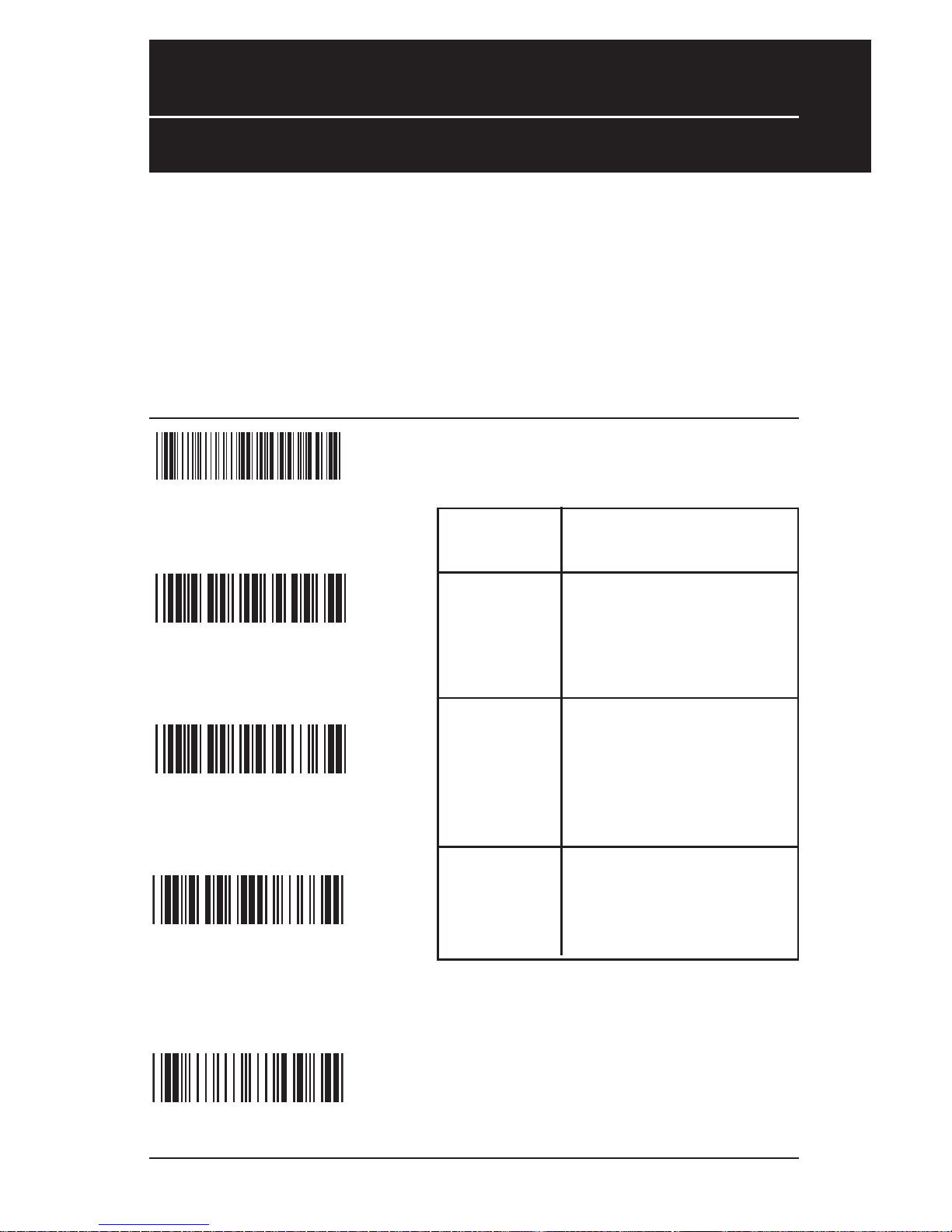

Code 128

*Default

Begin

On/Off

Verify Check Digit

Transmit Check Digit

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00

Enable 01*

Disable 00*

Enable 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Interleaved 2 of 5 is a variable length, even numbered, numeric bar code. It is typically used in industrial and master carton labeling and also in the automobile industry. The symbology uses bars to represent the first digit of a pair and the interleaved (white) spaces to represent the second digit of a character pair. See page 24 for information on setting the minimum and maximum lengths.

Page 29

Chapter 5

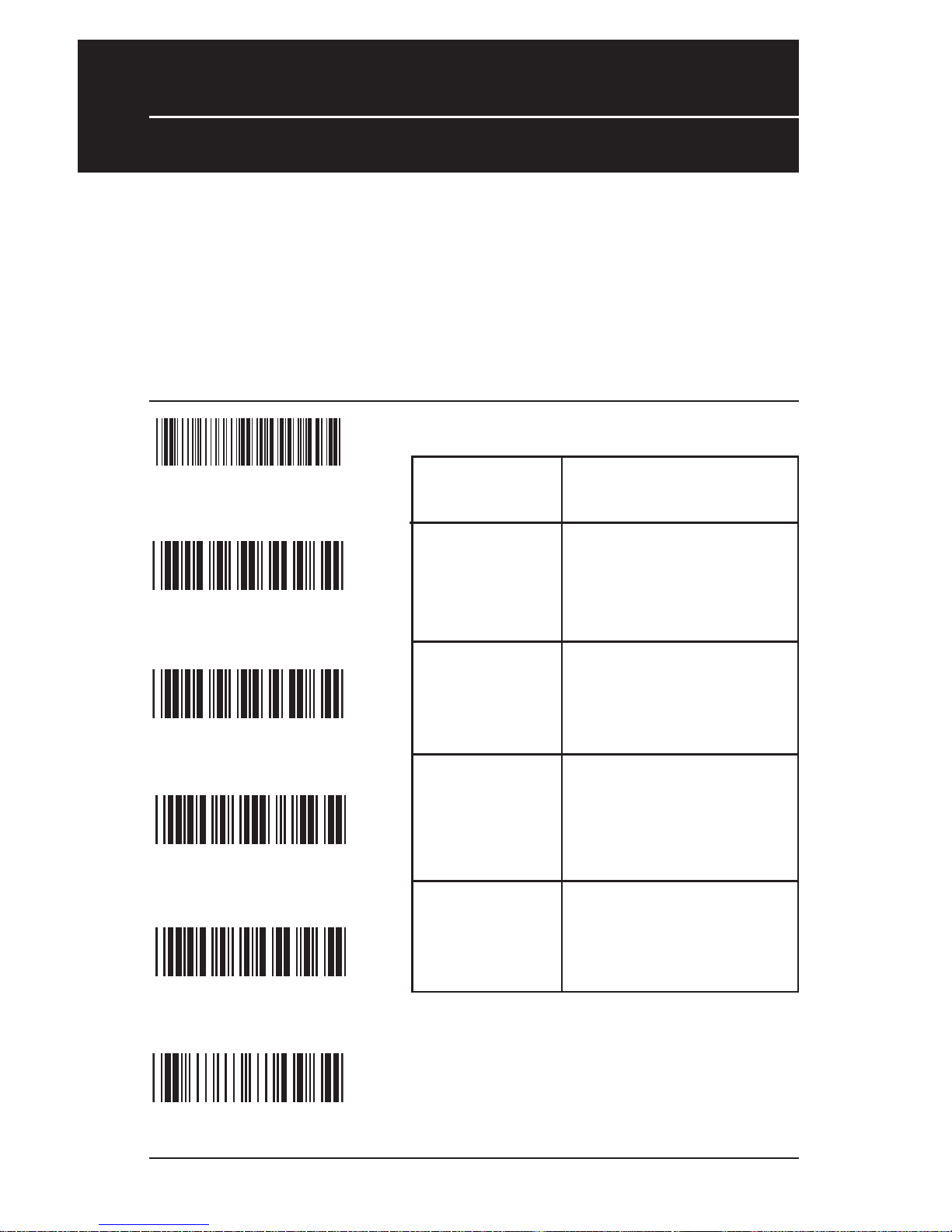

Codabar

*Default

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Set Maximum Length

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Disable 00*

Enable 01

Disable 00*

Enable 01

64 - minimum 64 - 00

00*

Note: For help in configuring these settings, consult the programming steps on page 5.

Codabar is a variable length symbology capable of encoding six special alphanumeric characters, capital letters A through D, T, N, *, E, and all numeric digits. Codabar is one of the oldest bar code symbologies and is still used in some library applications. It should not be considered for new applications except under unusual circumstances.

Page 30

Chapter 5

Codabar

*Default

Set Minimum Length

Start/Stop Type

Begin

Start/Stop Transmission

Exit

Option Alpha/Numeric Entry

(Back Flap)

00 - Maximum 00 - 64

00*

ABCD/ABCD 00*

abcd/abcd 01

ABCD/TN*E 02

Abcd/tn*e 03

Disable 00*

Enable 01

Note: For help in configuring these settings, consult the programming steps on page 5.

Page 31

Chapter 5

MSI Plessey

On/Off

Verify Check Digit

Begin

Transmit Check Digit

Set Maximum Length

Set Minimum Length

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00*

Enable 01

Disable 00*

Mod 10 01 Mod 10/10 02 Mod 11/10 03

Disable 00*

Enable 01

64 - Minimum 64 - 00

00*

00 - Maximum 00 - 64

00*

Note: For help in configuring these settings, consult the programming steps on page 5.

MSI Plessey is a variable length numeric symbology and is primarily used in marking retail shelves. Each character consists of four bars with intervening spaces for each encoded digit, one or two symbol check digits, and a reverse start code.

*Default

Page 32

Chapter 5

PDF417

On/Off

Begin

Exit

Option Alpha/Numeric Entry

(Back Flap)

Disable 00

Enable 01*

Note: For help in configuring these settings, consult the programming steps on page 5.

PDF417 is a 2D variable length symbology that can encode virtually any letter, number, or character. Each character consists of 4 bars and 4 spaces in a 17 module structure. The name of the symbol is derived from the format of the code. PDF stands for "Portable Data File" and "417" is derived from the module structure. Each PDF417 symbol consists of 3 to 90 stacked rows surrounded by a quiet zone on all four sides. Each row consists of a leading quiet zone, start pattern, left row indicator character, one to thirty data characters, right row indicator character, stop pattern, and trailing quiet zone.

PDF417 supports text compaction, numeric compaction, and byte compaction that correlate the mapping between code word values and decoded data. PDF417 can accommodate up to 340 characters per square inch with a maximum data capacity of 1850 text characters.

*Default

Page 33

Appendix A

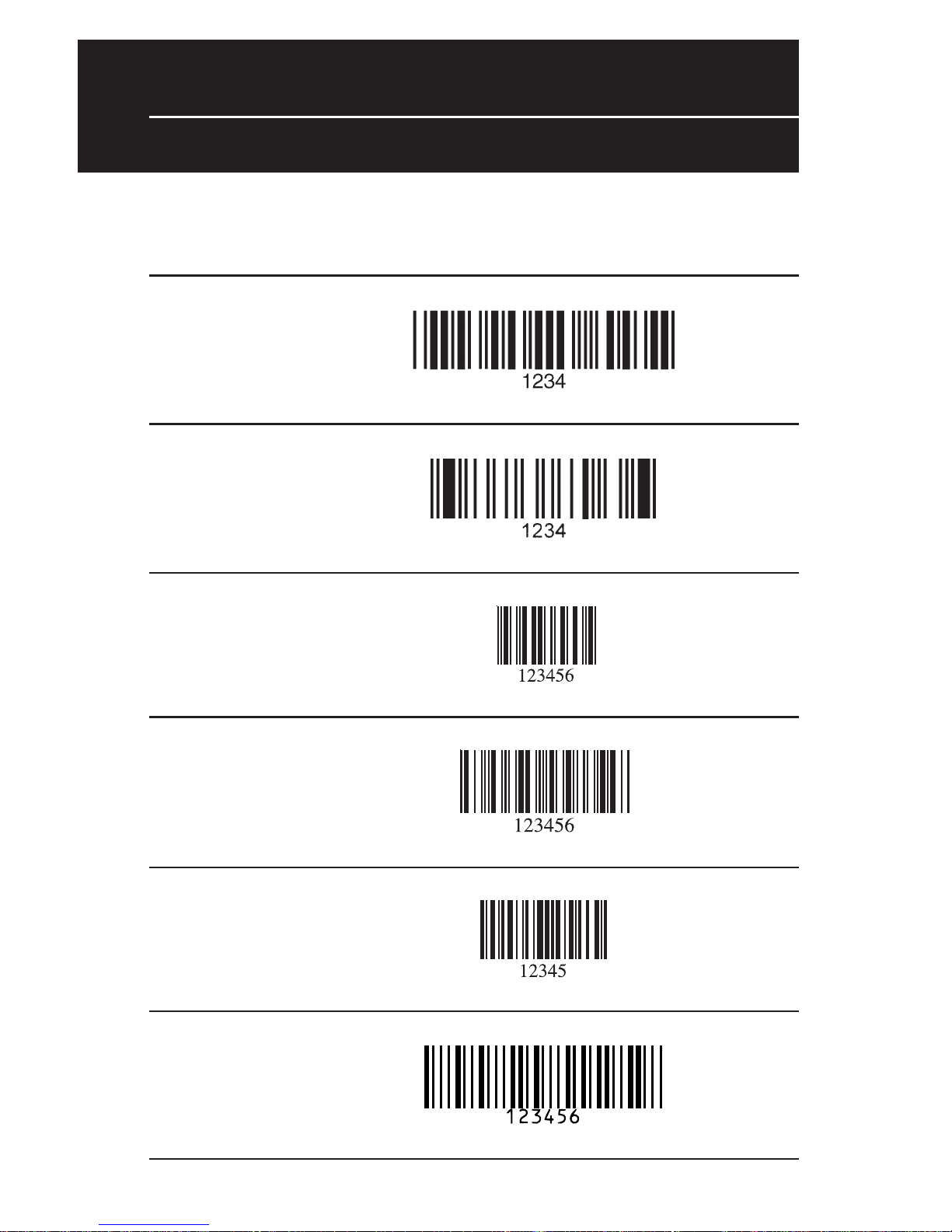

Bar Code Test Symbols

Code 39*

Interleaved 2 of 5

Codabar

Code 128*

MSI/Plessey

Code 93

Note: Make sure that the appropriate bar code symbology is configured properly and enabled before trying to scan. Use the 'Bar Code Symbologies' configuration beginning on page 14 to enable specific symbologies.

*Default

Page 34

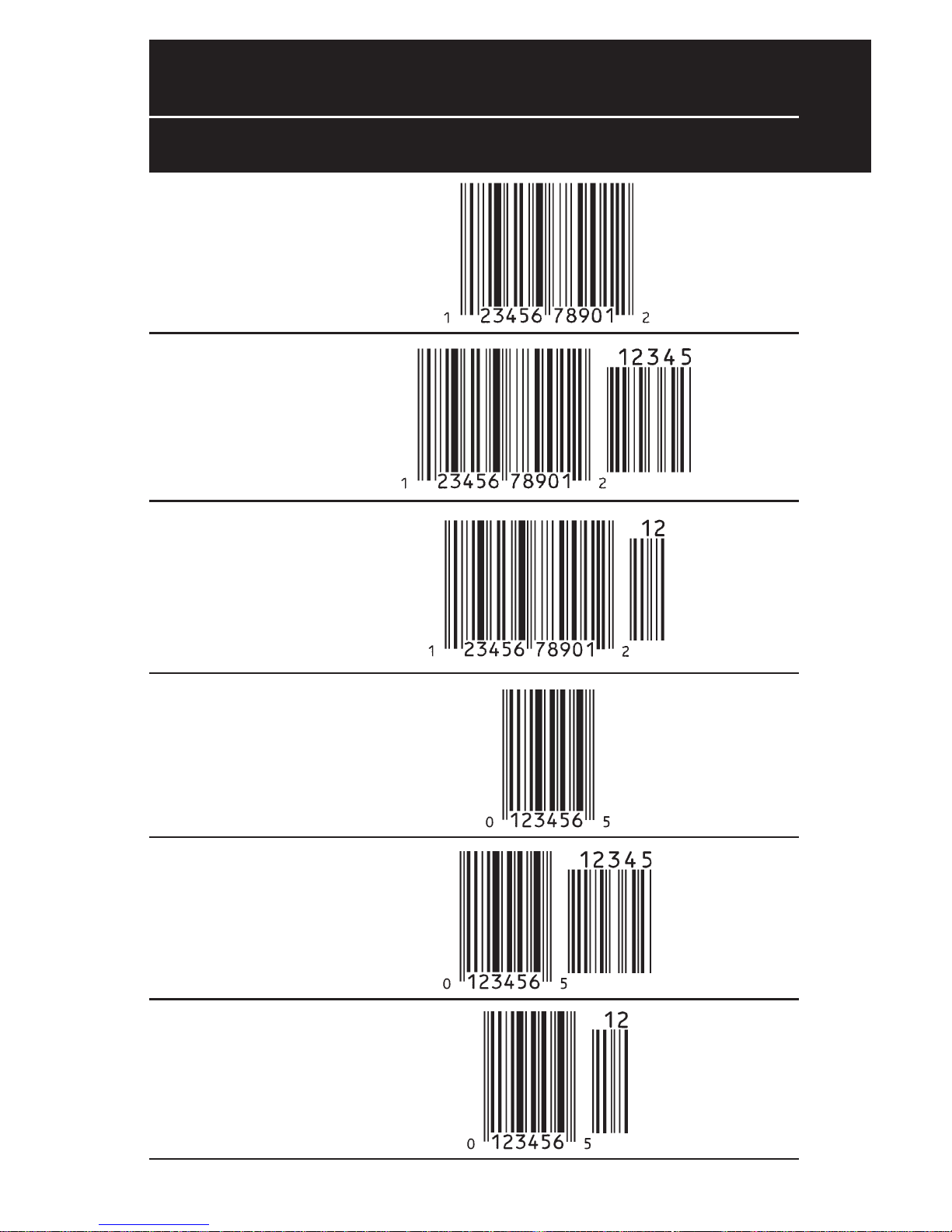

UPC-A*

UPC-E*

UPC-E w/5 digit supplement

UPC-E w/2 digit supplement

UPC-A w/2 digit supplement

UPC-A w/5 digit supplement

*Default

Appendix A

Bar Code Test Symbols

Page 35

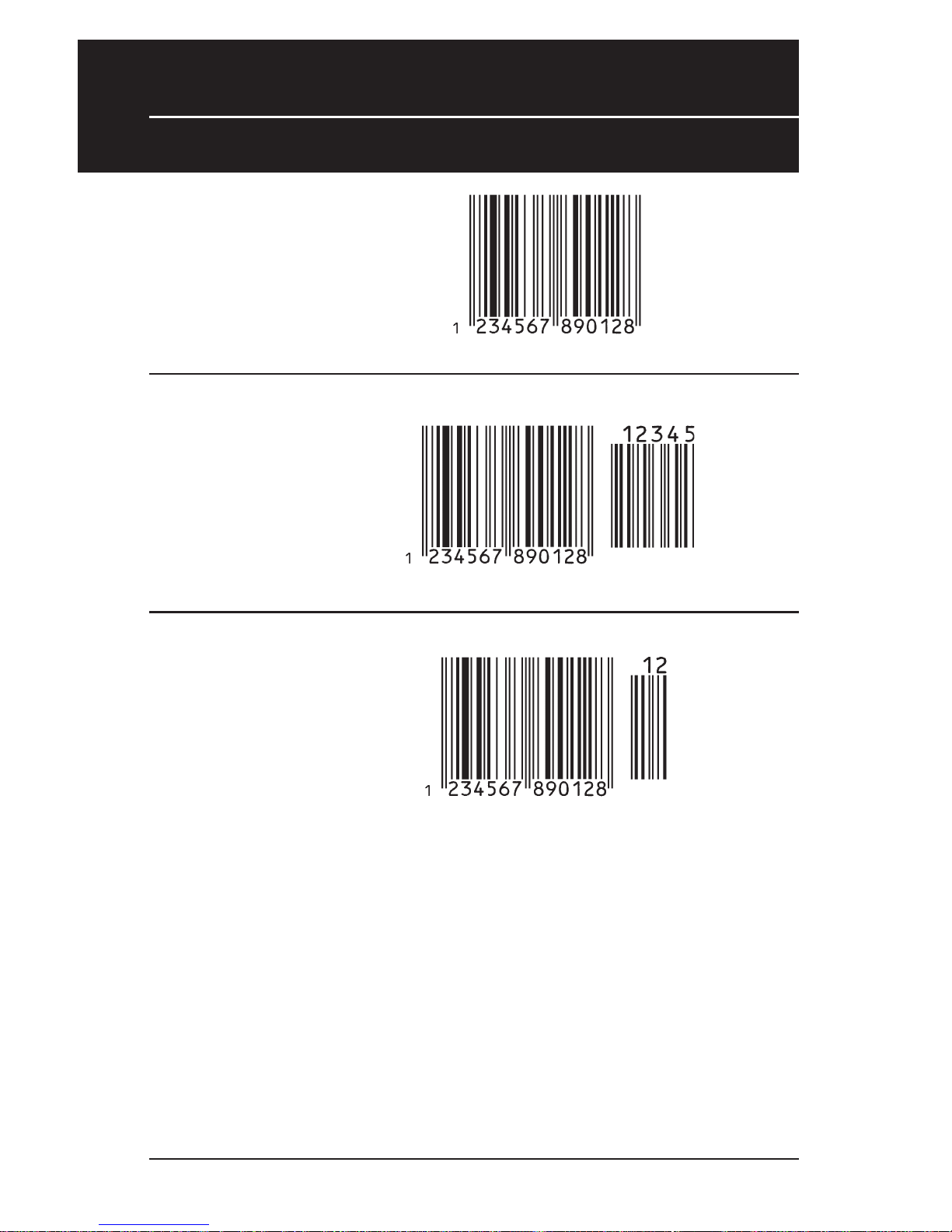

EAN/JAN 13*

EAN/JAN 13 w/2 digit supplement

EAN/JAN 13 w/5 digit supplement

*Default

Appendix A

Bar Code Test Symbols

Page 36

Appendix A

Bar Code Test Symbols

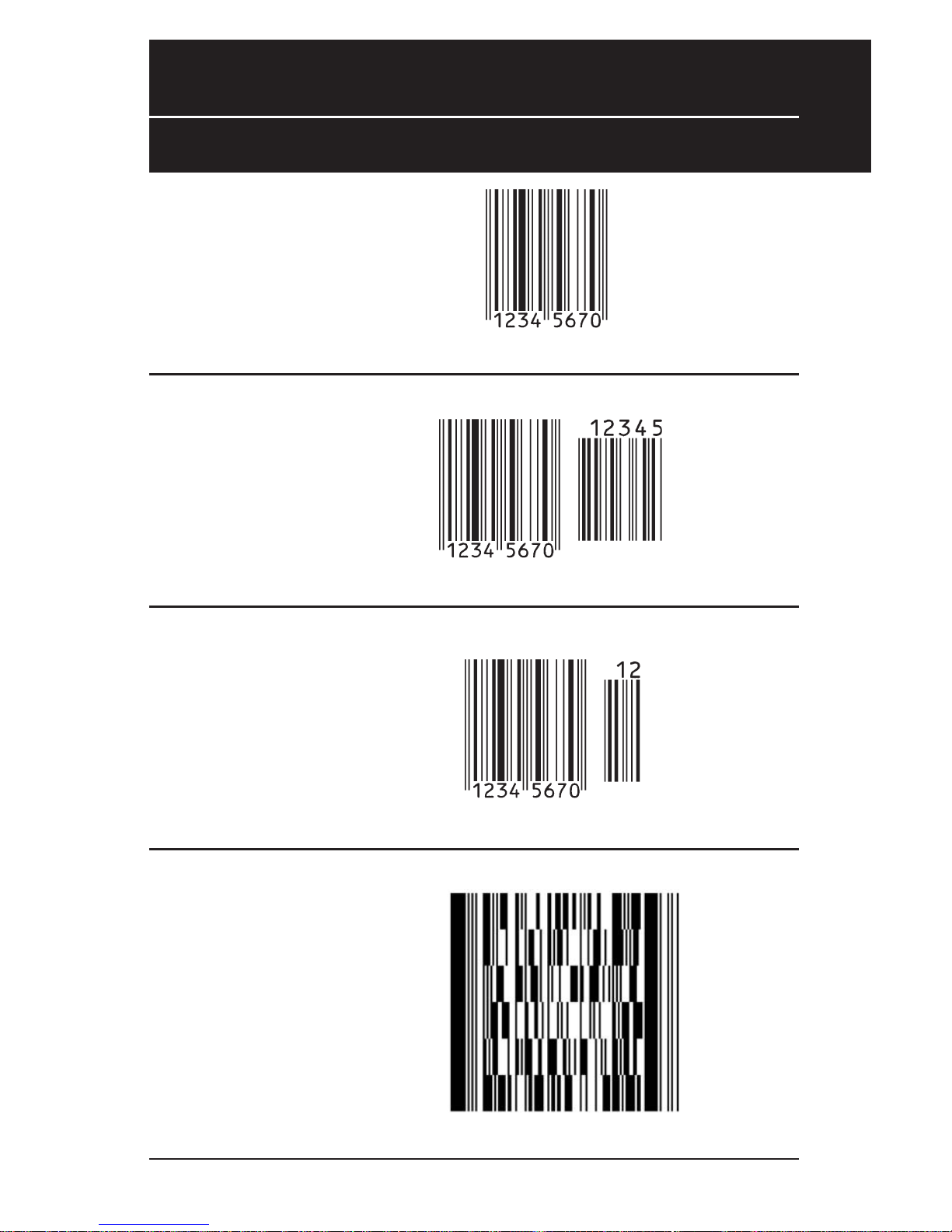

EAN/JAN 8*

EAN/JAN 8+5 w/5 digit supplement

EAN/JAN 8 w/2 digit supplement

PDF417

*Default

Page 37

Chapter 5

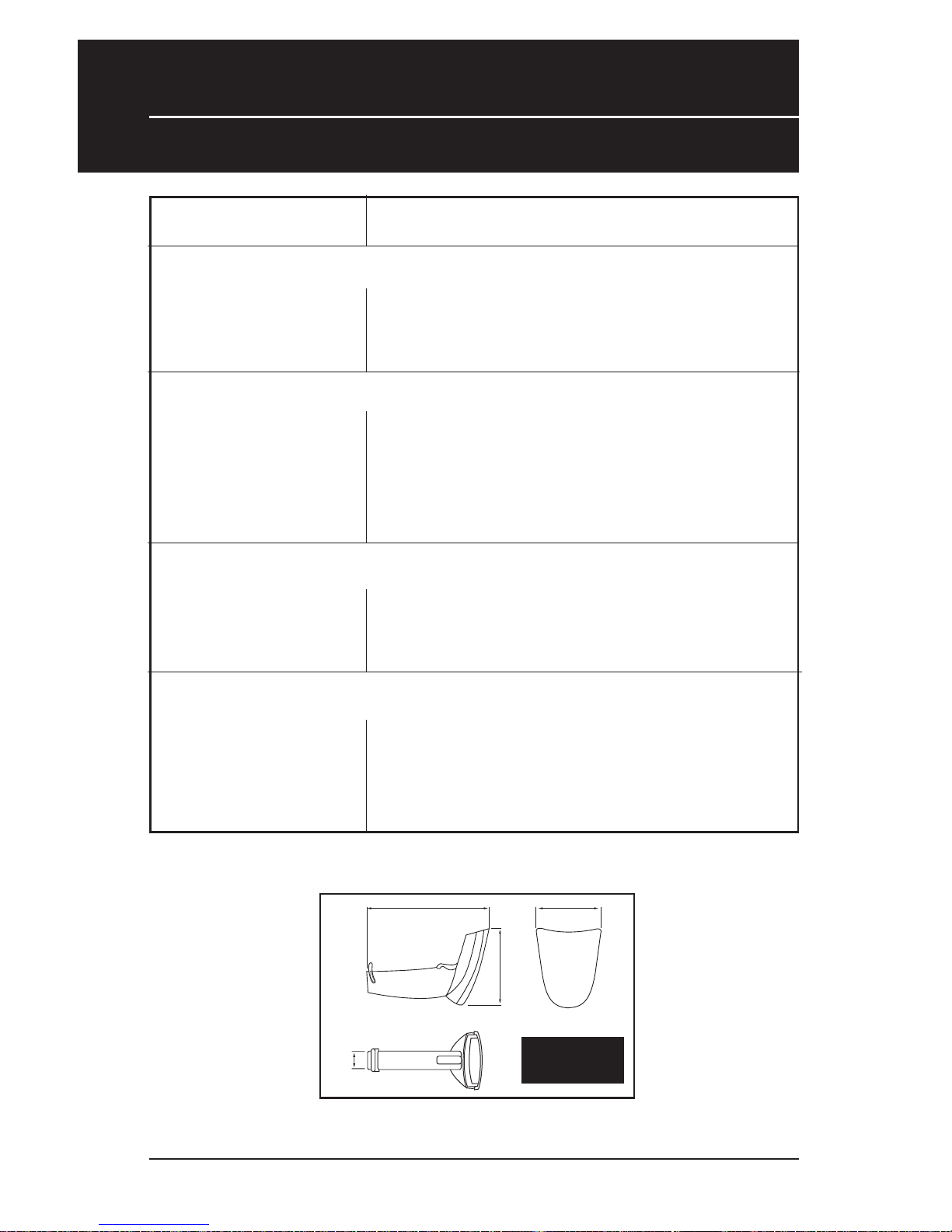

Technical Specifications

MODEL WLP 4170

OPTICAL

Scanning Width 3.2 in (120 mil) Depth of Field 0 to 3 in (0 to 200 mil) Scan Rate 200 scans / second

ELECTRICAL

Light Source 660 nm red visible LED Sensor 2,048 pixel CCD array Operating Voltage +5 VDC ± 0.25V Current Consumption Standby 100 mA @ 5 VDC / Sleep 25 mA @ 5 VDC

Operating 180 mA @ 5 VDC

MECHANICAL

Dimensions W3.5" x T4.5" x H7.2" Weight 150 g (without cable) Cable 6 ft

ENVIRONMENTAL

Operating Temperature 0˚C to 40˚C Storage Temperature -40˚C to 60˚C Relative Humidity 5% to 90% non-condensing Safety Certification Conforms FCC Class A and CE requirements

7.2"

4.5"

3.5"

OUTER

DIMENSIONS

Page 38

Wasp Bar Code products are warranted against defects in workmanship and materials for a period of one year from the date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions.

This warranty is limited to repair or replacement at Wasp Bar Code's option, with reasonable promptness after being notified. These provisions do not prolong the original warranty term for any product which has been repaired or replaced by Wasp Bar Code.

This warranty applies to the original owner and does not extend to any product which has been subject to misuse, neglect, accidental damage, unauthorized repair, or tampering.

No other express warranty is given. The replacement or repair of a product is your exclusive remedy. Any other implied warranty of merchantability or fitness is limited to the duration of this written warranty. Some states, provinces, and countries do not allow limits on how long an implied warranty lasts, so the above limitation may not apply to you.

In no event shall Wasp Bar Code be liable for consequential damages. Some states, provinces, and countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

Warranty Information

If you experience any problems with Wasp WLP 4170 CCD Scanner that you are unable to resolve, call for technical assistance at (214) 547-4100, Monday through Friday, 8:00 AM - 5:00 PM Central Standard Time. Our web site is

www.waspbarcode.com

You may also contact us in writing at:

Wasp Technologies 1400 10th Street Plano, TX 75074 (214) 547-4100 (214) 547-4101 Fax

Product Support

Page 39

43 C 44 D 45 E 46 F 47 G 48 H 49 I 4A J 4B K 4C L 4D M 4E N 4F O 50 P 51 Q 52 R 53 S 54 T 55 U 56 V 57 W 58 X 59 Y 5A Z 5B [ 5C 5D ] 5E ^ 5F _ 60 ` 61 a 62 b

23 # 24 $ 25 % 26 & 27 ‘ 28 ( 29 ) 2A ★ 2B + 2C 2D 2E . 2F / 30 0 31 1 32 2 33 3 34 4 35 5 36 6 37 7 38 8 39 9 3A : 3B ; 3C < 3D = 3E > 3F ? 40 @ 41 A 42 B

ASCII Preamble/Postamble Code Table

00 Null 01 Up 02 Down 03 Left 04 Right 05 PgUp 06 PgDn 08 BS 09 Tab 0B Home 0C End 0D Enter 0E Insert 0F Delete 11 F1 12 F2 13 F3 14 F4 15 F5 16 F6 17 F7 18 F8 19 F9 1A F10 1B ESC 1C F11 1D F12 1E Ctrl+ 1F Alt+ 20 Space 21 ! 22 “

Code ASCII Code ASCII Code ASCII

63 c 64 d 65 e 66 f 67 g 68 h 69 i 6A j 6B k 6C l 6D m 6E n 6F o 70 p 71 q 72 r 73 s 74 t 75 u 76 v 77 w 78 x 79 y

7A z 7B 7C 7D 7E ~ 7F Delete

Code ASCII

ASCII Code Table

Page 40

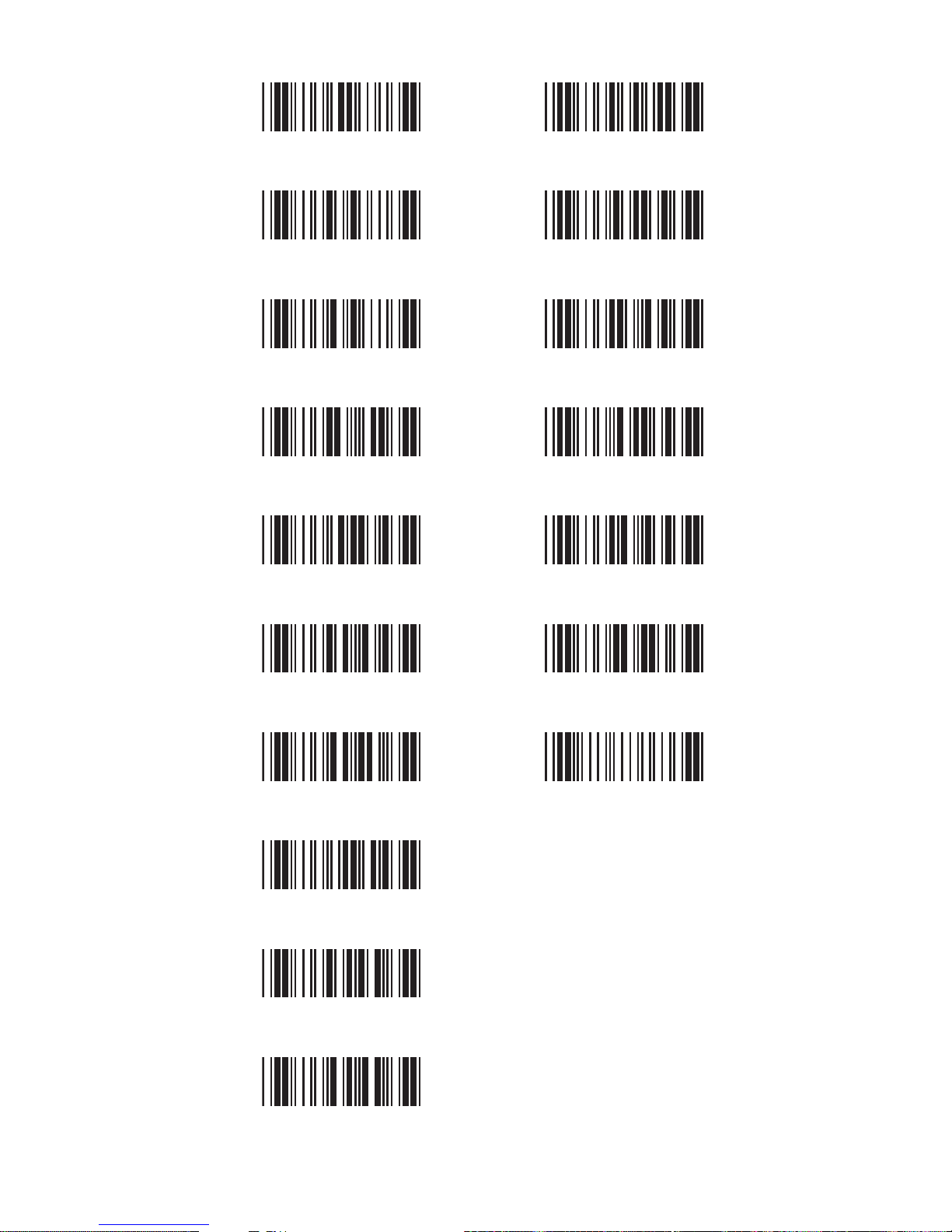

FINISH
