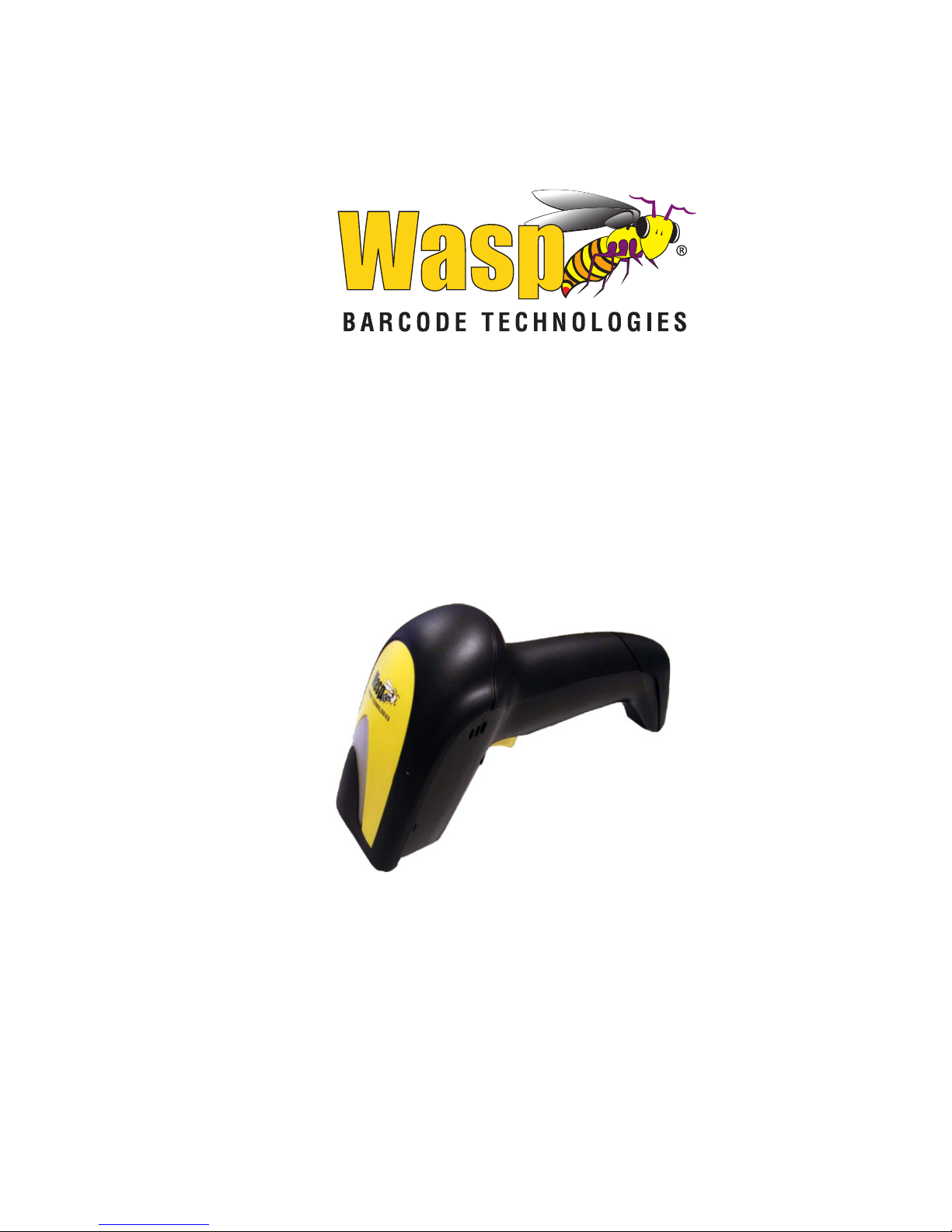

Wasp WDI4600 Quick Reference Manual

WDI4600

1D 2D Digital Scanner USB

Quick Reference Guide

Wasp Barcode Technologies

1400 10th Street
Plano, Texas USA 75074
Tel. [phone]
Tel. [phone]

Copyright Notice: ©2000-2013 Wasp Barcode Technologies, Inc.
(an unpublished work provided under license).

Patents

This product may be covered by one or more of the following
patents:

Design Patents: CN ZL200830142386.5; CN ZL200930006852.1;
EP870787; USD599799; USD606076

Utility Patents: EP996284; EP999514; EP1128315; EP1172756;
EP1396811; EP1413971; EP1828957; JP4435343; US5481098;
US6478224; US6512218; US6513714; US6561427; US6758403;
US6808114; US6877664; US6997385; US7053954; US7234641;
US7387246; US7721966.

Additional patents pending.

Table of Contents

Software Product Policy .............................................................................4

Description .....................................................................................................5

Setting Up the Reader ................................................................................6

Connect/Disconnect Cable to Reader ........................................6

Using the WDI4600 ......................................................................................7

Selecting the Interface Type .....................................................................8

Interface Selection ............................................................................8

Configuring the Interface .................................................... 8

Keyboard Interface.............................................................. 10

Scancode Tables .................................................................. 12

Country Mode....................................................................... 12

Caps Lock State .................................................................... 17

Numlock.................................................................................. 18

Programming ..............................................................................................19

Using Programming Barcodes ...................................................19

Configure Other Settings .............................................................19

Resetting Product Defaults .........................................................19

Reading Parameters .................................................................................20

Aiming System ................................................................................20

Good Read Green Spot Duration ..............................................20

Operating Modes ......................................................................................21

Scan Mode ........................................................................................21

Stand Mode Operation...................................................... 23

Pick Mode ..........................................................................................24

Multiple Label Reading ................................................................24

Technical Specifications ..........................................................................25

LED and Beeper Indications ...................................................................28

Error Codes ..................................................................................................31

Cleaning ........................................................................................................32

Regulatory Information ...........................................................................33

Statement of Agency Compliance ...........................................33

FCC Class B Compliance Statement .........................................33

Canadian Notice ..............................................................................34

Power Supply ...................................................................................34

Imager Labeling ..............................................................................35

Aiming System...................................................................... 35

Wasp Barcode Technologies Limited Factory Warranty ..40

Ergonomic Recommendations .............................................................42

Services and Support ...............................................................................42

NOTES

Quick Reference Guide 1

Wasp Barcode Technologies

WDI4600 PRODUCT SERIES

END USER LICENSE AGREEMENT

Notice to End User: The Wasp Barcode Technologies Product you have acquired con­tains embedded Software, which is integral to the product's operation. This Software
is being provided to you under license, subject to the terms and conditions of this
Agreement. If you use the Wasp Product, you will be deemed to have accepted the
terms and conditions of this Agreement. If you do not intend to be bound to the
terms of this Agreement, Wasp is not willing to license the Software to you, you may
not use the Wasp Product or the Software, and you must contact the party from
whom you acquired the Wasp Product for instructions.

This End User Software License Agreement ("Agreement") is a legally binding agree­ment governing the licensing of the Software and Documentation by Wasp Barcode
Technologies and its Affiliates ("Wasp") to the entity or person who has purchased or
otherwise acquired a Wasp Product ("End User"). For purposes of this Agreement, any
software that is associated with a separate end-user license agreement is licensed to
you under the terms of that license agreement. Wasp and End User hereby agree as
follows:

1. Definitions

1.1 "Affiliate" means a business entity currently existing or later acquired that controls,
is controlled by, or is under common control with Wasp Barcode Technologies.

1.2 "Documentation" means materials such as user's guides, program reference
guides, quick reference guides, manuals, or similar materials associated with or
related to the Wasp Product, whether in printed, "online", or other form.

1.3 "Proprietary Information" means: (a) source code, object code, software, docu­mentation, and any related internal design, system design, data base design,
algorithms, technology, technical data or information, implementation tech­niques, and trade secrets related to the Software, (b) any other trade secrets
marked appropriately or identified as proprietary or confidential, and (c) any
information that End User, under the circumstances, should recognize as confi­dential. Proprietary Information does not include any information that the receiv­ing party can establish was (1) in the public domain, (2) already in the receiving
party's possession or rightfully known prior to receipt, (3) rightfully learned from
a third party not in violation of any other's proprietary rights, or (4) inde­pendently developed without access to Proprietary Information.

1.4 "Wasp Product" means the Wasp WDI2100series scanner product, including all
embedded Software in and all Documentation related to such product, which
has been purchased or otherwise acquired by End User, whether obtained
directly or indirectly from Wasp.

1.5 "Software" means any software or computer programs of Wasp or its third party
licensors in machine readable form which is embedded in the Wasp Product,
whether obtained directly or indirectly from Wasp, including any replacement,
update, upgrade, enhancement or modification.

2. Scope Of License Granted

2.1 Wasp grants to End User a non-exclusive, non-transferable, perpetual license to
use the Software, solely on the Wasp Product in which it is embedded ("desig­nated Wasp Product"), in machine-readable form only, solely for End User's inter­nal business purposes. This Agreement does not convey ownership of the
Software to End User. Title to the Software shall be and remain with Wasp or the
third party from whom Wasp has obtained a licensed right. As used in this Agree­ment, the term "purchase" or its equivalents when applied to the Software shall
mean "acquire under license." End User is not entitled to receipt or use of the
source code to any Software.

2.2 End User shall not copy, modify, decompile, disassemble, reverse engineer, or
otherwise reproduce or remanufacture the Software, whether modified or
unmodified, nor sell, assign, sublicense, distribute, lend, rent, give, or otherwise
transfer the Software to any other person or organization, for purposes other
than as expressly provided in this Agreement, without Wasp's prior written con­sent.

3. Transfers, Support

3.1 Any copying, installing, reproduction, remanufacture, reverse engineering, elec­tronic transfer, or other use of the Software on other than the designated Wasp
Product will be a material breach of this Agreement. However, Wasp may elect
not to terminate this Agreement or the granted licenses, but instead may elect to

2 WDI4600

notify End User that End User is deemed to have ordered and accepted a license
for each breaching use. End User shall pay Wasp the applicable list price for such
licenses as of the date of such breach.

3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or otherwise
transfer the Wasp Product to any third party unless such third party agrees with
Wasp in writing to be bound by the terms and conditions of this Agreement. Any
such transfer of the Wasp Product absent such agreement shall be null and void.

3.3 End User may obtain support for Software from Wasp at Wasp's standard support
fees and under Wasp's standard support terms and conditions in effect at the
time the support is requested.

4. Intellectual Property

End User acknowledges that the Software constitutes valuable trade secrets of Wasp
or Wasp's third party licensors and that the Software is protected by intellectual prop­erty laws and treaties. The license set forth in this Agreement does not transfer to End
User any ownership of Wasp's or its third party licensors' copyrights, patents, trade­marks, service marks, trade secrets, or other intellectual property rights and End User
shall have no right to commence any legal actions to obtain such rights. End User shall
not remove, modify, or take any other action that would obscure any copyright, trade­mark, patent marking, or other intellectual property notices contained in or on the
Wasp Product.

5. Proprietary Information

5.1 End User acknowledges that Proprietary Information is the confidential, propri­etary, and trade secret property of Wasp and Wasp's third party licensors and End
User acquires no right or interest in any Proprietary Information.

5.2 End User shall not disclose, provide, or otherwise make available the Proprietary
Information of Wasp or its third party licensors to any person other than End
User's authorized employees or agents who are under confidentiality agreement,
and End User shall not use the Proprietary Information other than in conjunction
with use of the Wasp Product exclusively for End User's internal business pur­poses. End User shall take steps to protect the Proprietary Information no less
securely than if it were End User's own intellectual property.

5.3 The provisions of this Proprietary Information Section shall survive and continue
for five (5) years after the termination of this Agreement.

6. Limited Warranty

6.1 Wasp warrants that, under normal use and operation, the Wasp Product will con­form substantially to the applicable Documentation for the period specified in
the Documentation. During this period, for all reproducible nonconformities for
which Wasp has been given written notice, Wasp will use commercially reason­able efforts to remedy nonconformities verified by Wasp. End User agrees to sup­ply Wasp with all reasonably requested information and assistance necessary to
help Wasp in remedying such nonconformities. For all defects reported to Wasp
within the warranty period, Wasp's liability is limited to providing End User with
one copy of corrections or responding to End User's problem reports according
to Wasp's standard assistance practices. Wasp does not warrant that the product
will meet End User's requirements or that use of the product will be uninter­rupted or error free, or that Wasp's remedial efforts will correct any nonconfor­mance. This limited warranty does not cover any product that have been
subjected to damage or abuse, whether intentionally, accidentally, or by neglect,
or to unauthorized repair or unauthorized installation, and shall be void if End
User modifies the product, uses the product in any manner other than as estab­lished in the Documentation, or if End User breaches any of the provisions of this
Agreement.

6.2 EXCEPT AS PROVIDED IN THIS AGREEMENT, THE Wasp PRODUCT IS PROVIDED "AS
IS" AND Wasp MAKES NO WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WRIT­TEN OR ORAL, WITH RESPECT TO THE PRODUCT, AND SPECIFICALLY DISCLAIMS
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICU­LAR PURPOSE.

7. Infringement

7.1 Wasp will defend End User against any claim in a lawsuit that the Wasp Product
furnished hereunder infringe a United States patent or copyright of a third party
and Wasp will pay any damages finally awarded against End User by a court of
competent jurisdiction that are attributable to such claim or will pay End User's
part of any settlement that is attributable to such claim, provided, that 1) End
User notifies Wasp promptly in writing of the claim, 2) Wasp controls the defense

Quick Reference Guide 3

or settlement of the claim, and 3) End User cooperates fully with Wasp in such
defense or settlement. All notices of a claim should be sent to Wasp Barcode
Technologies, Legal Department, 959 Terry Street, Eugene, OR 97402.

7.2 In the defense or settlement of any such claim, Wasp may, at its option, 1) procure
for End User the right to continue using the Wasp Product, 2) modify the Wasp
Product so that it becomes non-infringing, 3) replace the Wasp Product with an
equivalent product not subject to such claim, or 4) provide End User an opportu­nity to return the Wasp Product and receive a refund of the purchase price paid,
less a reasonable allowance for use.

7.3 Wasp shall have no liability to End User for claims of infringement based upon 1)
the use of any Wasp Product in combination with any product which Wasp has
not either furnished or authorized for use with such Wasp Product 2) the use of
any Wasp Product designed, manufactured, or modified to the specifications of
End User, or 3) End User's modification of the Wasp Product without written
authorization from Wasp.

7.4 THE FOREGOING STATES WASP'S COMPLETE AND ENTIRE OBLIGATION CONCERN­ING CLAIMS OF PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY
INFRINGEMENT, CANCELS AND SUPERCEDES ANY PRIOR AGREEMENTS,
WHETHER ORAL OR WRITTEN, BETWEEN THE PARTIES CONCERNING SUCH
CLAIMS, AND WILL NOT BE MODIFIED OR AMENDED BY ANY PAST, CONTEMPO­RANEOUS, OR FUTURE AGREEMENTS OR DEALINGS BETWEEN THE PARTIES,
WHETHER ORAL OR WRITTEN, EXCEPT AS SET FORTH IN A FUTURE WRITING
SIGNED BY BOTH PARTIES.

8. Limitation Of Liability

EXCEPT AS PROVIDED IN SECTION 7, WASP SHALL NOT BE LIABLE FOR ANY CLAIMS
AGAINST END USER BY ANY OTHER PARTY. IN NO EVENT SHALL WASP'S LIABILITY FOR
DAMAGES, IF ANY, WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE),
PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE
PRICE OR FEE PAID BY END USER FOR THE WASP PRODUCT. UNDER NO CIRCUMSTANCES
SHALL WASP BE LIABLE TO END USER OR ANY THIRD PARTY FOR LOST PROFITS, LOST
DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER SPECIAL, CONSE­QUENTIAL, CONTINGENT, INDIRECT, INCIDENTAL, PUNITIVE, EXEMPLARY, OR OTHER SIMI­LAR DAMAGES, EVEN IF WASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.

9. Government Restricted Rights; International Use

9.1 Use, duplication, or disclosure of the Software by the U.S. Government is subject
to the restrictions for computer software developed at private expense as set
forth in the U.S. Federal Acquisition Regulations at FAR 52.227-14(g), or 52.227-19
or in the Rights in Technical Data and Computer Software clause at DFARS

252.227-7013(c)(1)(ii), whichever is applicable.

9.2 If End User is using the Wasp Product outside of the United States, End User must
comply with the applicable local laws of the country in which the Wasp Product is
used, with U.S. export control laws, and with the English language version of this
Agreement. The provisions of the "United Nations Convention on International
Sale of Goods" shall not apply to this Agreement.

10. Termination

10.1 Either party may terminate this Agreement or any license granted under this
Agreement at any time upon written notice if the other party breaches any provi­sion of this Agreement.

10.2 Upon termination of this Agreement, End User immediately shall cease using any
nonembedded software and shall return to Wasp or destroy all non-embedded
software covered by this Agreement, and shall furnish Wasp with a certificate of
compliance with this provision signed by an officer or authorized representative
of End User. For embedded software, End User agrees to sign a waiver prepared
by Wasp concerning further use of the embedded Software. End User's resumed
or continued use of the embedded Software after termination shall constitute
End User's agreement to be bound by the terms and conditions of this Agree­ment for such use.

11. General Provisions

11.1 Entire Agreement; Amendment. This document contains the entire agreement
between the parties relating to the licensing of the Software and supersedes all
prior or contemporaneous agreements, written or oral, between the parties con­cerning the licensing of the Software. This Agreement may not be changed,
amended, or modified except by written document signed by Wasp.

Software Product Policy

4 WDI4600

11.2 Notice. All notices required or authorized under this Agreement shall be given in
writing, and shall be effective when received, with evidence of receipt. Notices to
Wasp shall be sent to the attention of Contract Administration, Wasp Barcode
Technologies,1400 10th Street, Plano, Texas, or such other address as may be
specified by Wasp in writing.

11.3 Waiver. A party's failure to enforce any of the terms and conditions of this Agree­ment shall not prevent the party's later enforcement of such terms and condi­tions.

11.4 Governing Law; Venue: This Agreement and the rights of the parties hereunder
shall be governed by and construed in accordance with the laws of the State of
Oregon U.S.A, without regard to the rules governing conflicts of law. The state or
federal courts of the State of Oregon located in either Multnomah or Lane coun­ties shall have exclusive jurisdiction over all matters regarding this Agreement,
except that Wasp shall have the right, at its absolute discretion, to initiate pro­ceedings in the courts of any other state, country, or territory in which End User
resides, or in which any of End User's assets are located.

11.5 Attorneys' Fees. In the event an action is brought to enforce the terms and condi­tions of this Agreement, the prevailing party shall be entitled to reasonable attor­neys' fees, both at trial and on appeal.

- END -

Software Product Policy

Wasp Barcode Technologies reserves the right to ship its prod­ucts with the latest version of software/firmware available.
This provides our customers with the very latest in Wasp soft­ware technology.

The only exception to this policy is when the buyer has a
signed contract with Wasp that clearly defines the terms and
conditions for making software/firmware changes in products
shipped to the buyer.

Quick Reference Guide 5

WDI4600

Description

With rich feature sets and extensive model options, the
WDI4600 product series from Wasp Barcode Technologies
represents the premium level of data collection equipment for
general purpose applications. The WDI4600 reader has en­hanced optics with improved motion tolerance, allowing
codes placed on fast-moving objects to be easily and quickly
captured, creating the ideal reader for tasks requiring high
throughput like those found in retail and light industrial envi­ronments.

Omni­Directional
Operating

To read a symbol or capture an image, simply aim
the reader and pull the trigger. The WDI4600 is a
powerful omni-directional reader, so the orienta­tion of the symbol is not important.
When using the product with the cradle at a 45°
position, the aiming pattern can work as an aim­ing system to aid in positioning the barcode for
quick and intuitive reading.

Decoding

Reliably decodes all standard 1D (linear) and 2D
barcodes, including GS1 DataBar™ linear codes,
Postal Codes (China Post), Stacked Codes (such as
GS1 DataBar Expanded Stacked, GS1 DataBar
Stacked, GS1 DataBar, Stacked Omnidirectional).
The data stream — acquired from decoding a
symbol — is rapidly sent to the host. The reader is
immediately available to read another symbol.

Imaging

The WDI4600 can also function as a camera by
capturing entire images or image portions of
labels, signatures, and other items.

Setting Up the Reader

6 WDI4600

Setting Up the Reader

Follow the steps below to connect and get your reader up and
communicating with its host.

1. Connect the Cable to the reader and the Host.

2. Configure the Interface (see page 8).

3. Configure the Reader starting on page 19 (optional,
depends on settings needed).

Connect/Disconnect Cable to Reader

Figure 1. Connecting to the Reader

Host Connection:

The WDI4600 plugs directly into the host

device as shown in

Figure 2. The power can also be supplied

through an external power supply via the Interface Cable sup­plied with a power jack.

Figure 2. Connecting to the Host

U

S

B

Using the WDI4600

Quick Reference Guide 7

Using the WDI4600

The WDI4600 normally functions by capturing and decoding
codes. The reader is equipped with an internal motion-sensing
function which activates the aiming system on device motion.
The intelligent aiming system indicates the field of view which
should be positioned over the barcode:

Aiming System

Relative Size and Location of Aiming System Pattern

A red beam illuminates the label. The field of view indicated
by the aiming system will be smaller when the reader is closer
to the barcode and larger when it is farther from the code.
Symbologies with smaller bars or elements (mil size) should be
read closer to the unit. Symbologies with larger bars or ele­ments (mil size) should be read farther from the unit.

If the aiming system is centered and the entire barcode is with­in the aiming field, you will get a good read. Successful reading
is signaled by an audible tone plus a good-read green spot LED
indicator.

Reference the WDI4600 Product Reference Guide (PRG) for
more information about this feature and other programmable
settings.

Linear barcode

2D Matrix symbol

Selecting the Interface Type

8 WDI4600

Selecting the Interface Type

Upon completing the physical connection between the reader
and its host, proceed directly to Interface Selection below for
information and programming for the interface type the read­er is connected to (for example: RS-232, Keyboard Wedge,
USB, etc.) and scan the appropriate barcode to select your sys­tem’s correct interface type.

Interface Selection

Each reader model will support one of the following sets of
host interfaces:

General Purpose Models:

RS-232, RS-232 OPOS, USB, Key-

board Wedge, Wand.
Information and programming options for each interface type

are provided in this section. For defaults and additional infor­mation associated with each interface, proceed to the corre­sponding chapter in the WDI4600 PRG.

Configuring the Interface

Scan the appropriate programming barcode to select the inter­face type for your system.

Unlike some other programming features and options,
interface selections require that you scan only one
programming barcode label. DO NOT scan an ENTER/
EXIT barcode prior to scanning an interface selection
barcode.

Some interfaces require the scanner to start in the dis­abled state when powered up. If additional scanner
configuration is desired while in this state, pull the
trigger and hold for 5 seconds. The scanner will change
to a state that allows programming with barcodes.

Selecting the Interface Type

Quick Reference Guide 9

RS-232

RS-232 standard interface

Select RS232-STD

RS-232 Wincor-Nixdorf

Select RS232-WN

RS-232 for use with OPOS/UPOS/JavaPOS

Select RS-232 OPOS

USB Com to simulate RS-232 standard interface

Select USB-COM-STD

a

USB-OEM

USB-OEM

(can be used for OPOS/UPOS/JavaPOS)

Select USB-OEM

a. Download the correct USB COM driver from www.waspbarcode.com

Selecting the Interface Type

10 WDI4600

Keyboard Interface

Use the programming barcodes to select options for USB
Keyboard and Wedge Interfaces.

KEYBOARD

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/

Standard Key Encoding

Select KBD-AT

Keyboard Wedge for IBM AT PS2 with standard key encoding but

without external keyboard

Select KBD-AT-NK

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95

w/Alternate Key

Select KBD-AT-ALT

Keyboard Wedge for IBM AT PS2 with alternate key encoding but

without external keyboard

Select KBD-AT-ALT-NK

Selecting the Interface Type

Quick Reference Guide 11

KEYBOARD (continued)

PC/XT w/Standard Key Encoding

Select KBD-XT

Keyboard Wedge for IBM Terminal 3153

Select KBD-IBM-3153

Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make

only keyboard

Select KBD-IBM-M

Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make

break keyboard

Select KBD-IBM-MB

USB Keyboard with alternate key encoding

Select USB Alternate Keyboard

USB Keyboard for Apple computers

Select USB-KBD-APPLE

Selecting the Interface Type

12 WDI4600

Scancode Tables

Reference the WDI4600 PRG for information about control
character emulation for keyboard interfaces.

Country Mode

This feature specifies the country/language supported by the
keyboard. Only these interfaces support ALL Country Modes:

• USB Keyboard (without alternate key encoding)

• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &
95 w/Std Key Encoding

• Keyboard Wedge for IBM AT PS2 with standard key
encoding but without external keyboard

• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &
95 without Alternate Key

• Keyboard Wedge for IBM AT PS2 without alternate
key encoding but without external keyboard

All other interfaces support ONLY the following Country
Modes: U.S., Belgium, Britain, France, Germany, Italy,
Spain, Sweden.

KEYBOARD (continued)

Keyboard Wedge for DIGITAL Terminals

VT2xx, VT3xx, VT4xx

Select KBD-DIG-VT

USB Keyboard with standard key encoding

Select USB Keyboard

WAND EMULATION

Wand Emulation

Select WAND

Selecting the Interface Type

Quick Reference Guide 13

COUNTRY MODE

ENTER/EXIT PROGRAMMING MODE

Country Mode = U.S.

Country Mode = Belgium

Country Mode = Britain

Country Mode = Croatia*

Country Mode = Czech*

*

Supports only the interfaces listed in the Country Mode feature description

Selecting the Interface Type

14 WDI4600

COUNTRY MODE (continued)

Country Mode = Denmark*

Country Mode = France

Country Mode = French Canadian*

Country Mode = Germany

Country Mode = Hungary*

*

Supports only the interfaces listed in the Country Mode feature description

$CKBCO13(CR)

Selecting the Interface Type

Quick Reference Guide 15

COUNTRY MODE (continued)

Country Mode = Italy

Country Mode = Japanese 106-key*

Country Mode = Lithuanian*

Country Mode = Norway*

Country Mode = Poland*

Country Mode = Portugal*

*

Supports only the interfaces listed in the Country Mode feature description

Selecting the Interface Type

16 WDI4600

COUNTRY MODE (continued)

Country Mode = Romania*

Country Mode = Spain

Country Mode = Sweden

Country Mode = Slovakia*

Country Mode = Switzerland*

*Supports only the interfaces listed

in the Country Mode feature

description

Selecting the Interface Type

Quick Reference Guide 17

Caps Lock State

This option specifies the format in which the reader sends
character data. This applies to keyboard wedge interfaces. This
does not apply when an alternate key encoding keyboard is se­lected.

ENTER/EXIT PROGRAMMING MODE

Caps Lock State = Caps Lock OFF

Caps Lock State = Caps Lock ON

Caps Lock State = AUTO Caps Lock Enable

Selecting the Interface Type

18 WDI4600

Numlock

This option specifies the setting of the Numbers Lock (Num­lock) key while in keyboard wedge interface. This only applies
to alternate key encoding interfaces. It does not apply to USB
keyboard.

ENTER/EXIT PROGRAMMING MODE

Numlock = Numlock key unchanged

Numlock = Numlock key toggled

Programming

Quick Reference Guide 19

Programming

The reader is factory-configured with a set of standard default
features. After scanning the interface barcode from the Inter­faces section, select other options and customize your reader
through use of the programming barcodes available in the
WDI4600 PRG. Check the corresponding features section for
your interface, and also the Data Editing and Symbologies
chapters of the PRG.

Using Programming Barcodes

This manual contains barcodes which allow you to reconfig­ure your reader. Some programming barcode labels, like the
"Reset Default Settings" on page 19, require only the scan of
that single label to enact the change.

Other barcodes require the reader to be placed in Program­ming Mode prior to scanning them. Scan an ENTER/EXIT
barcode once to enter Programming Mode; scan the desired
parameter settings; scan the ENTER/EXIT barcode again to
accept your changes, which exits Programming Mode and re­turns the reader to normal operation.

Configure Other Settings

Additional programming barcodes are available in the PRG to
allow for customizing programming features. If your installa­tion requires different programming than the standard factory
default settings, refer to the PRG.

Resetting Product Defaults

If you aren’t sure what programming options are in your read­er, or you’ve changed some options and want your custom fac­tory settings restored, scan the barcode below to reset the
reader to its initial configuration. Reference the PRG for other
options, and a listing of standard factory settings.

Factory defaults are based on the interface type. Be
sure your reader is configured for the correct inter­face before scanning this label. See "Selecting the
Interface Type" on page 8 for more information.

Reset Default Settings

Reading Parameters

20 WDI4600

Reading Parameters

Move the reader toward the target and center the aiming pat­tern and illumination system to capture and decode the image.
See Using the WDI4600 on page 7 for more information.

The aiming system will briefly switch off after the acquisition
time, and if no code is decoded will switch on again before the
next acquisition. The illuminator will remain on until the
symbol is decoded.

As you read code symbols, adjust the distance at which you are
holding the reader.

Aiming System

A number of options for customizing control of the Aiming
System are available. See the WDI4600 PRG for more infor­mation and programming barcodes.

Good Read Green Spot Duration

Successful reading can be signaled by a good read green spot.
Use the barcodes that follow to specify the duration of the
good read pointer beam after a good read.

ENTER/EXIT PROGRAMMING MODE

Disabled

♦ Short (300 ms)

Medium (500 ms)

Long (800 ms)

Operating Modes

Quick Reference Guide 21

Operating Modes

Scan Mode

The imager can be set to operate in one of several scanning
modes. See the PRG for more information and settings for any
of the options:

Trigger Single (Default):

This mode is associated with typical
handheld reader operation. Motion Sense is active and if the
scanner detects motion the aiming pattern is turned on. When
the trigger is pulled, illumination is turned on and the scanner
attempts to read a label. Scanning is activated until one of the
following occurs:

• the programmable “maximum scan on time”

1

has

elapsed

• a label has been read

• the trigger is released

Trigger Pulse Multiple:

Scanning begins when the trigger is
pulled and continues after the trigger is released, until the trig­ger is pulled again or until the programmable “maximum scan
on time”

1

has elapsed. Reading a label does not disable scan-

ning. Double Read Timeout

1

prevents undesired multiple

reads while in this mode.

Trigger Hold Multiple :

When the trigger is pulled, scanning
starts and the product scans until the trigger is released or
“maximum scan on time”

1

has elapsed. Reading a label does

not disable scanning. Double Read Timeout

1

prevents unde-

sired multiple reads while in this mode.

Always On:

The illuminator is always ON and the reader is al-

ways ready for code reading. Double Read Timeout

1

prevents

undesired multiple reads.

Flashing:

The reader illuminator flashes on and off regardless
of the trigger status. Code reading takes place only during the
Flash On

2

time. Double Read Timeout1 prevents undesired

multiple reads.

Object Detection3:

The scanner looks for changes within its
field-of-view. The Aiming Pattern is always on to show the op­timum reading area. If a predefined amount of movement is
detected, the red illumination switches on. Scanning contin­ues until a label is read or "maximum scan on time" is reached.

1. See the Product Reference Guide (PRG) for these and other programmable
features

2. Controlled by Flash On Time and Flash Off Time. Use the PRG to program these
options.

3. This feature is available starting with firmware release 610001013.

Operating Modes

22 WDI4600

Scan Mode (continued)

* This feature is available starting with firmware release 610001013

ENTER/EXIT PROGRAMMING MODE

♦

Scan Mode = Trigger Single

Scan Mode = Trigger Pulse Multiple

Scan Mode = Trigger Hold Multiple

Scan Mode = Flashing

Scan Mode = Always On

Scan Mode = Object Detection*

Operating Modes

Quick Reference Guide 23

Stand Mode Operation

Stand Mode:

In Stand Mode, the illumination remains on for a
configurable amount of time after a good read occurs. The
scanner exits stand mode when movement is detected. If the
trigger is activated from stand mode, the scanner transitions
into one of the triggered modes.

This feature is available starting with firmware
release 610001013.

ENTER/EXIT PROGRAMMING MODE

♦

Stand Mode = Disabled

Stand Mode = Generic Stand

Stand Mode = for All-in-one and Base

Stand Mode = Precise Stand

Operating Modes

24 WDI4600

Pick Mode

Specifies the ability of the reader to decode labels only when
they are close to the center of the aiming pattern. Pick Mode
is a Decoding and Transmission process where barcodes that
are not within the configurable distance from the center of the
aiming pattern are not acknowledged or transmitted to the
host. It is active only while the scanner is in Trigger Single
mode. If the scanner switches to a different Read Mode, Pick
Mode is automatically disabled.

Multiple Label Reading

The reader offers a number of options for multiple label read­ing. See the PRG or software configuration tool for descrip­tions of these features and programming labels.

This feature is not compatible with Multiple Labels
Reading in a Volume. See the PRG for more infor­mation.

ENTER/EXIT PROGRAMMING MODE

♦

PIck Mode = Disable

Pick Mode = Enable

Technical Specifications

Quick Reference Guide 25

Technical Specifications

The following table contains Physical and Performance Char­acteristics, User Environment and Regulatory information.

Item Description

Physical Characteristics

Color

Black/Yellow

Dimensions

Height 7.1”/181 mm
Length 3.9”/100 mm
Width 2.8”/71 mm

Weight (without cable) Approximately 6.9 ounces /195.6 g

Electrical Characteristics

Voltage & Current

Input Voltage

•5.25VDC

Operating (typical)

• 160ma

Operating (max)

• 350ma

Idle/standby (typical)

• 65ma

Performance Characteristics

Light Source LEDs

Roll (Tilt) Tolerance Up to ± 180°

Pitch Tolerance ± 40°

Skew (Yaw) Tolerance ± 40°

Print Contrast Minimum 25% minimum reflectance

Technical Specifications

26 WDI4600

Depth of Field (Typical)

a

a. 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade A, typical environmental light,

20°C, label inclination 10°

Symbology SR: HD:

Code 39

5mil: 1.6” -7.5” (4.0 -19cm)
10mil: 0.4” - 11..8” (1.0 - 30cm)
20mil: up to 17.7” (up to 45cm)

3mil: 0.9” - 3.6” (2.4 - 9.1cm)
5 mil: 0.3” - 4.5” (0.8 -11.3cm)

EAN

7.5mil: 0.5” - 10.6” (2.0 - 27cm)
13mil: 0.6” - 15.7” (1.5 - 40cm)

7.5mil: 0” - 5” (0 - 12.7cm)
13mil: .43” - 6.8” (1.1- 17.2cm)

PDF-417

6.6mil: 1.0” - 5.9” (2.5 - 15cm)
10mil: 0.2” - 8.6” (0.5 - 22cm)
15mil: 0.6” - 13.4” (1.5 - 34cm)

4mil: 0.7” - 2.7” (1.8 - 6.8cm)

6.6mil: 0.1” - 4.4” (0.1 - 11.2cm)
10mil: 0” - 5.6” (0 - 14.3cm)

DataMatrix

10mil: 0.8” to 6.3” (2.0 - 16cm)
15mil: 0” to 9.3” (0 - 23.6cm)

5mil: 1.1” - 2.4” (2.8-6.1cm)

QR Code

10mil: 1.2” to 4.9” (3.0 - 12.5cm)
15mil: 0.4” to 7.5” (1.0 - 19cm)

6.7mil: 0.8” - 1.7” (2.1 - 4.2cm)

Minimum
Element Width

Standard Range:

1D Min Resolution = 4 mil
PDF-417 Min Resolution = 5 mil
Datamatrix Min Resolution
= 7 mil

High Density:

1D Min Resolution = 2.5 mil
PDF-417 Min Resolution = 4 mil
Datamatrix Min Resolution
= 5 mil

Technical Specifications

Quick Reference Guide 27

Decode Capability

1D Barcodes

UPC/EAN/JAN (A, E, 13, 8); UPC/EAN/JAN (including P2 /P5); UPC/EAN/JAN (including; ISBN /
Bookland & ISSN); UPC/EAN Coupons; Code 39 (including full ASCII); Code 39 Trioptic; Code39
CIP (French Pharmaceutical); LOGMARS (Code 39 w/ standard check digit enabled); Danish
PPT; Code 32 (Italian Pharmacode 39); Code 128; Code 128 ISBT; Interleaved 2 of 5 ; Standard 2
of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; China Post Code/Chinese 2 of
5; IATA 2of5 Air cargo code; Code 11; Codabar; Codabar (NW7); ABC Codabar; EAN 128; Code
93; MSI; PZN; Plessey; Anker Plessey; GS1 DataBar Omnidirectional; GS1 DataBar Limited; GS1
DataBar Expanded; GS1 DataBar Truncated; DATABAR Expanded Coupon.

2D / Stacked Codes

The WDI4600 scanner is capable of decoding the following sybmologies using multiple frames
(i.e. Multi-Frame Decoding):

Datamatrix; Inverse Datamatrix; Datamatrix is configurable for the following parameters:;
Normal or Inverted; Square or Rectangular Style; Data length (1 - 3600 characters); Maxicode;
QR Codes (QR, Micro QR and Multiple QR Codes); Aztec; Postal Codes - (Australian Post; Japa­nese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM45CC); Intelligent Mail Barcode
(IMB); Sweden Post; Portugal Post); LaPoste A/R 39; 4-State Canada; PDF-417; MacroPDF;
Micro PDF417; GS1 Composites (1 - 12); Codablock F; French CIP13; GS1 DataBar Stacked; GS1
DataBar Stacked Omnidirectional; GS1 DataBar Expanded Stacked; GSI Databar Composites;
Chinese Sensible Code; Inverted 2D codes

a

.

a

The SW can apply the Normal/Reverse Decoding Control to the following symbologies: Datamatrix, QR,

Micro QR, Aztec and Chinese Sensible Code.

Interfaces Supported

USB Com Std., USB Keyboard, USB

See page 8 for a listing of available interface options.

User Environment

Operating Temperature 32° to 131° F (0° to 55° C)

Storage Temperature -4° to 158° F (-20° to 70° C)

Humidity

Operating: 5% to 90% relative humidity,
non-condensing

Drop Specifications

Scanner withstands 18 drops from 1.8 meters (6.0 feet) to
concrete

Ambient Light Immunity Up to 100,000 Lux

Contaminants Spray/rain Dust/
particulates

IEC 529-IP52

LED and Beeper Indications

28 WDI4600

LED and Beeper Indications

The reader’s beeper sounds and its LED illuminates to indicate
various functions or errors on the reader. An optional “Green
Spot” also performs useful functions. The following tables list
these indications. One exception to the behaviors listed in the
tables is that the reader’s functions are programmable, and so
may or may not be turned on. For example, certain indications
such as the power-up beep can be disabled using programming
barcode labels.

ESD Level 16 KV

Regulatory

Electrical Safety UL 60950, CSA C22.2 No. 60950, IEC 60950

EMI/RFI

North America (FCC) : Part 15 Class B; Canada ( IC) : ICES­003 Class B; European Union EMC Directive;
Australia (ACMA)

Laser Class Safety

IEC Class 2
Radiation 1 mW Avg., Emitted wavelength 650 nm, 12ms
pulse, Beam Divergence 8.4 deg x 8.1 deg (“plus” pattern)

Complies with FDA performance standards for laser products except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007.

Indicator Description LED Beeper

Power-up Beep

The reader is in the
process of power­ing-up.

Reader beeps four
times at highest
frequency and vol­ume upon power­up.

Good Read
Beep

A label has been
successfully
scanned by the
reader.

LED behavior for
this indication is
configurable via
the feature “Good
Read: When to
Indicate”
(see the PRG for
information.)

The reader will
beep once at cur­rent frequency,
volume, mono/bi­tonal setting and
duration upon a
successful label
scan.

LED and Beeper Indications

Quick Reference Guide 29

ROM Failure

There is an error in
the reader's soft­ware/programming

Flashes

Reader sounds one
error beep at high­est volume.

Limited
Scanning Label
Read

Indicates that a
host connection is
not established.

N/A

Reader 'chirps' six
times at the high­est frequency and
current volume.

Reader Active
Mode

The reader is active
and ready to scan.

The LED is lit

steadily

a

N/A

Reader
Disabled

The reader has been
disabled by the
host.

The LED blinks
continuously

N/A

Green Spot

a

flashes
momentarily

Upon successful
read of a label, the
software shall turn
the green spot on
for the time speci­fied by the config­ured value.

N/A N/A

Image Capture

When ready to cap­ture image

Blue light

flashes 2 times

when updating

N/A

a

Except when in sleep mode or when a Good Read LED Duration other than 00 is selected

Indicator Description LED Beeper

LED and Beeper Indications

30 WDI4600

Programming Mode

-

The following indications ONLY occur

when the reader is in Programming Mode

.

INDICATION DESCRIPTION LED BEEPER

Label Program­ming Mode Entry

A valid programming
label has been scanned.

LED blinks

continuously

Reader sounds
four low fre­quency beeps.

Label Program­ming Mode Rejec­tion of Label

A label has been
rejected.

N/A

Reader sounds
three times at
lowest fre­quency and cur­rent volume.

Label Program­ming Mode
Acceptance of
Partial Label

In cases where multi­ple labels must be
scanned to program
one feature, this indica­tion acknowledges
each portion as it is suc­cessfully scanned.

N/A

Reader sounds
one short beep at
highest fre­quency and cur­rent volume.

Label Program­ming Mode
Acceptance of
Programming

Configuration option(s)
have been successfully
programmed via labels
and the reader has
exited Programming
Mode.

N/A

Reader sounds
one high fre­quency beep and
4 low frequency
beeps followed
by reset beeps.

Label Program­ming Mode Can­cel Item Entry

Cancel label has been
scanned.

N/A

Reader sounds
two times at low
frequency and
current volume.

Error Codes

Quick Reference Guide 31

Error Codes

Upon startup, if the reader sounds a long tone, this means the
reader has not passed its automatic Selftest and has entered
FRU (Field Replaceable Unit) isolation mode. If the reader is
reset, the sequence will be repeated. Press and release the trig­ger to hear the FRU indication code.

The following table describes the LED flashes/beep codes as­sociated with an error found.

Number of

LED Flashes/

Beeps

Error Corrective Action

1 Configuration

Contact Helpdesk for

assistance

2Interface PCB

6Digital PCB

11 Imager

Cleaning

32 WDI4600

Cleaning

Exterior surfaces and scan windows exposed to spills, smudges
or debris require periodic cleaning to ensure best performance
during scanning.

Use a soft, dry cloth to clean the product. If the product is very
soiled, clean it with a soft cloth moistened with a diluted non­aggressive cleaning solution or diluted ethyl alcohol.

CAUTION

Do not use abrasive or aggressive cleansing agents or
abrasive pads to clean scan windows or plastics.

Do not spray or pour liquids directly onto the unit.

Regulatory Information

Quick Reference Guide 33

Regulatory Information

All models are designed to be compliant with rules and regu­lations in locations they are sold and will be labeled as re­quired.

Any changes or modifications to equipment, not expressly ap­proved by Wasp Barcode Technologies could void the user's
authority to operate the equipment.

Statement of Agency Compliance

This device complies with part 15 of the FCC Rules. Opera­tion is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.

FCC Class B Compliance Statement

The user is cautioned that changes or modifications not ex­pressly approved by the part responsible for compliance could
void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal­lation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this equip­ment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the inter­ference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit dif­ferent from that to which the receiver is connected.

• Consult the dealer or an experienced radio or televi­sion technician for help.

Regulatory Information

34 WDI4600

Canadian Notice

This equipment does not exceed the Class B limits for radio
noise emissions as described in the Radio Interference Regula­tions of the Canadian Department of Communications.

Le present appareil numerique n’emet pas de bruits radioelec­triques depassant les limites applicables aux appareils nu­meriques de la classe B prescrites dans le Reglement sur le
brouillage radioelectrique edicte par le ministere des Commu­nications du Canada.

Power Supply

This device is intended to be connected to a UL Listed/CSA
Certified computer which supplies power directly to the read­er or else be supplied by UL Listed/CSA Certified Power Unit
marked “Class 2” or LPS power source rated 5-14V minimum
900mA.

CAUTION

Do not attempt to open or otherwise service any com­ponents in the optics cavity. Opening or servicing any
part of the optics cavity by unauthorized personnel
may violate laser safety regulations.

Regulatory Information

Quick Reference Guide 35

Imager Labeling

Sample labels are shown here to illustrate their location only.
Please view the labels on your product for actual details, as
they may vary from those depicted.

Aiming System

The WDI4600 aiming system meets the Class 2 requirements
for laser safety. The laser information is located on the window
of the Scanner as shown below.

N263

See product

manual and

package for

patent listing.

ACCESSORY

LISTED

I.T.E., .3KRU

Scanner Regulatory Label

Regulatory Information

36 WDI4600

ENGLISH

The following information is provided to comply with the
rules imposed by international authorities and refers to the
correct use of your terminal.

STANDARD LASER SAFETY REGULATIONS

This product conforms to the applicable requirements of both
CDRH 21 CFR 1040 and EN 60825-1 at the date of manu­facture.

For installation, use and maintenance, it is not necessary to
open the device.

IDFE

LA LUCE
LASER È VISI­BILE
ALL'OCCHIO
UMANO E
VIENE EMESSA
DALLA FINES­TRA INDI­CATA NELLA
FIGURA.

DIE LASER-STRAH­LUNG IST FÜR DAS
MENSCHLICHE
AUGE SICHTBAR
UND WIRD AM
STRAHLAUS TRITTS­FENSTER AUS­GESENDET (SIEHE
BILD)

LE RAYON
LASER EST VISI­BLE À L'OEIL
NU ET IL EST
ÉMIS PAR LA
FENÊTRE
DÉSIGNÉE SUR
L'ILLUSTRA­TION DANS LA
FIGURE

A LUZ LÁSER ES
VISIBLE AL OJO
HUMANO Y ES
EMITIDA POR
LA VENTANA
INDICADA EN
LA FIGURA.

LUCE LASER
NON FISSARE
IL FASCIO
APPAREC­CHIO LASER DI
CLASSE 2
MASSIMA
POTENZA
D'USCITA:
LUNGHEZZA
D'ONDA
EMESSA:
CONFORME A
EN 60825-1
(2007)

LASERSTRAHLUNG
NICHT IN DEN
STRAHL BLICKEN
PRODUKT DER
LASERKLASSE 2
MAXIMALE AUS­GANGSLEISTUNG:
WELLENLÄGE:
ENTSPR. EN 60825­1 (2007)

RAYON LASER
EVITER DE
REGARDER LE
RAYON APPAR­EIL LASER DE
CLASSE 2 PUIS­SANCE DE SOR­TIE:
LONGUEUR
D'ONDE EMISE:
CONFORME A
EN 60825-1
(2007)

RAYO LÁSER
NO MIRAR FIJO
EL RAYO
APARATO
LÁSER DE
CLASE 2 MÁX­IMA POTENCIA
DE SALIDA:
LONGITUD DE
ONDA EMIT­IDA:
CONFORME A
EN 60825-1
(2007)

WAR NING

Use of controls or adjustments or perfor­mance of procedures other than those speci­fied herein may result in exposure to
hazardous visible laser light.

Regulatory Information

Quick Reference Guide 37

The product utilizes a low-power laser diode. Although staring
directly at the laser beam momentarily causes no known bio­logical damage, avoid staring at the beam as one would with
any very strong light source, such as the sun. Avoid that the la­ser beam hits the eye of an observer, even through reflective
surfaces such as mirrors, etc.

ITALIANO

Le seguenti informazioni vengono fornite dietro direttive delle
autorità internazionali e si riferiscono all’uso corretto del ter­minale.

NORMATIVE STANDARD PER LA SICUREZZA LASER

Questo prodotto risulta conforme alle normative vigenti sulla
sicurezza laser alla data di produzione: CDRH 21 CFR 1040
e EN 60825-1.

Non si rende mai necessario aprire l’appa-recchio per motivi di
installazione, utilizzo o manutenzione.

Il prodotto utilizza un diodo laser a bassa potenza. Sebbene
non siano noti danni riportati dall’occhio umano in seguito ad
una esposizione di breve durata, evitare di fissare il raggio laser
così come si eviterebbe qualsiasi altra sorgente di luminosità
intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio
laser negli occhi di un osservatore, anche attraverso superfici
riflettenti come gli specchi.

DEUTSCH

Die folgenden Informationen stimmen mit den Sicherheit­shinweisen überein, die von internationalen Behörden aufer­legt wurden, und sie beziehen sich auf den korrekten
Gebrauch vom Terminal.

NORM FÜR DIE LASERSICHERHEIT

Dies Produkt entspricht am Tag der Herstellung den gültigen
EN 60825-1 und CDRH 21 CFR 1040 Normen für die La­sersicherheit.

ATTENZIONE

L'utilizzo di procedure o regolazioni differenti
da quelle descritte nella documentazione può
provocare un'esposizione pericolosa a luce
laser visibile.

Regulatory Information

38 WDI4600

Es ist nicht notwendig, das Gerät wegen Betrieb oder Installa­tions-, und Wartungs-Arbeiten zu öffnen.

Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine
Augenschäden von kurzen Einstrahlungen bekannt sind, soll­ten Sie es vermeiden für längere Zeit in den Laserstrahl zu
schauen, genauso wenig wie in starke Lichtquellen (z.B. die
Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Au­gen eines Beobachters, noch gegen reflektierende Oberflächen
zu richten.

FRANÇAIS

Les informations suivantes sont fournies selon les règles fixées
par les autorités internationales et se réfèrent à une correcte
utilisation du terminal.

NORMES DE SECURITE LASER

Ce produit est conforme aux normes de sécurité laser en vi­gueur à sa date de fabrication: CDRH 21 CFR 1040 et EN
60825-1.

Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation,
l’utilisation ou l’entretien.

Le produit utilise une diode laser. Aucun dommage aux yeux
humains n’a été constaté à la suite d’une exposition au rayon
laser. Eviter de regarder fixement le rayon, comme toute autre
source lumineuse intense telle que le soleil. Eviter aussi de di­riger le rayon vers les yeux d’un observateur, même à travers
des surfaces réfléchissantes (miroirs, par exemple).

ACHTUNG

Jegliche Änderungen am Gerät sowie Vorge­hensweisen, die nicht in dieser Betriebsanlei­tung beschreiben werden, können ein
gefährliches Laserlicht verursachen.

AT T EN T I ON

L'utilisation de procédures ou réglages dif­férents de ceux donnés ici peut entraîner une
dangereuse exposition à lumière laser visible.

Regulatory Information

Quick Reference Guide 39

ESPAÑOL

Las informaciones siguientes son presentadas en conformidad
con las disposiciones de las autoridades internacionales y se re­fieren al uso correcto del terminal.

NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER

Este aparato resulta conforme a las normativas vigentes de se­guridad láser a la fecha de producción: CDRH 21 CFR 1040
y EN 60825-1.

No es necesario abrir el aparato para la instalación, la uti­lización o la manutención.

El aparato utiliza un diodo láser a baja potencia. No son noto­rios daños a los ojos humanos a consecuencia de una ex­posición de corta duración. Eviten de mirar fijo el rayo láser así
como evitarían cualquiera otra fuente de luminosidad intensa,
por ejemplo el sol. Además, eviten de dirigir el rayo láser hacia
los ojos de un observador, también a través de superficies re­flectantes como los espejos.

AT E NC I ÓN

La utilización de procedimientos o regulaciones
diferentes de aquellas describidas en la docu­mentación puede causar una exposición
peligrosa a la luz láser visible.

CAUTION

The WDI4600 Handheld Reader is not user-ser­viceable. Opening the case of the unit can cause
internal damage and will void the warranty.

Regulatory Information

40 WDI4600

Wasp Barcode Technologies Limited
Factory Warranty

Warranty Coverage

Wasp warrants to Customer that Wasp's products will be free from de­fects in materials and workmanship for a period of one year from prod­uct shipment. Wasp Barcode Technologies (“Wasp”) hardware products
are warranted against defects in material and workmanship under nor­mal and proper use. The liability of Wasp under this warranty is limited
to furnishing the labor and parts necessary to remedy any defect cov­ered by this warranty and restore the product to its normal operating
condition. Repair or replacement of product during the warranty does
not extend the original warranty term. Products are sold on the basis of
specifications applicable at the time of manufacture and Wasp has no
obligation to modify or update products once sold.

If Wasp determines that a product has defects in material or workman­ship, Wasp shall, at its sole option repair or replace the product without
additional charge for parts and labor, or credit or refund the defective
products duly returned to Wasp. To perform repairs, Wasp may use new
or reconditioned parts, components, subassemblies or products that
have been tested as meeting applicable specifications for equivalent
new material and products. Customer will allow Wasp to scrap all parts
removed from the repaired product. The warranty period shall extend
from the date of shipment from Wasp for the duration published by
Wasp for the product at the time of purchase (Warranty period). Wasp
warrants repaired hardware devices against defects in workmanship
and materials on the repaired assembly for a 90 day period starting from
the date of shipment of the repaired product from Wasp or until the ex­piration of the original warranty period, whichever is longer. Wasp does
not guarantee, and it is not responsible for, the maintenance of, damage
to, or loss of configurations, data, and applications on the repaired units
and at its sole discretion can return the units in the “factory default” con­figuration or with any software or firmware update available at the time
of the repair (other than the firmware or software installed during the
manufacture of the product). Customer accepts responsibility to main­tain a back up copy of its software and data. Refer to:

http://www.waspbarcode.com/Corporate/warrenty_periods_claims.asp

Warranty Claims Process

Refer to

http://www.waspbarcode.com/Corporate/return_policy.asp.

Warranty Exclusions

The Wasp Factory Warranty shall not apply to:

(i) any product which has been damaged, modified, altered,

repaired or upgraded by other than Wasp service personnel or
its authorized representatives;

(ii) any claimed defect, failure or damage which Wasp determines

was caused by faulty operations, improper use, abuse, misuse,
wear and tear, negligence, improper storage or use of parts or
accessories not approved or supplied by Wasp;

(iii) any claimed defect or damage caused by the use of product

with any other instrument, equipment or apparatus;

Regulatory Information

Quick Reference Guide 41

(iv) any claimed defect or damage caused by the failure to provide

proper maintenance, including but not limited to cleaning the
upper window in accordance with product manual;

(v) any defect or damage caused by natural or man-made disaster

such as but not limited to fire, water damage, floods, other nat­ural disasters, vandalism or abusive events that would cause
internal and external component damage or destruction of the
whole unit, consumable items;

(vi) any damage or malfunctioning caused by non-restoring action

as for example firmware or software upgrades, software or
hardware reconfigurations etc.;

(vii) the replacement of upper window/cartridge due to scratching,

stains or other degradation and/or

(viii) any consumable or equivalent (e.g., cables, power supply, bat-

teries, keypads, touch screen, triggers etc.).

No Assignment

Customer may not assign or otherwise transfer its rights or obligations
under this warranty except to a purchaser or transferee of product. No
attempted assignment or transfer in violation of this provision shall be
valid or binding upon Wasp.

WASP'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EX­PRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE, IN­CLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONIN­FRINGEMENT. WASP SHALL NOT BE LIABLE FOR ANY DAMAGES SUS­TAINED BY CUSTOMER ARISING FROM DELAYS IN THE REPLACEMENT OR
REPAIR OF PRODUCTS UNDER THE ABOVE. THE REMEDY SET FORTH IN
THIS WARRANTY STATEMENT IS THE CUSTOMER’S SOLE AND EXCLUSIVE
REMEDY FOR WARRANTY CLAIMS. UNDER NO CIRCUMSTANCES WILL
WASP BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY LOST
PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR
CONTINGENT DAMAGES REGARDLESS OF WHETHER WASP HAD AD­VANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Risk of Loss

Customer shall bear risk of loss or damage for product in transit to Wasp.
Wasp shall assume risk of loss or damage for product in Wasp’s posses­sion. In the absence of specific written instructions for the return of
product to Customer, Wasp will select the carrier, but Wasp shall not
thereby assume any liability in connection with the return shipment.

Ergonomic Recommendations

42 WDI4600

Ergonomic Recommendations

• Reduce or eliminate repetitive motion

• Maintain a natural position

• Reduce or eliminate excessive force

• Keep objects that are used frequently within easy reach

• Perform tasks at correct heights

• Reduce or eliminate vibration

• Reduce or eliminate direct pressure

• Provide adjustable workstations

• Provide adequate clearance

• Provide a suitable working environment

• Improve work procedures.

Services and Support

Log on to

www.waspbarcode.com

and click on the links indicated for

information.

CAUTION

In order to avoid or minimize the potential risk of
ergonomic injury follow the recommendations
below. Consult with your local Health & Safety Man­ager to ensure that you are adhering to your com­pany’s safety programs to prevent employee injury.

La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva di Wasp Barcode Technologies. per:
This Declaration of Conformity is issued under the sole responsibility of Wasp Barcode Technologies for:
Cette déclaration de conformité est établie sous la seule responsabilité de Wasp Barcode Technologies:
Diese Konformitätserklärung wird unter der alleinigen Verantwortung des Wasp Barcode Technologies erteilt für:
Esta declaración de conformidad se expide bajo la exclusiva responsabilidad de Wa sp Barcode Technologies para:

WDI4600; Barcode Reader

sono conformi alle Direttive del Consiglio Europeo sottoelencate:
are in conformity with the requirements of the European Council Directives listed below:
sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous:
den nachstehenden angeführten Direktiven des Europäischen Rats:
cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:

2004/108/EC EMC Directive

2011/65/EU - RoHS Directive

Basate sulle legislazioni degli Stati membri in relazione alla compatibilità elettromagnetica ed alla
sicurezza dei prodotti.
On the approximation of the laws of Member States relating to electromagnetic compatibility and
product safety.
Basée sur la législation des Etats membres relative à la compatibilité électromagnétique et à la sécurité
des produits.
Über die Annäherung der Gesetze der Mitgliedsstaaten in bezug auf elektromagnetische Verträglich­keit und Produktsicherheit entsprechen.
Basado en la aproximación de las leyes de los Países Miembros respecto a la compatibilidad electro­magnética y las Medidas de seguridad relativas al producto.

Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes:
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:

DECLARATION OF CONFORMITY

Wasp Barcode Technologies 1400 10th St Plano, Texas

e tutti i suoi modelli
and all its models
et tous ses modèles
und seine Modelle
y todos sus modelos

EN 55022 (C

LASS A ITE),SEPTEMBER 2006:

A

MENDMENT A1 (CLASS A ITE), OCTOBER 2007

LIMITS AND METHODS OF MEASUREMENTS OF RADIO DIS-

TURBANCE CHARACTERISTICS OF INFORMATION TECHNOLOGY
EQUIPMENTS

EN 55024, SEPTEMBER 1998 :
A

MENDMENT A1:2001+A2:2003

INFORMATION TECHNOLOGY EQUIPMENT
IMMUNITY CHARACTERISTICS
LIMITS AND METHODS OF MEASUREMENT

EN 50581, SEPTEMBER 2012:

TECHNICAL DOCUMENTATION FOR THE ASSESSMENT OF
ELECTRICAL AND ELECTRONIC PRODUC TS WITH RESPECT TO

THE RESTRICTION OF HAZARDOUS SUBSTANCES

Plano, Texas, Updates September 2013 Jeff Schmeling

Vice President of Product Development

13

www.waspbarcode.com

Wasp Barcode Technologies
1400 10th Street
Plano, Texas USA 75074

820052190 (Rev C) December 2013
