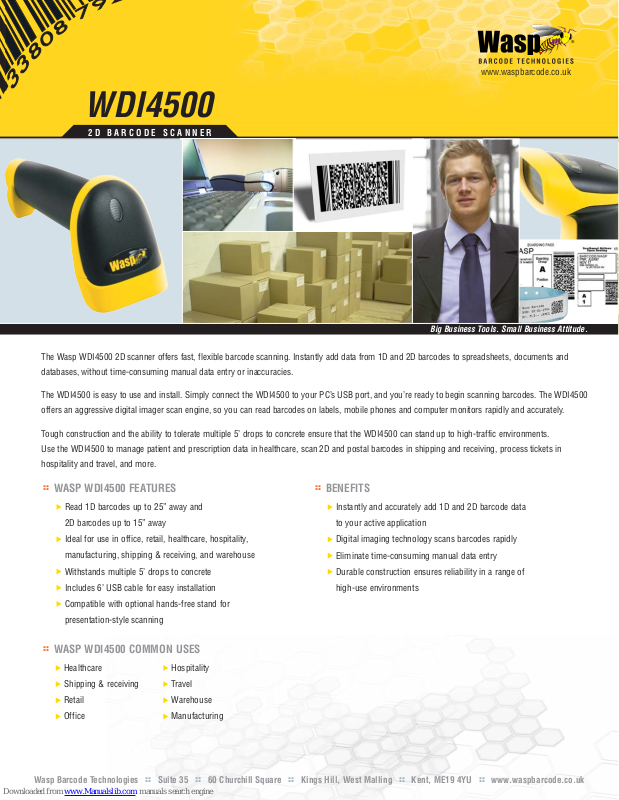

Wasp WDI4500 Specifications

www.waspbarcode.co.uk

WDI4500

2D BARCODE SCANNER

Big Business Tools. Small Business Attitude.

The Wasp WDI4500 2D scanner offers fast, flexible barcode scanning. Instantly add data from 1D and 2D barcodes to spreadsheets, documents and

databases, without time-consuming manual data entry or inaccuracies.

The WDI4500 is easy to use and install. Simply connect the WDI4500 to your PC’s USB port, and you’re ready to begin scanning barcodes. The WDI4500

offers an aggressive digital imager scan engine, so you can read barcodes on labels, mobile phones and computer monitors rapidly and accurately.

Tough construction and the ability to tolerate multiple 5’ drops to concrete ensure that the WDI4500 can stand up to high-traffic environments.

Use the WDI4500 to manage patient and prescription data in healthcare, scan 2D and postal barcodes in shipping and receiving, process tickets in

hospitality and travel, and more.

::

WASP WDI4500 FEATURES

Read 1D barcodes up to 25” away and

2D barcodes up to 15” away

Ideal for use in office, retail, healthcare, hospitality,

manufacturing, shipping & receiving, and warehouse

Withstands multiple 5’ drops to concrete

Includes 6’ USB cable for easy installation

Compatible with optional hands-free stand for

presentation-style scanning

::

WASP WDI4500 COMMON USES

Healthcare

Shipping & receiving

Retail

Office

Hospitality

Travel

Warehouse

Manufacturing

::

BENEFITS

Instantly and accurately add 1D and 2D barcode data

to your active application

Digital imaging technology scans barcodes rapidly

Eliminate time-consuming manual data entry

Durable construction ensures reliability in a range of

high-use environments

Wasp Barcode Technologies::Suite 35::60 Churchill Square::Kings Hill, West Malling::Kent, ME19 4YU::www.waspbarcode.co.uk

WDI4500

2D BARCODE SCANNER

::

SPECIFICATIONS

OPTICAL
FEATURES

Field of view: 39.6° horizontal, 25.7° vertical
Depth of field: 7.1” to 24.7” ( 5 mil to 20 mil)
Image resolution: 752 H x 480 V pixels (wide VGA)
Light source aiming pattern: 650nm laser diode
Illumination: 630 nm LED

www.waspbarcode.co.uk

Big Business Tools. Small Business Attitude.

ELECTRICAL
CHARACTERISTICS

MECHANICAL
CHARACTERISTICS

ENVIRONMENT
CHARACTERISTICS

1D (LINEAR)
SYMBOLOGIES
READ

2D SYMBOLOGIES
READ

POSTAL CODES
READ

PART NUMBERS

Operating voltage: +5 VDC ±10%
Current consumption: Idle 25 mA, Operating 450 mA

Dimensions: W 4.2” x T 2.4” x H 6.3”
Net weight: 5.5 oz (without cable)
Cable: 6’ USB
Mechanical shock: 5 ft. (1.52 m) Drop onto concrete surface

Operating temperature: 32°F to 104°F (0˚C to 40˚C)
Storage temperature: -40°F to 158°F (-40˚C to 70˚C)
Relative humidity: 5% to 95% (non-condensing)
Safety certification: Conforms FCC Class A and CE requirements

UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128,
GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93,
Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codebar, MSI, Chinese 2 of 5,
Matrix 2 of 5, Inverse 1D, GS1 Databar, Composite Codes

PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,
QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverse

US Postnet, US Planet, UK Postal, Japan Postal, Australian Postal,
Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Wasp WDI4500 2D Barcode Scanner with USB Cable: 633808503994
Wasp WDI4500 Autosense (Hands-Free) Stand: 633808502812
