Switch State
Function
Notes
SW1 Off, SW2 Off
Qwerty mode
Standard QWERTY Layout
SW1 On, SW2 On
Mac mode
Reverses Alt and OS Key positions
SW3 Off/On
Disabled until v1.0
SW4 Off/On
Factory Reset
This action will revert all keyboard settings back to
factory defaults. Unplug keyboard and set SW4 On.
Plug in Keyboard. All indicator LED’s will flash red for
20 seconds and then turn solid green which means
factory reset is complete.
SW5 Off
Fn Key Enabled
When Fn Key is enabled, you can access the built in
multimedia and lighting control keys.
Default position of Fn is the Menu Key
SW5 On
Fn Key Disabled
SW6 Off
Pgm Key Disabled
Enable the Pgm Key to access keyboard
programming functions.
Default position of Pgm is the right Ctrl Key (R_Ctrl)
SW6 On
Pgm Key Enabled

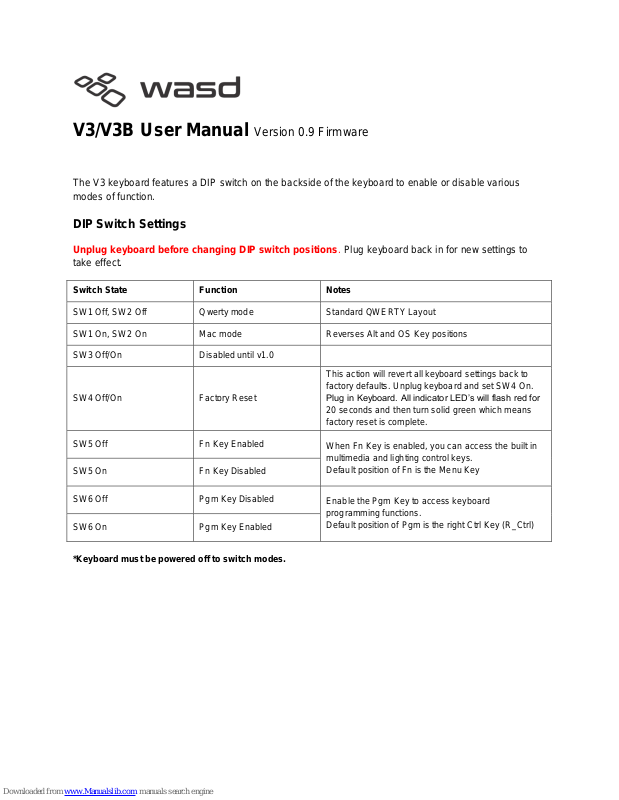

V3/V3B User Manual Version 0.9 Firmware
The V3 keyboard features a DIP switch on the backside of the keyboard to enable or disable various
modes of function.
DIP Switch Settings
Unplug keyboard before changing DIP switch positions. Plug keyboard back in for new settings to
take effect.
*Keyboard must be powered off to switch modes.
Function Key Shortcuts
Media Keys
Notes
Fn + Insert
Play / Pause
Fn + Home
Stop
Not supported by OSX
Fn + Delete
Previous
Fn + End
Next
Fn + Page Up
Volume Up
Fn + Page Down
Volume Down
Fn + Pause
Mute
LED Lighting Controls (CODE Models Only)
Fn + F11
Adjust LED backlighting brightness
CODE Models Only
Fn + F12
Turn LED backlighting on / off
CODE Models Only
Indicator LED Programming Controls
Fn + F6
Red Level 0-9
Fn + F7
Green Level 0-9
Fn + F8
Blue Level 0-9
Fn + F6
Red Level 0-9
Fn + F7
Green Level 0-9
Fn + F8
Blue Level 0-9
*SW5 must be On for Function Commands to work
Indicator LED Programming
1. Enable Pgm Key (default position for Pgm Key is R_Ctrl Key)
2. Press Pgm + Scroll Lock to enter Indicator LED Programming Mode. The Indicator LED’s will flash green
momentarily
3. Press the key of the target indicator LED
(ie: Caps Lock, Scroll Lock, Num Lock)
4. Press Fn + F6, F7, or F8 to cycle through RGB colors
5. Press Pgm to save color
6. You may go back to Step 3 to program another indicator LED or press Pgm + Scroll Lock to exit Indicator
LED Programming
