Wascomat EX6100c Parts Diagram
Spare Parts Catalogue
Catalogue de pièces de rechange
EX6100c
Washer extractor
Laveuses essoreuses
438 9020-86DOC. NO.
EDITION 3.2010
Group
Groupe
List of issues
EX6100c
Illustration Page Table of contents

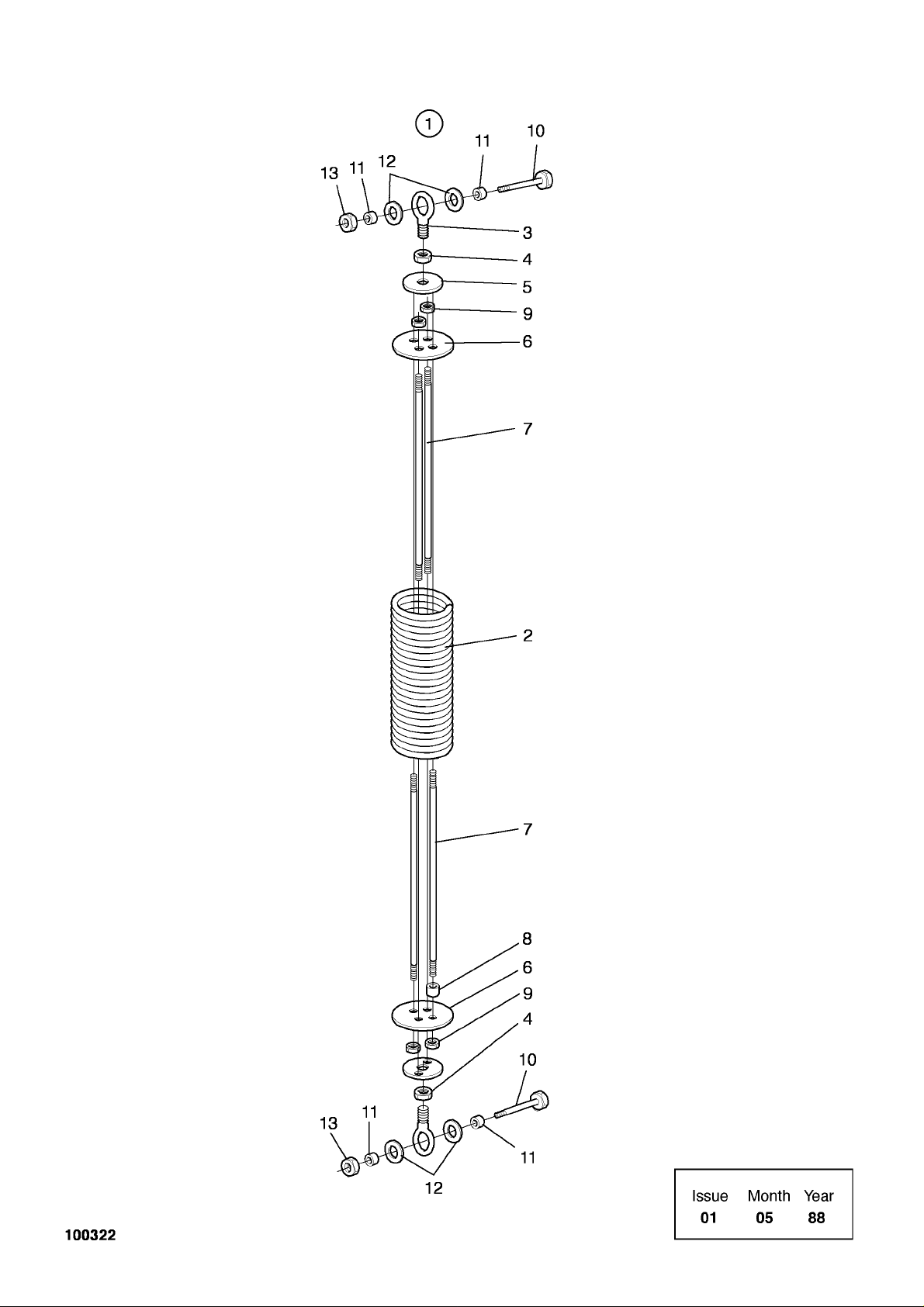

100322 33 Suspension
101422 9 Frame
101423 29 Motor
101424 11 Outer and inner drum
101425 13 Bearing house with bearings

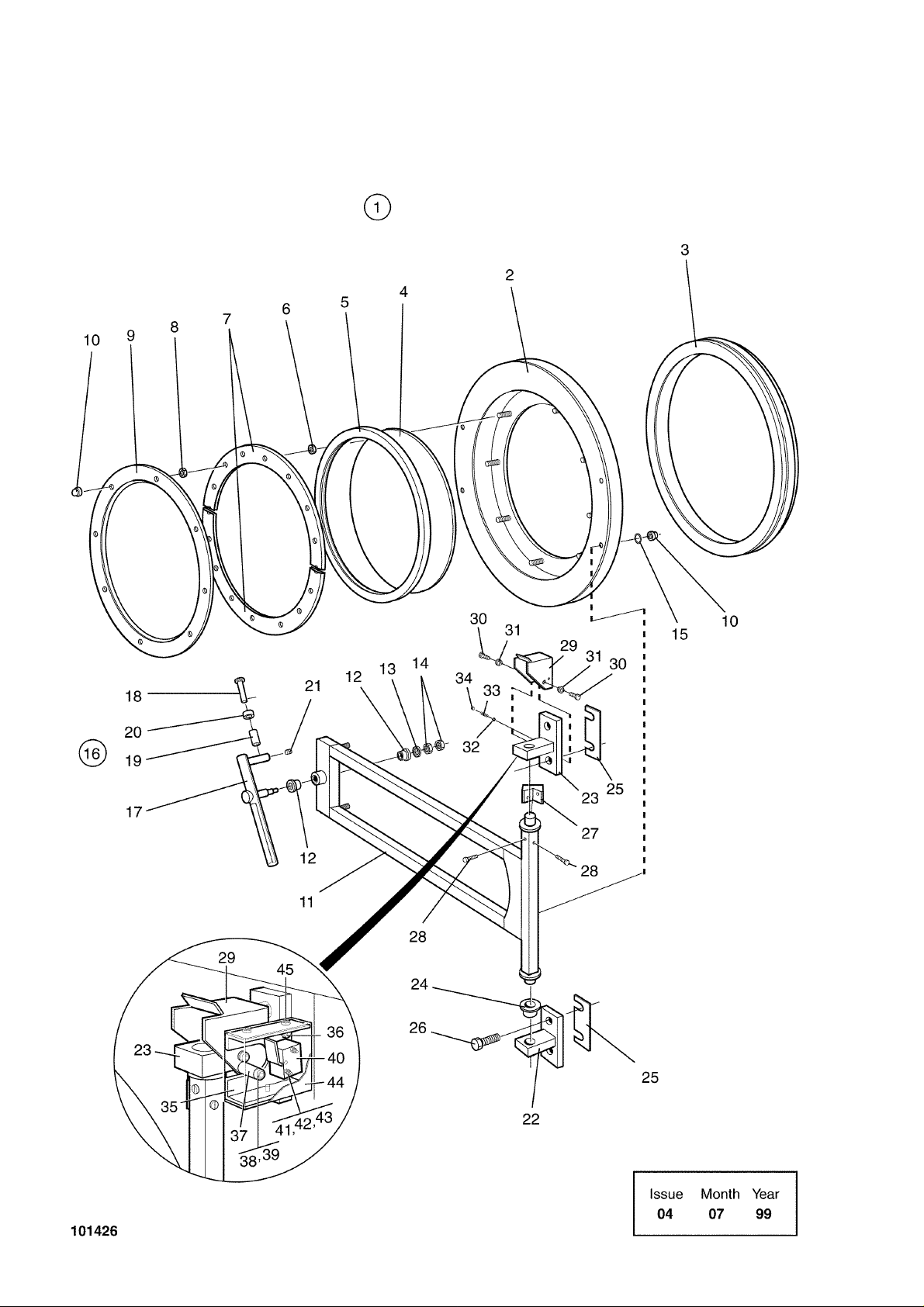

101426 25 Door
101428 35 Drain and hoses

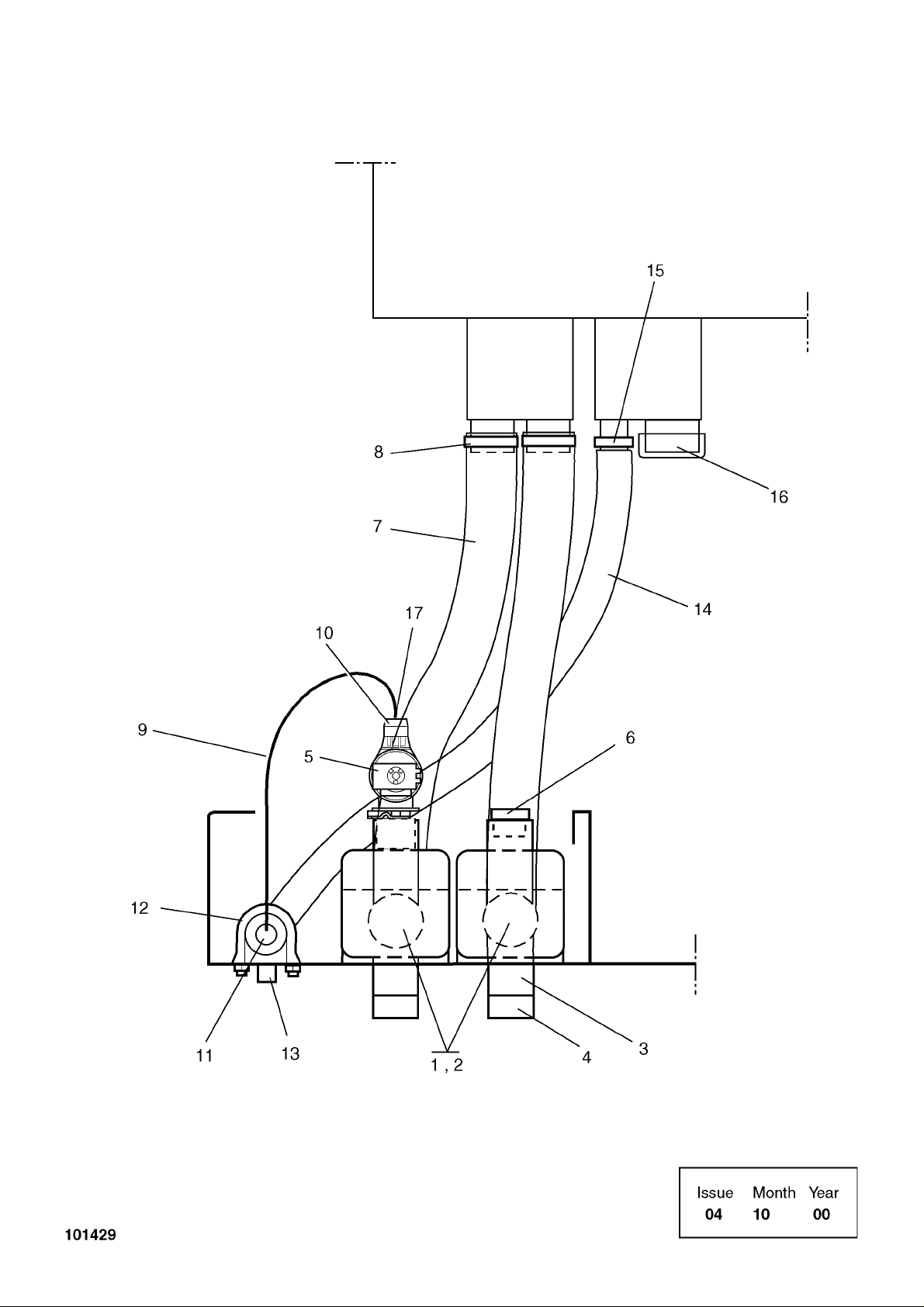

101429 43 Water connections
101432 39 Drain valve

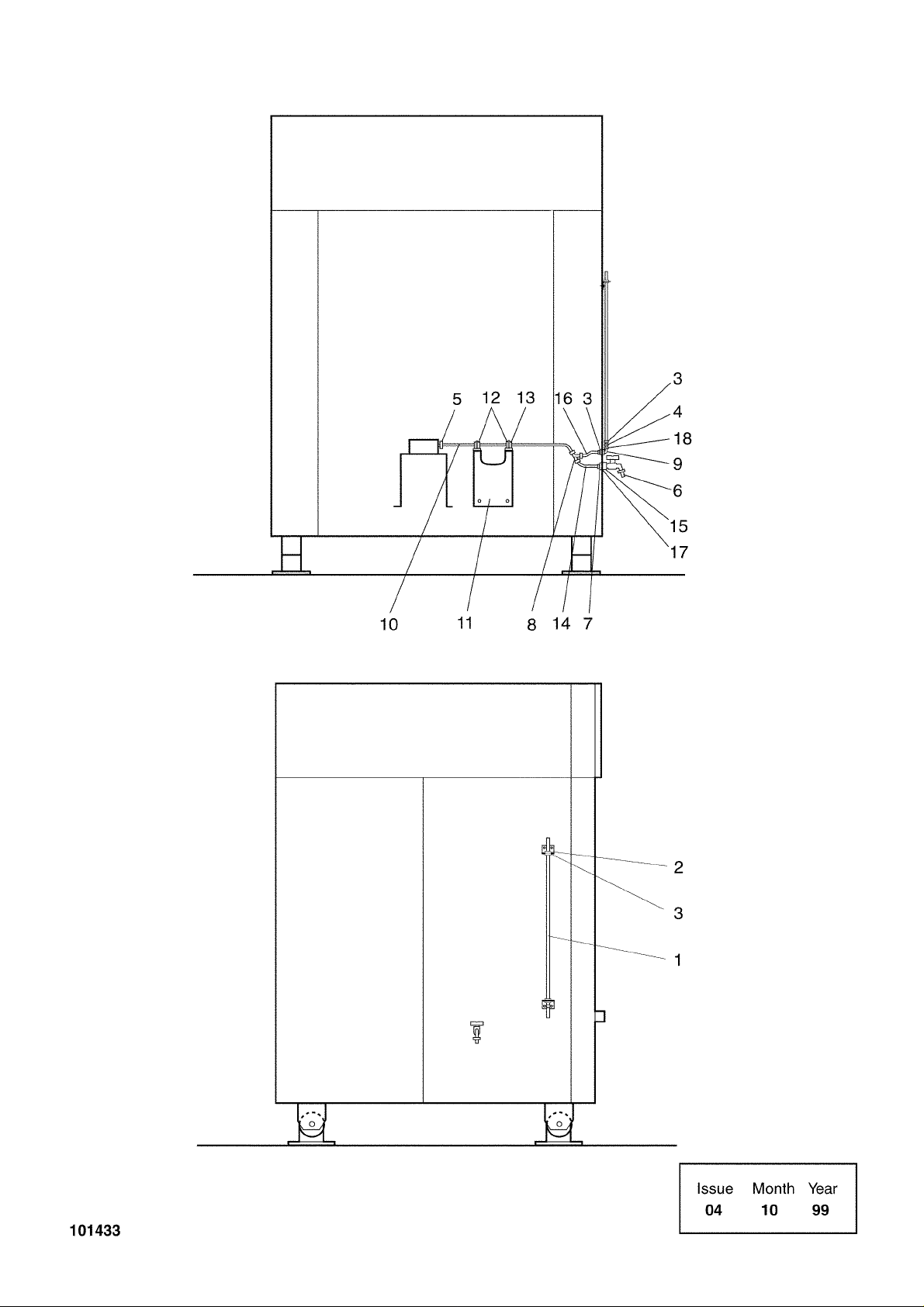

101433 55 Level tube and test tap
101438 37 Drain valve and hoses, water recovery
101452 53 Dispensing components
101460 47 Return water connection via pump
101461 45 Third water valve

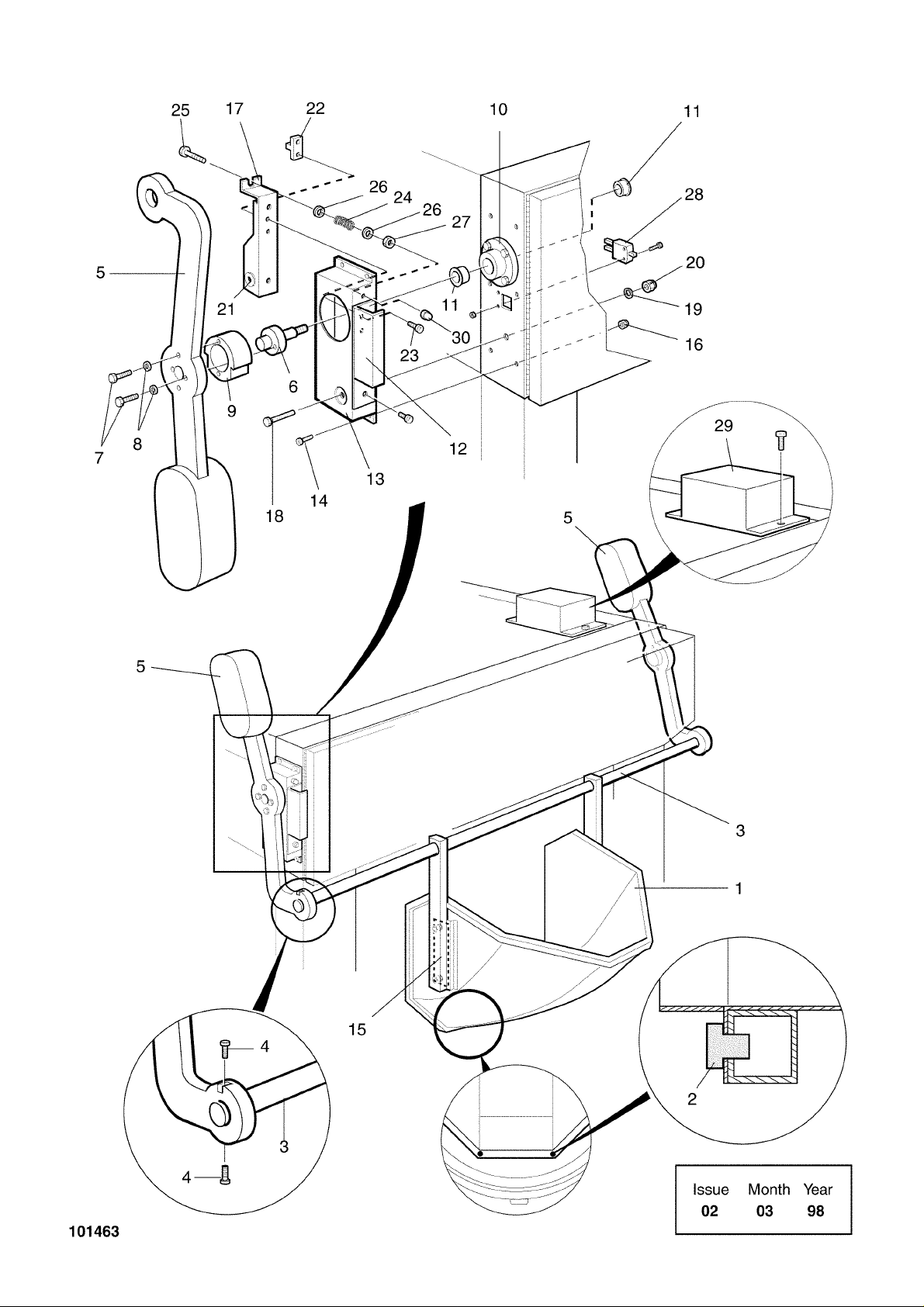

101463 59 Funnel
101464 41 Steam components
101480 63 Spray components
101487 27 Door lock
101490 7 Panels
101618 23 Electric cabinet, front
101619 19 Electric cabinet, rear
101620 57 Tilt, forward and forward/backward
101621 61 Insulation
101622 49 Water connection, detergent container
101623 51 Water connection liquid detergent
101650 31 Out of balance switch
101665 69 Weighing devi ce

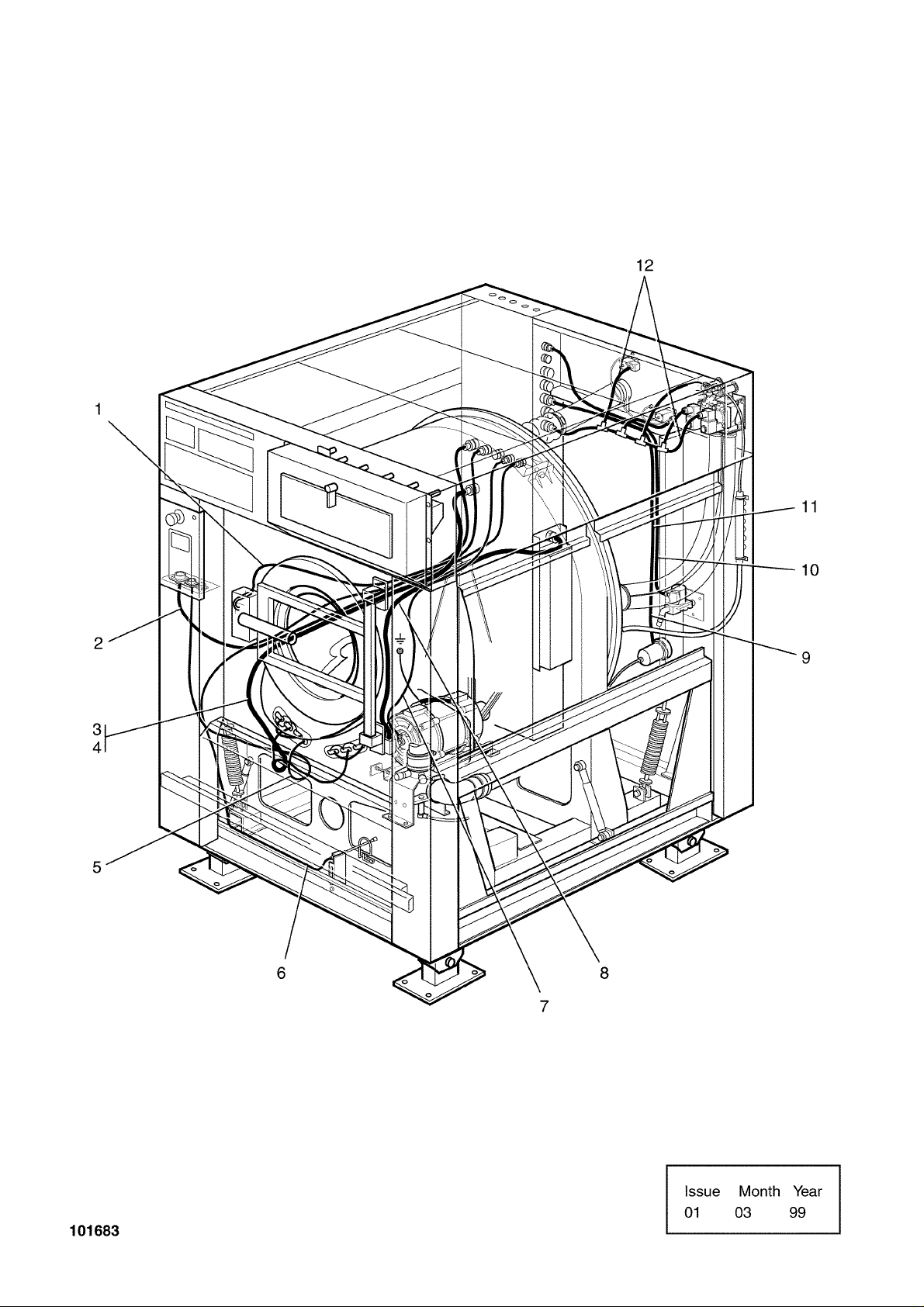

101683 65 Cables
101684 67 Kablage Option
101795 15 Relay box
69
Group
Groupe
69
Page
Page
5
EX6100c
Table of contents Table des matières Page/Page
Panels Plaques 7
*Frame Base 9
Outer and inner drum Tambour extérieur et intérieur 11
Bearing house with bearings Logement de palier avec palier 13
Relay box Relay box 15
Electric cabinet, rear Armoire électrique, arrière 19
Electric cabinet, front Armoire électrique, avant 23
Door Plaque 25
Door lock Serrure de porte 27
Motor Moteur 29
Out of balance switch Commutateur asymétrique 31
Suspension Ressorts de suspension 33
Drain and hoses Ecoulement et flexibles 35
Drain valve and hoses, water recovery Purgeur et flexibles, recyclage 37
Drain valve Vanne de vidange 39
Steam components Composants 41
Water connections Raccords d'eau 43
Third water valve Soupapes vapeur et eau 45
Return water connection via pump Raccord eau retour par pompe 47
Water connection, detergent container Raccord eau compartiment à savon 49
Water connection liquid detergent Raccord eau produit de lavage liquide 51
Dispensing components Distributeur de savon 53
Level tube and test tap Tuyau de niveau et robinet de test 55
Tilt, forward and forward/backward Basculement, avant et avant/arrière 57
Funnel Cône 59
Insulation Isolation 61
Spray components Composants vaporisateur 63
Cables Câble 65
Kablage Option Kablage Option 67
Weighing device Unité de balance 69
Group
Groupe
69
EX6100c
Panels
Plaques
Item
Qua.
Article
Qua.
1 1 432 0134-01 Front panel Panneau avant 3
2 1 432 0132-01 Pillar Montant 3
3 1 432 0133-01 Pillar Montant 3
4 2 438 4929-01 Side panel Panneau latéral 3 White
5 4 438 4930-01 Side panel Panneau latéral 3 White
6 3 438 4931-01 Top panel Couvercle 3 White
7 1 432 0155-01 Rear panel Panneau arrière 3
8 1 Front panel Panneau avant
9 RQ 471 5564-00 Safety strip Lame sécurité plomb 3
10 2 471 9204-93 Sleeve Manchon 3
11 1 432 0140-01 Plate Plaque 3
12 1 438 4942-04 Plate Plaque 3 White
13 1 432 0039-02 Beam Poutre 3 White
14 2 438 4904-01 Angle bracket Angle 3
15 1 Detergent container Compartiment à savon
16 1
17 1 432 0118-01 Electric cabinet Passage de câbles 3
18 1 432 0135-01 Front panel Panneau avant 3 Upper
19 1 438 4912-01 Cover plate Plaque recouvrement 3
20 3 432 0443-01 Spacer Entretoise 3
21 3 725 2451-51 Screw Vis 3 M8X20
Art.No
Réf. article
Description Description Info
2 438 4929-02 Side panel Panneau latéral 3 Stainless
2 438 4929-03 Side panel Panneau latéral 3 Grey
4 438 4930-03 Side panel Panneau latéral 3 Stainless
1 438 4930-02 Side panel Panneau latéral 3 For level tube and tap
1 438 4930-04 Side panel Panneau latéral 3 For level tube and tap,
1 438 4930-05 Side panel Panneau latéral 3 Grey
3 438 4931-02 Top panel Couvercle 3 Stainless
3 438 4931-03 Top panel Couvercle 3 Grey
1 432 0155-02 Rear panel Panneau arrière 3 Grey
1 432 0140-02 Plate Cloison 3 Grey
1 438 4942-03 Plate Plaque 3 Grey
1 432 0039-03 Beam Poutre 3 Grey
2 432 0442-02 Angle bracket Angle 3
438 4964-01 Cover Couvercle 3 Grey
1 438 4964-02 Cover Couvercle 3 Stainless
1 438 4964-03 Cover Couvercle 3 Silver
1 432 0118-02 Electric cabinet Passage de câbles 3 Grey
1 432 0135-02 Front panel Panneau avant 3 Stainless
1 432 0135-03 Front panel Panneau avant 3 Silver
1 432 0135-04 Front panel Panneau avant 3 Stainless
1 432 0135-05 Front panel Panneau avant 3 Silver
1 432 0135-06 Front panel Panneau avant Graphite grey
1 438 4912-02 Cover plate Couvercle 3 Silver
1 438 4912-03 Cover plate Plaque recouvrement 3 Stainless
1 438 4912-04 Cover plate Plaque recouvrement 3 Silver
1 438 4912-05 Cover plate Plaque recouvrement 3 Graphite grey
Illustration
Schéma
101490 6 12 2001
Notes
Info
Remarques
stainless
Issue
Issue
Month
Month
Page
Page
7
Year
Year
Group
Groupe
69
EX6100c
Frame
Base
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101422 5 1 2010
Info
1 1 438 4980-01 Outer frame Châssis extérieur 3 Complete
2 4 432 0005-01 •Spring retainer •Montage suspension 3
3 4 432 0021-01 •Bracket •Support de montage 3
4 4 432 0008-01 •Foot •Pied 3 Upper part, fixed/tilting
5 1 438 4979-01 Frame Base 3 Complete
6 2 432 0019-01 •Stretching device •Dispositif tendeur 3 SHORT
7 2 432 0017-01 •Stretching device •Dispositif tendeur 3 LONG
8 4 432 0005-01 •Spring retainer •Montage suspension 3
9 4 Suspension unit Organe de suspension
10 4 471 8252-05 Shock absorber Frotteurs 1,2
11 8 725 2501-51 Screw Vis 3 M10X50
12 16 734 1173-01 Washer Rondelle 3 BRB 10,5X21
13 8 471 9074-04 Washer Rondelle 3 10,5X28
14 8 732 2120-01 Locking nut Contre-écrou 3 M10
15 1 Drain valve Vanne de vidange
16 1 432 0102-01 Counterweight Contrepoids 3
17 2 432 0010-01 Beam Poutre 3
18 12 725 2493-51 Screw Vis 3 M10X25
12 732 2120-01 Locking nut Contre-écrou 3 M10
19 1 432 0023-01 Bracket Support 3
* 20 4 725 2548-51 Screw Vis 3 M12X80
* 21 4 472 6818-03 Foot Pied 3 Complete
* 22 1 472 6812-01 •Bracket •Support de montage 3
* 23 1 472 6810-01 •Wheel •Roue 3
* 24 1 471 8576-03 •Bushing •Douille 3 20/28X20
* 25 1 471 8576-04 •Bushing •Douille 3 20/28X30
* 26 1 472 6814-01 •Bushing •Douille 3
* 27 1 725 2636-51 •Screw •Vis 3 M16X80
* 28 1 732 2124-01 •Locking nut •Contre-écrou 3 M16
* 29 4 472 6817-01 Foot Pied 3
Illustration
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
9
Year
Year
Group
Groupe
69
EX6100c
Outer and inner drum
Tambour extérieur et intérieur
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101424/3 8 3 2005
Info
1 1 432 0083-01 Outer drum Extérieur du tambour 3
2 1 472 6212-03 End piece Pignon 3
3 1 438 4970-01 Counterweight Contrepoids 3
4 2 471 4009-60 Gasket Bande de garniture 3
5 3 438 4994-01 Stretching device Dispositif tendeur 3
6 3 725 2518-51 Screw Vis 3 M6S 10X140
7 3 734 1173-01 Washer Rondelle 3 BRB 10,5X21
8 3 734 1173-01 Washer Rondelle 3 BRB 10,5X21
9 3 732 2120-01 Locking nut Contre-écrou 3 M10
10 6 471 9811-30 Heating element Elément chauffant 1,2 6KW 230V
6 471 9811-31 Heating element Elément chauffant 1,2 6kW 254V
6 471 9811-32 Heating element Elément chauffant 1,2 6kW 277V
6 471 9811-33 Heating element Elément chauffant 1,2 6KW 200V
6 471 9811-34 Heating element Elément chauffant 1,2 6kW 240V
6 471 4494-01 Blind flange Bride d'obturation 1,2
11 1 472 9913-22 Sensor Capteur 1,2 Complete
12 1 471 8192-01 •Bushing •Douille 1,2
13 1 438 4977-02 Inner drum Intérieur du tambour 3
14 1 438 4998-02 End piece Pignon 3
15 1 438 4511-01 Lining Panneau de renfort 3 Complete
16 1 438 4965-01 Trim panel Panneau d'habillage 3
1 438 4965-02 Trim panel Panneau d'habillage 3
17 2 432 0031-01 Cover plug Couvre-bouchon 3
18 4 471 8344-33 Screw Vis 3 M6X10
19 12 471 8320-08 Screw Vis 3 M8X12
20 1 471 2075-79 Strip Ruban 1
Illustration
21 6
725 2451-42 Screw Vis 3 M8X20
22 6 734 1164-09 Washer Rondelle 3 BRB 8,4X17
23 1 432 0030-01 Unloading plate Unloading plate 3
24 1 432 0081-01 Ring Anneau 3
25 24 725 2501-81 Screw Vis 3 M10X50
26 24 471 8409-05 Locking nut Contre-écrou 3 M10
27 24 734 1173-01 Washer Rondelle 3 BRB 10,5X21
28 6 471 4494-01 Blind flange Bride d'obturation 3
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
11
Year
Year
Group
Groupe
69
EX6100c
Bearing house with bearings
Logement de palier avec palier
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101425/4 10 2 2006
Info
1 1 438 4999-01 Bearing housing Logement de palier 3
2 1 438 4975-02 Bearing cover Chapeau de palier 3
3 20 725 2544-71 Screw Vis 3 M12X60
4 20 734 1178-01 Washer Rondelle 3 BRB 13X24
5 6 725 2459-51 Screw Vis 3 M8X40
6 1 438 4542-01 Bearing set Jeu de coussinets 1,2
7 1 • Bushing •Douill e
8 3 •Seal •Joint
9 1 •Bearing •Coussinet
10 1 •Bearing •Coussinet
11 1 •Seal •Joint
12 1 •O-ring •Joint torique
13 1 438 4971-01 Spacer Entretoise 3
14 1 735 3166-00 C-clamp Presse à main 3 SGA 105
15 1 438 4969-01 Cover plate Plaque recouvrement 3
16 2 735 3177-10 C-clamp Presse à main 3 SGH150
17 1 735 9628-00 Wedge Poulie courroie V 3 18X11X56
18 1 438 4995-02 Pulley Poulie 1
19 Not used
20 1 725 2558-51 Screw Vis 3 M12X130
21 1 732 2122-01 Locking nut Contre-écrou 3 M12
22 1 471 2417-19 Washer Rondelle 3
23 1 725 2624-51 Screw Vis 3 M16X30
24 1 471 7701-65 V-belt Courroie trapézoïdale 1,2 SET OF 3 PCS
25 1 3 Not used
26 1 471 8985-01 Sensor Capteur 1,2
27 1 438 0363-01 Bracket Pièce de retenue 1
28 1 3
29 2 471 8690-36 Nipple Raccord 3
30 1 471 8688-13 Nipple Raccord 3 1/8'' R 1/8''
31 1 741 5109-25 Plug Fiche 3
32 1 471 8276-12 Bracket Pièce de retenue 3
33 1 471 8276-02 Pump Pompe 1,2 Compl.
34 1 471 8690-72 Nipple Raccord 3 Complete
35 1 740 4209-00 O-ring Joint torique 1
36 RQ 471 8625-00 Hose Flexible 1
Illustration
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
13
Year
Year
Group
Groupe
69
EX6100c
Relay box
Relay box
Item
Qua.
Article
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101795/1 1 4 2000
Info
1 1 471 7912-01 Relay box Relay box 3 Complete
2 1 471 7911-01 •Box •Boîtier 3
3 24 471 8781-02 •Block •Cale 3 Orange
4 2 471 8781-03 •Block •Cale 3 Yellow/Green
5 1 471 8781-01 •Block •Cale 3 Grey
6 2 471 8781-11 •Block •Cale 3
7 7 471 9649-01 •Relay •Relais 1,2
8 7 471 9649-02 •Socket •Douille 1,2
9 1 438 0268-01 •Sign •Signe 3
10 2 471 8780-05 •Screw fitting •Vis de raccord 3
11 1 438 7300-86 •Cables •Câble 3
Illustration
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
15
Year
Year
Group
Groupe
69
EX6100c
Electric cabinet, rear
Armoire électrique, arrière
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101619/2 8 8 2006
Info
1 1 Electric cabinet Passage de câbles 3 Complete
2 1 432 0137-01 •Component panel •Panneau composants 3
3 1 432 0138-01 •Component panel •Panneau composants 3
4 1 432 0139-01 •Component panel •Panneau composants 3
5 2 472 7264-01 •Hinged joint •Assemblage articulé 3
6 1 432 0131-02 •Cover •Couvercle 3
1 432 0131-03 •Cover •Couvercle 3 Grey
7 2 471 7830-01 •Lock •Serrure 1
8 4 432 0142-01 •Bracket •Support de montage 3
9 2 438 9637-32 Contactor Relais 1,2 380-440V 50Hz
2 438 9637-33 Contactor Relais 1,2 380-480V 60Hz
10 1 471 8778-13 Circuit breaker Fusible 1,2 25A
1 471 8778-11 Circuit breaker Fusible 1,2 8A
11 1 471 8797-01 Switch Commutateur 1 EL/STEAM
12 1 471 9678-04 Main switch Main switch 1
1 471 9678-33 Main switch Main switch 1 380-480V
1 471 9678-93 •Knob •Bouton de porte 3
1 471 9678-62 Main switch Main switch 1 200-240V
1 471 9678-95 •Knob •Bouton de porte 3
1 471 9678-01 Main switch Main switch 1
1 471 9678-61 Main switch Main switch 1 380-480V DS
1 471 9678-95 •Knob •Bouton de porte 3
13 1 471 9768-02 Printed circuit board Carte circuit 1,2
14 1 471 9767-90 •Fan •Ventilateur 1
15 1 471 9767-91 •Fuse •Porte-fusible 1,2
16 1 438 9550-01 Transformer Transformateur 1 208,230V
1 438 9550-04 Transformer Transformateur 1 440,480V
17 2 471 8782-03 Block Cale 3
Illustration
18
2 471 8750-11 Fuse Porte-fusible 1,2 1,25A
19 2 471 8756-51 Insert Insertion 1,2 5X20MM
20 1 471 4074-01 Fuse holder Porte-fusible 1,2
21 1 471 9529-10 Mains filter Filtre de filet 1 208-240V
22 1 471 9550-21 Transformer Transformateur 1 200-415V, not 346V
1 471 9550-22 Transformer Transformateur 1 346,440,480V
23 1 471 8762-04 Terminal connection Bloc de connexion 3
24 1 471 8792-01 Transformer Transformateur 1
25 1 471 8859-07 Level control Réglage de niveau 1,2 B1
26 1 471 8859-01 Level control Réglage de niveau 1,2 B2
27 1 438 9555-01 Printed circuit board Carte circuit 1,2 Door lock B31
28 1 471 8995-11 Printed circuit board Carte circuit 1,2 I/O-card A3
29 1 471 8995-12 Printed circuit board Carte circuit 1,2 I/O-card A4
30 1 471 8995-13 Printed circuit board Carte circuit 1,2 I/O-card A5
31 4 471 7958-01 Support Support 3
32 12 438 0299-01 Spacer Entretoise 3
33 1 471 8164-00 Grommet Oeillet 3 D7
34 1 471 2440-40 Hose Flexible 1 L=1400
35 1 471 2265-69 T-pipe Tube en T 3
36 1 471 2449-95 Hose Flexible 1 L=100
37 1 471 2264-03 Hose Flexible 1 L=150
38 10 471 8781-11 Block Cale 3
39 10 471 8781-01 Block Cale 3 Grey
40 28 471 8781-02 Block Cale 3 Orange
41 5 471 8781-03
Block Cale 3 Yellow/Green
42 5 471 8781-04 Block Cale 3 Orange
43 3 472 9904-64 Relay Relais 1,2
44 3 •Clamp •Bride de fixation 3
45 3 471 9649-02 Socket Douille 1
46 3 438 8152-03 Gasket Joint 3 4-pole AMP
47 7 438 8152-02 Gasket Joint 3 14-pole AMP
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
17
Year
Year
Group
Groupe
69
EX6100c
Electric cabinet, rear
Armoire électrique, arrière
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101619/2 8 8 2006
Info
48 1 438 8152-01 Gasket Joint 3 37-pole AMP
49 1 438 7950-01 Cover washer Rondelle protection 3 4-pole
50 2 438 7950-02 Cover washer Rondelle protection 3 14-pole
51 2 432 0175-01 Cover washer Rondelle protection 3 14-pole
52
53
54
Illustration
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
19
Year
Year
Group
Groupe
69
Page
Page
21
EX6100c
Electric cabinet, front
Armoire électrique, avant
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101618/1 2 5 2004
Info
1 1 Plate Plaque 3
2 1 432 0173-01 •Box •Boîtier 3
3 1 432 0146-01 ••Box ••Boîtier 3
4 1 432 0143-01 ••Door ••Porte 3
5 2 471 8362-01 ••Bracket ••Support de montage 3
6 2 471 8362-10 •••Screw •••Vis 3
7 2 471 8362-20 •••Washer •••Rondelle 3
8 2 471 8362-30 •••Washer •••Rondelle 3
9 2 471 8362-40 •••Nut •••Écrou 3
10 2 471 8362-50 •••Washer •••Rondelle 3
11 2 471 8362-60 •••Nut •••Écrou 3
12 2 471 7837-01 ••Hinge ••Charnière 3
13 2 471 7837-30 •••Pin •••Goupille/broche 3
14 2 471 7837-40 •••Safety cover •••Revêtement protection 3
15 2 471 7837-50 •••Screw •••Vis 3
16 2 471 7837-60 •••Washer •••Rondelle 3
17 1 471 8993-01 Printed circuit board Carte circuit 1,2 Not configurated El. heated
1 432 0800-07 Printed circuit board Carte circuit 1,2 El heated, English
1 432 0800-13 Printed circuit board Carte circuit 1,2 Steam heated, English
1 432 0800-28 Printed circuit board Carte circuit 1,2 Hot water, English
1 432 0800-30 Printed circuit board Carte circuit 1,2 El. heated, French
1 432 0800-08 Printed circuit board Carte circuit 1,2 Steam heated, French
1 432 0800-16 Printed circuit board Carte circuit 1,2 Steam heated, Spanish
1 432 0800-09 Printed circuit board Carte circuit 1,2 El heated, Spanish
1 432 0800-25 Printed circuit board Carte circuit 1,2 Hot water, Spanish
1 432 0800-17 Printed circuit board Carte circuit 1,2 Steam heated, Swedish
1 432 0800-22 Printed circuit board Carte circuit 1,2 El. heated, Polish
1 432 0800-10 Printed circuit board Carte circuit 1,2 Steam heated, Polish
1 432 0800-11 Printed circuit board Carte circuit 1,2 El heated, Czecish
1 432 0800-01 Printed circuit board Carte circuit 1,2 El heating ,Finnish
1 432 0800-02 Printed circuit board Carte circuit 1,2 Steam heated, Finnish
1 432 0800-03 Printed circuit board Carte circuit 1,2 Steam heated, Danish
1 432 0800-15 Printed circuit board Carte circuit 1,2 El heated, Danish
1 432 0800-04 Printed circuit board Carte circuit 1,2 El heated, Swedish
1 432 0800-12 Printed circuit board Carte circuit 1,2 Steam heated, Italian
1 432 0800-29 Printed circuit board Carte circuit 1,2 El. heated, German
1 432 0800-05 Printed circuit board Carte circuit 1,2 Steam heated, German
1 432 0800-14 Printed circuit board Carte circuit 1,2 Steam heated, Norwegian
1 432 0800-06 Printed circuit board Carte circuit 1,2 El. heated, Great Britain and
1 432 0800-24 Printed circuit board Carte circuit 1,2 Steam heated, Great Britain
1 432 0800-19 Printed circuit board Carte circuit 1,2 El. heating, Norwegian
1 432 0800-20 Printed circuit board Carte circuit 1,2 Steam heated, Japan
1 432 0800-21 Printed circuit board Carte circuit 1,2 El heated, Italian
1 432 0800-18 Printed circuit board Carte circuit 1,2 El.heated, Dutch
1 432 0800-26 Printed circuit board Carte circuit 1,2 Steam heated, Dutch
1 432 0800-23 Printed circuit board Carte circuit 1,2 Steam heated, USA
1 432 0800-27 Printed circuit board Carte circuit 1,2 Hot water, USA
18 4 471 8341-13 Screw Vis 3 MRT 4X10
19 1 471 8118-01 Hose Flexible 1 L=1600
20 1 471 8164-00 Grommet Oeillet 3 D7
21 1 438 7300-40 Cable set Jeu de câbles 3
22 1 438 8152-03 Gasket Joint 3 4-pole AMP
23 1 438 8152-01 Gasket Joint 3 37-pole AMP
24 1 438 8152-01 Gasket Joint 3 37-pole AMP
Illustration
25
8 471 8454-01 Rivet Rivet 3
26 1 471 8793-01 Card reader Lecteur de carte 1
27 1 432 0150-01 Bracket Pièce de retenue 3
28 1 432 0149-01 Rubber cap Capuchon caoutchouc 3
Notes
Remarques
USA
Issue
Issue
Month
Month
Year
Year
Group
Groupe
69
EX6100c
Electric cabinet, front
Armoire électrique, avant
Item
Qua.
Article
Qua.
29 1 471 8997-03 Display Affichage 1,2
30 1 472 5784-01 Control panel Pupitre de commande 1,2 EX6100c
31 1 471 9628-22 Emergency stop Arrêt d'urgence 1
32 1 471 9628-90 Socket Bloc de connexion 1
Art.No
Réf. article
Description Description Info
1 471 9628-32 Emergency stop Arrêt d'urgence 1
1 471 9628-33 Contact block Bloc de connexion 1
Illustration
Schéma
101618/1 2 5 2004
Notes
Info
Remarques
Issue
Issue
Month
Month
Page
Page
23
Year
Year
Loading...
