Wascomat EX-12 HI-TEK, EX-22 HI-TEK Operating & Maintenance Manual

Page 1

WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR WASCOMAT MACHINE.

PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S) DATA PLATE(S).

MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE REFERENCE.

MACHINE TYPE OR MODEL

MACHINE SERIAL NUMBER(S)

ELECTRICAL CHARACTERISTICS:________ VOLTS, _______ PHASE, ______ HZ.

OPERATING & MAINTENANCE MANUAL

EX-12 HI-TEK EX-22 HI-TEK

From machine No. 91/6411- EX 12, 91/5875- EX 22

471 1562-62/01

95.38

Page 2

NOTICE TO: OWNERS, OPERATORS AND DEALERS OF WASCOMAT MACHINES

IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS.

1. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible. (See the following page of this manual for description and location of the signs.) Missing or illegible ones must be replaced immediately. Be sure you have spare signs and labels available at all times. These can be obtained from your dealer or Wascomat.

2. Check the door safety interlock, as follows: (a) OPEN THE DOOR of the machine and attempt to start in the normal manner:

For coin-operated models, insert the proper coins to start the machine. For manually operated models, place the ON-OFF switch in the ON position and

press the Start switch. For FL and EX models, insert a program card, turn the starter knob to the Start

position and place the ON-OFF switch in the ON position. For HI-TEK microprocessor models, turn the key switch to the RUN position, choose

a program and press the START button. For SELECTA 28 models, select a wash program and press the Start button.

THE MACHINE(S) SHOULD NOT START !

(b) CLOSE THE DOOR to start machine operation and, while it is operating, attempt to

open the door without exerting extreme force on the door handle. The door should remain locked!

If the machine can start with the door open, or can continue to operate with the door unlocked, the door interlock is no longer operating properly. The machine must be placed out of order and the interlock immediately repaired or replaced.(See the door interlock section of the manual.)

3. DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO BYPASS OR REWIRE ANY OF THE MACHINE SAFETY DEVICES AS THIS CAN RESULT IN SERIOUS ACCIDENTS.

4. Be sure to keep the machine(s) in proper working order: Follow all maintenance and safety procedures. Further information regarding machine safety, service and parts can be obtained from your dealer or from Wascomat through its Teletech Service Telephone - 516/ 371-0700.

All requests for assistance must include the model, serial number and electrical characteristics as they appear on the machine identification plate. Insert this information in the space provided on the previous page of this manual.

5. WARNING: DO NOT OPERATE MACHINE(S) WITH SAFETY DEVICES BYPASSED, REWIRED OR INOPERATIVE! DO NOT OPEN MACHINE DOOR UNTIL DRUM HAS STOPPED ROTATING!

Page 3

DO NOT ATTEMPT TO OPEN DOOR UNTIL PROGRAM HAS FINISHED AND DRUM HAS STOPPED ROTATING.

WARNING !

If you need to order more safety or warning signs, call Wascomat's parts department at 516-371-2000, or call your local dealer.

471 7651-17

CAUTION

1. Do not open washer door until cycle is completed, operating

light is off, and wash cylinder has stopped rotating.

2. Do not tamper with the door safety switch or door lock.

3. Do not attempt to open door or place hands into washer to

remove or add clothes during operation. This can cause serious injury.

MACHINE SHOULD NOT BE USED BY CHILDREN

PRECAUCION

1. No abra la puerta de la máquina lavadora sino hasta que la máquina haya terminado su ciclo, la luz operativa esté apaga da y el cilindro de lavado haya completamento terminado de

girar.

2. No interferia o manipule el switch o la cerradura de la puerta.

3. No trate de abrir la puerta o meta las manos dentro de la máquina para meter o sacar ropa mientras la máquina está en operación, pues puede resultar seriamento herido.

LAS MÁQUINAS NO DEBEN SER USADAS POR NIÑOS

SAFETY AND WARNINGS SIGNS

Replace If Missing Or Illegible

One or more of these signs must be affixed on each machine as indicated, when not included as part of the front instruction panel.

LOCATED ON THE OPERATING INSTRUCTION SIGN OF THE MACHINE:

LOCATED AT THE REAR OF THE MACHINE:

INSTALLATION AND MAINTENANCE WARNINGS

1. This machine MUST be securely bolted to an uncovered concrete floor, according installation instructions, to reduce the risk of fire and to prevent

serious injury, or damage to the machine.

2. When installed on a floor of combustible material, the floor area below this

machine must be covered by a metal sheet extending to the outer edges of the machine.

3. This machine MUST be connected to a dedicated electrical circuit to which no

other lighting unit or general purpose receptacle is connected.

4. This machine MUST be serviced and operated in compliance with

manufacturer's instructions. CHECK DOOR LOCKS EVERY DAY FOR PROPER OPERATION TO PREVENT INJURY OR DAMAGE. IF THE DOOR LOCK FAILS TO OPERATE PROPERLY, PLACE THE MACHINE OUT OF ORDER UNTIL THE PROBLEM IS CORRECTED.

5. Disconnect power prior to servicing of machine.

6. To remove top panel for service first remove screws at rear. Be certain to

reinstall screws when remounting the top panel.

MANUFACTURED BY WASCATOR

DISTRIBUTED BY WASCOMAT INWOOD, NEW YORK, USA

LOCATED ON THE DOOR:

471 76 62 02

Page 4

Extract-O-Matic EX 12, EX 22 HI-TEK

Contents

Introduction ........................................................................................... 1

Technical data ...................................................................................... 2

Installation............................................................................................. 5

Electro-Lube Dispenser ........................................................................12

Safety rules...........................................................................................15

Mechanical and electrical design..........................................................16

Programming ........................................................................................32

Procedure .............................................................................................54

Maintenance .........................................................................................61

Service information ..............................................................................62

Trouble-shooting...................................................................................63

The manufacturer reserves the right to make changes to design and material specifications.

Safety instructions

• The machine is designed for water washing only.

• The machine must not be used by children.

• All installation operations are to be carried out by qualified personnel. Licensed personnel are necessary for all electric power wiring.

• The interlock of the door must be checked daily for proper operation and must not be bypassed.

• All seepage in the system, due to faulty gaskets etc., must be repaired immediately.

• All service personnel must be fully familiar with the operating manual before attempting any repair or maintenance of the machine.

• The machine must not be sprayed with water, otherwise short circuiting may occur.

• Fabric softeners with volatile or inflammable fluids are not to be used in the machine.

Page 5

0148

Introduction

The EX-HI-TEK model washer/extractor has been developed to cover the heavy duty requirements of hotels, motels, nursing homes, hospitals, professional laundries, restaurants, airlines, steamships, schools, colleges and all on-premises laundries where flexibility and quick formula variation, coupled with high quality automatic washing, are required.

The microcomputer controlled EX-HI-TEK model allows for complete programming of water temperatures, water levels, wash and extraction periods and supply injections.

The machines are free-swinging, i.e., the drum is moveable and spring suspended in relation to the frame. This minimises vibrations transferred to the frame thus simplifying installation, as no concrete base is required.

The high speed spin gives a G factor of approximately 300, providing very efficient water removal during the spin.

All parts of the machine which come into contact with the items being washed are made of heavy gauge surgical stainless steel, ensuring long life and lasting beauty, as well as full protection for no-iron fabrics. All electrical components are made accessible for servicing by simply removing the top panel.

This manual contains a technical description of the machine and instructions for its installation, operation and maintenance. Together with the wiring diagram which accompanies each individual machine it should be kept in a safe place for easy reference.

When ordering spare parts or contacting Wascomat for any purpose always give the machine serial number, model, voltage and other electrical characteristics appearing on the nameplate at the rear of the machine.

Introduction

Fig.

Page 6

EX-12 HI-TEK

Dry load capacity up to 13,5 kg 30 lbs Overall dimensions Width 870 mm 34 1/4'’

Depth 900 mm 35 15/16'’ Height 1302 mm 51 1/4'’ Net weight 290 kg 639 lbs Dyn.weight 120 lbs./sqft

Crated dimensions Volume 1.25 m

44 cu.ft

Weight 315 kg 695 lbs

Inner drum Diameter 620 mm 24 7/16'’

Depth 412 mm 16 5/16'’ Volume 120 litre 4.4 cu.ft

Speed of rotation Wash 48 r.p.m.

Distribution 75 r.p.m Low extract 475 r.p.m. High extract 950 r.p.m.

G-factor During wash 0.8

During high extract 310

Motor speed During wash 360 r.p.m.

During high extract 3200 r.p.m.

Voltage requirements Choice:

208-240 V 3-Phase 60 Hz 440 V 3-Phase 60 Hz

Rated power Motor, wash 250 W

0.35 HP

Motor, extraction 1800 W

2.5 HP Overcurrent protection Three.-phase 15 A Water connections

Water pressure, max 10 kp/cm

142 psi

Recommended water pressure 2-6 kp/cm

25-85 psi Hose connection, water 20 mm 3/4'’ Hose connection, drain 75 mm 3'’

Technical data

Page 7

EX 22 HI-TEK

Dry load capacity up to 22.5 kg 50 lbs Overall dimensions Width 1000 mm 39 3/8'’

Depth 1102 mm 43 3/8'’ Height 1412 mm 55 9/16'’ Net weight 553 kg 1218 lbs Dyn.weight 157 lbs./sqft

Crated Dimensions Volume 2.05 m

72.3 cu.ft

Weight 588 kg 1295 lbs

Inner drum Diameter 750 mm 29 1/2'’

Depth 500 mm 19 11/16'’ Volume 220 litre 7.8 cu.ft

Speed of rotation Wash 45 r.p.m.

Distribution 67 r.p.m. Low Extract 425 r.p.m. High Extract 850 r.p.m.

G-factor During wash 0.8

During High Extract 300

Motor speed During wash 540 r.p.m.

During High Extract 3200 r.p.m.

Voltage requirements Choice:

208-240 V 3-Phase 60 Hz 440 V 3-Phase 60 Hz

Rated power Motor, wash 410 W

0.55 HP

Motor, extraction 2600 W

3.5 HP Overcurrent protection Three-phase 20 A Water connections

Water pressure, max 10 kp/cm

142 psi

Recommended water pressure 2-6 kp/cm

25-85 psi Hose connection, water 20 mm 3/4'’ Hose connection, drain 75 mm 3'’

Technical data

Page 8

Outline and dimensions

A 870 34 1/4 1000 39 3/8 B 1302 51 1/4 1412 55 9/16 C 913 36 1102 43 3/8 D 792 31 3/16 906 35 3/32 E 121 4 3/4 196 7 3/4 F 625 24 5/8 630 24 13/16 G 570 22 1/2 560 22 H 480 18 15/16 610 24 J 1100 43 5/16 1210 47 5/8 K – – 320 12 5/8 L 240 9 1/2 240 9 1/2 M 120 4 3/4 120 4 3/4 N 1200 47 1/4 1310 51 9/16 O 1110 43 11/16 1220 48 P 85 3 11/32 85 3 11/32 Q 203 8 203 8 R 433 17 498 19 5/8

712543

2664

1 Opening for electrical cable connection 2 Steam connection (optional) 3 Cold water 4 Hot water 5 Hot water (only EX22) 6 Drain outlet 7 Soap box

mm inches mm

inches

EX 22

EX12

Technical data

Page 9

1247

1248

1249

Installation

The machine is delivered with expansion bolts and other items packed inside the drum.

Shipping securities

The machine is shipped with four large metal bracket bolted to the suspension legs, as well as a support between the pulley and the back plate.

Prior to installation, follow these steps:

• Unpack the machine.

• Remove the lower front panel and the two rear panels.

• Remove the support from the pulley at the back of the machine.

• Remove both front brackets.

• Remove both rear brackets.

Placement

The machine should be installed close to a floor drain or open drain to make installation, use and service easier.

The following clearances are recommended for ease of installation and service:

• At least 20 inches between the machine and the wall behind it.

• At least 2 inches on each side.

The floor must be able to support a static load of 790 lbs for the EX-12 and 1440 lbs for the EX-22.

The maximum impact load at extraction is 260 lbs force for the EX-12 and 480 lbs for the EX-22.

Installation

Fig.

Page 10

1250

0620

0621

Mechanical installation

• Mark and drill two holes 3/8'' in (8 mm) in diameter and approximately 3 1/2'' in. (90 mm) deep according to the dimensions in figure 5.

• Place the machine in position. Never lift the machine by the door or handle.

• Check that the machine is level and steady. Use stainless or galvanized washers between the machine and the floor.

• Insert the expansion bolts supplied with the machine. Fit the washers and nuts.

It is of utmost importance that the machine is level, from side-to-side as well as frontto-rear. If the machine is not properly levelled, it may result in out-of-balance cutout without a real out-of-balance in the drum.

EX12

782 mm

30 25/32 in.

866 mm

34 3/32 in.

716 mm

28 3/16 in.

EX22

780 mm

30 23/32 in.

33 mm 1 5/16 in.

43 mm 1 11/16 in.

996 mm

39 7/32 in.

830 mm

32 11/16 in.

33 mm 1 5/16 in.

43 mm 1 11/16 in.

910 mm

35 13/16 in.

896 mm

35 9/32 in.

Installation

Fig.

Page 11

Electrical installation

Although the machines are fitted with thermal overloads in the motor windings and separate fuses for the control circuit, a separate threephase circuit breaker must be installed for all three-phase machines.

For proper overcurrent protection, check the data plate at the rear of the machine. Also consult local electrical code for special requirements.

The machine is equipped with a control circuit transformer, mounted on the control unit and connected for 220 volt operation. If your incoming voltage is below 210 volts move the wire connection to the 208 volt tab on the transformer. If it is above 230 volts move the wire to the 240 volt tab on the transformer.

Check the incoming power for a high voltage leg. If present, connect that line to L2 on the terminal block. Make certain it is not connected to the transformer.

Connect L1, L2, L3 and ground wires according to the markings of the terminal block. The cable is to hang in a large loose loop, supported by the clip of the terminal block.

To ensure proper operation the drum must rotate counter-clockwise (seen from the front) during extraction. If the drum rotates in the wrong direction interchange line L1 and L3 at the power connection terminal.

1612

0623

Installation

Fig.

Page 12

1628

1252

0626

1641

Installation

Water connection

NOTE

All plumbing must conform to national and local plumbing codes.

Incoming water lines do not require non-return valves, as the machine is already fitted with a siphon breaker. However, all incoming lines must be fitted with shut-off valves and strainers.

• Water inlets are labelled for hot and cold water connection.

• Flush the water system thoroughly and check that the strainer at the machine inlet is fitted correctly.

• Connect the machine to the water mains with 3/4'’ reinforced rubber hosing not to exceed 6 ft in length. Hang the hosing in a large loop. Do not use rigid piping.

Drain connection

Connect a 3'’ (75 mm) flexible hose to the drain outlet of the machine.

The drain house must not have any sharp bends and must slope from the machine to assure proper drainage. The outlet must open freely to the main drains.

Do not reduce the size of the drain connection from the machine to the waste line.

Fig.

Page 13

Connection of external liquid supply

Remove cover and cover support over the soap box.

Bend all the way back the metal plate in compartment 3.

Pull the knobs up and forward.

1. Loosen both knobs so that one side of the metal fingers underneath can slide under the top lid of the machine, within the supply box.

2. Fit the supply injector into the supply box so that both sides are held securely in places by the metal fingers.

Note:

If the supply injector does not fit turn it around. You have it in backwards.

1336

1333

1334

Installation

Fig.

Page 14

1. Drop the knob into the larger opening in the supply injector lid.

2. Tighten securely. Do not overtighten! Do not use pliers or other tools to tighten the knobs!

1. Stretch the multi-rubber ring B and select the correct size ring which will fit snuggly on the chemical tube you are using. Ring A is used for tubes with Ø 1/3" (8 mm).

2. Use scissors or a razor to carefully cut out the proper size rubber ring. Wrap the rubber ring around each tube after threading each tube trough the plastic nipple. Run the tube trough the compression nut to the bottom of the compartment. Cut the end of the tube at an angle. Hand tighten the plastic nipple on to the compression nut.

Fig.

1332

1331

Installation

Page 15

Electrical connection

At the rear side of the control unit are two quick connectors. When the machine is delivered connector A is connected. When using powder supply, change to connector B.

Pump connection

To the right of the incoming power terminal connection block is the connection for pumps. Depending on the number of pumps to be connected, they shall be connected from 1-5 and C (common) on resp. connection. The pumps obtain signals from the electronic timer.

1932

Installation

Fig.

1612

Page 16

Electro-Lube Dispenser

2733

12M

LIGHT

F F

2208

2207

IMPORTANT

NOTICE

This machine is equipped with an automatic oiler, located at the right rear of the machine, which keeps it lubricated for long bearing and seal life. The amount of oil in the container is sufficient for approximately one year's lubrication. It is of utmost importance that the oiler does not become empty. Therefore we recommend that the rear panel to be removed and a visual inspection to be made on a bimonthly basis. When the oil reaches a low level, the cannister must be replaced with a new one available from Wascomat as Part No. 827601.

Date Last Replaced Date Last Replaced

Fig.

Instruction for setting timing on electro-lube oil dispensing

Pry off the switch panel cap with a screwdriver.

• Under the cap are the switches for time setting.

• Set the "Light" and "12M" dip switches to the "On" position. Make certain all other switches are in "Off" position.

• The light will start flashing after a few minutes and will continue to flash every 15th to 20th seconds as long as the dispencer is in operation.

• The decal shown below should be affixed at the front of the machine and updated as required.

Fig.

Page 17

1637

1639

1638

Start-up and safety checklist

Before initial start-up of a Wascomat washerextractor, the following safety checks must be performed:

• Make sure that all electrical and plumbing connections have been made in accordance with applicable local codes.

• Use only flexible water fill and drain hoses of the proper length to avoid sags and kinks.

• Make sure the machine is properly grounded electrically.

Before the machine is operated, the door safety interlock must be checked for proper operation as follows:

• When washer loading door is open, the machine must not start. Verify this by attempting to start washer with door open.

• When washer is in operation, the loading door is locked and cannot be opened. Verify this by attempting to open the loading door when the machine is operating. If necessary, consult this manual for proper operation of the door lock and door safety interlock or call a qualified serviceman.

IMPORTANT:

Door safety interlock must be checked daily in accordance with above procedure.

WARNING:

Before servicing Wascomat equipment, disconnect electrical power.

Installation

Fig.

Page 18

1640

Function control check-out list

In the machine cylinder, you will find the warranty registration card, a copy of the warranty policy and other pertinent material.

The warranty card should be completed and sent to Wascomat. All other items should be placed in a safe place for future reference.

The machine should be cleaned when the installation is completed, and checked out as detailed below without loading the machine with fabrics:

1. Check the incoming power for proper voltage, phase and cycles.

2. Open manual shut-off valves to the machine.

3. Turn on electric power.

4. Check the door safety interlock as detailed on page 9 of this manual.

5. Run through a complete cycle, checking for water temperature, drain operation and the extract function. For operating instructions, see the section marked ’’Procedure’’.

NOTE

All machines are factory tested prior to shipment. Occasionally, some residual water may be found when the machine is installed.

Installation

Fig.

Page 19

Safety rules

• This machine is designed for water washing only.

• Machines must not be used by children.

• All installation operations are to be carried out by qualified personnel. Licensed personnel are necessary for all electric power wiring.

• The interlock of the door must be checked daily for proper operation and must not be bypassed.

• All seepage in the system, due to faulty gaskets etc., must be repaired immediately.

• All service personnel must be fully familiar with the operating manual before attempting any repair or maintenance of the machine.

• This machine must not be sprayed with water, otherwise short circuiting

may occur.

• Fabric softeners with volatile or inflammable fluids are not to be used in this machine.

Safety Rules

Page 20

1617

Mechanical and electrical design

General

This machine is a free-swinging model i.e. the outer drum and motor bridge are suspended in the machine chassis via a spring suspension with a strong spring in each corner of the machine. Each spring has a shock absorber which dampens the movement of the machine.

The inner drum is driven by two motors via a V-belt: one motor for washing and distribution speed and one for extract speed. The inner drum is mounted in the outer drum with two heavy duty bearings at the back plate and is sealed with two V-rings.

The two motors are suspended underneath on a motor support with a belt tensioning device. The motors are mechanically coupled to each other with V-belts. During wash and distribution speed the spin motor transmits power to the drum, through a clutch arrangement.

The water inlet and drain are both situated under the outer drum. This improves the flow during filling and prevents water vapour from entering the detergent compartment.

The robust square door is locked with a handle which is interlocked by a safety device when the machine is running.

The manual push buttons and card programmed control are fitted at the front of the machine.

All control and indicating components i.e. relays, delay unit, etc. are assembled under the top cover, easily accessible from the top of the machine for simplified servicing.

The machine housing consists of hot-dip galvanised, painted steel plates and stainless steel sheets, painted on the front and sides. It has a stainless door (and front, on request).

Extract motor

Wash and distribution motor

Operating instruction panel

Fig.

Page 21

1618

Frame

Description

The frame is constructed on the free-swinging principle, i.e. the washing drum is freely and resiliently suspended in the fixed frame.

The entire frame is constructed of U-shaped iron beams forming a stable and torsionally rigid structure.

The suspension device for the drum unit and motors consists of four posts, one in each corner, each with a robust spring to which the washing drum supports are attached. In order to prevent excessively great vibrations which can be caused by imbalance in the drum, a shock absorber is fitted between the drum and frame by each spring. (The EX 12 model has twin shock absorbers at the front.)

Repair instructions

If the out-of-balance cutout is repeatedly triggered

• Check the shock absorbers, replace them if required. Note that the shock absorbers should be fitted with the plunger rod upwards.

• Check the attachment of the springs:

- the spring is attached by a bolt from above: Check that it has been

properly tightened down.

The entire spring unit should be replaced in spring replacement.

Mechanical and electrical design

Fig.

Page 22

0635

Drum with bearings

Description

The inner drum is journalled to the outer drum by two robust bearings in a bearing housing which is bolted to the rear plate. The bearing unit supports the drum without any support being needed at the front. Shaft seals of the V-type, as well as O-rings, seal against leakage.

The space between the bearings is packed with grease during assembly. No additional grease is required.

The inner drum shaft is continuous, and the V-belt pulley is attached to the protruding journal by an adapter sleeve.

The outer drum end plate consists of two parts, the inner and outer end plates which are bolted to the bearing housing with through bolts. NOTE: The inner and outer end plates must not be taken apart when the bearings are replaced.

The outer drum and rear plate are held together by 3 straps. The outer drum is connected to its resilient suspension by four supports, bolted to

the end plates. It is important that these supports are not loosened from the rear plate during repairs.

Mechanical and electrical design

Fig.

Page 23

Safety locking device

Description

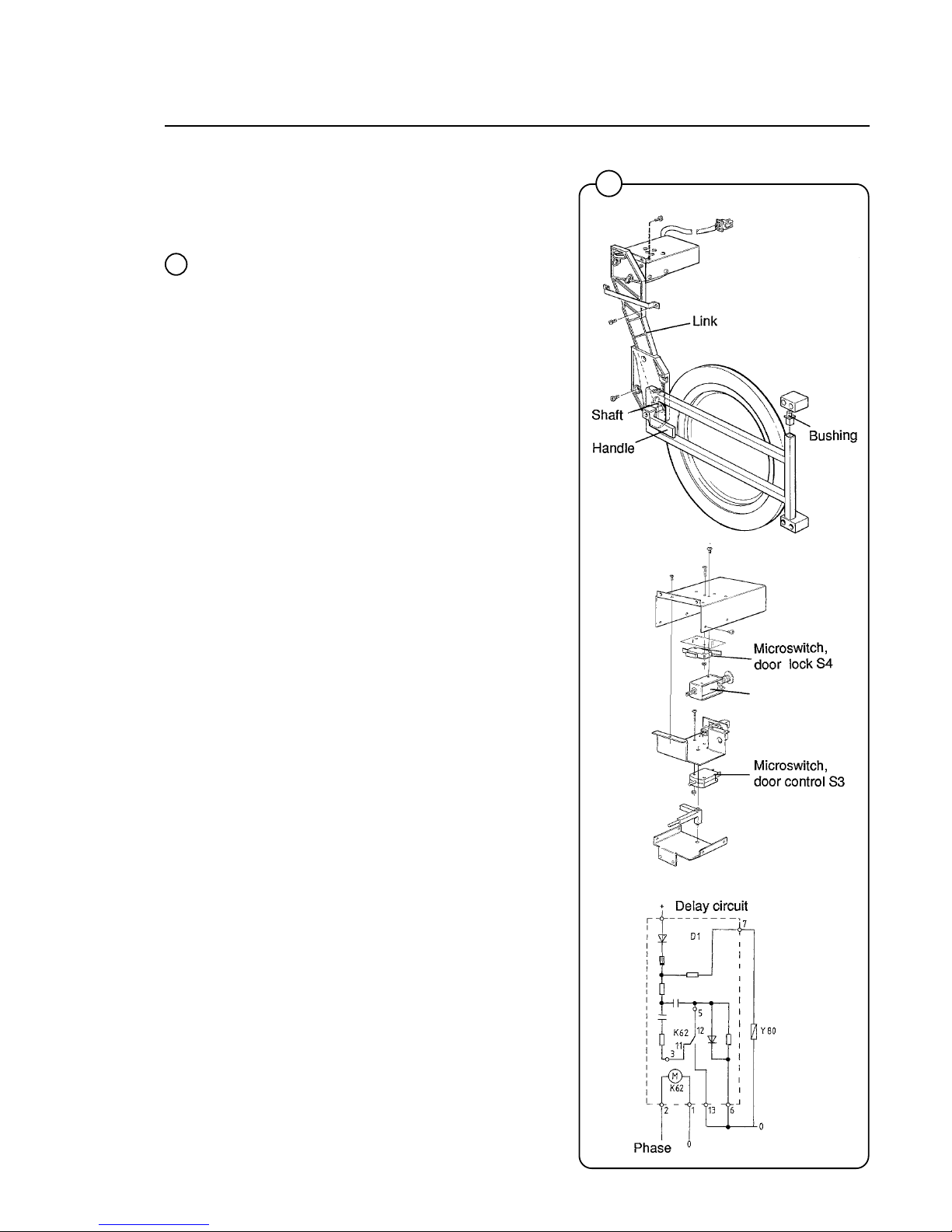

The machine safety locking device includes a safety interlock system which prevents personal injury through the following precautions:

• The machine cannot be started until the door is shut.

• The door is automatically locked when the machine starts.

• It is not possible to open the door until 2-3 minutes have elapsed after the washing program has ended. This ensures that the drum is motionless when the door is opened.

Repair instructions

It the coil does not lock the door:

• Check that the coil is receiving 100-110 V DC voltage. Measure the coil to determine if there is an interruption.

• Check that the armature of the coil is not stuck.

• If necessary, replace the entire coil.

Other possible faults:

- Faulty microswitch.

- Faulty delay circuit.

- Moving parts jammed.

- Handle not in locking position.

1676

Door lock solenid Y80

Mechanical and electrical design

Fig.

Page 24

Function

If the machine has not been energised within the last three minutes, the door will remain unlocked. When the machine is energised the door will be locked if a program is activated or if the drum is rotating. Upon completion of a program the door will be unlocked automatically as soon as the drum has stopped rotating.

If the power supply is cut to a machine which was energised the door will remain locked for three minutes, after which time it will be unlocked automatically.

The diagram below shows how the delay unit works. When the machine is energised the delay unit is fed phase and neutral on X194:5 and

X194:4 respectively. The door lock coil Y80 is then fed phase (via a normally closed relay contact) and neutral from X194:3. The relay coil acts on two conditions – that the drum is at a standstill and an "open" signal from the programmer circuit board:

• One side of the relay coil receives a zero potential signal when the rotation guard shortcircuits X193:1 and 2.

• The other side of the relay coil is supplied with phase from the programmer circuit board ("open" signal).

Both of these conditions must be fulfilled for the door to be unlocked. In the event of a power cut the capacitor will discharge via the relay and the door lock

solenoid. In this way the door lock solenoid continues to operate for three minutes, after which the door is unlocked automatically.

Mechanical and electrical design

2439

X194:5

X194:4 X194:3 X194:2 X194:1 X193:2 X193:1

Spännings

matning

Lucklås-

spole Y80

Rotations-

vakt

Fördröjningsenhet D1

Signal "öppna"

från program-

verkskort

Delay unit D1

Voltage feed

Door lock coil Y80

Rotation guard

"Open" signal from programmer circuit board

Fig.

Page 25

Fault location

Door does not unlock

Conditions: wash program ended and drum at a standstill. Measure the voltage between the following points:

1. X93:2 - X93:3 Should be 0 V DC. If the voltage is 220 V AC, check the rotation guard.

2. X193:1 - X193:2 Should be 0 V DC. If the voltage is 220 V AC, check the rotation guard and the cables between rotation guard and delay unit.

3. X194:1 - X194:4 Should be 220 V AC. If not, the "open" signal from the programmer circuit board is absent. Check pcb and cables between pcb and delay unit.

If the door is still locked, replace the delay unit.

Door does not lock

Conditions: door closed and wash program activated. Measure the voltage between the following points.

1. X194:1 - X194:4 Should be 0 V AC. If the voltage is 220 V AC, the programmer circuit board will constantly send the "open" signal. Check pcb and cables between pcb and delay unit.

2. X194:2 - X194:3 Should be 200 V DC.

– If there is no voltage, replace the delay unit. – If this voltage is present, check the door lock coil and its cables.

Mechanical and electrical design

Page 26

Rotation guard

Description

The rotation guard checks that the machine is completely at a standstill before the door can be opened. When the drum has been at a standstill for approx. two seconds the solenoid in the door lock is deactivated and the lock can be opened (provided that the machine has been emptied of water and the programmer has reset). The rotation guard also checks that the drum is revolving when the wash or extraction relays are operating.

The rotation guard consists of a circuit board in the automatic control unit and a sensor in a holder on the machine rear. There is a magnet on two of the spokes of the pulley. Each time a magnet passes the sensor, a contact closes inside the sensor and it relays a pulse to the rotation guard.

When the machine is at a standstill the rotation guard relays K1 and K2 are closed, which means that the delay unit and the HI-TEK receive confirmation that the drum is not moving, i.e. the rotation guard and the HI-TEK allow door opening.

Mechanical and electrical design

2436

2019

X91

X92

X93

X94

Fuse F1

X99

X90

X95

X96

LED

X90:1

X90:2

X91:1 X91:2

X92:2

X92:3

X72:7 X72:4

L1 N

X93:3

X95:2X95:1X93:2

X193:1

X193:2

Logic section Pulses from B41: K1 and K2 change immediately. No pulses from B41: K1 and K2 operate after approx. 2 sec.

This circuit is not used in HI-TEK

To control circuits

Fig.

Page 27

Mechanical and electrical design

3310

Control unit

The control panel (1), mounted at the front, includes all components necessary for operating the machine, such as display window, control switches and a key-operated switch.

The printed circuit board (2) with the microprocessed electronic timer is mounted just behind the control panel.

Relays (3) and delay unit (4) are located at the top of the machine, easily accessible for service.

Electrical connections to the machine are made by quick-disconnect plugs.

Fig.

Page 28

Relays

The HI-Tek models employ six relays. The relays control:

• the reversing wash action of the wash motor (2 relays)

• the distribution action of the wash motor

• the extraction motor (3 relays)

Construction

The body of the relay holding the stationary contacts is made of current-resistant plastic. A solenoid and a contact bank hold the moving contacts. The contacts are spring-loaded to assure the correct contact pressure.

The relay is constructed for continuous operation, whether mounted horizontally or vertically.

Screw-type terminals provide perfect connections even when one or two wires have different diameters.

Operation

When the solenoid is energized, the two halves of the magnet core are drawn together, pulling down the moving contacts, thus making or breaking the circuit. When the current cuts out, springs force the contact bank into its original position, thus closing or opening the circuits.

Trouble shooting

If the relay fails to operate despite power to the coil, turn off the power and check the solenoid by measuring the resistance across the terminals (1).

If the relay hums when power is applied, this indicates either a break in the insulator holding the moving contacts at the axle where it holds the top half of core (3) or a rusty core (4), which can be cleaned.

Make sure that the moving contact assembly (4) moves freely. Always replace burnt or pitted contacts (2)... do not reuse contacts.

0301

Mechanical and electrical design

Fig.

Page 29

0638

0639

Drive motors

Description

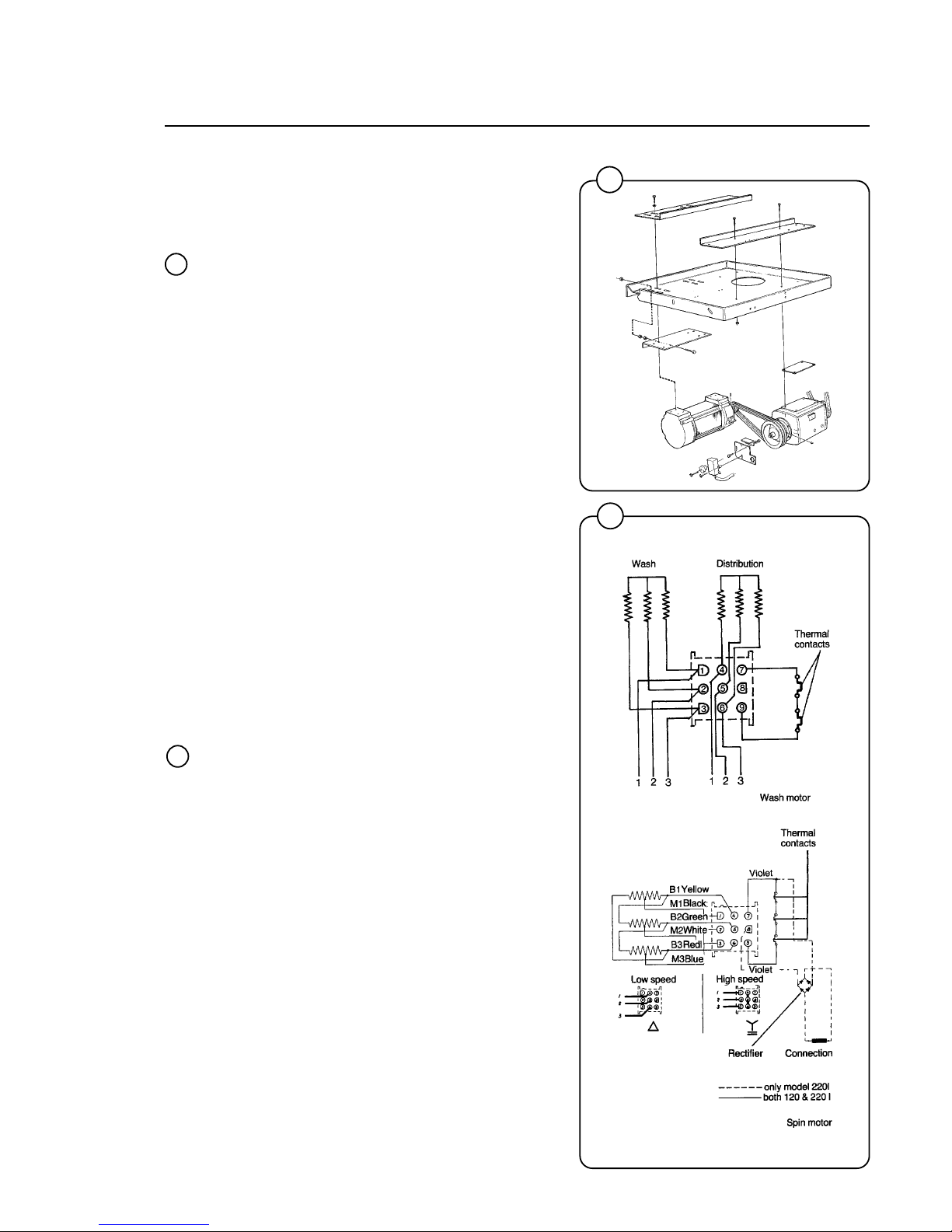

Both motors, one for wash and distribution and one for extraction, are installed on the same motor bridge. The motors drive the drum and are mechanically connected to each other by V-belts. On the EX 22 there is also an electromechanical clutch. The motors rotate at each others' speed during the wash speed, distribution speed and low extraction speed.

During high extraction speed the speed control on the EX 22 gives a signal to the electromechanical clutch. This disconnects the motors from each other mechanically. The wash motor now rotates at distribution speed and the extract motor at high speed.

On the EX 12 the power supply to the wash motor is disconnected by the speed control.

On the motor bridge there are belt tensioning devices. The extract motor is screwed to a mobile plate which moves via oblong holes in the motor bridge. This is used to tension the belt drive between the motors. It is possible to tilt the entire motor bridge with the use of the oblong holes on the wash motor side. This is used to tension the V-belt up the wash drum.

The motors are equipped with thermal protectors which are placed in the stator coil. In the case of overheating in the motors, i.e. if the temperature exceeds 130°, the protector contacts cut the power to the motor relays.

Mechanical and electrical design

Fig.

Page 30

0640

Repair instructions

Overheated motor, motor not running

• Wait till motor has cooled down. Motor thermal protection is automatically reset after approx. 30 minutes. Restart.

• Possible cause of motor protector releasing repeatedly: could be oversensitivity of thermal protector.

Very noisy motor

• Breakdown of bearings - replace bearings or motor.

Motor running slowly

• The motor is probably running on two phases

- measure coils on terminal.

Wash motor only runs at one of the speeds

• Check that the quick connection is correctly connected.

• Measure coils on plinth, as the fault can be caused by interruption in one of the coils.

Motor locks

• Breakdown of bearings - replace bearing or motor.

Motor does not turn

• Check belt tension.

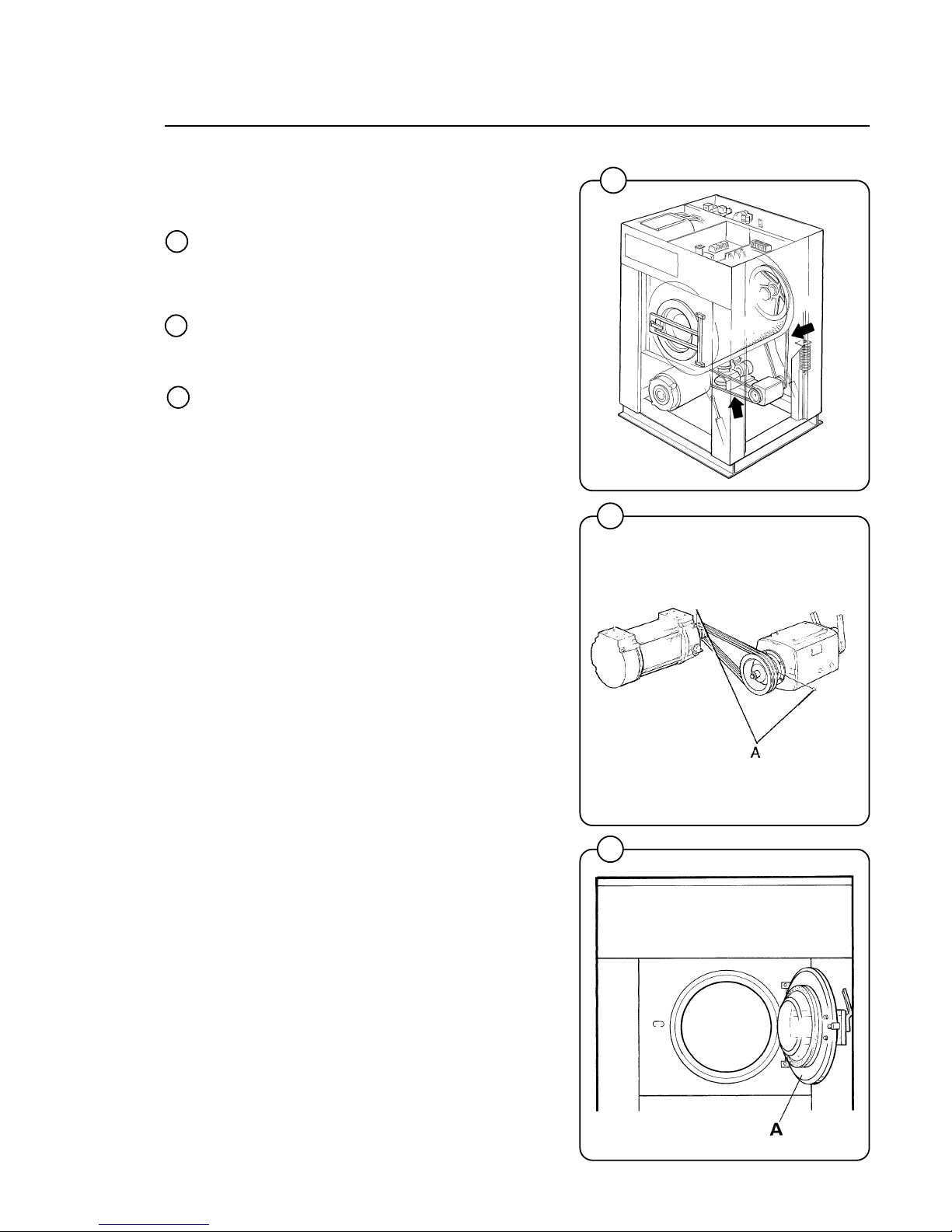

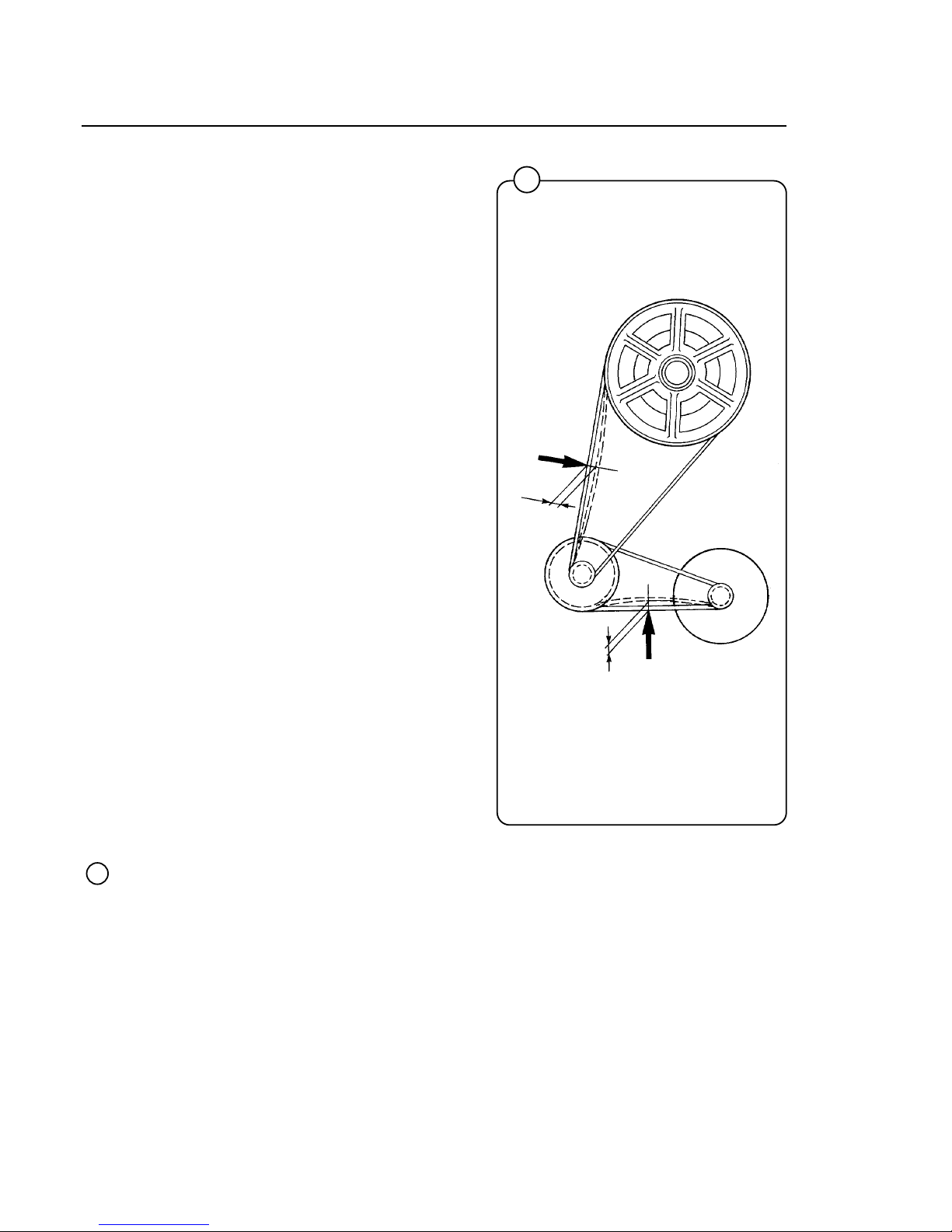

Tensioning of the V-belt

• Belt between the wash motor and extract motor

- release and adjust backing plate to correct

belt tension according to illustration. Fasten plate.

• Belt between extract motor and drum

- remove screws for the attachment of motor

bridge at extract motor side, lower motor bridge to correct belt tension according to illustration and fasten bridge.

5/16 in.

92 lbs. force

180 lbs force

1/4 in.

Mechanical and electrical design

Fig.

Page 31

0306

0307

Supply injection valve

Construction

This valve has a single-inlet with three outlets, each with its own solenoid coil.

The body is made of heat-resistant polyamid plastic and the solenoids encased in water-tight plastic. The electrical connector terminals are spade lugs.

A filter screen on the inlet side prevents dirt from entering the valve. Flow restrictors can be placed at either the inlet or any of the outlets.

Operation

When the solenoid is energized, the springloaded plunger is drawn up and the pilot valve in the center of the diaphragm open. Because of the difference in diameter between the pilot valve opening and the ventilating hole in the diaphragm, the pressure above the diaphragm drops to a point where the admission pressure below the diaphragm can lift the diaphragm, thus opening the valve.

When the current to the solenoid is cut off, the plunger spring will press the plunger against the pilot opening of the diaphragm. The pressure above the diaphragm then rises to correspond to the water inlet pressure and the pressure of the spring will close the valve.

Mechanical and electrical design

Fig.

Page 32

Mechanical and electrical design

0308

0309

0310

Repair instructions

Limescale can block the hole in the valve diaphragm and interfere with the function of the valve.

It is therefore advisable to dismantle and clean the valve at certain regular intervals. The frequency depends on operating conditions and the level of contamination in the water.

If the valve does not open

• Check that power is supplied to the coil.

• Check the coil with an instrument to determine whether there is a break or a short circuit.

• Dismantle the valve (see below) and check the openings in the valve diaphragm.

• Check the inlet strainer and clean as required.

• Undo the coil and clean the surfaces of the magnetic core.

If the valve does not close

• Check that the coil is not live. The valve is normally closed when the magnet is not energised.

• Check the return spring.

• Check the diaphragm (pilot pressure opening).

Dismantling the valve.

• Pull the coil stright upwards. Use a screwdriver if necessary to carefully undo the coil.

• Use the tool supplied (attached to one of the hoses when the machine is delivered) to open the valve housing. Slide the tool over the protruding plastic sleeve to that the pegs on the tool engage the corresponding sockets in the valve housing.

• Use a spanner or a pair of pliers and unscrew the upper part of the valve housing.

Fig.

Page 33

0311

0368

0369

Inlet valve EX 22

The water inlets have brass bodies with a larger cross section of the outlet in order to acheive a shorter filling time for the machine.

Construction

The valve housing is made of pressed brass. The spring-loaded plunger is made of stainless steel and located at its lower end is a rubber gasket for the pilot valve.

Operation

The valve is automatically operated by means of a rubber diaphragm and a pilot valve in exactly the same way as the supply injector valve.

NOTE: To strip, clean, re-assemble and troubleshoot the inlet valve, follow the instructions outlined for the supply injector valve.

Clean out

At water temperatures of more than 60°C/140°F, the lime deposits are heavily increased. This can cause function problems due to blocking up the equalizing orifice of the valve.

The fault can be eliminated by cleaning the equalizing orifice (marked A).

If there are much deposits the orifice can be changed from 0.5 mm to 0.8 mm. The screwhead of the orifice is marked with 1 ring for the size of

0.5 mm and 2 rings for the size of 0.8 mm. Clean the orifice as follows:

1. Shut off the main supply.

2. Unscrew the orifice

3. Clean the hole in the orifice carefully with a pin or similar not thicker than 0.5 resp. 0.8 mm.

4. Mount the orifice, be careful with sealing and tighten.

5. Open the main supply.

Mechanical and electrical design

Fig.

Page 34

0312

Soap supply box

The three-compartment soap supply box is located at the top of the machine. Viewed from the front, the compartments are marked with figures 1, 2 and 3.

Compartment 1 and 2 are used for adding detergent directly to the wash. Compartment 3 is used for adding fabric softener. All three compartments can be programmed individually.

For liquid supplies compartment 2 is only used together with a top mounted supply injector connection. See page 9 for details and installation instructions.

Mechanical and electrical design

Fig.

Page 35

0313

Drain valve

Description

The drain valve consists of a bracket (1), on which are mounted the motor and gear (2) and diaphragm (3). The rubber diaphragm is resistant to a water temperature up to 100°C (212•F). The installation of a lint trap is not necessary. The machine is equipped with an overflow, which bypasses the drain valve. The drain can be cleaned by removing the drain connection (4) outside of the machine or by removing the rubber diaphragm (3). The motor and gear assembly is covered by a plate and provided with quickdisconnect electrical connections. The stator coil is constructed for continuous operation.

Operation

The drain valve is normally open, i.e. the motor does not close the valve until it receives current via a contact of the timer. As soon as the current is cut, the shaft turns and opens the diaphragm of the valve. This also permits the machine to drain, in the event of power failure. The overflow hose (5) leads excess water or suds directly to the waste line, in the event of failure in the inlet valves or level control.

Trouble-shooting

If the valve does not open or close properly:

1. Check that the shaft is moving freely.

2. Check that the diaphragm is not obstructed.

3. Check the coil for continuity.

Clean out

Periodic cleaning of the valve is recommended, depending upon how often the machines are used, as well as the type of wash handled most frequently.

Mechanical and electrical design

Fig.

Page 36

0164

General

The washing machine’s program operation is controlled by a microcomputer and the wash programs are stored in an electronic memory. Program controls are very exact and the wash programs can be easily adapted to the end user’s individual requirements.

The machine is supplied with a number of fixed basic programs which cannot be deleted or modified. However, they can be used as a background for programming end user programs. It is also possible to compose entirely new programs. 90 such programs can be stored in the program unit’s memory.

The following parts of the control panel are used when programming:

• the key switch which is used to switch the machine to the programming position.

• 13 push button switches which are used only for programming.

• the numeric keys which are used to enter different program data

• °C/°F press button to select the temperature scale (°Celsius/°Fahrenheit)

• display window where the programming steps are controlled with the aid of questions and selections.

Key switch

Start/Hold/Rapid advance

Manual controls

Digital input keypad

Indicators, detergent

Programming

Display window

Connecting for cassette

PRE

WASH

YES

COOL DOWN

RINSE

EXTR.

MAIN

WASH

DRAIN

EDIT

DOWN

TEXT

ERASE

ENTER

START

HOLD/RAPID ADV

HEAT

C/F

COLD

WATER

HOT

WATER

DRAIN

CLOSED

MOTOR

PROG.

INFO.

DOOR

LOCK

FLUSH

LOW

EXTR.

DETERGENT 1 DETERGENT 2 DETERGENT 3 DETERGENT 4 DETERGENT 5

Programming

Fig.

Page 37

0165

Enter the information

text

Allocate a program

number

Turn the key to

''RUN''

Answer the questions

etc. . .

Answer the questions

Turn the key to

''PROGRAM''

Select the

sub-program

Select the

sub-program

Programming - general description

Programming can be divided into two programming principles: Programming a new program or using an old program as a background.

Programming a completely new program

The wash program is constructed by selecting different sub-programs with the buttons on the panel. These sub-programs, when stored after each other, form the complete final wash program. Sub-programs can be selected in an optional sequence.

A program can, for example, be built up in the following way:

• Pre-wash 1, Drain 1

• Main wash 1, Cool down 1, Drain 2

• Rinsing 1, Drain 3, Extract 1

• Rinsing 2, Drain 4

• Rinsing 3, Drain 5, Extract 2. When programming, a number of questions must

be answered for each sub-program. The questions are answered with the YES, NO buttons and the number keys.

When all sub-programs are programmed, any questions which apply to

the whole program must be answered. AN explanatory text can also be entered (this is displayed when PROG.INFO. is pressed after selection a program).

The last thing to be done is to store the program in the program memory under a vacant program number.

Programming

Fig.

Page 38

Using and old program as a background

In this operation, an old program is selected as a background for the new one. The answers to the questions and the written texts can be changed to create a new program. Furthermore, subprograms can be erased and new sub-programs entered in optional positions.

When the changes are complete, the new program is entered under a vacant program number. The program which was ’’borrowed’’ at the start of the programming is retained unchanged under its old program number.

0166

Programming

Change the answers

to the questions

Delete the

sub-program

Enter the

sub-program

Enter the

information text

Allocate a program

number

Turn the key to

''RUN''

Turn the key to

''PROGRAM''

Select an old program

Fig.

Page 39

Controls

The key switch

Turn the switch to the PROGRAM position if the wash program is to be programmed or changed.

If for any reason you wish to discontinue programming and start again, turn the switch to the RUN position and then back to PROGRAM again. Any programming that you have done so far will be deleted but other programs already stored will not be affected.

ENTER

An important principle when programming is that all commands (such as the choice of subprogram, answers to questions, text input) must be followed by ENTER.

The command can always be changed or deleted before ENTER is pressed.

EDIT UP and EDIT DOWN

The EDIT UP and EDIT DOWN buttons are used to go backwards or forwards in the program without its being affected, e.g. to go through the questions in a sub-program. The buttons are also used to enter program text (see under the heading ’’Entering text’’).

0167

0168

0169

Programming

PROGRAM

PRE

WASH

EXTR.

EDIT

ERASE

EDIT

DOWN

ENTER

YES

TEXT

COOL

DOWN

PRE

WASH

ERASE

EDIT

DOWN

ENTER

TEXT

COOL

DOWN

RUN

MAIN

WASH

RINSE

DRAIN

MAIN

WASH

RINSE

DRAIN

EXTR.

EDIT

Fig.

Page 40

Erase

This button can be used in three different ways:

• Deleting a complete program. Press ERASE when the display window displays

the adjacent text. A warning text will then be displayed. Press

ENTER, enter the program number with the number keys and press ENTER again.

• Deleting a section of a program. Move forwards or backwards in the program

by using EDIT UP or EDIT DOWN so that you reach the program section to be deleted. See under the heading ’’Looking through the program’’. Press ERASE.

Answer YES and ENTER to the question ’’ERASE THIS MODULE’’.

• Deleting characters when entering text. To delete individual characters when

programming text, press ERASE. The last character you entered will disappear. (see under the heading ’’TEXT’’).

Selecting sub-programs

Press buttons PRE WASH, MAIN WASH, RINSE, DRAIN, EXTR. and COOL DOWN

designate different sub-programs and can be used to construct complete wash programs.

When necessary, the same sub-program can be used several times in the same wash program. Each sub-program is allocated its own number (e.g. RINSE 01, RINSE 02 etc.) so that the different sections can be easily identified.

KLAR

Press:

RA-

DERA

KLAR

Press:

RA-

DERA

0170

0171

Press:

RA-

DERA

0172

0173

Programming

PROGR. MODE SELECT SEQUENCE PREWASH 01

PROGR. MODE SELECT SEQUENCE PREWASH 01 PAUS WITH BUZZER Y/N N NORMAL ACTION DURING FILLING Y/N N GENTLE ACTION DURING FILLING Y/N N

ABCDEFGHIJKLMNOPQRSTUVWXYZÅÄÖ !&/=:,.*

KLAR

ENTER

Number keys

ENTER

PRE

WASH

EXTR.

COOL DOWN

EDIT

YES

ERASE

EDIT

DOWN

ERASE

YES

ERASE

MAIN

WASH

RINSE

DRAIN

TEXT

Fig.

Page 41

YES, NO, number keys

These keys are used to answer the different questions which are found under each subprogram. All answers must be followed by pressing ENTER for the answer to be registered.

TEXT

The key for TEXT is used for entering the explanatory text which is displayed when PROG.INFO. is pressed after that a program is selected.

Proceed as follows:

• Press TEXT when the display window displays ’’PROG. MODE SELECT SEQUENCE’’. Press

ENTER.

• The alphabet is then displayed together with a number of special characters in the display window. By using the EDIT UP and EDIT DOWN keys, the cursor (the flashing square) can be moved along the character line.

• The first character of the text is entered by pressing ENTER when the cursor is in the correct position. Move the cursor to the next character and press ENTER again.

• An incorrectly entered character can be deleted by entering ERASE.

• When the text is complete, move the cursor to the arrow marker to the far left and press ENTER. The display window will then revert to the position for selecting a sub-program.

°C/°F

The temperature range required can be selected by pressing

°C/°F. The button has an alteration

function.

0174

0175

…

KLAR

RED. UPP

Press:

0176

0177

Programming

-ABCDEFGHIJKLMNOPQRSTUVWXYZ !&/()=?;:,.*

RED. OPP

RED. NER

EDIT

DOWN

EDIT

ENTER

°C/°F

MOTOR

PROG.

INFO

DOOR

LOCK

PRE

WASH

COOL DOWN

RINSE

EDIT

YES

ERASE

EDIT

DOWN

EXTR.

TEXT

EDIT

ERASE

EDIT

DOWN

YES

DETERGENT 1 DETERGENT 2 DETERGENT 3 DETERGENT 4 DETERGENT 5

RINSE

MAIN

WASH

PRE

WASH

DRAIN

COOL DOWN

MAIN

WASH

DRAIN

EXTR.

TEXT

and

DRAIN

FLUSH

Fig.

Page 42

Programming a new program

If you make a mistake or get stuck, there is always a final resort:

Turn the key to the RUN position and then to PROGRAM again. Any programming you have carried out so far will be lost but other programs will not be affected.

Turn the key

Turn the key to the PROGRAM position. The first character will then be displayed in the display window.

Select ’’New program’’

Answer NO to the question ’’DO YOU WANT AN OLD PROG. AS BACKGROUND?’’. Press

ENTER.

Select sub-program

Select one of the following: PRE WASH, MAIN WASH, RINSE, DRAIN, EXTR, COOL DOWN, TEXT or ERASE. Press ENTER immediately

after the first selection is pressed. The different sub-programs are selected with the

first keys listed where a number of questions are answered.

TEXT is used to program the information text to be displayed when PROG. INFO. is pressed after that a program is selected.

If ERASE is pressed, an entire program can be deleted.

Press:

KLAR

NEJ

0167

0178

NED-

KYLN.

TEXT

CENTR.

HUVUD-

TVÄTT

FÖR-

TVÄTT

SKÖLJ.

AV-

LOPP

RA-

DERA

KLAR

Press:

0179

Programming

PROGRAMMING MODE: DO YOU WANT AN OLD PROG. AS BACKGROUND N

PROGR. MODE SELECT SEQUENCE

PRE

WASH

COOL

DOWN

TEXT

ENTER

PROGRAM

RUN

and then

MAIN

WASH

ERASE

RINSE

DRAIN EXTR.

ENTER

any of

Fig.

Page 43

Programming

Answering questions

The general principle for answering questions is the same for all sub-programs:

• The cursor (the flashing square) is always to the right of line three in the display window. This means that it is the question on line three that is to be answered.

• The list of questions can be moved up or down in the display window with the EDIT UP and EDIT DOWN buttons.

• Begin by answering the questions from the top. You may need to press EDIT UP once to answer the first question.

• Questions which are answered with either YES or NO are pre-programmed to NO. To answer YES, press YES and then ENTER. The NO button can be used to correct an incorrect YES answer. Each time ENTER is pressed, the next question will appear so that it can be answered.

• Questions which are answered with a number are pre-programmed to O. Use the number keys and press ENTER when the number is correct.

• When ’’END OF SEQUENCE’’ appears on the third line in the display window, and all questions are answered, press EDIT DOWN. A new sub-program can now be selected.

Press:

KLAR

Press:

RED. UPP

RED.

NER

0180

0181

Pulse:

RED. NER

Press:

KLAR

Number keys

0182

0183

PROGR.MODE SELECT SEQUENCE PREWASH 01 PAUS WITH BUZZER Y/N N NORMAL ACTION DURING FILLING Y/N N GENTLE ACTION DURING FILLING Y/N N

RED. OPP

RED. NED

PROGR.MODE SELECT SEQUENCE PREWASH 01 NORMAL ACTION DURING FILLING Y/N N GENTLE ACTION DURING FILLING Y/N N NORMAL ACTION DURING WASH Y/N N

PROGR.MODE SELECT SEQUENCE PREWASH 01 GENTLE ACTION DURING WASH Y/N N LEVEL 000 UNITS LEVEL RESET 000 UNITS

RED. NED

PROGR.MODE SELECT SEQUENCE PREWASH 01 DET 5 SIGNAL TIME 0 MIN. 000 SEC END OF SEQUENCE

EDIT

ENTER

YES

ENTER

EDIT

DOWN

EDIT

DOWN

Fig.

Page 44

The following is a summary of the different questions that can appear under the different buttons.

NOTE:

The question which are described do no apply to all machines. On certain types of machines, some of the values are programmed as standard values and need therefore not be answered.

Pre wash, main wash, rinsing

The questions in these three sub-programs are identical.

Pause with signal

If the question is answered with YES, the machine stops before the sub-program is started and a buzzer sounds.

Normal action/gentle action

Select the action while filling, heating and washing. One of the alternatives under each sequence shall be answered with YES, NO to all six questions will result in a stationary drum.

Level

The water level can be programmed according to 255 scale divisions (units). Level 255 corresponds to a pressure of 600 mm wc. This means that the values for normal and high level can vary between different sizes of machines.

The table shows the recommended values for the relevant machines.

RED. NED

Number keys

Press:

0184

0185

0188

Programming

PROGR.MODE SELECT SEQUENCE PREWASH 01 PAUS WITH BUZZER Y/N N NORMAL ACTION DURING FILLING Y/N N

PROGR.MODE SELECT SEQUENCE PREWASH 01 PAUS WITH BUZZER Y/N N NORMAL ACTION DURING FILLING Y/N N GENTLE ACTION DURING FILLING Y/N

PROGR.MODE SELECT SEQUENCE PREWASH 01 GENTLE ACTION DURING WASH Y/N N LEVEL 000 UNITS LEVEL RESET 000 UNITS

KLAR

ENTER

YES

RED. NER

RED. NED

KLAR

ENTER

YES

RED. NER

RED. NED

KLAR

ENTER

Press:

Machines with fixed drums

Level (units)

Model Low High

FL 125 40 80 FL 185 40 80 FL 244 45 90

S 150 40 80 S 230 45 90

Free-swinging machines

Level (units)

Model Low High

EX 12 145 175 EX 22 160 195

EX 80 85 150 EX 100 140 220 EX 200 100 220

EDIT

DOWN

EDIT

DOWN

EDIT

DOWN

Fig.

Page 45

Refilling

LEVEL RESET is value which regulates at which level water is to be refilled if the water level sinks while a wash is in progress.

Example: The following values are programmed:

• Level: 130 units

• Level reset: 10 units This means that:

• Water is filled to level 130 at the beginning of the sub-program. If the water level sinks below level 120 (130-10) during the course of the program, the water level is refilled to level

130.

• Select a level between 0-255. Values greater than the level value mean that no water will be added.

• The recommend value is 20 units.

Temperature

The water temperature can be programmed either in °C or °F. Use the °C/°F button to change between scales (note that the change is not displayed until the next change in the display window is made).

Temperatures can be selected within the range of 32-212°F (0-100°C) in stages of 1°.

Time

A sub-program can be timed in stages of 10 seconds. The longest time that can be programmed is 41 min. 40 sec (2500 seconds). The time does not include the time for water filling or heating.

0190

0191

0192

Programming

PROGR. MODE SELECT SEQUENCE PREWASH 01 LEVEL 000 UNITS LEVEL RESET 000 UNITS TEMPERATURE 000 °C

PROGR.MODE SELECT SEQUENCE PREWASH 01 LEVEL RESET 000 UNITS TEMPERATURE 000 °C WASHTIME 00 MIN. 00 SEC.

PROGR.MODE SELECT SEQUENCE PREWASH 01 TEMPERATURE 000 °C WASHTIME 00 MIN. 00 SEC. COLD WATER Y/N N

RED. NED

Number keys

KLAR

ENTER

Press:

RED. NED

Number keys

KLAR

ENTER

Press:

RED. NED

Number keys

KLAR

ENTER

Press:

EDIT

DOWN

EDIT

DOWN

EDIT

DOWN

Fig.

Page 46

Water filling

One or several water valves can be selected. If you decide to use hot and cold water, both

valves will be open while filling is in progress. The hot water valve will be automatically closed if the pre-set temperature is exceeded. The valve will open again if the temperature drops below the preset value.

Supply injector

The supply injector valves can be controlled in two different ways. Select one of the methods for each activated valve:

• 1. By answering YES to the first five questions, the respective supply injector valve will be open all the time water filling is in progress.

• 2. By stating the times for the last five questions, the respective supply injector valve will open for the pre-programmed time. The valves will start to open when water is filled.

Programming complete

• When ’’END OF SEQUENCE’’ appears on the third line of the display window and all questions are answered, press EDIT DOWN.

• Answer NO to the question ’’END PROG. SESSION Y/N?’’ if there are more subprograms to be answered. Answer YES if the sub-program is the last in the completed program The continue under the heading ’’Looking through the program’’..

Press:

0193

0194

Press:

0195

Programming

PROGR.MODE SELECT SEQUENCE PREWASH 01 WASHTIME 00 MIN. 00 SEC. COLD WATER Y/N N HOT WATER Y/N N

PROGR.MODE SELECT SEQUENCE PREWASH 01 HOT WATER Y/N N COMP. 1. (LEVEL CONTROLLED) Y/N N COMP. 2. (LEVEL CONTROLLED) Y/N N

PROGR.MODE SELECT SEQUENCE PREWASH 01 COMP.3. (LEVEL CONTROLLED) Y/N N DET.1. SIGNAL TIME 0 MIN. 00 SEC. DET.2. SIGNAL TIME 0 MIN. 00 SEC.

RED. NED

Number keys

KLAR

ENTER

KLAR

ENTER

YES

RED. NER

RED. NED

KLAR

ENTER

YES

RED. NER

RED. NED

EDIT

DOWN

EDIT

DOWN

EDIT

DOWN

FIg.

Fig.

Page 47

Press:

0196

0197

Press:

0199

0198

Programming

Drain

Pause with signal

If the question is answered with YES, the washing machine will stop before the sub-program starts and a buzzer will sound.

Normal action/gentle action/distribution

Select the method of working while draining. Distribution action is used before a spin cycle so that garments are equally distributed around the drum.

NO to all three questions will cause the drum to be stationary.

Drain 1/Drain 2

These two questions need to be asked if the machine is fitted with an additional drain valve (e.g.) for recycling the rinse water). This determines the route the drain water takes.

The machine’s own drain valve opens automatically during the drain function.

Time

The emptying time can be programmed in stages of 10 seconds. The longest time that can be programmed is 41 minutes 40 seconds (2500 seconds).

PROGR.MODE SELECT SEQUENCE DRAIN 01

PAUSE WITH BUZZER Y/N N NORMAL ACTION Y/N N

PROGR.MODE SELECT SEQUENCE DRAIN 01 PAUSE WITH BUZZER Y/N N NORMAL ACTION Y/N N GENTLE ACTION Y/N N

PROGR.MODE SELECT SEQUENCE DRAIN 01 DISTRIBUTION Y/N N DRAIN 1 Y/N N DRAIN 2 Y/N N

PROGR.MODE SELECT SEQUENCE DRAIN 01 DISTRIBUTION Y/N N TIME 00 MIN. 00 SEC. END OF SEQUENCE

Press:

Number keys

KLAR

ENTER

Press:

KLAR

YES

RED. NER

RED. NED

ENTER

KLAR

ENTER

YES

RED. NER

RED. NED

KLAR

ENTER

YES

RED. NER

RED. NED

EDIT

DOWN

EDIT

DOWN

EDIT

DOWN

Fig.

Page 48

Press:

0201

0202

Programming

Programming complete

• When ’’END OF SEQUENCE’’ appears on the third line of the display window and all questions are answered, press EDIT DOWN.

• Answer NO to the question ’’END PROG. SESSION Y/N?’’ if there are more subprograms to be answered. Answer YES if the sub-program is the last in the completed program. The continue under the heading ’’Looking through the program’’.

Extract cycle

Extract cycle times

The time can be programmed in stages of 10 seconds. The longest time that can be programmed is 41 minutes 40 seconds (2500 seconds) for high and low speed extracting.

If both extract speeds are selected, the low speed will precede the high speed extracting.

Programming complete

• When ’’END OF SEQUENCE’’ appears on the third line of the display window and all questions are answered, press EDIT DOWN.

Cooling

Pause with signal

If the question is answered with YES, the machine will stop before the sub-program starts and a buzzer will sound.

PROGR.MODE SELECT SEQUENCE EXTRACT 01

TIME HIGH SPEED 00 MIN. 00 SEC. TIME LOW SPEED 00 MIN. 00 SEC.

PROGR.MODE SELECT SEQUENCE DOOL DOWN 01

PAUSE WITH BUZZER Y/N N SEPARATE COOL DOWN VALVE Y/N N

RED. NED

Number keys

KLAR

ENTER

KLAR

ENTER

YES

RED. NER

RED. NED

EDIT

DOWN

EDIT

DOWN

Fig.

Page 49

Press:

0203

0204

0205

0206

Programming

Special cooling valve

Answer YES is there is a separate water valve use for cooling. If the answer is NO, the standard cold water inlet is used.

Gentle action

Answer YES if the machine is to operate on gentle action during cooling. The machine will operate on normal action if the answer is NO.

Times

Cold water is supplied in stages by the water valve opening and closing according to a particular pattern. The time for an opening or closing sequence is 30 seconds. This time is permanently programmed and cannot be changed. All that can be programmed is the ratio between open and closed valve.

The time the valve i open (ON time) can be programmed separately between 1 and 15 seconds. The valve is closed during the remaining time up to 30 seconds. The ON time is programmed separately within two temperature ranges: 212-158°F (100-70°C) and 158°F (70°C) — final temperature.

The rate of temperature reduction is monitored within the 212-158°F (100-70°C) range. If the ON time is selected so that the water temperature in the drum decreases by more than 7°F (4°C)/ minute, the valve is closed so that this value is not exceeded.

The final temperature can between 77-140°F (25-60°C) be programmed.

PROGR.MODE SELECT SEQUENCE COOL DOWN 01 PAUSE WITH BUZZER Y/N N SEPARATE COOL DOWN VALVE Y/N N GENTLE ACTION Y/N N

PROGR.MODE SELECT SEQUENCE COOL DOWN 01 SEPARATE COOL DOWN VALVE Y/N N GENTLE ACTION Y/N N ON TIME 212-158°F (100-70°C) 000 SEC..

KLAR

ENTER

YES

RED. NER

RED. NED

KLAR

ENTER

YES

RED. NER

Press:

30 sec.

0-15 sec.

EDIT

DOWN

EDIT

DOWN

OFF

FIg.

Fig.

Page 50

…

Pulse:

0207

0208

0209

Programming

Example:

• ON TIME 212-158°F (100-70°C) 8 seconds.

• ON TIME 158°F (70°C) - END 13 seconds.

• END TEMP. 113°F (45°C).

• Wash temperature 194°F (90°C).

The following takes place:

• When the water in the drum reaches 194-158°F (90-70°C), the water valve is ON 8 seconds, OFF 22 seconds, ON 8 seconds, OFF 22 seconds etc. providing the temperature in the drum does not decrease by more than 7°F (4°C)/minute.

• When the water in the drum is 158-113°F (70-45°C), the water valve i ON 13 seconds, OFF 17 seconds, ON 13 seconds, OFF 17 seconds etc.

• When the temperature has reached 113°F (45°C), cooling is discontinued and the next sub-program commences.

Fast cool down

Fast cool down takes place if cool down is selected and END TEMP is set to 0. The water level is raised to the level set by the factory as the high level without the cold water valve being shut off.

Programming complete

• When ’’END OF SEQUENCE’’ appears on the third line of the display window and all questions are answered, press EDIT DOWN.

• Answer NO to the question ’’END PROG: SESSION Y/N? if there are more sub-programs to be answered. Answer YES if the subprogram is the last in the completed program. The continue under the heading ’’Looking through the program’’.

PROGR.MODE SELECT SEQUENCE COOL DOWN 01 ON TIME 212-158 °F (100-70 °C) 000 SEC. ON TIME 158 °F-END (70 °C) 000 SEC. END-TEMP 000 °F

RED. NER

22 sec.

17 sec.

13 sec.

OFF

8 sec.

EDIT

DOWN

EDIT

DOWN

Fig.

Page 51

Text

Each program can be provided with two types of informative text:

• 1. A program name which is always displayed when the program is selected when washing. This text is programmed when the program number i selected. See under the heading ’’Program names’’ later on in the manual.

• 2. Informative text which can comprise 120 characters (3 lines in the display window). This text is displayed when PROG.INFO is pressed after the program is selected.

This text can be programmed by pressing TEXT when the display window displays ’’PROG. MODE SELECT SEQUENCE’’.

The procedure for this is described under the heading ’’TEXT’’ earlier in this manual.

End questions

• When a sub-program has been programmed, ’’END PROG. SESSION Y/N?’’ appears. Answer NO when more sub-programs are wanted.

Answer YES when the programming of subprograms is to be finished. The end questions will then appear on the display.

Signal at the end of the program

If the question is answered with YES, the washing machine stops after the wash program is complete and a buzzer sounds.

0210

0211

Press:

0212

0213

Programming

SELECT PROGRAM TOW DIGITS 01 PROGRAM 01 HEAVY SOIL START WASH WITH START-BUTTON FOR PROGRAM INFO. PRESS PROG.INFO

PROGRAM 01 HEAVY SOIL ABCDEFGHIJKLMNOPQRSTUVWXYZÅÄØ 1&/=?:,.*

END PROGR. SESSION Y/N N

PROGR.MODE MAINDATA

BUZZER ON WHEN PROGRAM FINISHED Y/N N GENTLE ACTION ON TIME 000 SEC.

YES ENTER

RED. NER

KLAR

ENTER

YES

EDIT

DOWN

Fig.

Page 52

Press:

0215

Press:

0216

0217

Programming

Times for normal action and gentle action

The times for rotating and stationary drum during normal and gentle action can be programmed. All times can be selected within the range of 0-30 seconds with 1 second intervals.

Press ENTER when ’’TO END. PRESS ENTER’’ is displayed in the display window.

Entering the program number

Enter a two-digit number and press ENTER. Note that the numbers 01-09 are reserved for factory programs.

If the program number selected is already in use, there is the option of either deleting the old program (not applicable to factory programs) or selecting a new program number.

PROGR.MODE MAINDATA BUZZER ON WHEN PROGRAM FINISHED Y/N N GENTLE ACTION ON TIME 00 SEC. GENTLE ACTION OFF TIME 000 SEC.

PROGR.MODE MAINDATA NORMAL ACTION OFF TIME 000 SEC. TO END. PRESS ENTER

INDENDTIFY THIS PROG. WITH A NUMBER

PROG. EXIST! OVERWRITE Y/N N

0214

Press:

Number keys

KLAR

ENTER

Press:

Number keys

KLAR

ENTER

YES

ENTER

KLAR

ENTER

Fig. 101

Fig. 100

Fig.

100

101

Page 53

0218

0219

Press:

0220

0221

Press:

Programming

Program names

You can now give the program a name which will be displayed when the program is selected during washing. The text can be up to 29 characters long.

The way in which text is entered described under the heading ’’TEXT’’ earlier in the manual.

Saving programs

When the program has been given a name, the program is saved in the program memory.

You are then asked if further programs are to be programmed. Press YES and ENTER if this is the case.

If you do not wish to program more programs, turn the key switch to RUN.

Fig. 102

-ABCDEFGHIJKLMNOPQRSTUVWXYZ !&/()=?;:,.* PROGRAM 10 -

-ABCDEFGHIJKLMNOPQRSTUVWXYZ !&/()=?;:,.* PROGRAM 10 LOADING PROGRAM

-ABCDEFGHIJKLMNOPQRSTUVWXYZ !&/()=?;:,.* PROGRAM 10 PROG. LOADED! MORE PROGRAMMING Y/N N

…

ENTER

EDIT

YES

ENTER

Fig. 103

Fig. 104

Fig.

105

EDIT

DOWN

and

ENTER

RUN

PROGRAM

102

103

104

105

Page 54

Press:

0222

Press:

0223

0224

0167

Programming

Starting from a previously saved program

If you make a mistake or get stuck, there is always a final resort:

Turn the key to the RUN position and then to PROGRAM again. Any programming you may have carried out so far will be lost but other programs will not be affected.

Turn the key

Turn the key to the PROGRAM position. The first question will now be displayed in the display window.

Select an old program

Answer YES to the question ’’DO YOU WANT AN OLD PROGR. AS BACKGROUND?’’. Press ENTER.

Enter the number of the old program to be used. (NOTE

TWO digits) and press ENTER.

Looking through the program

To rapidly reach the module in the wash program that is to be altered you can rapid advance through the program module-by-module by keeping the EDIT DOWN button continuously depressed.

To scan backwards through the program use the button EDIT UP instead. On the right of the window there is an indicator which shows where you are in the wash program.

Release the button when you get to the module to be altered.

Depress ENTER once.

PROGRAMMING MODE DO YOU WANT AN OLD PROG. AS BACKGROUND? N

PROGR.MODE SELECT SEQUENCE PREWASH O1 EDIT DOWN IN PROGRAM

PROGR.MODE SELECT SEQUENCE MAINWASH 01 EDIT DOWN IN PROGRAM

YES

ENTER ENTER

Number keys

ENTER

EDIT

DOWN

RUN

PROGRAM

Fig. 109

Fig. 108

Fig.

107

Fig. 106

108

107

109

106

Page 55

Press:

...

Press:

0225

0226

0227

0228

Press:

Programming

The cursor will appear on the first line of this subprogram.

Use EDIT UP and EDIT DOWN to move within the sub-program to reach the line(s) to be altered.

NOTE

ENTER is to be used only as an acknowledgement when sub-questions are to be altered. Use buttons EDIT UP and EDIT DOWN to move around within the program.

When changes have been made to the module and you reach its last line, the ’’END PROGR. SESSION Y/N’’ query will appear. Enter NO if you wish to continue making changes to any other module and press ENTER.

To move to another module use EDIT UP or EDIT DOWN buttons and continue as described above.

(Depress and keep down).

PROGR.MODE SELECT SEQUENCE MAINWASH 01

PAUSE WITH BUZZER Y/N NORMAL ACTION DURING FILLING Y/N

PROGR.MODE SELECT SEQUENCE MAINWASH 01 PAUSE WITH BUZZER Y/N N NORMAL ACTION DURING FILLING Y/N N GENTLE ACTION DURING FILLING Y/N N

PROGR.MODE SELECT SEQUENCE END PROG.SESSION Y/N

PROGR.MODE SELECT SEQUENCE MAINWASH 01 EDIT DOWN IN PROGRAM

ENTER

EDIT

ENTER

EDIT

DOWN

EDIT

DOWN

EDIT

DOWN

Fig.

113

Fig.

112

Fig.

110

Fig. 111

110

111

112

113

Page 56

Number keys

Press:

NEJ

Press:

KLAR

RA-

DERA

Press:

FÖR-

TVÄTT

HUVUD-

TVÄTT

SKÖLJ.

AV-

LOPP

CENTR.

NED-

KYLN.

KLAR

Press:

0229

0230

0231

0232

Programming

PROGR. MODE SELECT SEQUENCE PREWASH 01 PAUS WITH BUZZER Y/N Y NORMAL ACTION DURING FILLING Y/N Y GENTLE ACTION DURING FILLING Y/N N

PROGR.MODE SELECT SEQUENCE PREWASH 01 NORMAL ACTION DURING FILLING Y/N N GENTLE ACTION DURING FILLING Y/N N NORMAL ACTION DURING FILLING Y/N Y

PROGR.MODE SELECT SEQUENCE DRAIN 01 PAUS WITH BUZZER Y/N N NORMAL ACTION Y/N Y ERASE THIS MODULE Y/N N

PROGR.MODE SELECT SEQUENCE

PRE

WASH

EXTR.

ENTER

YES

...

ENTER

followed by

DRAIN

COOL

DOWN

NOTE

Use only EDIT UP and EDIT DOWN for looking through the program. ENTER shall only be used for making changes in the program.

Making changes to the program

Use EDIT UP and EDIT DOWN so that the question to be changed is on the third line in the display window. The cursor (the flashing square) is on the far left of line three.

Comments on the different questions are found in the section ’’Programming a new program’’ earlier in the manual.

Enter the new answer with YES, NO or the number keys. Then press ENTER.

Deleting sub-programs

It is possible to delete complete sub-programs. Go to the sub-program to be deleted (see the section ’’Looking through the program’’). Press ERASE.

Answer YES and ENTER to the question ’’ERASE THIS MODULE Y/N?’’ when you want the whole sub-program erased.

Adding sub-programs

You can also add new sub-programs anywhere in the program.

Go to the position between two sub-programs (see the section ’’Looking through the program’’).

Press one of the following keys: PRE WASH,

MAIN WASH, RINSE, DRAIN, EXTR. or COOL DOWN. Then press ENTER. The new module is

now inserted between the other two modules and the questions can be answered in the normal manner.

EDIT

DOWN

EDIT

and

ERASE

any of

MAIN

WASH

RINSE

114

115

FIg. 117

Fig.

116

FIg. 114

Fig. 115

116

117

Page 57

Altering text

The text that is displayed when a program is selected and PROG.INFO is pressed can be altered.

Go to the position between two sub-programs (see the section ’’Looking through the program’’). Press TEXT and ENTER. Any text that might have been programmed in the old program is displayed.

The old text can be deleted with ERASE. Ifs the old text is to be partially altered, the text is deleted up to where the change is to be made and then rewritten.

Refer to heading ’’TEXT’’ earlier in the manual when entering text.

Completing the programming

Come out of the program you are in at the moment (see ’’Looking through the program’’). Answer YES to the question ’’END PROGRAM. SESSION Y/N?’’

The questions displayed now apply to the entire program. Check and answer the questions in the same way as before. Press ENTER when ’’TO END, PRESS ENTER’’ is displayed in the display window. The last stages in the programming are identical to those under the headings ’’Entering the program number’’, ’’Program names’’ and ’’Saving programs’’ earlier in the manual.

TEXT

Press:

RA-

DERA

Press:

0233

0234

Press:

0235

0236

Programming

PROGR.MODE SELECT SEQUENCE

-ABCDEFGHIJKLMNOPQRSTUVWXYZ !&/()=?;:,.*

PROGRAM 10 HEAVY SOIL 50 G

MAINWASH 10 MIN. 3 RINSES EXTRACTION 5 MIN

PROGR.MODE SELECT SEQUENCE END PROG. SESSION Y/N N

PROGR.MODE MAINDATA NORMAL ACTION OFF TIME 000 SEC. TO END. PRESS *ENTER*

ENTER

YES

ENTER

ERASE

TEXT

119

121

Fig.

118

Fig. 119

Fig.

120

Fig.

121

118

120

Page 58

0149

Procedure for use

All operations, including the programming of new wash programs are carried out from the control panel on the front of the machine. During normal use, the programming keys to the left of the panel are inoperative.

The control panel comprises the following:

• a display window with four lines each of 40 characters. This shows the relevant program information, the programming instructions, error messages etc.

• there are push button controls for:

- start/hold/rapid advance

- blocking high speed spin during automatic washing

- manual washing (motor, filling with water, flushing down detergent,

heating and draining)

- programming new programs

- figure values (program selection/programming)

• key switch for switching between the normal operating position and the programming position.

• indicators for supplies.

Programming

Indicators, detergent Digital input keypad

Character display

Connecting for cassette

Manual controls

Switch RUN-PROGRAM

Start/Hold/Rapid advance

122

Procedure

Fig. 122

RUN

PROGRAM

ENTER

PRE-

WASH

MAIN

WASH

RINSE

DRAIN

EXTR.

COOL

DOWN

TEXT

EDIT

YES

ERASE

EDIT DOWN

DETERGENT 1 DETERGENT 2 DETERGENT 3 DETERGENT 4 DETERGENT 5

START

HOLD/RAPID ADV

HEAT

LOW

EXTR.

COLD

WATER

HOT

WATER

DRAIN

CLOSED

MOTOR FLUSH

PROG.

INFO.

°C/°F

DOOR

LOCK

Page 59

Preparation

• Sort the wash according to the washing instructions on the garment labels. Check that there are no foreign objects in the garments. Pull up zipper fasteners.

• Open the washing machine door, check that the drum is empty, insert the wash goods and close the door.

Automatic washing

The manual controls can be used during automatic washing.

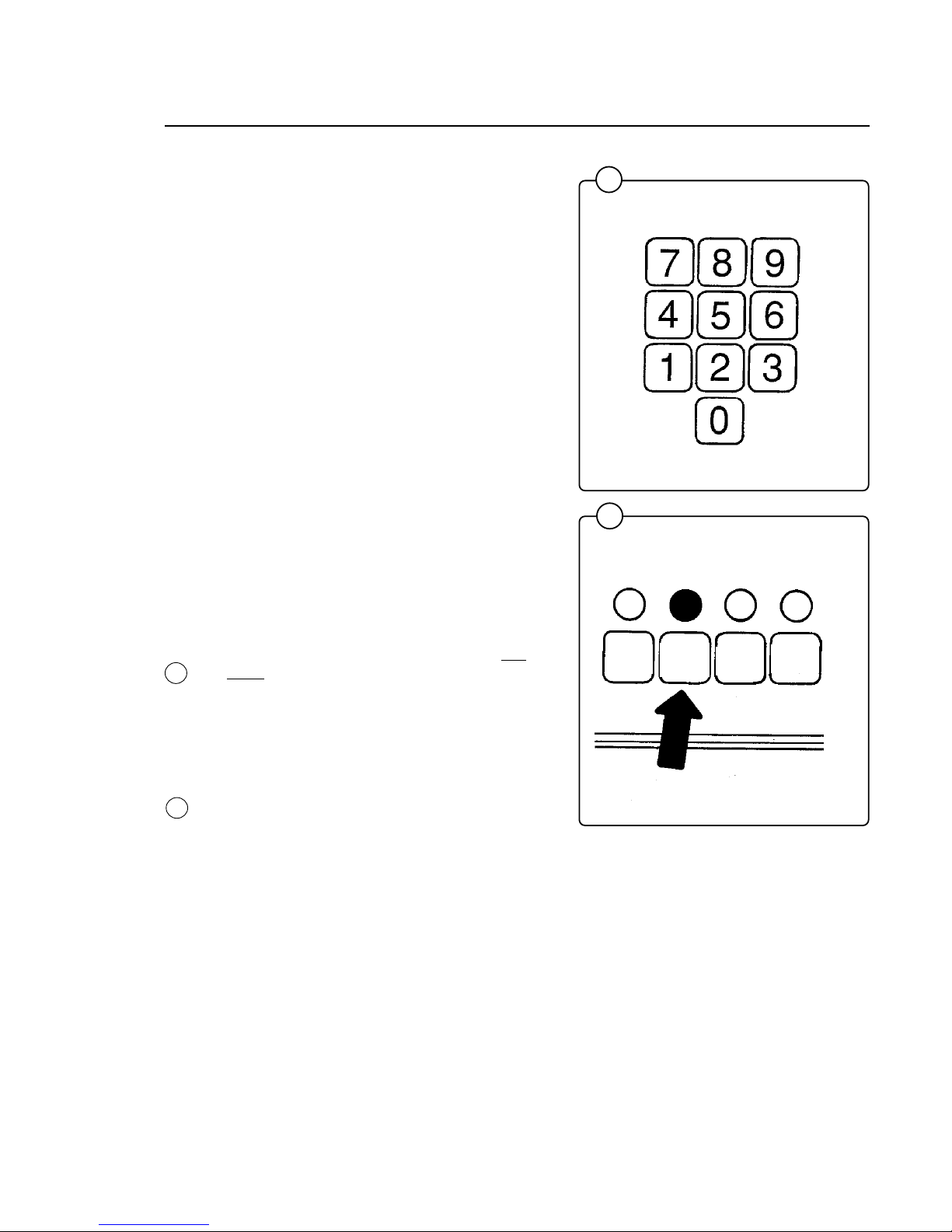

Program selection

When supplied, the machine is provided with a number of standard programs (program numbers 01-09). Program numbers 10-99 are intended for your own programs (refer to the separate programming appendix).

• Select a program number by entering

two digits with the digit keys. Note that program numbers 01-09 must also be entered as two digits (e.g. 0 3).

• A number that has been entered incorrectly can be changed by entering the correct number directly after the incorrect one.

If only slow spin is required, enter LOW EXTR.

Procedure

0150

123

Fig. 124

Fig.

123

124

HEAT

LOW

EXTR

COLD

WATER

HOT

WATER

0151

Page 60

Program information

When a program has been selected and PROG. INFO. is pressed, further information about the

program is shown in the display window's bottom lines.

Measuring the detergent

Five lights on the panel indicate which detergent compartments will be used, or supply signals provided during washing. Will be lit when specific detergent compartment is used, or signal provided.

If the machine's system for powder detergent is used: meter the detergent and any additives according to the lamp indication.

0152

0153

0154

Procedure

127

125

126

Fig. 125

Fig. 126

Fig. 127

HOT

WATER

DRAIN

CLOSED

MOTOR

FLUSH

PROG.

INFO.

DOOR

LOCK

°C/°F

DETERGENT 1 DETERGENT 2 DETERGENT 3 DETERGENT 4 DETERGENT 5

Page 61

Starting the program

Press START/HOLD/RAPID ADV. button. The wash cycle will commence and the display window will display wash information as shown in the figure below.

Temporary stop

• Press START/HOLD/RAPID ADV.. All active functions (motor, filling with water and heating) are switched off. The drain will remain closed and the door locked.

• The program is restarted by pressing START/ HOLD/RAPID ADV. again, and starts from the position where it had stopped. There is one exception; if a pause was made during a spin cycle, the program will continue with the program section after the spin cycle.

Fast forward

• Press START/HOLD/RAPID ADV. and keep the button pressed. After 1.5 seconds, the different program sections will be fast forwarded at a rate of one section per second.

• Program sections which are longer that 300 seconds (5 minutes) are however divided into several steps for fast forwarding. At each step the time is reduced by 300 seconds.

0156

0155

Procedure

Program number

Water's actual temperature

Fig.

128

Fig.

128

Fig.

128

Fig.

128

Fig.

129

128

START

HOLD/RAPID ADV.

HEAT

LOW

EXTR.

COLD

WATER

PROGRAM 01 HOT MAIN WASH 01 FILLING CV TIME 360 SEK

TEMP: 68 °F SET TEMP: 104 °F TIME LEFT APPROX. 45 MIN

Program name

Activity in progress

Program section time left (not filling or heating)

Programmed temperature

Program time left

Program section in progress

129

Page 62

0155

0157

Procedure

FLUSH

DOOR

LOCK

PROG.

INFO.

°C/°F

Programmed stop

If there is a programmed stop in the program, the machine stops and a buzzer sounds. The buzzer is switched off by pressing START/ HOLD/RAPID ADV. The program is restarted by pressing the button again.

Tumble drying after the program is completed

If DOOR LOCK and MOTOR are pressed before starting or while a program is operating, the drum will continue to rotate after the program is completed. The drum is stopped again by pressing MOTOR again. Then press DOOR LOCK. The door can then be opened after 30 seconds.

Finishing off

When the wash is completed, the door is locked for 30 seconds. A buzzer may sound if this function is programmed.

Open the door and take out the wash.

Fig. 130

Fig. 131

130

131

START

HOLD/RAPID ADV.

HEAT

LOW

EXTR.

COLD

WATER

DRAIN

CLOSED

MOTOR

Page 63

132

0158

0159

0160

0161

Manual washing

• The lamps above the control buttons indicate that the function is active. COLD WATER, HOT WATER and FLUSH must be kept pressed to remain active. Other control buttons change function each time they are pressed.

• Lock the door by pressing DOOR LOCK (the lamp above the shall light up). Note that the door

must be locked for other manual

operation to be possible.

• The wash motor is started and operates with a reversing action with the MOTOR button.

• Water is filled with COLD WATER and HOT WATER. FLUSH is used to wash down detergent from compartment 1 (pre-wash) or detergent valve 1.

• The wash water is heated by pressing HEAT. Note that there is no temperature limit or indication of the temperature during manual washing. Heating is discontinued however at 208°F (98°C).

• The drain valve is operated with DRAIN. The valve is closed when the light is on.

Procedure

START

HOLD/RAPID ADV.

HEAT

LOW

EXTR.

COLD

WATER

HOT

WATER

Fig. 132

Fig. 133

Fig. 134

Fig.

136

Fig.

135

133

134

135

DRAIN

CLOSED

MOTOR

FLUSH

PROG.

INFO.

DOOR

LOCK

°C/°F

HOT

WATER

DRAIN

CLOSED

MOTOR FLUSH

PROG.

INFO.

DOOR

LOCK

COLD

WATER

HOT

WATER

DRAIN

CLOSED

MOTOR

FLUSH

PROG.

INFO.

COLD

WATER

HOT

WATER

DRAIN

CLOSED

MOTOR

FLUSH

136

Page 64

Procedure

139

0163

0152

0155

COLD

WATER

LOW

EXTR.

HEAT

Total time

Program number

Number of programs run

0158

137

DRAIN

CLOSED

MOTOR FLUSH

PROG.

INFO.

DOOR

LOCK

°C/°F

138

START

HOLD/RAPID ADV.

140

HOT

WATER

DRAIN

CLOSED

MOTOR

FLUSH

PROG. INFO.

DOOR LOCK

°C/°F

TOTAL RUNTIME 0212 HOURS

PRESS START FOR NEXT PAGE

Extract cycle

For safety reasons, there is no manual button for the extract cycle. There are two choices if extracting is required during manual operation:

• 1. Select one of the standard programs and fast forward to the "Extract" cycle.

• 2. Program your own program by draining and extracting for the required time.

Remember the following when programming: Let the drain valve be open for at least 30 seconds before starting the spin cycle and program for distribution speed during the drain sequence.

FInishing off

• Switch off the activated function so that all

control lamps above the controls go out. The door can be opened after 30 seconds.

Program statistics

• By selecting program number 00 and pressing PROG. INFO, the character display shows program statistics.

• The machine's operating time in hours is displayed first followed by the number of programs operated for the different programs. New programs are brought forward by repeatedly pressing START/HOLD/

RAPID ADV.

• Press PROG. INFO once again to get back to the normal position.

Fig. 138

Fig.

139

Fig. 140

Fig. 138

Fig. 137

Page 65

Maintenance

Preventive maintenance has been reduced to a minimum by the careful design of reliable components and material.

However, the following, measures should be taken at regular intervals and in proportion to the hours of service.

IMPORTANT! Make certain that all electrical power to the machine is shut off before removing top or rear panels.

Daily

• Check the door lock and interlock before starting operations.

• The soap supply box should be cleaned at the end of each working day as follows:

- Use a spatula to scrape loose any detergent

which may have stuck on the inside of the dispenser.

- Flush the loosened detergent with warm

water.

- Wipe dry and leave lid open.

• Check that the drain valve does not leak and that it opens properly.

• Check that the door does not leak. Clean residual detergent and foreign matter from the door gasket.

• Wipe the outside of the machine.

• When the machine is not in use, leave door slightly open to allow moisture to evaporate.

Weekly

• Remove hose from drain connection and clean inside drain valve.

Every three months

• Remove the cover plates of the machine and check that the V-belt of the wash motor is undamaged and correctly tensioned.

• Check that all tubing, piping and connections are free from leaks.

• Wipe and clean the inside of the machine, making sure that the control components are protected from moisture and dirt during the cleaning operation.

• Check level of oil in electro-lube oil dispenser.

0240

1619

Maintenance

141

142

Fig. 141

Fig.

142

Page 66

Service information

Fig. 143

Service information

The machine's electrical power connection cable shall be provided with a safety ground to avoid breakdowns in the machine's electronic program controls. If interference problems do occur, check first that the machine is properly grounded.

The machine's operation in terms of safety and function is continuously monitored by the program unit. To facilitate troubleshooting, the display window indicates in clear text what may have caused the fault or why a particular function cannot be operated. The following table shows the different texts and what action to take.

Text in the display window Fault/Action

NO WATER.CHECK INLET! Check that the water taps are open and that

water reaches the machine.

WATER LEFT Incorrect programming (the water cannot be

drained within the programmed time). Drain

blocked. OPEN CIRCUIT IN TEMP-SENSOR Contact service personnel. THE DOOR IS OPEN Check that the door is locked. If it is, switch off

the power supply. Lock the door again. Switch

on the power supply. If the fault persists

contact the service personnel. HIGH TEMPERATURE Switch off the power supply. Contact the

service personnel. NO HEAT Check the machine's fuses. If the fault

persists contact the service personnel. LOW OIL-LEVEL (only certain Replenish the oil in the container for the

machines) lubricating system for the shaft bearing. PHASE-OR DOORLOCK-ERROR When installing: Disconnect the power supply.

Change two phases in the machine's

connection terminal block. When operating

the machine: Check the machine fuses. If

these are serviceable contact the service

personnel and ask them to check the door

lock. ERROR IN VOLTAGE (only certain The voltage supply to the machine is too

machines) low or too high. SWITCH FOR UNBALANCE Check that the machine's unbalance switch is

DETECTION IS ON serviceable and correctly installed. WATER IN MACHINE Water in the machine when starting. Check

that the drain is not blocked.

143

Page 67

Trouble-shooting

1642

0642

Trouble-shooting

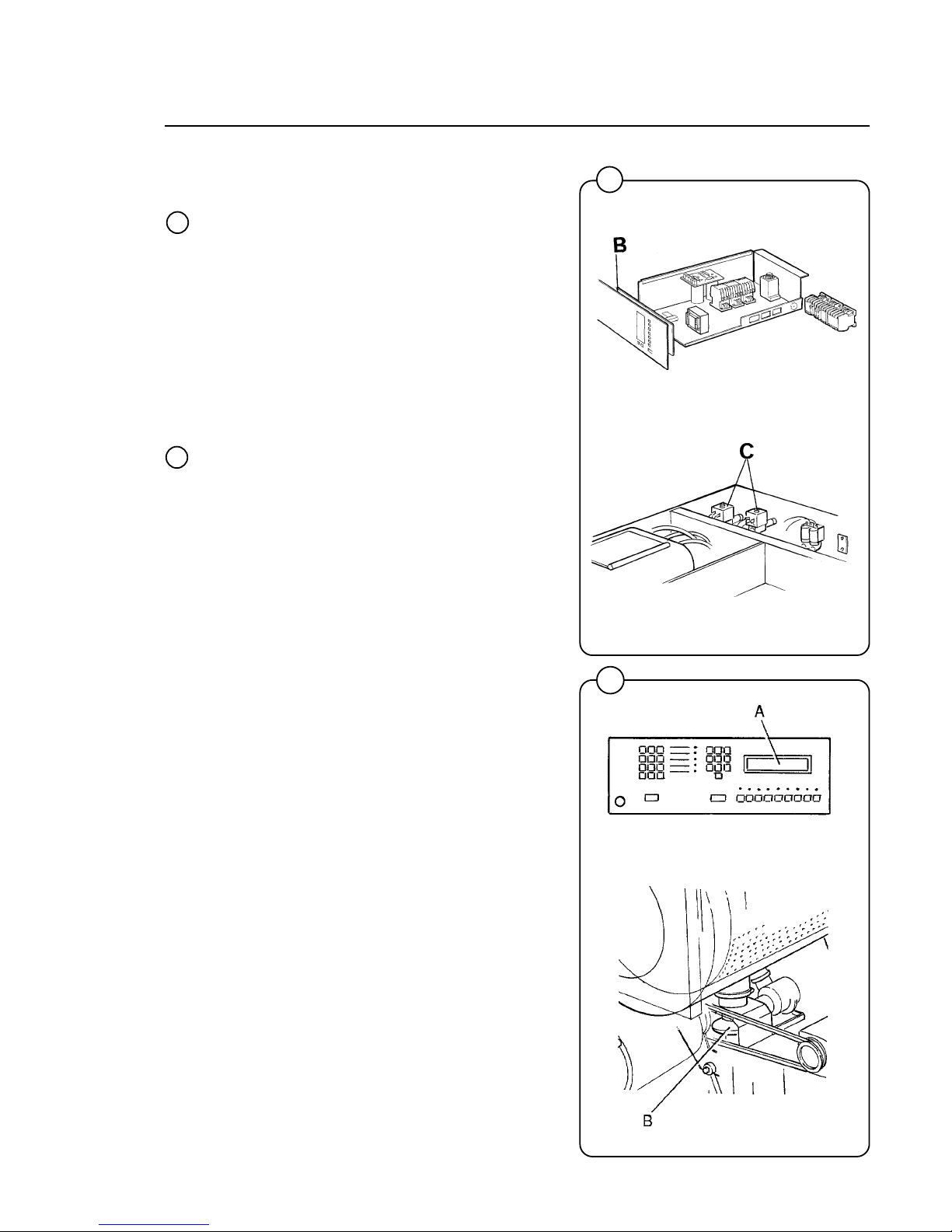

If machine does not start

A Check circuit breaker in the power feed line to

the machine. B Check door safety switches. C Check glass cartridge fuses. D Check for fault indication on display (see under

the heading ''Service information'').

If water does not drain

A Check for fault indication on display (see under

the heading ''Service information''). B Check drain valve and solenoid for proper

operation.

Disconnect drain hose connected to drain line.

If full flow of water comes out, the problem is in

the main waste line. If water flow is slow, the

problem is accumulation of foreign materials

between drain valve and shell outlet of

machine. Clean valve body of any foreign

objects found.

145

144

Fig.

144

Fig. 145

Page 68

Trouble-shooting

1657

1646

If machine does not extract

A Check for fault indication on display (see under

the heading "Service Information").

B Check extract relays and relay coils for proper

operation.

If motor does not operate at wash speed

A Check for fault indication on display (see under

the heading "Service Information"). B Check wash relays. C Check motors and V-belts. D Review procedures outlined under section ''If

machine does not start'' above.

146

147

Fig.

146

Fig. 147

Page 69

Trouble-shooting

1619

0646

1622

If machine runs slowly on wash speed or there is a slapping or thumping noise

A Replace V-belts

If a metallic noise can be heard at rear of machine

A Tighten lock screw on pulley on motor shaft.

If the door is leaking

A Check door gasket. If gasket is in good

condition, check the tension between door gasket and door frame and adjust.

148

149

150

Fig.

149

Fig. 148

Fig. 150

Page 70

Trouble-shooting

1623

1643

If there is leaking around the glass

A Re-cement glass in door gasket, if worn.

Replace door gasket if worn.

If water does not enter the machine

A Check for fault indication on display (see under

the heading "Service Information"). B Check the value coils on inlet valves. C Check wires leading to electric coils. D Be sure manual shut-off valves are in open

position.

151

152

Fig.

151

Fig.

152

Page 71

Trouble-shooting

1644

0651

If water continues to fill without stopping

A Check for incorrect programming. B Check hose attached to level control unit on the

printed circuit board.

C Check inlet valves for dirt underneath the valve

diaphragm. To localize, shut off power. If water continues to flow, inlet valves have foreign material in them and should be thoroughly cleaned.

If water continues to flow without filling machine

A Check for fault indication on display (see under

the heading "Service Information").

B Check seating of drain valve.

153

154

Fig. 153

Fig. 154

Page 72

If machine vibrates excessively

A Check the out-of-balance detector switch. B Check the shock absorbers and the springs of

the drum suspension.

If safety fuse blows at the beginning of the cycle

A Replace fuse. B Disconnect wires leading to the delay circuit of

the door lock. Replace fuse and start. If the

machine now works, replace delay circuit.

NOTE

The electronic timer has a built in service program that can be useful when troubleshooting. Contact service personnel for further information.

Trouble-shooting

0652

1645

156

155

Fig.

155

Fig.

156

Wascomat EX-12 HI-TEK, EX-22 HI-TEK Operating & Maintenance Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
