Wascomat E640 Parts Diagram

Spare Parts Catalogue
Catalogue de pièces de rechange
Washer extractor
Laveuses essoreuses
Valid up up to machine No. -xxx/99999
E640,W640
438 9191-02DOC. NO.
EDITION 46.2009
E640,W640,W640c,W640s

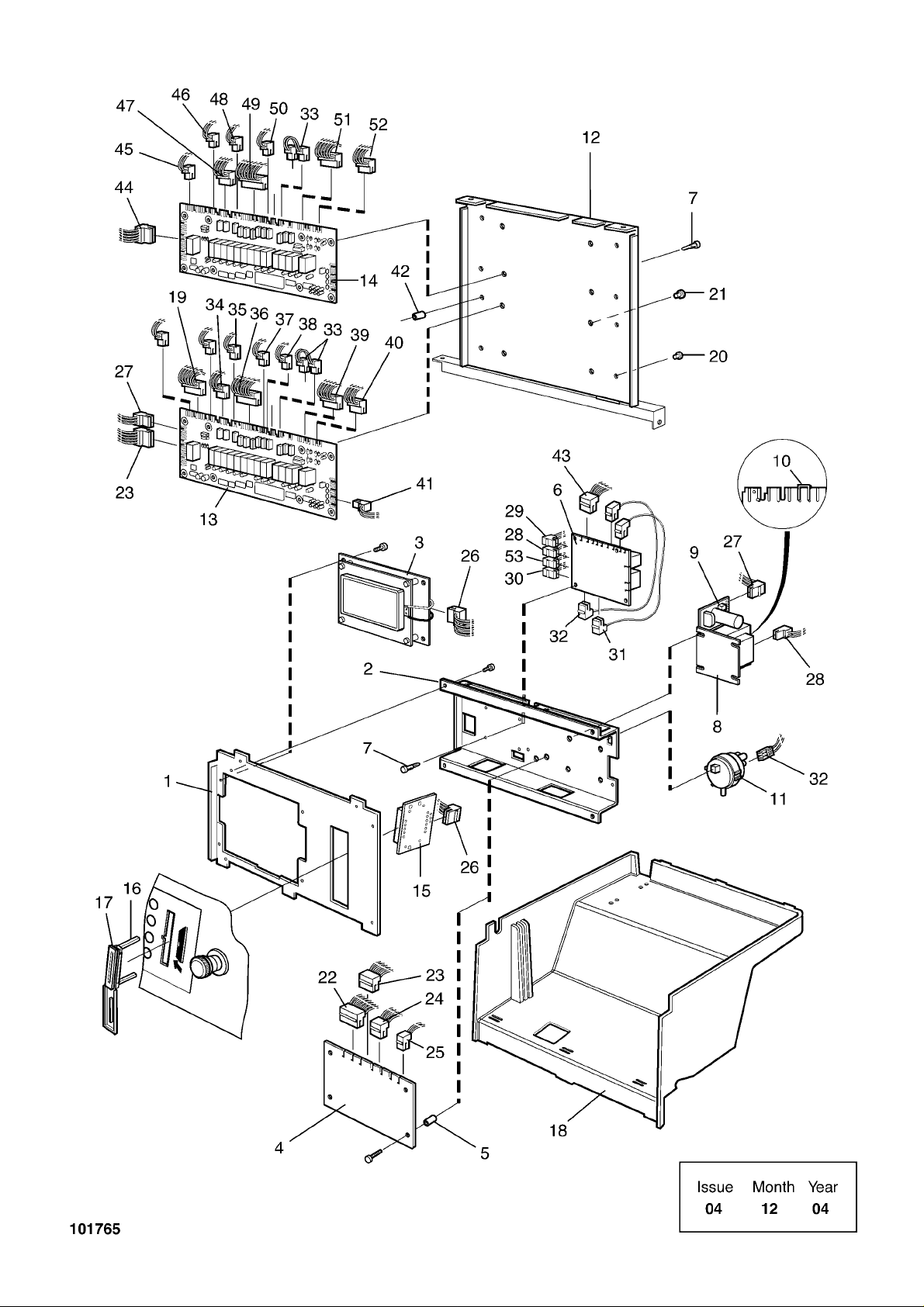

Illustration Page Table of contents 101765 35 Electrical components Clarus
101769 25 Control panel Exacta 101770 29 Control panel Clarus 101771 73 Detergent container 101772 63 Drain valve 101774 7 Base and outer drum 101776 15 Door lock 101790 57 Water connections 101792 59 Inlet valves and cable set 101918 69 Steam components 101920 17 Motor 101924 67 Drain valve, electrical 101928 31 Electrical components Exacta 101937 39 Electric components Classic OL02 101938 43 Electric components Classic OL03 101939 49 Electric components 3AC 101940 53 Electric components Classic 1AC 101941 47 Electric components 1AC 101942 51 Electric components Classic 3AC 101943 55 Capacitor 101946 65 Drain valve and hoses 101948 9 Lining and top panel 101949 27 Control panel Classic 101950 45 Electric components connection 101969 83 Technical documentation 101979 75 Coin meter USA 101991 71 Manual starter unit, Classic 102107 79 CMIS 102110 13 Door and hinged joint 102112 11 Drum, rear gable 102128 77 Coin meter USA Classic 102356 61 Inlet valves and cable set
Group Groupe
Group Groupe
Page Page
5
E640,W640,W640c,W640s
Table of contents Table des matières Page/Page
Base and outer drum Base et tambour externe 7 Lining and top panel Panneau frontal avec pupitre de commande 9 Drum, rear gable Tambour, pignon arrière 11 *Door and hinged joint Assemblage articulé et plaque 13 Door lock Serrure de porte 15 Motor Moteur 17 Control panel Exacta Pupitre de commande Exacta 25 Control panel Classic Pupitre de commande Classic 27 Control panel Clarus Pupitre de commande Clarus 29 Electrical components Exacta Composants électriques Exacta 31 Electrical components Clarus Composants électriques Clarus 35 *Electric components Classic OL02 Composants électriques Classic OL02 39 *Electric components Classic OL03 Composants électriques Classic OL03 43 Electric components connection Composants électriques raccordement électrique 45 Electric components 1AC Composants électriques 1AC 47 Electric components 3AC Composants électriques 3AC 49 Electric components Classic 3AC Composants électriques Classic 3AC 51 Electric components Classic 1AC Composants électriques Classic 1AC 53 Capacitor Condensateur 55 Water connections Raccords d'eau 57 *Inlet valves and cable set Inlet valves and cable set 59 *Inlet valves and cable set Inlet valves and cable set 61 Drain valve Vanne de vidange 63 Drain valve and hoses Purgeur et flexible 65 Drain valve, electrical Drain valve, electrical 67 Steam components Composants 69 Manual starter unit, Classic Sans monnayeur unité de démarrage, Classic 71 Detergent container Compartiment à savon 73 Coin meter USA Monnayeur USA 75 Coin meter USA Classic Monnayeur USA Classic 77 CMIS CMIS 79 Technical documentation Documentation technique 83
Group Groupe
E640,W640,W640c,W640s Base and outer drum
Base et tambour externe
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101774/4 4 2 2007
Info
1 1 432 4215-51 Frame Base 3 2 4 432 1453-01 •Tensioner •Crochet 3 3 2 725 2465-71 •Screw •Vis 3 M8X70 4 8 471 7807-02 •Tension plate •Tôle de serrage 3 18x8,4x2 5 2 732 2118-01 •Locking nut •Contre-écrou 3 M8 6 1 432 1451-01 •Bracket •Support 3 7 Rq 471 9822-99 Plug Fiche 3 8 3 471 9822-01 Heating element Elément chauffant 1,2 4,33kW 240V -650/23204
3 471 9827-01 Heating element Élément de chauffage 1,2 4.33kW 240V 650/23205- 3 471 9822-02 Heating element Elément chauffant 1,2 4,33kW 254V -650/23204 3 471 9827-02 Heating element Élément de chauffage 1,2 4.33kW 254V 650/23205- 3 471 9822-03 Heating element Elément chauffant 1,2 1,6kW 240V -650/23204 3 471 9827-03 Heating element Élément de chauffage 1,2 1.6kW 240V 650/23205­ 3 471 9822-04 Heating element Elément chauffant 1,2 4,33kW 277V -650/23204 3 471 9827-04 Heating element Élément de chauffage 1,2 4.33kW 277V 650/23205- 3 471 9823-21 Heating element Elément chauffant 1,2 3,1kW 230V -650/23204
9 1 432 2951-03 Cable set Jeu de câbles 3 400V -650/23204
1 413 2965-12 Cable set J eu de câbles 3 400V 650/23205­ 1 432 2951-01 Cable set Jeu de câbles 3 230V 1AC -650/23204 1 413 2965-13 Cable set J eu de câbles 3 230V 650/23205-
10 1 432 2953-02 Cable set J eu de câbles 3 400V -650/23204
1 413 2965-11 Cable set J eu de câbles 3 400V 650/23205-
11A 1 438 4118-01 Plug Fiche 3 HW 11 1 472 9913-22 Sensor Capteur 1,2 Complete 12 1 471 8192-01 •Bushing •Douille 1 13 1 432 3082-74 Cable set J eu de câbles 3 14 1 432 1654-01 Cover Couvercle 3 15 1 432 1653-01 Clamp Bride de fixation 3 16 1 471 9550-54 Transformer Transformateur 1 200V
1 471 9550-59 Transformer Transformateur 1 356V,380V,415V,440V,480V 17 1 432 2985-01 Cable set J eu de câbles 3 18 1 432 1477-01 Bracket Pupitre 3 19 2 432 2198-02 Rubber strip Joint caoutchouc 3
Illustration
Issue Issue
Notes Remarques
Month Month
Page Page
7
Year Year
Group Groupe
E640,W640,W640c,W640s Lining and top panel
Panneau frontal avec pupitre de commande
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101948/4 7 4 2006
Info
1 1 432 2200-41 Front plate Panneau avant 3 Green Complete
1 432 2200-42 Front plate Panneau avant 3 Yellow Complete
1 432 2200-43 Front plate Panneau avant 3 White Complete
1 432 2200-44 Front plate Panneau avant 3 Red Complete
1 432 2200-45 Front plate Panneau avant 3 A lmond Complete
1 432 2200-46 Front plate Panneau avant 3 Grey Complete
1 432 2200-47 Front plate Panneau avant 3 Blue Complete
1 432 2200-50 Front plate Panneau avant 3 Stainless Complete
2 1 •Front plate •Panneau avant 3 3 1 432 2182-03 •Strip •Ruban 3 4 2 471 8196-01 •Plug •Fiche 3 5 2 438 5109-02 •Guide pin •Broche de guidage 3 6 1 471 4672-67 •Protection •Protection 3 7 2 432 2042-01 Side panel Panneau latéral 3 Grey
2 432 2042-02 Side panel Panneau latéral 3 White
2 432 2042-10 Side panel Panneau latéral 3 Stainless
8 1 432 2064-01 Rear panel Panneau arrière 3 Upper
9 1 432 2065-01 Rear panel Panneau arrière 3 Lower 10 6 471 8458-02 Nut Écrou 3 M6 11 1 432 2105-01 Brace bracket Support de montant 3 12 1 432 2844-01 Cover plate Couvercle 3 DS 13 1 432 2131-05 Brace Montant 3 14 4 471 7565-21 Velcro tape Bande de serrage 3 15 1 432 2121-05 Brace Montant 3 16 1 472 9915-21 Top panel Couvercle 3
1 472 9915-71 Top panel Couvercle 3 With lock 1 472 9915-22 Top panel Couvercle 3 No detergent container 1 472 9915-72 Top panel Couvercle 3 No detergent container 1 471 7826-10 •Lock •Serrure 1,2 1 472 9900-99 •Key •Touche 1,2 SET
17 2 438 5335-01 Guide Guide 3 18 1 432 2170-01 Plate Cloison 3 19 1 471 7967-02 Grommet Oeillet 3 20 2 471 7977-03 Cover plug Couvre-bouchon 3 21 1 471 8641-02 Plug Fiche 3 22 2 432 2180-01 Spacer Entretoise 3 23 2 471 8344-35 Screw Vis 3 M6X16 24 2 735 2153-01 Lock washer Rondelle d'arrêt 3 6,4 25 2 471 7864-01 Clip Colliers de serrage 3 M6
Illustration
Issue Issue
Notes Remarques
Month Month
Page Page
9
Year Year
Group Groupe
E640,W640,W640c,W640s Drum, rear gable
Tambour, pignon arrière
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
102112/1 5 1 2004
Info
1 1 432 1572-11 Outer drum Tambour extérieur 3 Non-heated
1 432 1572-12 Outer drum Tambour extérieur 3 El/Dual heating 1 432 1572-13 Outer drum Tambour extérieur 3 Steam
2 1 432 1607-21 Rear gable Pignon arrière 3 Complete
1 432 1607-22 Rear gable Pignon arrière 3 Sluice
3 1 432 1502-11 •Inner drum •Intérieur du tambour 1
1 432 1502-12 •Inner drum •Intérieur du tambour 1 Sluice
4 1 472 9913-14 •Repair kit •Kit de reconditionnement 3
5 1 ••Bushing ••Douille
6 1 ••Ball bearing ••Roulement à billes
7 1 ••Ball bearing ••Roulement à billes
8 2 ••Sealing ring ••Bague d'étanchéité
9 1 ••Sealing ring ••Bague d'étanchéité 10 1 438 8155-03 ••Seal ••Joint 11 1 432 1547-01 •Lining •Panneau de renfort 3 12 1 432 1562-01 •Bearing housing •Logement de palier 3 13 1 432 1542-01 •End piece •Pignon 3 14 6 471 8323-01 •Screw •Vis 3 M6X12 15 6 471 8328-02 •Screw •Vis 3 M12X50 16 1 432 1552-01 •Pulley •Poulie 3 17 1 735 9501-01 •Wedge •Cale 3 14x9x50 18 1 735 3139-00 •C-clamp •Presse à main 3 SGA 45 19 2 432 1567-01 Tension strap Extenseur 3 20 2 471 9222-59 Screw Vis 3 M8X140 21 4 471 8502-14 Washer Rondelle 3 BRB 8,4X17 22 2 732 2118-01 Locking nut Contre-écrou 3 M8 23 - Not used
Illustration
Issue Issue
Notes Remarques
Month Month
Page Page 11
Year Year
Group Groupe
E640,W640,W640c,W640s Door and hinged joint
Assemblage articulé et plaque
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
102110/2 9 8 2009
Info
1 1 432 1872-01 Support frame Panneau de fixation 3
2 4 471 8458-02 Nut Écrou 3 M6
3 11 471 8527-01 Spring washer Rondelle à ressort 3
4 11 471 8404-02 Locking nut Contre-écrou 3 M6
5 1 432 1889-01 Trim panel Panneau d'habillage 3
* 1 432 1887-11 Trim panel Panneau d'habillage 3 Stainless
6 1 432 4212-01 Door Plaque 1
7 1 432 1827-01 •Door •Plaque 3
8 1 432 1857-01 •Door glass •Vitre de la porte 1,2
1 432 1857-02 •Door glass •Vitre de la porte 1,2 Lagoon/ AquaClean
9 1 432 1842-02 •Door gasket •Joint de porte 1,2 10 4 432 1950-02 •Hinged joint •Assemblage articulé 1 11 8 438 4062-01 •Bushing •Douille 3 12 2 432 1962-01 •Pin •Goupille 3 13 1 432 1955-01 •Knob •Bouton de porte 1,2 Complete 14 1 ••Knob ••Bouton de porte 15 1 ••Bushing ••Douille 16 3 ••Ball ••Bille 17 3•Spring•Ressort 18 3 728 8362-11 ••Screw ••Vis 19 1 472 9913-01 •Kit, lock shaft •Kit réparation de poignée 1,2 20 1 ••Lock shaft ••Axe de verrouillage 21 1 ••Washer ••Rondelle 3 22 2 ••Bushing ••Douille 23 1 ••Torsion spring ••Ressort rotatif 24 1 725 2366-61 •Screw •Vis 3 M6SF 6X12 25 1 432 1956-01 •Cover washer •Rondelle protection 3 26 12 471 8344-36 Screw Vis 3 27 4 432 1951-01 Bracket Support de montage 3 28 1 432 2620-01 Sign Signe 3
1 432 2620-02 Sign Signe 3 Wascomat 1 432 2620-07 Sign Signe 3 1 432 2620-04 Sign Signe 3 Zanussi 1 432 2620-08 Sign Signe 3
29 4 471 8471-01 Pop rivet Rivet 3 30 1 432 2198-02 Rubber strip Joint caoutchouc 3
* 31 1 438 8115-03 Rubber strip Joint caoutchouc 3 L=1350
Illustration
Issue Issue
Notes Remarques
Month Month
Page Page 13
Year Year
Group Groupe
Page Page 15
E640,W640,W640c,W640s Door lock
Serrure de porte
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101776/2 3 10 2003
Info
1 1 472 9913-72 Door locking device Serrure de porte 1,2 CONVERSION KIT -650/12499
2 1 Lock plate Case de serrure
3 1 Catch Dispositif blocage
4 1 471 9679-01 Microswitch Microrupteur 1,2
5 1 Actuator Actuator
6 2 Screw Vis M5X16
7 1 432 1960-01 Cover Couvercle 3
8 1 Plate Cloison
9 2 Locking nut Contre-écrou M5 10 1 438 9561-01 Door locking device Serrure de porte 1,2 Complete 650/12500- 11 3 471 8342-47 Screw Vis 3 M6X25 12 1 432 2905-01 Cable set Jeu de câbles 3
Illustration
Issue Issue
Notes Remarques
Month Month
Year Year
Group Groupe
Page Page 17
E640,W640,W640c,W640s Motor
Moteur
Item
Qua.
Article
Qua.
Art.No Réf. article
Description Description Info
Schéma
101920/6 13 6 2008
Info
1 1 438 9709-41 Motor Moteur 1,2 380-415V 3AC 50Hz Complete
1 438 9700-41 Motor Moteur 1,2 415-480V 3AC 60Hz Complete 1 438 9709-42 Motor Moteur 1,2 190-200V 3AC 50Hz Complete 1 438 9700-42 Motor Moteur 1,2 200-240V 3AC 60Hz Complete 1 438 9709-43 Motor Moteur 1,2 400-415/230V 3AC 50Hz
1 438 9700-47 Motor Moteur 1,2 208-240V 1AC 60Hz Complete
1 438 9720-47 Motor Moteur 1,2 208-240V 1AC 60Hz Complete
2 1 432 1210-54 •Pulley •Poulie 3 50Hz
1 432 1210-55 •Pulley •Poulie 3 60Hz
3 1 472 9913-44 •Sensor •Capteur 1,2
4 1 432 3905-01 •Magnet •Aimant 3
5 1 438 0016-12 •Pipe •Tube 3
6 2 432 1463-01 Bracket Support de montage 3
7 2 432 1472-01 Clamp Bride de fixation 3
8 - Not used
9 2 438 4049-01 Damper Amortisseur 3 10 2 471 8502-24 Washer Rondelle 3 12x35 11 2 471 7867-01 Pin Goupille/broche 3 12 1 432 1465-01 Flange bushing Douille à bride 3 13 1 Belt tensioner Tendeur de courroie 14 1 432 1455-01 Washer Rondelle 3 15 1 725 2538-51 Screw Vis 3 M12X35 16 1 471 8502-10 Washer Rondelle 3 12x35 17 1 471 7705-04 Ribbed belt Courroie poly V 1,2 18 1 432 2992-02 Cable set Jeu de câbles 3 3AC 1AC -650/18001
1 432 2992-03 Cable set Jeu de câbles 3 1AC 650/18002-
19 1 472 9913-90 Drip guard Lèche-goutte 3 COMPL.
Illustration
20
1 432 3083-36 Cable set Jeu de câbles 3 -650/16408 1 432 3093-36 Cable set Jeu de câbles 3 650/16409-
21 1 471 8748-01 Cables Câble 3 230V
1 471 8748-03 Cables Câble 3 230V/400V
22 1 471 8319-02 Screw Vis 3 M8X50
Issue Issue
Notes Remarques
Complete
-650/18001
650/18002-
Month Month
Year Year
Group Groupe
E640,W640,W640c,W640s Control panel Exacta
Pupitre de commande Exacta
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101769/3 4 5 2004
Info
1 1 432 2013-03 Front panel Panneau avant 3 USA
2 1 432 2720-01 Panel sign Voyant du tableau 1 Program 2A01, 2G41
1 432 2720-02 Panel sign Voyant du tableau 1 Program 2H11 1 432 2720-17 Panel sign Voyant du tableau 1 Program 2H12 1 432 2720-03 Panel sign Voyant du tableau 1 Program 2G01 1 432 2720-04 Panel sign Voyant du tableau 1 Program 2W01, 2H01, 2H02,
1 432 2720-11 Panel sign Voyant du tableau 1 Program 2L31 1 432 2720-06 Panel sign Voyant du tableau 1 Program 2L01, 2L02 1 432 2720-05 Panel sign Voyant du tableau 1 Program 2L41 1 432 2720-14 Panel sign Voyant du tableau 1 Program 2L51 1 432 2720-08 Panel sign Voyant du tableau 1 Program 2M01 1 432 2720-09 Panel sign Voyant du tableau 1 Program 2H21 1 432 2720-10 Panel sign Voyant du tableau 1 Program 2L11, 2L12 1 432 2720-12 Panel sign Voyant du tableau 1 Program 2R01 1 432 2720-15 Panel sign Voyant du tableau 1 Program 2S01 1 432 2720-13 Panel sign Voyant du tableau 1 Program 2A11
3 1 432 2649-03 Instruction plate Plaque instruction utilisation 3 Program 2G41 Japanese
1 432 2649-04 Instruction plate Plaque instruction utilisation 3 Program 2W41 Japanese 1 432 2649-05 Instruction plate Plaque instruction utilisation 3 Program 2L41 Japanese 1 432 2649-06 Instruction plate Plaque instruction utilisation 3 Program 2L51 Japanese 1 432 2649-07 Instruction plate Plaque instruction utilisation 3 Program 2H42 Japanese 1 432 2649-20 Instruction plate Plaque instruction utilisation 3 Program 2A01 English 1 432 2649-21 Instruction plate Plaque instruction utilisation 3 Program 2M01 French 1 432 2649-22 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop Danish 1 432 2649-23 Instruction plate Plaque instruction utilisation 1 Program 2H12 Swedish 1 432 2649-24 Instruction plate Plaque instruction utilisation 1 Program 2M12 Swedish 1 432 2649-25 Instruction plate Plaque instruction utilisation 3 Program 2C01 Spanish 1 432 2649-26 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish 1 432 2649-27 Instruction plate Plaque instruction utilisation 3 Program 2A01 Swedish 1 432 2649-28 Instruction plate Plaque instruction utilisation 3 Program 2L01 English 1 432 2650-02 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish 1 432 2650-03 Instruction plate Plaque instruction utilisation 3 Program 2H11 Swedish 1 432 2650-04 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-05 Instruction plate Plaque instruction utilisation 3 Program 2L41 Japanese 1 432 2650-06 Instruction plate Plaque instruction utilisation 3 Program 2S01, Selecta USA 1 432 2650-07 Instruction plate Plaque instruction utilisation 3 Program 2G01 English 1 432 2650-08 Instruction plate Plaque instruction utilisation 3 Program 2G01 German 1 432 2650-09 Instruction plate Plaque instruction utilisation 3 Program 2G01 French 1 432 2650-10 Instruction plate Plaque instruction utilisation 3 Program 2G01 Swedish 1 432 2650-11 Instruction plate Plaque instruction utilisation 3 Program 2L31, Emerald USA 1 432 2650-12 Instruction plate Plaque instruction utilisation 3 Program 2L01 English 1 432 2650-13 Instruction plate Plaque instruction utilisation 3 Program 2M01, Mop English 1 432 2650-14 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-16 Instruction plate Plaque instruction utilisation 3 Program 2H21, Hygienic
1 432 2650-17 Instruction plate Plaque instruction utilisation 3 Program 2L11, Thermoboost
1 432 2650-18 Instruction plate Plaque instruction utilisation 3 Program 2L12, Laundrette
1 432 2650-19 Instruction plate Plaque instruction utilisation 3 Program 2H02, Selecta Da nis h 1 432 2650-20 Instruction plate Plaque instruction utilisation 3 Program 2H01, Hospital
1 432 2650-23 Instruction plate Plaque instruction utilisation 3 Program 2A01, W3180
1 432 2650-25 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop Swedish 1 432 2650-26 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Swedish
Illustration
Issue Issue
Notes Remarques
2M11, 2F01, 2F02
Swedish
English
Danish
German
German
English
Swedish
Month Month
Page Page 19
Year Year
Group Groupe
E640,W640,W640c,W640s Control panel Exacta
Pupitre de commande Exacta
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101769/3 4 5 2004
Info
1 432 2650-27 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Swedish 1 432 2650-28 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm English 1 432 2650-29 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR English 1 432 2650-30 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm German 1 432 2650-31 Instruction plate Plaque instruction utilisation 3 Program 2F02, Westfalla
1 432 2650-32 Instruction plate Plaque instruction utilisation 3 Program 2L01 German 1 432 2650-33 Instruction plate Plaque instruction utilisation 3 Program 2M01, Mop German 1 432 2650-34 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR German 1 432 2650-35 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-36 Instruction plate Plaque instruction utilisation 3 Program 2H21, Hygienic,
1 432 2650-37 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg English 1 432 2650-38 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm French 1 432 2650-39 Instruction plate Plaque instruction utilisation 3 Program 2L01 French 1 432 2650-40 Instruction plate Plaque instruction utilisation 3 Program 2L02, Mench French 1 432 2650-41 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR French 1 432 2650-42 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-43 Instruction plate Plaque instruction utilisation 3 Program 2L12 French 1 432 2650-44 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Italian 1 432 2650-45 Instruction plate Plaque instruction utilisation 3 Program 2G01 Italian
Illustration
1 432 2650-46
Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Italian
1 432 2651-51 Instruction plate Plaque instruction utilisation 3 Program 2L01 Italian Zanussi 1 432 2650-47 Instruction plate Plaque instruction utilisation 3 Program 2L12 Italian 1 432 2650-48 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-49 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Spanish 1 432 2650-50 Instruction plate Plaque instruction utilisation 3 Program 2G01 Spanish 1 432 2650-51 Instruction plate Plaque instruction utilisation 3 Program 2L01 Spanish 1 432 2650-52 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Spanish 1 432 2650-53 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-54 Instruction plate Plaque instruction utilisation 3 Program 2L12 Spanish 1 432 2650-55 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Dutch 1 432 2650-56 Instruction plate Plaque instruction utilisation 3 Program 2G01 Dutch 1 432 2650-57 Instruction plate Plaque instruction utilisation 3 Program 2L01 Dutch 1 432 2650-58 Instruction plate Plaque instruction utilisation 3 Program 2L02, Mench Dutch 1 432 2650-59 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Dutch 1 432 2650-60 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-61 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg Dutch 1 432 2650-62 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Danish 1 432 2650-63 Instruction plate Plaque instruction utilisation 3 Program 2G01 Danish 1 432 2650-64 Instruction plate Plaque instruction utilisation 3 Program 2L01 Danish 1 432 2650-65
Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Danish
1 432 2650-66 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-67 Instruction plate Plaque instruction utilisation 3 Program 2A01 Finnish 1 432 2650-68 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Finnish 1 432 2650-69 Instruction plate Plaque instruction utilisation 3 Program 2G01 Finnish 1 432 2650-70 Instruction plate Plaque instruction utilisation 3 Program 2L01 Finnish 1 432 2650-71 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop Finnish 1 432 2650-72 Instruction plate Plaque instruction utilisation 3 Program R01 Finnish 1 432 2650-73 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-74 Instruction plate Plaque instruction utilisation 3 Program 2A01 Norwegian
Issue Issue
Notes Remarques
German
German
Nyborg English
French
Italian
Spanish
Dutch
Danish
Finnish
Month Month
Page Page 21
Year Year
Group Groupe
E640,W640,W640c,W640s Control panel Exacta
Pupitre de commande Exacta
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101769/3 4 5 2004
Info
1 432 2650-75 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm
1 432 2650-76 Instruction plate Plaque instruction utilisation 3 Program 2G01 Norwegian 1 432 2650-77 Instruction plate Plaque instruction utilisation 3 Program 2L01 Norwegian 1 432 2650-78 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop
1 432 2650-79 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR
1 432 2650-80 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-81 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg
1 432 2650-82 Instruction plate Plaque instruction utilisation 3 Program 2F01 Polish 1 432 2650-83 Instruction plate Plaque instruction utilisation 3 Program 2G01 Polish 1 432 2650-84 Instruction plate Plaque instruction utilisation 3 Program 2L01 Polish 1 432 2650-85 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Polish 1 432 2650-86 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-87 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg Polish 1 432 2650-88 Instruction plate Plaque instruction utilisation 3 Program 2L31, Emerald
1 432 2650-89 Instruction plate Plaque instruction utilisation 3 Program 2S01, Selecta
1 432 2650-90 Instruction plate Plaque instruction utilisation 3 Program 2L31, Emerald
1 432 2650-91 Instruction plate Plaque instruction utilisation 3 Program 2S01, Selecta French 1 432 2650-92 Instruction plate Plaque instruction utilisation 3 Program 2L01 Italian, English 1 432 2650-93 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-94 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-95 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-96 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-97 Instruction plate Plaque instruction utilisation 3 Program 2F02, Westfalla
1 432 2650-98 Instruction plate Plaque instruction utilisation 3 Program 2H11
1 432 2652-05 Instruction plate Plaque instruction utilisation 3 Program 2A01, W3180
1 432 2652-06 Instruction plate Plaque instruction utilisation 3 Program 2G01 Swedish 1 432 2652-07 Instruction plate Plaque instruction utilisation 3 Program 2G01 English 1 432 2652-08 Instruction plate Plaque instruction utilisation 3 Program 2L01 English 1 432 2652-09 Instruction plate Plaque instruction utilisation 3 Program 2G01 German 1 432 2652-10 Instruction plate Plaque instruction utilisation 3 Program 2L01 German 1 432 2652-11 Instruction plate Plaque instruction utilisation 3 Program 2L12 German 1 432 2652-12 Instruction plate Plaque instruction utilisation 3 Program 2G01 French 1 432 2652-13 Instruction plate Plaque instruction utilisation 3 Program 2L01 French 1 432 2652-14 Instruction plate Plaque instruction utilisation 3 Program 2L12 French 1 432 2652-15 Instruction plate Plaque instruction utilisation 3 Program 2G01 Italian 1 432 2652-16 Instruction plate Plaque instruction utilisation 3 Program 2L12 Italian 1 432 2652-17 Instruction plate Plaque instruction utilisation 3 Program 2G01 Spanish 1 432 2652-18 Instruction plate Plaque instruction utilisation 3 Program 2L01 Spanish 1 432 2652-19 Instruction plate Plaque instruction utilisation 3 Program 2L12 Spanish 1 432 2652-20 Instruction plate Plaque instruction utilisation 3 Program 2G01 Dutch 1 432 2652-21 Instruction plate Plaque instruction utilisation 3 Program 2L01 Dutch 1 432 2652-22 Instruction plate Plaque instruction utilisation 3 Program 2L12 Dutch 1 432 2652-23 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish
Illustration
Issue Issue
Notes Remarques
Norwegian
Norwegian
Norwegian
Norwegian
Norwegian
Polish
Spanish
Spanish
French
laundry, Swedish
laundry, Danish
laundry, Norwegian
laundry, Finnish
Swedish
Finnish/Swedish
Swedish
Month Month
Page Page 23
Year Year
Group Groupe
E640,W640,W640c,W640s Control panel Exacta
Pupitre de commande Exacta
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101769/3 4 5 2004
Info
1 432 2652-24 Instruction plate Plaque instruction utilisation 3 Program 2G01 Danish 1 432 2652-25 Instruction plate Plaque instruction utilisation 3 Program 2L01 Danish 1 432 2652-26 Instruction plate Plaque instruction utilisation 3 Program 2H21 Danish 1 432 2652-27 Instruction plate Plaque instruction utilisation 3 Program 2A01 Finnish 1 432 2652-28 Instruction plate Plaque instruction utilisation 3 Program 2G01 Finnish 1 432 2652-29 Instruction plate Plaque instruction utilisation 3 Program 2L01 Finnish 1 432 2652-30 Instruction plate Plaque instruction utilisation 3 Program 2A01 Norwegian 1 432 2652-31 Instruction plate Plaque instruction utilisation 3 Program 2G01 Norwegian 1 432 2652-32 Instruction plate Plaque instruction utilisation 3 Program 2L01 Norwegian 1 432 2652-33 Instruction plate Plaque instruction utilisation 3 Program 2L12 Norwegian 1 432 2652-34 Instruction plate Plaque instruction utilisation 3 Program 2G01 Polish 1 432 2652-35 Instruction plate Plaque instruction utilisation 3 Program 2L01 Polish 1 432 2652-36 Instruction plate Plaque instruction utilisation 3 Program 2L12 Polish 1 432 2652-37 Instruction plate Plaque instruction utilisation 3 Program 2L01 Italian 1 432 2652-38 Instruction plate Plaque instruction utilisation 3 Program 2L11 German 1 432 2652-39 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish 1 432 2652-40 Instruction plate Plaque instruction utilisation 3 Program 2A01 Swedish 1 432 2652-41 Instruction plate Plaque instruction utilisation 3 Program 2L01 English
4 1 432 2606-20 Type plate Numéro série plaque 3 W3180N
1 432 2606-17 Type plate Numéro série plaque 3 W640s Senior
5 1 432 2150-01 Cover plate Couvercle 3
6 2 432 2181-01 Bracket Support de montage 3
7 4 732 2112-01 Locking nut Contre-écrou 3 M4
Illustration
Issue Issue
Notes Remarques
Month Month
Page Page 25
Year Year
Group Groupe
Page Page 27
E640,W640,W640c,W640s Control panel Classic
Pupitre de commande Classic
Item Article
Qua. Qua.
Art.No Réf. article
Description Description Info
Schéma
101949/3 5 5 2004
Info
1 1 432 2014-03 Front panel Panneau avant 3
2 1 432 2802-01 Panel sign Voyant du tableau 1,2 OG01
1 432 2802-40 Panel sign Voyant du tableau 1,2 OL02 1 432 2802-80 Panel sign Voyant du tableau 1,2 OL03
3 1 432 2851-01 Instruction plate Plaque instruction utilisation 3 OG01 English Without coin
1 432 2851-02 Instruction plate Plaque instruction utilisation 3 OG01 English With coin meter 1 432 2851-04 Instruction plate Plaque instruction utilisation 3 OG01 German Without coin
1 432 2851-05 Instruction plate Plaque instruction utilisation 3 OG01 German With coin meter 1 432 2851-07 Instruction plate Plaque instruction utilisation 3 OG01 Italian Without coin
1 432 2851-08 Instruction plate Plaque instruction utilisation 3 OG01 Italian With coin meter 1 432 2851-10 Instruction plate Plaque instruction utilisation 3 OG01 French Without coin
1 432 2851-11 Instruction plate Plaque instruction utilisation 3 OG01 French With coin meter 1 432 2851-13 Instruction plate Plaque instruction utilisation 3 OG01 Spanish Without coin
1 432 2851-14 Instruction plate Plaque instruction utilisation 3 OG01 Spanish With coin meter 1 432 2851-16 Instruction plate Plaque instruction utilisation 3 OG01 Dutch Without coin meter 1 432 2851-17 Instruction plate Plaque instruction utilisation 3 OG01 Dutch With coin meter 1 432 2851-19 Instruction plate Plaque instruction utilisation 3 OG01 Norwegian Without coin
1 432 2851-25 Instruction plate Plaque instruction utilisation 3 OG01 Polish WITHOUT
1 432 2851-40 Instruction plate Plaque instruction utilisation 3 OL02 English Without coin
1 432 2851-41 Instruction plate Plaque instruction utilisation 3 OL02 English With coin meter 1 432 2851-43 Instruction plate Plaque instruction utilisation 3 OL02 German Without coin
1 432 2851-44 Instruction plate Plaque instruction utilisation 3 OL02 German With coin meter 1 432 2851-46 Instruction plate Plaque instruction utilisation 3 OL02 Italian Without coin meter 1 432 2851-47 Instruction plate Plaque instruction utilisation 3 OL02 Italian With coin meter 1 432 2851-49 Instruction plate Plaque instruction utilisation 3 OL02 French Without coin
1 432 2851-50 Instruction plate Plaque instruction utilisation 3 OL02 French With coin meter 1 432 2851-52 Instruction plate Plaque instruction utilisation 3 OL02 Spanish Without coin
1 432 2851-53 Instruction plate Plaque instruction utilisation 3 OL02 Spanish With coin meter 1 432 2851-54 Instruction plate Plaque instruction utilisation 3 OL02 Dutch Without coin meter 1 432 2851-55 Instruction plate Plaque instruction utilisation 3 OL02 Dutch With coin meter 1 432 2851-80 Instruction plate Plaque instruction utilisation 3 OL03 English Without coin
1 432 2851-81 Instruction plate Plaque instruction utilisation 3 OL03 English With coin meter 1 432 2851-85 Instruction plate Plaque instruction utilisation 3 OL03 French Without coin
1 432 2851-86 Instruction plate Plaque instruction utilisation 3 OL03 French With coin meter
4 1 432 2606-20 Type plate Numéro série plaque 3 W3180N
1 432 2606-15 Type plate Numéro série plaque 3 W640 Senior
5 - Not used
Illustration
Issue Issue
Notes Remarques
meter
meter
meter
meter
meter
meter
COIN-METER
meter
meter
meter
meter
meter
meter
Month Month
Year Year
Loading...
+ 64 hidden pages
