Counterbalanced Cranes
National Distributor, Local Service

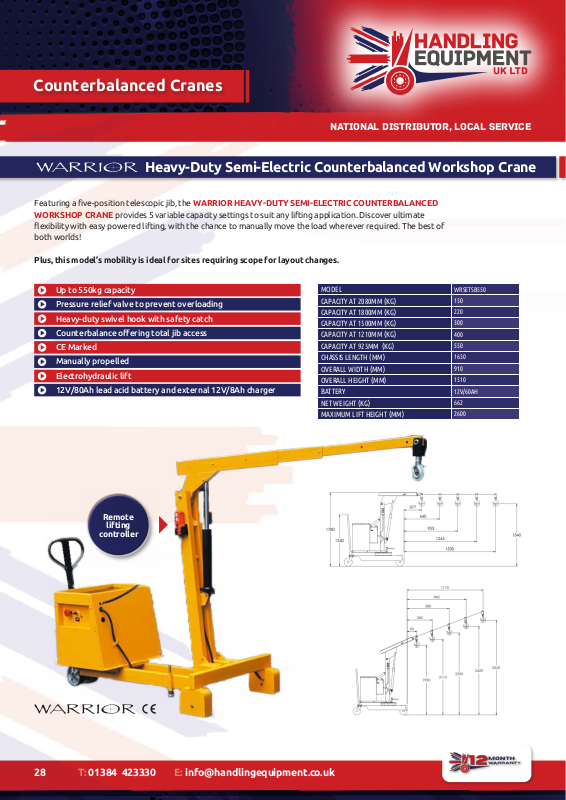

Heavy-Duty Semi-Electric Counterbalanced Workshop Crane
Featuring a five-position telescopic jib, the WARRIOR HEAVY-DUTY SEMI-ELECTRIC COUNTERBALANCED
WORKSHOP CRANE provides 5 variable capacity settings to suit any lifting application. Discover ultimate
flexibility with easy powered lifting, with the chance to manually move the load wherever required. The best of
both worlds!
Plus, this model’s mobility is ideal for sites requiring scope for layout changes.
Up to 550kg capacity
Pressure relief valve to prevent overloading
Heavy-duty swivel hook with safety catch
Counterbalance offering total jib access
CE Marked
Manually propelled
Electrohydraulic lift
12V/80Ah lead acid battery and external 12V/8Ah charger
Remote
lifting
controller
MODEL
CAPACITY AT 2080MM (KG)
CAPACITY AT 1800MM (KG)
CAPACITY AT 1500MM (KG)
CAPACITY AT 1210MM (KG)
CAPACITY AT 925MM (KG)
CHASSIS LENGTH (MM)
OVERALL WIDTH (MM)
OVERALL HEIGHT (MM)
BATTERY
NET WEIGHT (KG)
MAXIMUM LIFT HEIGHT (MM)
WRSETSB550
150
220
300
400
550
1650
910
1510
12V/60AH
662
2600
