Counterbalanced Cranes

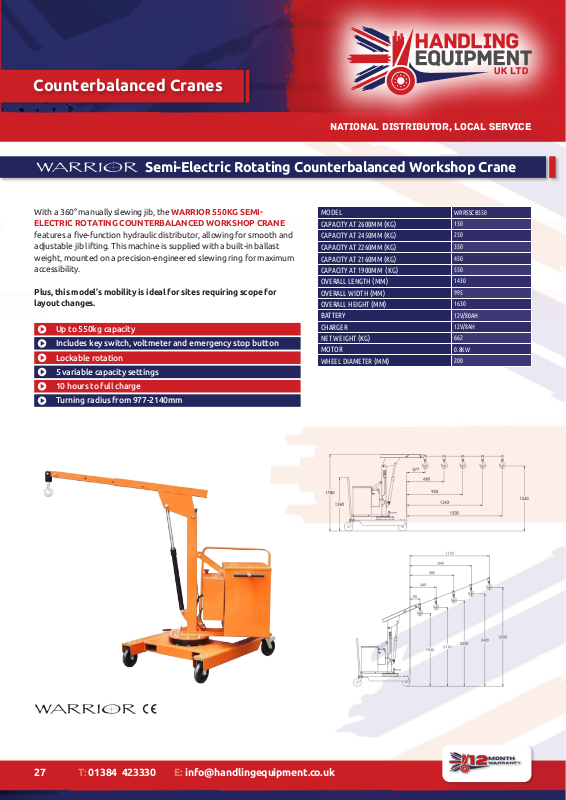

Semi-Electric Rotating Counterbalanced Workshop Crane
National Distributor, Local Service
With a 360° manually slewing jib, the WARRIOR 550KG SEMI-
ELECTRIC ROTATING COUNTERBALANCED WORKSHOP CRANE
features a five-function hydraulic distributor, allowing for smooth and
adjustable jib lifting. This machine is supplied with a built-in ballast
weight, mounted on a precision-engineered slewing ring for maximum
accessibility.
Plus, this model’s mobility is ideal for sites requiring scope for
layout changes.
Up to 550kg capacity
Includes key switch, voltmeter and emergency stop button
Lockable rotation
5 variable capacity settings
10 hours to full charge
Turning radius from 977-2140mm
MODEL
CAPACITY AT 2600MM (KG)
CAPACITY AT 2450MM (KG)
CAPACITY AT 2260MM (KG)
CAPACITY AT 2160MM (KG)
CAPACITY AT 1900MM (KG)
OVERALL LENGTH (MM)
OVERALL WIDTH (MM)
OVERALL HEIGHT (MM)
BATTERY
CHARGER
NET WEIGHT (KG)
MOTOR
WHEEL DIAMETER (MM)
WRRSSCB550
150
250
350
450
550
1430
995
1630
12V/80AH
12V/8AH
662
0.8KW
200
T: 01384 423330 E: [email protected]27
