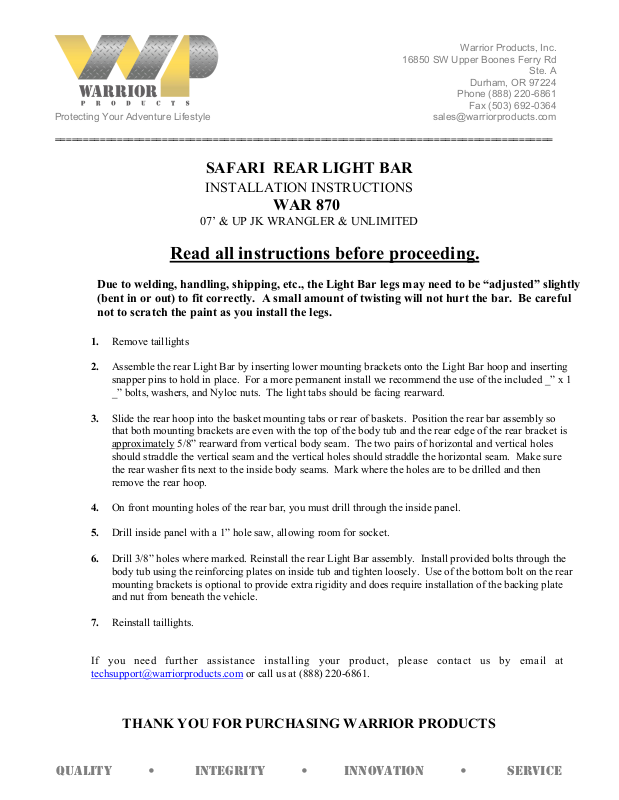

SAFARI REAR LIGHT BAR

INSTALLATION INSTRUCTIONS

WAR 870

07’ & UP JK WRANGLER & UNLIMITED

Read all instructions before proceeding.

Due to welding, handling, shipping, etc., the Light Bar legs may need to be “adjusted” slightly
(bent in or out) to fit correctly. A small amount of twisting will not hurt the bar. Be careful
not to scratch the paint as you install the legs.

1. Remove taillights

2. Assemble the rear Light Bar by inserting lower mounting brackets onto the Light Bar hoop and inserting

snapper pins to hold in place. For a more permanent install we recommend the use of the included _” x 1
_” bolts, washers, and Nyloc nuts. The light tabs should be facing rearward.

3. Slide the rear hoop into the basket mounting tabs or rear of baskets. Position the rear bar assembly so
that both mounting brackets are even with the top of the body tub and the rear edge of the rear bracket is
approximately 5/8” rearward from vertical body seam. The two pairs of horizontal and vertical holes
should straddle the vertical seam and the vertical holes should straddle the horizontal seam. Make sure
the rear washer fits next to the inside body seams. Mark where the holes are to be drilled and then
remove the rear hoop.

4. On front mounting holes of the rear bar, you must drill through the inside panel.

5. Drill inside panel with a 1” hole saw, allowing room for socket.

6. Drill 3/8” holes where marked. Reinstall the rear Light Bar assembly. Install provided bolts through the

body tub using the reinforcing plates on inside tub and tighten loosely. Use of the bottom bolt on the rear
mounting brackets is optional to provide extra rigidity and does require installation of the backing plate
and nut from beneath the vehicle.

7. Reinstall taillights.

If you need further assistance installing your product, please contact us by email at

[e-mail] or call us at [phone].

THANK YOU FOR PURCHASING WARRIOR PRODUCTS
