Primary Brake Pin Drive Armature PB-825,
PB-1000, PB-1225, PB-1525 Motor Brake and
Spline Drive MB-825, MB-1000, MB-1225 Pin Drive
P-208
819-0367
Installation Instructions
Contents
Installation Instructions
PB-825, PB-1000, PB-1225, PB-1525 . . . . . .3
MB-825, MB-1000, MB-1225 Spline Drive . . . .6
MB-825, MB-1000, MB-1225 Pin Drive . . . . . .8
Coil Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Burnishing and Maintenance . . . . . . . . . . . . . . .10

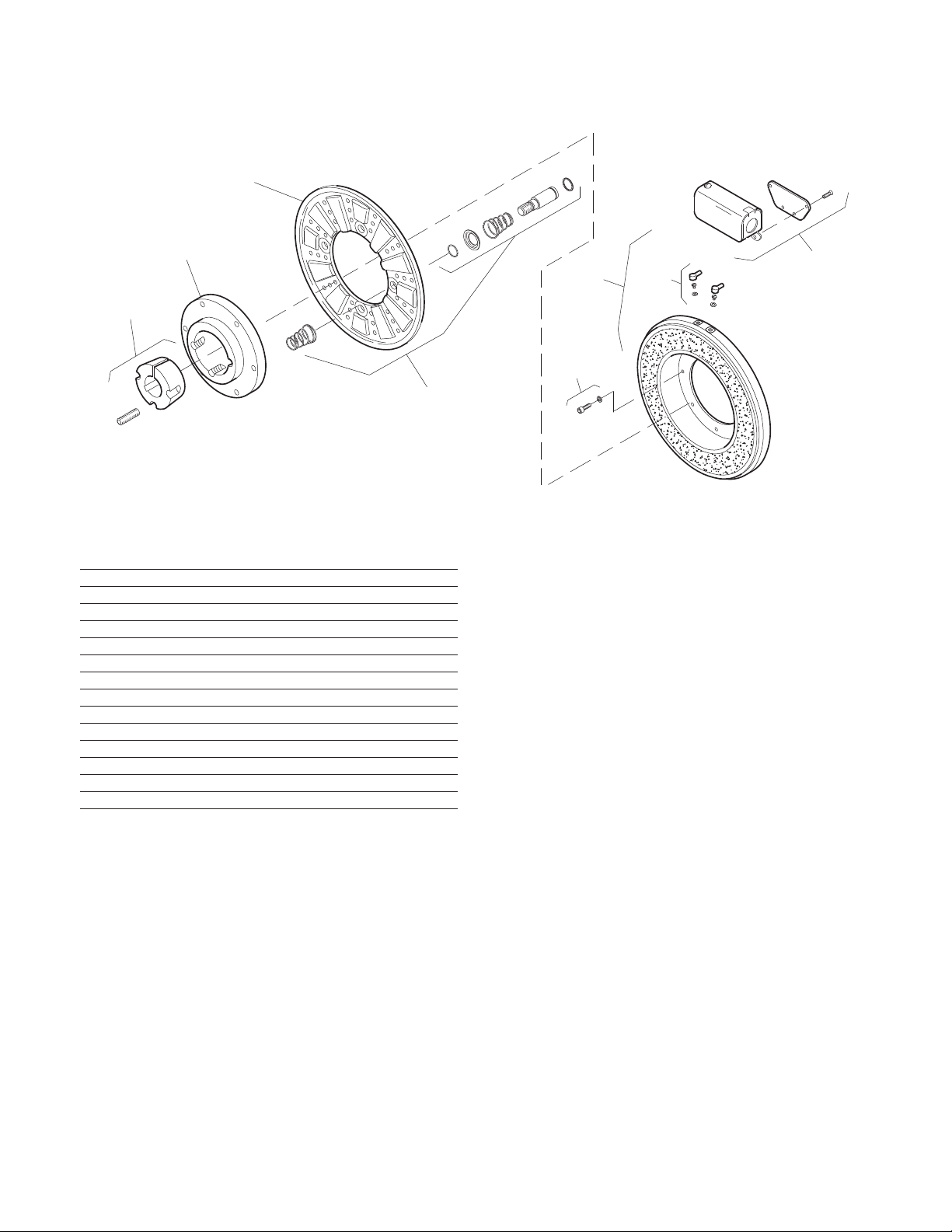

Illustration Drawings
PB-825, PB-1000 . . . . . . . . . . . . . . . . . . . . .12
PB-1225, PB-1525 . . . . . . . . . . . . . . . . . . . .16
MB-825, MB-1000, MB-1225 Spline Drive . . .20
MB-825, MB-1000, MB-1225 Pin Drive . . . . .26
Bushing Part Numbers . . . . . . . . . . . . . . . . . . .32
Warranty . . . . . . . . . . . . . . . . . . . . . . .Back Page
Failure to follow these
instructions may result in product
damage, equipment damage, and
serious or fatal injury to personnel.
Warner Electric • 800-825-9050 P-208 • 819-0367
2
Primary Brake Normal Duty
Pilot
Diameter
Mounting Surface
Magnet
Pin Drive Armature
PB-825, PB-1000, PB-1225, PB-1525
A. Installing the Conduit Box
Install the conduit box on the magnet.
Instructions for this procedure can be found
with conduit box.
B. Mounting the Magnet
The brake magnet is mounted to a stationary
machine member by a flange. Extreme care
must be taken in selecting the location for the
mounting of the magnet. Proper positioning is
very important for the unit to function correctly.
1. A pilot diameter on the mounting surface
is essential to hold the magnet within the
required tolerances (see Figure 1).
3. Once the mounting surface has been prepared,
the magnet is bolted in place with capscrews and
lockwashers. (See Figure 2.)
Figure 2
4. After assembly, the magnet must be concentric
and square within the required tolerances listed
on the illustration drawing. (See Figure 3.)
Figure 3
C. Assembling the Armature and Hub
Assemble the armature to the armature hub with the
Figure 1
2. A machined pilot diameter is provided on the
magnet mounting flange (refer to illustration
drawings) to aid in the proper positioning of
the magnet.
Warner Electric • 800-825-9050 P-208 • 819-0367
autogap mounting accessory. Refer to Figure 4. The
hub is reversible. The side on which the armature is
mounted will depend on the direction in which the
taperlock bushing must enter.
The autogap assembly is a double spring device
which allows for automatic armature clearance and
adjustment for wear. The smaller or conical spring
pushes the armature from the magnet face, leaving a
gap of about 1/32-inch, while the straight spring
automatically follows up for wear. This combination
maintains maximum efficiency throughout the life of
the unit.
3
Armature
Set
Screw
Bushing
Hub
Light
Spring
Detent
Spring
Drive Pin
Retainer
Ring
Heavy
Spring
Retainer
Figure 4
The assembly procedure for the autogap
accessory is as follows:
Step 1
Place the straight springs (white) over the
armature bosses on the back side of the
armature (Figure 5).
Figure 5
Step 2
Compress the heavy (red) spring on each drive pin
by sliding the detent spring towards the head of
the pin (Figure 6).
Step 3
Insert the assembled drive pins through the
armature (entering from segmented side), through
the straight (white) springs, and into the armature
®
hub. Note: Apply Grade "AA" Loctite
on the pin threads (Figure 7).
Figure 7
Step 4
Tighten the pins until the shoulders of the
pins are against the face of the hub. Since the
threads are class No. 3 fit, the pins may seem
to bind.
Sealant
The straight springs must not
get caught under the shoulders of the
drive pins.
Step 5
Check to see that the armature is completely
compressed against the face of the hub.
Figure 6
Warner Electric • 800-825-9050 P-208 • 819-0367
4
Step 6
Armature
1/32-Inch
Magnet
To set the autogap, slide the detent spring
retainers against the armature face. Note: This
position must not be disturbed during
completion of the assembly (Figure 8).
3. Place the face of the armature approximately
1/32-inch from the face of the magnet. Once
this gap is set, it will be automatically
maintained throughout the life of the unit.
(See Figure 9.)
Figure 8
D. Mounting the Armature Assembly
The armature and armature hub are mounted on
the shaft with a taperlock bushing. All parts must
be clean and free from burrs and chips before
assembling.
1. Place the bushing into the hub and insert the
key. The key is a side-to-side fit and should not
contact the top of the keyway.
2. Insert the locking setscrews into the bushing
and slide the assembly onto the shaft.
Figure 9
4. Securely fasten the armature assembly to the
shaft by alternately tightening each setscrew.
During the tightening process, the bushing
should be tapped lightly to make certain it
seats-in properly.
Warner Electric • 800-825-9050 P-208 • 819-0367
5
Motor Brake Spline Drive Armature
MB-825, MB-1000, MB-1225
The motor brakes will mount on a NEMA "C" face
motors frame size 213C, 215C 254UC and
256UC.
A. Mounting the Splined Armature Hub
1. Insert the bushing into the splined armature
hub. Insert the two capscrews loosely into the
bushing.
2. Insert the key in the motor shaft.
3. Holding the hub so that the capscrew heads
are facing the NEMA motor, slide the hub on to
the motor shaft. (Figure 1)
B. Mounting the Adapter
1. Mount the adapter to the C-flange end bell of
the motor using capscrews and lockwashers.
The flat side of the O.D. of the adapter should
be mounted towards the bottom of the
motor. (Figure 2)
Figure 2
Figure 1
4. Position the armature hub in the location
specified by dimensions on the illustration
drawings.
5. Secure the hub in this position by alternately
tightening the two capscrews in the bushing.
6. After tightening the capscrews, recheck the
positioning dimension of the splined armature
hub. Reposition if necessary.
2. Mount the magnet to the adapter with
capscrews and lockwashers. Be sure both
surfaces are clean and free of burrs and
chips. Position the magnet so that the lead
wires are in position with the desired conduit
entrance. (Figure 3)
Figure 3
Warner Electric • 800-825-9050 P-208 • 819-0367
6
C. Assembling the Armature and Hub
These units contain spline drive armatures.
The armatures are shipped with a built-in spring
accessory. This device automatically maintains
a gap of about 1/32-inch between the armature
and magnet faces for the life of the unit.
These units are shipped with the armature,
splined armature adapter, and autogap already
assembled.
1. Slide the spline drive armature onto the splined
hub. The segmented side of the armature faces
toward the magnet. (Figure 4)
3. Bolt the cover to the adapter using
capscrews and lockwashers. (Figure 5)
Figure 5
Figure 4
2. Press on the splined armature adapter, and
slide the armature forward until it is in full
contact with the magnet face. Note: The
autogap detent ring in the splined adapter
grips the hub very tightly, and requires
considerable force to slide onto the hub.
When the armature is released, it will spring
back about 1/32-inch. This gap will be
automatically maintained for the life of
the unit.
Warner Electric • 800-825-9050 P-208 • 819-0367
7
Motor Brake
Hub Drive Pin
Red Spring
Detent Retainer
Detent Ring
1/2-inch
Light
Spring
Armature
Pin Drive Armature
MB-825, MB-1000, MB-1225
The motor brakes will mount on a NEMA "C"
face motors frame size 213C, 215C, 254UC
and 256UC.
A. Mounting the Adapter and Magnet
1. Mount the adapter to the C-flange end bell
of the motor. Secure the adapter with
capscrews and lockwashers.
2. Mount the magnet to the adapter with
capscrews and lockwashers. Be sure both
surfaces are clean and free of burrs and
chips. A machined pilot diameter on the O.D.
of the magnet mounting flange corresponds
with a pilot diameter on the adapter.
Step 2
Assemble the red spring over the drive pin. The
smaller diameter of the spring should be against
the hub (Figure 1).
Step 3
Place the detent retainer over the pin. The
cupped-out portion should be against the spring.
(See Figure 2.)
Figure 2
Step 4
B. Assembling the Armature and Hub
Assemble the armature to the armature hub
with the autogap mounting accessory.
Follow these instructions to assemble the
armature and hub:
Step 1
Insert the drive pin into the hub and tighten until
the shoulder of the pin is against the hub.
(See Figure 1.)
Place the detent ring on the pin and press it into
the recessed portion of the detent retainer (Figure
2).
Step 5
Slide the detent ring towards the hub to allow
about 1/2" between the ring and the head of the
pin (Figure 2).
Step 6
Slide the armature onto the pins. The face of the
armature should be towards the hub. (Figure 3)
8
Warner Electric • 800-825-9050 P-208 • 819-0367
Figure 1
Figure 3
Step 7
Retainer Ring
1/16-inch
Capscrew
Armature
Hub
Magnet
Detent Spring Retainer
Assemble the light spring over the pin. The
large diameter of the spring should be against the
armature.
Step 8
Compress the spring to allow the retainer ring to
be snapped into the groove at the head of the pin
(Figure 4).
C. Mounting the Armature-Hub Assembly
1. Insert the taperlock bushing into the bore of the
hub.
3. Position the assembly to allow a gap of
1/16-inch between the faces of the armature
and magnet (Figure 5)
4. Secure the assembly in this position by
alternately tightening the locking setscrews.
The bushing should be tapped lightly from
time-to-time to make sure it seats-in properly.
5. Set the autogap by pressing the armature into
contact with the friction face and then releasing
the armature. The armature should spring back
approximately 1/32-inch. Once this gap is set it
will be automatically maintained throughout the
life of the unit.
6. Bolt the cover to the adapter using
capscrews and lockwashers (Figure 6).
Figure 4
2. Loosely insert the locking setscrews and slide
Figure 6
the assembly onto the shaft.
Figure 5
Warner Electric • 800-825-9050 P-208 • 819-0367
9
Coil Data
Unit Size PB & MB-825 PB & MB-1000 PB & MB-1225 PB & MB-1525
Voltage — DC 6 24 90 6 24 90 6 24 90 6 24 90
Resistance @ 20°C — Ohms 1.27 20.4 223.3 1.23 19.7 248.7 1.33 22.3 261.7 1.45 19.8 258.4
Current — Amperes 4.74 1.18 .4 4.87 1.22 .36 4.5 1.08 .34 4.13 1.21 .35
Watts 28 28 36 29 29 33 27 26 31 25 29 31
Coil Build-up — Milliseconds 170 170 170 205 220 235 300 320 350 470 490 512
Coil Decay — Milliseconds 70 75 80 70 75 80 190 190 190 200 170 140
Notes: Build-up time equals current to approximately* 90% of steady state value and flux to 90%.
Decay time equals current to approximately* 10% of steady state value and flux to 10%.
*Approximately because current leads or lags flux by a small amount.
Burnishing and Maintenance
Burnishing
Intimate metal to metal contact is essential
between the armature and the metal rings (poles) of
the magnet or rotor. Warner Electric clutches and
brakes leave the factory with the friction material
slightly undercut to assure good initial contact.
Normally, the desired wearing-in process occurs
naturally as the surfaces slip upon engagement.
The time for wear-in, which is necessary to
obtain the ultimate torque of the unit, will vary
depending on speed, load, or cycle duty.
If maximum torque is required immediately after
installation, the unit should be burnished by slipping
the friction surfaces together at reduced voltage. It is
recommended that the burnishings be done right on
the application, if at all possible.
Burnishing at high speed will result in a smoother
wear-in pattern and reduce the time for burnishing.
The voltage should be set at approximately 30% or
50% of the rated value.
The unit should be cycled on and off to allow
sufficient time between slip cycles to prevent
overheating.
When a Warner Electric brake or clutch is
properly assembled and installed, no further
servicing, lubrication, or maintenance should be
required throughout the life of the unit.
Maintenance
Wear Pattern: Wear grooves appear on the
armature and magnet surfaces. This is a normal
wear condition, and does not impair functioning
of the unit. Normally, the magnet and armature,
as a mating pair, will wear at the same rate. It is
the usual recommendation that both
components be replaced at the same time.
Remachining the face of a worn armature is not
recommended. If a replacement armature is to
be used with a used magnet, it is necessary to
remachine the worn magnet face. In refacing a
magnet: (1) machine only enough material to
clean up the complete face of the magnet; (2)
hold the face within .005" of parallel with the
mounting plate; and (3) undercut the molded
facing material .001" - .003" below the metal
poles.
Heat: Excessive heat and high operating
temperatures are causes of rapid wear. Units,
therefore, should be ventilated as efficiently as
possible, especially if the application requires
fast, repetitive cycle operation.
Warner Electric • 800-825-9050 P-208 • 819-0367
10
Foreign Materials: If units are used on
machinery where fine, abrasive dust, chips or grit
are dispelled into the atmosphere, shielding of
the brake may be necessary if maximum life is to
be obtained.
Where units are used near gear boxes or
transmissions requiring frequent lubrication,
means should be provided to protect the friction
surfaces from oil and grease to prevent serious
loss of torque.
Oil and grease accidentally reaching the friction
surfaces may be removed by wiping with a rag
dampened with a suitable cleaner, which leaves
no residue. In performing this operation, do not
drench the friction material.
If the friction materials have been saturated with
oil or grease, no amount of cleaning will be
completely effective. Once such a unit has been
placed back in service, heat will cause the oil to
boil to the surface, resulting in further torque loss.
with one magnet lead, will normally indicate
approximately .40 amperes for the 90 volt
units, 1.0 ampere for the 24 volt, and 3.5
amperes for the 6 volt series. These readings
are with the power on and the potentiometer
control in the maximum position.
Ohmmeter checks should be made with the
power off and the circuit open (to be certain,
disconnect one lead to the magnet). Average
resistance for the 90 volt series is 220 ohms;
for the 24 volt, 20 ohms; and for the 6 volt
series, 1.5 ohms. A very high or infinite
resistance reading would indicate an open coil.
If the above checks indicate that the proper
voltage and current is being supplied to the
magnet, mechanical parts should be checked
to assure that they are in good operating
condition and properly installed.
Torque Loss: If a brake or clutch slips or loses
torque completely, the initial check should be the
input voltage to the magnet as follows:
90-Volt Series: Connect a DC voltmeter with a
range of 0-100 or more directly across the
magnet terminals. With the power on and the
potentiometer turned up, a normal reading is 90
volts, although 85 to 95 is satisfactory. The
reading should drop as the potentiometer
control is adjusted counterclockwise.
24-Volt Series: Use a DC voltmeter with a
range of 0-30 volts or more. A normal reading
is approximately 22-26 volts.
6-Volt Series: Use a DC voltmeter of
approximately 0-15 volt range. A normal
reading is from 5.5 to 6.5 volts.
The above checks normally are sufficient.
Further checks may be made as follows: a
low range ammeter, when connected in series
Warner Electric • 800-825-9050 P-208 • 819-0367
11
Removable plug in
ends for 1/2" conduit.
.358/.338 dia. (6) holes
equally spaced on 4.250
dia.
6.812 Max.
3.503/3.501
Pilot Dia.
.358/.338 dia.
(4) holes equally
spaced on
8.875 dia.
9.749/9.747 Pilot Dia.
3.750
PB-825 Brake–Normal Duty
8.656
Max.
Dia.
1.546
.921
5/16-18
UNC-3A
5.656
1.593
1.500
4.625
Dia.
.562
Max.
2.562
Dia.
.093 When New
1.312
3.609 Max.
.562
.062
Min.
Running
Clearance
See page 32 for details on
Bushings.
Armature View
12
* Mounting holes are within .010 of true positioning relative to pilot
diameter.
Shaft Size .500 – 1.625
Static Torque 125 lb. ft.
Maximum Speed 4,000 rpm
Standard Voltage D.C. 6, 24, 90
(Inside & Outside Mounted)
Customer Shall Maintain:
1. Squareness of magnet mounting face with
armature shaft within .006 T.I.R.
Magnet View
All dimensions are nominal unless otherwise noted.
2. Concentricity of magnet mounting pilot
diameter with armature shaft within .010 T.I.R.
Warner Electric • 800-825-9050 P-208 • 819-0367
PB-825 Brake –Normal Duty Drawing I-25566
2
1
3
4
7
6B-1
6B
7
6A-1
6A
5A
5B
Item Description Part Number Qty.
1 Bushing 1
1/2" to 1-5/8" Bore 180-0131 to 180-0149
2 Armature Hub 540-0394 1
3 Armature 5301-111-018 1
4 Autogap Accessory 5201-101-008 3
5A Mounting Accessory - I.M. 5321-101-001 1
5B Mounting Accessory - O.M. 5321-101-002 1
6A Magnet - Inside Mounted 1
6 Volt 5311-631-002
24 Volt 5311-631-003
90 Volt 5311-631-004
†90 Volt LK Facing 5311-631-011
6A-1 Terminal Accessory 5311-101-001 1
6B Magnet, Outside Mounted 1
6 Volt 5311-631-007
24 Volt 5311-631-009
90 Volt 5311-631-008
†90 Volt LK Facing 5311-631-012
6B-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
*See page 32 for specific part numbers. †Optional LK facing
available.
How to Order:
1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5A and 6A or
Outside Mounted for Items 5B and 6B.
3. Specify Voltage for Item 6A or 6B.
Example:
PB-825 Brake per I-25566 90 Volt, Inside Mounted, 1" Bore
These units, when used in conjunction with the
correct Warner Electric conduit box, meet the
standards of UL508 and are listed under guide
card #NMTR, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
13
Removable plug in
ends for 1/2" conduit.
.358/.338 dia. (6) holes
equally spaced on 6.125
dia.
7.687 Max.
5.378/5.376
Pilot Dia.
.358/.338 dia.
(8) holes
equally
spaced on
10.625 dia.*
11.500/11.4989
Pilot Dia.
3.750
PB-1000 Brake–Normal Duty
10.328
Max.
Dia.
1.546
.921
5/16-18
UNC-3A
6.531
1.906
1.750
6.250
Dia.
.562
Max.
4.125
Dia.
.093 When New
1.453
4.046 Max.
.562
.062
Min.
Running
Clearance
See page 32 for details
on Bushings.
Armature View
(Inside & Outside Mounted)
Magnet View
Customer Shall Maintain:
1. Squareness of magnet mounting face with
armature shaft within .006 T.I.R.
2. Concentricity of magnet mounting pilot
diameter with armature shaft within .010 T.I.R.
* Mounting holes are within .010 of true position relative to pilot
diameter.
Shaft Size .500 – 2.500
Static Torque 240 lb. ft.
Maximum Speed 3,600 rpm
Standard Voltage D.C. 6, 24, 90
All dimensions are nominal unless otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
14
PB-1000 Brake–Normal Duty Drawing I-25586
2
1
3
4
7
6B-1
6B
7
6A-1
6A
5A
5B
Item Description Part Number Qty.
1 Bushing* 1
1/2" to 2-1/2" Bore 180-0185 to 180-0217
2 Armature Hub 540-0313 1
3 Armature 5302-111-013 1
4 Autogap Accessory 5201-101-008 3
5A Mounting Accessory - I.M. 5321-101-001 1
5B Mounting Accessory - O.M. 5321-101-002 2
6A Magnet - Inside Mounted 1
6 Volt 5312-631-004
24 Volt 5312-631-005
90 Volt 5312-631-006
†90 Volt LK Facing 5312-631-001
6A-1 Terminal Accessory 5311-101-001 1
6B Magnet, Outside Mounted 1
6 Volt 5312-631-011
24 Volt 5312-631-013
90 Volt 5312-631-012
†90 Volt LK Facing 5312-631-002
6B-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
*See page 32 for specific part numbers. †Optional LK facing
available.
How to Order:
1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5A and 6A or
Outside Mounted for Items 5B and 6B.
3. Specify Voltage for Item 6A or 6B.
Example:
PB-1000 Brake per I-25586 90 Volt, Inside Mounted, 1" Bore
These units, when used in conjunction with the
correct Warner Electric conduit box, meet the
standards of UL508 and are listed under guide
card #NMTR, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
15
3.750
Removable plug in
ends for 1/2" conduit
.358/.338 dia. (6) holes
equally spaced on 7.250
dia.*
6.378/6.376
Pilot Dia.
.358/.338 dia.
(8) holes equally
spaced on
13.000 dia.*
13.875/13.871
pilot dia.
8.687
PB-1225 Brake–Normal Duty
.921
1.546
7.531
5/16-18
UNC-3A
.562
Max.
4.625 Dia.
3
6.875
Dia.
12.671
Max.
Dia.
.093 When New
1.640
5.359 Max.
.593
.062
Min.
Running
Clearance
See page 32 for
details on
Bushings.
Armature View
Shaft Size .937 – 3.000
Static Torque 465 lb. ft.
Magnet View
(Inside & Outside Mounted)
* Mounting holes are within .010 of true position relative to pilot diameter.
Customer Shall Maintain:
1. Squareness of magnet mounting face with
Maximum Speed 3,000 rpm
Standard Voltage D.C. 6, 24, 90
All dimensions are nominal unless otherwise noted.
armature shaft within .006 T.I.R.
2. Concentricity of magnet mounting pilot
diameter with armature shaft within .010 T.I.R.
Warner Electric • 800-825-9050 P-208 • 819-0367
16
1
2
3
4
7
6B
6B-1
7
5B
6A
6A-1
5A
PB-1225 Brake–Normal Duty Drawing I-25606
Item Description Part Number Qty.
1 Bushing* 1
15/16" to 3" Bore 180-0262 to 180-0295
2 Armature Hub 540-0015 1
3 Armature 5303-111-009 1
4 Autogap Accessory 5201-101-008 4
5A Mounting Accessory - I.M. 5321-101-001 1
5B Mounting Accessory - O.M. 5321-101-002 2
6A Magnet - Inside Mounted 1
6A-1 Terminal Accessory 5311-101-001 1
6B Magnet - Outside Mounted 1
6B-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
*See page 32 for specific part numbers. †Optional LK facing
available.
6 Volt 5313-631-005
24 Volt 5313-631-006
90 Volt 5313-631-007
†90 Volt 5313-631-001
6 Volt 5313-631-010
24 Volt 5313-631-012
90 Volt 5313-631-011
†90 Volt 5313-631-002
How to Order:
1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5A and 6A
or Outside Mounted for Items 5B and 6B.
3. Specify Voltage for Item 6A or 6B.
Example:
PB-1225 Brake per I-25606 - 90 Volt,
1" Bore, Inside Mounted
These units, when used in conjunction with the
correct Warner Electric conduit box, meet the
standards of UL508 and are listed under guide
card #NMTR, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
17
3.750
Removable plug in
ends for 1/2" conduit.
.358/.338 dia. (12)
holes equally
spaced on 9.750
dia.*
9.002/9.000
Pilot Dia.
PB-1525 Brake–Normal Duty
1.546
.921
5/16-18
UNC-3A
9.187
3
7.093 Dia.
15.609
Max.
Dia.
9.500
6 Dia.
.062
Min.
Running
Clearance
4.500 Max.
.593 1.750
.093 When New
.562 Max.
See page 32 for
details on
Bushings.
Armature View
Magnet View
(Inside & Outside Mounted)
* Mounting holes are within .010 of true position relative to pilot diameter.
Shaft Size .937 – 3.000
Static Torque 700 lb. ft.
Maximum Speed 2,000 rpm
Standard Voltage D.C. 6, 24, 90
Customer Shall Maintain:
1. Squareness of magnet mounting face with
All dimensions are nominal unless otherwise noted.
armature shaft within .006 T.I.R.
2. Concentricity of magnet mounting pilot
diameter with armature shaft within .010 T.I.R.
Warner Electric • 800-825-9050 P-208 • 819-0367
18
3
6
5
6-1
7
1
2
4
PB-1525 Brake–Normal Duty Drawing I-25633
Item Description Part Number Qty.
1 Bushing* 1
15/16" to 3" Bore 180-0262 to 180-0295
2 Armature Hub 540-0314 1
3 Armature 5304-111-004 1
4 Autogap Accessory 5201-101-008 4
5 Mounting Accessory - I.M. 5321-101-001 2
6 Magnet - Inside Mounted 1
6 Volt 5314-631-004
24 Volt 5314-631-006
90 Volt 5314-631-005
†90 Volt 5314-631-001
6-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
*See page 32 for specific part numbers. †Optional LK facing
available.
How to Order:
1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5 and 6.
3. Specify Voltage for Item 6.
Example:
PB-1525 Brake per I-25633 - 90 Volt,
1-1/2" Bore, Inside Mounted
These units, when used in conjunction with the
correct Warner Electric conduit box, meet the
standards of UL508 and are listed under guide
card #NMTR, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
19
MB-825 Motor Brake–Heavy Duty Flange Mounted
1/4-20 UNC-3B (4) holes
equally spaced on
10.750 dia. and within
.004 of true position.
BB
.437
45
1/2-14 NPSM Am. Std. straight
pipe tap (2) holes 180 apart.
Section B-B
4.187
5.750
4.812
2.250 Min.
3.500 Max.
D
10.000
Dia.
5/16-18 UNC-3B
(8) holes equally
spaced on 8.875 dia.*
4.359
Max.
2.687
1/2-13 UNC-2A (4)
holes equally spaced
on 7.250 dia.*
.062
2.250
Min.
3.375
Max.
8.509
8.501
Dia.
.156
11.515
Max. Dia.
Installation
NEMA Frame Sizes Dim. D
213C & 215C 5.250
254UC & 256UC 6.250
* Mounting holes are within .006 of true position.
Shaft Size .500 – 1.500
Static Torque 80 lb. ft.
Maximum Speed 4,000 rpm
Standard Voltage D.C. 90
All dimensions are nominal unless
otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
20
4
(Shipped
Assembled)
1
4-5
4-1
4-2
4-4
4-3
2
3
6
7
5-1
8
7
5
MB-825 Motor Brake–Heavy Duty Flange Mounted Drawing I-25576
Item Description Part Number Qty.
1 Cover 5351-288-001 1
2 Bushing* 1
1/2" to 1-1/2" Bore 180-0002 to 180-0018
3 Armature Hub 540-0057 1
4 Armature Assembly 5321-111-001 1
4-1 Armature 5321-111-022 1
4-2 Splined Adapter 104-0008 1
4-3 Autogap Accessory 5321-101-006 1
4-4 Screw 797-0272 3
4-5 Locknut 661-0004 3
5 Magnet 5351-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5351-105-001 1
7 Mounting Accessory 5351-101-003 1
8 Mounting Accessory 5321-101-002 1
*See page 32 for specific part numbers.
How to Order:
1. MB-825 Adapts to NEMA C Face, Double Shaft
Motors, Frame Sizes 213 C, 215 C,
254 UC and 256 UC.
2. Specify Bore Size for Item 4. (Frame size
determines bore.)
Example:
MB-825 Motor Brake per I-25576 - 90 Volt,
7/8" Bore
These units meet the standards of UL508 and are
listed under guide card #NMTR2, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
21
4.750
6.625
5.437
2.750 Min.
4 Max.
7
MB-1000 Motor Brake–Heavy Duty Flange Mounted
1/4-20 UNC-3B (4) holes
equally spaced on
12.500 dia. and within
.004 of true position.
B B
.593
1/2-14 NPSM Am. Std. straight
pipe tap (2) holes 180 apart.
Section B-B
45
11.750
5/16-18 UNC-3B (8)
holes equally spaced
on 10.625 dia.*
4.796 Max.
1/2-13 UNC-2A (4)
holes equally spaced
on 9.000 dia.*
13.265
Max.
10.509
10.501
Pilot
Dia.
.187
3.625 Min.
3.750 Max.
Position hub
to this
dimensions
3.750/3.625
Installation
NEMA Frame Sizes Dim. D
284UC & 286UC 7
*Mounting holes are within .006 of true position.
Shaft Size .750 – 2.687
Static Torque 160 lb. ft.
Maximum Speed 3,600 rpm
Standard Voltage D.C. 90
All dimensions are nominal unless
otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
22
4
(Shipped
Assembled)
1
4-5
4-1
4-2
4-4
4-3
2
3
6
7
5-1
8
7
5
MB-1000 Motor Brake–Heavy Duty Flange Mounted Drawing I-25595
Item Description Part Number Qty.
1 Cover 5352-288-001 1
2 Bushing* 1
3/4" to 2-11/16" Bore 180-0026 to 180-0057
3 Armature Hub 540-0062 1
4 Armature Assembly 5322-111-002 1
4-1 Armature 5322-111-036 1
4-2 Splined Adapter 104-0009 1
4-3 Autogap Accessory 5322-101-004 1
4-4 Screw 797-0272 3
4-5 Locknut 661-0004 3
5 Magnet 5352-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5352-105-001 1
7 Mounting Accessory 5351-101-003 2
8 Mounting Accessory 5321-101-002 1
*See page 32 for specific part numbers.
How to Order:
1. MB-1000 Adapts to NEMA C Face, Double Shaft
Motors, Frame Sizes 284 UC and 286 UC.
2. Specify Bore Size for Item 4. (Frame size
determines bore.)
Example:
MB-1000 Motor Brake per I-25595 - 90 Volt,
1-3/8" Bore
These units meet the standards of UL508 and are
listed under guide card #NMTR2, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
23
4.937
7.843
6.875
3.250 Min.
4.125 Max.
D
1/4-20 UNC-3B (4) holes
equally spaced on
15.000 dia. and within
.004 of true position.
BB
.718
1/2-14 NPSM Am. Std. straight
pipe tap (2) holes 180 apart.
Section B-B
45
MB-1225 Motor Brake–Heavy Duty Flange Mounted
5.296
Max.
2.812
5/16-18 UNC-3B
(8) holes equally
spaced on
13.000 dia.*
1/2-13 UNC-2A
(4) holes equally
spaced on 9.000
dia.*
5/8-16 UNC-2A
(4) holes equally
spaced on
11.000 dia.*
.110
3.250
Min.
4.062
Max.
14.125
Dia.
.062
15.703
Max. Dia.
10.509
10.501
Pilot Dia.
12.509
12.501
Pilot Dia.
.093
Installation
NEMA Frame Sizes Dim. D
284UC & 286UC 7
324UC & 326UC 8
364UC & 365UC 9
* Mounting holes are within .006 of true position.
Shaft Size .750 – 2.687
Static Torque 260 lb. ft.
Maximum Speed 3,000 rpm
Standard Voltage D.C. 90
All dimensions are nominal unless
otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
24
4
(Shipped
Assembled)
1
4-5
4-1
4-2
4-4
4-3
2
3
6
7
5-1
8
7
5
MB-1225 Motor Brake–Heavy Duty Flange Mounted Drawing I-25618
Item Description Part Number Qty.
1 Cover 5353-288-001 1
2 Bushing* 1
3/4" to 2-11/16" Bore 180-0026 to180-0057
3 Armature Hub 540-0064 1
4 Armature Assembly 5323-111-001 1
4-1 Armature 5323-111-034 1
4-2 Splined Adapter 104-0010 1
4-3 Autogap Accessory 5323-101-002 1
4-4 Screw 797-0281 4
4-5 Locknut 661-0005 4
5 Magnet 5353-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5353-105-002 1
7 Mounting Accessory 5351-101-003 2
8 Mounting Accessory 5321-101-002 1
*See page 32 for specific part numbers.
How to Order:
1. MB-1225 Adapts to NEMA C Face, Double Shaft
Motors, Frame Sizes 284, 284 UC, 324 UC, 326
UC, 364 UC and 365 UC.
2. Specify Bore Size for Item 2. (Frame size
determines bore.)
Example:
MB-1225 Motor Brake per I-25618 - 90 Volt,
1-5/8" Bore
These units meet the standards of UL508 and are
listed under guide card #NMTR2, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
25
MB-825 Motor Brake–Normal Duty Flange Mounted
4.187
5.750
4.812
2.250 Min.
3.500 Max.
D
1/4-20 UNC-3B (4) holes
equally spaced on
10.750 dia.
BB
.437
.875 dia.
(2) holes 180 apart.
Section B-B
45
10.000
Dia.
5/16 -18 UNC-3B
(8) holes equally
spaced on 8.875 dia.*
4.359
Max.
2.687
1/2-13 UNC-2A (4)
holes equally spaced
on 7.250 dia.*
.062
2.250
Min.
3.375
Max.
8.509
8.501
Dia.
.156
11.515
Max. Dia.
Installation
NEMA Frame Sizes Dim. D
213C & 215C 5.250
254UC & 256UC 6.250
* Mounting holes are within .006 of true position.
Shaft Size .500 – 1.625
Static Torque 80 lb. ft.
Maximum Speed 4,000 rpm
Standard Voltage D.C. 90
All dimensions are nominal unless
otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
26
1
4
3
2
10
8
7
5
9
5-1
7
6
MB-825 Motor Brake–Normal Duty Flange Mounted Drawing I-25572
Item Description Part Number Qty.
1 Cover 5351-288-001 1
2 Bushing* 1
1/2" to 1-5/8" Bore 180-0131 to 180-0149
3 Armature Hub 540-0394 1
4 Armature 5301-111-018 1
5 Magnet - 90 Volt 5351-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5351-105-001 1
7 Mounting Accessory 5351-101-003 1
8 Drive Pin and Retainer 5301-101-001 3
9 Mounting Accessory 5321-101-002 1
10 Spring Accessory 5301-101-014 3
*See page 32 for specific part numbers.
How to Order:
1. MB-825 Adapts to NEMA C Face, Double Shaft
Motors, Frame Sizes 213 C, 215 C, 254 UC
and 256 UC.
2. Specify Bore Size for Item 2. (Frame size
determines bore.)
Example:
MB-825 Motor Brake per I-25572 - 90 Volt,
7/8" Bore
These units meet the standards of UL508 and are
listed under guide card #NMTR2, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
27
4.750
6.625
5.437
2.750 Min.
4 Max.
7
MB-1000 Motor Brake–Normal Duty Flange Mounted
1/4-20 UNC-3B (4) holes
equally spaced on
12.500 dia.
BB
.437
7/8 dia.
(2) holes 180 apart.
Section B-B
45
11.750
Dia.
5/16 -18 UNC-3B
(8) holes equally
spaced on 10.625 dia.*
4.796
Max.
2.687
1/2-13 UNC-2A (4)
holes equally spaced
on 9.000 dia.*
.062
2.75
Min.
3.750
Max.
10.509
10.501
Dia.
.187
13.265
Max. Dia.
Installation
NEMA Frame Sizes Dim. D
284UC & 286UC 7
* Mounting holes are within .006 of true position.
Shaft Size .500 – 2.500
Static Torque 160 lb. ft.
Maximum Speed 3,600 rpm
Standard Voltage D.C. 90
All dimensions are nominal unless
otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
28
1
4
3
2
10
8
7
5
9
5-1
7
6
MB-1000 Motor Brake–Normal Duty Flange Mounted Drawing I-25591
Item Description Part Number Qty.
1 Cover 5352-288-001 1
2 Bushing* 1
1/2" to 2-1/2" Bore 180-0185 to 180-0217
3 Armature Hub 540-0313 1
4 Armature 5302-111-013 1
5 Magnet - 90 Volt 5352-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5352-105-001 1
7 Mounting Accessory 5351-101-003 1
8 Drive Pin and Retainer 5301-101-001 3
9 Mounting Accessory 5321-101-002 2
10 Spring Accessory 5301-101-014 3
*See page 32 for specific part numbers.
How to Order:
1. MB-1000 Adapts to NEMA C Face, Double
Shaft Motors, Frame Sizes 284 UC and
286 UC.
2. Specify Bore Size for Item 2. (Frame size
determines bore.)
Example:
MB-1000 Motor Brake per I-25591 - 90 Volt,
1-3/8" Bore
These units meet the standards of UL508 and
are listed under guide card #NMTR2, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
29
MB-1225 Motor Brake–Normal Duty Flange Mounted
4.937
7.843
6.875
3.250 Min.
4.125 Max.
D
1/4-20 UNC-3B (4) holes
equally spaced on
15.000 dia.
BB
.718
7/8 dia.
(2) holes 180 apart.
Section B-B
45
5.296
Max.
2.812
5/16-18 UNC-3B
(8) holes equally
spaced on
13.000 dia.*
1/2-13 UNC-2A
(4) holes equally
spaced on 9.000
dia.*
5/8-16 UNC-2A
(4) holes equally
spaced on
11.000 dia.*
.093
3.250
Min.
4.062
Max.
14.125
Dia.
.062
15.703
Max. Dia.
10.509
10.501
Pilot Dia.
12.509
12.501
Pilot Dia.
.093
Installation
NEMA Frame Sizes Dim. D
284UC & 286UC 7
324UC & 326UC 8
364UC & 365UC 8
*Mounting holes are within .006 of true position.
Shaft Size .500 – 2.500
Static Torque 260 lb. ft.
Maximum Speed 3,000 rpm
Standard Voltage D.C. 90
All dimensions are nominal unless
otherwise noted.
Warner Electric • 800-825-9050 P-208 • 819-0367
30
1
4
3
2
10
8
7
5
9
5-1
7
6
MB-1225 Motor Brake–Normal Duty Flange Mounted Drawing I-25614
Item Description Part Number Qty.
1 Cover 5353-288-001 1
2 Bushing* 1
1/2" to 2-1/2" Bore 180-0185 to 180-0217
3 Armature Hub 540-0014 1
4 Armature 5303-111-009 1
5 Magnet - 90 Volt 5353-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5353-105-002 1
7 Mounting Accessory 5351-101-003 1
8 Drive Pin and Retainer 5301-101-001 4
9 Mounting Accessory 5321-101-002 2
10 Spring Accessory 5303-101-006 4
*See page 32 for specific part numbers.
How to Order:
1. MB-1225 Adapts to NEMA C Face, Double
Shaft Motors, Frame Sizes 284, 284 UC, 324
UC, 326 UC, 364 UC and 365 UC.
2. Specify Bore Size for Item 2. (Frame size
determines bore.)
Example:
MB-1225 Motor Brake per I-25614 - 90 Volt,
1-5/8" Bore
These units meet the standards of UL508 and
are listed under guide card #NMTR2, file #59164.
Warner Electric • 800-825-9050 P-208 • 819-0367
31
Bushing Part Numbers
Dodge Bushing
Bushing Number
Shaft Size Keyway Size Warner Electric Dodge
1/2 1/8 x 1/16 180-0101 1210
9/16 1/8 x 1/16 180-0102
5/8 3/16 x 3/32 180-0103
11/16 3/16 x 3/32 180-0104
3/4 3/16 x 3/32 180-0105
13/16 3/16 x 3/32 180-0106
7/8 3/16 x 3/32 180-0107
5/16 1/4 x 1/8 180-0108
1 1/4 x 1/8 180-0109
1-1/16 1/4 x 1/8 180-0110
1-1/8 1/4 x 1/8 180-0111
1-3/16 1/4 x 1/8 180-0112
1-1/4 1/4 x 1/8 180-0113
1/2 1/8 x 1/16 180-0116 1215
9/16 1/8 x 1/16 180-0117
5/8 3/16 x 3/32 180-0118
11/16 3/16 x 3/32 180-0119
3/4 3/16 x 3/32 180-0120
13/16 3/16 x 3/32 180-0121
7/8 3/16 x 3/32 180-0122
15/16 1/4 x 1/8 180-0123
1 1/4 x 1/8 180-0124
1-1/16 1/4 x 1/8 180-0125
1-1/8 1/4 x 1/8 180-0126
1-3/16 1/4 x 1/8 180-0127
1-1/4 1/4 x 1/8 180-0128
1/2 1/8 x 1/16 180-0131 1615
9/16 1/8 x 1/16 180-0132
5/8 3/16 x 3/32 180-0133
11/16 3/16 x 3/32 180-0134
3/4 3/16 x 3/32 180-0135
13/16 3/16 x 3/32 180-0136
7/8 3/16 x 3/32 180-0137
15/16 1/4 x 1/8 180-0138
1 1/4 x 1/8 180-0139
1-1/16 1/4 x 1/8 180-0140
1-1/8 1/4 x 1/8 180-0141
1-3/16 1/4 x 1/8 180-0142
1-1/4 1/4 x 1/8 180-0143
1-5/16 5/16 x 5/32 180-0144
1-3/8 5/16 x 5/32 180-0145
1-7/16 3/8 x 3/16 180-0146
1-1/2 3/8 x 3/16 180-0147
1-9/16 3/8 x 3/16 180-0148
1-5/8 3/8 x 3/16 180-0149
1/2 1/8 x 1/16 180-0155 2012
9/16 1/8 x 1/16 180-0156
5/8 3/16 x 3/32 180-0157
11/16 3/16 x 3/32 180-0158
3/4 3/16 x 3/32 180-0159
13/16 3/16 x 3/32 180-0160
7/8 3/16 x 3/32 180-0161
15/16 1/4 x 1/8 180-0162
1 1/4 x 1/8 180-0163
1-1/16 1/4 x 1/8 180-0164
1-1/8 1/4 x 1/8 180-0165
1-3/16 1/4 x 1/8 180-0166
1-1/4 1/4 x 1/8 180-0167
Bushing Number
Shaft Size Keyway Size Warner Electric Dodge
1-5/16 5/16 x 5/32 180-0168 2012
1-3/8 5/16 x 5/32 180-0169
1-7/16 3/8 x 3/16 180-0170
1-1/12 3/8 x 3/16 180-0171
1-9/16 3/8 x 3/16 180-0172
1-5/8 3/8 x 3/16 180-0173
1-11/16 3/8 x 3/16 180-0174
1-3/4 3/8 x 3/16 180-0175
1-13/16 1/2 x 1/4 180-0176
1-7/8 1/2 x 1/4 180-0177
1-15/16 1/2 x 1/4 180-0178
2 1/2 x 1/4 180-0179
1/2 1/8 x 1/16 180-0185 2517
9/16 1/8 x 1/16 180-0186
5/8 3/16 x 3/32 180-0187
11/16 3/16 x 3/32 180-0188
3/4 3/16 x 3/32 180-0189
13/16 3/16 x 3/32 180-0190
7/8 3/16 x 3/32 180-0191
15/16 1/4 x 1/8 180-0192
1 1/4 x 1/8 180-0193
1-1/16 1/4 x 1/8 180-0194
1-1/8 1/4 x 1/8 180-0195
1-3/16 1/4 x 1/8 180-0196
1-1/4 1/4 x 1/8 180-0197
1-5/16 5/16 x 5/32 180-0198
1-3/8 5/16 x 5/32 180-0199
1-7/16 3/8 x 3/16 180-0200
1-1/2 3/8 x 3/16 180-0201
1-9/16 3/8 x 3/16 180-0202
1-5/8 3/8 x 3/16 180-0203
1-11/16 3/8 x 3/16 180-0204
1-3/4 3/8 x 3/16 180-0205
1-13/16 1/2 x 1/4 180-0206
1-7/8 1/2 x 1/4 180-0207
1-15/16 1/2 x 1/4 180-0208
2 1/2 x 1/4 180-0209
2-1/16 1/2 x 1/4 180-0210
2-1/8 1/2 x 1/4 180-0211
2-3/16 1/2 x 1/4 180-0212
2-1/4 1/2 x 1/4 180-0213
2-5/16 5/8 x 5/16 180-0214
2-3/8 5/8 x 5/16 180-0215
2-7/16 5/8 x 5/16 180-0216
2-1/2 5/8 x 5/16 180-0217
15/16 1/4 x 1/8 180-0223 3020
1 1/4 x 1/8 180-0224
1-1/16 1/4 x 1/8 180-0225
1-1/8 1/4 x 1/8 180-0226
1-3/16 1/4 x 1/8 180-0227
1-1/4 1/4 x 1/8 180-0228
1-5/16 5/16 x 5/32 180-0229
1-3/8 5/16 x 5/32 180-0230
1-7/16 3/8 x 3/16 180-0231
1-1/2 3/8 x 3/16 180-0232
1-9/16 3/8 x 3/16 180-0233
1-5/8 3/8 x 3/16 180-0234
Warner Electric • 800-825-9050 P-208 • 819-0367
32
Bushing Number
Shaft Size Keyway Size Warner Electric Dodge
1-11/16 3/8 x 3/16 180-0235 3020
1-3/4 3/8 x 3/16 180-0236
1-13/16 1/2 x 1/4 180-0237
1-7/8 1/2 x 1/4 180-0238
1-15/16 1/2 x 1/4 180-0239
2 1/2 x 1/4 180-0240
2-1/16 1/2 x 1/4 180-0241
2-1/8 1/2 x 1/4 180-0242
2-3/16 1/2 x 1/4 180-0243
2-1/4 1/2 x 1/4 180-0244
2-5/16 5/8 x 5/16 180-0245
2-3/8 5/8 x 5/16 180-0246
2-7/16 5/8 x 5/16 180-0247
2-1/2 5/8 x 5/16 180-0248
2-9/16 5/8 x 5/16 180-0249
2-5/8 5/8 x 5/16 180-0250
2-11/16 5/8 x 5/16 180-0251
2-3/4 5/8 x 5/16 180-0252
2-13/16 3/4 x 3/8 180-0253
2-7/8 3/4 x 3/8 180-0254
2-15/16 3/4 x 3/8 180-0255
3 3/4 x 3/8 180-0256
15/16 1/4 x 1/8 180-0262 3030
1 1/4 x 1/8 180-0263
1-1/16 1/4 x 1/8 180-0264
1-1/8 1/4 x 1/8 180-0265
1-3/16 1/4 x 1/8 180-0266
1-1/4 1/4 x 1/8 180-0267
1-5/16 5/16 x 5/32 180-0268
1-3/8 5/16 x 5/32 180-0269
1-7/16 3/8 x 3/16 180-0270
1-1/2 3/8 x 3/16 180-0271
1-9/16 3/8 x 3/16 180-0272
1-5/8 3/8 x 3/16 180-0273
1-11/16 3/8 x 3/16 180-0274
1-3/4 3/8 x 3/16 180-0275
1-13/16 1/2 x 1/4 180-0276
1-7/8 1/2 x 1/4 180-0277
1-15/16 1/2 x 1/4 180-0278
2 1/2 x 1/4 180-0279
2-1/16 1/2 x 1/4 180-0280
2-1/18 1/2 x 1/4 180-0281
2-3/16 1/2 x 1/4 180-0282
2-1/4 1/2 x 1/4 180-0283
2-15/16 5/8 x 5/16 180-0284
2-3/8 5/8 x 5/16 180-0285
2-7/16 5/8 x 5/16 180-0286
2-1/2 5/8 x 5/16 180-0287
2-9/16 5/8 x 5/16 180-0288
2-5/8 5/8 x 5/16 180-0289
2-11/16 5/8 x 5/16 180-0290
2-3/4 5/8 x 5/16 180-0291
2-13/16 3/4 x 3/8 180-0292
2-7/8 3/4 x 3/8 180-0293
2-15/16 3/4 x 3/8 180-0294
3 3/4 x 3/8 180-0295
Warner Electric • 800-825-9050 P-208 • 819-0367
33
Warranty
Warner Electric LLC warrants that it will repair or replace (whichever it deems advisable) any
product manufactured and sold by it which proves to be defective in material or workmanship
within a period of one (1) year from the date of original purchase for consumer, commercial or
industrial use.
This warranty extends only to the original purchaser and is not transferable or assignable without
Warner Electric LLC’s prior consent.
Warranty service can be obtained in the U.S.A. by returning any defective product, transportation
charges prepaid, to the appropriate Warner Electric LLC factory. Additional warranty information
may be obtained by writing the Customer Satisfaction Department, Warner Electric LLC, 449
Gardner Street, South Beloit, Illinois 61080, or by calling 815-389-3771.
A purchase receipt or other proof of original purchase will be required before warranty service is
rendered. If found defective under the terms of this warranty, repair or replacement will be made,
without charge, together with a refund for transportation costs. If found not to be defective, you will
be notified and, with your consent, the item will be repaired or replaced and returned to you at
your expense.
This warranty covers normal use and does not cover damage or defect which results from
alteration, accident, neglect, or improper installation, operation, or maintenance.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you.
Warner Electric LLC’s obligation under this warranty is limited to the repair or replacement of the
defective product and in no event shall Warner Electric LLC be liable for consequential, indirect,
or incidental damages of any kind incurred by reason of the manufacture, sale or use of any
defective product. Warner Electric LLC neither assumes nor authorizes any other person to give
any other warranty or to assume any other obligation or liability on its behalf.
WITH RESPECT TO CONSUMER USE OF THE PRODUCT, ANY IMPLIED WARRANTIES WHICH
THE CONSUMER MAY HAVE ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF
ORIGINAL CONSUMER PURCHASE. WITH RESPECT TO COMMERCIAL AND INDUSTRIAL
USES OF THE PRODUCT, THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL
OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR
OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state.
Changes in Dimensions and Specifications
All dimensions and specifications shown in Warner Electric catalogs are subject to change without
notice. Weights do not include weight of boxing for shipment. Certified prints will be furnished
without charge on request to Warner Electric.
Warner Electric LLC
31 Industrial Park Road • New Hartford, CT 06057
815-389-3771 • Fax: 815-389-2582
www.warnerelectric.com
P-208 • 819-0367 8/11 Printed in USA
An Altra Industrial Motion Company
Loading...
