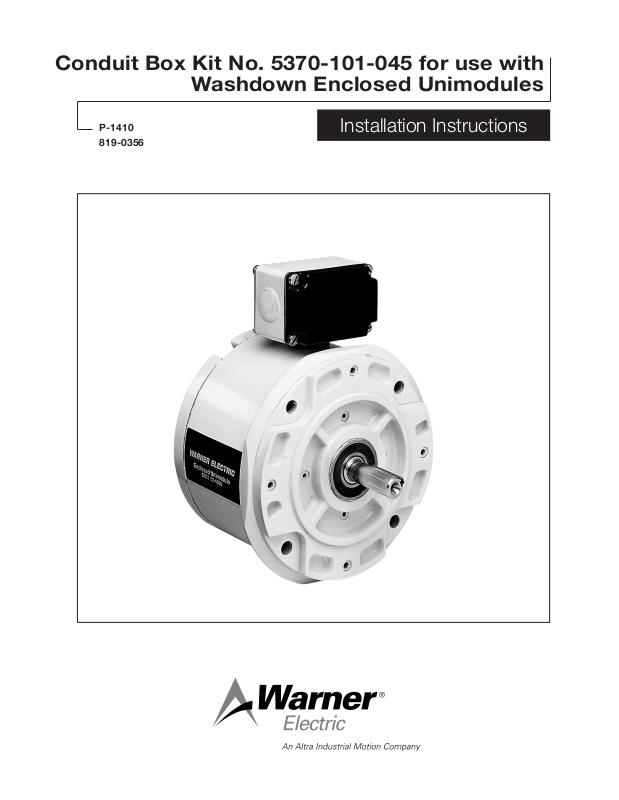

Conduit Box Kit No. 5370-101-045 for use with
Washdown Enclosed Unimodules
P-1410
819-0356
Installation Instructions
Introduction
4
8
9
10
5
6
3
4
9
1
2
7
This Warner Electric conduit box is designed to
provide a proper enclosure for wiring terminations
for Enclosed Unimodule Clutch/Brakes designed
for washdown service. It conforms to the
requirements of Underwriters Laboratories under
UL508, Industrial Control Equipment. Please follow
these instructions when installing this product;
failure to do so will void the warranty.
Failure to follow these
instructions may result in product damage,
equipment damage, and serious or fatal
injury to personnel.
Parts List for Kit 5370-101-045
Item Quantity Part Name
11Conduit Box
21Conduit Box Fitting
31Cover Plate
46Pan Head Tapping Screw
51Hex. Washer Head Screw
61Ring Terminal
72Protective Ring
81Cover (Plastic)
92Gasket
10 1 Rubber Washer
Note: All screws are self tapping.
2
Warner Electric • 800-234-3369 P-1410 • 819-0356
Assembly to Electro Module
Step 1 (See Figure 1)
Feed clutch/brake lead wires through rubber
washer (10) and bottom hole in conduit box (1)
and conduit box fitting (2).
Step 3 (See Figure 3)
Assemble 1/2" flexible conduit fitting equipped
with a rubber gasket or O ring liquid tight seal into
desired end of conduit box. Tighten to assure
liquid tight seal, but avoid using excess force
which could damage mounting and/or rupture O
ring or gasket. Install liquid tightprotective plug (7)
into conduit box hole whichs not used, assuring
outer sealing surface is flush against housing and
inner portion is pulled completely through.
Figure 1
Step 2 (See Figure 2)
Insert conduit box fitting (2) through bottom hole of
conduit box and thread into tapped hole of module
housing. Tighten securely to hold box in place and
assure a liquid tight seal. Hold wires tight to
prevent their twisting.
Figure 3
Step 4 (See Figure 4)
Connect liquid sealed electric supply cable or
flexible conduit to the liquid tight fitting installed in
the conduit box. Rigid conduit must not be
connected directly to the box as clutch/brake
damage may result. A minimum of 12 inches of
flexible cable or conduit is recommended.
Figure 4
Figure 2
Warner Electric • 800-234-3369 P-1410 • 819-0356
3
Step 5 (See Figure 5)
Insert two self tapping screws (4) through holes in
back cover (3) and install on housing with gasket
(9) between cover and housing. A high quality
gasket sealant such as Kopper Kote may be
applied to both sides of gasket prior to installation
to help assure liquid tight seal.
B. (See Figure 7) If CBC-150 series control
(not furnished) is used, cut clutch/brake lead
wires off to meet local codes and make
connections per CBC-150 installation
instructions. Use green self tapping screw (5) and
wire washer (6) to ground green wire to conduit
box back cover. A suitable grade of loctite may
be applied to the ground screw thread to assist
liquid sealing. Mount control to box with four self
tapping screws (4), metalling gasket (9) between
conduit box housing and cover. A high quality
sealant such as Kopper Kote may be applied to
both sides of the gasket to help assure a liquid
tight seal. This completes installation. Step 7
does not apply.
Figure 5
Step 6 Electrical Connections:
A. (See Figure 6) If external control is used, make
wire connections with wire nuts or appropriate
means in compliance with local electrical
codes. Use green self tapping screws (5) and
wire washer (6) to ground green wire to conduit
box back cover. A suitable grade of loctite may
be applied to the ground screw thread to assist
liquid tight sealing.
Important: Provide only DC power to the
clutch/brake. AC voltage will not allow unit to
function properly and damage may result.
Figure 7
Step 7
Install black plastic cover by inserting four
retaining screws through gasket provided and into
housing. A high quality sealant such as Kopper Kote
may be applied to both sides of the basket to help
assure a liquid tight seal.
This completes installation.
Figure 6
Warner Electric • 800-234-3369 P-1410 • 819-0356
4
Warranty
Warner Electric LLC warrants that it will repair or replace (whichever it deems advisable) any
product manufactured and sold by it which proves to be defective in material or workmanship within a
period of one (1) year from the date of original purchase for consumer, commercial or industrial use.
This warranty extends only to the original purchaser and is not transferable or assignable without Warner
Electric LLC’s prior consent.
Warranty service can be obtained in the U.S.A. by returning any defective product, transportation charges
prepaid, to the appropriate Warner Electric LLC factory. Additional warranty information may be obtained by
writing the Customer Satisfaction Department, Warner Electric LLC, 449 Gardner Street, South Beloit, Illinois
61080, or by calling 815-389-3771.
A purchase receipt or other proof of original purchase will be required before warranty service is
rendered. If found defective under the terms of this warranty, repair or replacement will be made, without
charge, together with a refund for transportation costs. If found not to be defective, you will be notified and,
with your consent, the item will be repaired or replaced and returned to you at your expense.
This warranty covers normal use and does not cover damage or defect which results from alteration,
accident, neglect, or improper installation, operation, or maintenance.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not
apply to you.
Warner Electric LLC’s obligation under this warranty is limited to the repair or replacement of the
defective product and in no event shall Warner Electric LLC be liable for consequential, indirect,
or incidental damages of any kind incurred by reason of the manufacture, sale or use of any defective
product. Warner Electric LLC neither assumes nor authorizes any other person to give any other warranty or
to assume any other obligation or liability on its behalf.
WITH RESPECT TO CONSUMER USE OF THE PRODUCT, ANY IMPLIED WARRANTIES WHICH THE
CONSUMER MAY HAVE ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL
CONSUMER PURCHASE. WITH RESPECT TO COMMERCIAL AND INDUSTRIAL USES OF THE
PRODUCT, THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES,
WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
Changes in Dimensions and Specifications
All dimensions and specifications shown in Warner Electric catalogs are subject to change without notice.
Weights do not include weight of boxing for shipment. Certified prints will be furnished without charge on
request to Warner Electric.
